Desoldering

Removing solder — desoldering — is often more difficult than applying it, and a ham radio operator who can only solder is only half equipped. You will repair transceivers where a component needs replacement, salvage useful parts from discarded equipment, and correct your own construction mistakes. Every one of those situations requires controlled, deliberate solder removal. This lesson teaches the complete toolkit of desoldering methods, explains exactly when and why to use each one, and gives you the technique details that separate a clean pad from a lifted trace.

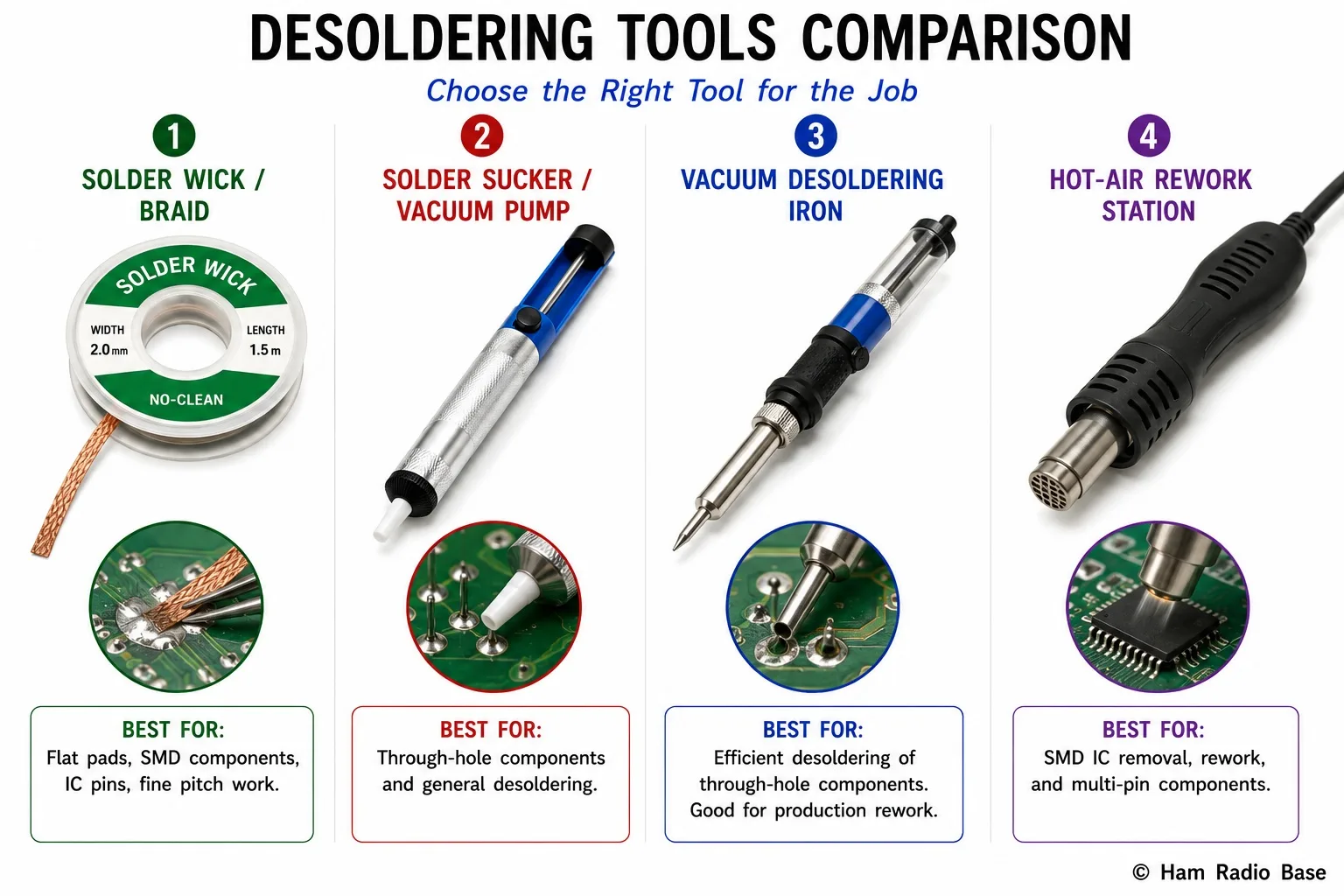

The four main desoldering tools: solder wick (best for flat pads and SMD pins), vacuum pump (best for through-hole via clearing), vacuum desoldering iron (efficient for production rework), and hot-air rework station (essential for SMD IC removal).

View Larger

Why Desoldering Is Different from Soldering

When you solder a joint, you add a controlled amount of molten metal to bond a component lead to a pad. The objective is simple: get enough solder to flow smoothly around the joint. Desoldering is the opposite problem — you need to remove essentially all the solder from the joint, not just soften it. That turns out to be substantially harder for several interrelated reasons.

On a through-hole component, the solder does not just sit on the surface of the pad. It fills the entire barrel of the plated hole around the component lead, wetting both the annular ring on the solder side and, often, the pad on the component side. For the lead to come free, every milligram of solder in that via barrel must be either removed or held molten at the precise moment you pull the lead out. Miss a single point and the lead is still locked in place.

On a surface-mount component, the geometry is different but the challenge is equally demanding. A two-terminal SMD chip sits on two pads, and both ends are soldered. You cannot pull the component free by heating one pad at a time — by the time you move the iron to the second pad, the first has already re-solidified and you are just rocking the component back and forth, stressing both joints. Both pads must be molten simultaneously, which is why hot air is the preferred tool for SMD work.

There is also the matter of the old solder itself. Solder that has been on a board for years has developed a surface oxide layer. The flux that was in the original solder is long gone, burned off during the first reflow. That oxidized surface resists wetting and makes it harder for fresh heat to penetrate and flow the joint cleanly. This is one of the strongest reasons to apply fresh flux before attempting any desoldering operation.

The most common injury during desoldering is a lifted pad — a PCB pad that separates from the board substrate because the copper foil adhesive has been weakened by repeated or excessive heat. A lifted pad does not always ruin a board, but it is extremely difficult to repair correctly and represents a serious setback. The whole point of good desoldering technique is to get the solder off as quickly and completely as possible, minimizing the total thermal dose delivered to the PCB.

Solder Wick (Desoldering Braid)

Solder wick, also called desoldering braid, looks like a flat ribbon of fine copper wire. It is braided from many individual strands of tinned copper wire — typically 18 to 42 AWG strands depending on the braid width — and the entire braid is pre-coated with rosin flux. It comes on a small spool, just like regular solder wire.

The operating principle is capillary action. When you heat the braid while it is in contact with a solder joint, two things happen simultaneously: the flux activates, cleaning the oxide from the joint and the braid surface; and the solder melts and is drawn upward into the tiny gaps between the braid's copper strands by surface tension. The wicking action is fast and surprisingly thorough — a good piece of fresh braid can pull nearly all the solder off a flat SMD pad in two or three seconds.

The word "fresh" is critical. Used braid that has already absorbed solder from previous desoldering operations is partially or fully saturated. The capillary action that drives wicking depends on empty voids between the copper strands. Once those voids are filled with old solder, the braid has no more capacity. Always cut a fresh section of braid for each desoldering operation. A few millimeters of fresh braid works far better than a centimeter of used braid.

Step-by-Step Solder Wick Technique

1. Apply liquid flux to the joint. This step is optional but strongly recommended. A small drop of liquid flux or a dab of flux paste applied directly to the joint re-activates the oxidized solder surface, allowing the braid to wick far more efficiently. Skip this step and you will find the braid heating up without pulling much solder at all.
2. Cut a fresh section of braid. Cut 15–25 mm of braid from the spool. Grab it by the section you will discard after use — do not touch the section that will contact the pad, as skin oils contaminate the flux.
3. Place the braid flat over the solder joint. The braid should lie flat, in full contact with the pad surface. For IC pins, you can lay the braid across several pins at once and drag it along the row.
4. Press the iron tip ON TOP of the braid. This is the most important technique point. Do not try to press the iron directly against the PCB pad — the braid acts as a thermal intermediary. Pressing the iron on top of the braid means the heat flows through the braid and into the joint, rather than cooking the pad directly. Use the flat face of the iron tip rather than the very point.
5. As the braid heats, solder wicks into it. You will see the braid darken as solder is absorbed into it. Keep light downward pressure and move the braid slowly across the pad if removing solder from multiple pads in a line.
6. Remove braid and iron together simultaneously. This is the second critical technique point. Do not lift the iron first and then try to peel the braid off — the solder that was just liquid may have fused the braid slightly to the pad surface. If you pull the braid while it is still attached to semi-solid solder, you can lift the pad. Lift both iron and braid in one smooth motion while heat is still present and the solder is still molten.
7. Inspect the pad. A clean pad will be shiny and free of solder. If solder remains, cut a fresh section of braid and repeat. Two or three passes will clear most joints completely.

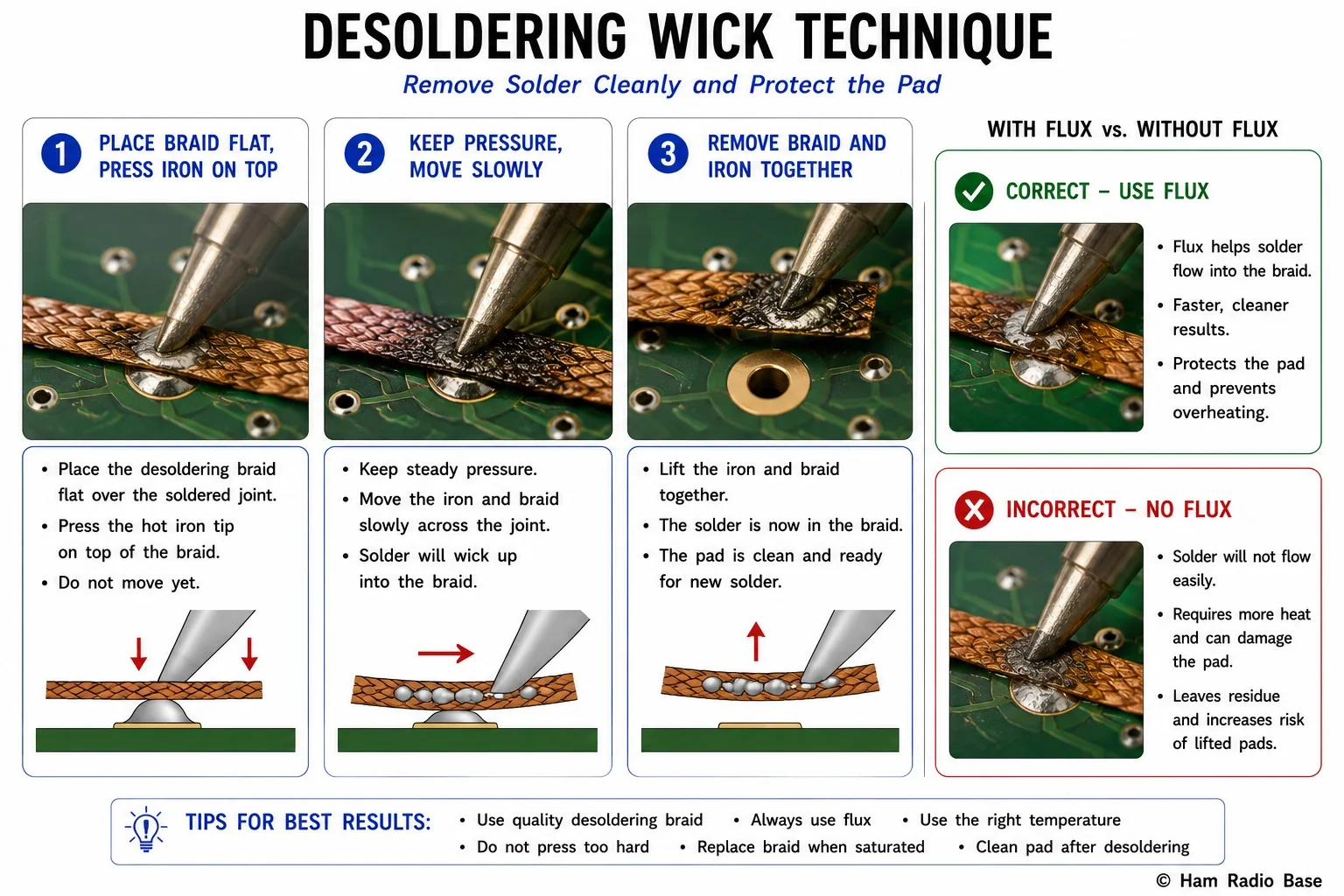

Correct solder wick technique in three steps. Note: the iron presses on TOP of the braid, not directly on the pad. Remove braid and iron together in one motion — never drag the braid while solder is re-solidifying.

View Larger

Choosing the Right Braid Width

The braid works best when its width closely matches the pad size. A 3.5 mm braid used on a 0.5 mm IC pin will only wick from the area directly under the iron, and the overhanging braid acts as a heat sink that makes the process slower and messier. Conversely, a 1.5 mm braid used on a large ground pad requires many passes and may not get the pad fully clean.

In a ham radio context, the 3.5 mm general-purpose braid will handle probably 80% of your desoldering work on typical transceiver boards and construction projects. Keep a narrower braid in stock for any SMD rework.

Vacuum Pump (Solder Sucker)

The vacuum pump, colloquially called a solder sucker, is a spring-loaded cylinder with a plunger mechanism. You cock it by pushing the plunger down against the spring until it latches. When you press the release button, the spring launches the plunger upward, creating a momentary partial vacuum at the tip. If the tip is positioned over a molten solder joint at that moment, the vacuum pulls the liquid solder up into the barrel of the pump.

The tip is made from Teflon (PTFE) or a similar non-stick material for good reason: regular solder does not adhere to Teflon. This means the solder ball that lands in the barrel can be knocked out with a second trigger press over a trash can. Silicon tips are sometimes found on cheap pumps — these degrade faster and solder can stick to them over time. If you are equipping a serious workbench, buy a pump with a genuine Teflon nozzle.

Step-by-Step Vacuum Pump Technique

1. Cock the pump. Push the plunger down until it latches. Have it ready before you apply heat.
2. Apply liquid flux to the joint. As with wick, flux is a substantial help here. It makes the old solder flow faster and more completely, giving you a better slug of liquid solder to suck up.
3. Heat the joint until the solder is fully molten. Use your soldering iron normally. Wait until the entire solder column in the through-hole via is liquid — not just the surface. This typically takes 2–4 seconds on a standard through-hole joint.
4. Immediately position the vacuum pump nozzle over the joint. Speed matters here. With your non-dominant hand holding the pump, bring the nozzle down to touch the pad surface surrounding the lead. The nozzle touching the board stabilizes the position.
5. Trigger the pump while the iron is still in contact. Keep the iron on the joint as you fire the pump. The suction clears the via barrel and adjacent pad in one pull.
6. Remove iron and pump together, inspect. Look at the via. You should see an open hole. If solder bridges remain in the hole or around the lead, repeat the process. Most through-hole vias need 2–3 passes for complete clearance.
7. Clear the pump barrel. Trigger over a trash can to eject the solder ball. On heavily used pumps, periodically unscrew the barrel and clean it — old solder particles can eventually jam the mechanism.

The vacuum pump shines at one specific task: clearing the barrel of a plated through-hole. Nothing else does this as quickly. When you are removing a DIP IC from a ham radio receiver board, desoldering each of the 14 or 16 pins with the pump — working systematically around the package, a pin at a time — is the fastest route to having the IC free in your hand. Solder wick alone on a through-hole via often leaves a thin cap of solder covering the hole that is very hard to see and that prevents the lead from being extracted.

One operational tip: work one pin at a time and check each one before moving on. It can be tempting to rush, but a lead that still has a thin solder bridge to the barrel will hold the whole IC even if 15 out of 16 pins are fully cleared. Patience here is rewarded with a component that lifts free cleanly rather than one that requires force and may damage the board.

Hot-Air Rework Station

A hot-air rework station blows a controlled stream of heated air from a handpiece through a nozzle. Unlike a soldering iron, which delivers heat to a single point through conductive contact, hot air delivers heat to an entire area simultaneously and without touching any component. This makes it the only practical way to remove multi-lead surface-mount ICs with a single heating operation.

A quality station gives you independent control of temperature and airflow. Temperature sets how hot the air is; airflow sets how fast the air volume moves through the nozzle. These two parameters interact: higher airflow at the same temperature heats the target faster but also blows more heat to surrounding components. Lower airflow at a higher temperature is gentler and more localized. For most ham radio rework, a temperature of 320–360°C for leaded solder or 340–380°C for lead-free solder at a moderate airflow of 25–40 liters per minute is a reasonable starting point.

Nozzle Selection

Hot-air stations come with a variety of interchangeable nozzles. A round nozzle is the general-purpose workhorse — it produces a circular blast of air and is suitable for any component where you can position it centrally. Rectangular nozzles concentrate heat along a line, useful for SOIC packages with pins on two sides. IC-specific nozzles are square frames that surround an entire QFP or BGA package, delivering uniform heat to all sides simultaneously. For most ham radio work, a single round nozzle of medium diameter (6–8 mm) will handle the majority of tasks.

Removing a Two-Lead SMD Component (0402, 0603, 0805)

1. Apply flux paste around the component body and onto both pads.
2. Set temperature: 320°C for leaded solder, 350°C for lead-free. Airflow: 30–35 L/min.
3. Hold the nozzle 5–10 mm above the component. Too close and you risk blowing the component off the board and across the room. Too far and the heat disperses before reaching the pads.
4. Move the nozzle in small slow circles over the component. This distributes heat evenly to both pads.
5. Watch for the component to float. When both pads are molten (typically 5–15 seconds), surface tension releases and the component will appear to float or jiggle very slightly. This is your cue.
6. Lift with ESD-safe tweezers — pick straight up, do not slide the component sideways. Sliding it sideways drags it across the adjacent pad and may disturb neighboring parts.
7. Clean the pads immediately with wick while the pads are still warm. The residual heat helps the wick pull the remaining solder off cleanly.

Removing a Multi-Pin IC (SOIC, QFP, TSSOP)

1. Apply liquid flux liberally around all pins. This is not optional for IC removal — you need every pin to re-wet uniformly.
2. Shield adjacent components if they are within 5–10 mm. Kapton (polyimide) tape withstands soldering temperatures and is the standard masking material for hot-air rework. Cut small pieces and cover components you want to protect.
3. Select a nozzle that approximately matches the package size, or use a round nozzle held slightly higher to spread the heat over the whole package.
4. Set temperature 10–20°C higher than for a two-terminal component, because the IC body absorbs more heat. For a leaded SOIC: 340°C. Lead-free: 360–375°C. ICs with exposed thermal pads on the underside may need 380°C.
5. Move the nozzle in a continuous oval path around all four sides of the package. Do not dwell stationary — this will overheat one corner while the others remain cool.
6. Test for release by nudging one corner gently with tweezers every few seconds. When the IC is ready, it will move freely with minimal force. Do not force it.
7. Lift from one corner with fine tweezers, keeping the IC level as you raise it.
8. Clean all pads with solder wick immediately.

Hot-Air Safety Notes

Hot air at 350°C will damage virtually anything it lingers over long enough. The electrolytic capacitors common on RF boards have maximum operating temperatures of 105°C — hot-air rework heats the surrounding area well above this in seconds if you are not careful. Keep the nozzle moving at all times. Stationary hot air overheats PCB laminate, causing delamination (visible as a blister or whitening of the FR4 board material), which permanently weakens the board.

Thin plastic housing components such as crystal oscillator cans and small plastic package transistors can be warped or cracked by hot air held too close. Work from a distance and reduce airflow when working near such parts.

Flux Paste (Gel Flux) for Desoldering

Flux is not just for soldering — it is equally important for desoldering. Old solder on a board has been through multiple thermal cycles and its surface is oxidized. The flux that was originally in the solder wire has been consumed. When you try to wick or pump that old solder, the oxidized surface resists wetting and the solder flows slowly if at all.

Applying fresh flux paste (also called gel flux) to the joint before desoldering makes a dramatic difference. The flux activates under heat and chemically reduces the surface oxides, allowing the solder to become fully liquid quickly. A joint that takes four passes with wick in the absence of flux may clear completely in one pass when flux is applied first.

Flux paste comes in a syringe dispenser and is applied directly to the pad or joint surface. For through-hole work, a small dab at the pad surface is sufficient — capillary action will draw it into the via. For SMD wick work, apply a thin ring around the component body. For hot-air work, apply flux around the perimeter of the IC or component you are removing.

After desoldering, flux residue must be cleaned. No-clean flux leaves a benign residue that is acceptable on most boards. Rosin-based flux residue can be removed with isopropyl alcohol (IPA) and a stiff brush — a toothbrush works well. Always allow the board to dry completely before applying power.

Chip Quik (Low-Melt Alloy)

Chip Quik is a specialty product consisting of a low-melting-point alloy (typically a bismuth-tin-indium alloy) that melts at around 57–60°C. It comes in wire form and is applied to solder joints just like regular solder wire. When the Chip Quik alloy mixes with the existing solder on the joint, the resulting mixture has a significantly lower melting point than either metal alone — often dropping the effective liquidus of the combined solder mass to around 90–100°C or lower.

The practical result is that you can keep a multi-pin SMD IC molten for an extended period with a standard soldering iron, without the iron temperature being high enough to damage the PCB. You work your way around the package with the iron, adding Chip Quik to each side, mixing it thoroughly into the joint solder, and by the time you have completed the circuit the first pins are still molten because the mixture cools so slowly. You then slide the IC off the board in one movement.

There are two important follow-up steps after using Chip Quik. First, the low-melt alloy residue must be completely removed from the pads before you solder a new IC. The bismuth and indium in Chip Quik form brittle intermetallic compounds when mixed with standard tin-silver-copper or tin-lead solder. A new component soldered over Chip Quik residue will have mechanically weak joints that may test as continuous with a multimeter but will fail under vibration or thermal cycling. Remove all residue with multiple passes of fresh wick plus flux. Second, clean the pads with IPA to ensure no residue remains before soldering the replacement.

Chip Quik is most useful when you need to remove an SMD IC and do not have a hot-air station, or when the IC is surrounded by heat-sensitive components that you cannot shield adequately from hot air. It is an excellent technique for field repair of equipment when a full rework station is not available.

Desoldering Through-Hole Components

Through-hole desoldering follows a systematic process: remove the solder from each joint individually until all leads are free, then extract the component. The key insight is that even one partially-soldered lead will hold the component firmly — you cannot muscle a component out of a through-hole board without risking serious damage to traces and pads. Every lead must be cleared before you attempt extraction.

Strategy for DIP ICs

A standard DIP-16 IC has 16 leads arranged in two rows of eight. Your approach should be methodical: start at pin 1, desolder with pump (preferred for through-holes), move to pin 2, and work your way around all 16 pins. After the first pass, go back and check each via — hold the board up to a light and look through each hole from the component side. A clear hole lets light through; a blocked hole will show a dull metallic plug at the bottom. Re-do any that are not fully open.

Once all 16 leads are cleared, test the IC for freedom by gently rocking it diagonally — press down lightly on the end near pins 1 and 16, then the end near pins 8 and 9. If the IC rocks easily, it is free. If it feels stuck on one side, examine that side's pins again. When the IC is free, use an IC extraction tool or slide two small flat-blade screwdrivers under opposite ends of the body simultaneously and lift evenly.

Strategy for Polarized Components

Before heating anything, note and record the orientation of polarized components — electrolytic capacitors, diodes, LEDs. Photograph the board if you have a camera. It is remarkably easy to forget which direction a capacitor was oriented once it is sitting on your bench, and installing the replacement in the wrong polarity will cause it to heat up, vent, or rupture when power is applied.

For axial electrolytic capacitors, the stripe on the body indicates the negative lead. Note which hole the striped lead occupies. The board silkscreen should also show a polarity mark, but on old or worn boards this marking may be faded or unclear — your photograph is your insurance.

When to Cut Leads Instead

If a component has failed catastrophically — a burned or exploded component, a shorted electrolytic that has vented — it may be quicker and safer to cut the component leads with flush-cut wire cutters, leaving short stubs in the board. You then desolder each individual stub from the pad side without the bulk of the component body getting in the way. The stubs are short and heat up quickly, making desoldering faster and reducing the total heat dose to the board.

Do not cut leads if the component might be reusable or if you want to test it after removal. The cutting strategy is specifically for failed components where testing or reuse is not a consideration.

Protecting the PCB

The PCB pad is the most vulnerable element in any desoldering operation. Pads are made from thin copper foil (typically 1 oz or 2 oz copper, meaning 35 µm or 70 µm thick) laminated to the FR4 substrate with an epoxy adhesive. That adhesive is strong at room temperature but weakens substantially above about 150°C. Repeated heating above this temperature — which every soldering and desoldering operation achieves — progressively degrades the adhesive. After 3–4 reflows of the same pad, the adhesive bond becomes marginal and the pad will lift away from the substrate with very little mechanical force.

This is why working quickly matters so much. The total thermal dose a pad receives over its lifetime is what determines whether it stays put. A high iron temperature (350–400°C) applied for 2 seconds delivers less total heat to the PCB substrate than a lower temperature (280°C) applied for 8 seconds. Counterintuitively, using a hotter iron with good technique is gentler on pads than using a cooler iron with poor technique. The goal is in-and-out quickly.

The most important rule if you feel resistance: stop and let the board cool completely before trying again. Never apply mechanical force to a component while heat is present — the adhesive is at its weakest when hot, and a lifted pad is the immediate result. Wait at least 30 seconds after removing heat before any prodding or testing.

If a pad does lift, all is not necessarily lost. A lifted pad can sometimes be secured with a small drop of cyanoacrylate (CA) adhesive after soldering the replacement component, but this is a repair, not a restoration. The structural integrity of the joint depends on the adhesion of the pad to the board, and a lifted pad is always a potential long-term reliability problem. Prevention — working quickly, using flux, minimizing the number of reflow cycles — is far better than repair.
