Good Joints vs Cold Joints

A solder joint is not simply a blob of metal holding two conductors together. It is a metallurgical bond — an alloy layer that forms between the solder and the copper surface when heated to the correct temperature with adequate flux. When that bond forms correctly, the joint is reliable, low-resistance, and mechanically strong. When the process goes wrong, the result is a defect that may pass a visual inspection but fail in service — sometimes years later, under exactly the conditions when you need your equipment most. This lesson gives you the vocabulary and the eye to tell the difference.

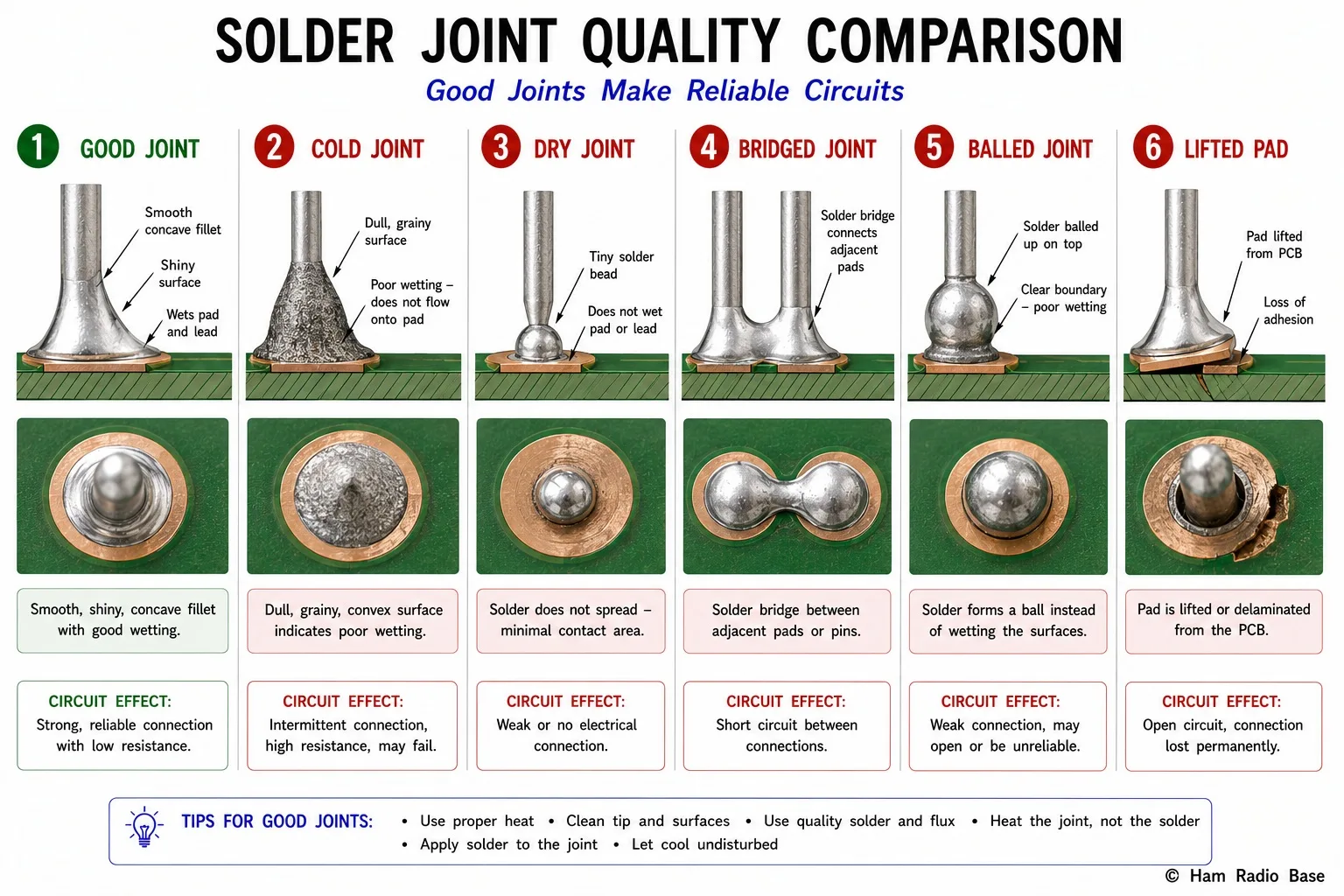

Six joint types side by side: good (concave, shiny), cold (dull, convex), dry (bead not wetting pad), bridged (connecting adjacent pads), balled (sphere on pad), lifted pad (delaminated). Each is labeled with its circuit effect.

View full size

The Reference Standard: What a Good Joint Looks Like

Before you can identify defects, you need a clear picture of the goal. A correctly made through-hole solder joint has these characteristics:

• Shape: A concave fillet — the solder curves inward between the pad and the component lead, like the meniscus of water in a glass. Not a dome. Not a flat disk. Concave.
• Surface texture: Smooth and bright for leaded (63/37 or 60/40) solder. Lead-free solder (SAC305) has a slightly duller, more granular appearance due to its higher silver content — this is normal and is not a cold joint. Do not judge lead-free by leaded standards.
• Pad outline visible: Through the solder you can see the outline of the pad beneath. The solder fills the annular ring but is thin enough at the pad edge that the pad boundary is visible.
• Wetting on both surfaces: The solder climbs the component lead and spreads onto the pad surface. You can see the boundary where solder meets copper — it is a low, smooth contact angle, not a steep cliff.
• Correct quantity: Not a tiny bead, not a lumpy excess. The fillet tapers smoothly from the lead to the pad with a concave curve.
• Lead visible in center: The component lead is visible through or above the solder. You should be able to identify the lead going through the hole.

The IPC-A-610 standard defines three classes of acceptability (Class 1 through Class 3), with Class 3 applying to military and life-safety equipment. For amateur radio construction, a Class 2 or better standard is appropriate.

Cold Joint

A cold joint forms when the solder did not reach a high enough temperature to flow properly, or when the joint cooled correctly but the metallurgical bond to one or both surfaces is incomplete. It is the most common and most dangerous defect because it often passes a quick visual inspection.

Cause: The most common cause is removing the iron before the joint reached thermal equilibrium — the solder touched the iron and flowed, but the pad and lead never reached full temperature. Other causes include moving on to the next joint before the solder has properly solidified, or starting with an iron that has not fully reached operating temperature.

Circuit effect: A cold joint is a resistive contact that may measure close to zero ohms when cold but increases resistance under load and with temperature cycling. The joint may fail intermittently — working normally but dropping signal or increasing noise under vibration or temperature change. This makes cold joints the most frustrating fault to diagnose, because the equipment often "works" on the bench but fails during operation.

Ham radio context: A transceiver with a cold joint on a critical receive path can exhibit a symptom described as "the radio works fine at home but loses sensitivity on Field Day." The temperature cycling of transport and outdoor use is enough to open and close the marginal bond. Cold joints on transmit path components can cause intermittent RF output drop or PA bias instability.

Repair: Apply fresh flux (rosin gel or liquid flux) to the joint. Reheat with a properly tinned iron until the solder fully melts and flows — you will see the surface change from dull to bright as the joint refluxes. Remove the iron and hold absolutely still for 2–3 seconds. Inspect after cooling. If the joint was severely cold, add a small amount of fresh solder to improve the fillet.

Dry Joint

A dry joint is an extreme case where very little solder was applied, or where the solder failed to wet the pad surface at all, leaving a small bead sitting on the surface rather than bonding to it.

Cause: Heavy surface oxidation on old copper pads that has not been removed by flux; flux that burned off before the solder was applied (too long a preheat on an oxidized joint); or simply not enough solder applied. Commonly seen on pads that have been reflowed multiple times without added flux.

Circuit effect: Open circuit or very high resistance. The component may appear to be installed but has no electrical connection.

Repair: Clean the pad with IPA. Apply fresh flux generously. Re-tin the iron tip. Heat the pad and lead for 3–4 seconds, then feed fresh solder into the junction. The fresh flux in the solder combined with the external flux should dissolve the oxide and allow proper wetting.

Bridged Joint

A solder bridge is an unintended electrical connection between two adjacent pads or component leads, caused by excess solder spanning the gap between them.

Cause: Too much solder applied; drag-soldering without cleaning up bridges; pads spaced too closely for the technique used; flux burned off during soldering leaving solder with high surface tension that won't flow into the pads cleanly.

Circuit effect: A direct short circuit between the bridged pads. This can destroy ICs if power and ground pins are bridged, or cause unpredictable behavior if two signal pins are connected. On RF circuits, a bridge can short a resonant component causing complete signal loss or frequency drift.

Detection: Visual inspection under good magnification is the primary method. A continuity meter between pads that should be isolated will confirm a bridge. On IC packages with many pins, it is worth probing adjacent pin pairs on the first power-up check.

Repair: Add fresh flux to the bridge area — this reduces solder surface tension and makes the solder flow away. Place a preheated iron tip directly on the bridge. As the solder melts, it will flow toward the tip due to thermal gradient. For stubborn bridges, use desoldering wick with fresh flux: lay the wick over the bridge, press the iron on top of the wick, and the wick absorbs the excess solder.

Balled Joint

A balled joint forms when solder flows onto a pad but fails to wet the copper surface — instead of spreading into a flat fillet, the solder pulls into a sphere due to surface tension.

Cause: Heavy oxidation of the pad copper that the flux could not penetrate; flux that has completely burned away (char visible); contamination (oil, silicone) on the pad surface. Also common on silver-plated surfaces if the silver has tarnished heavily.

Circuit effect: No reliable electrical connection. The ball may make intermittent contact due to mechanical pressure from the component lead, but this fails under vibration.

Repair: Mechanical cleaning of the pad with a fiberglass brush or fine abrasive — not sandpaper, which leaves grit in the pad surface. Apply generous flux. Re-solder with fresh solder and sufficient heat. If the pad oxidation is severe, a flux-core solder wire dragged across the heated pad will help the fresh flux penetrate and activate the surface.

Lifted Pad

A lifted pad is a catastrophic defect where the copper pad delamrinates from the PCB substrate. The pad may lift completely or partially, breaking the connection to the trace beneath.

Cause: Excessive heat applied for too long — the PCB laminate adhesive softens and releases the copper cladding. Also caused by using an iron tip as a lever to move a component, physically tearing the pad from the board. Repeated desoldering of the same pad (more than 3–4 cycles) can also lift pads as the adhesive fatigues.

Circuit effect: If the pad lifts enough to break continuity with the trace, the connection is open. The component lead may still make electrical contact if the pad is only partially lifted, but the joint is mechanically fragile.

Prevention: Keep iron contact time under 5 seconds. Never pry with the iron. When desoldering, clear all solder from the hole before attempting to remove the component — do not pull the component lead while solder is still solid.

Repair: If the trace is still intact, a wire bridge repair is possible. Scrape insulation from the trace immediately adjacent to the lifted pad. Solder a short length of fine (30 AWG) wire from the trace to the component lead. Secure the lifted pad with a drop of epoxy to prevent further movement. If the trace is broken, the bridge wire must travel back to the nearest via or test point on the same net.

Disturbed Joint

A disturbed joint forms when solder is properly molten and has good metallurgical contact, but the component or board moves while the solder is cooling through the plastic phase (between fully molten and fully solid).

Cause vs cold joint: The key distinction is when the problem occurred. A cold joint never properly formed because the temperature was insufficient. A disturbed joint formed correctly but was mechanically disrupted during cooling. Both produce similar appearances, and both require the same repair, but understanding the difference prevents you from re-making the same error.

Circuit effect: Disturbed joints are often mechanically weaker than cold joints — the grain structure is disrupted and stress fractures can develop. Electrically, they may have low resistance initially but fail under vibration or thermal cycling.

Repair: Same as cold joint — add flux and reheat without moving until fully solid.

SMD-Specific Defects

Surface-mount construction introduces defect types not seen in through-hole work.

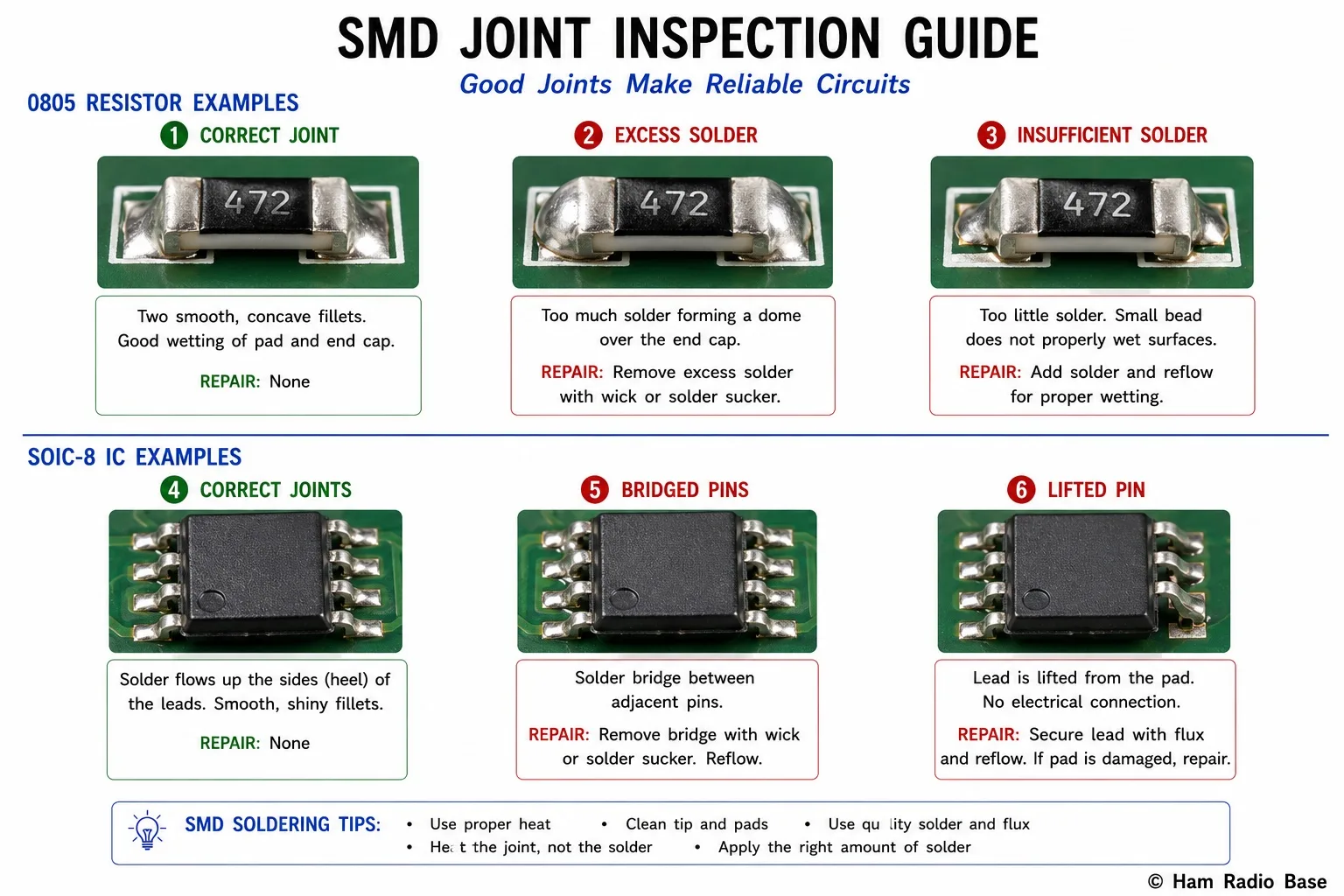

SMD defect reference: 0805 resistor (correct, excess, insufficient solder) and SOIC-8 IC (correct, bridged pins, lifted pin). Each defect is labeled with name and repair method.

View full size

Tombstoning

Tombstoning occurs when a two-lead SMD component (resistor or capacitor) stands vertically on one end rather than lying flat across both pads. The component "tombstones" — stands upright like a gravestone. The cause is unequal heating of the two pads: the pad that heats first pulls the component upright via surface tension of the molten solder before the other pad can melt and hold the far end down. Tombstoning is more likely with small components (0402, 0603) and with reflow soldering when thermal mass differs between pads. Prevention: heat both pads simultaneously (use a hot-air station for reflow) and ensure equal pad sizes. In hand soldering, the tack-and-solder technique described in M20C controls this because you heat pads sequentially and intentionally.

Solder Beads (SMD)

Tiny spheres of solder scattered on the PCB surface around SMD components. Caused by flux spattering during reflow or by excess solder paste squeezed out from under a component body during reflow. Solder beads can migrate to bridge pads, especially during temperature cycling. Inspect under magnification and remove with a clean iron tip or wick.

Insufficient Heel Fillet (SOIC Pins)

On SOIC (small-outline IC) packages, each gull-wing pin should have solder flowing up the back of the pin (the heel) as well as on the pad. If solder only wets the pad but not the heel, the joint is mechanically weak even if electrically sound. Inspect all gull-wing packages from the side — the solder should form a fillet at the back of each pin where it bends away from the pad.

Excess Solder on 0805/0603 Resistors

Too much solder on a small resistor causes the joint to dome over the component end cap. The capacitance of the solder blob at RF frequencies can detune RF circuits. Correct by reheating with a minimal-solder tip and allowing the excess to wick back onto the tip, or use solder wick to remove the excess.

Three-Pass Inspection Method

Use a consistent three-pass method for inspecting completed boards:

1. Pass 1 — Obvious defects: Scan quickly across the entire board from 30 cm distance under bright white light. Look for bridges, missing components, tombstoned parts, or grossly bad joints. Mark all finds with a sticky note or washable marker.
2. Pass 2 — Cold joints: Systematically inspect every joint with a 5× to 10× loupe or illuminated magnifier. Check surface texture — all leaded joints should be smooth and bright; lead-free may be slightly duller but should still be smooth, not grainy. Look at the fillet shape — concave means good, convex raises suspicion.
3. Pass 3 — Fillet shape and wetting: For critical circuits, examine each joint from the side to verify the fillet angle and pad wetting. A joint that passed Pass 2 can fail here if the solder has only wetted the lead and not spread fully onto the pad, or vice versa.

Follow this with an electrical continuity check: probe between pads that should be isolated to catch any bridges, and probe between signal path pads to confirm there are no open joints.
