Diode Test and Continuity
Two of the most useful functions on a digital multimeter have nothing to do with measuring volts or ohms in the usual sense: diode test mode and continuity mode. Diode test tells you whether a semiconductor junction is healthy and gives you a direct readout of its forward voltage — information that helps you identify components and spot failures instantly. Continuity mode turns your meter into a fast audible checker for cables, fuses, switch contacts, and PCB traces, so you do not have to watch a display while probing. Together these two modes speed up troubleshooting enormously.

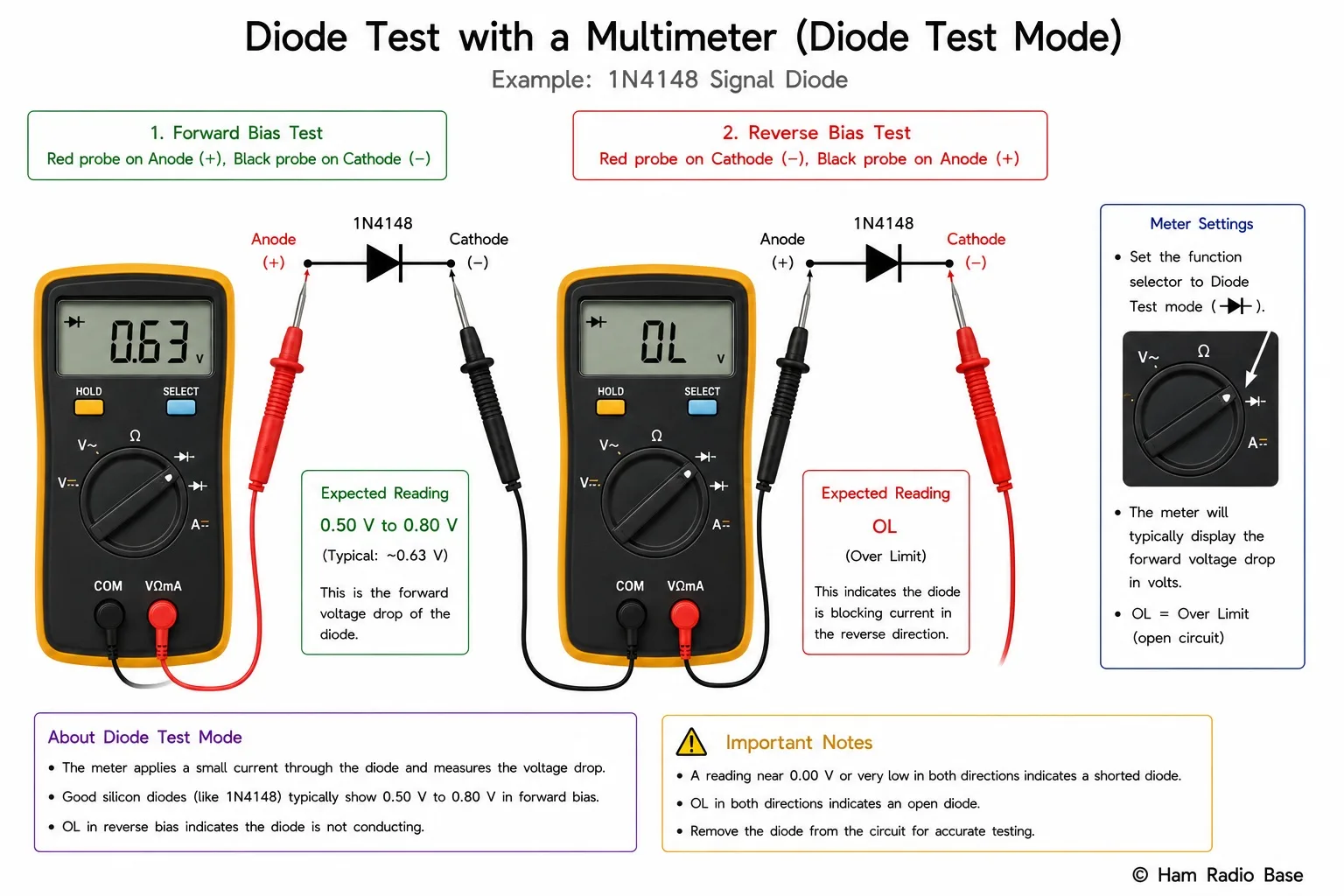

Diode test mode applies a small current and displays the resulting forward voltage drop — here 0.63 V for a silicon 1N4148 signal diode.
View LargerHow Diode Test Mode Works
When you select the diode test symbol (▶|) on your meter, the instrument applies a small constant current — typically 0.5 mA to 1 mA — through its test leads. It then measures the voltage that develops across whatever you have connected. A semiconductor diode in the forward-biased direction allows that current to flow, and the voltage that develops is the characteristic forward voltage Vf of that junction. The meter displays this voltage directly in volts.
Diode test mode is fundamentally different from resistance measurement. In resistance mode the meter applies a varying voltage to calculate ohms — the reading depends on the diode's dynamic impedance and is meaningless for characterising a junction. Diode test mode applies a controlled current, so the voltage it displays is a stable, reproducible figure that tells you what type of junction you are looking at.
Forward Voltages by Junction Type
Every semiconductor junction technology has a characteristic forward voltage range. Once you know these ranges you can often identify what type of device you are holding just from the diode test reading.
| Junction type | Typical Vf range | Examples |
|---|---|---|
| Silicon small-signal / rectifier | 0.55 V – 0.75 V | 1N4148, 1N4001–1N4007, 1N5400 |
| Schottky | 0.15 V – 0.45 V | BAT41, 1N5817, SB140 |
| Germanium | 0.20 V – 0.35 V | OA91, AA119, 1N34A |
| Red or infrared LED | 1.6 V – 2.1 V | Standard 5 mm red LEDs |
| Green / yellow LED | 2.0 V – 2.4 V | Standard 5 mm green LEDs |
| Blue / white LED | 2.8 V – 3.5 V | Blue or white high-brightness LEDs |
| Silicon BJT base-emitter | 0.55 V – 0.70 V | 2N3904, 2N2222, BC547 |
| Silicon BJT base-collector | 0.50 V – 0.70 V | Same devices, slightly lower than B-E |
The test current is too low to light most LEDs visibly, but some very efficient low-current LEDs will glow faintly during diode test — a useful visual confirmation that the device is functional.
Interpreting Diode Test Results
Any diode test measurement has four possible outcomes:
| Display | Meaning | Action |
|---|---|---|
| 0.15 V – 0.75 V (forward biased) | Normal junction, reading matches diode type | Compare to table above |
| OL or 1. (forward biased) | Open circuit — junction is broken or probe connections are wrong | Check probe placement; if correct, diode is open-circuit failed |
| OL (reverse biased) | Normal — reverse-biased diode blocks the test current | Expected result; diode is good |
| Low voltage both ways | Shorted junction — diode conducts in both directions | Replace the diode |
A healthy rectifier diode should show roughly 0.6 V forward and OL reverse. A healthy Schottky should show roughly 0.25 V forward and OL reverse. If a diode shows near zero in both directions it is shorted — this is the most common failure mode in RF circuits and power supplies. If it shows OL in both directions it is open — common in diodes that have been over-current stressed.
Testing Transistor Junctions
A bipolar junction transistor (BJT) contains two back-to-back diode junctions: base-emitter and base-collector. You can characterize both junctions using diode test mode even if your meter lacks a dedicated transistor (hFE) socket.
NPN transistor (e.g. 2N3904, BC547)
For NPN, base is the positive terminal of both junctions:
- Red probe on base, black on emitter → should read ~0.60–0.70 V
- Red probe on base, black on collector → should read ~0.55–0.70 V
- All other combinations should read OL
PNP transistor (e.g. 2N3906, BC557)
For PNP, base is the negative terminal of both junctions:
- Black probe on base, red on emitter → should read ~0.60–0.70 V
- Black probe on base, red on collector → should read ~0.55–0.70 V
- All other combinations should read OL
If any transistor junction shows near zero in both directions, the device is shorted and must be replaced. A shorted transistor is a very common fault in RF power amplifier stages — the large voltage swings at the collector can punch through the junction during mismatched load conditions.
Continuity Mode
Continuity mode is essentially a fast low-resistance measurement that drives an audible beeper when the measured resistance falls below a threshold — typically 20 Ω to 50 Ω, though this varies between meters. The beeper allows you to watch the circuit under test rather than the meter display, which dramatically speeds up cable tracing and switch testing.
Because continuity mode is a resistance measurement under the hood, the same rules apply: power off the circuit, discharge capacitors, and be aware of parallel paths. A parallel low-resistance path — even a coil winding or a relay contact elsewhere in the circuit — can cause the meter to beep even when the conductor you are tracing is actually open. When in doubt, disconnect one end of the conductor before testing.
What continuity mode is good for
- Fuse testing: Probe across a fuse in circuit. Beeped = good. Silent = blown. Much faster than removing the fuse for a visual check.
- Switch contacts: Probe across the switch terminals. Operates switch: should toggle between beep and silence cleanly with no hesitation.
- Wire identification: At one end of a cable bundle, short a wire to ground. At the other end, probe each wire until the meter beeps — that is the wire you want.
- PCB trace integrity: Probe both ends of a suspected cracked trace. A beep means intact; silence means a break exists somewhere along the run.
- Connector pin mapping: Useful for identifying pins on unmarked connectors.
Continuity Uses in Ham Radio
Ham radio equipment generates plenty of real-world opportunities for both test modes.
Coaxial cable checking
A favorite use for continuity mode is checking PL-259 assemblies and coax runs. Short the center pin to the braid at one end. At the other end, probe between center and braid — a beep confirms the cable is continuous with no open connector joint. Then move the probe to the braid and outer barrel: another beep confirms the braid is not isolated from the connector body. Finally, probe between center and braid with no shorting — silence confirms the cable has no internal short between inner and outer conductors.
Relay contacts
Relay contacts oxidise over time, especially in equipment that sits in damp shack environments. Probe across the normally-closed contacts with power off — the meter should beep. Apply 12 V to the relay coil while still probing: the beep should stop as the armature lifts. If the contacts do not change state, the relay is stuck or the coil is open (test the coil with resistance mode — a typical 12 V relay coil reads 100 Ω to 500 Ω).
RF connector grounds
RFI problems are sometimes traced to a connector body that is not properly bonded to the chassis. A quick continuity check between the connector shell and the nearest chassis bolt rules this out in seconds.
Identifying paired windings
When rewinding a toroid or verifying a transformer, continuity mode quickly maps which wire comes out where by probing from one terminal and finding which other wire gives a beep.
⚖ Experiment: Test a 1N4148 and an LED Both Ways
This experiment reinforces what each diode test result means and gives you a feel for the forward voltages of two very common component types.
- Digital multimeter with diode test mode
- One 1N4148 silicon signal diode
- One standard red LED (any size)
- Optionally: one Schottky diode (e.g. 1N5817 or BAT41)
- Set your meter to diode test mode (look for the diode symbol ▶|).
- Hold the 1N4148 by its body. The banded end is the cathode (negative terminal).
- Place the red (positive) probe on the anode (unbanded end) and the black probe on the cathode. Record the reading — it should be between 0.55 V and 0.70 V.
- Swap the probes: red on cathode, black on anode. The display should show OL (open). Record this.
- Now pick up the LED. The longer lead is the anode.
- Red on anode, black on cathode. Record the reading — expect 1.7 V to 2.2 V for a red LED. The LED may glow very faintly.
- Swap probes: red on cathode, black on anode. Should show OL.
- If you have a Schottky diode, repeat the sequence. Note how the forward voltage is noticeably lower — typically 0.20 V to 0.40 V.
The 1N4148 reads around 0.63 V forward and OL reverse — a healthy silicon junction. The LED reads significantly higher forward voltage — the exact value depends on the color and manufacturer. The Schottky (if tested) reads noticeably lower than the silicon diode, confirming the different junction technology. Any reading of near zero in both directions would indicate a shorted diode; OL in both directions would indicate an open-circuit failed device.
Frequently Asked Questions
Can I use diode test mode to check an in-circuit diode?
Only with caution. Parallel circuit paths can produce misleading readings — a low-resistance path in parallel with the diode will load the test current and give a false forward voltage. Always power off and discharge capacitors before testing. For the most reliable result, lift one leg of the diode out of the circuit. At minimum, look for reasonable symmetry: low voltage one way and OL the other. If you see low voltage in both directions, a parallel path is likely masking a good diode — lift one lead and retest before condemning the component.
My meter shows 0.000 V on diode test. Is the diode shorted?
Probably yes, but first verify probe placement: red on anode, black on cathode is forward bias. If you have the probes correct and the reading is near zero regardless of probe orientation, the junction has shorted — this is a common failure in power rectifiers and RF diodes that have been over-stressed. Replace the device. A genuine zero reading both ways is almost never a measurement artefact.
Why does continuity mode sometimes beep when the wire is actually broken?
A parallel path through the rest of the circuit is completing the loop. For example, if you are tracing a PCB power rail and there is a 33 Ω resistor connected between that rail and another rail that is also grounded, the meter's continuity threshold may be met through that path even though the trace itself is open. The solution is to lift one end of the conductor under test — remove the wire from its terminal or cut the trace temporarily — so the only path through the meter is the conductor itself.
Can I check a MOSFET with diode test mode?
Yes — most MOSFETs have an internal body diode between drain and source. In an N-channel MOSFET the body diode conducts when the source is positive relative to the drain: red probe on source, black on drain should give around 0.5–0.7 V; the reverse should give OL. Gate-to-drain and gate-to-source should both read OL in both directions. If any gate junction conducts, the gate oxide has been punctured by static and the device is destroyed. This is why MOSFETs must be handled with anti-static precautions.
