Safely Measuring High Voltage

A standard multimeter connected correctly will measure 240 V AC line voltage without drama. Measuring several hundred volts DC in a valve power amplifier or a CRT monitor is a different matter entirely. High voltage demands specific precautions: the right meter rating, the right probe quality, the right technique, and the right respect for the stored energy that can remain in capacitors long after the power is switched off. This lesson covers everything you need to work safely around high voltage circuits as a ham radio operator.

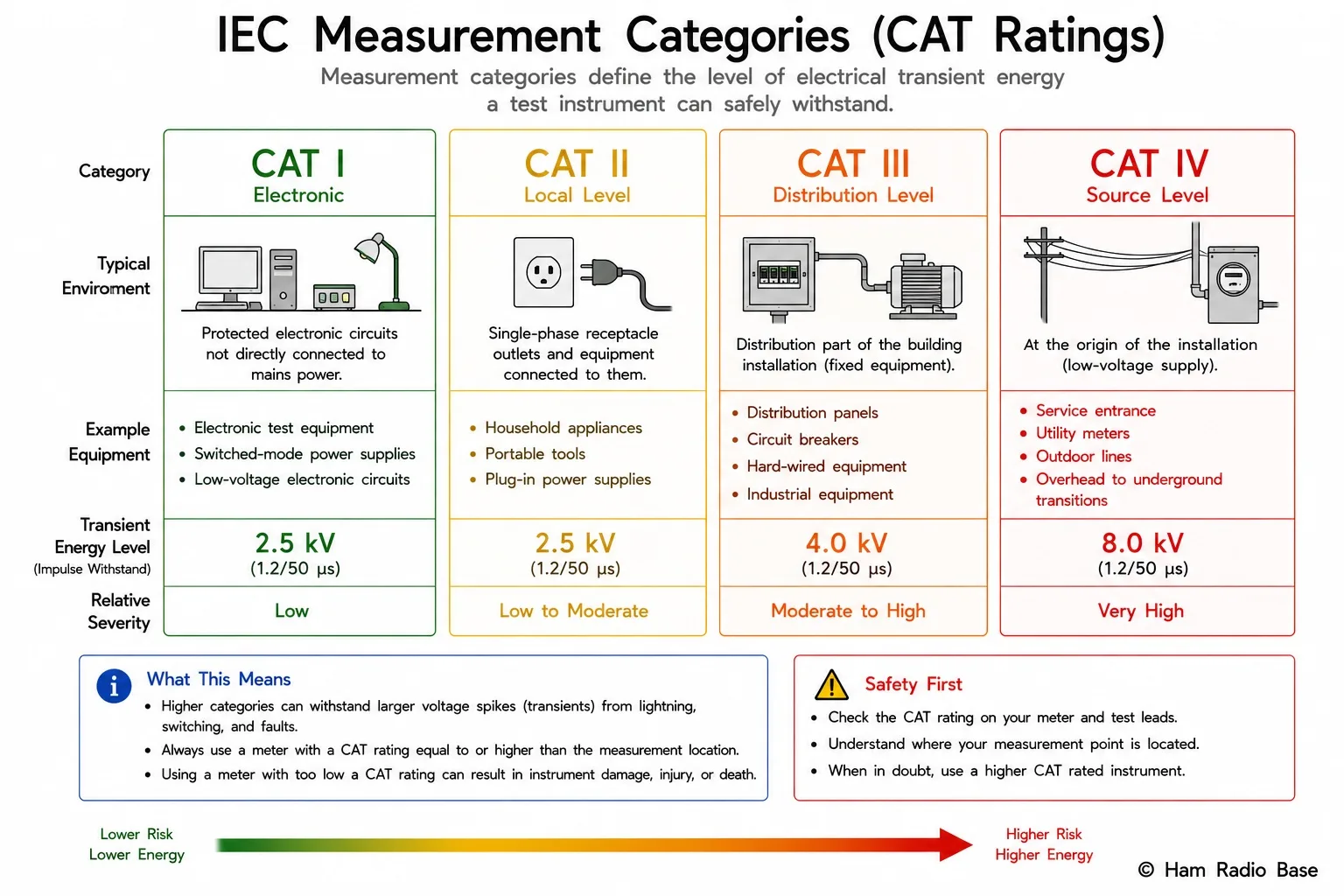

IEC measurement categories — CAT I through CAT IV — define the electrical environment and transient energy level for which test equipment is rated.

View Larger

IEC CAT Ratings Explained

The IEC 61010 standard defines four measurement categories, or CAT ratings. They do not describe the maximum voltage a meter can measure — they describe the electrical environment and the transient overvoltage the meter and its probes can withstand safely. A transient is a brief voltage spike caused by switching, a nearby lightning strike coupling into a supply, or a fault condition on the line voltage. These transients can reach many times the nominal voltage for microseconds, and equipment in higher-energy environments sees larger transients.

The practical rule: the category number specifies the minimum rating your test equipment must carry for that environment. Use a CAT II rated meter to probe a line voltage-connected power supply. Use a CAT III rated meter for any measurement in a permanently wired installation. Never use a lower-rated meter in a higher-energy environment — if a transient exceeds the meter's withstand rating, the input protection fails and the meter can arc, explode, or conduct line voltage back through the probes to your hands.

Probe quality matters as much as meter rating. Cheap probes with thin insulation and exposed metal near the tip are hazardous even on a high-rated meter. Good probes for HV work have fully shrouded tips with only a small exposed contact point, thick insulated cables, and are CAT-rated to match or exceed the meter.

The One-Hand Rule

The most dangerous current path through the body is hand-to-hand — current that travels from one hand, through the chest, and out the other hand passes directly across the heart. Ventricular fibrillation can be caused by as little as 50 mA on this path, and the resistance of skin wet with sweat can be low enough that even 50 V may push dangerous current across the body.

The one-hand rule is simple: keep one hand in your pocket or behind your back when probing live high-voltage circuits. This eliminates the hand-to-hand path. If you lose control of a probe, the current travels hand-to-foot rather than hand-to-hand, which is still dangerous but far less likely to cause immediate cardiac arrest.

Experienced high-voltage technicians reinforce this habit by physically sitting on their free hand, placing it in a pocket, or gripping a non-conductive surface. The rule applies even when wearing insulating gloves — gloves can fail, tear, or be the wrong type for the voltage involved.

Capacitor Discharge Hazard

Filter capacitors in line voltage-powered equipment store energy equal to ½CV². A 100 µF capacitor charged to 400 V contains 8 joules of energy — enough to cause severe burns or stop a heart. This energy remains stored after you switch off the equipment, sometimes for many minutes or even hours if there is no bleed resistor, or if the bleed resistor has itself failed.

Passive discharge — waiting for bleed resistors

Most linear power supplies include bleed resistors across their output filter capacitors to discharge them when the load is removed. A typical bleed resistor might be 10 kΩ to 100 kΩ. With a 100 µF capacitor and a 47 kΩ bleed resistor, the time constant is 4.7 seconds; after five time constants (23.5 seconds) the voltage has fallen to less than 1% of its charged value. In practice, wait at least 60 seconds after switch-off for a well-designed supply, and always verify with a meter before touching anything.

Active discharge — using a discharge resistor

For faster or more controlled discharge — or when you are not sure if a bleed resistor is present — connect a resistor across the capacitor through insulated leads and a properly rated high-voltage resistor. Use a wirewound resistor rated for the energy involved: for 400 V capacitors, a 10 kΩ 10 W resistor limits inrush current while discharging within seconds. Connect it via properly insulated test leads; do not touch bare ends while the capacitor is charged. Monitor the voltage with your meter until it reads zero before proceeding.

Personal Protective Equipment

For routine bench work at line voltages (up to 240 V AC), insulated probes and the one-hand rule provide adequate protection for a careful, experienced operator. For high-voltage valve equipment (300 V to 2000 V DC), additional PPE is strongly recommended:

• Insulating gloves: Class 00 or Class 0 rubber electrical gloves rated for at least the working voltage. Inspect gloves before each use — pin holes and cracks are not visible but allow fatal current. Worn gloves should be discarded immediately.
• Safety glasses: Protect against arc flash and expelled debris if a component fails catastrophically. Electrolytic capacitors can rupture violently if charged to above their rated voltage.
• Insulating mat: Stand or sit on a rubber insulating mat to break any ground fault path through your feet. Particularly important if working on concrete or metal flooring.
• Long sleeves / non-conductive clothing: Avoid jewellery, watches, and metal-backed glasses — all can cause arc burns if they contact a live conductor.

High Voltage in Ham Radio Equipment

High voltage is not exotic — it appears in some very common categories of ham radio station equipment.

Valve (vacuum tube) power amplifiers

Linear amplifiers using valves such as the 3-500Z, 8877, GU-74B or 4CX250 operate with HT (high tension) supply rails from 1500 V to 3000 V DC. The filter capacitors in these supplies store enough energy to be lethal many times over. Amplifiers in this class are the most dangerous pieces of equipment commonly found in amateur radio shacks. Even the control grid bias supply, which may be only a few hundred volts, is still dangerous.

Older solid-state equipment

Vintage solid-state transceivers from the 1970s and early 1980s sometimes use higher supply voltages — 28 V to 50 V for their final stages — not lethal in themselves but capable of causing severe burns. More hazardous are their line voltage-referenced power supplies with unregulated rails that can reach 40 V to 80 V DC at the filter capacitor before the regulator.

Cathode ray tube (CRT) equipment

Older oscilloscopes and CRT-based television equipment contain EHT (extra high tension) supplies reaching 10 kV to 30 kV for the electron beam. These are stored in the CRT glass envelope and associated capacitances and can persist for hours after switch-off even with no load. If you encounter CRT-based test equipment, treat it as you would a valve amplifier — measure before touching, discharge actively, and use appropriate PPE.

Switched-mode power supplies

The primary side of a switching supply is directly referenced to line voltage with no isolation transformer at the input stage. Even when the output is a safe 13.8 V, the input bulk capacitor is charged to approximately 340 V DC (peak of 240 V AC) and remains charged after power is removed. Do not probe the primary side of a switching supply without appropriate CAT-rated equipment and the one-hand rule firmly in place.
