Directional Wattmeters and RF Power Meters
An SWR meter tells you about match quality. A directional wattmeter goes further: it tells you how much power is actually reaching your antenna system in absolute terms. For legal compliance, amplifier tuning, contest station optimisation, and comparing antennas, knowing your actual output power in watts is essential. This lesson covers how directional wattmeters work, the critical difference between average and peak envelope power (PEP), the famous Bird 43 instrument used as a de facto standard in professional RF work, and how to convert between the watts on your meter and the dBm values used in receiver specifications and signal reports.

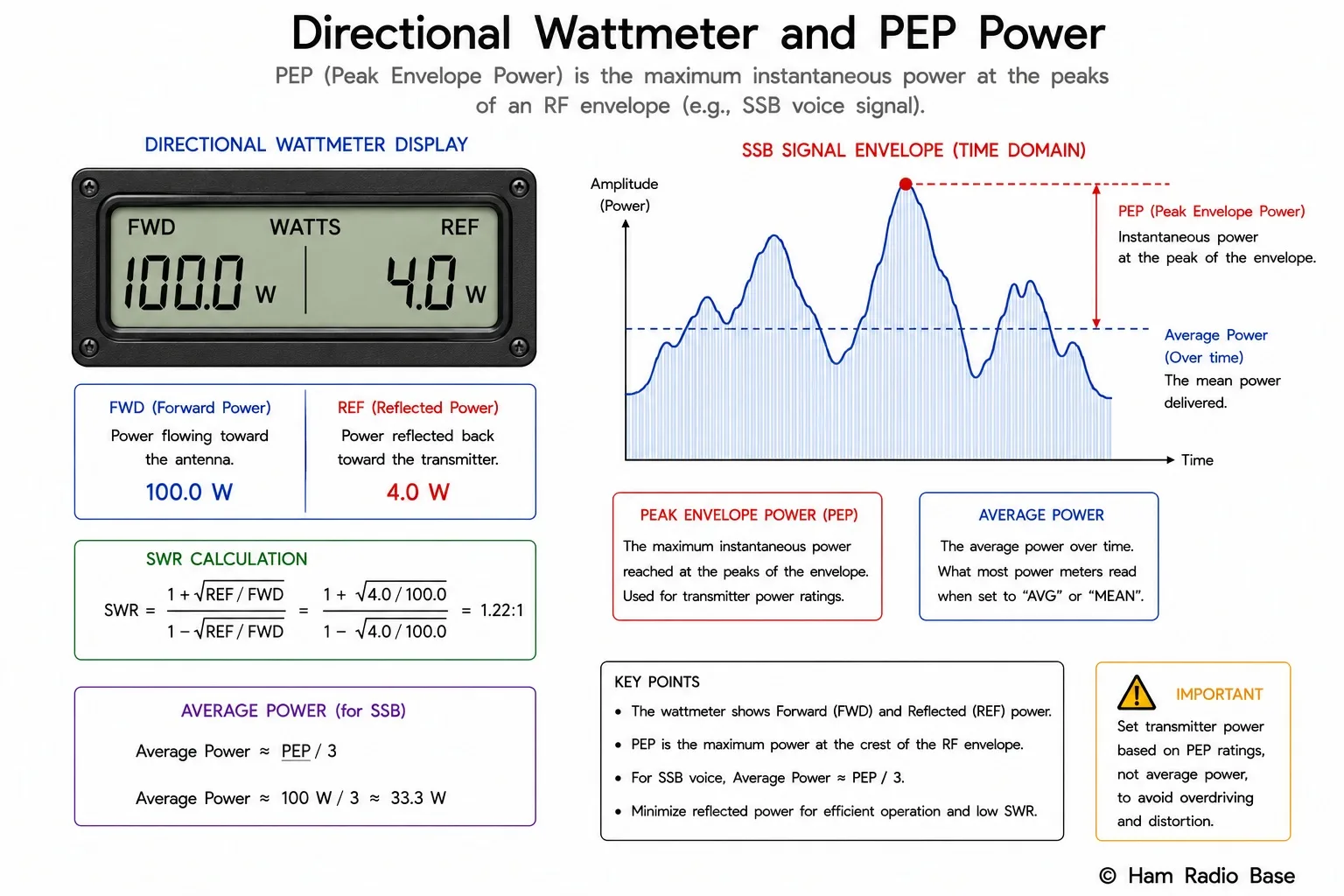

A directional wattmeter reads forward and reflected power. For SSB, the peak envelope power (PEP) is measured at the envelope peak — typically about twice the average power for a two-tone test signal.
View LargerHow a Directional Wattmeter Works
A directional wattmeter uses the same directional coupler principle as an SWR meter, but adds precision calibration to convert the coupled signal into an absolute power reading in watts. The instrument is inserted in series in the coaxial feedline — both the forward and reflected signals pass through it with negligible insertion loss (typically less than 0.1 dB) while small samples are extracted by the coupler and routed to detector circuits.
The key difference from a simple SWR bridge is calibration. The coupler's output voltage is a precise fraction of the through-signal, and the detector and display circuitry are calibrated to convert this voltage into accurate watts. This calibration depends on the coupling factor, which varies with frequency — a coupler wound for 3.5 MHz may not be accurate at 432 MHz. This is why wattmeters use interchangeable sensing elements (slugs, elements, or cartridges) calibrated for specific frequency and power ranges.
The Bird 43 — An Industry Standard
The Bird Model 43 Thruline wattmeter, introduced in 1952 and still in production, became the de facto standard for RF power measurement in commercial, military, and amateur radio applications. Its defining feature is the interchangeable slug — a self-contained coupling element that slides into the instrument body.
Each slug is calibrated for a specific power range and frequency range. A "250H" slug, for example, reads 25 W full-scale from 100–250 MHz. An "5000C" slug reads 5000 W from 2–30 MHz. The same meter body accepts any slug, allowing the instrument to cover an enormous range of applications just by swapping the element. The slug must be inserted in the correct orientation relative to the direction of power flow: a small arrow on the slug body aligns with the direction of the wave being measured (forward or reflected).
Many manufacturers produce Bird-compatible slugs. The original Bird slugs remain the reference, but aftermarket slugs from companies like Termaline and Coaxial Dynamics are widely used. Always verify a slug's calibration against a known reference if accuracy is critical.
Average Power vs PEP
Power in a radio signal is not a single fixed value — it varies with the modulation. Two distinct power quantities are important:
- Average power: The time-averaged power delivered to the load over a complete modulation cycle. This is what determines how hot your dummy load gets and how stressed your finals are over time. Average power is what a calorimeter (the most fundamental power measurement method) measures.
- Peak Envelope Power (PEP): The average power of the RF signal during one cycle at the crest of the modulation envelope — the instantaneous peak of the amplitude-modulated carrier. PEP is defined by most licensing authorities (including the ARRL and Ofcom) as the legal power limit for SSB transmission.
For a constant carrier (CW on key-down, or an FM signal) there is no difference between average power and PEP — the envelope is constant. The distinction matters only for amplitude-varying modes like SSB and AM.
SSB PEP and Average Power
An SSB signal's envelope varies moment to moment with the voice signal. During silent pauses the power drops to near zero; during a loud vowel sound it reaches the full PEP. The ratio of PEP to average power for a real speech signal depends on crest factor — how peaky the speech is — and is typically between 2:1 and 4:1 (3 dB to 6 dB).
The standard two-tone test (two equal audio tones sent simultaneously) produces a PEP-to-average ratio of exactly 2:1. This is why you will often see statements like "SSB PEP is approximately twice the average power" — this is precisely true for a two-tone test and a useful approximation for typical speech.
PEP measurement
An analogue meter's needle movement is too slow to follow the rapid amplitude variations of a voice signal — it averages them. True PEP requires either a peak-hold circuit that captures the envelope peak, or a fast oscilloscope measurement combined with a calculation. Modern digital power meters (such as the Telepost LP-100A and Elecraft W2) measure PEP correctly using fast sampling and envelope detection. For a simple CW carrier or FM, any meter reads the power correctly because there is no modulation.
The dBm Scale
In receiver specifications, link budget calculations, and laboratory work, power is often expressed in dBm — decibels relative to one milliwatt. The dBm scale makes it easy to compare signal levels across the enormous range from receiver noise floors (−130 dBm) to transmitter outputs (+60 dBm for 1 kW).
The conversion formulas are:
Watts to dBm: dBm = 10 × log10(PmW) = 10 × log10(PW × 1000)
dBm to watts: PmW = 10(dBm/10) → PW = PmW / 1000
PmW = 100 W × 1000 = 100,000 mW
dBm = 10 × log10(100,000) = 10 × 5 = +50 dBm
Common dBm Reference Points
| Power | dBm | Context |
|---|---|---|
| 1 kW | +60 dBm | Legal maximum for most amateur HF allocations in many countries |
| 400 W | +56 dBm | Typical licensed amateur maximum (e.g. UK 400 W PEP) |
| 100 W | +50 dBm | Typical HF transceiver output |
| 5 W | +37 dBm | Typical QRP output level |
| 1 W | +30 dBm | Low-power handheld transmitter |
| 1 mW | 0 dBm | Reference level; test equipment output levels |
| 1 µW | −30 dBm | Typical weak signal, S9 on many receiver calibrations |
| −113 dBm | −113 dBm | Typical HF receiver noise floor (kTB at 25 °C, 3 kHz BW) |
Watts / dBm Calculators
Watts to dBm
Convert a power in watts to dBm (decibels relative to 1 milliwatt).
dBm to Watts
Convert a power in dBm to milliwatts and watts.
Frequently Asked Questions
My wattmeter reads 50 W on CW and 15 W on SSB voice. Is something wrong?
Almost certainly not — this is exactly what you should expect. CW with key held down is a constant-amplitude carrier, so average power equals PEP: the meter correctly shows your full output. An SSB voice signal varies enormously in amplitude — there is very little power during silent pauses, rising to PEP only at the loudest peaks. A standard average-reading wattmeter will show an average of 25–30% of PEP for typical voice, hence the lower reading. If your transceiver is set to 100 W PEP on SSB, an average-reading meter showing 15–25 W during normal speech is perfectly correct behavior.
What is a two-tone test and why is it used?
A two-tone test injects two equal-amplitude audio tones (often 700 Hz and 1900 Hz, both within the SSB passband) simultaneously into an SSB transmitter. The resulting RF signal has a well-defined envelope: the amplitude rises and falls at the difference frequency, reaching a peak amplitude equal to twice the single-tone amplitude. This peak gives a PEP-to-average ratio of exactly 2:1, and the waveform is predictable and repeatable — far more so than real speech. The two-tone test is therefore the standard method for measuring SSB linearity, IMD (intermodulation distortion), and for setting up amplifier drive levels and output power correctly.
What is 0 dBm and why does it matter?
Zero dBm is exactly 1 milliwatt into 50 Ω — it is the reference level for the dBm scale. It matters because it is the level at which many pieces of test equipment (signal generators, power splitters, attenuators) are designed and calibrated. Receiver sensitivity specifications, antenna gain measurements, and link budgets all use dBm as the common currency, allowing gains and losses expressed in dB to be added and subtracted from a known reference. A signal generator set to 0 dBm produces 1 mW — knowing this, you can calculate that your 100 W transmitter is exactly 50 dB above the reference level.
Is a higher-power transmitter always better for communication?
Not necessarily. Doubling power increases signal strength at the far end by only 3 dB — a modest improvement that is barely perceptible in practice. By contrast, improving antenna gain by 3 dBd achieves the same improvement at no cost in RF power, operating license limits, or electricity bill. The most effective station improvements are typically antenna height, antenna gain, feedline efficiency, and receiver noise figure — not simply more transmitter power. Running the minimum power needed for the contact is also good practice for amateur radio etiquette and keeps interference to other stations to a minimum.
