SWR — Standing Wave Ratio — is one of the most frequently discussed quantities in amateur radio, and the SWR meter is one of the most commonly used instruments in the shack. But what is an SWR meter actually measuring, and how does it work? Understanding the directional coupler principle that underlies every SWR bridge makes you a more confident operator and helps you interpret readings accurately rather than just reacting to numbers on a dial.

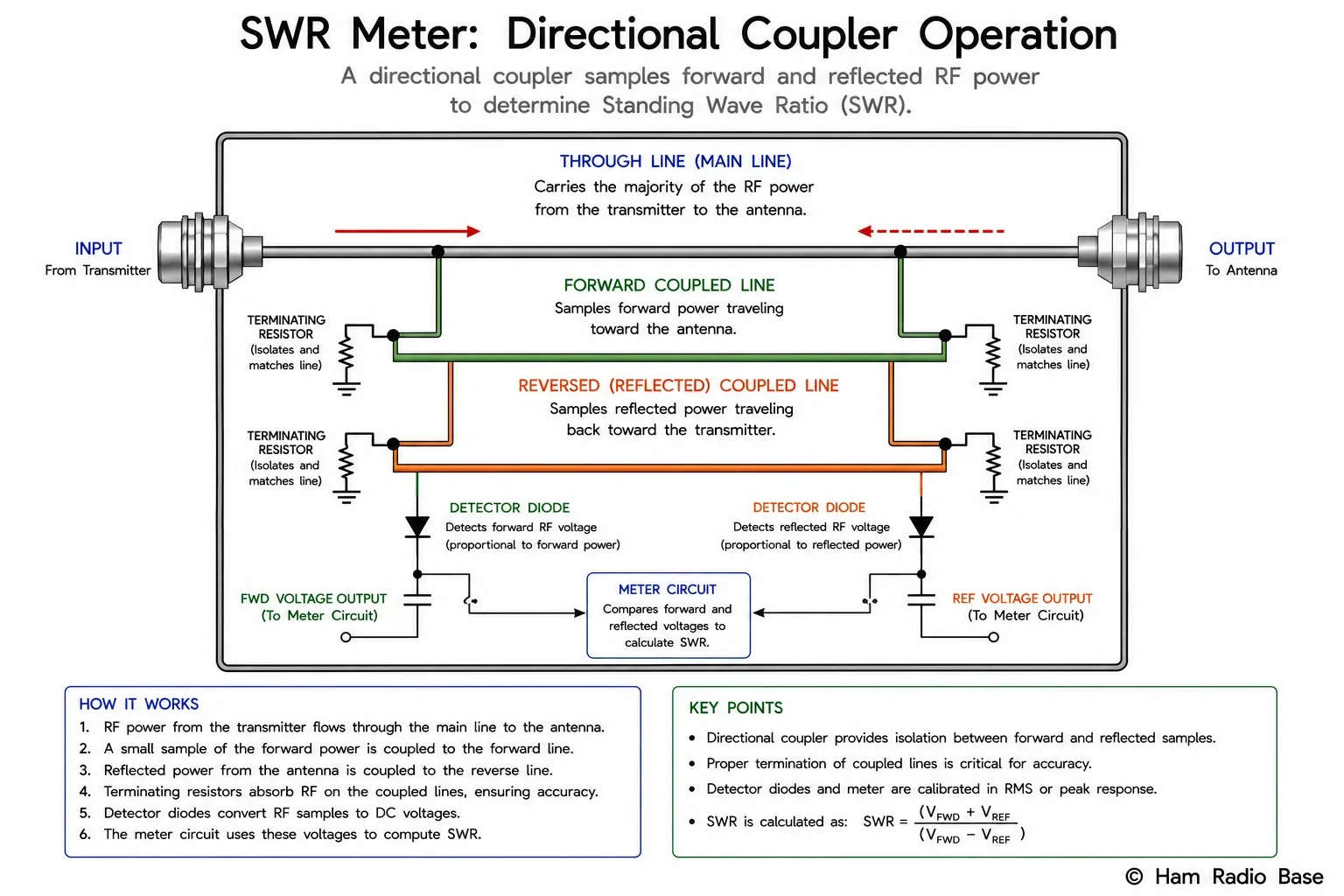

A directional coupler inside an SWR meter samples forward-traveling and reflected-traveling waves separately using two short coupled transmission line sections and a pair of detector diodes.

View Larger

The Directional Coupler Principle

An SWR meter must be able to separate two simultaneous signals traveling in opposite directions on the same coaxial cable: the forward wave going from transmitter to antenna, and the reflected wave returning from the antenna (if the antenna is not perfectly matched to 50 Ω). A simple voltage or power meter cannot do this — it measures the combined effect of both waves. The directional coupler solves this problem elegantly.

A directional coupler consists of a short section of transmission line (the main through-line) in close proximity to a second, coupled line. At radio frequencies, energy couples electromagnetically between the two lines. The crucial property is that the coupling is directional: energy traveling forward on the main line couples to the auxiliary line in one direction, while energy traveling in reverse couples to the auxiliary line in the opposite direction. By terminating the ends of the auxiliary line with matched loads and detector diodes, you extract a voltage proportional to the forward wave at one diode and a voltage proportional to the reflected wave at the other.

Inside most analogue SWR meters you will find either a Bruene coupler (using a toroidal current transformer combined with a voltage sample) or a transmission line coupler (using parallel conductors as described above). Both accomplish the same directional separation; the Bruene design is more common in affordable amateur equipment because it is easier to wind accurately.

Forward and Reflected Power

Once the coupler has separated the two traveling waves, each detector diode produces a DC voltage proportional to the amplitude of its wave. In a power-reading instrument this voltage is squared (power is proportional to V²) and calibrated in watts. In a simpler SWR-only bridge, the two voltages are used directly in a bridge circuit to produce a null — or a ratio reading — that indicates SWR without needing to know the actual power.

Forward power P_f is the total power your transmitter is delivering to the feedline. Reflected power P_r is the portion of that power returning from the antenna because the antenna's impedance is not exactly 50 Ω. The difference is the power actually radiated (or dissipated in the feedline):

P_delivered = P_f − P_r

If a transmitter outputs 100 W and the SWR meter shows 10 W reflected, then 90 W is reaching the antenna system (some of which is lost in the feedline itself, but that loss is a separate concern). The 10 W of reflected power travels back towards the transmitter, where the output stage must deal with it — most modern transceivers use automatic level control to protect the PA from excessive reflected power.

Calculating SWR from Power

SWR is defined as the ratio of maximum to minimum voltage on a transmission line that results from the superposition of forward and reflected waves. It can be calculated from the reflection coefficient Γ (gamma):

Γ = √(P_r / P_f)

SWR = (1 + Γ) / (1 − Γ)

SWR Values and What They Mean

It is important to understand where the meter is in the system. An SWR meter measures the SWR at its insertion point. If the meter is at the transmitter end of a long coaxial run, the SWR it reads is lower than the SWR at the antenna because the cable loss attenuates both the forward and reflected waves. An SWR of 3:1 at the antenna may read as 2:1 at the transceiver end if the cable is lossy. This is why a lossy cable can appear to improve SWR — it is masking the mismatch, not fixing it.

SWR Bridge vs Reflectometer

These terms are often used interchangeably but have a slight technical distinction:

• SWR bridge: A passive bridge circuit (similar to a Wheatstone bridge but at RF) that produces a null or minimum reading when the load is exactly 50 Ω. It gives a relative indication of match quality but does not directly indicate forward or reflected power in watts. Common in older portable SWR indicators.
• Reflectometer: A directional coupler-based instrument that produces separate forward and reflected power readings. It can display SWR (derived from the ratio) or actual power (if calibrated). More versatile and the standard design in most modern SWR/power meters.

For practical amateur use the distinction matters little — both tell you whether your antenna system is matched. The reflectometer is more useful because it also shows you the actual forward power, confirming the transmitter is delivering what you expect.

Using an SWR Meter

Analogue SWR meters (the type with needle movements) typically require a calibration step before each reading:

1. Connect the SWR meter between transmitter output and antenna feedline.
2. Switch the meter to the CAL (or FWD) position.
3. Transmit a carrier (press PTT on CW or use the tune function).
4. Adjust the sensitivity or calibration control until the needle reads full-scale or a calibration mark.
5. Switch to REF (or SWR) without changing power.
6. Read the SWR directly from the scale. Note the reading and release PTT.

Digital SWR meters and antenna analyzers automate this and display forward power, reflected power, and SWR simultaneously. They do not require a calibration step for each reading.
