Frequency Counters

A frequency counter is one of the most straightforward and indispensable instruments in the ham radio shack. It does one thing: it measures how many times per second a signal oscillates and displays that number. In a world of synthesized transceivers and GPS-locked rigs, you might wonder why you need one. The answer is that whenever you build your own oscillator, modify a crystal, align a receiver's intermediate frequency, or verify that a homebrew transmitter is on the correct frequency, you need to know the exact frequency — not the approximate dial reading, but the exact value. A frequency counter gives you that answer to 6, 7, or even 10 significant figures.

This lesson explains how frequency counters work inside, what determines their accuracy, and how to use them effectively in ham radio applications.

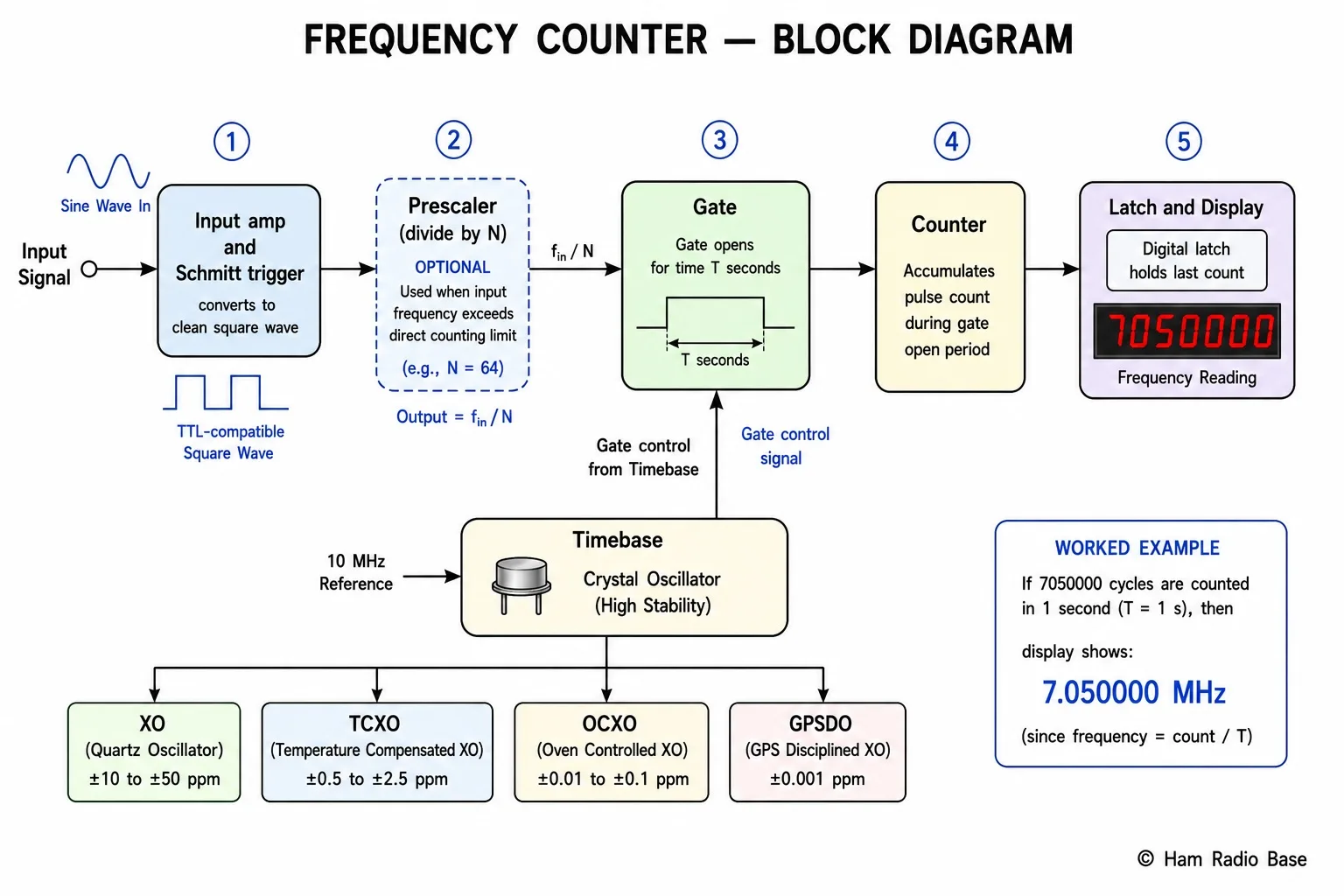

Block diagram of a frequency counter. The gate opens for a precise time interval set by the timebase oscillator; the counter accumulates the number of input signal cycles during that interval. Dividing the count by the gate time gives frequency.

View Larger

How a Frequency Counter Works

At its core, a frequency counter is a timer and a pulse counter working together. The basic principle is almost comically simple: open a gate for exactly one second, count how many cycles of the input signal pass through while the gate is open, and display that count. If 7,050,000 cycles pass through in one second, the frequency is 7,050,000 Hz = 7.050 MHz.

This simple approach — called the direct count method — has a fundamental limitation. The resolution (the smallest frequency change you can detect) is 1 Hz per second of gate time, because the count can only change in whole numbers. To measure 7.050000 MHz to the nearest hertz you would need to count for one second, which takes one second. To measure to the nearest 0.1 Hz you would need a 10-second gate. For very low frequencies the measurement time becomes impractically long.

Reciprocal Counting: How Modern Counters Get High Resolution Quickly

Modern frequency counters solve the resolution problem with a technique called reciprocal counting (also called the period measurement method or interpolating counting). Instead of just counting input cycles, the counter simultaneously measures the period of the input signal by recording timestamps with a precision timebase. It then calculates frequency as 1 / period.

Here is the key insight: even a single cycle of a 100 Hz audio tone takes 10 milliseconds. The counter can measure that 10 ms period with a resolution of, say, 10 nanoseconds using a fast internal clock. That gives a frequency resolution of about 0.0001 Hz — far better than waiting 10,000 seconds with a direct counter to achieve the same result. A reciprocal counter achieves high resolution at both high and low frequencies in the same measurement time.

The mathematical relationship is: if you measure the period T to N significant figures, you get frequency f = 1/T to N significant figures as well. A reciprocal counter that measures time to 10 ns precision over a 1 ms gate window resolves frequency to roughly 10 parts per billion — equivalent to 70 mHz at 7 MHz, or a frequency resolution of 0.07 Hz.

This is why even an inexpensive modern frequency counter offers much better effective resolution than a direct counter of the same gate time. The specification to look for is "resolution" or "frequency resolution per second of gate time" — modern reciprocal counters spec this at 10 digits or better.

Input Signal Conditioning

A frequency counter cannot directly count arbitrary analog waveforms. The internal counter logic is digital — it responds to voltage transitions crossing a threshold, typically a TTL-compatible square wave. The input section of every frequency counter therefore contains an amplifier, a limiter, and a Schmitt trigger whose job is to convert whatever signal you present — a weak sine wave, a distorted square wave, an RF signal — into clean, sharp digital transitions that the counter logic can reliably count.

The input section typically provides:

• Input coupling: AC coupling is used for RF and most alternating signals (it blocks DC offset). DC coupling is used when measuring digital signals that might have a DC bias that must be preserved for correct threshold crossing.
• Input impedance: Most counters offer 1 MΩ input impedance for low-frequency work (direct probe connection) and 50 Ω for RF work. Always use 50 Ω when measuring RF from a transmitter or oscillator to avoid reflections and ensure the counter sees the signal correctly.
• Sensitivity: The minimum signal level the counter can reliably count. Typical RF counter input sensitivity is around 10–50 mV RMS at 50 Ω. For very weak signals, an external preamplifier may be needed.
• Trigger level: Some counters allow you to set the voltage threshold at which transitions are detected. Adjusting this can help when the signal has a DC offset or asymmetric waveform.
• Attenuation: A ×10 or ×100 attenuator pad protects the input from overload when measuring high-level signals. RF from a transmitter output is many volts — always use appropriate attenuation rather than connecting transmitter output directly to a counter.

Timebase Accuracy: The Heart of the Counter

Every frequency counter contains a timebase oscillator — a precision frequency source that controls how long the gate stays open. The accuracy of the timebase directly determines the accuracy of every frequency measurement. If the timebase is 1 ppm (part per million) fast, every frequency reading will be 1 ppm too high. For a counter measuring a 14 MHz signal, 1 ppm corresponds to 14 Hz of error — you might read 14.000014 MHz instead of 14.000000 MHz.

Timebase technologies in increasing order of accuracy and cost:

For most ham radio frequency counter applications — checking that a VFO is close to the correct frequency, measuring a crystal's exact frequency, verifying transmitter output — a TCXO-based counter is more than adequate. The ±1 ppm accuracy of a good TCXO means a measurement error of only 7 Hz at 7 MHz or 14 Hz at 14 MHz, which is plenty precise for alignment and verification work.

If you need to check that a transmitter is exactly on frequency to within a few hertz — for example, to confirm compliance with band edge requirements or to align a station for digital weak-signal modes — a GPSDO-disciplined counter is the right tool. Several inexpensive GPSDO modules are available in the amateur community that can lock an existing counter's timebase to GPS accuracy for under $100.

Timebase Warm-Up

Crystal oscillators drift with temperature. A cold oscillator just powered on reads differently than one that has reached thermal equilibrium. The warm-up specification tells you how long to wait after power-on before the reading is within the rated accuracy. TCXO-based counters typically stabilize within 2–5 minutes. OCXO counters need 15–30 minutes to reach full oven temperature. The rule is simple: if accuracy matters, let the counter warm up before making important measurements.

Gate Time and Resolution

The gate time is how long the counter opens the gate between the input signal and the counting logic. Longer gate times produce finer frequency resolution, but slower measurements. Most counters offer gate time settings from 0.1 second to 10 seconds. The relationship is:

For a direct counter: Resolution = 1 / gate time. At 1 second gate time, resolution is 1 Hz. At 10 seconds, resolution is 0.1 Hz.

For a reciprocal counter: Resolution is much better — roughly N decades of improvement over a direct counter for the same gate time, where N depends on the interpolation technique. A 1-second gate on a reciprocal counter might resolve to 0.01 Hz or better.

Prescalers: Counting at High Frequencies

The digital counter logic in a frequency counter has a maximum counting speed — a maximum frequency at which it can reliably detect and count input transitions. For counters based on standard CMOS or TTL logic, this might be in the range of 100–300 MHz. Measuring a 440 MHz ham radio signal directly would exceed this limit.

A prescaler is a high-speed digital divider placed before the counter logic. It divides the input frequency by a fixed ratio — typically 10, 16, 32, 64, or some power of 2. The counter logic then counts the divided signal, and the display multiplies by the same factor to show the true frequency.

Many frequency counters designed for ham use include switchable prescalers, automatically enabling the prescaler when the input frequency exceeds the counter's direct counting range. Some counters also include a dedicated Channel B input with a built-in prescaler for the VHF/UHF range while Channel A handles HF and below.

Practical Ham Radio Applications

Frequency counters appear in ham shacks in several distinct roles:

Aligning a Variable Frequency Oscillator (VFO)

A VFO in a homebrew receiver or transmitter needs to be adjusted so that when the dial reads 7.050 MHz, the VFO actually oscillates at 7.050 MHz (or at 7.050 + IF frequency, if the VFO operates at an intermediate frequency and mixes up or down). A frequency counter connected to the VFO output through a few picofarads of coupling capacitance reads the actual oscillator frequency as you turn the tuning dial. You adjust the dial mechanism, trimmer capacitors, or calibration offset until the counter reads the correct frequency at the dial's reference mark.

Measuring Crystal Frequencies

Crystals are manufactured to nominal frequencies, but the actual frequency of an individual crystal can vary from the nominal by tens or hundreds of hertz, depending on the tolerance grade. When building a crystal-controlled oscillator, filter, or ladder filter, you need to know each crystal's exact series resonant frequency. Connect the crystal in a suitable test oscillator circuit (a simple Colpitts or Pierce oscillator) and read the exact frequency on the counter. This lets you sort crystals and select those closest in frequency for high-performance filters.

Checking Transmitter Output Frequency

Regulations require that amateur transmissions occur within the licensed bands. Confirming this with a frequency counter requires coupling a small sample of the transmitter's RF output to the counter. The correct approach is to use a directional coupler (which provides a −20 dB sample port) or a capacitive voltage probe near the antenna connector, attenuate the sample to the millivolt range, and read the counter. Never connect a transmitter directly to a counter input — the RF voltage will destroy the input circuit.

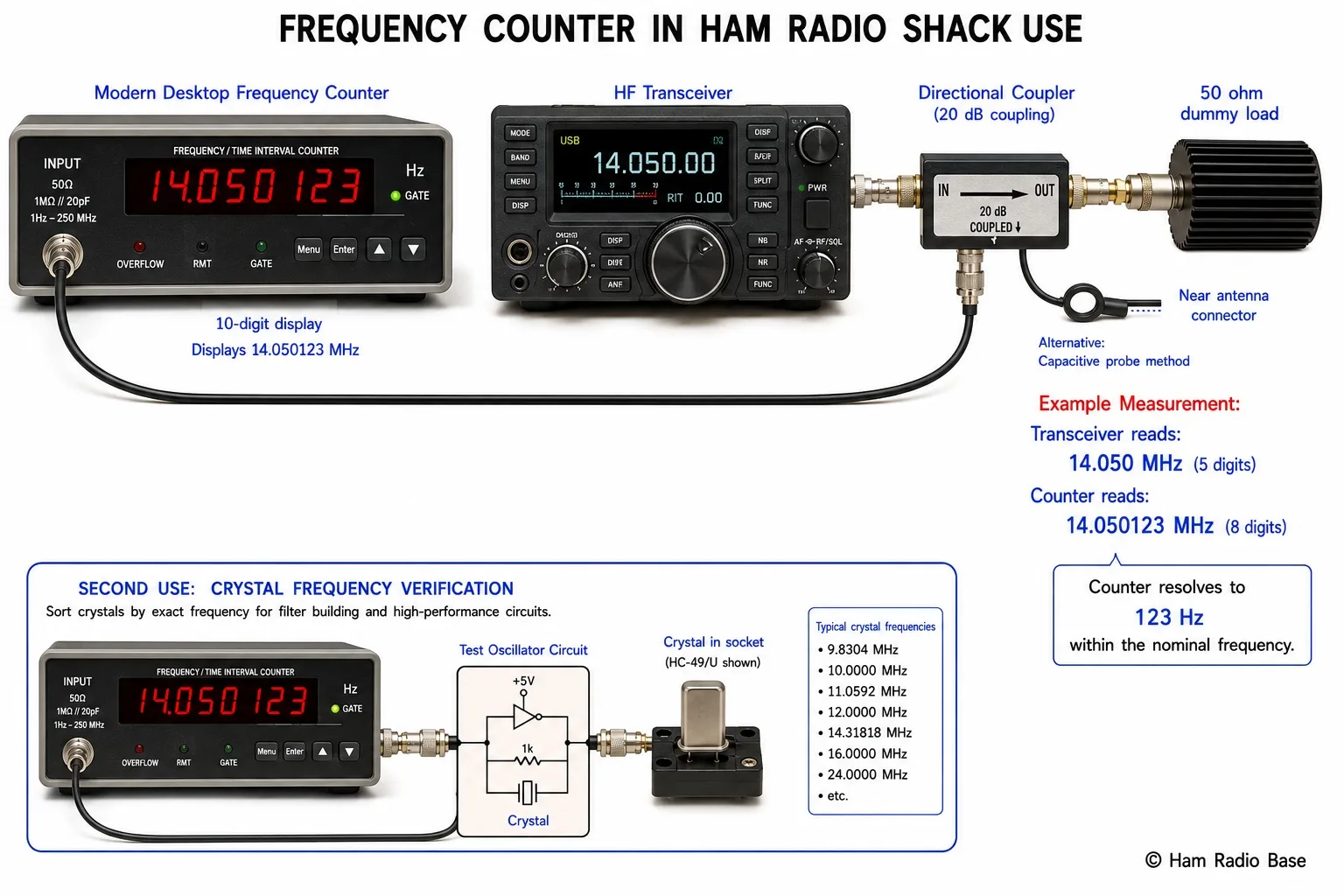

Common ham radio uses for a frequency counter: verifying transmitter frequency to more decimal places than the transceiver's own display, and measuring individual crystal frequencies for filter building. Never connect a counter directly to a transmitter — always use a coupler or attenuator.

View Larger

Receiver IF Alignment

When aligning the intermediate frequency chain of a superhet receiver, you need to know the exact IF frequency — usually 455 kHz, 10.7 MHz, or 9 MHz, depending on the design. Inject a signal into the IF strip and measure the output with a counter to confirm the filter is centered on the correct frequency. Transformer-coupled IF strips can be padded slightly by adjusting the tuned circuits; measuring the exact peak frequency with a counter tells you where each stage is actually tuned, not just where the trimmer is mechanically positioned.

Checking a Tone Generator or Audio Oscillator

For weak-signal digital modes like FT8 or WSPR, audio tone accuracy at the sound card output matters. A frequency counter can measure the exact tone frequency at the line output of your computer's sound card — useful for verifying that your software-generated tones are precisely on frequency before transmission. Measure at the audio output with the counter on a low-frequency range (set for AF, not RF).

Specifications to Look For

When evaluating a frequency counter for ham radio use, these are the key specifications:

Using a Frequency Counter: Step-by-Step

For RF measurements from an oscillator or low-power source:

1. Allow warm-up time. Power on the counter and wait the specified warm-up period — typically 5 minutes for a TCXO unit, 30 minutes for an OCXO. Readings before warm-up may be off by several ppm.
2. Select the correct channel and impedance. Use the 50 Ω input for RF. Use 1 MΩ for probing circuit nodes directly. Select Channel A for HF, Channel B (if present) for VHF/UHF.
3. Set input coupling. AC coupling is correct for oscillators and RF signals. DC coupling is used only when the signal has a significant DC component that must be included in the threshold crossing.
4. Set gate time. Start with 1 second. If you need finer resolution, increase to 10 seconds. If the frequency is changing (e.g., you are tuning a VFO), use a shorter gate like 0.1 second for faster update rate.
5. Connect the signal. For oscillator output, connect via a short coaxial cable with BNC or SMA connectors at the correct impedance. Never connect more than about 1 V peak (approximately +13 dBm) to most counter inputs without the built-in attenuator engaged.
6. Read the display. Allow two or three gate cycles to pass and observe whether the reading is stable. If it jitters by more than a few digits, the signal may be weak, noisy, or harmonically distorted — check the signal level and try adjusting trigger level.
7. Record the frequency. Write down or screenshot the full display, including all significant figures. The last digit typically has ±1 count uncertainty — this is normal for any counter.

Dead Time and Self-Check

Every frequency counter has a small dead time — the brief period between successive measurements when the gate is closed, the previous count is being transferred to the display, and the counter resets for the next measurement. During dead time, no counting occurs. For continuous frequency measurement (such as monitoring a drifting VFO) the dead time means there is a brief gap in the measurement. Most modern counters have dead times under 1 ms, which is negligible for most purposes.

To verify that your counter is working correctly, use the self-check or internal calibration signal if one is provided. Many counters include a precision internal oscillator connected to a front-panel BNC jack specifically for self-test — the signal is typically 10 MHz or 1 MHz, and its frequency should match the specification to within the counter's rated accuracy. If the self-check frequency reads correctly, the timebase and counting logic are functioning properly. If not, the timebase may need calibration against an external reference.
