Using an Antenna Analyzer
Knowing what an antenna analyzer measures is only half the story. The other half is knowing how to connect it correctly, run a calibration, interpret a sweep, and translate the numbers into practical action — trimming wire, adjusting a matching network, or deciding that an antenna is ready to connect to a transmitter. This lesson covers the complete practical workflow from first power-on to a confident "it's matched" conclusion.
The procedures here apply to all antenna analyzers — the inexpensive NanoVNA, mid-range RigExpert and MFJ units, and full vector network analyzers. Where the steps differ between a simple scalar unit and a full VNA, that difference is noted.

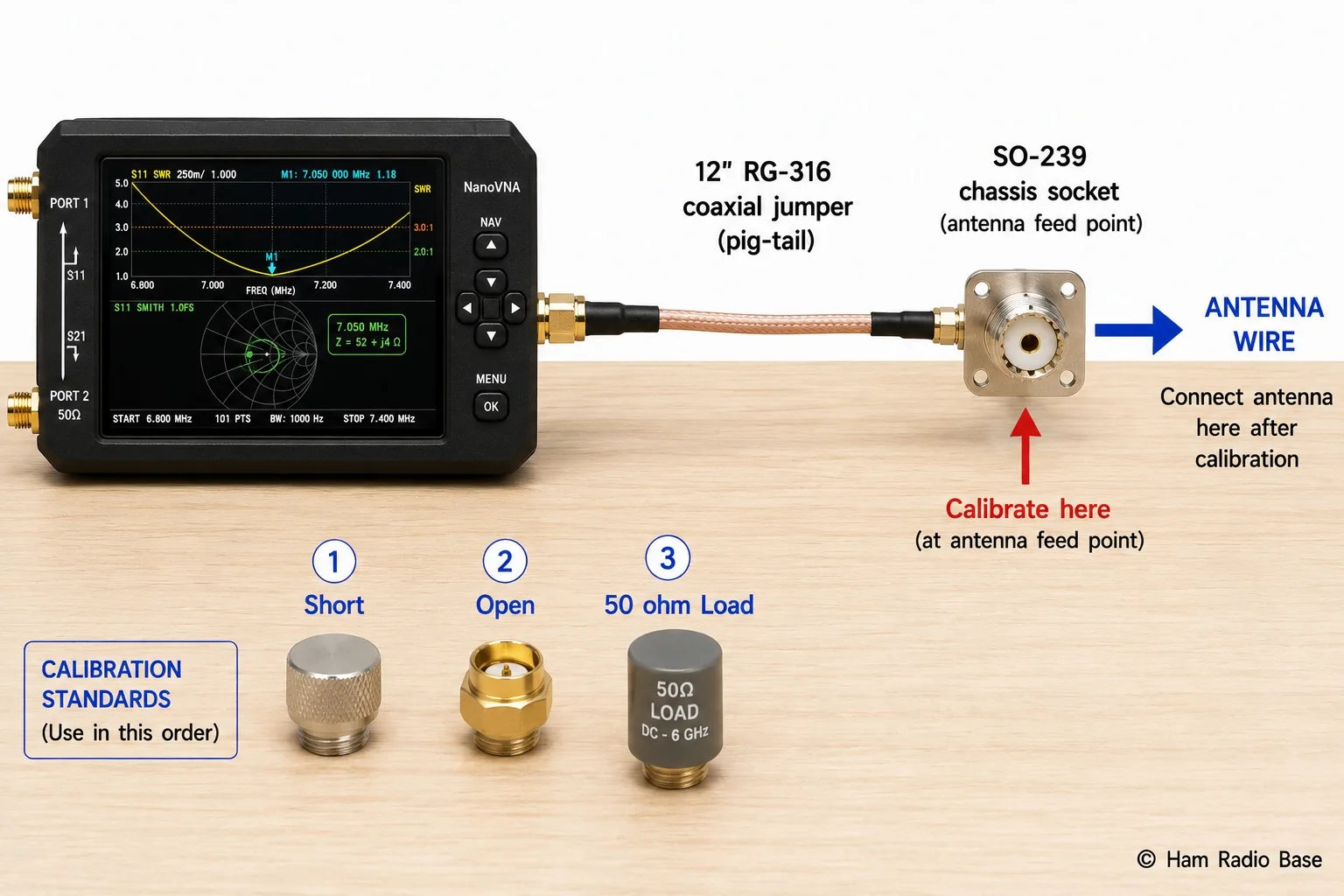

Correct antenna analyzer setup: the analyzer connects directly to the antenna system with calibration standards ready. A short cable stub is used for antenna port access; long feed lines require calibration at the far end.
View LargerBefore You Connect Anything
An antenna analyzer transmits a low-level RF signal — typically 0 dBm (1 mW) or less — through its test port. This is far too low to make a contact, but it is still a transmitted signal on whatever frequency you are sweeping. Before connecting the analyzer, check that the antenna is in the clear, that you are not sweeping through frequencies where other equipment on the same band is actively receiving, and that no one else is using the antenna system at the same time. On a shared club station, announcing "testing antenna" on the intercom is good practice.
The analyzer's RF output is not dangerous to the user, but you must never connect the test port directly to a transmitter output while the transmitter is running. Even low-level RF from the transmitter can destroy the analyzer's internal bridge and detector circuit, which is designed only for its own milliwatt-level signal. Always disconnect the transmitter before attaching the analyzer.
Performing SOL Calibration — Step by Step
Calibration removes measurement errors introduced by the analyzer's own connectors, any short cable stub between the analyzer and the antenna, and minor imperfections in the internal bridge circuit. The procedure uses three known reference standards: a Short (0 Ω), an Open (infinite impedance), and a 50 Ω Load. Together these three measurements give the analyzer enough information to solve a set of error-correction equations and produce accurate impedance readings.
On most analyzers, calibration is accessed through a menu. On the NanoVNA, it is under the CALIBRATE menu, which presents options for OPEN, SHORT, LOAD, DONE, and RESET. On the RigExpert and MFJ units, a dedicated CAL button starts the sequence. The exact button labels differ, but the physical procedure is identical on every instrument.
When and where to calibrate: Always calibrate with the test reference plane at the point where you want to make your measurement. If you intend to measure an antenna directly at the analyzer's port, calibrate there. If you intend to measure an antenna through a 20-foot coaxial stub, connect that stub and calibrate at the far end of the stub. This is called shifting the reference plane, and it is the most important concept in practical antenna analyzer work.
Step-by-Step Calibration Procedure
- Set the frequency range first. Calibration is only valid for the sweep range you set. On the NanoVNA, enter the start and stop frequencies (e.g., 3 MHz to 30 MHz for HF work) before starting calibration. If you change the range later, you must recalibrate.
- Connect the Short standard. Use the short-circuit terminator that came with your analyzer. This is either a dedicated metal cap that shorts the center pin to the outer body, or a connector with a small piece of wire soldered across it. Select SHORT on the menu and wait for the analyzer to complete the measurement — typically one to three seconds.
- Remove the Short, connect the Open standard. The open is simply no connection — remove the Short cap and leave the port empty (or use an open-circuit cap if supplied). Select OPEN and wait for completion. On some analyzers the open is measured with nothing connected; on others an actual open-standard connector must be used. Follow your specific instrument's instructions.
- Remove the Open, connect the 50 Ω Load standard. This must be a high-quality 50 Ω termination — not a random resistor or a dummy load from a different context. A calibration load is precision-made to be as close to 50 Ω as possible across the frequency range. Select LOAD and wait for completion.
- Select DONE (or SAVE). The analyzer stores the error coefficients and applies them to all subsequent measurements. On the NanoVNA, a "CALIBRATED" indicator usually appears on the display.
You plan to sweep a 40 m dipole from 6.8 MHz to 7.4 MHz. You connect a 12-inch RG-58 pig-tail between the NanoVNA's SMA port and the antenna connector at the base of the mast. The pig-tail is part of the measurement path, so you calibrate at its far end.
1. Set STIMULUS START: 6.8 MHz, STOP: 7.4 MHz.
2. Connect Short cap to far end of pig-tail → menu SHORT → wait.
3. Remove Short, leave open → menu OPEN → wait.
4. Connect 50 Ω SMA termination → menu LOAD → wait.
5. Select DONE.
The NanoVNA now shows CALIBRATED. You remove the termination and connect the dipole feed point directly. Your readings now show the true antenna impedance without the pig-tail's electrical effects.
Taking Your First Sweep: SWR vs Frequency
With calibration complete, connect the antenna and run a sweep. On most analyzers the sweep happens automatically — the display updates continuously as the analyzer steps through the frequency range. On older handheld units, you trigger the sweep manually by pressing a button.
The SWR vs frequency display looks like a graph with frequency on the horizontal axis and SWR on the vertical axis. The trace forms a curve that typically dips to a minimum at the antenna's resonant frequency. This dip is what you are looking for. A good resonant antenna shows a clean dip below 2.0:1 at or very near your target operating frequency.
What the sweep tells you at a glance:
- Position of the dip: Where the antenna resonates. If your target is 14.250 MHz and the dip appears at 14.100 MHz, the antenna is too long — it resonates too low. You need to shorten it.
- Depth of the dip: How close to 50 Ω the antenna comes at resonance. A dip to SWR 1.1:1 is excellent. A dip to 1.8:1 means the radiation resistance at resonance is not close to 50 Ω — which could indicate a ground system problem, nearby objects detuning the antenna, or an inherent impedance mismatch.
- Width of the dip: The bandwidth. A narrow dip means a high-Q antenna that is sensitive to frequency. A broad, shallow dip means the antenna is low-Q and covers a wider range, though it may not reach as low an SWR at the center.

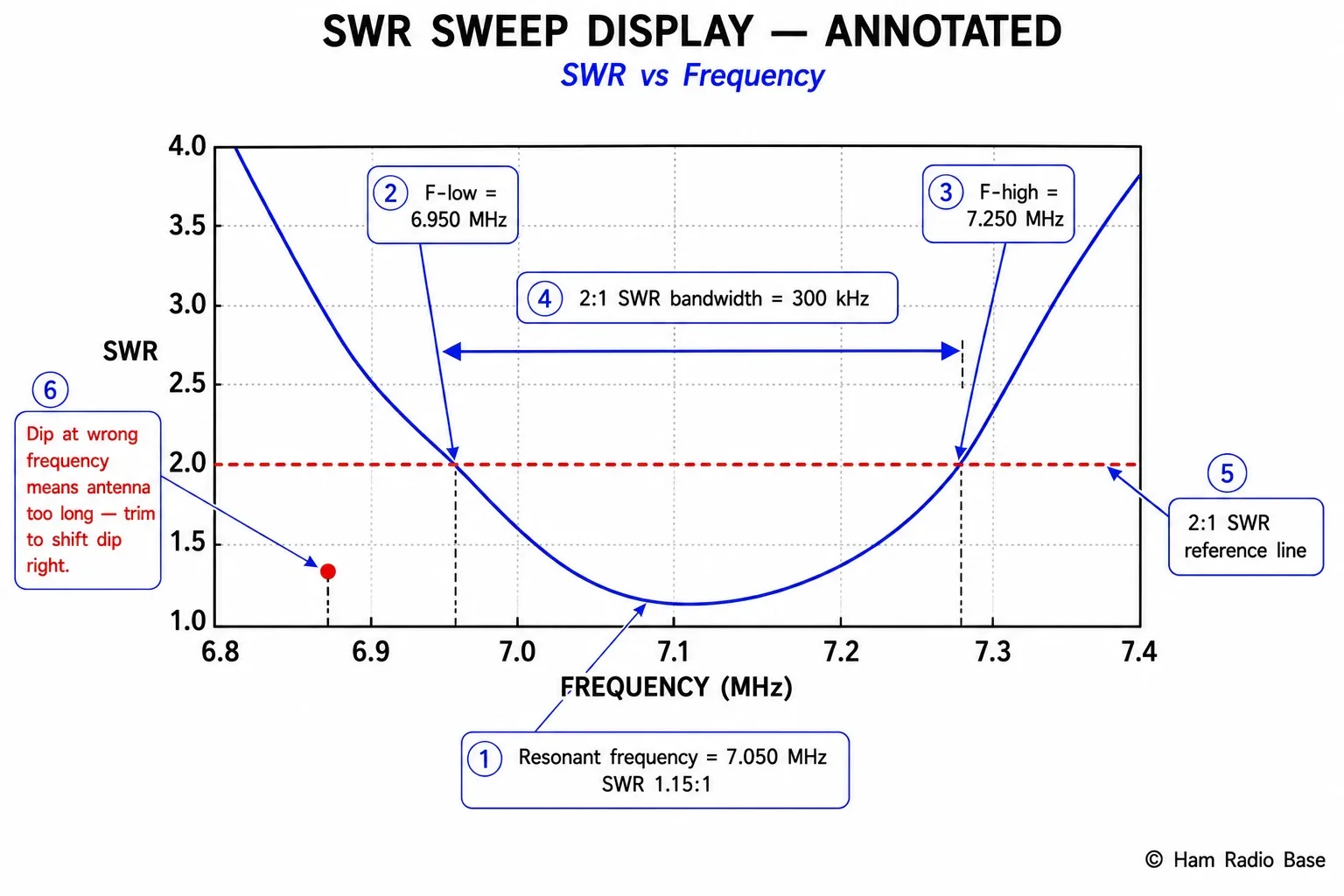

Annotated SWR sweep: the resonant frequency is at the dip minimum. The two 2.0:1 SWR crossing points define the usable bandwidth. A dip shifted below the target frequency means the antenna is too long and must be shortened.
View LargerFinding the Resonant Frequency
The resonant frequency is the frequency at which the antenna's reactance is zero — the point where inductive and capacitive effects cancel and the antenna presents a purely resistive impedance. On an SWR sweep, this appears as the minimum of the SWR curve. On an impedance display, it is where the X reading crosses through zero.
Resonance and minimum SWR do not always occur at exactly the same frequency. This surprises many beginners. The reason is that minimum SWR occurs where the impedance is closest to 50 Ω, while resonance is where reactance is zero. If the resistive part of the antenna's impedance at resonance is not 50 Ω (say, it is 35 Ω or 70 Ω), then the minimum SWR point may shift slightly from the exact zero-reactance point as the impedance sweeps through values closer to 50 Ω. For most practical antenna work the difference is small and the SWR minimum is a good approximation of resonance.
For precision work — when designing a matching network, for example — use the X = 0 crossing on the impedance display, not the SWR minimum. Switch your analyzer to show R and X (or Z and phase) rather than SWR only. Find the frequency where X passes through zero from positive to negative (or vice versa). That is the true resonant frequency.
Measuring 2:1 SWR Bandwidth
The 2:1 SWR bandwidth is the range of frequencies over which an antenna operates with an SWR below 2.0:1. This is the standard bandwidth specification for amateur antennas because 2:1 SWR corresponds to about 11% reflected power — generally acceptable for a modern solid-state transceiver with built-in SWR protection.
To measure it from a sweep:
- Find the SWR minimum (resonant frequency).
- Note the frequency below resonance where the SWR curve rises to 2.0:1. Call this Flow.
- Note the frequency above resonance where the SWR curve rises to 2.0:1. Call this Fhigh.
- Bandwidth = Fhigh − Flow.
A dipole shows SWR minimum of 1.15:1 at 7.150 MHz. The 2:1 SWR points are at 7.025 MHz (low) and 7.275 MHz (high).
Bandwidth = 7.275 − 7.025 = 0.250 MHz = 250 kHz.
The 40 m amateur band (USA) spans 7.000–7.300 MHz, a range of 300 kHz. This dipole covers 250 kHz of it with SWR below 2:1 — it covers about 83% of the band from a single feed point without a tuner. Good enough for most operators.
Higher-Q antennas (electrically short verticals with loading coils, small loops) have narrower 2:1 SWR bandwidths — often only a few kHz on HF. Lower-Q antennas (fan dipoles, log-periodic designs) have much wider bandwidths. The bandwidth of your antenna tells you whether you need a tuner to cover the full band or whether the antenna handles it naturally.
Trimming an Antenna for Resonance
The most common use of an antenna analyzer in the field is trimming a new wire antenna to bring its resonant frequency to the correct place. The process is simple once you understand which way to adjust:
- Resonant frequency too low (dip below target): The antenna is too long. Shorten it. For a dipole, trim equal amounts from both ends to maintain balance. For a vertical, trim from the top.
- Resonant frequency too high (dip above target): The antenna is too short. Lengthen it. Add wire to both ends of a dipole, or fold back the tip and tape it for temporary adjustment before cutting.
The golden rule is cut slowly. Wire is easy to cut and impossible to un-cut. Make small adjustments — 2 to 3 inches at a time on HF — and resweep after each adjustment. You will quickly develop a feel for how much the resonant frequency moves per inch of wire on each band. As a rough guide, on 40 m (7 MHz), removing 1 inch from each end of a dipole moves the resonant frequency up by roughly 20–30 kHz. On 80 m (3.5 MHz) the same trim moves it roughly 10–15 kHz.
⚖ Experiment: Trim a Wire Antenna to Resonance
This experiment demonstrates the complete field trimming procedure on an HF wire antenna using an antenna analyzer.
- Antenna analyzer (NanoVNA, RigExpert, MFJ, or similar)
- SOL calibration standards for your analyzer
- A wire dipole or end-fed wire antenna (can be temporary, at low height for the experiment)
- Short coaxial jumper (1–2 feet) to connect analyzer to antenna feed point
- Wire cutters or scissors
- Tape measure
- Set your analyzer sweep range to span 500 kHz on either side of your target frequency. For 40 m CW (7.050 MHz), sweep 6.8 to 7.3 MHz.
- Calibrate the analyzer at the far end of your short coaxial jumper using SOL procedure.
- Connect the antenna feed point to the jumper. Run the sweep and note where the SWR minimum appears. Record the frequency and the SWR at the dip.
- If the dip is below your target frequency, calculate how far off it is. If 100 kHz too low on 40 m, plan to remove about 4 inches from each dipole leg.
- Disconnect the analyzer, trim both legs equally, reconnect and resweep. Record the new resonant frequency.
- Repeat in small steps until the minimum is at or within 20 kHz of your target frequency.
- Once resonant frequency is correct, note the SWR at the minimum. If it is below 1.5:1 you have a well-matched antenna. If it is between 1.5 and 2.0:1, the resistive component at resonance is not exactly 50 Ω — consider adding a matching section or accepting the small mismatch.
Each small trim moves the SWR dip upward in frequency by a predictable amount. After two or three iterations you will have the resonant frequency positioned at or near your target. The SWR sweep gives you immediate, unambiguous feedback that no guesswork or formula-based calculation can match. This is the core skill of practical antenna work.
Reading the Impedance Display: R and X
While the SWR display is the most intuitive view for routine antenna trimming, the impedance display gives you far more information. It shows R (resistance) and X (reactance) separately, letting you understand exactly what is happening electrically at each frequency.
Reading the impedance display at the resonant frequency:
- R close to 50 Ω, X close to 0 Ω: A well-matched, resonant antenna. Connect it to a transmitter without a tuner.
- R much lower than 50 Ω (e.g., 15–25 Ω), X near 0 Ω: The antenna is resonant but has low radiation resistance. This is common with electrically short antennas and verticals with poor ground systems. A matching network is needed to transform the 15–25 Ω up to 50 Ω.
- R much higher than 50 Ω (e.g., 100–200 Ω), X near 0 Ω: The antenna is resonant but has higher radiation resistance. Common at antenna feed points such as the high-impedance end of an end-fed half-wave. Again, a matching transformer is needed.
- R near 50 Ω, X large positive: The antenna is inductive at this frequency — too long, or feeding above resonance. The reactance can be cancelled by a series capacitor in the feed line.
- R near 50 Ω, X large negative: The antenna is capacitive — too short, or feeding below resonance. Cancel with a series inductor.
Knowing R and X separately is essential when designing matching networks. An antenna tuner or L-network must transform whatever Z the antenna presents into 50 Ω. Without knowing R and X individually, you cannot choose the correct component values. The SWR alone tells you only how bad the mismatch is, not what kind of mismatch it is or what to do about it.
SWR and Return Loss Calculators
SWR and return loss are two ways of describing the same mismatch. Return loss is the dB version — it is used in professional RF work because dB values add when losses cascade through a system. Many data sheets and technical articles quote return loss rather than SWR. The calculators below let you convert between them instantly.
The relationships are:
- Reflection coefficient: ρ = (SWR − 1) / (SWR + 1)
- Return loss: RL = −20 · log₁₀(ρ) dB
- Reversed: ρ = 10^(−RL/20), then SWR = (1 + ρ) / (1 − ρ)
SWR to Return Loss Converter
Enter an SWR value to calculate the equivalent return loss in dB and the percentage of power reflected.
Return Loss to SWR Converter
Enter a return loss in dB to calculate the equivalent SWR and percentage of power reflected.
Using the Smith Chart Display
If your analyzer includes a Smith chart display (as all NanoVNAs and RigExpert AA-2000 units do), you can see at a glance how the antenna impedance moves with frequency. The Smith chart plots the complex reflection coefficient Γ in a circular diagram normalized to 50 Ω.
What the dot's position on the Smith chart tells you:
- Dot at center: Perfect 50 Ω match. SWR 1.0:1.
- Dot anywhere on the horizontal axis (left-right center line): Purely resistive impedance — zero reactance. If the dot is between center and right edge, resistance is above 50 Ω. If between center and left edge, resistance is below 50 Ω.
- Dot in upper half of chart: Inductive reactance (positive X). The antenna is too long for this frequency, or you are looking above resonance.
- Dot in lower half of chart: Capacitive reactance (negative X). The antenna is too short for this frequency, or you are looking below resonance.
- Dot near outer edge of chart: High SWR — large mismatch. The closer to the edge, the worse the match.
When you watch the Smith chart dot sweep across frequencies during a continuous sweep, you can see the antenna's impedance trace a loop or arc. A resonant dipole sweeping through its resonant frequency draws a nearly horizontal arc that crosses the horizontal axis (pure resistance) at resonance. The crossing point to the right of center means resistance above 50 Ω; to the left means below. Where the arc crosses exactly at center, the match is perfect.
For a beginner, the Smith chart can look intimidating. Focus on these two facts to start: center = good match, and the horizontal axis = pure resistance (no reactance). Everything else follows from those two reference points.
Measuring Through a Feed Line — Port Extension
In real installations, you connect the analyzer at the bottom of the coax, not at the antenna feed point at the top of the mast. The coaxial feed line transforms the antenna impedance. If you run a calibration at the instrument port, the displayed impedance includes the cable's transforming effect — you are measuring the cable-transformed antenna impedance, not the antenna impedance itself.
There are two ways to handle this:
Option 1 — Calibrate at the far end of the feed line. Carry the three calibration standards to the antenna feed point. Connect them in sequence at the top of the coax run (the antenna end) and perform calibration there. This shifts the measurement reference plane to the antenna feed point. The cable's effect is completely eliminated from all subsequent measurements. This is the most accurate approach but requires climbing or physical access to the feed point.
Option 2 — Port extension (electrical delay). Some analyzers (including the NanoVNA with companion software, and professional VNAs) support port extension. You enter the cable's electrical length (or measure it by performing a short/open at the far end without calibration standards), and the analyzer mathematically "unwinds" the cable's phase rotation. This works well for cables whose electrical length you know precisely. It is faster than carrying calibration standards up a mast, but less accurate for very long cables or cables with significant loss.
For most practical HF antenna work at modest heights, either approach gives results accurate enough to guide antenna adjustment. For precise matching network design — where you need R and X to within a few percent — option 1 is always preferable.
Common Measurement Mistakes and How to Avoid Them
| Mistake | What happens | How to avoid it |
|---|---|---|
| Calibrating with sweep range set too wide | Calibration accuracy degrades at the edges of a very wide range | Set the sweep range to the band of interest, then calibrate. Recalibrate if you change the range. |
| Calibrating at the analyzer port, measuring antenna through long coax | Displayed impedance includes cable transformation — does not show true antenna impedance | Calibrate at the antenna end of the feed line, or use port extension correctly |
| Using a low-quality 50 Ω load for calibration | Load deviation from 50 Ω introduces error in all subsequent measurements | Use the calibration load supplied with the analyzer or a precision SMA termination rated for your frequency range |
| Measuring the antenna while standing next to it | The human body detunes the antenna, especially VHF/UHF antennas | Step back several feet from the antenna during the sweep, or use a remote sweep software trigger |
| Connecting a transmitter to the analyzer port | Even brief RF from a transmitter can destroy the analyzer's bridge circuit | Always disconnect transmitters before connecting the analyzer. Check twice. |
| Interpreting SWR minimum as proof of a good antenna | An antenna can show 1.5:1 SWR at the end of a lossy feed line — the loss makes it look matched | Calibrate at the antenna feed point; also check that R is close to 50 Ω, not just that SWR is low |
| Changing the sweep range after calibration without recalibrating | Measurements outside the calibrated range are invalid | Always recalibrate after any sweep range change |
nanovna-workflow">NanoVNA-Specific Practical Workflow
The NanoVNA is the most widely available antenna analyzer in the amateur radio community, and its touchscreen interface works slightly differently from traditional button-operated analyzers. Here is a complete practical workflow for antenna measurement with a NanoVNA:
- Power on and allow the unit 5 minutes to warm up. Like all RF instruments, the NanoVNA's internal oscillator is more accurate after thermal stabilization.
- Set stimulus range: Tap STIMULUS → START, enter your lowest frequency. Tap STIMULUS → STOP, enter your highest frequency. For 20 m antenna work, set 13.5 to 15.0 MHz.
- Set display: For basic work, Channel 0 (CH0) shows the forward port measurement. Set the trace to SWR (DISPLAY → TRACE → FORMAT → SWR). Optionally add a second trace for impedance (FORMAT → LINEAR).
- Calibrate: CALIBRATE → CALIBRATE. Follow the sequence: OPEN → SHORT → LOAD → DONE. The screen will prompt you for each standard.
- Connect antenna and observe the sweep. The trace updates automatically.
- Use MARKER: Tap MARKER → MARKER 1, then drag the marker to the SWR minimum. The NanoVNA displays the exact frequency and SWR at the marker position.
- Read impedance at marker: Add a second marker, set FORMAT to REAL+IMAG (or SMITH), and read R and X directly from the display.
- Save screenshot: If your NanoVNA has a built-in SD card or USB connection, save the sweep for later comparison after antenna adjustments.
When using the NanoVNA application software (NanoVNA-Saver or NanoVNA-QT) on a computer, the workflow is similar but the larger display makes the Smith chart and multi-trace views much more readable. The software also lets you save sweep data to files, overlay multiple sweeps for before/after comparison, and export impedance tables for use in antenna modeling software.
Interpreting Results for Common Antennas
| Antenna type | Typical R at resonance | Expected SWR at resonance | Common issues |
|---|---|---|---|
| Center-fed half-wave dipole in free space | 73 Ω | ~1.5:1 (without matching) | R rises above 73 Ω near ground; coupling to nearby objects lowers it |
| Center-fed dipole at practical heights (~0.5λ up) | 50–80 Ω | 1.1–1.6:1 | Well-matched; small variations from height and nearby objects |
| Quarter-wave ground plane vertical | 35–50 Ω | 1.0–1.4:1 with good radials | R drops below 35 Ω with poor ground; common on mobile installs |
| End-fed half-wave (EFHW) | 2,000–5,000 Ω | Very high without transformer | Requires 49:1 or 64:1 transformer; measure after transformer |
| Yagi or beam antenna | 25–35 Ω typical | 1.5–2.0:1 without matching | Requires hairpin or gamma match; check each element spacing |
| Magnetic loop | Very low, 0.1–5 Ω | Very high without coupling loop | Extremely narrow bandwidth; retune for every frequency change |
Frequently Asked Questions
My analyzer shows SWR 1.0:1 on all frequencies. Have I achieved perfection?
No — this almost certainly means the antenna is disconnected or the calibration was performed with a load still connected. A real antenna rarely shows 1.0:1 across a wide sweep. If you see suspiciously low SWR everywhere, check that the antenna is actually connected, and verify calibration by briefly connecting a known 50 Ω termination — it should read exactly 1.0:1 at all frequencies. A short circuit should read infinite SWR.
The SWR dip is deep but not at my target frequency. What should I do first?
Trim or lengthen the antenna, not the coaxial feed line. The resonant frequency is a property of the radiating element, not the feed line. A longer antenna resonates lower; a shorter antenna resonates higher. Adjust the radiating element in small steps, sweeping after each change, until the dip sits at your target frequency.
After trimming, my antenna resonates at the right frequency but the SWR minimum is 2.5:1. Why?
The antenna is resonant (zero reactance) but the radiation resistance at resonance is not close to 50 Ω. Read the R value on the impedance display. If R is around 25 Ω, the antenna's radiation resistance is half of 50 Ω — a 2:1 impedance mismatch, which gives SWR 2.0:1. If R is around 15 Ω, the ratio is about 3.3:1, giving SWR around 3.3:1. Common causes: a mobile whip with no ground plane, a vertical with insufficient radials, or an antenna that needs an L-network or transformer to match to 50 Ω.
Can I use an antenna analyzer to measure coaxial cable length?
Yes — this is a useful application. Short one end of the cable and sweep the frequency until the analyzer sees a resonance (SWR minimum). This occurs when the cable is an odd multiple of quarter-wavelengths long. Knowing the frequency of the first quarter-wave resonance and the cable's velocity factor, the physical length is: length (ft) = 245 × VF / f(MHz). Open the far end instead and you find the frequency where it looks like a quarter-wave short from the source end — the first series resonance. Compare open and short resonances to verify cable properties.
Should I measure with the antenna in its final installed position or on the ground?
Always measure in the final installed position if at all possible. An antenna's resonant frequency, radiation resistance, and SWR all change significantly with height above ground, proximity to the house, roof, or other conductors, and nearby vegetation. A dipole tested 3 feet off the ground will behave very differently from the same dipole installed at 35 feet. You can do initial trimming near the ground to get close, then make final adjustments at installation height.
