Full Wave and Bridge Rectification
In the previous lesson you saw that a half-wave rectifier passes only one half of the AC cycle, discarding the other half entirely. That wasted half represents lost energy and, more practically, it forces your filter capacitor to work very hard to smooth out the large gaps between pulses. Full-wave rectification solves both problems by capturing every half-cycle and directing current through the load in the same direction for all of them. The result is a pulsating DC waveform at twice the original frequency, which is dramatically easier to filter into smooth DC.
There are two common ways to achieve full-wave rectification: the center-tap rectifier, which uses two diodes and a specially wound transformer, and the bridge rectifier, which uses four diodes and works with any transformer. Both are fundamental to every linear power supply you will ever encounter in amateur radio equipment, from a simple QRP rig to a high-power station supply. Understanding how each circuit works, what voltage it produces, and how to choose the right diodes will serve you throughout your amateur radio career.
Why Full-Wave Rectification Is Better
Think about what happens inside a half-wave rectifier. The diode conducts during the positive half-cycle, charging the filter capacitor and supplying the load. During the negative half-cycle the diode blocks, and the capacitor must supply the load all by itself for roughly 16.7 milliseconds (a full 60 Hz period). During that long discharge interval the output voltage falls noticeably, creating ripple.
Full-wave rectification eliminates those long gaps. Both the positive and negative half-cycles are converted to positive pulses, so the capacitor only has to hold up the voltage for about 8.3 milliseconds before the next pulse arrives to recharge it. The ripple frequency doubles from 60 Hz to 120 Hz, and ripple amplitude drops substantially for the same filter capacitor. Alternatively, you can achieve the same ripple with roughly one-quarter the capacitance — a major cost and size saving.
There is also a significant efficiency improvement. In a half-wave rectifier, the transformer secondary winding supplies current for only half the cycle but must carry the full RMS current rating continuously. In a full-wave rectifier, current flows through the transformer during both half-cycles, so the transformer is utilized more efficiently and a smaller, cheaper transformer can supply the same DC power.

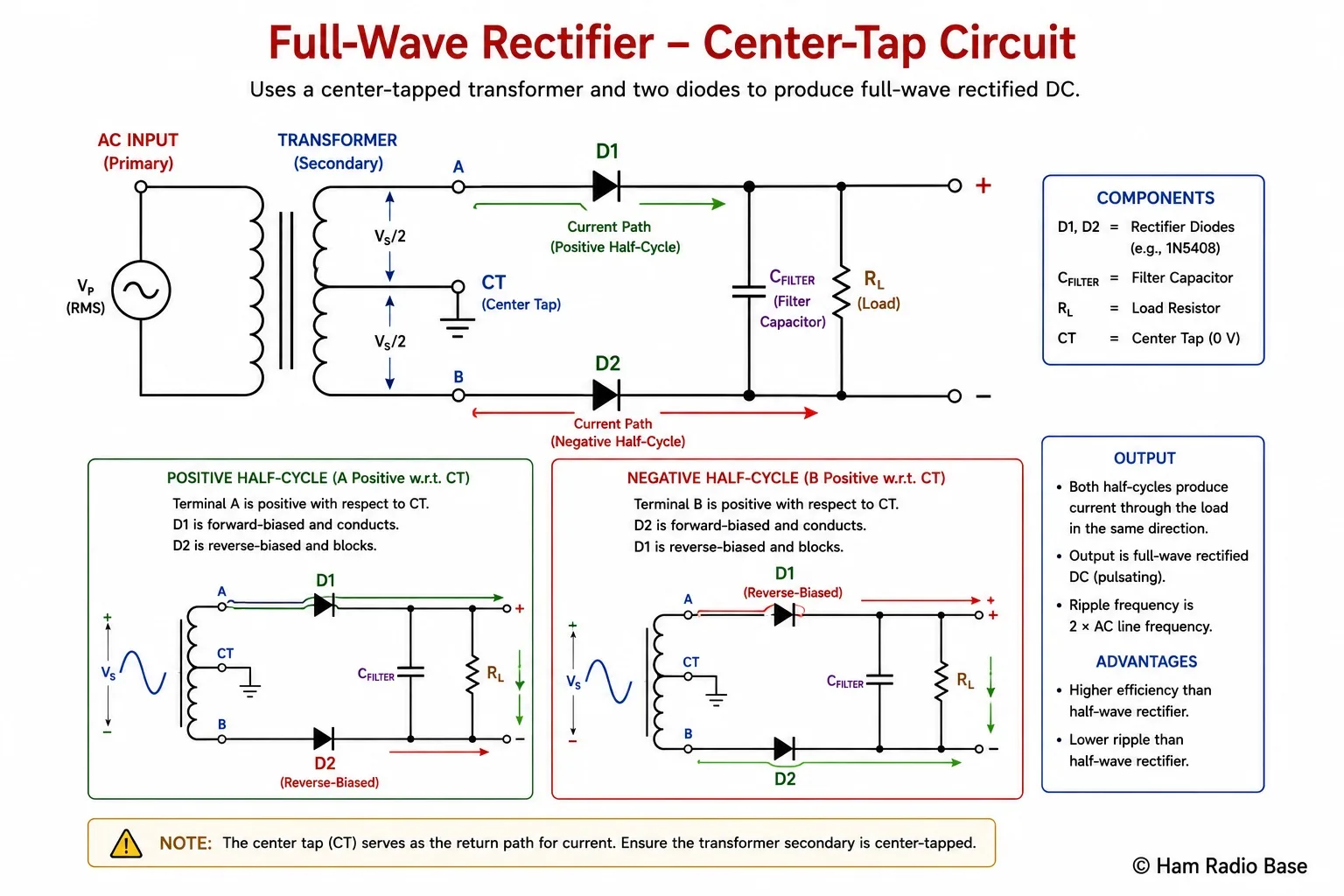

Full-wave center-tap rectifier. D1 conducts during the positive half-cycle (top of secondary positive) while D2 is reverse-biased. During the negative half-cycle D2 conducts (bottom of secondary positive relative to center-tap) while D1 is off. Current through the load always flows in the same direction.
View LargerFull-Wave Center-Tap Rectifier
The center-tap rectifier requires a transformer whose secondary winding has a tap brought out from the exact midpoint. This center-tap becomes the circuit's ground reference. The two halves of the secondary winding each deliver the same peak voltage relative to center, so you effectively have two separate AC voltage sources that are 180 degrees out of phase with each other.
Circuit Operation
During the positive half-cycle, the top of the secondary is positive and the bottom is negative. Diode D1 (connected between the top of the secondary and the positive output rail) is forward-biased and conducts. Current flows from the top of the secondary, through D1, through the load from positive terminal to negative terminal (which is connected to center-tap), and back to the center-tap. D2, connected between the bottom of the secondary and the positive output rail, is reverse-biased because its anode is at a negative voltage relative to its cathode. D2 blocks.
During the negative half-cycle, the polarity reverses. Now the bottom of the secondary is positive and the top is negative. D2 is forward-biased and conducts. Current flows from the bottom of the secondary, through D2, through the load in exactly the same direction as before, and back to center-tap. D1 is now reverse-biased and blocks.
Because current always flows through the load in the same direction regardless of which half-cycle is active, you get a full-wave rectified output — a series of positive half-sine humps at twice the input frequency.
Output Voltage Calculations
The transformer secondary voltage is specified as an RMS value from one end to center, or from end to end. If the label says "25.2 V CT" (center-tap), each half of the secondary delivers 12.6 V RMS relative to center. To find the peak voltage, multiply by 1.414 (the square root of 2):
V_out_peak = V_half_secondary_peak − 0.7 V (subtract one diode forward voltage drop)
V_avg = 0.636 × V_out_peak (average of a full-wave rectified sine without a filter cap)
Ripple frequency = 120 Hz (twice the 60 Hz line frequency)
Peak Inverse Voltage (PIV)
The PIV (also called PRV, peak reverse voltage) is the maximum reverse voltage that appears across the non-conducting diode. This is a critical specification — if you underrate the diodes, they will break down in avalanche during the reverse half-cycle and destroy themselves or short-circuit the supply.
In the center-tap rectifier, when D1 is conducting and the output is at approximately V_out_peak, the anode of D2 is at the bottom of the secondary which is at −V_half_secondary_peak relative to center. The cathode of D2 is at +V_out_peak. Therefore the total reverse voltage across D2 is approximately:
This is a significant number — almost twice what you might naively expect. The center-tap rectifier requires diodes with higher PIV ratings than the bridge rectifier for the same transformer voltage.
Worked Example: 25.2 V CT Transformer
Step 1 — Peak secondary half-voltage:
V_half_secondary_peak = 12.6 × 1.414 = 17.82 V
Step 2 — Peak output voltage:
V_out_peak = 17.82 − 0.7 = 17.1 V
Step 3 — Average output voltage (before filter cap):
V_avg = 0.636 × 17.1 = 10.9 V
Step 4 — PIV requirement:
PIV = 2 × 17.82 = 35.6 V
Conclusion: Use diodes rated at least 50 V PIV (e.g., 1N4001 at 50 V, or 1N4002 at 100 V for safety margin). Note that after adding a filter capacitor the output will be closer to 17.1 V, not 10.9 V — the 0.636 factor applies only to unfiltered output.
Bridge Rectifier
The bridge rectifier is by far the most commonly used rectifier configuration today. It uses four diodes arranged in a diamond (bridge) pattern and does not require a center-tapped transformer — any transformer with a single secondary winding will work. This makes it versatile, lower in cost, and well-suited for a wide range of power supply designs.

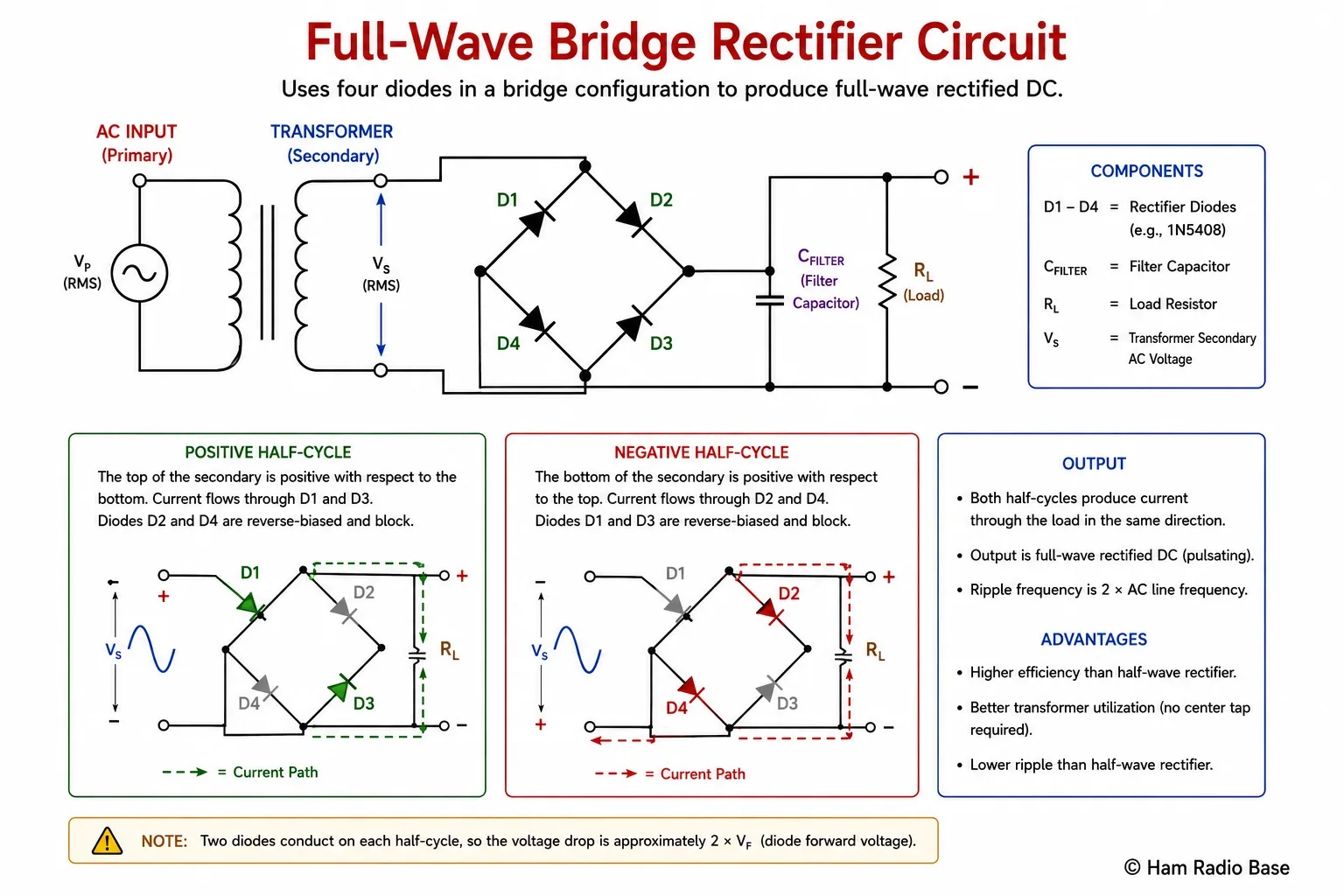

Bridge rectifier. During the positive half-cycle, D1 and D3 conduct (shown in blue). During the negative half-cycle, D2 and D4 conduct (shown in red). In both cases current through the load flows left to right, producing a positive output.
View LargerCircuit Operation
Label the four diodes D1 through D4 in the conventional bridge arrangement. The AC input connects across two opposite corners of the diamond; the DC output is taken from the other two corners (with the positive output at the top and ground at the bottom).
During the positive half-cycle, the top of the transformer secondary is positive. Current flows from the transformer top terminal, through D1 (forward-biased), through the load from positive to negative, through D3 (forward-biased), and back to the bottom of the transformer secondary. D2 and D4 are reverse-biased and do not conduct.
During the negative half-cycle, the polarity reverses — the bottom of the transformer secondary is now positive. Current flows from the transformer bottom terminal, through D2 (forward-biased), through the load from positive to negative (same direction as before!), through D4 (forward-biased), and back to the top of the transformer secondary. D1 and D3 are now reverse-biased.
At all times exactly two diodes are in the conduction path. This means the output voltage is reduced by two diode drops instead of one.
Output Voltage and Two Diode Drops
V_out_peak = V_secondary_peak − 1.4 V (two silicon diode drops at 0.7 V each)
V_avg = 0.636 × V_out_peak
Ripple frequency = 120 Hz
The 1.4 V total diode drop is a small price to pay for eliminating the need for a center-tapped transformer. On a 15 V supply the loss is less than 10%; on higher-voltage supplies it becomes even less significant.
PIV of the Bridge Rectifier
A key advantage of the bridge rectifier is its lower PIV requirement. When D1 is conducting and the output positive rail is at +V_out_peak, the cathode of D2 is also at +V_out_peak (since D2's cathode connects to the positive output rail through D3). The anode of D2 connects to the secondary terminal which is at approximately −V_secondary_peak during the positive half-cycle. However, the reverse voltage across D2 is the output voltage, which is V_secondary_peak minus one drop, not the full double value:
This is roughly half the PIV required by a center-tap rectifier for the same output voltage. The bridge allows you to use lower-rated, cheaper diodes.
Worked Example: 15 V RMS Transformer
Step 1 — Peak secondary voltage:
V_secondary_peak = 15 × 1.414 = 21.2 V
Step 2 — Peak output voltage:
V_out_peak = 21.2 − 1.4 = 19.8 V
Step 3 — Average output voltage (unfiltered):
V_avg = 0.636 × 19.8 = 12.6 V
Step 4 — PIV requirement:
PIV ≈ 21.2 V
Step 5 — Diode selection:
The 1N4002 (100 V PIV, 1 A) provides a 4.7× safety margin on PIV, which is appropriate. For a 5 A supply, use 1N5401 (100 V PIV, 3 A) or 1N5402. For very high current, use a bridge module.
Bridge Rectifier Modules
For power supplies that must deliver significant current, individual diodes can be replaced by a single four-terminal bridge rectifier module. These are sold as compact packages with two AC input terminals and two DC output terminals (+ and −). Common examples include the KBPC3510 (35 A, 1000 V) and the W10 (1 A, 1000 V). Bridge modules are convenient, thermally efficient (all four junctions share a single package and can be bolted to a heat sink), and cost-effective at moderate and high current levels.

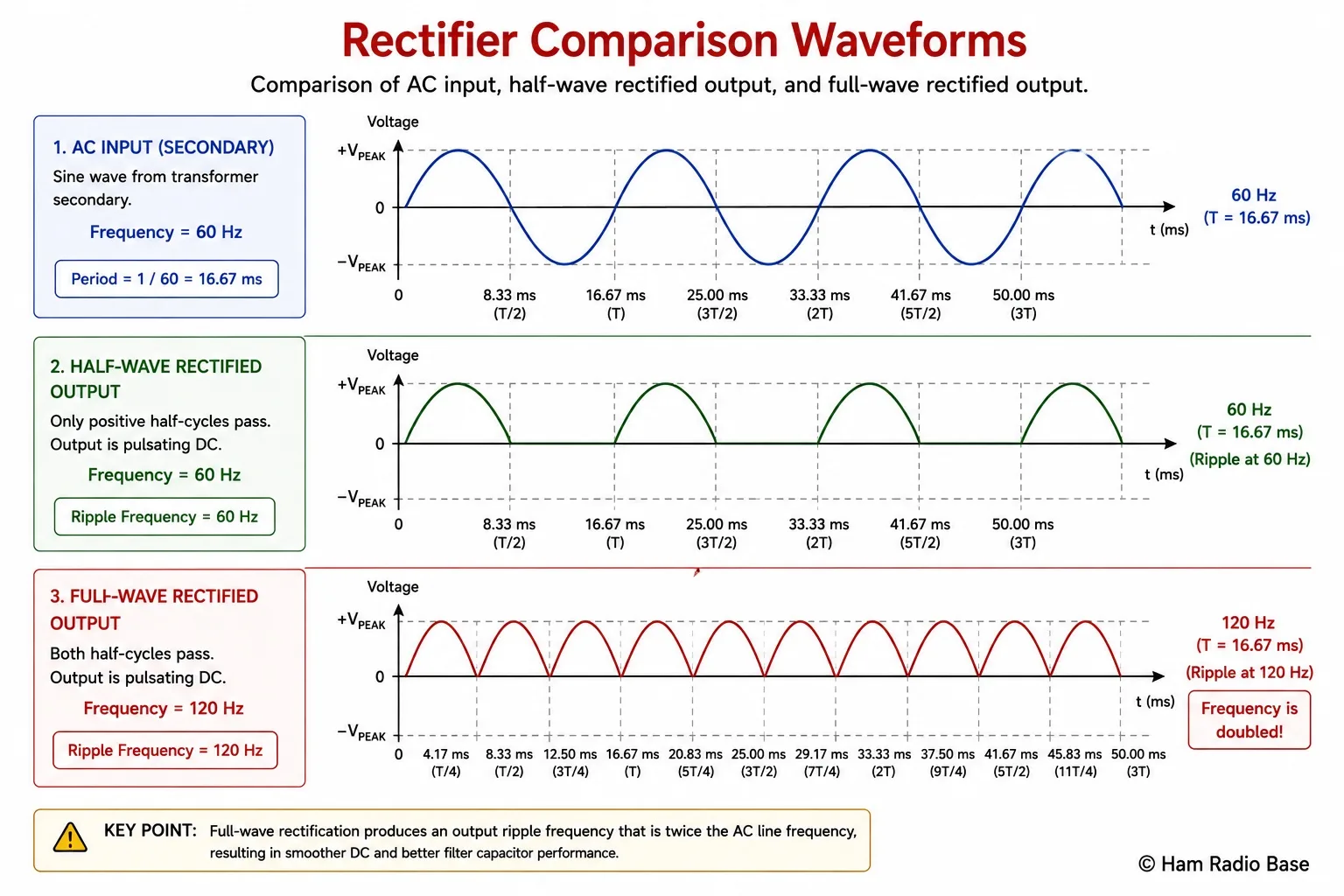

Waveform comparison. Top: 60 Hz AC input. Middle: half-wave output — only the positive half-cycles are present, at 60 Hz. Bottom: full-wave output — both half-cycles are rectified to positive humps, doubling the frequency to 120 Hz. The capacitor discharge interval is halved in the full-wave case, dramatically reducing ripple.
View LargerComparison: Half-Wave vs Center-Tap vs Bridge
| Property | Half-Wave | Full-Wave Center-Tap | Full-Wave Bridge |
|---|---|---|---|
| Diodes required | 1 | 2 | 4 |
| Transformer type | Any secondary | Must have center-tap | Any secondary |
| Diode drops in series | 1 (0.7 V) | 1 (0.7 V) | 2 (1.4 V) |
| V_out_peak formula | V_sec_peak − 0.7 | V_half_sec_peak − 0.7 | V_sec_peak − 1.4 |
| V_avg (unfiltered) | 0.318 × V_out_peak | 0.636 × V_out_peak | 0.636 × V_out_peak |
| Ripple frequency | 60 Hz | 120 Hz | 120 Hz |
| PIV per diode | V_sec_peak | 2 × V_half_sec_peak | V_sec_peak |
| Transformer utilization | Poor (one half-cycle only) | Good (each winding half used alternately) | Excellent (full winding both half-cycles) |
| Main advantages | Simplest possible; one diode | Low diode count; lower PIV per diode than bridge for same output | No center-tap needed; low PIV; best transformer use |
| Main disadvantages | Poor filtering; inefficient transformer use | Needs center-tapped transformer; high PIV requirement | Two diode drops (1.4 V loss) |
| Typical use in ham radio | Rarely used; only in low-power bias circuits | Older tube-type supply designs; some specialized circuits | Virtually all modern solid-state power supplies |
The 120 Hz Advantage
Why does doubling the ripple frequency matter so much? The answer lies in how filter capacitors work. A capacitor smooths ripple by storing charge during the diode conduction peaks and releasing it to the load during the gaps between peaks. The amount of voltage drop during the gap depends on how long the gap is and how much current the load draws.
With a half-wave rectifier at 60 Hz, the capacitor must supply the load for approximately 16.7 milliseconds between peaks. With a full-wave rectifier at 120 Hz, the gap between peaks is only about 8.3 milliseconds — exactly half as long. For the same load current, the capacitor voltage will fall by approximately half as much. This translates directly into approximately half the ripple voltage for the same capacitor value.
At 60 Hz with C = 10,000 µF and I = 2 A: V_ripple = 2 / (60 × 0.01) = 3.33 V
At 120 Hz with C = 10,000 µF and I = 2 A: V_ripple = 2 / (120 × 0.01) = 1.67 V
To get the same 1.67 V ripple at 60 Hz you would need 20,000 µF — twice the capacitance, twice the cost, twice the size.
Viewed another way, full-wave rectification with its 120 Hz ripple frequency means you need only one-quarter the capacitance compared to half-wave rectification to achieve the same ripple voltage. (The capacitor size goes inversely with frequency, and you also need half the discharge time for the same current. Together the factor is 2 × 2 = 4.) This is why virtually every practical power supply uses full-wave rectification.
Selecting Diodes for a Bridge Rectifier
Choosing the right diodes for a bridge rectifier involves three key parameters: current rating, PIV rating, and forward voltage drop. Getting any one of these wrong can result in immediate failure or shortened diode life.
Current Rating
In a bridge rectifier, each diode conducts for exactly one half-cycle. But during that half-cycle it must carry the full load current plus any capacitor charging surge current. The average current through each diode is I_avg / 2 (since each diode conducts half the time), but the peak current during capacitor charging can be 10 to 20 times the average. Diodes must be rated for this peak repetitive surge.
- Light loads (under 1 A): Four 1N4001–1N4007 diodes. The 1N4007 (1 A average, 1000 V PIV) provides a comfortable safety margin and costs very little. For electronics course experiments, 1N4007 is the go-to choice.
- Moderate loads (1–3 A): Four 1N5400–1N5402 diodes (3 A average, 50–200 V PIV). These are physically larger and can handle more surge current.
- Heavy loads (5+ A): A bridge module such as the KBPC2504 (25 A, 400 V) or KBPC3510 (35 A, 1000 V). Modules are rated for continuous current with appropriate heat sinking.
- Switching power supplies and high-frequency applications: Standard rectifier diodes have relatively slow reverse recovery times (trr ≈ 2–8 µs), which causes ringing and switching losses at high frequencies. Use Schottky diodes (1N5817–1N5819, 1 A; SB540, 5 A) which have trr below 100 ns and lower forward voltage drop (0.3–0.4 V rather than 0.7 V).
PIV Rating
The PIV across each diode in a bridge equals the peak secondary voltage (approximately). Always derate by at least 2× for safety: if your peak secondary voltage is 25 V, use diodes rated at 50 V or higher. The 1N4007 (1000 V PIV) provides enormous margin for low-voltage supplies, making it a common default choice regardless of the actual PIV needed.
Power Dissipation
Each diode in the bridge dissipates power equal to its forward voltage multiplied by the average current it carries. Since each diode conducts for half the cycle:
Example: I_load = 3 A, V_f = 0.7 V
P_diode = 0.7 × (3 / 2) = 0.7 × 1.5 = 1.05 W per diode
Total for four diodes: 4.2 W
This is the "1.4 V × I_load" you already saw in the output voltage formula expressed as a power loss.
At moderate currents this heat can be managed by ensuring adequate airflow. At high currents, the bridge module must be bolted to a heat sink.
Ham Radio Application: Building a 13.8 V Bridge Rectifier
The standard operating voltage for solid-state ham radio transceivers is 13.8 V DC, which was chosen to match the voltage of a fully charged 12 V lead-acid battery. Modern HF transceivers at 100 W transmit power draw 20–25 A on transmit. Building a regulated 13.8 V supply that can reliably deliver 15 A is a classic ham radio project, and the bridge rectifier is the heart of it.
Transformer Selection
The rectifier and filter capacitor will produce an output voltage close to the peak of the transformer secondary. The regulator then drops this down to 13.8 V. You need enough headroom above 13.8 V to allow the regulator to work, accounting for its dropout voltage (typically 2–3 V for a conventional linear regulator) and the ripple trough. A good target is a minimum DC input of about 17–18 V before the regulator even under full load.
Minimum regulator input: 13.8 + 3.0 (dropout) + 1.5 (ripple allowance) = 18.3 V
Required transformer secondary (RMS): Work backward from the peak output of the bridge:
V_out_peak needed ≥ 18.3 V
V_secondary_peak = V_out_peak + 1.4 = 18.3 + 1.4 = 19.7 V peak
V_secondary_RMS = 19.7 / 1.414 = 13.9 V RMS — this is without ripple reserve
In practice, use an 18 V RMS secondary to allow for ripple trough:
V_secondary_peak = 18 × 1.414 = 25.5 V
V_out_peak = 25.5 − 1.4 = 24.1 V — well above the 18.3 V minimum
Transformer VA rating: 18 V × 15 A = 270 VA. Use a 300 VA transformer to allow for losses.
Diode selection: PIV ≈ 25.5 V. Use 1N5401 (100 V, 3 A) × 4, or a KBPC3510 bridge module (35 A, 1000 V) — the module is preferred for 15 A continuous use as it can be bolted directly to a heat sink.
⚖ Experiment: Build and Measure a Bridge Rectifier
This experiment lets you observe full-wave bridge rectification first-hand, compare measured output voltage to the theoretical value, and see how the output changes when you add a filter capacitor.
- Four 1N4007 diodes
- A 12 V AC wall adapter (often called a "wall wart" — check that it says AC output, not DC)
- A 1 kΩ resistor (load)
- A 1000 µF electrolytic capacitor, 35 V or higher (observe polarity)
- A digital multimeter
- A breadboard and jumper wires
- Build the bridge rectifier on the breadboard. Place the four 1N4007 diodes in a diamond arrangement: the AC input connects to the two side nodes (anode of D1 and cathode of D2 share one node; anode of D3 and cathode of D4 share the other). The DC positive output comes from the top node (cathodes of D1 and D3); DC negative from the bottom node (anodes of D2 and D4). Connect the 1 kΩ resistor between the DC positive and DC negative terminals.
- Set the multimeter to DC volts. Plug in the AC adapter.
- Measure the DC voltage across the load resistor. Record the reading.
- Calculate the expected output: V_out_peak = (12 × 1.414) − 1.4 = 16.97 − 1.4 = 15.6 V. V_avg = 0.636 × 15.6 = 9.9 V. Your meter should read close to 9.9–10.5 V (meters read average-calibrated-as-RMS, which gives approximately the average of a rectified sine).
- Now add the 1000 µF capacitor across the load (positive leg to positive output, negative leg to ground). Observe the voltage reading. It should jump to approximately 15–15.5 V — close to the peak voltage.
- Switch the multimeter to AC volts while the capacitor is in circuit. You should read a small AC ripple voltage superimposed on the DC. With only a 1 kΩ load the ripple will be very small — try a lower resistance load (e.g., a flashlight bulb) to see more pronounced ripple.
Without the capacitor, the meter reads approximately the average rectified voltage (about 0.636 of peak). With the capacitor, the output jumps to near the peak voltage — confirming that filter capacitors change the operating point from average to near-peak. The large increase demonstrates exactly why unregulated supply voltages are higher than transformer nameplate ratings suggest.
Frequently Asked Questions
Why does the bridge lose 1.4 V while the center-tap only loses 0.7 V?
Current in a bridge rectifier always flows through exactly two diodes in series — one on the way to the positive output, and one on the return path to negative. Each silicon diode drops approximately 0.7 V, so two in series drop 1.4 V. In the center-tap rectifier, current flows through only one diode at a time — the other end of the circuit returns via the center-tap (ground), which is a direct wire connection with no diode. So you get only one 0.7 V drop. The trade-off is that the center-tap circuit needs a more expensive transformer and has higher PIV requirements.
Can I use a bridge module instead of four separate diodes?
Yes, absolutely. A bridge rectifier module contains four diodes in a single package with two AC input terminals and + and − DC output terminals. It is electrically identical to four discrete diodes in a bridge configuration. Modules are often preferred for high-current applications because all four junctions are in thermal contact with a common package that can be bolted to a heat sink. At low currents (under 1 A), four 1N4007s on a breadboard are perfectly adequate and easy to work with.
Why is the PIV of the center-tap rectifier higher than the bridge?
In the center-tap rectifier, while one diode is conducting and the output is sitting near the positive peak, the non-conducting diode has its anode held at the negative peak of its half of the secondary (which is the same magnitude as the positive peak). The reverse voltage across the off diode is therefore the sum of the output voltage and the peak secondary half-voltage — roughly double the peak half-secondary voltage. In the bridge, the non-conducting diodes see at most the peak secondary voltage because the circuit is arranged differently. This higher PIV requirement for center-tap diodes is one reason the bridge rectifier has largely replaced it in modern designs.
