Half Wave Rectification
The alternating current that comes from a transformer secondary swings positive and negative sixty times each second. To charge a battery, power a DC circuit, or run a transistor amplifier, you need current that flows in one direction only. Rectification is the process of converting alternating current into direct current — or at least into current that flows in one direction — and the simplest rectifier circuit of all uses a single diode.
How a Diode Rectifies AC
A diode is a semiconductor device that allows current to flow freely in one direction (from anode to cathode, conventional current direction) and blocks it almost completely in the other direction. This one-way behavior is exactly what we need to convert alternating current into one-directional current.

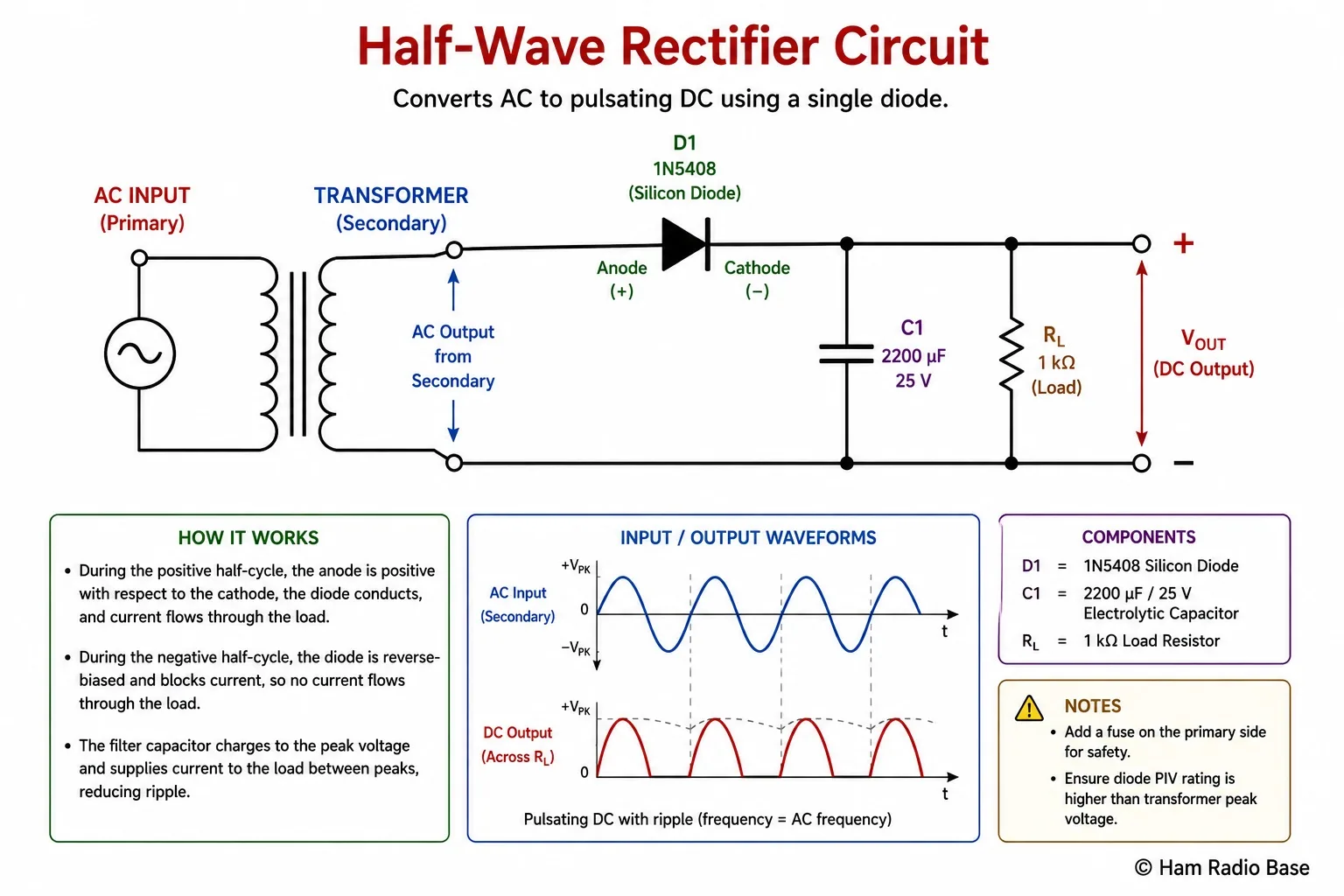

In a half-wave rectifier, the transformer secondary, one diode, and the load resistor are all connected in series. During the positive half-cycle of the AC waveform, the transformer secondary voltage rises positive — the anode of the diode is driven positive, the diode conducts, and current flows through the load. During the negative half-cycle, the secondary voltage swings negative — the diode anode is negative with respect to the cathode, the diode is reverse-biased and blocks current, and no current flows through the load.
The result is a waveform at the load that consists only of the positive half-cycles of the original sine wave, with the negative half-cycles clipped to zero. This is "pulsating DC" — it flows in one direction only, but it is far from the smooth DC you need for most circuits. The voltage rises to a peak and falls back to zero with each positive half-cycle.
The half-wave rectifier: a single diode conducts during positive half-cycles only. The output is pulsating DC with the same frequency as the input — only every other half-cycle reaches the load.
View LargerThere is an important detail in how the diode conducts: silicon diodes require about 0.6–0.7 V across them in the forward direction before they conduct. This forward voltage drop (often written Vf or VD) is subtracted from the output peak voltage. For most power supply calculations, we use 0.7 V as the silicon diode forward voltage drop.
Peak Output Voltage
The peak output voltage of a half-wave rectifier is the peak of the transformer's AC secondary voltage minus the diode forward voltage drop:
Vout(peak) = Vin(peak) − Vf
Where Vin(peak) = Vrms × √2 = Vrms × 1.414
And Vf ≈ 0.7 V for silicon diodes
The relationship between peak voltage and RMS voltage is worth understanding clearly. The AC voltages marked on transformers and measured by multimeters are RMS (root mean square) values. The actual peak of a sinewave is √2 times higher than the RMS value — about 41.4 % higher. So if the transformer secondary is rated at 12.6 V AC (RMS), the peak voltage it actually reaches is:
Vrms = 12.6 V
Vpeak = 12.6 × 1.414 = 17.82 V
Vout(peak) = 17.82 − 0.7 = 17.12 V
So the load sees peaks of about 17.1 V even though the transformer is labeled 12.6 V. This matters enormously when selecting filter capacitors and regulators — they must be rated for the peak voltage, not the RMS voltage.

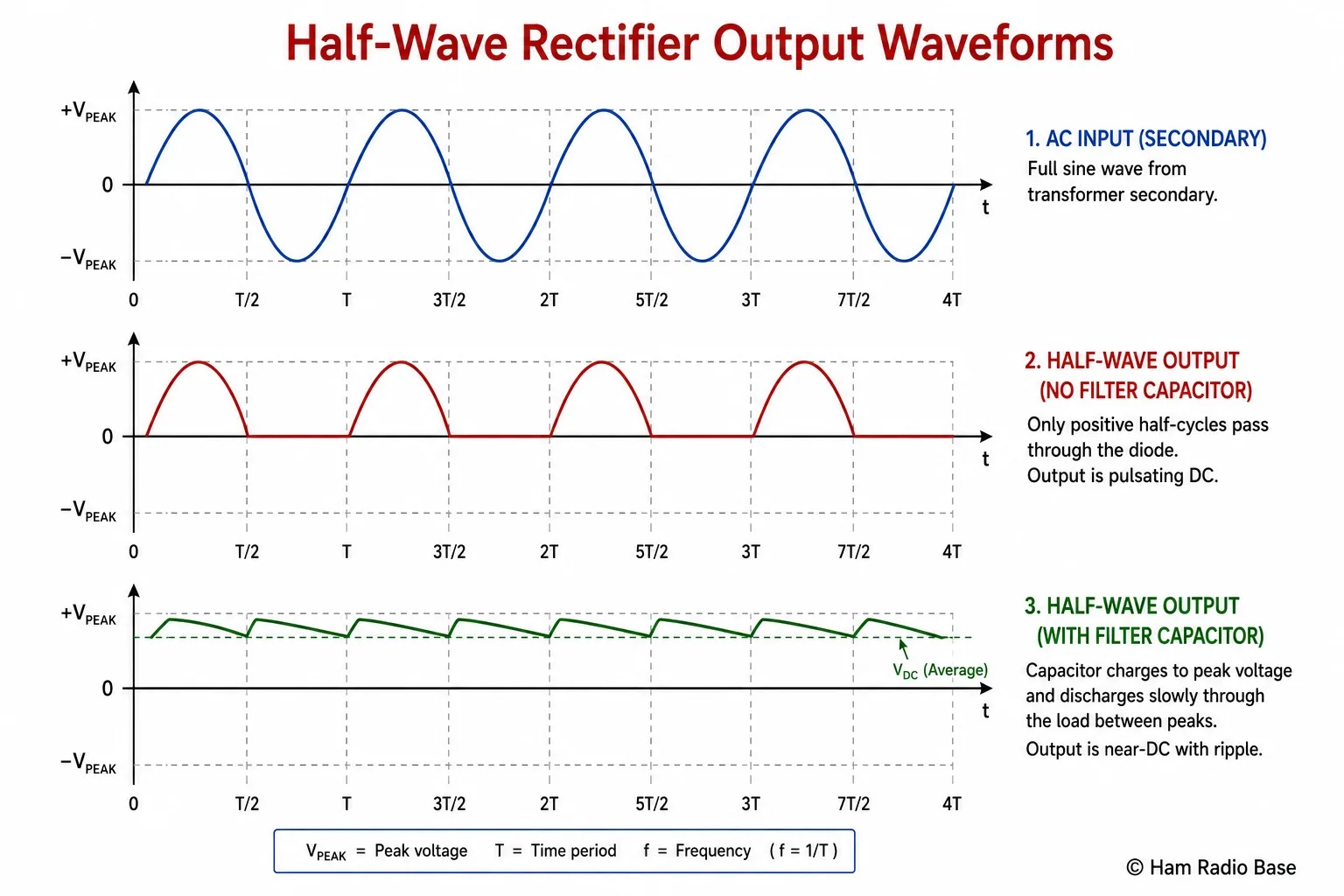

The input AC sine wave (top) and the half-wave rectified output (bottom). The negative half-cycles are blocked; the average DC level is only 31.8% of the peak value.
View LargerAverage DC Output Voltage
The average DC output voltage is what a DC voltmeter reads when connected to the rectifier output without a filter capacitor. For a half-wave rectifier, only half of each cycle contributes — the negative half is zero — and the average of a half-sine waveform is:
Vavg = Vout(peak) / π ≈ 0.318 × Vout(peak)
This is a surprisingly small fraction of the peak. For the 12.6 V transformer in our example:
Vout(peak) = 17.12 V (from previous calculation)
Vavg = 17.12 / π = 17.12 / 3.1416 = 5.45 V
Only 5.45 V average DC from a 12.6 V AC transformer! This illustrates the poor utilization of half-wave rectification. If you want 12 V DC average from a half-wave rectifier, you need a transformer secondary of:
Vrms needed = (Vavg × π / √2) + correction ≈ 12 / 0.318 / 1.414 ≈ 26.7 V AC RMS
That is a much larger, heavier, and more expensive transformer than you would need for a full-wave circuit producing the same DC output — one of the main reasons half-wave rectification is rarely used in practice.
The RMS value of the half-wave output (which governs heating of the load) is:
Ripple Frequency and Ripple Factor
The pulsations in the rectified output are called ripple. The ripple frequency is how many times per second the output voltage pulses from zero to peak and back. For a half-wave rectifier fed from a 60 Hz supply, the output pulses once per AC cycle — so the ripple frequency is also 60 Hz, the same as the input.
The ripple factor is the ratio of the AC ripple component (RMS) to the DC average component. For an ideal half-wave rectifier without a filter capacitor:
A ripple factor of 1.21 means the AC ripple is larger than the DC component — about 121 % of the average DC level. This is an extremely poor quality output and is completely unusable as a power source for any electronics without heavy filtering. The 60 Hz ripple frequency (same as the supply) also means a larger filter capacitor is needed compared to full-wave rectification, which produces 120 Hz ripple that is easier to filter.
Peak Inverse Voltage (PIV)
During the negative half-cycle, the diode is reverse biased — the transformer is trying to push current backwards through it. The diode must withstand this voltage without breaking down. The maximum reverse voltage it sees is called the Peak Inverse Voltage (PIV), and the diode must be rated for at least this value.
For a half-wave rectifier without a filter capacitor, the PIV equals the peak of the transformer secondary:
However, for a half-wave rectifier with a filter capacitor (the normal practical case), the PIV is higher — approximately twice the peak input voltage:
The reason is that the filter capacitor charges up to the peak voltage (+Vpk) and holds that charge. During the negative half-cycle, the transformer secondary swings to −Vpk. The diode cathode is held at +Vpk by the capacitor while the anode is driven to −Vpk by the transformer. The total reverse voltage across the diode is therefore Vpk − (−Vpk) = 2Vpk. Always use the filtered PIV rating when selecting diodes.
Vrms = 12.6 V
Vpeak = 12.6 × 1.414 = 17.82 V
PIV (with filter cap) ≈ 2 × 17.82 = 35.6 V
Therefore you need a diode rated for at least 35.6 V PIV. A 1N4001 (50 V PIV) gives adequate margin. A 1N4002 (100 V PIV) gives plenty of headroom. Always choose a diode with a PIV rating at least 20–30 % higher than the calculated maximum to account for voltage spikes and transients.
Diode Selection for Rectifiers
The 1N400x series is the standard workhorse family of general-purpose silicon rectifier diodes. All members of the family are rated for 1 A continuous forward current; they differ only in PIV rating:
| Part Number | PIV Rating | Typical Application |
|---|---|---|
| 1N4001 | 50 V | Low-voltage supplies up to ~18 V AC secondary |
| 1N4002 | 100 V | Supplies up to ~35 V AC secondary |
| 1N4003 | 200 V | Supplies up to ~70 V AC secondary |
| 1N4004 | 400 V | General purpose; wide safety margin for most applications |
| 1N4005 | 600 V | Supplies directly from 120 V line voltage (after transformer) |
| 1N4006 | 800 V | High-voltage supplies, tube amplifier B+ supplies |
| 1N4007 | 1000 V | Highest voltage in the family; used as a safe default choice |
For currents above 1 A, the 1N540x series (3 A) and larger bridge rectifier modules are available. Many builders simply use 1N4007 for everything — at a few cents each, there is no reason not to use the 1000 V version even in a 30 V circuit, and it eliminates any possibility of choosing the wrong diode for the job.
When the rectifier must handle high frequencies (above a few kHz), standard 1N400x diodes are inadequate because their reverse recovery time is too slow. For switching supplies and RF applications, fast-recovery or Schottky diodes are needed. Schottky diodes (such as the 1N5817-1N5819 series) also have a much lower forward voltage drop of only 0.2–0.3 V versus the 0.7 V of silicon, which is advantageous in low-voltage supply designs where every tenth of a volt counts.
Practical Limitations of Half-Wave Rectification
Half-wave rectification has serious disadvantages that make it unsuitable for most power supply applications:
Poor transformer utilization: The transformer carries current in one direction only during each cycle. The secondary winding carries a DC component in addition to the AC component, which saturates the core partially and increases losses. The transformer must be over-rated compared to one used in a full-wave circuit delivering the same DC power.
High ripple: With a ripple factor of 1.21 and ripple at the low frequency of 60 Hz, very large filter capacitors are required to achieve acceptable output smoothness. The same capacitor that reduces ripple to 1 V in a full-wave rectifier (ripple at 120 Hz) would produce 2 V of ripple in a half-wave circuit — twice as much at half the frequency, requiring four times as much capacitance to achieve the same ripple voltage.
Low average output voltage: Only 31.8 % of the peak voltage appears as average DC, compared to 63.6 % for full-wave rectification. For the same DC output voltage, you need a transformer with twice the secondary RMS voltage.
Higher diode stress: With a filter capacitor, the single diode must handle all the charge current in a brief pulse once per cycle (60 pulses per second) rather than sharing the work with three other diodes at 120 pulses per second as in a bridge rectifier.
When Half-Wave Rectification Is Acceptable
Despite its limitations, half-wave rectification does find legitimate use in specific applications:
Simple, low-current bias supplies: A half-wave rectifier with a large filter capacitor and a zener regulator is perfectly adequate for generating a small bias voltage for a single transistor or op-amp. If you need 9 V at 50 mA for a preamplifier bias supply, a half-wave circuit is much simpler than a full bridge.
Signal detectors: In radio receivers, the AM envelope detector (a diode, resistor, and capacitor) is a half-wave rectifier operating at audio and RF frequencies rather than 60 Hz. The capacitor charges to the signal peak and discharges through the resistor between peaks, following the envelope of the modulated carrier. This is one of the oldest and most elegant circuits in radio electronics.
Battery chargers: Some very simple battery chargers use half-wave rectification because the battery itself acts as a large filter capacitor and the charging current does not need to be particularly smooth. However, proper modern chargers use full-wave rectification for better efficiency and lower transformer stress.
Voltage doubler circuits: Two half-wave rectifier stages with capacitors can be configured as a voltage doubler — producing approximately twice the transformer peak voltage. This allows a power supply to generate ±12 V from a single center-tapped transformer, for example, and is used in some older equipment and signal sources.
⚖ Experiment: Build and Measure a Half-Wave Rectifier
Observe the half-wave rectifier waveform with a multimeter and verify the relationship between AC input voltage and DC output voltage. This experiment uses only a small AC adapter, eliminating direct contact with line voltage.
- A small AC-output wall adapter (6–12 V AC, any current rating — NOT a DC adapter). Doorbell transformers work well.
- One 1N4001 or 1N4007 diode
- One 1 kΩ resistor (any power rating)
- Solderless breadboard
- Digital multimeter with AC and DC voltage ranges
- Short jumper wires
- Plug in the AC adapter and measure its output voltage on AC range. Record VAC.
- Unplug the adapter. On the breadboard, wire the diode in series with the resistor (anode to the positive terminal of the adapter output, cathode to one end of the resistor, other end of resistor to the adapter negative/return terminal). This forms a simple half-wave rectifier with the resistor as load.
- Plug the adapter back in. Set the multimeter to DC voltage and measure across the 1 kΩ resistor.
- Calculate the expected Vavg = VAC × √2 × 0.318 − 0.7 × 0.318. Compare to your measured value.
- Now add a 100 µF electrolytic capacitor in parallel with the 1 kΩ resistor (observe polarity — positive terminal to cathode of diode). Measure DC voltage again and note how it changes.
- Change to AC range with the capacitor connected. Observe the residual ripple reading (your multimeter may show a small AC component even with the capacitor in circuit).
Without the capacitor, the DC voltmeter reads about 31.8% of the peak value — considerably lower than you might expect for AC input of that rating. After adding the 100 µF capacitor, the DC reading jumps to close to the peak AC voltage minus 0.7 V (the diode drop), because the capacitor stores charge during the conducting half-cycle and holds the voltage up during the non-conducting half-cycle. The residual AC ripple reading drops significantly but is still measurable at 60 Hz.
Frequently Asked Questions
Why is the DC output of a half-wave rectifier only 31.8% of the peak voltage instead of 50%?
Because the output is zero for exactly half of each cycle (the negative half). The average of a sine wave over a full period is zero. The average of just the positive half of a sine wave is 1/π of the peak, which equals approximately 0.318. This is a mathematical property of the sine waveform, not a circuit inefficiency that can be designed away. You are simply using half the waveform and discarding the other half.
Can I reverse the diode to get the negative half-cycle instead?
Yes. Reversing the diode passes the negative half-cycles instead of the positive ones, producing a negative DC output (with the same magnitude characteristics). This is sometimes done to generate a negative bias supply. The physics is identical — you are simply choosing which half-cycle to pass.
Will a diode with too low a PIV rating explode or just fail to conduct?
It will fail — and fail destructively. When the reverse voltage exceeds the PIV rating, the diode goes into avalanche breakdown. Small amounts of reverse current may be manageable, but in a power supply circuit the breakdown current is limited only by the transformer's impedance, which can be very low. The resulting current surge heats the diode rapidly and it fails as a short circuit, which then draws enormous current and may damage the transformer, blow a fuse, or — without a fuse — cause a fire. Always select diodes with PIV ratings well above the calculated maximum.
What is "pulsating DC" and why is it not the same as smooth DC?
Pulsating DC flows in one direction only (which makes it DC by definition), but its magnitude varies — it rises to a peak then falls to zero (or near zero) repeatedly. A battery produces smooth DC: constant voltage, no ripple. Electronic circuits generally need smooth DC close to battery quality. Pulsating DC causes 60 Hz hum in audio circuits, modulation of the transmitter carrier in RF circuits, and erratic behavior in digital circuits. The filter capacitor in the next stage of the power supply is what converts pulsating DC into smooth DC.
