Gamma and Beta Match — Yagi and Beam Antenna Feed Matching
A full-size Yagi beam antenna has a driven element — the dipole — at the center of the boom. When cut to resonance, this driven element presents a feed point impedance of approximately 70 Ω for an isolated dipole, but as soon as you add a reflector and directors, the mutual coupling between elements depresses that impedance considerably. A typical 3-element Yagi on 20m might present a feed point impedance of 25–30 Ω, and a high-gain 5-element VHF Yagi might present only 12–20 Ω. Neither of these impedances matches a standard 50 Ω coaxial feed line, so a matching network is needed at the antenna feed point.
Two specialized matching techniques have been developed for Yagi and similar beam antennas: the gamma match and the beta match (also called the hairpin match). Both are designed to work directly at the antenna feed point, use no lossy resistive components, and are compact enough to be implemented right at the boom without adding significant wind load. Understanding these matching techniques is essential for anyone building or maintaining HF and VHF beam antennas.
Yagi Feed Point Impedance
An isolated half-wave dipole resonates at about 73 Ω (the theoretical value) or about 65–70 Ω in practice when the dipole has finite wire diameter. When parasitic elements (reflectors and directors) are added to form a Yagi array, the mutual impedance between elements modifies the driven element's feed point impedance. The amount of modification depends on the element spacing, the number of parasitic elements, and whether the driven element is full-sized or slightly shortened.
For the most common Yagi design — a 3-element beam optimized for maximum forward gain — the driven element feed point impedance typically falls to 20–30 Ω at resonance. For a 5-element high-gain Yagi, it may fall to 12–25 Ω. This low resistance is purely real at resonance (no reactive component if the element is cut to the correct length), but its magnitude is a poor match for 50 Ω coaxial cable.
Many commercial antenna manufacturers address this by shortening the driven element slightly so that its feed point impedance has a capacitive component, and then using a matching device that resonates out this capacitance while simultaneously transforming the resistance to 50 Ω. This is the basis of both the gamma and beta match.
The Gamma Match
The gamma match is a tapped-coaxial matching structure attached directly to the driven element of a Yagi. It consists of:
- A short rod or tube (the gamma rod) running parallel to and slightly offset from the driven element, connected at one end to the driven element's center point (the feed point) and open at the other end
- A series capacitor (the gamma capacitor) in the coaxial feed line, between the center conductor of the feed line and the gamma rod
- The coaxial cable outer conductor is connected to the center of the driven element (which is also the ground reference)
The gamma rod and the driven element form a short-circuited transmission line section, similar to a shorted stub. This structure presents an inductive reactance that increases as the gamma rod length increases. The series capacitor cancels this reactance to achieve resonance at the desired frequency, while the tap point of the gamma rod on the driven element sets the resistance transformation ratio.

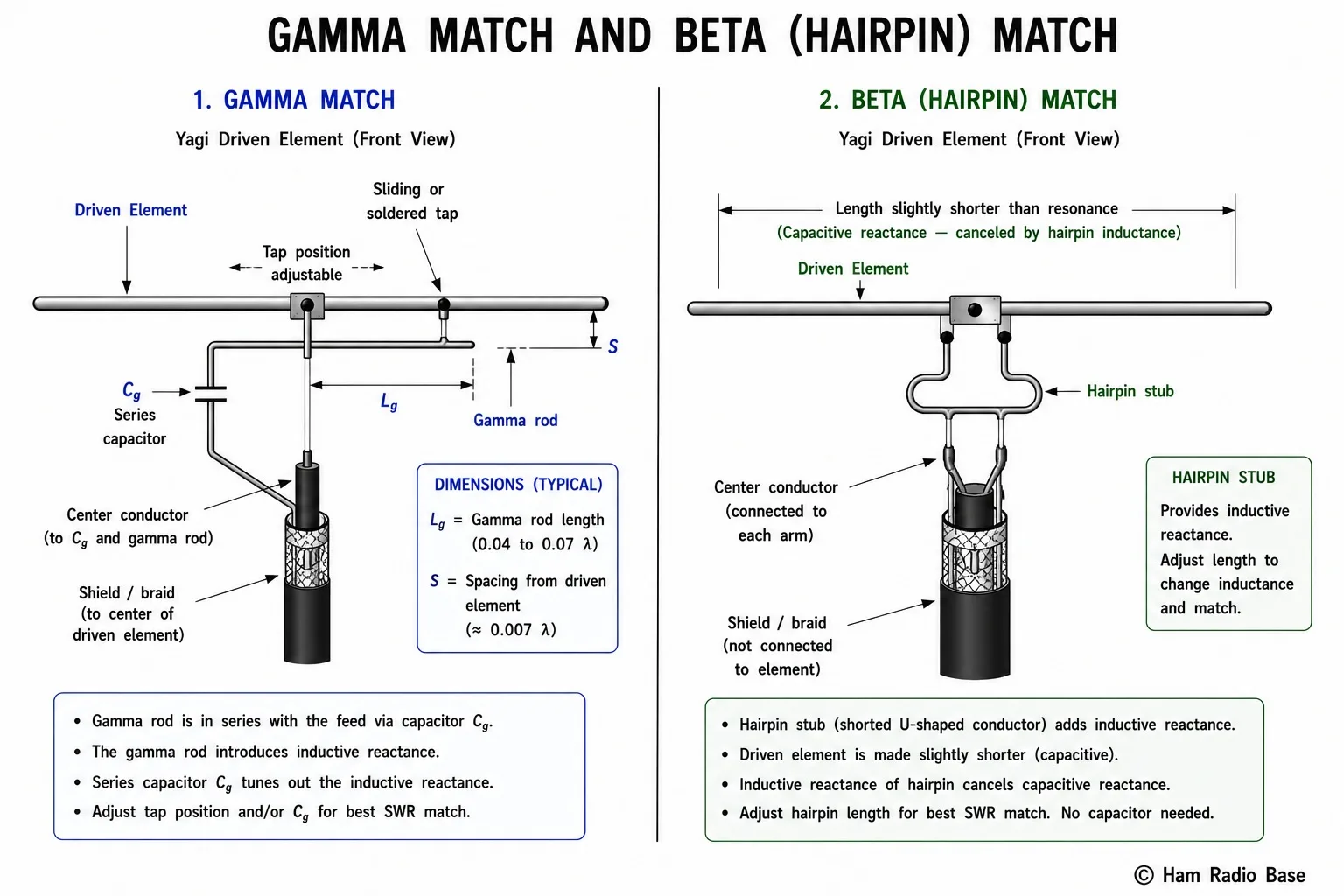

Gamma match (left): the gamma rod creates an inductive tapped section; the series capacitor tunes out the inductance. The coax outer goes to the driven element center. Beta match (right): a hairpin-shaped shorted stub across a shortened split driven element. No capacitor needed; the shorted stub provides the required inductive reactance.
View LargerHow the Gamma Match Transforms Impedance
The gamma match is essentially an autotransformer tap on the driven element, combined with a series-resonating capacitor. The driven element acts as the primary winding of the autotransformer, and the gamma rod taps into a portion of the element. The ratio of the tap point to the full element length determines the impedance transformation ratio, analogous to a tapped inductor.
If the driven element's feed point impedance is RA (typically 20–30 Ω) and the desired feed line impedance is RL = 50 Ω, the transformation ratio needed is approximately:
where k is the tapping ratio (fraction of the element length tapped by the gamma rod)
For RA = 25 Ω and RL = 50 Ω: k = 25/50 = 0.5
This simplified analysis gives the starting point for adjustment; in practice the gamma match is empirically trimmed by adjusting the gamma rod length (moving the tap point) and the gamma capacitor value while monitoring the SWR with an antenna analyzer.
Gamma Match Design and Adjustment
The most reliable approach to gamma match design is to start with the approximate dimensions from a reference design for your antenna model, then adjust empirically. The following starting-point dimensions are widely used for 20–10m Yagis:
| Parameter | Typical starting value | Notes |
|---|---|---|
| Gamma rod length | 0.04–0.07λ (4–7% of wavelength) | Starting point; adjust during tune-up |
| Gamma rod spacing from element | 50–100 mm (2–4 inches) | Larger spacing = higher characteristic impedance of the stub |
| Gamma rod diameter | 1/5 to 1/3 of element diameter | Smaller diameter rod is easier to adjust mechanically |
| Gamma capacitor | 50–200 pF variable at HF, 10–50 pF at VHF | Use air-variable or silver-mica capacitor for weatherproofing |
The gamma capacitor is the primary tuning control. The gamma rod length controls both the reactance presented to the feed line and the impedance transformation ratio. The adjustment procedure with an antenna analyzer is:
- Set the gamma capacitor to approximately mid-range.
- Connect the antenna analyzer to the feed point (coax connector of the gamma match).
- Adjust the gamma capacitor until the reactive component of the impedance (X) reads zero or near zero. This is the resonance adjustment.
- If the resistive component (R) reads much higher than 50 Ω, shorten the gamma rod slightly. If R reads much lower than 50 Ω, lengthen the gamma rod.
- Re-check and readjust the capacitor after each rod length change, since rod length and capacitance are interdependent.
- Iterate until R ≈ 50 Ω and X ≈ 0, corresponding to SWR ≈ 1.0:1.
The Beta (Hairpin) Match
The beta match uses a fundamentally different approach: instead of a tapped-line transformer, it uses a short-circuited stub (a hairpin-shaped wire or rod bridge) across the center of a shortened driven element. When the driven element is cut shorter than its resonant length, its feed point impedance has a capacitive component in addition to a resistance lower than the dipole's natural 73 Ω. The shorted hairpin stub provides an inductive reactance that resonates out the capacitive reactance of the shortened element, while simultaneously transforming the resistance to 50 Ω through an L-network action.
The beta match is simpler mechanically than the gamma match because it has no variable capacitor — the hairpin length determines the inductive reactance, and trimming the hairpin length tunes the match. It is also inherently balanced (the coaxial feed is connected at the split center of the element, with the outer conductor of the coax bonded to the boom/ground reference), making it easier to use with a balun.
Beta Match Design
The design procedure for a beta match starts with the shortened driven element and calculates the required hairpin dimensions.
Start with the driven element approximately 2–5% shorter than the resonant half-wave length. This introduces a capacitive reactance XC at the feed point (typically −j10 to −j30 Ω for a small shortening).
Step 2: Find feed point impedance of shortened element.
The shortened element presents feed point impedance ZA = RA − jXC (resistive plus capacitive).
Step 3: Calculate required hairpin reactance.
The hairpin must be inductive (+jXL) to cancel the capacitive reactance, and the parallel combination of the hairpin reactance and the feed point impedance must present 50 Ω to the feed line.
For the L-network analysis: Xhairpin = RA × XC / (XC − Xneeded)
Step 4: Determine hairpin length.
The hairpin is a shorted two-wire transmission line. Its inductive reactance is:
XL = Z0 × tan(2π × l / λ)
where Z0 is the characteristic impedance of the hairpin (typically 150–400 Ω depending on wire spacing) and l is the hairpin length.
Worked example: Beta match for a 20m 3-element Yagi with RA = 28 Ω and XC = −j20 Ω at the feed point.
Feed point impedance: ZA = 28 − j20 Ω
For an L-network match to 50 Ω using the hairpin as the shunt inductor:
Q = √(RA × XC² / (50 × (RA² + XC²) − RA²))
This is complex; in practice, use an antenna modeling program (EZNEC, MMANA-GAL) or an online beta-match calculator to get the exact hairpin dimensions for your specific antenna model.
A typical starting point for this impedance: hairpin length ≈ 12–15 cm (about 5–6 inches) at 14 MHz, wire spacing 20–30 mm (¾ to 1¼ inch), giving characteristic impedance ≈ 200 Ω. Fine-tune by spreading or squeezing the hairpin spacing (which changes Z0) and adjusting its length until the SWR is minimized.
Gamma vs Beta: Choosing the Right Match
| Feature | Gamma match | Beta (hairpin) match |
|---|---|---|
| Variable capacitor required? | Yes (adjust during initial setup, then fix) | No (hairpin length adjusted mechanically) |
| Element connection to ground | Driven element center is coax ground — DC grounded to boom | Element is split and DC isolated from boom; needs a DC path for static discharge or weathering protection |
| Balanced/unbalanced | Inherently unbalanced — often requires a choke balun | Balanced — works naturally with balanced elements |
| Bandwidth | Good (several percent) | Good (similar to gamma) |
| Popular applications | Commercial HF Yagis, Cushcraft, Hy-Gain, Force 12 | VHF/UHF Yagis, moonbounce arrays, many homebrewed HF beams |
| Mechanical simplicity | Moderate (requires capacitor housing) | Simple (just a bent piece of wire or aluminum rod) |
| Power handling | Limited by capacitor voltage rating — can be high with proper capacitor selection | Very high — no capacitor, just wire |
The Omega Match
The omega match is a variation of the gamma match that adds a shunt capacitor from the gamma rod to the center of the element (in addition to the series gamma capacitor). The additional capacitor gives one more degree of freedom in the design, making it easier to achieve a match over a wider impedance range without mechanical adjustment of the gamma rod length. The omega match is particularly useful when the antenna is fixed and cannot be easily modified — the two capacitors can be adjusted to achieve any match within a reasonably broad range of source impedances.
Commercially available omega-match conversion kits allow a gamma-match antenna to be converted to an omega match by adding a second capacitor. This is sometimes done when an antenna presents an unusually low or high feed point impedance that the standard gamma capacitor alone cannot fully compensate.
Frequently Asked Questions
Why does adding directors and reflectors lower the driven element impedance?
When another conducting element is placed near the driven element, its induced currents create a mutual coupling that modifies the radiation resistance of the driven element. Specifically, a director placed in front of the driven element (in the direction of maximum gain) induces currents that partially cancel the radiation fields of the driven element from the rear, lowering the radiation resistance. A reflector behind the driven element does the same from the front. The combined effect of front and rear parasitic elements significantly depresses the driven element's radiation resistance, often to 20–30 Ω. The number of parasitic elements, their spacing, and their tuning all influence how much the impedance drops.
Do I need a balun with a gamma match?
A choke balun (also called a common-mode choke or current balun) is highly recommended with a gamma match. The gamma match is inherently unbalanced — the driven element center is connected to the coax outer conductor, which connects back along the coax outer through the feedline. This creates an unbalanced drive condition on what should be a balanced element (a dipole), and allows RF to flow on the outside of the coax, which can cause pattern distortion and feedline radiation. A choke balun (a coil of coax wound on a ferrite core, or a sleeve balun) placed at the gamma match connection point blocks common-mode current on the coax shield without affecting the differential-mode signal. Many commercial HF beam antennas with gamma match omit the balun from their standard design, but adding one almost always improves the antenna pattern and reduces feedline interference.
Can I use a gamma match on a vertical antenna?
Yes. The gamma match can be adapted to any antenna that presents a low feed point impedance — not just Yagis. Some operators use gamma matches to feed ground-mounted verticals where the base impedance is very low due to ground losses or multiple radial sets. A gamma rod is attached to the vertical element a short distance up from the base, with the coax center conductor connected to the gamma rod and the coax outer connected to the radial ground system. The adjustment procedure is identical to that for a Yagi gamma match: adjust the gamma capacitor for resonance and adjust the tap height for the correct resistance.
