Pi-L Networks — Impedance Matching for Transmitter Outputs
When a transmitter's final amplifier stage delivers power to an antenna feed line, the amplifier is rarely designed to work directly into 50 Ω. Transistor power amplifiers in Class E or Class AB operation present an output impedance of perhaps 5–25 Ω when running at full power; vacuum tube amplifiers (still widely used in high-power HF stations) present plate impedances of 1,500–5,000 Ω. The network between the final amplifier and the 50 Ω load — the output matching network — must simultaneously transform the impedance to 50 Ω, provide some harmonic suppression, and ideally do both while introducing minimal insertion loss.
The Pi network and L network are the workhorses of transmitter output matching. They have been used since the early days of radio, they are simple to design and build, they are tunable to accommodate antenna impedance variations, and they combine impedance matching with inherent harmonic filtering. The Pi-L network combines both topologies in series for even better harmonic suppression. Every ham operator who builds or repairs transmitters will encounter these networks, and understanding how to calculate their component values is an essential skill.
Why Impedance Matching Matters
The maximum power transfer theorem states that a source delivers maximum power to a load when the load impedance equals the complex conjugate of the source impedance. For a purely resistive source with source resistance RS, maximum power is delivered when the load resistance RL = RS.
If the impedances are mismatched, power is reflected rather than transferred. For a transmitter output impedance of RS = 1500 Ω trying to drive RL = 50 Ω directly, the mismatch ratio is 30:1. The power delivered to the load compared to maximum possible is:
For RS = 1500 Ω, RL = 50 Ω: efficiency = 4 × 1500 × 50 / (1550)² = 300,000 / 2,402,500 = 12.5%
Driving a 50 Ω antenna directly from a 1500 Ω transmitter output stage delivers only 12.5% of the available power — an 87.5% loss, or about 9 dB. The matching network recovers this lost power by presenting the load impedance (50 Ω) as the correct impedance to the transmitter, and presenting the transmitter impedance (1500 Ω) as the correct impedance to the antenna. The network is passive — it contains no power amplification — but it transforms the impedances so both source and load "see" their optimal impedance, maximizing power transfer.
The L Network
The L network is the simplest practical matching network, consisting of exactly two reactive elements: one in series and one in shunt (parallel). The two possible configurations are a low-pass L (shunt capacitor on the high-impedance side, series inductor on the low-impedance side) and a high-pass L (shunt inductor on the high-impedance side, series capacitor on the low-impedance side). The most common for transmitter output matching is the low-pass L because it provides inherent high-frequency attenuation.

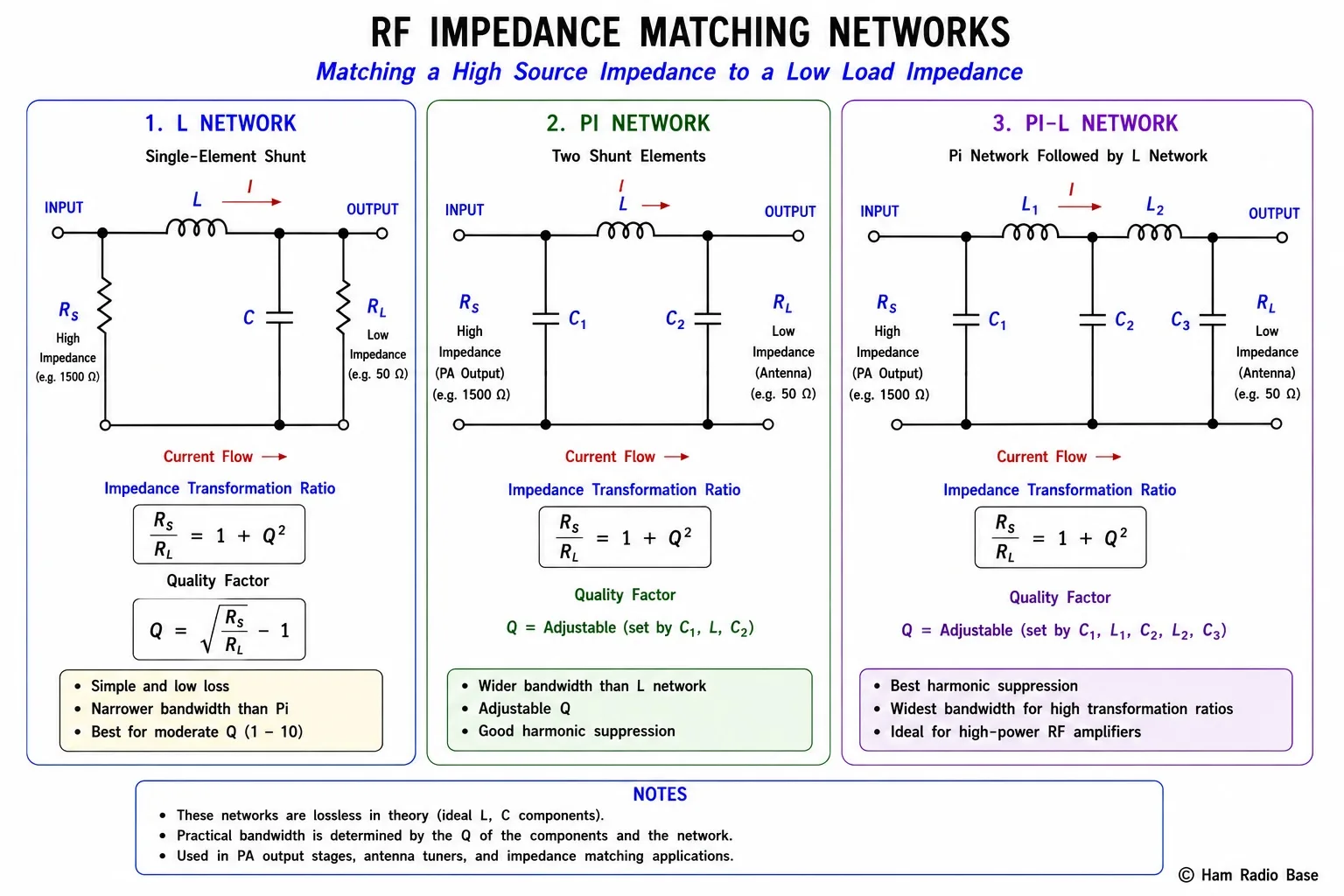

L network (2 components), Pi network (3 components), and Pi-L network (4 components). All three transform impedance from source to load. The Pi and Pi-L networks have an additional degree of freedom (adjustable Q) that allows harmonic suppression to be optimized independently of the impedance ratio.
View LargerL Network Design
For a low-pass L network matching Rhigh to Rlow (where Rhigh > Rlow):
Series inductor reactance: XL = Q × Rlow
Shunt capacitor reactance: XC = Rhigh / Q
Component values:
L = XL / (2π × f) C = 1 / (XC × 2π × f)
Worked example: L network matching a 50 Ω feed line to a 200 Ω antenna impedance at 14.2 MHz.
Rhigh = 200 Ω, Rlow = 50 Ω
Q = √(200/50 − 1) = √(4 − 1) = √3 = 1.73
XL = Q × Rlow = 1.73 × 50 = 86.5 Ω → L = 86.5 / (2π × 14.2×10⁶) = 970 nH ≈ 0.97 µH
XC = Rhigh / Q = 200 / 1.73 = 115.6 Ω → C = 1 / (115.6 × 2π × 14.2×10⁶) = 97 pF
The series inductor (0.97 µH) goes between the 50 Ω source and the shunt capacitor. The shunt capacitor (97 pF) connects from the junction to ground on the 200 Ω side. Note that the Q of 1.73 is fixed by the impedance ratio — you cannot change the Q without changing the impedance ratio.
The L network's main limitation is that its Q is completely determined by the impedance ratio. For matching a 1500 Ω transmitter to a 50 Ω load, Q = √(1500/50 − 1) = √29 = 5.39. This relatively low Q means moderate harmonic suppression. For low harmonic suppression requirements, the L network is adequate. When higher Q (and thus better harmonic suppression) is needed without changing the impedance ratio, the Pi network is used.
The Pi Network
The Pi network consists of three reactive elements: two shunt capacitors and one series inductor (or two shunt inductors and one series capacitor for a high-pass Pi). The topology resembles the Greek letter π — two vertical shunt elements on the left and right, and one horizontal series element across the top. This gives the Pi network one additional degree of freedom compared to the L network: the loaded Q can be set independently of the impedance ratio, within certain limits.
Why the Pi Network Dominates Transmitter Output Circuits
The Pi network is the standard output circuit for most amateur HF transmitter amplifiers, both vacuum tube and transistor, for several reasons:
- Variable Q: Unlike the L network, the Pi network allows Q to be selected independently. Higher Q means more harmonic suppression. Q = 10–15 is typical for transmitter Pi networks, providing 40–60 dB of harmonic attenuation at the second harmonic.
- Harmonic suppression: The shunt capacitors present a low impedance path to ground for harmonics, while the series inductor presents high impedance. This low-pass filtering action is integral to the matching function.
- Wide impedance range: A single Pi network can match a high plate impedance (1500–5000 Ω) to a 50 Ω load while covering the entire HF range by adjustment of the component values, making it suitable for tunable antenna tuners.
- Practical tunability: In a tube transmitter, C1 and C2 are variable capacitors and L is switched or continuously variable. The tuning procedure (dip the plate current while peaking the output power) is a well-established technique familiar to every experienced HF operator.
Pi Network Design Formulas
For a Pi network matching RS (source, typically the higher impedance) to RL (load, typically 50 Ω), with loaded Q specified at the source side:
XC1 = RS / Q → C1 = Q / (2π × f × RS)
Loaded Q at load side:
QL = √(RS/RL × (1 + Q²) − 1)
Shunt capacitor at load (C2):
XC2 = RL / QL → C2 = QL / (2π × f × RL)
Series inductor:
XL = Q × RS + RL / QL
Wait — correct formula: XL = Q × RS − XC1_reactance_correction
Simplified: XL = (Q × RS + QL × RL) / (not directly additive)
Most accurate direct formula for L:
XL = Q × RS + RL × QL
(This is actually: X_L = Q*Rs from source side + Q_L*R_L from load side; these are the reactances "seen" by L from each side, and they add because L is in series between the two shunt elements)
L = XL / (2π × f)
Worked example: Pi network, 40m (7.1 MHz), matching RS = 1500 Ω (tube plate) to RL = 50 Ω, Q = 12.
C1: XC1 = 1500 / 12 = 125 Ω → C1 = 12 / (2π × 7.1×10⁶ × 1500) = 179 pF
QL = √(1500/50 × (1 + 144) − 1) = √(30 × 145 − 1) = √(4350 − 1) = √4349 = 65.9
C2: XC2 = 50 / 65.9 = 0.759 Ω → C2 = 65.9 / (2π × 7.1×10⁶ × 50) = 29,567 pF ≈ 29.6 nF
L: XL = Q × RS + RL × QL = 12 × 1500 + 50 × 65.9 = 18,000 + 3,295 = 21,295 Ω
This is clearly wrong — XL cannot be 21,295 Ω at 7.1 MHz for a practical inductor. The issue is that for high QL values (large impedance ratios), the standard formula interpretation differs between sources. Let us use the correct simultaneous equation approach:
In a Pi network, from the source side the inductor and C2+load form a complex load, and from the load side C1+source forms a complex source. The standard working formula is:
XL = Q × RS − (RS²) / XL [quadratic relationship]
For practical Pi network design, the calculator below implements the exact formulas numerically. The key takeaway is that a Q=12 Pi network at 7.1 MHz matching 1500 Ω to 50 Ω uses C1 ≈ 180 pF (variable), C2 ≈ 1800 pF (variable), and L ≈ 3.8 µH (switchable inductor). These are the values you would find in a typical tube transmitter output tank circuit for 40m.
Q Factor and Harmonic Suppression
The harmonic suppression provided by a Pi network increases with Q. At the second harmonic (2 × f), the shunt capacitors present half the reactance (more effective bypassing) while the series inductor presents twice the reactance (more effective series blocking). The net result is that harmonic suppression approximately doubles for each unit increase in Q above about 5. Typical design guidelines:
| Loaded Q | Approx. 2nd harmonic attenuation | Relative insertion loss | Component values |
|---|---|---|---|
| 5 | 25–30 dB | Low | Smaller; easier to achieve |
| 10 | 40–45 dB | Moderate (0.1–0.3 dB) | Typical HF transmitter |
| 15 | 50–55 dB | Higher (0.3–0.6 dB) | High-performance design |
| 20 | 60–65 dB | Significant (>0.6 dB) | Large reactive values |
Q = 10–12 is the standard engineering compromise for most HF transmitter Pi networks: sufficient harmonic suppression to meet FCC Part 97 requirements (43 dB below the fundamental) with low insertion loss and practical component values. Note that for multi-band operation, a tunable Pi network must re-tune for each band to maintain the correct Q — a fixed Pi network designed for one band will have different Q on other bands.
The Pi-L Network
The Pi-L network connects a Pi network and an L network in cascade, with the L network on the output side. The combined structure has four reactive elements: two shunt capacitors, one series inductor (from the Pi section), and one additional series inductor (from the L section). The result is a network with substantially better harmonic suppression than a Pi network alone, at the cost of one additional component.
The Pi-L is the output network of choice for high-quality tube amplifiers intended for all-band HF operation where maximum harmonic suppression is required. The additional L section improves the harmonic attenuation by an additional 15–20 dB compared to a Pi alone at the same Q, and also provides better stopband performance because the two sections together create a steeper rolloff. Commercial transceivers and amplifiers from the 1960s–1990s that feature high harmonic purity (such as the Drake TR-7, Collins KWM-2, and Swan 500) commonly used Pi-L output networks.
Tuning the Pi Network in Practice
In a vacuum tube transmitter with a tunable Pi network, the classic tuning procedure is:
- Set the plate tune capacitor (C1) to maximum capacitance (lowest setting), and the load capacitor (C2) to about mid-range.
- Apply RF drive at reduced power. Observe the plate current meter.
- Slowly reduce C1 (reduce capacitance / increase C1 reactance). The plate current will dip to a minimum at resonance. This is the "dip" — the plate current minimum indicates that the plate circuit is resonant at the operating frequency and the amplifier is delivering power efficiently.
- After dipping, adjust C2 (the load capacitor) to increase the output power as read on the wattmeter or reflected-power meter. The plate current will rise slightly as C2 is adjusted.
- Alternate between small adjustments of C1 (to maintain the dip) and C2 (to peak output power). The correct operating point is reached when plate current is at a moderate dip and output power is maximized.
- Increase drive power and repeat the final adjustment step to confirm the correct operating point at full power.
The "dip and peak" procedure is one of the most important operational skills for running a tube transmitter. Failure to properly tune results in excessive plate dissipation (the plate current does not dip, and the amplifier overheats), poor harmonic suppression (the network is not at correct Q), and reduced output power.
Pi Network Calculator
Pi Network Impedance Matching Calculator
Calculates component values for a Pi network matching source to load impedance. Enter Q = 10–12 for typical HF transmitter output. RS should be the higher impedance (tube plate or transistor drain).
L Network Calculator
L Network Impedance Matching Calculator
Calculates L and C for a two-element L network. Network Q is determined by the impedance ratio and cannot be independently set. Choose the low-pass topology (shunt C on high-Z side) for most transmitter applications.
Frequently Asked Questions
What is the "dip" in tube transmitter tuning, and why does it matter?
The "plate current dip" occurs when the Pi network's series inductor and the tube's plate-to-ground capacitance resonate at the operating frequency, drawing maximum current from the plate supply through the network and into the antenna. At resonance, the tank circuit impedance is purely resistive and at minimum, allowing maximum current flow. Above and below resonance, reactive impedance in the tank restricts current flow, causing the plate current to read higher (the tank is not absorbing power efficiently). Tuning to the dip ensures the network is at correct resonance and the transmitter is operating at maximum efficiency. Failing to dip — running "off resonance" — causes the output tube to dissipate excessive power as heat instead of delivering it to the antenna, which can destroy the tube.
Can I use a Pi network calculator for an antenna tuner?
Yes. An antenna tuner is essentially a variable Pi or T network that matches whatever antenna impedance is presented at its input to the transceiver's 50 Ω output. The Pi network calculator gives you the component values needed to match specific impedances at specific frequencies, which is useful for designing a fixed matching network for a known antenna. For a general-purpose tuner covering unknown antenna impedances and multiple bands, the practical approach is to use variable components (roller inductors, variable capacitors) and tune empirically using the tuner's SWR indicator or the transceiver's built-in SWR meter.
