Integrated Circuits

An integrated circuit (IC) is a complete electronic circuit — transistors, resistors, capacitors, and diodes — fabricated on a single piece of silicon no bigger than a fingernail. ICs transformed electronics by replacing boards full of discrete components with a single, reliable, inexpensive chip, and they appear throughout modern ham radio equipment.

What Is an Integrated Circuit?

Before ICs, engineers built circuits by soldering individual transistors, resistors, and capacitors onto circuit boards. A simple amplifier might need a dozen separate components. An integrated circuit performs the same function using components etched directly into a silicon wafer through a photolithographic process.

The silicon die inside an IC can contain hundreds to billions of transistors. All of those transistors share a common substrate and are connected by microscopic metal traces deposited in layers. The whole assembly is sealed inside a protective plastic or ceramic package with metal pins that connect it to the rest of a circuit.

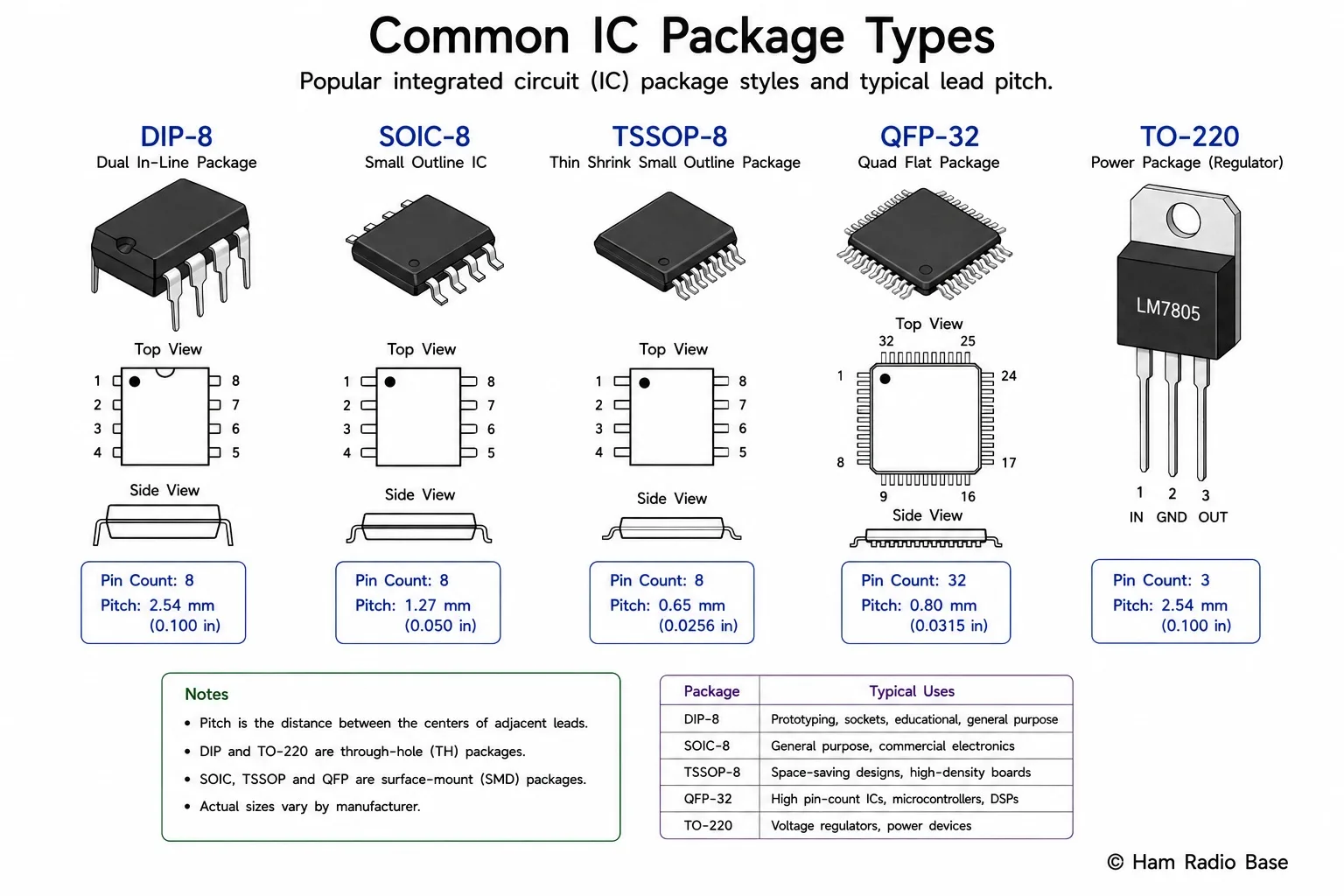

Common IC package types: through-hole DIP (left), surface-mount SOIC, QFP, and BGA (right). The DIP package is easiest to work with by hand.

View Larger

Jack Kilby at Texas Instruments and Robert Noyce at Fairchild Semiconductor independently invented the integrated circuit in 1958–1959. Kilby won the Nobel Prize in Physics in 2000 for the discovery. The first ICs held only a handful of components; today a modern CPU holds tens of billions of transistors.

Analog, Digital, and Mixed-Signal ICs

ICs are broadly divided into three categories based on the signals they process.

Analog ICs

Analog ICs process continuously varying signals such as audio, RF, and sensor outputs. They amplify, filter, and convert signals without reducing them to binary values. Common examples include operational amplifiers (op-amps), voltage regulators, audio amplifiers, and RF amplifier modules.

Digital ICs

Digital ICs work with two-state logic signals — high and low voltage levels representing 1 and 0. Logic gate ICs such as the 7400 series perform AND, OR, NOT, NAND, and NOR functions. Microcontrollers combine a processor, memory, and peripherals on one chip. FPGAs contain thousands of configurable logic blocks that can be programd to implement almost any digital function.

Mixed-Signal ICs

Mixed-signal ICs bridge the analog and digital worlds. Analog-to-digital converters (ADCs) sample an analog voltage and output a binary number representing its value. Digital-to-analog converters (DACs) do the reverse. Software-defined radios depend on high-speed ADCs to convert RF signals directly to digital samples for processing in software.

Package Types

The silicon die is too fragile and small to handle directly, so it is enclosed in a package that provides mechanical protection and electrical connections.

DIP — Dual In-line Package

DIP packages have two rows of pins spaced 0.1 inch (2.54 mm) apart. They insert through holes in a PCB or into a breadboard socket. A DIP-8 has 8 pins (4 per side); a DIP-16 has 16 pins. DIP packages are easy to work with by hand and are the best choice for beginners building circuits on breadboards.

SOIC — Small Outline IC

SOIC is a surface-mount package roughly half the size of a DIP. Most modern components are available in SOIC, but they require soldering directly to a PCB pad rather than inserting through a hole.

QFP — Quad Flat Pack

QFP packages have pins on all four sides with very fine pitch (as small as 0.4 mm). Microcontrollers and FPGAs with many I/O pins often use QFP packages. Hand soldering is challenging but possible with practice and flux.

BGA — Ball Grid Array

BGA packages have hundreds or thousands of solder balls on the underside of the chip. They achieve the highest pin density and best electrical performance but cannot be soldered by hand — they require a reflow oven or hot-air station.

Power Pins and Decoupling

Every IC needs a supply voltage (labeled VCC, VDD, or V+) and a ground reference (GND or VSS). These pins must be connected correctly — an IC will not function without them, even if all signal pins are correct.

When an IC switches logic states, it briefly draws a surge of current from its supply. If the power trace has any inductance (and all traces do), this current surge creates a voltage spike that can corrupt logic levels and cause errors in neighboring chips. A decoupling capacitor — typically 100 nF (0.1 µF) ceramic — placed between VCC and GND as close as possible to each IC absorbs these surges and keeps the supply voltage stable.

Common ICs in Ham Radio

Ham radio equipment relies on ICs at every stage from audio processing to RF generation.

LM741 / LM358 — Op-Amps

Operational amplifiers amplify the voltage difference between two input terminals. With external resistors, they can function as amplifiers, comparators, filters, oscillators, and mathematical function blocks. The LM741 is a classic single op-amp in a DIP-8 package; the LM358 contains two op-amps in the same footprint.

NE555 Timer

The 555 timer IC can produce a square wave of adjustable frequency and duty cycle using two external resistors and a capacitor. Hams use it in CW practice oscillators, sidetone generators, and timing circuits.

78xx Voltage Regulators

The 7805 regulates a higher supply voltage down to a stable 5 V; the 7812 produces 12 V. These three-pin linear regulators require only two decoupling capacitors to provide a clean, regulated output for powering digital circuits and sensitive analog stages in transceivers.

74HC-Series Logic Gates

The 74HC family provides CMOS logic gates and flip-flops operating from 2 V to 6 V with low power consumption. Gates such as the 74HC00 (quad NAND) and 74HC14 (hex Schmitt-trigger inverter) appear in CW keyers, digital mode interfaces, and homebrew radio controllers.

PIC and AVR Microcontrollers

Microcontrollers integrate a CPU, flash program memory, RAM, timers, ADC inputs, and I/O ports on a single chip. Hams program PIC and AVR (Arduino-compatible) microcontrollers to build automatic antenna tuners, CW keyers, logging systems, digital mode decoders, and custom radio controllers.

AD9850 Direct Digital Synthesis

DDS ICs use a high-speed DAC and a phase accumulator to synthesize a precise sine wave at any frequency the microcontroller commands. The AD9850 is popular in homebrew VFOs, signal generators, and QRP rigs because it produces a stable, agile signal without the complexity of a PLL.
