Manhattan and Ugly Construction

Manhattan and ugly construction are two closely related techniques for building electronic circuits without a printed circuit board. Both use a flat copper-clad substrate as a ground plane, with components mounted above it. They have been used by ham radio homebrewers since the 1950s and remain popular today because they require zero board manufacturing time, produce excellent RF performance at HF and lower VHF, and are fully modifiable — a circuit can be changed by simply unsoldering and repositioning components. This lesson teaches you both methods, when to use each, and how to build a working RF circuit from a blank copper-clad panel.

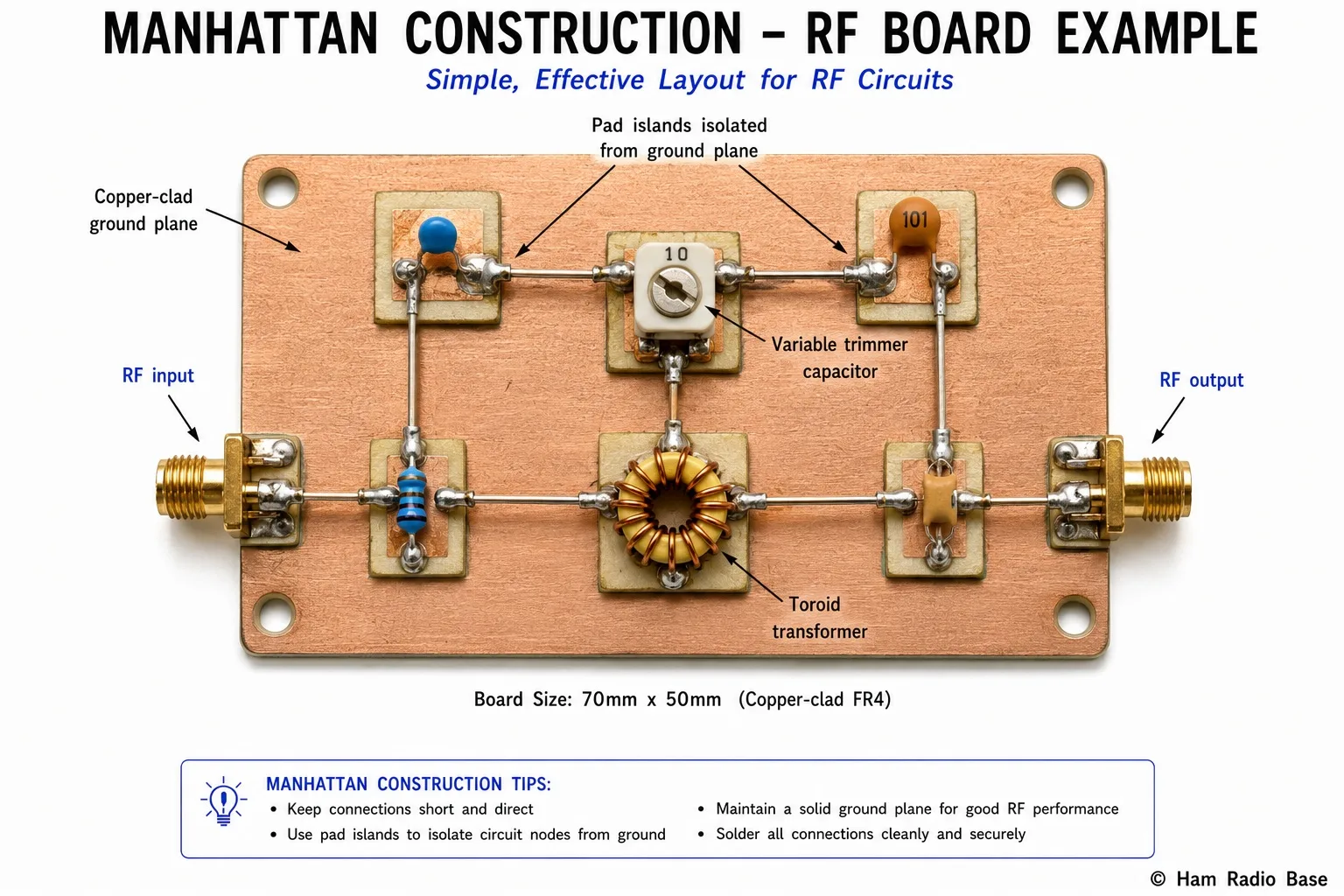

Manhattan construction: copper-clad FR4 ground plane with isolated pad islands soldered at key nodes. Components mount on pads, one lead to pad and one to ground plane, with short inter-pad wires for signal connections.

View full size

Why Copper-Clad Construction Works at RF

At radio frequencies, the behavior of a circuit depends not just on the schematic but on the physical layout. Two properties are critical: the ground return path and the lead inductance of components and wiring.

Ground plane as return path: RF current always flows in a loop. For every current flowing through a signal trace or component lead, there is an equal and opposite return current flowing back through the ground path. On a well-designed PCB, the ground plane directly below the signal trace provides a very short, low-inductance return path — the return current flows exactly below the signal current, minimizing the loop area and therefore the loop inductance. A copper-clad ground plane provides the same benefit: any component whose body is close to the copper surface has its return current flowing through the copper directly below it. This is the fundamental reason copper-clad construction produces good RF performance without a PCB.

Lead inductance: Every millimeter of wire or lead is an inductor at RF. At 14 MHz (the 20 m amateur band), 1 mm of wire has a reactance of approximately X = 2π × 14×10⁶ × 1×10⁻⁹ = 0.088 Ω. At 144 MHz, the same 1 mm is 0.9 Ω. Short leads are essential. Copper-clad construction enforces short leads because components sit directly on the substrate — the lead lengths are naturally limited to a few mm.

Materials and Substrate Selection

Substrate

FR4 copper-clad laminate (1 oz or 2 oz copper, 1.6 mm or 0.8 mm board thickness) is the preferred material for RF work. FR4 has low loss at HF and good mechanical strength. Standard 30×20 cm panels are available from PCB suppliers for a few dollars each.

Phenolic copper-clad (the brown or tan material common in older boards) is cheaper and easier to score and snap, but has higher dielectric loss at VHF. Acceptable for audio and HF, less ideal for VHF and above.

Copper weight: 1 oz (35 µm thick) is standard. 2 oz is stiffer but also more expensive and harder to solder pads to without overheating the substrate.

Cutting the Substrate

Score single-sided copper-clad with a utility knife and a steel straightedge — five or six firm passes along the cut line, then snap over the edge of a bench. This gives a clean, straight edge. Tin snips work but leave a rough edge. A PCB shear gives the cleanest cut. Always de-burr edges with a fine file after cutting.

Cleaning

Clean the copper surface with fine steel wool or a fiberglass abrasive pen, then wipe with IPA. Fingerprints left on the copper oxidize quickly and resist solder. A freshly cleaned copper surface should look bright and accept solder readily without flux. Once cleaned, handle only by the edges.

Manhattan Construction

Manhattan construction uses small isolated pad islands — small pieces of copper-clad that are soldered to the main ground plane but are electrically isolated from it, acting as component mounting platforms.

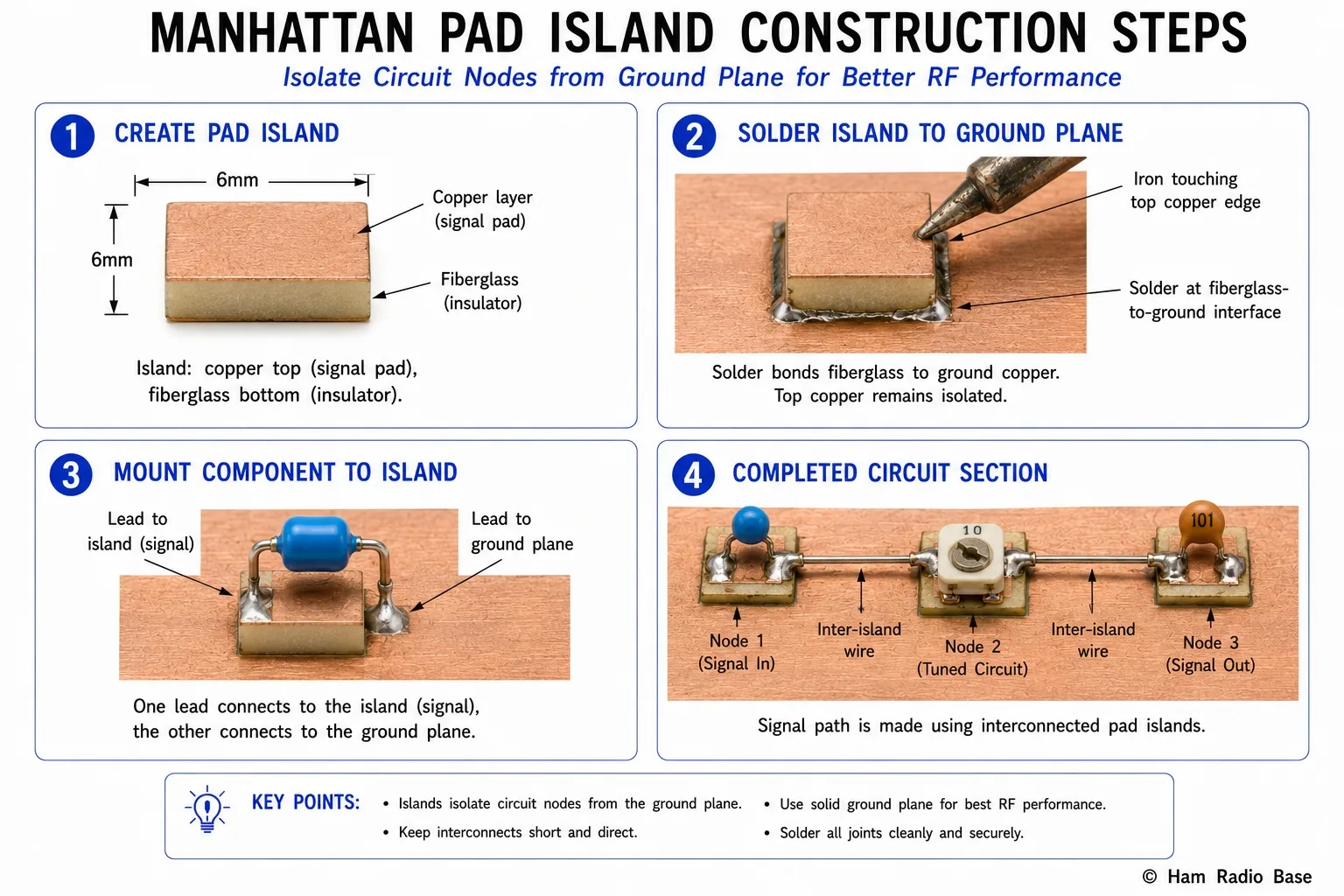

Pad island construction: cut 6×6 mm copper-clad island, solder corners to ground plane, mount component with one lead to island and one to ground, connect islands with short wire segments.

View full size

Making Pad Islands: Three Methods

Method 1 — Cut scraps of copper-clad: Cut small squares (typically 5–8 mm square) from scrap copper-clad laminate using tin snips or a knife. These become the pad islands. The copper faces up and the fiberglass faces down. Bond the fiberglass base to the main ground plane copper with a small amount of solder at 2–3 corners — the solder bonds the fiberglass to the ground plane copper, holding the island mechanically, while the island copper is isolated from the ground plane by the fiberglass base of the island piece.

Method 2 — In-situ scribing: Use a marking pen to draw pad outlines on the main copper surface, then scribe around the outline with a utility knife or Exacto knife, cutting through the copper cladding only (not into the substrate). Remove the copper inside the scribed outline with a knife tip or screwdriver, creating an isolated island on the surface of the main board. This method avoids cutting separate pieces but is slower and can leave rough edges.

Method 3 — Commercial pad punches: Purpose-made copper-clad pad punches (available from suppliers such as W1REX Stoney Communications) cut a perfectly round or square island with a clean, defined edge in a single press. Faster and neater than hand cutting. The punch simultaneously creates a hole through the substrate if desired (for through-lead mounting).

Bonding Islands to the Ground Plane

Pre-tin the bottom (fiberglass face) of each island with a drop of solder before positioning it. Position the island on the ground plane with tweezers or a small stick, then press a hot iron to the top copper edge of the island — the solder under the fiberglass will melt and bond the island to the ground copper below. This gives mechanical stability; the island copper remains isolated because the solder bonds the underside fiberglass, not the top copper, to the main copper. Tack two corners first, then reflow the other two.

Mounting Components on Islands

For each component:

• One lead connects to the island (signal node)
• The other lead connects to the main copper ground plane
• The connection to the ground plane can be a short straight lead touching the copper surface with a solder blob, or a short wire running to the nearest convenient ground point

SMD components work very well in Manhattan construction — the small body sits directly on the island with one end on the island and the other bridging to the main copper. Through-hole components can also be used, with leads bent and trimmed very short (3–5 mm maximum).

Inter-Island Wiring

Connect pads to each other with short, direct runs of tinned copper wire. Solid bare copper wire (22–26 AWG) is ideal — pre-tin each end, cut to length, and solder. Enameled magnet wire (28–32 AWG) can be used where the connection must thread between other components — burn the enamel off each end with the iron before soldering. Always keep inter-island wires as short as possible and route them as directly as possible. Avoid parallel runs of signal wire that could couple energy between stages.

Ugly and Dead-Bug Construction

Ugly construction (also called point-to-point on copper-clad, or "ugly style") is an even simpler variant: components are wired directly point-to-point without pad islands. Ground-connected leads solder directly to the copper ground plane. Non-ground leads connect to each other in mid-air with short wires, using the component leads as connection points.

Dead-bug construction is a specific ugly construction variant where ICs are mounted upside down — with their package body glued to the copper ground plane and their leads pointing upward in the air, like a dead insect. This exposes all IC pins for easy access and keeps the signal wiring above the ground plane. For a DIP-8 op-amp, for example, the body is bonded to the copper (with a dot of cyanoacrylate or a blob of epoxy under the center), and each pin is then connected by short wire runs to surrounding components.

Circuit Layout Principles

Both construction methods require deliberate layout planning. RF construction is more sensitive to physical layout than any other electronics discipline.

Signal flow in one direction: Draw the signal path as a straight line from input to output — left to right, or top to bottom. Never fold the signal path back on itself. A VFO oscillator should have its output at the right, with output coupling at the far right. The power supply decoupling enters from the rear.

Separation of input and output: Keep the input side of each amplifier stage physically separated from the output side. If the input and output of an RF amplifier are adjacent, the circuit can oscillate due to feedback coupling between them. A minimum of 20 mm separation between input and output nodes is a good guideline for HF amplifiers.

Oscillator isolation: If the circuit contains an oscillator (VFO or crystal), place it at one end of the board, as far as possible from any amplifier outputs. Oscillator signals are present everywhere in a circuit by radiation, and proximity to high-power stages causes frequency pulling.

Decoupling at every stage: Place a 100 nF bypass capacitor directly on the supply line of each active device, with the capacitor body as close as possible to the supply pin and the ground end connected directly to the ground plane. See the M20J lesson on decoupling and grounding.

Toroid transformers and inductors: Mount toroid cores directly on the copper ground plane or on a pad island. Orient toroids so the winding axis is horizontal. Keep toroid cores at least 20 mm from adjacent signal pads to minimize inductive coupling.

Ham Radio Applications

Manhattan and ugly construction appear throughout the amateur radio literature and in many well-known homebrew projects:

• QRP transceivers: The famous Elecraft K2 and many designs published in QST use Manhattan-style layouts for the RF chain. The W7ZOI (Wes Hayward) broadband amplifiers and filters in Experimental Methods in RF Design (ARRL) are built in Manhattan style and are considered reference implementations.
• Variable frequency oscillators (VFOs): Colpitts and Hartley oscillators built on copper-clad have better frequency stability than the same circuit on perfboard, because the low-inductance ground plane reduces ground loop effects that cause frequency modulation.
• Low-noise receive preamplifiers: A 20 m LNA built on copper-clad with short lead lengths consistently outperforms the same circuit on perfboard at the same component values.
• Antenna tuners: The toroid inductors and variable capacitors used in antenna tuners are naturally suited to copper-clad construction because they are large, self-supporting components.
• CW keyers and audio stages: Ugly construction is perfectly adequate for audio circuits and CMOS logic at speeds below 1 MHz.
