Surface Mount Construction

Open any piece of modern ham radio equipment and you will find a circuit board densely populated with tiny components that look nothing like the leaded resistors and capacitors you might have worked with on a breadboard. These are surface-mount devices (SMD), and they are the default technology for virtually every electronic product manufactured today — including every transceiver, amplifier, and SDR dongle in your shack. If you want to repair modern equipment, build kits, modify circuits, or homebrew anything more advanced than a simple audio stage, you will need to work with SMD. The good news is that hand-soldering SMD components is a learnable skill, and with the right technique and tools it becomes fast and reliable.

Why Surface Mount Technology Matters

Surface-mount technology (SMT) replaced through-hole construction as the dominant method of circuit assembly in the late 1980s and early 1990s, driven by the demands of automated manufacturing and the miniaturization of consumer electronics. Today, the transition is essentially complete. If you go to a major electronics distributor and search for a general-purpose NPN transistor, you will find hundreds of SMD variants but only a handful of through-hole versions — and those through-hole versions are often marked "not recommended for new designs." The same is true for operational amplifiers, logic ICs, voltage regulators, and many specialized RF semiconductors used in amateur radio equipment.

This matters to ham radio operators for several practical reasons. First, most commercial ham radio equipment built after about 1995 uses SMD construction throughout, so any repair work requires SMD soldering skills. Second, commercially available kits from Elecraft, QRP Labs, and other vendors now routinely include SMD components, and the trend is toward more SMD over time, not less. Third, if you design your own circuits — a VFO, an LNA, a keyer, a CW filter — the best parts for the job are often only available in SMD packages. Refusing to work with SMD limits what you can build and repair.

The perception that SMD soldering is impossibly difficult is a myth. It requires a different technique than through-hole soldering, better lighting and magnification, and a bit more practice, but hobbyists routinely hand-solder 0402 packages (just 1.0 mm × 0.5 mm) without specialized equipment. The most useful size range for homebrewers is 0603 to 0805 for passives — large enough to handle with moderate dexterity, small enough that common values are readily available. For ICs, SOIC-8 and SOIC-16 are very hand-solderable. You can work up to TSSOP and even fine-pitch QFP with practice.

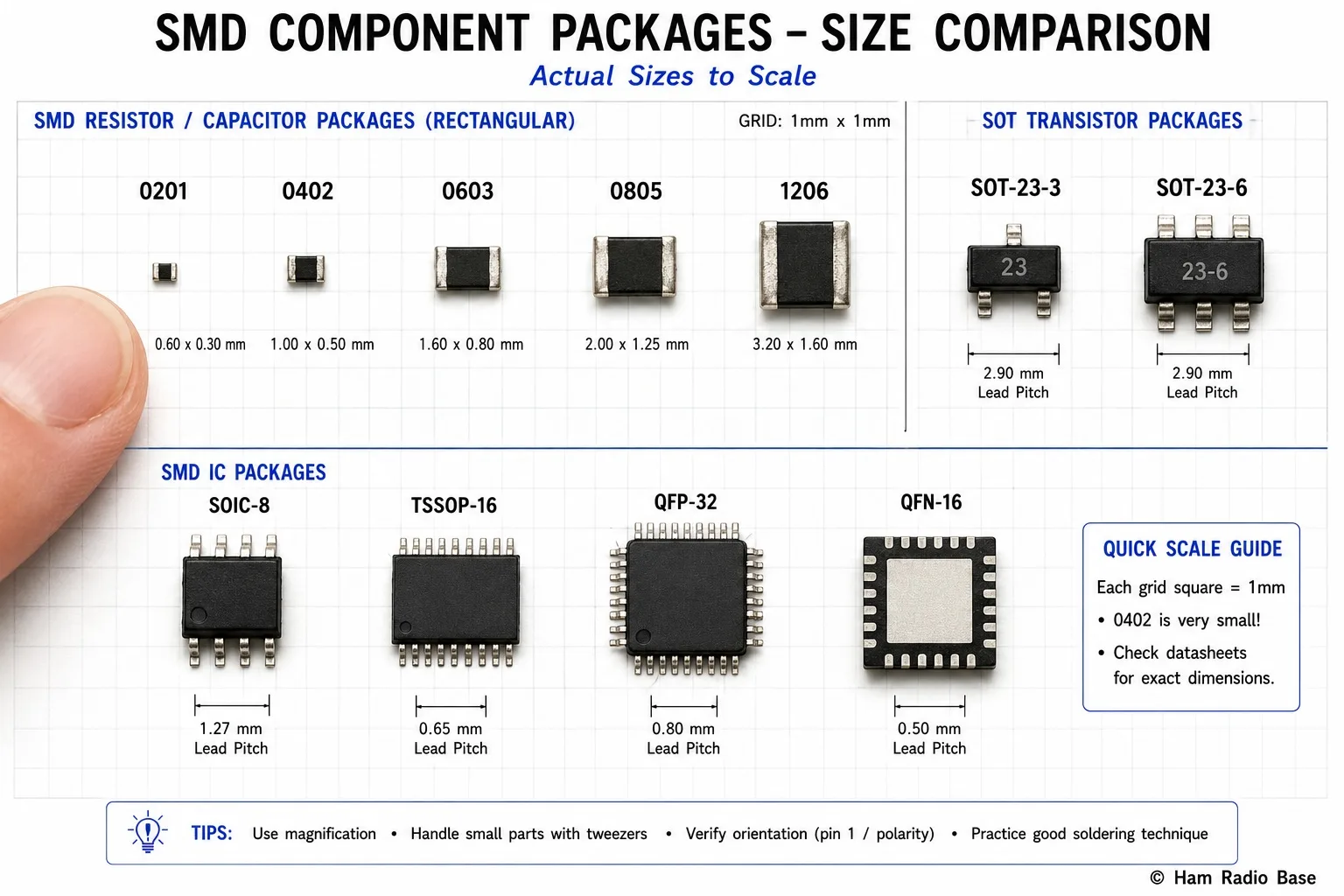

SMD package sizes to scale — from the tiny 0201 (0.6 mm × 0.3 mm) through common passives, transistors, and IC packages. A fingertip at the corner shows how small 0402 components really are.

View Larger

SMD Package Sizes and Codes

SMD passive components — resistors, capacitors, and inductors — are described by a four-digit code that encodes their physical dimensions. The code system uses inches: 0805 means 0.08 inches long by 0.05 inches wide, or 2.0 mm × 1.25 mm in metric. This is the size most beginners start with, as the pads are large enough to see clearly and manipulate with tweezers without extreme difficulty. Larger sizes such as 1206 (3.2 mm × 1.6 mm) are even easier to handle and are often used where high power dissipation is needed. Smaller sizes like 0603 (1.6 mm × 0.8 mm) and 0402 (1.0 mm × 0.5 mm) are the most common in modern consumer electronics; 0402 is the smallest that most hobbyists attempt to hand-solder. The 0201 package (0.6 mm × 0.3 mm) is typically placed by machine only.

It is important to understand that the EIA (Imperial) code and the metric code describe the same component — they are just different numbering systems. A 0402 component in the EIA system is called a 1005 in the metric system (1.0 mm × 0.5 mm). Datasheets and distributor catalogs use both systems, so you need to recognize both. In practice, most English-language catalogs and kits use the Imperial four-digit code.

When ordering SMD components, the package size also influences what power ratings and capacitance values are available. An 0402 resistor is typically rated for 1/16 W maximum; an 0805 for 1/8 W; a 1206 for 1/4 W; and a 2010 for 3/4 W. For resistors in RF circuits that carry power — such as dummy load or attenuator pad resistors — you must choose a package size that can dissipate the required heat. In a 50-ohm dummy load for QRP use (5 W maximum), you would use multiple 1206 or 2010 resistors in parallel to spread the heat rather than trying to get 5 W through a single 0402.

Transistor Packages: SOT-23, SOT-89, D-PAK

Bipolar transistors and small-signal MOSFETs in SMD form come in several package families. The most important for ham radio homebrewers are the SOT-23 family, SOT-89, and the TO-252/D-PAK for power devices.

The SOT-23-3 is the basic three-terminal package measuring 3.0 mm × 1.75 mm with three gull-wing leads on 0.95 mm pitch. The three-pin version (SOT-23-3) carries a transistor or diode. The five-pin variant (SOT-23-5) and the six-pin variant (SOT-23-6) are used for dual transistors, op amps, and voltage regulators with extra pins. The SOT-23 package is well within hobbyist hand-soldering capability — the pads are about 0.9 mm wide with a 0.5 mm gap between adjacent pins, which is enough to work with under magnification.

The SOT-89 package is physically larger (4.5 mm × 4.0 mm) and is designed for higher power dissipation. It has a large collector or drain tab that extends under the body, providing a heat conduction path to the PCB. Common devices in SOT-89 include RF transistors like the BFR96 and the 2SC3357, which are widely used in VHF amplifiers and receivers. This package is easy to hand-solder: three leads plus the tab, all with generous spacing.

For power applications — anything above a few hundred milliwatts — the TO-252 (also called D-PAK) and TO-263 (D2PAK) packages appear. The IRF7832 MOSFET in a TO-252 package is used in many push-pull RF amplifiers for HF. The large thermal tab is soldered to a copper pour on the PCB for heat management. These are straightforward to hand-solder given their large physical size.

IC Packages: SOIC, TSSOP, QFP, QFN

Integrated circuits come in a much wider variety of SMD packages, distinguished by pin count, lead pitch, and package body dimensions. Understanding the differences helps you choose what is practical to hand-solder versus what requires a hot-air station or reflow oven.

The SOIC (Small Outline Integrated Circuit) family is the most hand-solderable IC package. SOIC-8 measures 4.9 mm × 3.9 mm with 1.27 mm lead pitch — identical to the 0.05-inch standard — and is used for dual op amps (NE5532, LM358), audio amplifiers, logic gates, voltage references, and countless other ICs that appear in ham radio circuits. SOIC-14 and SOIC-16 add more pins but maintain the same 1.27 mm pitch, making them equally accessible. These are excellent targets for beginners to practice IC soldering.

The TSSOP (Thin Shrink Small Outline Package) has a 0.65 mm lead pitch — half that of SOIC. TSSOP-16 and TSSOP-20 are used for logic buffers, shift registers, and microcontrollers. This package requires more care but remains hand-solderable with a fine iron tip and good flux. The key technique for close-pitch packages is drag soldering, described later in this lesson.

The QFP (Quad Flat Package) has leads on all four sides. QFP-32 (32 leads, typically 0.8 mm pitch) and QFP-44 (44 leads) are used for microcontrollers and DSP chips that appear in modern digital mode accessories and SDR designs. Hand-soldering a QFP is possible but requires excellent eyesight or magnification, a fine bevel-tip iron, plenty of flux, and a wick to clear bridges. The alignment step before soldering any lead is critical — misalignment by even 0.2 mm can bridge two adjacent pads.

The QFN (Quad Flat No-Lead) package presents the greatest challenge for hand-soldering because the pads are located on the underside of the package body with no protruding leads. A QFN-16 might measure 3 mm × 3 mm with pads only visible from below. Most QFN work requires solder paste applied by stencil and a hot-air station or reflow oven to flow the solder under the body. Many QFN packages also have a large exposed thermal pad in the center that must be soldered to a PCB thermal via for proper heat dissipation and electrical connection.

Tools for SMD Soldering

Successful SMD soldering depends more on having the right tools than on raw skill. An excellent technique applied with poor tools will produce poor results; adequate technique with the right tools will produce good results.

Tweezers: You need two types. Reverse-action tweezers (also called self-closing tweezers) hold the component when you relax your grip and release when you squeeze — this is the opposite of normal tweezers. They allow you to hold a tiny 0603 component in place while your other hand holds the iron, without maintaining constant grip tension. ESD-safe tweezers are made from conductive carbon-fiber-filled plastic or stainless steel with ESD-safe coating — these prevent static discharge from reaching the component. For picking up and positioning components, a pair of stainless steel straight-tip tweezers (style SA or Dumont 3C) is ideal; for holding during soldering, reverse-action tweezers.

Magnification: A 10× loupe worn over the eye frees both hands for soldering. A stand magnifier or a headband-mounted OptiVisor leaves both hands free and provides comfortable working magnification. A USB microscope or stereo microscope is very useful for inspection after soldering — examining solder joint quality at 20–40× reveals bridges and cold joints invisible to the naked eye. Some builders work under a bare bench magnifier for placement and inspection.

Soldering iron: A temperature-controlled iron in the 40–60 W range with fine tip options is essential. For SMD work, use a conical fine tip (0.4–0.6 mm diameter) for tacking individual components, or a bevel (chisel) tip (1.0–1.5 mm wide) for drag soldering IC leads. The bevel tip carries a thin film of solder along its angled face, which wipes across a row of leads in a smooth drag. Set iron temperature to 320–350°C for lead-free solder and 280–320°C for 63/37 tin-lead solder. Hakko FX-888D, Weller WE1010, or any reputable temperature-controlled station is adequate.

Solder wire: Use the thinnest solder wire you can manage. 0.5 mm diameter solder is ideal for SMD work; 0.6 mm is also acceptable. Thin solder allows precise control of the amount deposited. The small pad areas of 0402 and 0603 components do not need much solder — excess creates bridges. Both 63/37 tin-lead (Sn63Pb37) and SAC305 lead-free (96.5% tin, 3% silver, 0.5% copper) work well. Lead-containing solder flows at a lower temperature and is more forgiving for rework.

Flux: Flux is arguably the single most important material in SMD soldering. It cleans oxide from the metal surfaces, promotes wetting (adhesion of solder to the metal), and reduces the surface tension of molten solder so it flows into the joint rather than balling up. For SMD work, use a no-clean rosin flux pen for quick applications to individual pads, or a gel flux in a syringe for pre-fluxing a row of IC pads before drag soldering. No-clean flux residue can be left in place; if using water-washable flux (more aggressive), rinse the board with isopropyl alcohol after soldering.

Hot-air station: A hot-air rework station (e.g., Quick 857A, Hakko FR-301) allows you to reflow solder on multiple pads simultaneously by directing a controlled stream of hot air at 300–380°C over the component. Hot-air is essential for rework (removing a misoldered IC), for QFN packages (which require flowing solder under the body), and for applying solder paste to small pads before placing components. Many builders use hot-air for everything larger than SOIC.

Solder wick and flux: Desoldering braid (copper mesh saturated with flux) is used to remove solder bridges. Press moistened wick against the bridged pads and touch the iron — the wick wicks up the excess solder by capillary action. Fresh wick with fresh flux works much better than old dry wick.

ESD Protection — Why It Matters

Electrostatic discharge (ESD) is an invisible enemy of CMOS logic and MOSFET devices. The human body can accumulate a charge of several thousand volts simply by walking across a carpet or sliding off a chair, yet you feel nothing below about 3,000 V. But many MOSFETs and CMOS gate oxides have breakdown voltages as low as 200–400 V — invisible to you, lethal to the transistor. The damage is often latent: the gate oxide weakens but does not fail immediately, leading to unreliable operation that is difficult to diagnose.

Protecting against ESD when handling SMD components requires three things working together:

Wrist strap: A wrist strap connects your body through a 1 MΩ resistor (to limit current in case of accidental contact with line voltage) to a common ground point — typically the earth/safety ground pin of a three-prong outlet or a dedicated ESD ground mat. The strap bleeds static charge from your body continuously while you work. Test your wrist strap with an ESD tester before each session; a broken wrist strap conductor provides no protection.

Anti-static work mat: A dissipative mat (surface resistivity 10⁶–10⁹ Ω/square) placed on your work surface prevents charge buildup from your soldering work area. Ground the mat to the same point as your wrist strap. Do not place SMD components directly on bare wood, carpet, or plastic — all are insulators that can hold charge.

ESD-safe storage and handling: Keep SMD components in their original anti-static packaging until ready to use. Anti-static bags, foam, and tape reels are all conductive or dissipative. Never store loose SMD ICs in plastic bags or foam coffee cups. When opening anti-static bags, do so at the grounded work mat, not at your desk or a carpet-covered area.

Bipolar transistors (BJTs) are much less sensitive to ESD than CMOS, so a 2N2222 in SOT-23 form is not as fragile as a CD4000-series CMOS IC. Nevertheless, developing good ESD habits is worth the effort because the consequences of bad ESD practice accumulate invisibly — a circuit that works today may fail after a week of operation.

Tack-and-Solder Technique for Passives

The most fundamental SMD hand-soldering technique is the tack-and-solder method. The core idea is to solder one end of the component first — the tack — while holding the component in place with tweezers, then solder the other end properly, then return to reflow the first joint. This two-step approach prevents the component from shifting during the first solder application and ensures both joints receive proper solder.

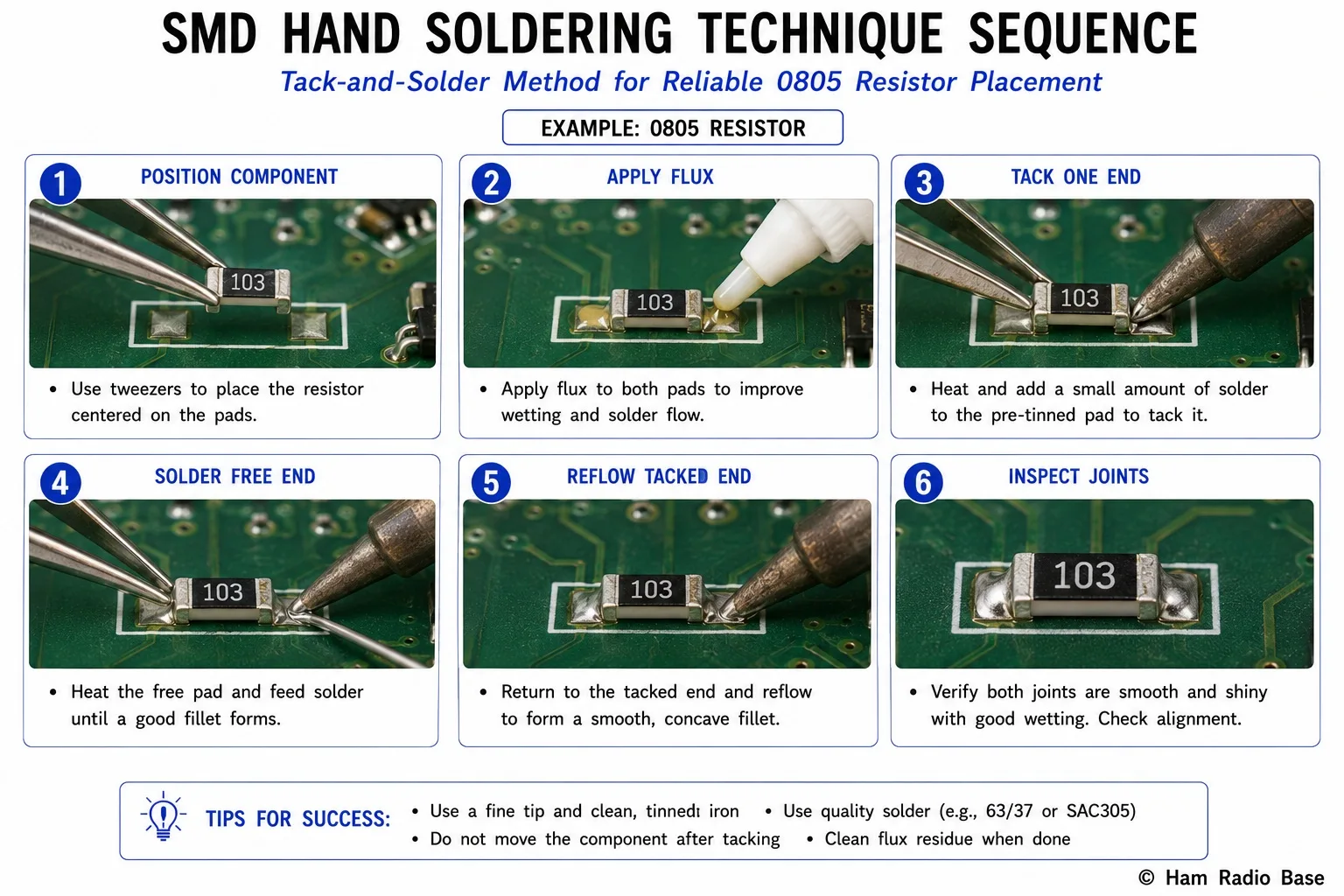

The six-step tack-and-solder sequence for 0805 passives. Tacking one end first lets you check alignment before committing to the second solder joint.

View Larger

Here is the full step-by-step procedure for soldering a two-lead passive (resistor, capacitor, or inductor) in 0805 or 0603:

Step 1 — Apply flux to both pads. Touch the tip of your flux pen to both pads and allow the flux gel to spread over each pad. You do not need a large amount — a thin coating is sufficient. Fresh flux dramatically improves wetting. If flux is already present on the pads from the board manufacturer's solder mask, you may still want to add more, as it evaporates quickly under heat.

Step 2 — Pre-tin one pad. Touch a small amount of solder — perhaps 0.5 mm of 0.5 mm wire — to one pad using the iron. You want a thin, flat coat of solder on the pad, not a raised ball. This pre-tinned pad is what you will tack against. If the solder balls up rather than lying flat, you do not have enough flux or the iron is too cool.

Step 3 — Position the component. Grip the resistor or capacitor with reverse-action tweezers. Orient it correctly (for non-polarized passives, orientation does not matter; for polarized devices, verify polarity before this step). Hold the component flat against the PCB, aligned over both pads. Your tweezers should hold the component at the middle of its body, not on the end pads, to avoid touching the solder pads and causing contamination.

Step 4 — Tack the first end. With the component held in tweezers aligned on the pads, touch the hot iron (no additional solder needed) to the pre-tinned pad. The solder on the pad will reflow and wet the end of the component. Hold steady for one second, then remove the iron. The component is now lightly attached on one end. Release the tweezers and check alignment from directly overhead — the component should be centered on the pads and not rotated. If misaligned, reheat the tack pad and nudge the component while the solder is liquid.

Step 5 — Solder the free end. With the component tacked and aligned, bring fresh solder wire and the iron simultaneously to the free (un-tacked) pad. Feed a small amount of solder — just enough to form a concave fillet from the pad up to the component end. A good joint has solder that wets up the side of the component end and across the pad; a bad joint has a ball of solder sitting on top of the pad without wetting to the component. The dwell time on the pad should be 1–2 seconds. Longer means more heat exposure, which is particularly damaging to ceramic capacitors.

Step 6 — Reflow the tacked end. Return the iron to the first pad and hold it for 1–2 seconds. The tack joint typically has less solder than the second joint because no fresh solder was added. Feed a small amount of solder wire to this pad while the iron is present, then remove the solder wire and then the iron. Both joints should now appear as smooth concave fillets. Allow the board to cool for ten seconds before moving it.

Inspecting the result: Under magnification, both solder joints should appear smooth and shiny (for tin-lead solder) or slightly matte but smooth (for lead-free). The solder should form a concave meniscus climbing from the pad up to the end of the component body. A convex dome indicates insufficient wetting (cold joint or insufficient flux). A flat thin coat with the component floating slightly above the pad may indicate the pad was not properly tinned. A common mistake is using too much solder — if the solder fills the entire space between the component end and the pad edge and mounds upward, use wick to remove the excess.

Soldering SOT-23 Transistors

The SOT-23 package has three (or five or six) gull-wing leads emerging from the sides of a tiny rectangular body. The leads are pre-formed at an angle that brings them down to touch the PCB pads. The most common variant for ham radio is SOT-23-3, used for the 2N7002 logic-level MOSFET, the BC847 NPN transistor, the BAS16 signal diode, and many voltage regulators and references.

Before picking up the component, verify its pin assignment from the datasheet. In the SOT-23-3 package, the wide face has two leads and the narrow face has one lead, but the assignment of base/collector/emitter or gate/drain/source to specific pins varies by manufacturer and device. Placing an SOT-23 transistor backward will result in incorrect circuit operation — and since the device looks identical from all angles (except for a small dot or bar marking that indicates pin 1 orientation), a wrong orientation is easy to miss.

The procedure for SOT-23 is similar to tack-and-solder for passives but adapted for the asymmetric pin layout:

Step 1: Apply flux to all three pads.

Step 2: Pre-tin one of the pads on the two-lead side with a thin coat of solder.

Step 3: Pick up the SOT-23 with tweezers gripping the body from above — do not grip by the leads. Confirm orientation: note where pin 1 should be from the datasheet and align the component dot or bar marking accordingly.

Step 4: Position the device over the three pads. All three leads should rest on their respective pads. Tack one lead (preferably on the two-lead side) to the pre-tinned pad by touching the iron to the pad for 1 second. Release the tweezers.

Step 5: Verify alignment from directly above. The device body should be centered, and the leads should be visibly on the pads, not shifted to one side. Correct misalignment by reheating the tacked pad.

Step 6: Solder the single pad on the narrow side with fresh solder, forming a concave fillet.

Step 7: Return to the two-lead side and solder the remaining untacked lead with fresh solder. Finally, reflow the tacked lead, adding a small amount of solder.

Inspect all three joints. Use solder wick to remove any bridges between adjacent leads. After soldering, use a multimeter in diode test mode or transistor gain (hFE) mode to verify the device is functional and correctly oriented.

Soldering SOIC ICs

SOIC-8 and SOIC-16 packages have gull-wing leads emerging from two opposite sides, with 1.27 mm pitch between adjacent leads. The total package width including leads is about 6 mm for standard SOIC. Soldering SOIC by hand is readily achievable with either the individual pad approach (tack each pin) or the drag soldering technique. Drag soldering is faster and tends to produce better results once you have the feel for it.

Pin 1 identification: SOIC packages always mark pin 1, either with a small dot on the package body, a notch at one end, or a beveled corner. The pin numbering runs counterclockwise from pin 1 when the IC is viewed from above. Always check the datasheet to confirm which corner is pin 1 for the specific device, as marking conventions differ between manufacturers.

Procedure — diagonal tack, then drag:

Step 1: Apply no-clean gel flux to all pads on both rows — use the syringe to drag a thin bead of flux across the entire pad array on each side. Generous flux is the key to successful drag soldering.

Step 2: Align the IC over the footprint. Pin 1 of the IC must be over pad 1 of the footprint. The leads should be centered on the pads — no offset. For an SOIC-8, there are four pads per side and four leads per side; all should align simultaneously.

Step 3: Tack two diagonally opposite corner pins. For SOIC-8, tack pin 1 and pin 5 (the corner pins on opposite sides). Use a fine conical tip, place it on the pin/pad junction, and apply a tiny amount of solder. The tack does not need to be a perfect joint — it just needs to hold the IC in position.

Step 4: Re-examine alignment from directly above. All leads should be centered on their pads with roughly equal pad metal visible on both sides of each lead. If any lead row is offset, reheat the tack pins and nudge the IC to correct alignment.

Step 5 — Drag solder one side: Switch to the bevel tip. Load a small bead of solder onto the face of the bevel tip — just enough to create a thin bridge of solder from one lead to the next. With the tip angled at about 30–45 degrees to the lead row, drag it slowly along the row from pin 1 toward the last pin on that side. The bevel tip simultaneously heats each lead and delivers solder. The motion should be smooth and continuous, about 1–2 mm/second. The flux promotes wetting so solder flows off the leads onto the pads without forming bridges — most of the time.

Step 6: Repeat drag soldering on the opposite side.

Step 7 — Bridge removal: Inspect under magnification. Solder bridges between adjacent leads are common after drag soldering, especially if too much solder was used or flux was insufficient. Remove bridges by placing damp desoldering wick over the bridged area and pressing with the iron for 2–3 seconds. The wick absorbs the excess solder by capillary action. Flux the area before applying wick if the wick is dry.

Step 8: Inspect all joints once more. Every lead should have a distinct solder fillet, and no two adjacent leads should be connected by solder. Use the continuity function of your multimeter to confirm no bridges remain between adjacent pins.

QFP Packages

Quad Flat Pack (QFP) devices have leads on all four sides. A QFP-44 with 0.8 mm pitch has 11 leads per side with lead pitch of 0.8 mm — the gap between adjacent leads is about 0.3 mm. This is the most demanding SMD package that most hobbyists will attempt by hand. The procedure is the same as SOIC — tack diagonal corners, verify alignment on all four sides before committing, drag solder each side, remove bridges with wick — but the alignment step is much more critical because any misalignment propagates across all four sides simultaneously.

The most important tool for QFP work is magnification. A stereo microscope or USB microscope at 20–40× makes alignment visible and bridge detection easy. A 10× loupe is the minimum. Work under good directed light so the leads cast distinct shadows on the pads — this makes lead-to-pad alignment much clearer.

When aligning a QFP, the standard technique is to position the device by eye so all four corners look roughly aligned, tack one corner pin, then examine all four sides under magnification before tacking the diagonal corner. If any side shows offset (leads shifted so the pad metal is visible only on one side of the lead), reheat the tack and correct before proceeding.

QFN Packages

QFN (Quad Flat No-Lead) packages look like small squares of plastic with no visible leads at all — the solder pads are recessed under the body. A QFN-16 measuring 3 mm × 3 mm has 16 pads around its perimeter, each roughly 0.4 mm wide and 0.4 mm long, plus a large central thermal/ground pad that may be electrically significant.

Hand-soldering QFN packages by the usual iron technique is not feasible for the center pad, and the perimeter pads are partially hidden under the package body. The practical approach for QFN is:

Solder paste method: Apply solder paste (see the next section) to all perimeter pads and the center pad using a stencil or syringe. Place the component by hand using tweezers, aligning the dots or bars on the package with the pin 1 pad marker on the footprint. Use a hot-air station at 300–350°C with a fine nozzle, applying heat from above while moving in slow circles until all solder paste visibly reflows and the device settles into the paste. Surface tension of the liquid solder helps self-align the component onto the pads.

Center pad bonding: The central thermal pad in a QFN package is often connected internally to the device's ground node or heat spreader. If it is electrically connected (check the datasheet), it must be soldered to the PCB thermal pad for correct circuit operation, not just for heat management. The solder paste under the center pad flows and bonds during hot-air reflow. Confirm bonding by gently pressing the package — a properly soldered QFN will not rock or tilt when pressed lightly.

Solder Paste and Hot-Air Reflow

Solder paste is a thick gray material consisting of microscopic solder alloy balls (typically 25–45 micrometers in diameter) suspended in a flux vehicle. The flux keeps the particles from oxidizing, acts as a binder to hold the paste in place after application, and provides fluxing action during reflow. Solder paste is used when you want to apply a controlled amount of solder to multiple pads simultaneously before placing components — the alternative to tinning each pad individually.

Application methods: For small quantities and prototype work, solder paste is applied from a syringe. Dispense a small dot of paste onto each pad using gentle pressure on the plunger. A 0.8 mm-nozzle syringe deposits dots suitable for 0603–1206 pads. For repeatable production quantities (even small runs), a stencil made from 0.127 mm (5 mil) laser-cut stainless steel is used. The stencil has apertures matching the PCB pad pattern; the stencil is aligned over the board and paste is squeegeed across it, depositing a precise volume onto each pad simultaneously.

Component placement: After applying paste, components are placed by hand (using tweezers) or by a pick-and-place machine. The paste has enough tack to hold the component in position until reflow. Components do not need to be perfectly centered — during reflow, surface tension of the liquid solder pulls components into alignment, a phenomenon called tombstoning if the forces are uneven on a two-terminal component. Tombstoning (one end lifts off the pad) is more common with 0402 and smaller components when one end reflows before the other.

Reflow profile: The standard lead-free reflow profile has four stages. During preheat (25°C to 150°C over about 60–90 seconds), the flux solvents evaporate and the paste begins activating. The soak phase (150°C to 180°C, held for 60–120 seconds) allows thermal equalization across the board so all components reach the same temperature simultaneously. The reflow phase ramps rapidly to peak temperature (typically 217–240°C for SAC305 lead-free solder) and holds for 20–40 seconds — this is when the solder melts, flows, and wets the pads. Finally, cooling drops below 150°C as fast as possible (but gently enough not to thermally shock ceramic components) to solidify the joints with a fine-grained microstructure.

For hobbyist use without a reflow oven, a hot-air station provides the reflow phase. Move the nozzle in slow 20 mm diameter circles about 20 mm above the board, watching the paste — it will first appear to bubble slightly as flux activates, then will suddenly go shiny as the solder melts. Remove heat immediately when this happens. Allow the board to cool undisturbed. Do not blow on the solder joints to cool them — temperature shock can crack ceramic components.

Polarity and Orientation for SMD

Non-polarized SMD components (most resistors, non-polarized capacitors, and inductors) can be placed in either orientation. However, several common SMD component types are polarized and will be damaged or fail to function if placed backward.

Electrolytic SMD capacitors (aluminum electrolytic, typically in 0805 to 2220 package profiles with a cylindrical or slightly bowed top) are marked with a stripe indicating the negative terminal. The stripe, usually a darker band or a bar marking, appears on the negative lead side. Place the capacitor so the striped end aligns with the negative pad on the PCB (often marked with a minus sign or a filled square pad in the silkscreen).

Tantalum SMD capacitors are the most common polarized SMD capacitors in ham radio circuits. They are usually rectangular with a stripe or bar at one end — this marked end is the positive terminal, opposite to the convention for electrolytics. This is a common mistake: tantalum caps are marked positive; electrolytic caps are marked negative. A tantalum capacitor installed backward will initially appear to work, but under voltage stress the oxidation layer can break down catastrophically, destroying the capacitor and sometimes the circuit. Always verify polarity on tantalum caps.

SMD diodes are marked with a line on the cathode side (the same convention as through-hole diodes). The cathode is the negative terminal — the end marked by a bar or line on the package body. In the SMD SOD-323 or SOD-523 package, the line appears on one end of the rectangular body as a slightly different coloring or a physical bar.

SMD LEDs have a small green dot, triangle, or bar indicating the cathode. The polarity can be confirmed with a diode test on a multimeter before soldering. Reverse-biased, the LED will show no forward drop; forward-biased, it will show approximately 1.8–3.5 V depending on color.

IC orientation: For all IC packages (SOIC, TSSOP, QFP, QFN), a dot, beveled corner, or bar marks pin 1. The pin numbering runs counterclockwise from pin 1 when viewed from the component side (top) of the board. Placing an IC 180 degrees rotated applies supply voltage to the ground pin and connects outputs to inputs — a reliable way to destroy an expensive IC. Always double-check the orientation before tacking.
