Measuring Antenna Impedance with a VNA
Antenna impedance measurement was once a specialist task requiring a professional antenna analyzer costing hundreds of dollars. The NanoVNA changed this completely — for under $80, every amateur radio operator can measure their antenna's complex impedance across the entire HF, VHF, and UHF spectrum. The result is not just a number but a complete picture: a curve showing resistance and reactance (or SWR) across the whole band, revealing exactly where the antenna is resonant, how broad the usable bandwidth is, and whether the feedpoint impedance is appropriate for 50 Ω coaxial feed.
Understanding how to interpret these measurements — and understanding the important distinction between measuring at the antenna feedpoint versus measuring through the feedline — is the difference between a measurement that tells you what the antenna is doing and a measurement that tells you only what the feedline is doing to it.
Feedpoint Measurement vs Feedline Measurement
When you connect a VNA to the radio end of the feedline (at the station end), you are measuring the impedance transformation produced by the combination of the antenna and the feedline together. The feedline acts as an impedance transformer — a 50 Ω coax feedline shifts the antenna's feedpoint impedance by an amount that depends on the line's electrical length, velocity factor, and characteristic impedance at each frequency. The resulting impedance at the station end of the feedline is not the same as the antenna's feedpoint impedance.
For most antenna-adjustment purposes (finding resonant frequency, trimming to resonance), you must calibrate and measure at the antenna feedpoint, not at the station end of the feedline. Only at the feedpoint does the measurement directly correspond to the antenna's electrical behavior.
When you measure at the station end of the feedline, you can still make useful measurements — you can find the best operating frequency for your specific antenna-feedline combination, verify that the system SWR is acceptable, and observe the effect of tuner adjustment. But you cannot directly determine the antenna's physical resonant frequency or feedpoint impedance without accounting for the feedline transformation.

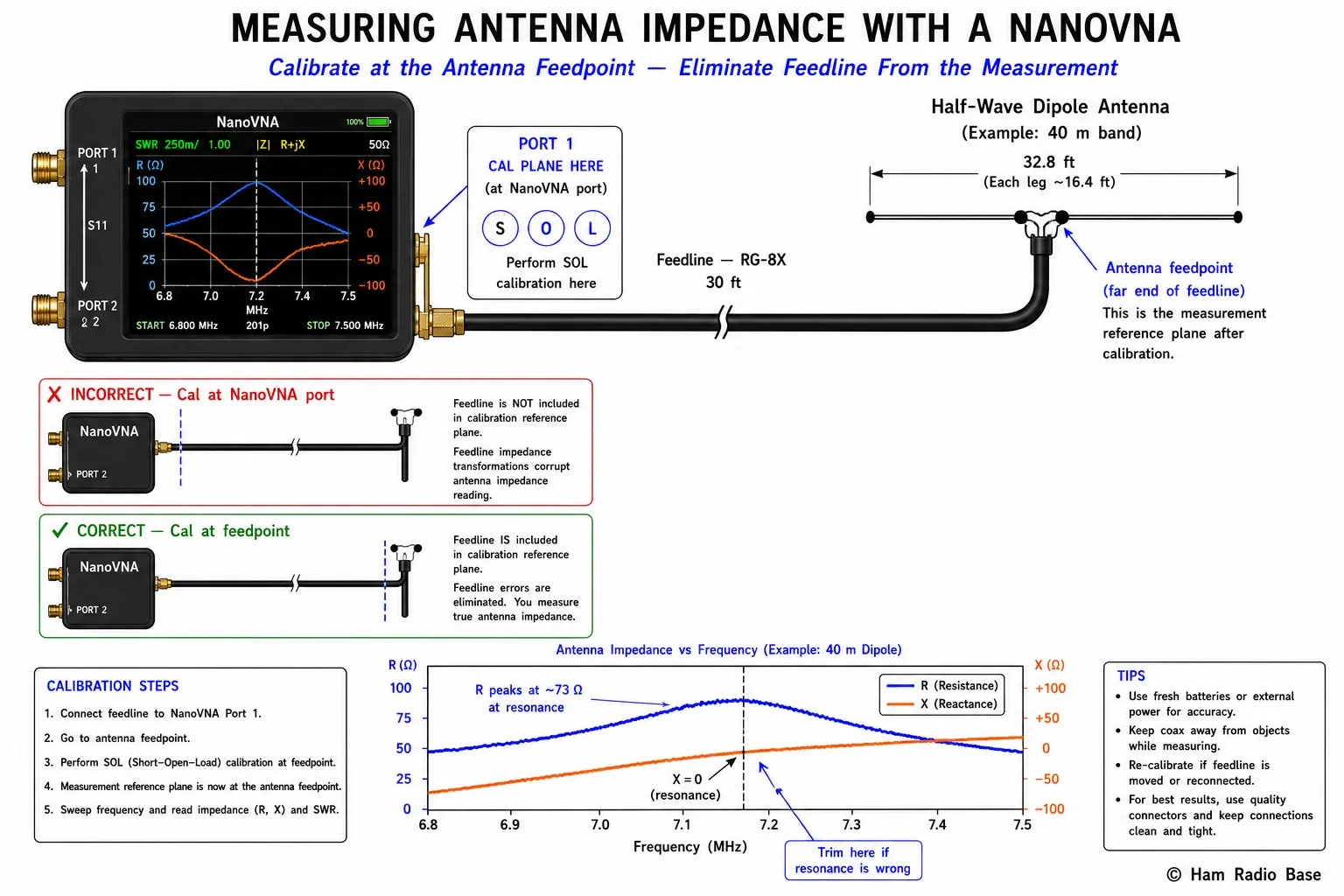

NanoVNA connected to a dipole via a 30-foot feedline, with the correct SOL calibration plane at the antenna feedpoint rather than at the NanoVNA itself, and an R+jX trace showing resonance crossing where reactance equals zero"
width="1536" height="1024"
fetchpriority="high"
class="hrb-figure-img">
Calibrating at the antenna feedpoint (correct, green) versus calibrating at the NanoVNA port (incorrect, red). When the calibration reference plane is at the feedpoint, the feedline's phase shift and loss are eliminated from the measurement. The R + jX trace shows X crossing zero at the resonant frequency — this is where to read the feedpoint resistance and decide whether to trim the elements.
View LargerStep-by-Step Measurement Procedure
Option A: Calibrating at the antenna feedpoint (preferred)
- Run the NanoVNA on battery power (do not use USB power from a computer during outdoor antenna measurement — ground loops distort the measurement)
- Attach the coaxial cable that will connect to the antenna, but do not connect the antenna yet
- Carry the NanoVNA to the antenna feedpoint with the calibration kit
- Set the frequency range covering the band of interest (e.g., 6.5–7.5 MHz for 40m)
- Perform SOL calibration at the feedpoint: attach short, open, then load standards at the far end of the cable
- Connect the antenna feedpoint to the calibrated reference plane
- Observe the S11 / SWR sweep on the NanoVNA display
- Take a screenshot or note readings with markers at the band edges and the SWR minimum
Option B: Measuring at the station end (simpler, for operational checks)
- Connect the NanoVNA Port 1 to the feedline at the station end (where the transceiver normally connects)
- Calibrate at that point with the SOL standards
- Sweep the frequency range and read the SWR and impedance as seen at the station end
- Note that this measurement includes feedline transformation — SWR minimum may not occur at the antenna's true resonant frequency
Reading the Results: SWR Trace and Impedance
The NanoVNA can display the measurement in several useful formats simultaneously:
SWR trace: A curve of the standing wave ratio versus frequency. The minimum point on the SWR trace is the frequency of best match between the antenna and the 50 Ω reference. For a resonant half-wave dipole, this minimum should be between 1.0 and 1.5:1 and occurs at the resonant frequency where the feedpoint impedance is purely resistive.
Log magnitude S11: The familiar return loss / S11 in dB format. The maximum depth (most negative S11) corresponds to the best match frequency.
R + jX trace: Shows the real part (resistance, R) and imaginary part (reactance, X) of the feedpoint impedance separately. At resonance, X = 0. Below resonance, a dipole is capacitively reactive (X is negative). Above resonance, it is inductively reactive (X is positive). Reading R + jX tells you which way to trim the antenna.
The VNA measures a dipole over 6.5–7.5 MHz. The trace shows:
- At 6.85 MHz: R = 42 Ω, X = −35 Ω (capacitively reactive — antenna is too short)
- At 7.03 MHz: R = 70 Ω, X = 0 Ω (resonant — purely resistive, but R = 70 Ω, slightly above 50 Ω)
- At 7.30 MHz: R = 78 Ω, X = +22 Ω (inductively reactive — above resonance)
Interpretation: The dipole is resonant at 7.03 MHz with R = 70 Ω. The 70 Ω resistance indicates either the dipole is higher than a quarter-wave above ground (free-space dipoles run about 73 Ω) or has some ground absorption. SWR at resonance = 70/50 = 1.40:1, which is acceptable without a tuner. To lower the resonant frequency and improve the match, slightly lengthen the dipole elements.
Full Example: 40m Dipole
A dipole cut for 7.150 MHz is installed at 35 feet above average soil. The NanoVNA measures at the feedpoint after SOL calibration. Key readings:
| Frequency (MHz) | R (Ω) | X (Ω) | SWR (50 Ω) | Note |
|---|---|---|---|---|
| 7.000 | 58 | −18 | 1.42 | Slightly below resonance, capacitive |
| 7.075 | 65 | −4 | 1.31 | Near resonance |
| 7.125 | 68 | +2 | 1.37 | Just above resonance, slightly inductive |
| 7.150 | 70 | +5 | 1.42 | Designed frequency — close to resonant |
| 7.200 | 72 | +10 | 1.52 | Upper band edge — still acceptable |
| 7.300 | 76 | +18 | 1.68 | CW/digital edge — SWR rising |
The antenna is well-behaved. SWR is below 1.5:1 across most of the 40m phone band. True resonance is near 7.09 MHz (where X ≈ 0). The dipole at 35 feet shows a feedpoint resistance of about 68 Ω at resonance — higher than 50 Ω but not enough to require a matching network. A typical antenna tuner handles this SWR range with ease.
Trimming an Antenna to Resonance
Use the VNA measurement as a guide for antenna adjustment. The rules are:
- Antenna resonates too high (resonant frequency above target, X is positive at target frequency): lengthen both elements of a dipole equally, or add length to a vertical
- Antenna resonates too low (resonant frequency below target, X is negative at target frequency): shorten both elements of a dipole equally, or remove length from a vertical
- Each 1% change in element length shifts the resonant frequency by approximately 1% (for thin-wire antennas)
- For a 40m dipole, 1 inch of total length change (½ inch per side) moves the resonant frequency by about 15–20 kHz
- After each physical change, remeasure. Antenna behavior is nonlinear near resonance, so small changes have progressively larger effects as you approach resonance
Measuring a Ground-Mounted Vertical
A vertical antenna's feedpoint impedance is strongly affected by the ground radial system. A quarter-wave vertical over a poor ground (few or no radials) shows high radiation resistance and high loss resistance in series — R at resonance might be 15–20 Ω with half of that being loss, not radiation. A good radial system (32+ radials) brings R at resonance down to 35–40 Ω, with most of that being radiation resistance.
Procedure: calibrate the VNA at the antenna feedpoint (at the base of the vertical, where the feed connects to the vertical element and the radial field). Measure S11 across the band. The reactive X = 0 crossing is the resonant frequency. Compare R at resonance against the expected value — if R is much higher than 35 Ω, the radial system may be inadequate or there may be a high-resistance connection in the ground system.
Common-Mode Current and Measurement Errors
A significant source of measurement error for antenna measurements — especially dipoles — is common-mode current flowing on the outside of the coaxial feedline. When you connect a VNA to a dipole, RF current should flow on the dipole elements only. But if the feedline shield is not properly decoupled from the antenna, common-mode current flows down the outside of the feedline shield, effectively adding a third wire to the antenna. This shifts the resonant frequency, alters the feedpoint impedance, and makes measurements impossible to reproduce when you move the cable.
The solution is a common-mode choke (RF choke or balun) at the antenna feedpoint. For VNA measurements, a simple 1:1 current balun or several turns of coaxial cable through a ferrite toroid at the feedpoint suppresses common-mode current adequately. After adding the choke, the VNA measurement will be stable and will not change when you reposition the feedline cable.
Frequently Asked Questions
Can I measure antenna impedance by connecting the VNA at the radio in the shack?
Yes, but the measurement will reflect the combined antenna-plus-feedline system, not the antenna alone. The feedline transforms the antenna's feedpoint impedance as a function of its electrical length. For operational checks (does this system produce acceptable SWR?), a shack-end measurement is fine. For understanding and trimming the antenna's physical properties (resonant frequency, feedpoint impedance, element length), calibrate and measure at the feedpoint.
The NanoVNA shows SWR below 2:1 over the whole band but my transmitter reads high SWR. Why?
The most common cause is common-mode current on the feedline. Without a choke at the feedpoint, the outer shield of the feedline participates in the antenna system. The VNA shows a deceptively good match because it measures the combined antenna-plus-feedline system. When the transmitter runs at full power, the common-mode current creates RF voltage on the coax shield at the station end, which the transmitter's SWR meter reads as a mismatch. Adding a common-mode choke at the antenna feedpoint usually resolves the discrepancy.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
