VNA Smith Chart Display
The Smith chart is the most powerful display mode available on a VNA — and the one that most newcomers find confusing at first glance. Once understood, it communicates the complete complex impedance of a circuit at every frequency in a single compact image that reveals more at a glance than pages of tabulated R + jX numbers.
Philip H. Smith invented the chart in 1939 as a graphical tool for transmission line calculations. Every point on the circular chart corresponds to a unique complex reflection coefficient Γ, which in turn corresponds to a unique complex impedance normalized to 50 Ω. When a VNA sweeps through a frequency range and plots S11 on the Smith chart, you see the impedance locus — the path that the impedance traces as frequency changes. This path has a characteristic shape for each type of circuit element, making the Smith chart an intuitive diagnostic tool once you can read it.
Smith Chart Structure
The Smith chart is a circular diagram. The outer boundary of the circle represents a reflection coefficient magnitude of 1 — total reflection, as at a short circuit or open circuit. The center of the chart represents zero reflection — a perfect 50 Ω match. The horizontal axis running through the center is the real (resistive) axis. The upper half of the chart is inductive (positive reactance); the lower half is capacitive (negative reactance).
The chart contains two families of circles:
Constant-resistance circles: A family of circles that all pass through the right edge of the chart (the open-circuit point). Each circle corresponds to a specific normalized resistance value: r = R/50. The circle for r = 1 passes exactly through the center of the chart (R = 50 Ω, the perfect match point). The circle for r = 0 is the entire outer boundary. The circle for r = 2 is smaller, passing through the center and the right edge.
Constant-reactance arcs: A family of arcs that all pass through the right edge of the chart. Arcs in the upper half represent positive reactance (inductive); arcs in the lower half represent negative reactance (capacitive). The arc for X = 0 is the horizontal real axis itself.
To read the impedance at any point on the Smith chart: find the constant-resistance circle passing through the point, read its r value, multiply by 50 to get R. Find the constant-reactance arc passing through the point, read its X value, multiply by 50 to get the reactance in ohms.

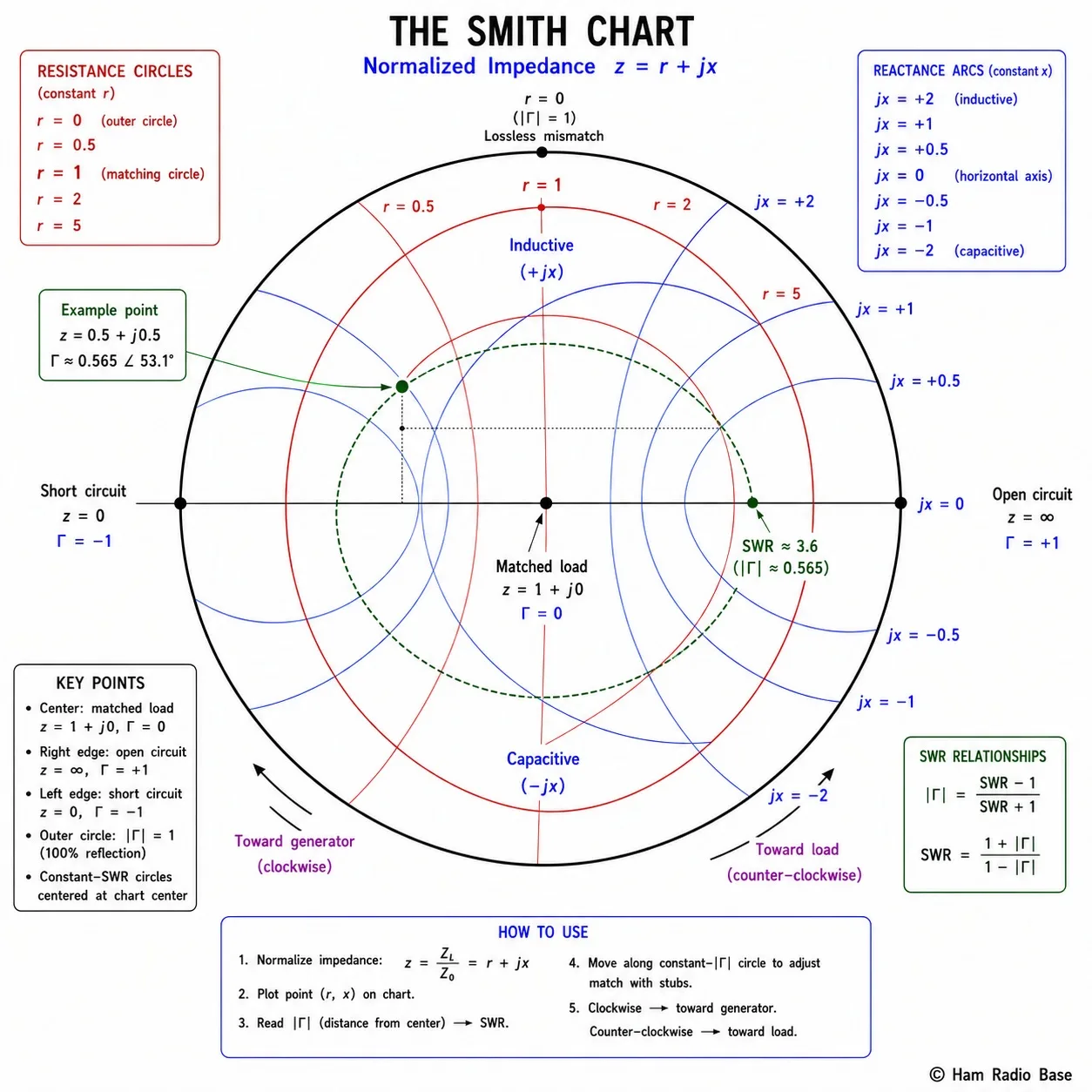

Annotated Smith chart. Center = 50 Ω perfect match. Left edge = short circuit (0 Ω). Right edge = open circuit (∞ Ω). Upper half = inductive reactance. Lower half = capacitive reactance. Constant-resistance circles intersect the real axis at r = R/50.
View LargerKey Points on the Chart
| Location on Smith Chart | What It Represents | S11 / SWR |
|---|---|---|
| Exact center | Perfect 50 Ω match (R = 50 Ω, X = 0) | S11 = −∞ dB, SWR = 1.0:1 |
| Left edge of real axis | Short circuit (R = 0, X = 0) | S11 = 0 dB (−180°), SWR = ∞ |
| Right edge of real axis | Open circuit (R = ∞, X = 0) | S11 = 0 dB (0°), SWR = ∞ |
| Upper half (anywhere) | Inductive impedance (X positive) | Reactance above real axis |
| Lower half (anywhere) | Capacitive impedance (X negative) | Reactance below real axis |
| On the real axis (not center/edges) | Purely resistive (R ≠ 50 Ω, X = 0) | Varies; resonance point for antennas |
Reading Impedance Locus Traces
When a VNA sweeps frequency and plots S11 on the Smith chart, each frequency is a single point on the chart, and the complete sweep forms a curve (the impedance locus). The shape of this curve is diagnostic:
A lumped capacitor: appears as an arc that moves clockwise around the outer boundary of the chart from the open-circuit point as frequency increases. At low frequencies it is near the right edge (high capacitive reactance); at higher frequencies it moves downward and inward.
A lumped inductor: appears as an arc that moves clockwise along the outer boundary from the short-circuit point as frequency increases. At low frequencies it is near the left edge (low inductive reactance); at higher frequencies it moves upward and inward.
A resistor: appears as a single point on the real axis that does not move with frequency (for an ideal resistor). A real resistor has parasitic inductance and capacitance, so the point moves slightly off the real axis at high frequencies.
A resonant circuit or antenna: The trace crosses the real axis at the resonant frequency (X = 0). Below resonance it is capacitive (lower half); above resonance it is inductive (upper half). The crossing point on the real axis tells you the feedpoint resistance at resonance.
What an Antenna Trace Looks Like
A half-wave dipole shows a characteristic clockwise loop on the Smith chart as frequency sweeps from below resonance to above resonance. The trace starts in the lower half of the chart (capacitive, below resonance), crosses the real axis at the resonant frequency, enters the upper half (inductive, above resonance), and continues clockwise.
The point where the trace crosses the real axis is the resonant frequency. The position of the crossing on the real axis tells you the feedpoint resistance. For a half-wave dipole at 35 feet above ground, the crossing point should be near r = 1.4 (R ≈ 70 Ω). A crossing exactly at the chart center (r = 1) means R = 50 Ω — a perfect resonant match requiring no matching network.
Sweep: 6.5–7.5 MHz. The trace enters from the lower half of the chart at 6.5 MHz (capacitive — antenna is electrically short at this frequency). As frequency increases, the trace moves clockwise. It crosses the real axis at 7.05 MHz — this is the resonant frequency. The crossing point is at approximately r = 1.35 on the constant-resistance circle, indicating R ≈ 68 Ω. Above 7.05 MHz the trace enters the upper half (inductive).
The SWR circle (a circle centered at the chart center) passes through this crossing point at a radius corresponding to SWR ≈ 1.36:1 at resonance. This is a good antenna that can be fed directly with 50 Ω coax without a matching network.
Using the Smith Chart for Matching
The Smith chart enables graphical matching network design. The principle is that adding a series inductor or capacitor moves the impedance along a constant-resistance circle; adding a shunt (parallel) element moves along a constant-conductance circle (the conductance chart, which is the Smith chart flipped). By planning a path from the current impedance point to the center (50 Ω), you determine what components are needed.
For practical antenna matching: if your antenna's feedpoint plots above the real axis at the operating frequency (inductive), a series capacitor will move the point along a constant-resistance circle downward toward the real axis. If it plots below the real axis (capacitive), a series inductor moves it upward. The goal is to bring the trace to the center of the Smith chart at the operating frequency.
Attenuator Pad Calculator
Attenuator pads are precision resistive networks used between VNA ports and devices to improve measurement accuracy and reduce the effect of impedance mismatches. A Pi pad (shunt-series-shunt) or T pad (series-shunt-series) provides a fixed, known attenuation between 50 Ω ports. Adding a 6 dB attenuator at each VNA port improves the effective source match to better than −30 dB, which suppresses measurement ripple from inter-port reflections. The calculator below computes resistor values for Pi and T attenuator pads in a 50 Ω system.
Design a 6 dB Pi attenuator for 50 Ω. The loss ratio K = 10^(6/20) = 10^0.3 = 2.0.
R_shunt = Z₀ · (K + 1) / (K − 1) = 50 × 3 / 1 = 150 Ω
R_series = Z₀ · (K² − 1) / (2K) = 50 × 3 / 4 = 37.5 Ω
Nearest standard values: 150 Ω and 39 Ω. The combination gives approximately 6.2 dB attenuation — close enough for general VNA work. High-precision commercial pads use 1% film resistors.
Pi and T Attenuator Pad Calculator (50 Ω)
Calculates resistor values for a resistive Pi or T attenuator in a 50 Ω system. Enter the desired attenuation in dB (1–40 dB).
Frequently Asked Questions
Do I need to understand the Smith chart to use a NanoVNA effectively?
For basic antenna resonance finding and SWR measurement, no — the SWR vs frequency trace and the R + jX display are fully adequate and more intuitive for most amateur radio measurements. The Smith chart becomes valuable when you need to design matching networks, understand complex impedance behavior of components, or interpret results that go beyond simple SWR readings. Learning it incrementally — reading just the key points (center = 50 Ω, real axis crossing = resonance, upper half = inductive) — gives you most of the practical benefit without requiring mastery of the full chart geometry.
Why does the Smith chart trace rotate clockwise as frequency increases?
This is a fundamental property of passive networks with positive reactances. As frequency increases, the electrical length of transmission lines increases, and the phase of the reflection coefficient rotates clockwise on the Smith chart (which is also a polar plot of the reflection coefficient). Adding series inductance or shunt capacitance both move the trace clockwise. This is why longer transmission lines produce more clockwise rotation on the Smith chart — the additional electrical length adds more phase rotation to the reflection coefficient at each frequency.
