Meteor Scatter — Using Meteors for VHF Radio Communication

Every second of every day, pieces of cosmic debris — ranging from sub-millimeter dust particles to centimeter-sized rocks — burn up in Earth's upper atmosphere at altitudes of 80–120 km. As each particle ablates (vaporizes due to friction), it deposits a trail of ionized gas behind it. These ionization trails can reflect VHF radio signals, providing a brief but reliable communication path between two stations on Earth. The technique of using these trails for intentional radio communication is called meteor scatter.

Meteor scatter is one of the most extraordinary propagation modes available to amateur radio operators. Unlike most other modes, it does not depend on the ionosphere's slowly changing state, the weather, or the solar cycle. It depends instead on the steady rain of meteors that has continued throughout Earth's history and will continue indefinitely. Even at 3 a.m. on a clear night in January with no showers, sporadic meteors burn up at a rate that can support meteor scatter contacts between well-equipped stations using digital modes. During a major meteor shower, the rate multiplies to the point where even modest stations can make dozens of contacts in an evening.

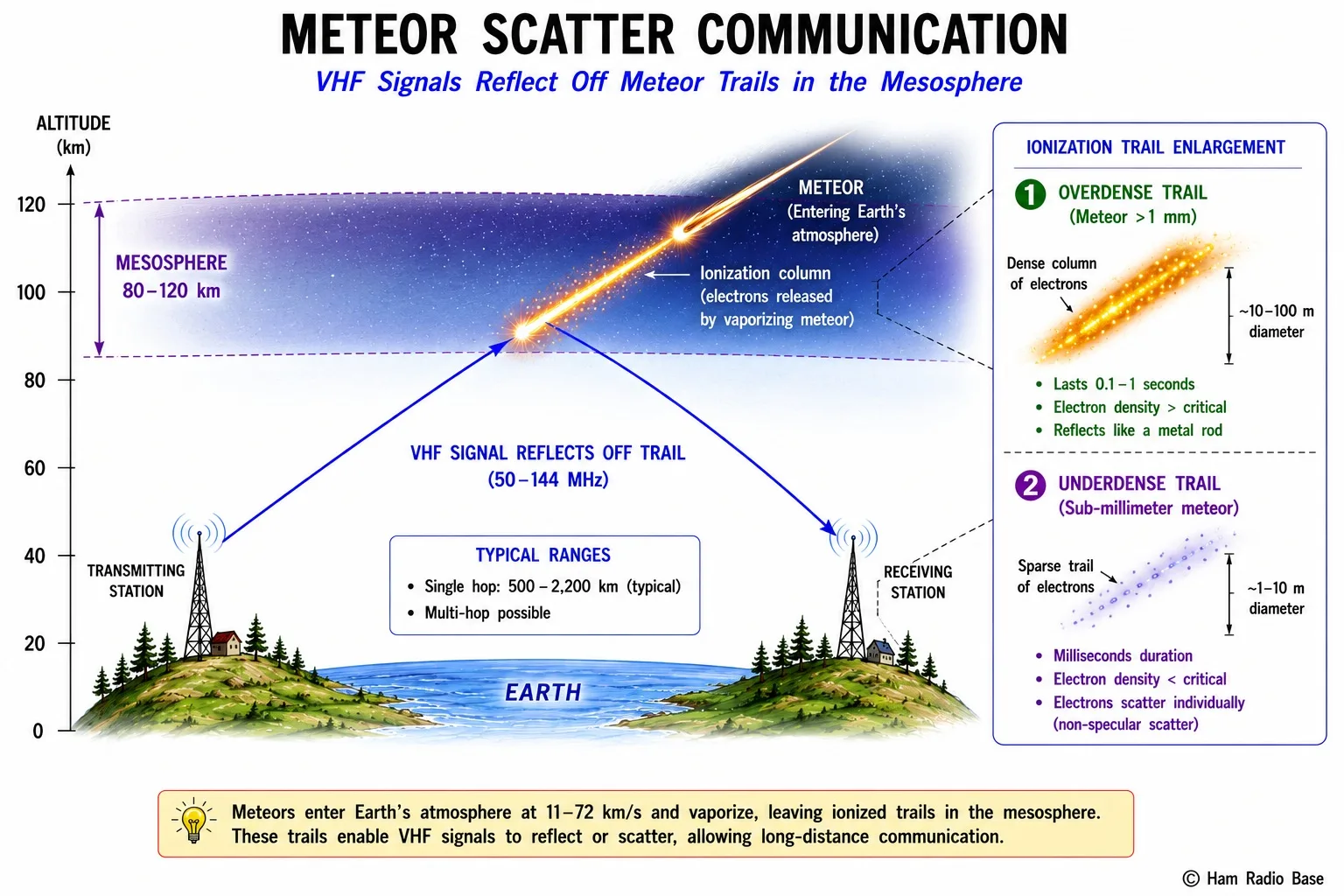

A meteor ablating at 80–120 km altitude creates an ionization column that reflects VHF signals for a fraction of a second (underdense trail) to several seconds (overdense trail). Digital modes like MSK144 are designed to complete a contact exchange in as little as one 15-second transmission period.

View Larger

How Meteors Create Ionization Trails

When a meteoroid — the term for a piece of space debris before it enters the atmosphere — hits Earth's atmosphere at typical velocities of 11–72 km/s, it begins to decelerate and heat up due to collisions with atmospheric gas molecules. At altitudes of 80–120 km (in the mesosphere and lower thermosphere), the ablation becomes intense enough to vaporize the meteoroid. As the material vaporizes, the atoms collide with air molecules at high velocity, knocking electrons free from both the meteor material and the surrounding air. The result is a cylindrical column of ionized gas — a plasma — stretching along the meteor's path.

The density of this ionization column depends critically on the mass of the meteoroid. A large, fast meteor (a fireball) deposits orders of magnitude more ionization than a sub-millimeter dust particle. The diameter of the column is initially very small — perhaps a meter — and expands outward by diffusion at a rate that depends on altitude and air density. At 90 km altitude, the trail expands from its initial fraction-of-a-meter diameter to a meter in about 0.1 seconds, then to 10 meters in about 10 seconds. This expansion is what limits how long the trail can reflect radio waves.

The radio reflection from a meteor trail is governed by the electron line density — the number of free electrons per meter of trail length. This parameter, usually designated q, determines which type of reflection behavior occurs and at what frequency the trail can reflect signals.

Overdense and Underdense Trails

Two distinct classes of meteor trail reflection behavior exist, and they have very different characteristics for radio operators:

Underdense Trails (q < 2.4 × 10¹⁴ electrons/meter)

An underdense trail has a low enough electron density that the individual electrons scatter radio waves independently. Each electron acts as a small antenna, and the total scattered signal is the coherent sum of reflections from individual electrons along the trail length. The signal builds to a sharp peak as the trail elongates toward the geometry where the trail is perpendicular to the bisector of the transmitter-trail-receiver path (the specular reflection geometry), then decays as the trail diffuses.

Underdense trails produce brief, characteristic signal bursts. For a 50 MHz signal, the burst is typically 0.1–0.5 seconds long. For 144 MHz, the burst is shorter because diffusion broadens the trail to a Fresnel zone dimension more quickly at the shorter wavelength. The amplitude follows a roughly exponential decay after the peak, making the burst look like a sharp spike on a signal display.

Underdense trails are produced by small meteoroids — particles roughly 1 microgram to 1 milligram in mass. These are by far the most common type of meteoroid, making underdense reflections the dominant phenomenon during normal sporadic meteor flux.

Overdense Trails (q > 2.4 × 10¹⁴ electrons/meter)

An overdense trail has so many electrons that the trail behaves like a plasma column — it reflects radio waves from its outer surface rather than scattering them through its volume. The reflection is more like a mirror than a collection of individual scatterers. Overdense trails typically produce longer-duration reflections — 0.5 to several seconds — because the dense plasma takes longer to diffuse to the point where it becomes transparent.

Overdense trails often show a characteristic "leading edge" spike followed by a longer, more irregular tail as the plasma column expands and breaks up. The signal during the overdense phase can be very strong — seemingly like a solid reflection. Overdense trails are produced by larger meteoroids (mass > 1 milligram) that are less common but more impactful when they occur.

Usable Frequencies for Meteor Scatter

Meteor scatter works in a fairly specific frequency range. The constraints come from both ends of the spectrum:

Lower frequency limit (~30 MHz): Below about 30 MHz, the normal ionosphere (D and E layers) causes too much absorption and clutter. At 10m (28 MHz) and below, sporadic ionospheric events, E-layer propagation, and background ionospheric noise mask the brief meteor scatter bursts. The ionosphere at these frequencies is too active and unpredictable to allow reliable detection of the short meteor scatter bursts. Additionally, at lower frequencies, the antenna sizes required for high-gain directional antennas become impractical.

Upper frequency limit (~450 MHz): Above about 432 MHz (70cm), the wavelength is short enough that the expanding meteor trail becomes transparent to the signal very quickly. The diffusion rate of the plasma column is fixed by physical constants, but the relevant diffusion distance (the Fresnel zone dimension) scales with wavelength. At higher frequencies, the trail passes through the specular reflection phase more quickly and becomes transparent to the signal in microseconds rather than milliseconds. By 1.3 GHz (23cm), meteor scatter signals are too brief and too weak to be practically useful for amateur contacts.

The practical sweet spots for amateur meteor scatter are:

• 50 MHz (6m): Excellent — underdense trails last longer at this frequency, overdense trails produce strong signals, and sporadic flux is sufficient for contacts most nights during favorable conditions. Single-hop contacts typically 800–2,200 km.
• 144 MHz (2m): The primary meteor scatter band — the best combination of usable trail duration and antenna practicality. The 2m beam antenna for meteor scatter is manageable (a 9- to 17-element Yagi), and the distances are essentially the same as 6m (800–2,200 km). Most serious MS operators work primarily on 2m.
• 432 MHz (70cm): Works during major showers when the meteor rate is high enough to provide frequent overdense trails. Burst durations are very short, making it more challenging, but it is achievable during major shower peaks.

Trail Duration and Signal Characteristics

The key challenge of meteor scatter is the extremely brief duration of the useful signal. Most underdense trails at 144 MHz produce bursts of 0.05–0.3 seconds. Even overdense trails rarely last more than 2–3 seconds at 144 MHz. In the era before digital modes, meteor scatter required operators to be ready with tape recorders or to complete rapid CW contacts using predetermined callsign sequences during these brief windows.

The characteristic signal you observe on a 144 MHz SSB receiver during meteor scatter is a series of short "pings" — sharp bursts of noise-like or signal-like audio that occur randomly in time. During sporadic flux, these pings might occur a few times per minute. During the peak of the Perseid shower, the ping rate might be several per minute. The pings are random because each is caused by a different meteor ablating at a different position in the sky.

For a contact to be completed, both stations need to exchange enough information — callsigns, signal report, grid locator — within the bursts that occur during the contact attempt. With voice or CW, this requires that a usable burst occurs at the right moment during the transmission sequence. With modern digital modes, the software is designed specifically to work with the fragmented, short-duration signal structure of meteor scatter.

Operating Modes — SSB, CW, and Digital

Traditional SSB and CW

Before digital modes, meteor scatter on 2m was conducted using SSB voice with a strict calling procedure. Operators would pre-arrange contacts via telephone or Internet, agree on a transmission sequence (typically 15-second transmit, 15-second receive periods), and transmit their callsign and grid locator repeatedly in a rapid, compressed format. When a meteor burst occurred during the transmission, the receiving station would hear a few syllables of the message and piece together the callsign from multiple partial bursts over several minutes. A complete meteor scatter contact via SSB might take 20–30 minutes of patiently transmitting during sporadic flux.

CW (Morse code) is more efficient than SSB for meteor scatter because the higher information density per unit of bandwidth and the narrow filtering of CW receivers allow shorter bursts to contain enough information. High-speed CW — 200+ words per minute — was used for meteor scatter before digital modes, sending callsigns in rapid repeated sequences that could be decoded from short bursts.

WSJT-X: FSK441 and MSK144

The WSJT software suite (Weak Signal Protocols, developed by Nobel laureate in physics Joe Taylor K1JT and collaborators) transformed meteor scatter from an exotic, technically demanding mode into something accessible to any operator with a computer, a sound card interface, and a modest 2m antenna system.

FSK441: An earlier digital mode developed specifically for meteor scatter. It uses 4-tone frequency-shift keying at a very high symbol rate (441 symbols/second), so a complete callsign, grid locator, and signal report can be transmitted in a short burst of 0.3 seconds or more. The received signal is decoded off-line from a recorded audio sample, so even a 0.5-second burst that occurs at any point in the 30-second transmission period can be used to recover the information.

MSK144: The current standard mode for meteor scatter, replacing FSK441. MSK144 uses minimum-shift keying at a high symbol rate, with more efficient coding. A complete MSK144 frame can be 15 or 30 seconds long, but the actual data is packed into sync sequences that can be recovered from bursts as short as 72 ms. The software continually decodes each second of received audio, looking for burst fragments, and accumulates them across the full transmission period to build a complete message. MSK144 is dramatically more sensitive than voice or FSK441 for weak meteor scatter conditions.

Meteor Showers and Random Meteors

Earth passes through comet debris trails at predictable points each year. When Earth crosses a particularly dense part of a debris trail, meteor entry rates spike dramatically — these are meteor showers. From the observer's perspective on Earth, the meteors all appear to radiate from a single point in the sky (the radiant), which is why showers are named after the constellation or star nearest the radiant.

ZHR (Zenithal Hourly Rate) is the theoretical number of meteors an observer would see per hour under perfect conditions with the radiant at the zenith. For radio purposes, the relevant metric is slightly different because radio reflections from oblique angles are also useful. However, ZHR is a good relative indicator — the Perseids and Geminids are the most valuable showers for northern hemisphere meteor scatter operations.

The sporadic meteor flux — random meteors not associated with any shower — provides a baseline rate of about 5–15 meteors per hour at the zenith throughout the year, with seasonal variations. Despite being much lower than shower rates, sporadic meteors are sufficient for daily meteor scatter contacts using digital modes. Operators who monitor 2m MSK144 regularly can complete contacts via sporadic flux even on non-shower nights.

For shower operations, the best contacts are made when the radiant is high in the sky (providing more near-head trail geometry) and when your beam is aimed toward but not directly at the radiant — the optimal geometry for specular reflections places the reflection point on the perpendicular bisector between you and the far station.

Typical Distances for Meteor Scatter

The geometry of meteor scatter limits the useful contact distance to a specific range. The meteors ablate at 80–120 km altitude, and for a reflection to work, the trail must be approximately perpendicular to the bisector of the transmitter-trail-receiver angle (specular reflection). This constraint, combined with the altitude constraint, produces a range of about 800–2,200 km for single-hop meteor scatter contacts at 50 MHz and 144 MHz.

Contacts shorter than 800 km become increasingly difficult because the specular reflection geometry requires the trail to be nearly overhead, where meteor velocities are not optimal for trail orientation. Contacts beyond 2,200 km require non-specular reflections from the trail tips, which are weaker and less reliable. The "sweet spot" for 2m meteor scatter contacts is roughly 1,000–1,800 km — within North America, this covers US-to-US or US-to-Canada contacts nicely.

Getting Started with Meteor Scatter

Setting up for meteor scatter is not expensive but requires some specific equipment. The minimum useful setup for 2m meteor scatter is:

• A 2m transceiver capable of SSB mode (any 2m all-mode radio)
• A directional Yagi antenna — 9 to 17 elements works well
• A computer with a sound card interface (or built-in USB audio on modern radios)
• WSJT-X software (free download from physics.princeton.edu/pulsar/K1JT/)
• An accurate clock (synchronize to Internet NTP — timing is critical for digital modes)

During a meteor shower, tune to 144.370 MHz (the standard 2m meteor scatter calling frequency in North America, 144.360 MHz in Europe) and run MSK144. During major showers, the band is active with contacts in progress, and new operators can participate by calling CQ or responding to incoming contacts displayed by the WSJT-X software.
