Sporadic E — Unpredictable Long-Distance VHF Propagation

One of the most exciting and unpredictable propagation modes in amateur radio is sporadic E — affectionately called "Es" by operators. You are sitting at your radio on a June afternoon when suddenly the 6m (50 MHz) band comes alive with stations from Europe (if you are in North America) or from Japan (if you are in Western Europe), all heard at incredible signal strength. Then, 30 minutes later, the band goes dead again as if nothing happened. This is sporadic E propagation at its most dramatic — intense, brief, and sometimes continent-spanning.

Sporadic E gets its name from the sporadic E layer — random, dense patches of ionization that form in the E region of the ionosphere at altitudes of about 90–130 km. Unlike the regular E and F layers that are driven predictably by solar radiation, sporadic E patches form for reasons that are still not completely understood, making them nearly impossible to predict with precision more than a few minutes ahead. What we do know is that these patches can have electron densities high enough to reflect frequencies far above the normal E-layer maximum — sometimes up to 200 MHz or more.

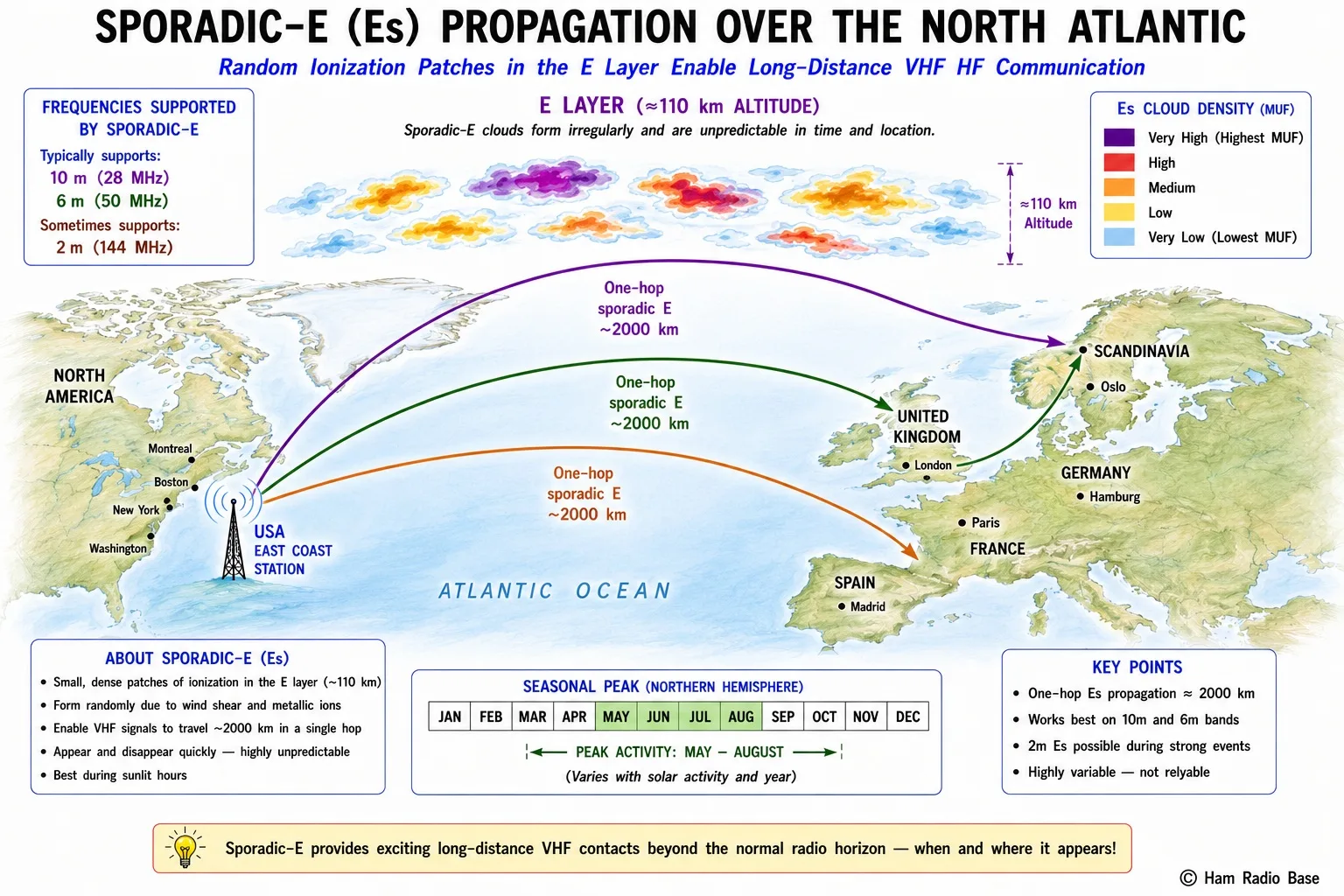

Sporadic E patches are random, irregular clouds of dense ionization at 90–130 km altitude. A single hop via one patch can span 1,000–2,500 km. Two-hop sporadic E can cover 4,000+ km, enabling trans-Atlantic contacts on 6m and 10m.

View Larger

What Sporadic E Is

The regular E layer of the ionosphere exists at 90–130 km altitude and is primarily ionized by solar X-ray and extreme ultraviolet radiation during daylight. The regular E layer is well-behaved and predictable — it has a maximum usable frequency of about 4–6 MHz on typical daytime paths, just enough to support medium-range HF contacts but not VHF.

Sporadic E patches are something different entirely. They are compact, dense clouds of ionization that form within the E layer but have electron densities many times higher than the surrounding regular E layer. While the regular E layer reflects frequencies only up to 4–6 MHz, a dense sporadic E patch can have an MUF of 50 MHz, 100 MHz, or even 200 MHz. The patch is typically 100–300 km in horizontal extent — much smaller than the regular ionospheric layers — and it can form, drift, and dissipate in minutes to hours.

The extreme density of the sporadic E cloud is what makes it so useful for radio. When a patch of sufficient density lies between two stations, a one-hop Es path spans roughly 1,000–2,500 km — the geometry is similar to regular E-layer propagation, with the effective reflection height at about 110 km giving a one-hop skip distance in that range. For 6m operators in North America, this puts one-hop sporadic E contacts anywhere from the Deep South to Quebec (for a northern operator) or from the East Coast to the Upper Midwest. With two patches in sequence — two-hop sporadic E — a path can span 4,000+ km, enabling trans-Atlantic contacts on 6m and 10m that would not be possible by any other regular mode.

Theories About the Causes of Sporadic E

Despite decades of research, the exact mechanism that creates sporadic E patches is still debated. Several theories have support, and it is likely that different mechanisms contribute in different situations:

Wind shear theory: The most widely accepted hypothesis is that wind shear in the upper atmosphere — layers of air moving at different speeds and in different directions — concentrates metallic ions (primarily magnesium, iron, and calcium from ablating meteors) into thin, dense layers. The differential winds create vertical gradients that push the ions together, increasing the local electron density dramatically. This mechanism explains why sporadic E is not uniformly distributed but occurs in patches.

Meteoric input: Meteors constantly rain into the upper atmosphere, depositing metallic atoms as they ablate. These atoms are ionized by UV radiation and by collisions, and they contribute free electrons to the E layer. Some researchers believe that increased meteor flux — either from major meteor showers or from diffuse sporadic meteor input — seeds the sporadic E patches that are then concentrated by wind shear.

Lightning and thunderstorm connections: Statistical correlations have been found between intense thunderstorm activity below and sporadic E formation above. The mechanism is unclear, but electromagnetic energy from lightning may somehow influence the ionization in the E layer. This would explain the geographic correlation between sporadic E frequency and areas of heavy convective weather.

Gravity waves: Large-scale atmospheric gravity waves — not related to gravitational waves — propagating upward from the troposphere can create periodic density variations in the upper atmosphere. These waves have been proposed as a mechanism for concentrating ionization into sporadic E patches.

Which Bands Benefit from Sporadic E

The bands that sporadic E affects depend on the electron density of the patch, which varies considerably from event to event and within a single event as the patch evolves:

The 6m band (50 MHz) is particularly celebrated for sporadic E. During an Es opening, a 6m operator with a modest antenna (a simple dipole or small beam) and 100 watts can work stations across the continent or across the Atlantic with ease — signals arrive at S9 or above with no fading. The same contact on 2m would require a very dense patch and would be quite rare. 6m earned the nickname "the magic band" largely because of these spectacular sporadic E openings.

When sporadic E MUF reaches 50 MHz, it often overshoots both 10m and 12m simultaneously. HF operators can observe sporadic E on 10m first as the MUF builds, then on 6m as the patch density increases, and then observe the reverse as the patch dissipates. Watching the MUF climb and fall during an Es event in real time is one of the most interesting exercises in ionospheric physics available to any radio operator.

Seasonal Peaks and Geographic Distribution

Sporadic E is strongly seasonal in mid-latitudes. The primary peak occurs in late spring and early summer — May, June, and July in the Northern Hemisphere. A secondary peak, less intense, occurs around December. The winter peak is not fully explained but is well-documented statistically across decades of observations.

The summer peak correlates broadly with increased jet stream activity at tropopause levels and with maximum meteor input from sporadic (non-shower) meteor flux. The jet stream creates wind shear conditions that promote sporadic E formation. The June–July maximum corresponds with the period when the jet stream is most active in mid-latitudes and the stratosphere wind structure most favors Es formation by wind shear.

Geographically, sporadic E in the Northern Hemisphere is most active between latitudes 30°N and 60°N — the mid-latitudes. This covers the continental United States, Canada, Europe, Japan, and Korea. The tropics experience sporadic E differently, with it being more frequent but with lower peak electron densities. Near the equator and at high polar latitudes, sporadic E is relatively rare compared to temperate zones.

In Europe, Es openings on 6m and 10m between Western Europe, Scandinavia, Russia, and the Mediterranean are routine in May–July. North American operators can work trans-Atlantic sporadic E via two-hop paths when patches are aligned across the North Atlantic. These two-hop trans-Atlantic openings are among the most exciting events on 6m, enabling contacts between the USA East Coast and Europe at ranges of 5,000–7,000 km purely by sporadic E — no F2 propagation required.

Duration and Fading Characteristics

Sporadic E openings are highly variable in duration. A short, intense burst may last only 10–30 minutes before the patch drifts or dissipates. Extended openings driven by multiple patches or a persistent atmospheric condition can last several hours, and occasionally an all-day opening is observed. The patches drift in a generally east-to-west or northeast-to-southwest direction, driven by upper-atmosphere winds, which is why a 6m opening often starts with contacts to the northeast and ends with contacts to the northwest (or vice versa) as the patch moves across the alignment geometry.

Fading during sporadic E is rapid and deep. A signal that is S9 can drop to nothing in seconds, then return moments later. This is because the edge of the patch is passing over the reflection point — when the antenna's geometry aims at the dense center of the patch, the signal is strong. When the geometry uses the edge of the patch, the MUF is lower and the signal fades. This rapid fading is characteristic of Es and distinguishes it from tropospheric ducting (which fades more slowly) and F2 propagation (which can be very stable).

Recognizing Sporadic E When It Happens

Sporadic E is unmistakable once you know what to look for. The characteristic signs are:

Sudden strong signals: Sporadic E signals arrive at full strength, often S7–S9 or above, from directions where nothing was audible moments before. There is no gradual build-up like a tropo duct — it just appears, suddenly and strongly. A station that was completely inaudible becomes perfectly readable in seconds.

Specific distance range: A sporadic E contact is almost always 1,000–2,500 km for a single hop. If you are in Illinois and the Es opening brings stations from Florida and then Texas, the patch is south of you. If it brings stations from New England and then Canada, the patch is north. The directional characteristic helps you point your beam to work more stations.

Rapid fading and movement: After initial signals appear strong, they often flutter and fade as the patch moves. Stations from one area fade out and stations from a different area appear, indicating the patch is drifting. Working quickly when signals are strong is important — they may disappear before you finish a QSO.

Real-time DX cluster activity: DX clusters and tools like DX Summit, DX Maps, and the ON4KST chat reflectors (dedicated VHF DX chat) show real-time reports of Es contacts. When a cluster of 6m reports appears between specific areas, a patch is active. The activity pattern on the cluster map effectively shows you the patch location and direction of drift.

Effects on HF Bands

Sporadic E also affects the HF bands, particularly 10m, 12m, 15m, and occasionally 17m and 20m. During strong Es events, the patch can support F2-like propagation at 10m and 12m, providing unexpected long-distance contacts that F2 propagation alone would not explain given the current solar conditions. During solar minimum, when F2 propagation on 10m is essentially absent, sporadic E provides the only mechanism for 10m DX contacts. This is why 10m is not completely dead even during solar minimum — Es openings still occur every summer.

For the lower HF bands, sporadic E acts differently. Rather than enabling new paths, it can occasionally block or distort signals on 40m, 30m, and 20m because the Es patch absorbs or scatters some of the signal. This is relatively rare and usually noticed only as unusual fading patterns rather than complete blackout.

Practical Operating Advice for Sporadic E

To maximize your sporadic E contacts:

Monitor the right frequencies: On 6m, the SSB DX calling frequency in North America is 50.125 MHz. In Europe it is 50.110 MHz. CW activity is around 50.090–50.110 MHz. FT8 digital mode activity is on 50.313 MHz. On 10m, Es openings are obvious from the sudden appearance of DX stations across the whole band. Having a scanner sweep 50.100–50.150 MHz during the summer is a good way to catch openings.

Be ready to move quickly: When a sporadic E opening appears, work it immediately. Do not wait to set up — the patch may be gone in 15 minutes. Have your radio on, your antenna ready, and your logging software open during Es season.

Use CW or SSB for maximum distance: During two-hop trans-Atlantic openings on 6m, signals may be weaker than single-hop contacts. CW gives you an extra 10–15 dB of effective sensitivity over SSB, and SSB gives you 10 dB over FM. For the rare trans-Atlantic contacts, CW or SSB mode makes the difference between a completed contact and a near-miss.

Keep a log and note directions: Logging the direction of your Es contacts helps you understand the patch movement. If you work a sequence of stations that progress from south to southeast over 20 minutes, you know the patch is drifting eastward and you should start pointing your beam further east to stay in it.
