Oscilloscope Controls and Settings

Sitting down at an unfamiliar oscilloscope for the first time can be disorienting. The front panel is covered in knobs and buttons, grouped into labelled sections that may not yet mean anything to you. But the organization is not arbitrary — every oscilloscope ever made is divided into the same three functional sections: Vertical, Horizontal, and Trigger. Once you understand what each section does and why it exists, every control falls into place. This lesson works through each section systematically, explains the purpose of every major control, and shows how the settings interact to produce a stable, readable waveform.

Most oscilloscopes also have a display section, a utility menu, and buttons for measurement, math, and storage functions. These are real-time tools layered on top of the three fundamental sections. Learn the three core sections first and everything else follows naturally.

The Three Sections of Every Oscilloscope

Every oscilloscope — analog or digital, handheld or bench, $80 or $80,000 — organizes its front panel around three functional sections:

• Vertical: Controls how the voltage axis of the display is scaled and positioned. One vertical section per channel.
• Horizontal: Controls how the time axis of the display is scaled and positioned. Shared across all channels.
• Trigger: Controls when the oscilloscope starts drawing a new trace. Determines whether the waveform appears stable or rolling.

These three sections interact to produce a complete measurement. The vertical section sets your voltage sensitivity. The horizontal section sets your time window. The trigger section locks the display to a consistent point in the waveform so that successive sweeps overlay each other perfectly, producing a stable image rather than a blur of overlapping traces.

A fourth group of controls — the display and measurement tools — provides automatic readouts, cursors, math functions, and waveform storage. These are useful enhancements, but the fundamentals of getting a good measurement on screen come entirely from the three main sections.

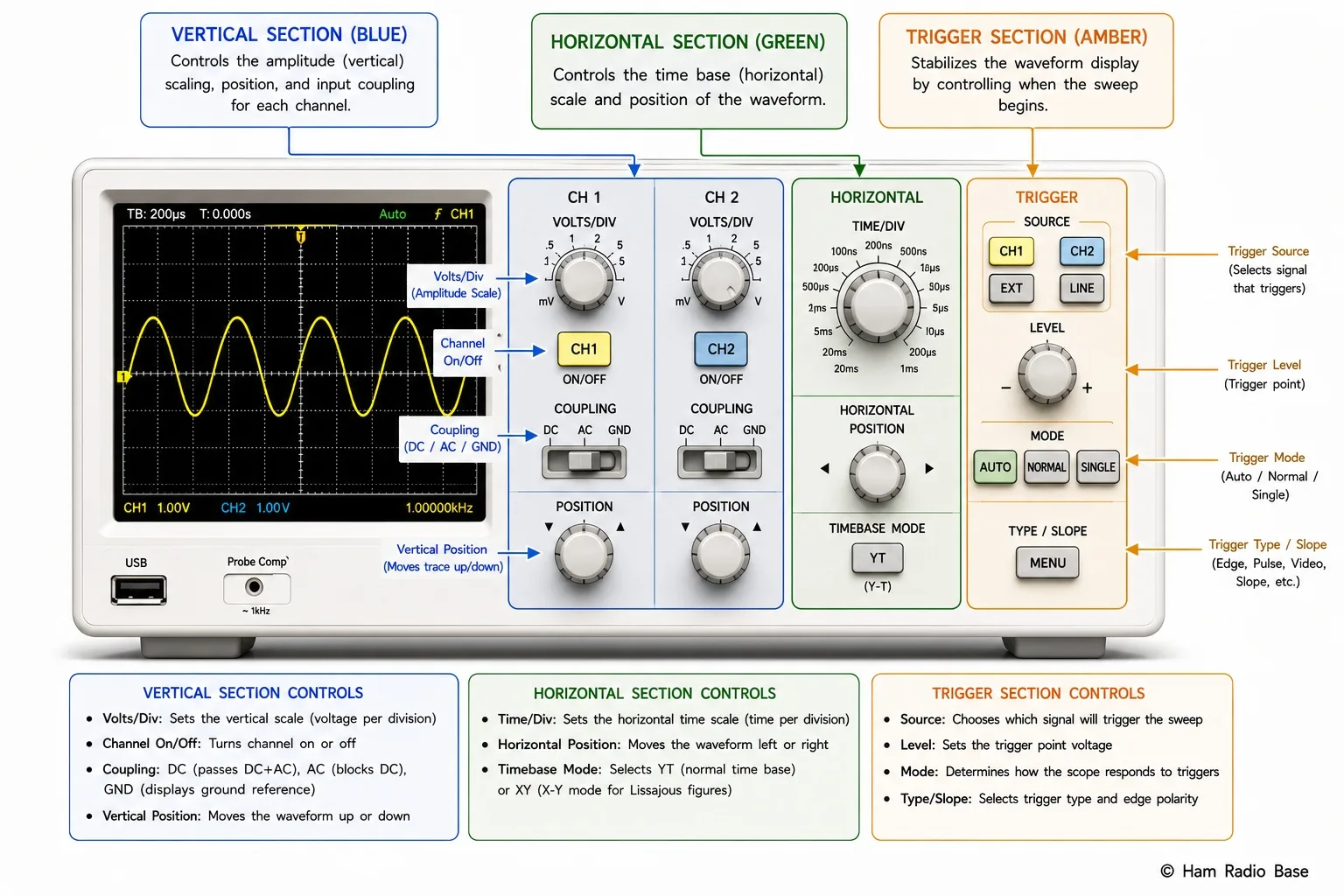

The three fundamental sections of an oscilloscope front panel. Vertical controls (left) set voltage scale and coupling per channel. Horizontal controls (center) set the time scale and acquisition. Trigger controls (right) determine when each new trace begins. Every oscilloscope ever made shares this organization.

View Larger

The Vertical Section

The vertical section controls the voltage axis of the display. Each input channel has its own complete vertical section. On a two-channel oscilloscope you will find two sets of vertical controls, typically labelled CH1 and CH2. The most important controls are:

Volts/Division (Volts/Div)

This is the most frequently adjusted vertical control. It sets how many volts each vertical division on the graticule represents. Most oscilloscopes offer volts/div settings in a 1-2-5 sequence: 1 mV, 2 mV, 5 mV, 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V. The goal is to set the volts/div so the signal fills most of the screen vertically — ideally 3–6 divisions out of the 8 typically available. A signal that fills only 1 division uses only 12% of the screen height, wasting vertical resolution. A signal that overflows the screen cannot be measured at all.

On analog oscilloscopes, the volts/div knob has a continuously variable inner ring (called the CAL or VAR knob) that allows you to stretch the display between calibrated steps. This is useful for fitting waveforms on screen but destroys accuracy — if the CAL ring is not at its fully clockwise detent position, the scale markings are no longer accurate. Always return the CAL ring to the calibrated position before making a voltage measurement. Digital oscilloscopes do not have this complication; their scales are always accurate.

Vertical Position

The vertical position control shifts the channel’s trace up or down on the screen without affecting the voltage scale. This is used to center the signal on screen, to separate two channels from each other when both are displayed, or to position the zero-volt reference line (ground reference) at a convenient location. On a DSO, position is usually adjusted with a knob that can also be pressed to return to center.

Channel On/Off

Each channel has a button to enable or disable it. A disabled channel does not consume screen space or processing time. When using a single-channel measurement, disable unused channels to reduce clutter and to allow the active channel to use the full sample rate on DSOs that share sample rate across channels.

Coupling Modes: DC, AC, and GND

The coupling mode selects how the oscilloscope connects its input amplifier to the incoming signal. It is one of the most important settings to understand because choosing the wrong coupling mode causes measurement errors that can look exactly like a real signal characteristic.

DC Coupling

In DC coupling mode, the oscilloscope connects the input signal directly to the vertical amplifier with no filtering. Both the DC component (the average level) and the AC component (the time-varying part) of the signal reach the amplifier and are displayed. If the signal is a 1 kHz sine wave riding on a +5 V DC bias, DC coupling shows the sine wave centered at +5 V on screen. DC coupling is the correct mode for most measurements. Use it as your default.

The limitation of DC coupling appears when you want to look at a small AC signal riding on a large DC offset. If you have a 20 mV ripple on a 13.8 V DC power supply rail and you use DC coupling, you must set the volts/div to at least 2 V/div to show the full ±13.8 V swing, which places the 20 mV ripple within a single division — far too small to see clearly. This is the scenario where AC coupling is needed.

AC Coupling

In AC coupling mode, the oscilloscope inserts a capacitor in series with the input. The capacitor blocks the DC component of the signal, passing only the time-varying (AC) part to the amplifier. The resulting display shows the signal as if its DC level were zero volts. In the power supply example above, AC coupling removes the 13.8 V DC bias, and the 20 mV ripple can now be displayed at 5 mV/div, occupying 4 divisions and clearly visible.

AC coupling introduces a high-pass filter effect. The series capacitor and the input resistance form a high-pass RC filter with a lower cutoff frequency. On most oscilloscopes, AC coupling cuts off signals below approximately 10 Hz. This means AC coupling is not suitable for measuring very low frequency signals (below a few tens of hertz) because the coupling capacitor attenuates them. It is also unsuitable for measuring pulse waveforms with long duty cycles or very slow edges, because the capacitor causes the flat tops of square waves to sag or tilt. For these signals, use DC coupling.

GND (Ground) Coupling

In GND coupling mode, the oscilloscope disconnects the input signal and connects the amplifier input to ground internally. The displayed trace shows only the zero-volt reference line — whatever a flat 0 V line looks like on this particular scope. GND coupling is not a measurement mode; it is a reference tool used to identify exactly where 0 V appears on the screen. You use it when you need to position the ground reference at a specific graticule line before switching back to DC or AC coupling to make a measurement. On some older scopes you also use it to ensure the amplifier is not drifting.

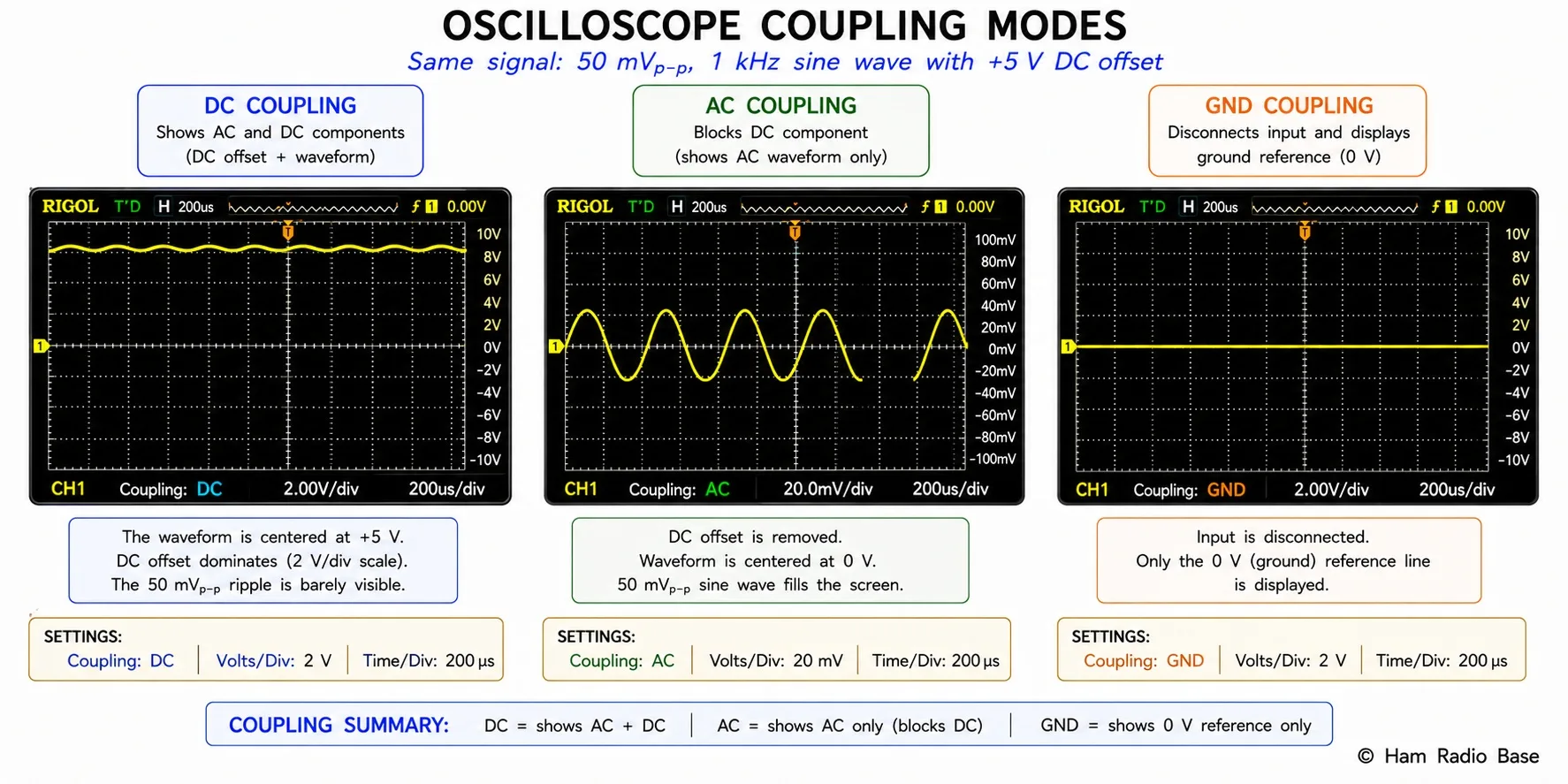

The three coupling modes compared on the same signal: a small AC ripple riding on a large DC offset. DC coupling (left) shows the full offset level, making the ripple hard to see. AC coupling (center) removes the offset and reveals the ripple clearly. GND coupling (right) shows only the ground reference line — useful for zeroing the display before a DC measurement.

View Larger

Input Impedance

Every oscilloscope channel presents an electrical load to the circuit being measured. Standard oscilloscope input impedance is 1 MΩ in parallel with 10–20 pF. The 1 MΩ resistance is high enough that it loads down most circuits negligibly for audio and DC measurements. However, the parallel capacitance (10–20 pF) becomes significant at higher frequencies where it presents a low impedance path. At 10 MHz, 15 pF has a reactance of about 1 kΩ — which can affect resonant circuits and RF measurements.

Higher-end oscilloscopes also offer a 50 Ω input mode, which is designed for use with 50 Ω coaxial cables in RF work. With 50 Ω input impedance, the oscilloscope properly terminates 50 Ω coaxial lines and avoids reflection artifacts. However, the 50 Ω input has a maximum voltage limit (typically 5 V RMS), so it can only be used for small signals. Never apply a large voltage to the 50 Ω input — you will burn out the internal 50 Ω termination resistor.

In practice, the 1 MΩ input with a passive probe (which uses its own internal resistor to reduce loading) is correct for the vast majority of ham radio measurements. The 50 Ω input, if available, is used for measurements where accurate RF impedance matching is needed and signal levels are small.

The Horizontal Section

The horizontal section controls the time axis of the display. Unlike the vertical section which has one copy per channel, there is only one horizontal section and it governs all channels simultaneously. Both channels always share the same time/div setting and the same trigger.

Time/Division (Time/Div)

The time/div control is to the time axis what volts/div is to the voltage axis. It determines how much time each horizontal division represents. Most oscilloscopes offer time/div settings in a 1-2-5 sequence from 1 nanosecond/div to several seconds/div. Ten horizontal divisions are standard, so the total time across the screen is 10 × time/div.

Selecting the right time/div means choosing a value that shows 1–3 complete cycles of the signal under investigation. With fewer cycles on screen you cannot confirm that the waveform is stable and repetitive. With too many cycles the individual waveform detail is lost. For a 1 kHz signal (period = 1 ms), a time/div of 200 µs shows 5 complete cycles across 10 divisions — ideal. A time/div of 2 ms shows one incomplete cycle; a time/div of 10 µs shows 100 cycles, too compressed to read.

The frequency of a periodic signal can be calculated directly from the time/div setting and the number of horizontal divisions occupied by one complete cycle:

Horizontal Position

The horizontal position control shifts the entire waveform left or right on screen without changing the time scale. It is primarily used to examine a specific part of a waveform that is not centered on screen, and to align waveforms when comparing two channels. It is also used in pre-trigger applications: by shifting the trigger point to the right side of the screen, the scope shows signal events that occurred before the trigger — useful for seeing what preceded a fault event.

Zoom (Magnify)

Many DSOs offer a horizontal zoom mode that magnifies a selected portion of the waveform in a second window below the main display. The main display shows the full captured record, and the zoom window expands a selected region to show fine detail. This is useful for examining the detailed structure of a specific event within a longer capture — for example, zooming in on a single edge within a long sequence to measure rise time accurately.

Acquisition Modes

A digital oscilloscope can acquire waveform data in several different modes, each of which processes the raw ADC samples differently before displaying them. Choosing the right acquisition mode can dramatically improve the usefulness of the display for specific tasks.

Normal (Sample) Mode

In normal mode, the DSO stores one sample per display pixel from the ADC data and displays it directly. This is the standard mode and the correct choice for most measurements. The displayed waveform represents the actual sampled data with no mathematical processing.

Peak Detect Mode

In peak detect mode, the scope examines the ADC samples between adjacent display pixels and stores both the maximum and minimum values found in each interval, connecting them with a vertical line. This captures narrow transient spikes that would fall between samples in normal mode and be missed entirely. If you are hunting for glitches, noise spikes, or transients on a power supply or control signal, peak detect mode makes them visible even if they occur only once and last for just a few nanoseconds.

The tradeoff of peak detect mode is that it displays more information than normal mode, which can make a clean signal appear noisy. For a pure sine wave, peak detect mode shows a thicker trace because the noise floor glitches between each sample interval are captured and displayed. Use peak detect when you suspect narrow transients; use normal mode for clean waveform display.

Average Mode

In average mode, the scope acquires multiple consecutive waveforms and displays their mathematical average. Random noise, which changes from sweep to sweep, averages toward zero and disappears from the display. The repeating signal, which is identical on every sweep, remains visible. Averaging is powerful for extracting a clean signal buried in noise: 64 averages reduce random noise amplitude by a factor of 8; 256 averages reduce it by 16.

Average mode requires the signal to be repetitive and coherent with the trigger — the waveform must be the same shape on every acquisition for the averages to reinforce rather than cancel. A single-shot event, a chirp, or a slowly drifting signal will not benefit from averaging and may actually be obscured by it. For examining a clean carrier at a specific frequency through RF noise, or for revealing low-level signal detail on an audio waveform, averaging is very effective.

High Resolution Mode

High resolution mode (sometimes called Hi Res) averages multiple ADC samples within each display pixel interval to increase vertical resolution. A standard 8-bit ADC can provide up to 12-bit effective resolution in high resolution mode when enough samples are available to average. This makes small amplitude details more visible and reduces the quantization noise visible on steady signals. Like average mode, it works best on stable, repetitive signals at slower time/div settings where many samples fall within each display pixel interval.

The Trigger Section

The trigger is the single control that separates a useful oscilloscope display from a useless one. Without a working trigger, successive sweeps of the beam start at random phases of the signal, and the display shows an incoherent blur of overlapping traces. With the trigger properly set, every sweep starts at exactly the same point in the waveform cycle, and successive traces overlay precisely — producing a sharp, stable image.

The trigger circuit monitors a selected input (the trigger source) and watches for a specified condition (the trigger event). When that condition is met, the oscilloscope starts a new sweep acquisition. For the simplest case — edge triggering — the condition is that the signal crosses a specified voltage level (the trigger level) in a specified direction (rising or falling).

Trigger Source

The trigger source selects which signal the trigger circuit monitors. The options are:

• CH1, CH2 (or CH3, CH4): Trigger on one of the input channels. This is the normal setting — trigger on the same channel you are measuring.
• External (EXT): Trigger on a separate signal connected to the EXT TRIG input connector. Use this when you want to synchronize the display to a reference signal that is separate from the signal being measured — for example, triggering on a sync pulse while measuring the audio output of a receiver.
• Line (Mains sync): Trigger on the zero crossings of the AC power line frequency (50 or 60 Hz). This is useful for measuring power-supply-related phenomena that are synchronized to the AC supply frequency, such as ripple or hum.

Trigger Level

The trigger level sets the voltage threshold that the signal must cross to fire the trigger. Most oscilloscopes have a dedicated trigger level knob and display a small indicator on screen showing the current trigger level position. For a good trigger on a sine wave, set the level to the midpoint of the waveform — approximately 0 V for a symmetric sine wave centered on the horizontal axis. For a unipolar pulse train (pulses that swing from 0 V to some positive voltage), set the level to roughly half the pulse height.

If the trigger level is set above the peak of the signal or below its minimum, the trigger condition can never be met and the scope will not trigger at all. The display remains blank or shows a rolling trace. Moving the trigger level until it is within the amplitude range of the signal immediately stabilizes the display.

Trigger Modes: Auto, Normal, and Single

The trigger mode controls what the oscilloscope does when no trigger event occurs:

Auto Mode

In auto mode, the oscilloscope waits for a trigger event, but if none occurs within a set time (typically a few milliseconds), it forces a sweep anyway, using whatever voltage is present at the input. Auto mode always produces some display output even if the trigger is not properly set. This makes auto mode the best choice for initial setup — you will always see something on screen, which gives you a starting point for adjusting the trigger level and other settings. The limitation is that the display may not be stable if the trigger is not properly locked to the signal.

Normal Mode

In normal mode, the oscilloscope sweeps only when a valid trigger event occurs. If no trigger event occurs, the screen remains frozen on the last captured waveform or stays blank. Normal mode produces stable, accurate displays when the trigger is correctly set, but can be confusing during setup because a misconfigured trigger produces no display at all. Use normal mode after you have established a stable trigger in auto mode — switch to normal to get the cleanest possible display for careful measurements. Normal mode is also the right choice when you are measuring an infrequent signal and want the scope to wait patiently for the next occurrence.

Single Mode

In single mode (sometimes labelled “Single” or “Single Seq”), the oscilloscope arms, waits for exactly one trigger event, captures it, displays the result, and then stops. It does not re-arm automatically. Single mode is essential for capturing events that occur only once — a relay contact closure, a startup transient, a one-time fault condition. After capturing, you can examine the frozen waveform at leisure and use cursors or measurement functions to analyze it. Press the Run/Single button again to arm for another capture.

Trigger Types

Modern DSOs offer many trigger types beyond the basic edge trigger. Understanding the most important ones makes complex measurements accessible:

For most ham radio measurements, edge triggering handles everything. Pulse width triggering is worth knowing about for digital work — it can isolate a specific narrow glitch within a complex digital signal stream that edge triggering would miss entirely because the scope triggers on every edge rather than the unusual one.

Auto Setup and Manual Setup

Every modern DSO has an Auto or AutoSet button that automatically configures the volts/div, time/div, coupling, and trigger for whatever signal is connected. It typically does a good job on simple, periodic signals — a sine wave, a square wave, a clock signal. Press Auto as a starting point whenever you connect a new signal.

Auto setup is not infallible. It may choose a coupling mode you do not want, set the timebase to a scale that shows the signal’s general shape but not its detail, or fail entirely on complex or noisy signals. After Auto, always review each setting and adjust manually as needed. Treat Auto as an assistant that gets you 80% of the way there; manual adjustments complete the remaining 20%.

For repeating measurements on known signals, saved setups are more efficient than Auto. Most DSOs allow you to save several named front-panel configurations to internal memory and recall them instantly. If you regularly check power supply ripple, save the setup you use for that measurement. If you regularly look at audio waveforms from your microphone amplifier, save that setup. Recalled setups are immediately ready, with no Auto-button variability.

Time/Div to Frequency Calculator

When you cannot use the scope’s automatic frequency readout — or when you want to verify it manually — you can calculate the frequency of any periodic waveform from the time/div setting and the number of horizontal divisions occupied by one complete cycle.

The formula is: f = 1 ÷ (divisions per cycle × time/div)

Practical Measurement Workflow

When you connect a signal to your oscilloscope, follow this sequence to arrive at a clean, stable, accurate display quickly:

1. Press Auto. Let the scope make its initial best guess at settings. You will have something on screen to work with.
2. Check the coupling mode. Is DC coupling right, or do you need AC to reject a large DC offset?
3. Adjust volts/div so the signal fills 3–6 vertical divisions. More than 6 divisions risks clipping the display; fewer than 3 wastes vertical resolution.
4. Adjust time/div so 1–3 complete cycles are visible. This lets you confirm the waveform is stable and repetitive, and makes period measurement straightforward.
5. Check the trigger. Is the trigger source set to the channel you are measuring? Is the trigger level within the signal amplitude? Is the waveform stable, or is it rolling?
6. Switch to Normal trigger mode for the cleanest display once triggering is stable.
7. Make the measurement. Count divisions for manual measurement, or use the scope’s automatic measurement readout and verify it looks correct.
