Oscilloscopes: Introduction

A multimeter tells you the value of a voltage or current at a single moment in time. An oscilloscope shows you how that voltage changes over time — drawing it as a live graph on screen. This single difference makes the oscilloscope the most powerful diagnostic and measurement tool in electronics. Where a multimeter reads “3.3 V,” an oscilloscope shows you whether that voltage is steady DC, a clean sine wave, a distorted waveform, a pulse train, or a noisy signal riding on a DC rail. That difference in information is the difference between knowing a problem exists and actually understanding it.

For radio amateurs, the oscilloscope answers questions that matter directly to station performance: Is my audio signal clipping before the transmitter? Is there ripple on my power supply that could cause hum on my transmitted signal? Is my CW keying shape clean, or am I generating key clicks that are spreading across adjacent channels? Are both sidebands balanced on my SSB transmitter? These are real, practical questions. This module teaches you to answer them.

What an Oscilloscope Does

An oscilloscope measures voltage and displays it as a function of time. The horizontal axis of the screen represents time, and the vertical axis represents voltage. The instrument continuously measures the voltage at its input, samples it, and plots the result across the screen from left to right. When it reaches the right edge, it starts again from the left. The result is a continuously updated graph of the voltage waveform — whether that waveform is a steady sine wave, a complex audio signal, a train of digital pulses, or any other changing voltage.

The horizontal scale is set by the time/division control, which determines how much time each horizontal division on the graticule represents. If the time/div is set to 1 millisecond, the graticule has 10 horizontal divisions, and the full screen width represents 10 milliseconds of time. A 100 Hz signal (with a period of 10 ms) would fill the screen with exactly one cycle. If you set time/div to 100 microseconds, the same 100 Hz signal would show 100 cycles — too compressed to see clearly — while a 10 kHz signal (period = 100 µs) would show one cycle filling the screen.

The vertical scale is set by the volts/division control, which determines how many volts each vertical division represents. With 8 vertical divisions visible and volts/div set to 1 V, the screen shows ±4 V full scale (8 V total). If you measure an audio signal that swings between −2 V and +2 V, it will occupy 4 of the 8 vertical divisions. If you set volts/div to 500 mV, the same signal would fill 8 divisions — using the full screen height for maximum resolution.

This combination of adjustable horizontal time scale and adjustable vertical voltage scale is what makes the oscilloscope so versatile. The same instrument that measures a 50 Hz power supply ripple (time/div: 5 ms) can also be used to look at a 7 MHz RF signal envelope (time/div: 500 ns) without any hardware change — just by turning the time/div control.

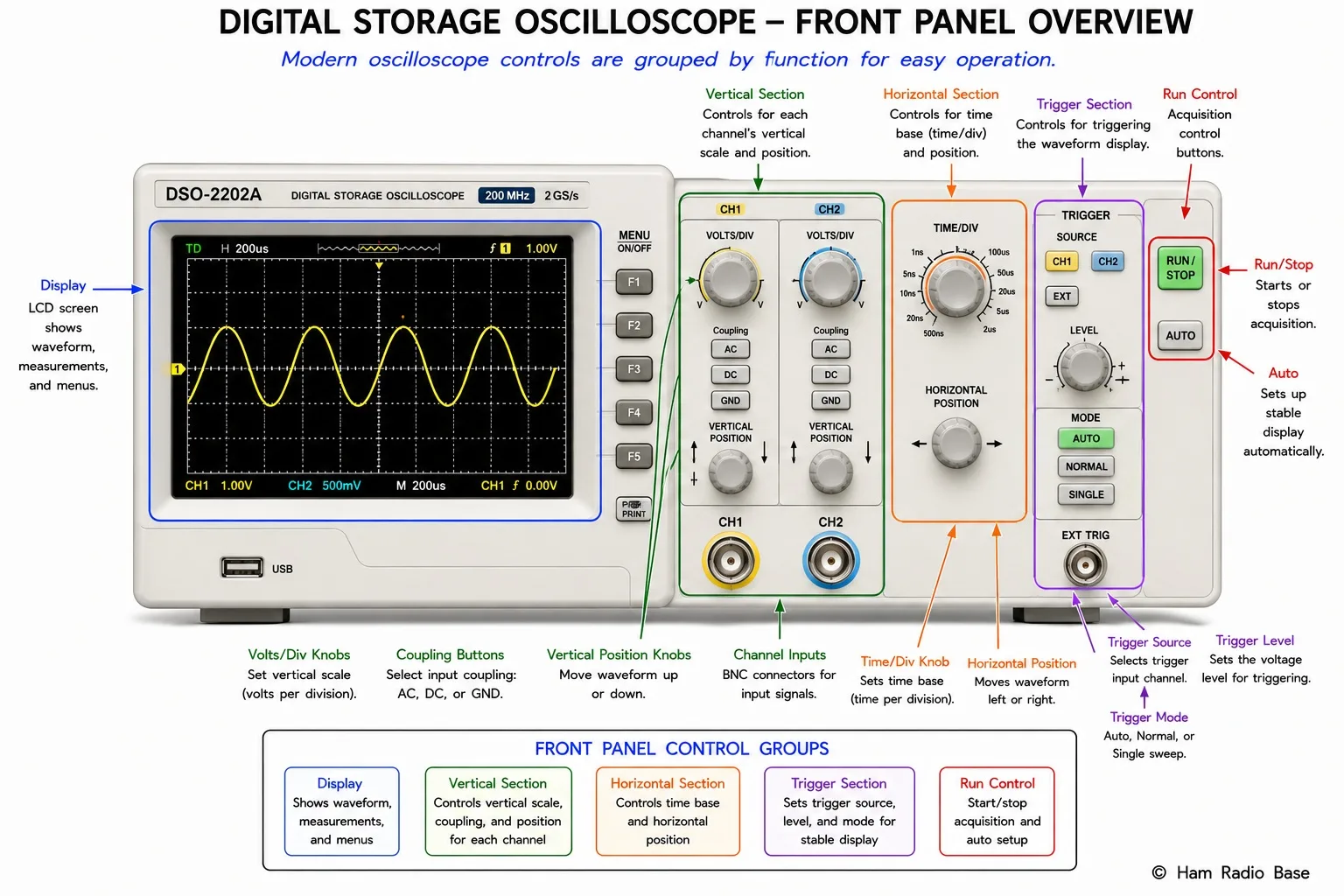

Front panel of a typical entry-level DSO showing the three main control groups: vertical (volts/div, coupling, position per channel), horizontal (time/div, position), and trigger (source, level, mode). The BNC probe inputs are at the lower right. Understanding each group is the first step to confident oscilloscope use.

View Larger

Why Every Ham Needs an Oscilloscope

Many radio amateurs operate for years without owning an oscilloscope, relying on multimeters, SWR meters, and the reports of other stations. This is like navigating by smell rather than sight — you can do it, but you miss an enormous amount of information. The oscilloscope makes visible what was previously invisible: the actual shape of your signal, the quality of your audio, the stability of your power supply, the cleanliness of your CW keying.

Here are specific ham radio problems that an oscilloscope solves immediately:

• Clipping and overdriven audio: When you drive a microphone amplifier or speech processor too hard, the audio waveform clips — the tops and bottoms of the sine wave flatten out. On SSB, this causes splatter across adjacent channels. On FM, it causes over-deviation. A scope shows clipping instantly; a multimeter cannot see it because the RMS reading can remain plausible even when the waveform is severely distorted.
• Power supply ripple: A poorly filtered power supply rides on top of a 60 Hz or 120 Hz ripple voltage. This can couple into audio stages as hum, or into RF stages as sidebands on the transmitted signal. A scope connected to the supply rail shows ripple amplitude and frequency directly. A multimeter reading “13.8 V” cannot distinguish a clean supply from one with 500 mV of ripple.
• Key clicks: CW signals with abrupt rise and fall times radiate energy across many kilohertz of spectrum, causing interference to nearby stations. The oscilloscope shows the shape of the keyed RF envelope. A well-shaped signal has gradual rise and fall. A scope can confirm that your keying circuit is shaping correctly before you get reports from other operators.
• Transceiver faults: When a transceiver starts behaving oddly — intermittent reception, distorted audio, low output power — the oscilloscope lets you trace the signal through the circuit, stage by stage, until the fault is found. Without a scope, this troubleshooting is largely guesswork.
• Modulation checking: On AM stations, the oscilloscope confirms correct modulation depth. On SSB, it verifies that the audio response is correct and the audio chain is not distorting. On FM repeater systems, it checks deviation. For homebrew transmitters, it confirms that the output waveform is a clean sine wave rather than a distorted approximation.

Modern entry-level DSOs are affordable enough that any ham can own one. A 50 MHz, two-channel scope with adequate sample rate is available for well under $100. At that price, there is no reason to work without one.

Analog CRT Oscilloscopes

The classic oscilloscope, produced from the 1940s through to the 1990s, uses a cathode ray tube (CRT) — the same vacuum tube technology as old television sets. Inside the CRT, an electron gun fires a beam of electrons toward a phosphor-coated screen. Two pairs of deflection plates — one pair horizontal, one pair vertical — steer the beam to any position on the screen by applying voltages to the plates. The electron beam hits the phosphor and causes it to glow, drawing the waveform as a visible line.

In an analog oscilloscope, the input signal is amplified and applied directly to the vertical deflection plates through the vertical amplifier chain. The horizontal sweep generator creates a sawtooth waveform that drives the horizontal deflection plates, sweeping the beam from left to right at a rate set by the time/div control. The trigger circuit detects a specific threshold on the input signal and starts the horizontal sweep at the right moment so that the waveform appears stationary on screen rather than scrolling randomly.

Analog oscilloscopes have several advantages that their digital successors have not completely eliminated:

• Real-time update: The CRT responds to the signal continuously with no latency. There is no sampling, no acquisition memory, no digital processing delay. The waveform on screen is truly a live display of the signal at that instant.
• Natural intensity gradation: A CRT beam that spends more time at a particular point on screen makes that area brighter. This means that in a complex waveform, the more common states appear brighter and rare transients appear dimmer — a natural visualization of signal probability that digital scopes have to simulate with “digital phosphor” modes.
• No aliasing on repetitive signals: A perfect analog scope does not sample the waveform at all. It responds to the continuous signal directly, so there is no risk of a digital sampling artifact appearing as a false lower-frequency signal (aliasing).

The disadvantages of analog scopes are equally significant. They cannot capture a single-shot event and hold it for examination. They have no measurement cursors or automatic readout of frequency or amplitude. They cannot store waveforms, average multiple acquisitions, or transfer data to a computer. Their bandwidth is limited by the CRT deflection amplifiers, typically to 100–500 MHz for professional instruments. And they are large, heavy, and power-hungry compared to modern DSOs.

You may encounter analog oscilloscopes at hamfests and in older shacks. They are still capable instruments for many tasks, and a good condition Tektronix or Hewlett-Packard analog scope from the 1970s or 1980s may outperform a cheap modern DSO in some respects, particularly at accurately displaying repetitive waveforms up to its bandwidth limit. However, for most ham radio work, a modern DSO offers more features for less money and less desk space.

Digital Storage Oscilloscopes (DSOs)

A digital storage oscilloscope (DSO) works fundamentally differently from an analog CRT scope. Instead of deflecting an electron beam in real time, the DSO samples the input signal at regular time intervals using a fast analog-to-digital converter (ADC), stores the digital samples in memory, and then reconstructs and displays the waveform on an LCD screen. This distinction — sampling rather than direct display — has profound consequences for every aspect of the instrument’s behavior.

The DSO acquisition process runs in a continuous loop. The ADC samples the input at intervals determined by the time/div setting and the number of horizontal pixels on the display. When the trigger condition is satisfied, the oscilloscope captures a block of samples centered on (or following) the trigger event, stores them in waveform memory, and displays them. It then arms for the next trigger and repeats the process. The result looks like a live display, but it is actually a rapid series of triggered acquisitions.

How the ADC and Sample Rate Work

The ADC in a DSO converts voltage to a digital number at each sample point. A typical entry-level DSO uses an 8-bit ADC, which provides 256 discrete amplitude steps (2&sup8; = 256). If the input is set to 2 V/div with 8 vertical divisions (16 V full scale), each step represents 16/256 ≈ 62.5 mV. This is adequate for most audio and power measurements. Higher-end instruments use 10-bit or 12-bit ADCs, providing 1024 or 4096 steps and correspondingly finer amplitude resolution.

The sample rate determines how frequently the ADC takes a sample. A sample rate of 1 gigasample per second (1 GS/s) takes one billion samples every second, meaning one sample every nanosecond. For a faithful digital representation of a waveform, the Nyquist criterion requires a sample rate of at least twice the highest frequency of interest. In practice, to display a waveform accurately on screen with multiple samples per cycle, a sample rate of 5 to 10 times the signal frequency is preferred.

Advantages Over Analog Scopes

The digital nature of the DSO enables capabilities that are impossible in an analog scope:

• Waveform storage: Any waveform can be frozen, stored in memory, recalled later, or transferred to a computer via USB. You can capture a transient event that occurs rarely and examine it at leisure.
• Single-shot capture: The DSO can be set to trigger once and hold the display, making it possible to capture an event that occurs only once — a relay contact bounce, a power-on transient, a single fault event.
• Automatic measurements: The DSO calculates and displays frequency, period, amplitude, RMS voltage, rise time, duty cycle, and dozens of other parameters automatically. You no longer need to count divisions and do arithmetic; the scope does it for you.
• Cursor measurements: Horizontal and vertical cursors can be positioned manually on the screen to measure precise time intervals and voltage differences between two points on the waveform.
• Math operations: The scope can compute the sum, difference, or product of two channels, calculate the FFT (fast Fourier transform) spectrum, and perform other mathematical operations on the waveform data.
• Average mode: By averaging many acquisitions, the DSO can reduce noise and reveal the underlying signal in a noisy measurement.
• PC connectivity: Modern DSOs connect to a computer via USB or Ethernet. Software on the PC can display, analyze, and archive waveforms. Some scopes have no display at all and function entirely through PC software.

Limitations of DSOs

The sampling approach introduces limitations that you need to understand to use a DSO correctly:

• Aliasing: If the signal frequency exceeds half the sample rate (the Nyquist limit), the DSO cannot represent it faithfully and will display a lower-frequency alias waveform. For example, a DSO with a 1 GS/s sample rate cannot correctly represent a 600 MHz signal; it will show something that looks like a 400 MHz signal. Adequate sample rate is therefore critical.
• Dead time: After each acquisition, the DSO spends time processing the captured waveform, writing it to display memory, and preparing for the next trigger. During this processing time, the input is not being sampled. Any signal event that occurs during dead time is missed. This is particularly relevant for catching rare transients: if the dead time is 50% of the total cycle time, there is a 50% chance of missing a random glitch.
• Limited vertical resolution: An 8-bit ADC provides only 256 amplitude steps. On a 100 mV/div range with 8 divisions (800 mV full scale), each step is 800/256 ≈ 3 mV. Small signal details below this step size are lost. Higher vertical resolution modes or higher-bit-depth ADCs improve this.
• Waveform update rate: A DSO that can capture 10,000 waveforms per second has a faster update rate than one that can only capture 100 per second. A faster update rate makes the display more responsive to signal changes and increases the probability of catching infrequent events.

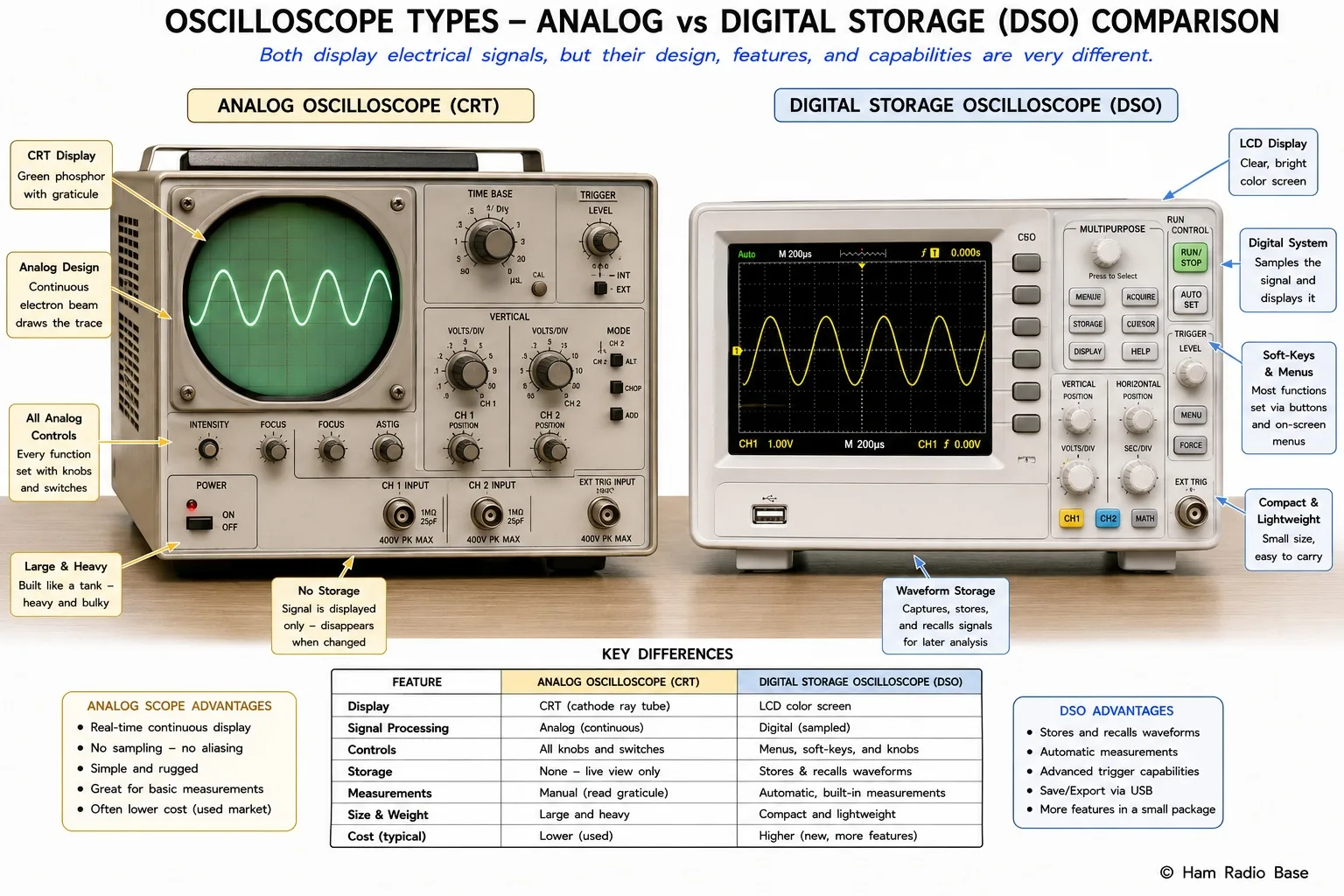

Analog vs digital oscilloscopes. The CRT analog scope (left) deflects an electron beam in real time; the DSO (right) samples the signal with an ADC and reconstructs the waveform digitally. Modern DSOs are lighter, more feature-rich, and far less expensive than their analog counterparts.

View Larger

Mixed Signal Oscilloscopes

A mixed signal oscilloscope (MSO) is a DSO that adds a digital logic analyzer to the same instrument. In addition to the two or four analog channels, an MSO has 8 or 16 digital channels that display logic states (high or low) rather than voltage levels. This makes it particularly useful for hardware debugging where you need to correlate analog signals with digital bus activity — for example, confirming that a microcontroller’s SPI bus is sending the correct data at the same time as a DAC output changes.

For most ham radio applications, the pure DSO is sufficient. An MSO becomes valuable if you are building or repairing equipment that uses microcontrollers, FPGA boards, or complex digital control circuitry. Many SDR (software-defined radio) builds, digital interface circuits, and modern transceiver controller boards use digital buses, and an MSO can be the right tool for troubleshooting them.

Handheld and Portable Oscilloscopes

Handheld oscilloscopes are self-contained battery-powered instruments small enough to hold in one hand. They typically offer 20–100 MHz bandwidth, two channels, and built-in display, integrated probes or probe connectors, and USB charging. Their compactness makes them useful for portable operation, field day troubleshooting, and working on equipment installed in awkward locations where a bench instrument cannot easily be placed nearby.

The trade-off is performance: handheld scopes generally have smaller screens, lower sample rates, reduced memory depth, and more limited trigger modes compared to bench DSOs of the same price. For most basic ham radio measurements — audio waveforms, power supply ripple, RF envelope shape — a 20–50 MHz handheld scope is adequate. For RF work above 100 MHz or for precise measurement work, a bench DSO is preferable.

A category of particular interest is the PC-based oscilloscope (sometimes called a USB oscilloscope), which consists of a small acquisition unit that connects to a laptop or desktop computer. The computer’s screen and processing power provide the display and analysis, while the hardware unit handles sampling. These can offer excellent value: a $200 PC scope can match or exceed the performance of a $500 standalone bench scope because the cost of the display and processor is eliminated from the hardware budget. The main limitation is that the PC must be present and running the software during measurements.

Bandwidth: the Most Important Specification

Oscilloscope bandwidth is the frequency at which the scope’s response has fallen to −3 dB of its low-frequency response. At the bandwidth frequency, the scope shows a sine wave at 70.7% of its true amplitude. At frequencies above the bandwidth, the displayed amplitude rolls off further. This means that if you try to measure a 100 MHz signal on a 100 MHz oscilloscope, the scope will show that signal at 70% of its actual amplitude. To measure a signal accurately, the scope bandwidth should be at least 3× the signal frequency, and ideally 5× or more.

For ham radio applications, the required bandwidth depends on what you want to measure:

An important relationship connects bandwidth and rise time. The rise time T_rise of a step input is related to the −3 dB bandwidth by:

The practical recommendation for a ham radio shack oscilloscope is 50–100 MHz bandwidth. This is enough to display HF RF envelopes, audio waveforms, power supply ripple, CW keying shapes, and the signals in most receiver and transmitter circuits. For VHF and UHF work, 200 MHz or more is needed to see the carrier directly.

Sample Rate

The sample rate of a DSO specifies how many samples per second the ADC takes. It is stated in samples per second, megasamples per second (MS/s), or gigasamples per second (GS/s). The sample rate and the bandwidth are related but not identical. A DSO needs a sample rate of roughly 5 times its bandwidth to display a sine wave at the bandwidth frequency with useful accuracy.

The Nyquist theorem states that faithful digital reconstruction of a signal requires a sample rate of at least twice the signal frequency. In practice, oscilloscope manufacturers use reconstruction filters and interpolation algorithms that require 3–5 samples per cycle to display a sine wave acceptably. This means a 100 MHz oscilloscope needs at least 300–500 MS/s to represent a 100 MHz sine wave on screen without distorting its shape.

An important caveat: the stated sample rate is the peak sample rate, which applies only when the time/div is set to display very short time intervals. At longer time/div settings (for example, 10 ms/div to display a 100 Hz audio signal), the scope stores only a fraction of its available samples because the waveform memory has a fixed length. A scope with 1 GSa waveform memory and a 1 GS/s sample rate running at 10 ms/div across 1000 horizontal pixels stores one sample every 10 microseconds — effectively 100 kS/s, not 1 GS/s. This is still more than adequate for a 100 Hz signal, but illustrates that the peak sample rate only applies at the fastest time/div settings.

For ham radio applications, a sample rate of 500 MS/s to 1 GS/s paired with 50–100 MHz bandwidth is entirely adequate. The key is that the sample rate should be at least 3–5 times the oscilloscope’s bandwidth.

Memory Depth

Memory depth (also called record length) is the number of sample points the DSO can store in one acquisition. It is stated in kilosamples (kSa), megasamples (MSa), or gigasamples (GSa). Memory depth matters because it determines whether the scope can maintain its full sample rate while displaying long time intervals.

Consider a DSO with 1 GS/s sample rate and 1 MSa (one megasample) of memory. To fill 1 million samples at 1 GS/s takes 1 millisecond. So the scope can maintain maximum sample rate only when the total time across the screen is 1 ms or less. If you want to display a 100 ms window (time/div = 10 ms, 10 divisions), the scope must reduce its sample rate to 10 MS/s to fit 1 million samples across 100 ms. For a 100 MHz bandwidth scope, 10 MS/s is far below the bandwidth-limited Nyquist rate, meaning signals above 5 MHz will be undersampled.

Deep memory (10 MSa or more) allows the scope to maintain a high sample rate over longer time windows, which is important when you want to capture both fine detail and a long time span in the same acquisition. For most ham radio audio and power supply measurements, 1–10 MSa is more than adequate. For complex digital signal work or long-duration RF captures, deeper memory is beneficial.

Number of Channels

Almost every oscilloscope has either two channels or four channels. A two-channel scope is sufficient for the vast majority of ham radio measurements. Two channels allow you to compare two signals simultaneously — for example, the audio input to and output from an amplifier stage, or the voltage at two points in a power supply circuit. Phase difference between two signals can be measured with two channels.

Four-channel oscilloscopes are useful when you need to monitor multiple signals at the same time — all four voltages in a bridge circuit, or all stages of a multi-stage audio amplifier simultaneously. In a busy digital circuit, four channels can monitor data, clock, enable, and status signals together. For basic ham radio work, two channels is the right starting point, with four channels becoming valuable as your work becomes more complex.

Note that many scopes share the sample rate across channels. A scope rated at 1 GS/s may deliver 1 GS/s only when using a single channel, dropping to 500 MS/s per channel when both channels are active. Read the specifications carefully: look for the sample rate per channel with all channels in use, not just the single-channel peak rate.

Choosing an Oscilloscope for Ham Radio

The oscilloscope market offers instruments at every price point from under $100 to tens of thousands of dollars. For the ham radio shack, the right choice depends on what you want to do:

For a first oscilloscope, a 50–100 MHz, two-channel DSO in the $100–$200 range is the right starting point. Popular entry-level brands include Rigol (the DS1054Z is one of the best-known beginner scopes, with 50 MHz bandwidth hackable to 100 MHz), Hantek, Owon, and Siglent. These instruments handle 90% of ham radio measurements competently. The remaining 10% — direct VHF RF observation, very high-frequency digital buses, nanosecond-scale timing — can be addressed with a more capable instrument if those needs arise.

Getting Started with Your Oscilloscope

When you first take an oscilloscope out of the box, resist the urge to immediately probe your equipment. Spend fifteen minutes with the calibration output first. Most oscilloscopes have a CAL or PROBE COMP terminal on the front panel, which outputs a known square wave signal — typically 1 kHz at 3 Vpp or 5 Vpp. This output is specifically designed for learning the scope controls and for compensating your probes (see Module 12C).

Connect the probe to Channel 1 and touch the probe tip to the CAL terminal. Set Channel 1 to 1 V/div and time/div to 500 µs. You should see a stable square wave on screen. If the waveform is rolling or not stable, press the Auto button — every modern DSO has an auto-setup function that automatically adjusts the vertical scale, timebase, and trigger to display whatever is connected. Once you have a stable square wave, practice adjusting each control in turn: volts/div up and down, time/div faster and slower, the vertical position up and down. Feel how each adjustment changes the display. This is the foundation of everything that follows.

The single most important habit to develop is reading the scale factors from the graticule. The oscilloscope screen has grid lines (called the graticule) with divisions marked. Every voltage measurement and every time measurement is made by counting these divisions and multiplying by the setting. If time/div is 200 µs and a waveform occupies 3 horizontal divisions, its period is 3 × 200 µs = 600 µs, and its frequency is 1/600 µs ≈ 1.67 kHz. If volts/div is 500 mV and a signal swings 6 vertical divisions peak-to-peak, its amplitude is 6 × 500 mV = 3 Vpp. This mental process — scale factor times division count — is the fundamental oscilloscope measurement technique.
