RF Bypass and Decoupling

Every radio station has a dirty secret: the DC power supply rails that feed the sensitive receiver stages are also highways for noise. A switching power supply generates switching transients at tens of kilohertz and their harmonics stretching into the megahertz range. The transmitter's high-power RF stages dump current pulses into the supply rail every time the keying pedal goes down. Even a "clean" linear supply has residual 60 Hz and 120 Hz ripple. All of this noise travels along the power wiring and can couple directly into the receiver's front end, raising the noise floor and degrading reception.

In ham radio, this problem is acute because the transmitter and receiver often share the same power supply, the same chassis, and operate simultaneously in duplex or near-duplex modes. A 100 µV noise spike on the 13.8 V rail — which looks completely negligible compared to 13.8 V — can be amplified by a receiver preamplifier and appear as a noise burst strong enough to mask a weak DX signal or trigger a false digital decode. Getting clean DC to sensitive RF stages requires understanding impedance, choosing the right bypass and decoupling components, and placing them correctly.

Why RF Gets onto Power Supply Rails

To understand why noise appears on DC rails, you need to think of the power wiring not as a simple DC conductor but as a transmission medium that carries signals at all frequencies, including RF. There are four main mechanisms by which RF and switching noise end up on your power rails.

Conducted Interference from Switching Power Supplies

A switching mode power supply (SMPS) — the type found in virtually all modern ham radio power supplies, laptop chargers, and the like — operates by switching transistors on and off at 50 kHz to 500 kHz. These switching transitions are very fast (nanosecond rise times), which means they contain significant energy at harmonics of the switching frequency extending far into the HF and even VHF range. This noise propagates through the supply's output leads directly into anything connected to it.

Every SMPS sold commercially must meet FCC Part 15 conducted emission limits, which specify maximum noise currents on the power leads. However, these limits are not zero — a legal switching supply can still raise the noise floor of a sensitive amateur receiver by several S-units if improperly filtered. Even a well-designed SMPS produces some noise on its output. The radio itself needs its own power line filtering regardless of supply quality.

Radiated Coupling from the Transmitter

When you transmit, your antenna is radiating RF in all directions — including back toward the station. Power cables, speaker leads, microphone cables, and control cables all act as accidental antennas that can pick up a portion of the transmitted RF and conduct it back into the equipment's circuitry. This is why transmitting from a portable setup with a 100 W radio into an end-fed antenna often causes noise in a nearby laptop or interference to a connected accessory. The radiated field from the antenna induces voltages in nearby conductors.

Magnetic Coupling from High-Current RF Loops

The coaxial feedline to your antenna carries RF current on the outer conductor (braid) when there is a common-mode current, and even a balanced system has some proximity between the high-current RF path and nearby DC wiring. A changing magnetic field from the RF current induces a voltage in any nearby conductor loop — including power wiring that forms a loop between the supply, the radio, and the common ground connection. Reducing these loops by keeping wiring short and using proper shielding addresses this mechanism.

Ground Loops

A ground loop occurs when two pieces of equipment are connected together at ground through more than one path, and the two paths are at slightly different RF potentials. The difference in potential drives a circulating current through the "DC" ground conductors. This current appears as noise in any signal referenced to the ground. Ground loops are extremely common in complex shack setups with multiple pieces of equipment, and the symptoms (60 Hz hum or RF noise in audio) are often misdiagnosed as a different problem.

Impedance Concepts: Reactance as RF Filtering

The fundamental principle behind bypass and decoupling is impedance: at RF frequencies, a capacitor presents very low impedance (nearly a short circuit) and an inductor presents very high impedance (nearly an open circuit). By strategically placing these components in a circuit, you can create paths that RF noise prefers over the paths you want to keep clean.

Recall from the AC circuit theory modules that capacitive reactance is:

This impedance principle explains everything that follows in this lesson. Bypass and decoupling capacitors are low-impedance shunt paths that capture RF locally. Ferrite beads and inductors are high-impedance series elements that prevent RF from propagating. A pi filter combines both to achieve greater attenuation than either alone.

Bypass Capacitors

A bypass capacitor is placed between the power rail and ground at a specific point in a circuit to provide a local low-impedance path for RF noise. Think of it as a local RF reservoir: any high-frequency noise current on the power rail flows into the capacitor, charges it, and then discharges back into the rail — completing a local loop that keeps the noise current from traveling further along the rail to more sensitive circuitry.

The key insight is that bypass capacitors must be sized appropriately for the frequency range they need to handle. No single capacitor value is effective across the entire frequency range from audio to VHF. The reason is the self-resonant frequency (SRF) — the frequency at which the capacitor's parasitic series inductance (ESL, equivalent series inductance) resonates with the capacitor's capacitance. Below SRF, the component behaves as a capacitor (low Xc). Above SRF, it behaves as an inductor (rising impedance). At SRF, it presents its minimum impedance.

The parasitic inductance of a capacitor comes from the component's leads and internal electrode connections. A large electrolytic capacitor with long leads has high ESL and a low SRF — perhaps only a few hundred kilohertz. A small surface-mount ceramic capacitor has very low ESL and a high SRF that may extend to hundreds of megahertz.

Capacitor Value vs Effective Frequency Range

The practical rule for ham radio circuits is to use multiple capacitor values in parallel whenever you need to cover a wide frequency range. The standard combination for an HF receiver or transceiver power supply input is: one 100–470 µF electrolytic for audio and sub-RF frequencies, plus one 100 nF ceramic for HF. Some designs add a 10 nF or 1 nF ceramic for VHF and above. Each capacitor handles the frequency range it is best suited for, and together they provide low impedance across a wide spectrum.

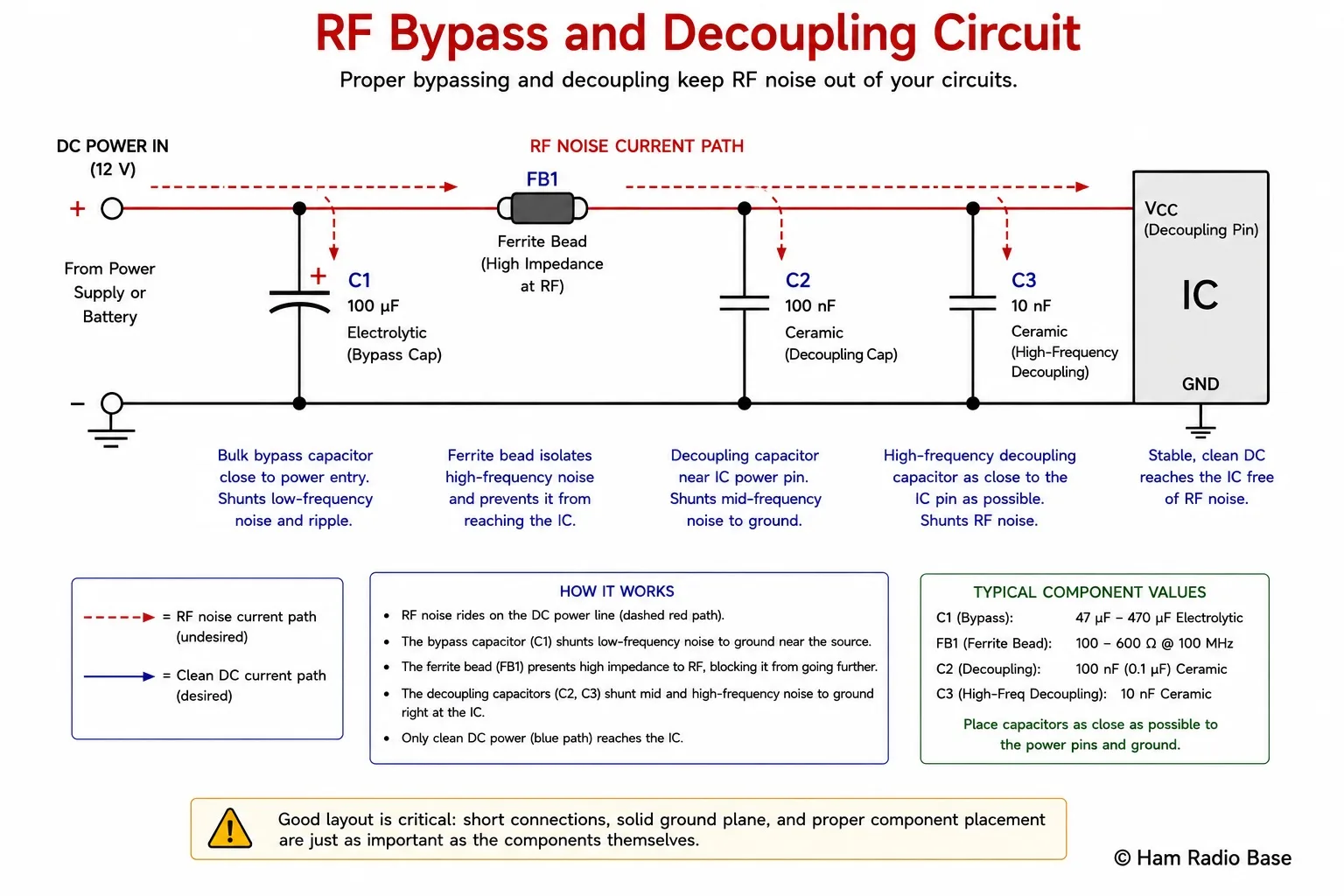

Bypass and decoupling in practice: large electrolytic near the power connector handles low-frequency noise. Ferrite bead in series blocks RF from propagating further. Small ceramic caps at the IC pins handle HF and VHF noise locally. The RF noise current circulates through the capacitors rather than reaching the sensitive IC.

View Larger

Decoupling Capacitors

Decoupling capacitors serve a related but distinct purpose from bypass capacitors. While a bypass capacitor at the power entry point of a circuit cleans up noise coming in from the supply, a decoupling capacitor at each individual IC or transistor stage prevents one stage's noise from coupling into another stage via the shared power rail.

Imagine a multi-stage receiver: the first stage is a low-noise amplifier (LNA), the second is a mixer, and the third is an IF amplifier. All three stages are powered from the same 13.8 V rail. The mixer stage switches rapidly and draws current in pulses. Without decoupling, these current pulses cause tiny voltage ripples on the power rail — voltage ripples that reach both the LNA (inducing interference) and the IF amplifier (potentially causing spurious responses or oscillation via feedback through the power supply impedance). With a 100 nF decoupling capacitor right at each stage's power pin, those current pulses circulate locally in each stage's own decoupling capacitor and do not travel along the rail to other stages.

The placement rule for decoupling capacitors is absolute: the capacitor must be as physically close to the IC's power supply pin as possible. Every millimeter of lead wire or PCB trace between the IC pin and the capacitor adds parasitic inductance, which raises the impedance at high frequencies and reduces the capacitor's effectiveness. On a well-designed PCB, a decoupling capacitor is placed directly adjacent to the IC power pin with its ground return via a via directly to the ground plane — not routed through the general ground trace. On point-to-point or Manhattan-style construction, the decoupling cap leads should be 5 mm or less from the component being decoupled.

Ferrite Beads

A ferrite bead is a small piece of ferrite material — either a cylindrical core threaded over a wire, or a tiny surface-mount component built into a chip — that provides impedance to RF signals while allowing DC and low-frequency AC to pass through freely. They are one of the most useful and most misunderstood components in RF electronics.

The key difference between a ferrite bead and a conventional air-core inductor is how they handle RF energy. An air-core inductor is reactive — it stores energy in its magnetic field and reflects RF back toward the source. At its self-resonant frequency, an air-core inductor can cause oscillation problems. A ferrite bead is lossy — it absorbs RF energy and converts it to heat through hysteresis losses in the ferrite material. This makes ferrite beads ideal for suppression applications: they dissipate the noise rather than reflecting it.

Ferrite beads are characterized by their impedance at a specified frequency (typically 100 MHz), not by their inductance. A common bead specification might be "100 Ω at 100 MHz." At lower frequencies, the bead looks like a small inductance. At its characteristic frequency and above, the resistive component dominates and the bead absorbs RF energy. At DC and audio frequencies, the bead looks like a short circuit (a tiny fraction of an ohm).

Ferrite Material Selection

Different ferrite materials (called "mixes" or "grades") are optimized for different frequency ranges. The two most important for ham radio power line filtering are:

For suppressing switching supply noise on power leads to an HF transceiver, type 31 or type 43 ferrite toroids are the go-to solution. Wind 3–7 turns of the power lead (both the positive and negative conductors together, so common-mode choke action is achieved) through the toroid. The multiple turns multiply the impedance by N² (turns-squared) compared to a single turn, providing far more suppression than a single-pass ferrite bead. A 5-turn choke on a type 31 FT-240-31 toroid provides over 1,000 Ω impedance at 14 MHz — an excellent barrier against HF noise on the supply lead.

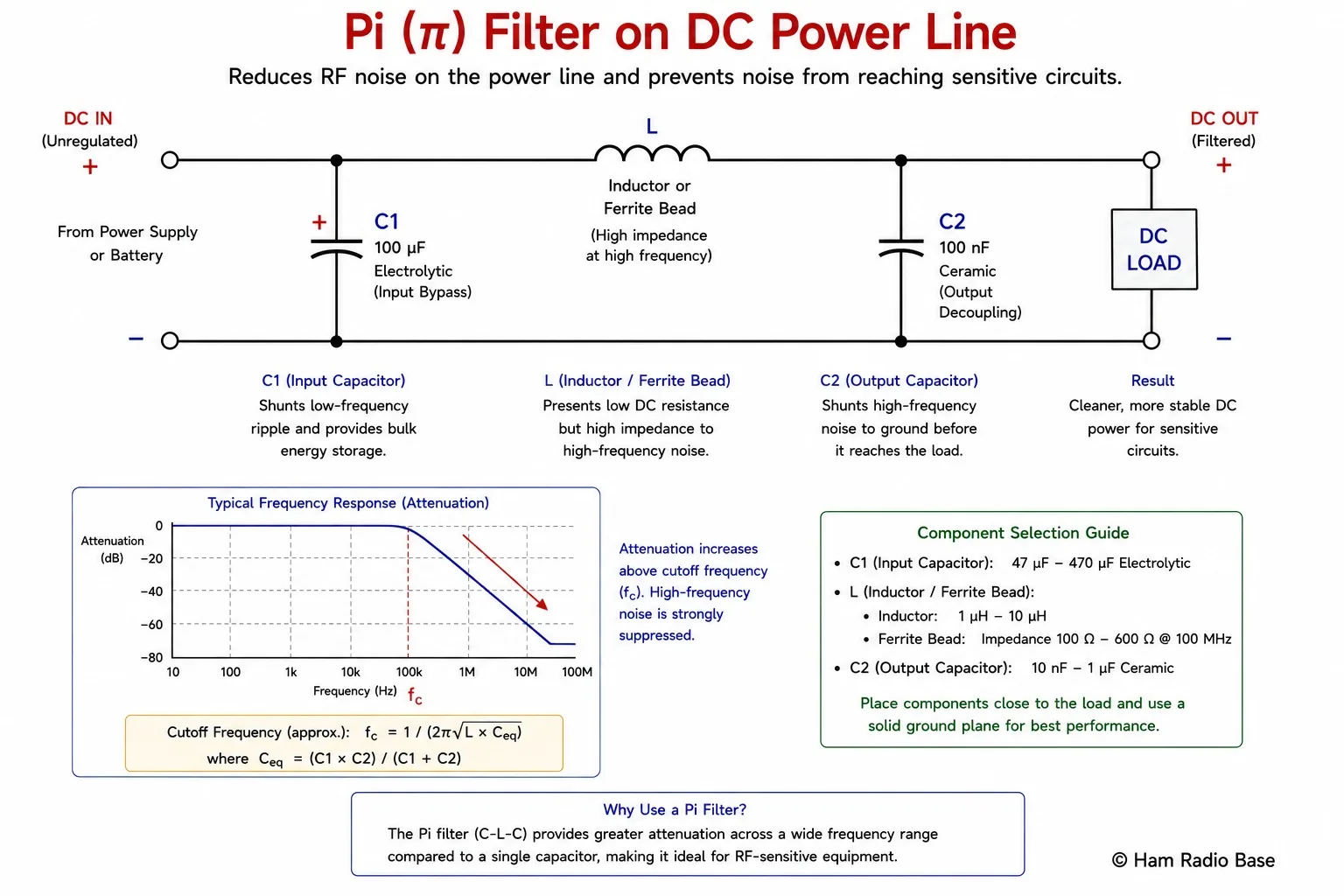

Pi filter configuration for a DC power line. The input capacitor C1 bypasses low-to-mid frequency noise. The series inductor or ferrite bead blocks higher-frequency RF. The output capacitor C2 bypasses whatever gets through the inductor. The combined attenuation is far greater than any single component.

View Larger

Pi Filter Configuration

A pi filter (named for its resemblance to the Greek letter π) is the standard multi-element power line filter for RF applications. It consists of: a shunt capacitor C1 at the input, a series inductor or ferrite bead L in the middle, and a shunt capacitor C2 at the output. The name refers to the schematic shape: the two vertical capacitors form the legs and the horizontal inductor forms the crossbar of the letter pi.

The pi filter works as a cascaded filter: C1 bypasses low-to-medium frequency noise at the input. L blocks any RF that gets past C1 from propagating further. C2 bypasses any residual noise that leaked through L at the output, right at the point of use. The combined attenuation is the product of all three elements, giving 40+ dB of rejection across a wide bandwidth — far more than a single capacitor (typically 10–15 dB) can achieve.

For the highest performance, the inductor in a pi filter should be a wound ferrite choke rather than an air-core inductor. Air-core inductors can resonate at frequencies within the filter's operating range, creating unwanted pass-bands. Ferrite chokes are lossy (resistive) and do not produce sharp resonances.

Placement Rules

The most common mistake when adding bypass and decoupling components is placing them too far from the point they are meant to protect. Every millimeter of wire or PCB trace between the bypass cap and the circuit node it is protecting adds parasitic inductance — approximately 1 nH per millimeter of wire. At 100 MHz, 10 mm of wire has an inductance of 10 nH, with a reactance of 2π × 100×10⁶ × 10×10⁻⁹ = 6.3 Ω. This 6.3 Ω of series inductance between the IC power pin and the decoupling cap greatly reduces the cap's effectiveness at VHF.

The rules are simple and firm:

• Place bypass caps as close as possible to the point of use — not at the power supply connector. The power connector gets a large electrolytic for bulk storage. Each stage, each IC, and each sensitive subcircuit gets its own local bypass cap.
• On PCB, place decoupling caps directly adjacent to IC power pins with the ground return via a via directly to the ground plane. Not routed through a trace to a distant via — a direct, short via to the nearest point on the ground plane.
• Use the correct capacitor for the frequency — placing a large electrolytic where a 100 nF ceramic is called for will not work because the electrolytic has poor high-frequency behavior above its SRF.
• Establish a solid ground plane — the best bypass cap in the world is ineffective if its ground connection has high impedance. A continuous ground plane provides a low-inductance return path for all RF currents.
• Keep power leads away from signal traces — route DC power wiring separately from RF signal traces and antenna connections. Do not run a power lead parallel to a coaxial feedline inside the equipment.
• Use star grounding where applicable — in a complex shack with multiple pieces of equipment, connect all chassis grounds to a single, short, low-impedance bus bar rather than daisy-chaining from one piece of equipment to the next. Daisy-chain ground paths form loops that are susceptible to RF coupling.

Capacitor Selection Guide

The X7R and COG/NP0 designations refer to the ceramic dielectric formulation. COG (also called NP0) is the most stable type — its capacitance changes very little with temperature, voltage, or frequency, and it has very low losses (high Q). X7R is less stable but available in larger values and lower cost. For bypass and decoupling applications where absolute value stability is less critical, X7R is acceptable at HF frequencies. For resonant circuits and precision timing applications, use COG/NP0.

Practical Ham Shack Applications

The abstract theory above becomes concrete when applied to real problems that ham radio operators encounter. Here are three common shack noise scenarios, their diagnoses, and their solutions.

Problem 1: Switching Supply Raising Receiver Noise Floor

Symptom: You replace your old linear supply with a new switching supply, and the receiver noise floor jumps by 2–4 S-units on 40 meters. The noise sounds like a steady hiss or buzz that tracks with supply current draw.

Diagnosis: The SMPS is conducting HF noise onto the 13.8 V supply leads, which are acting as antennas and radiating directly into the receiver, or the noise is entering through the power supply pins of the transceiver's receiver circuits.

Solution: Wind 3–5 turns of both the positive and negative supply leads together through an FT-240-31 or FT-240-43 ferrite toroid, placed close to the radio's DC input connector. This creates a common-mode choke that blocks the conducted HF noise from entering the radio. Additionally, add a 100 µF electrolytic plus 100 nF ceramic capacitor across the radio's power connector input. If the problem persists, add the same choke also at the supply's output terminals.

Problem 2: 60 Hz Hum in Receiver Audio

Symptom: A continuous 60 Hz hum is audible in the receiver audio. It is present even when the antenna is disconnected and not related to a specific received signal. It tracks exactly with the audio output level control.

Diagnosis: 60 Hz audio hum in a radio usually indicates one of three things: a failing filter capacitor in a linear power supply (insufficient ripple filtering), a ground loop between the radio and an accessory (audio interface, TNC, computer), or insufficient bypassing on the audio section's DC supply.

Solution: If the supply is linear, measure the ripple across the filter capacitor with an oscilloscope — it should be less than 100 mV at full load current. If it is higher, replace or add filter capacitance. If the supply is fine, check for ground loops by temporarily disconnecting all accessories except the speaker and power supply. If hum disappears, it is a ground loop — add a 1:1 audio isolation transformer or use a common-mode choke on the audio cable. Check that all equipment chassis connects to a single ground point, not a loop.

Problem 3: Transmit Keying Causes Receiver to Mute or Desensitize

Symptom: Every time you press the transmit key on your transceiver, the receiver takes 0.5–2 seconds to return to normal sensitivity. During this time, weak signals are lost.

Diagnosis: The transmit amplifier stage draws a large current pulse (10–20 A for a 100 W transceiver) when keyed. If the supply capacitance is insufficient, the supply voltage dips during the transmit pulse. The receiver stages see a reduced supply voltage, which changes their operating point and sensitivity until the supply recovers. This is particularly common with switching supplies that have slow dynamic regulation.

Solution: Add substantial filter capacitance directly at the transceiver's power input connector — at least 2,000–4,700 µF of electrolytic capacitance. This local capacitance supplies the transmit current pulse instantaneously without waiting for the supply's regulation loop to respond. The supply recharges the capacitor between transmissions. If the radio has separate receiver and transmitter power inputs, add a dedicated regulated supply (such as a 7812 or 78L12 with its own filter capacitors) for the receiver section so it is isolated from transmit current demands.
