Shielding and Bonding

Ask most ham radio operators about reducing interference and they will suggest shielding the problem equipment. Put it in a metal box, they say, and the interference will be contained. The advice is not wrong, but it is incomplete in ways that lead to expensive disappointments. A metal enclosure can provide 80 dB of shielding effectiveness — or it can provide almost nothing. The difference comes down to how the shield is constructed, how cables enter it, and how the shield is bonded to the rest of the station.

Bonding — connecting all metallic equipment in the station to a common ground point — is the other half of the shielding story. Even the best-shielded equipment in the world will radiate and receive interference if it is connected to poorly bonded cables that act as antennas. The cables are usually the weak point, not the equipment chassis. Understanding shielding and bonding as an integrated system, rather than two separate problems, is what produces a quiet operating position.

The Purpose of Shielding

Electromagnetic shielding serves two purposes that are essentially mirror images of each other: preventing electromagnetic fields from entering a region (shielding from outside interference), and preventing electromagnetic fields from leaving a region (containing interference from a noise source). In practice you often want both — you want your receiver's sensitive input stage protected from external interference while your station's own noise sources do not radiate into the receive chain.

Shielding works on both electric fields (E-fields) and magnetic fields (H-fields), but by different mechanisms and with different material requirements. Electric field shielding — the Faraday cage effect — works by redistributing charge on the outer surface of a conductive enclosure in response to an external electric field. The charge redistribution creates an internal field that exactly cancels the external field. Any conductive material works as an electric field shield, and the shield does not need to be thick to be effective against electric fields at low frequencies.

Magnetic field shielding is much harder. At low frequencies (below about 1 kHz), magnetic fields penetrate most materials easily, and effective low-frequency magnetic shielding requires high-permeability materials such as mu-metal (a nickel-iron alloy). However, at RF frequencies — the range that matters for amateur radio — the skin effect transforms the situation dramatically. At RF, even ordinary copper and aluminum become effective magnetic shields because the induced eddy currents in the material create an opposing field that cancels the external magnetic field within the skin depth.

This is why simple aluminum project boxes and steel enclosures provide excellent shielding at HF and above, while they provide almost no magnetic shielding at audio frequencies. The shielding mechanism at RF is different from the shielding mechanism at audio — understanding this distinction prevents you from wasting money on exotic materials for RF work.

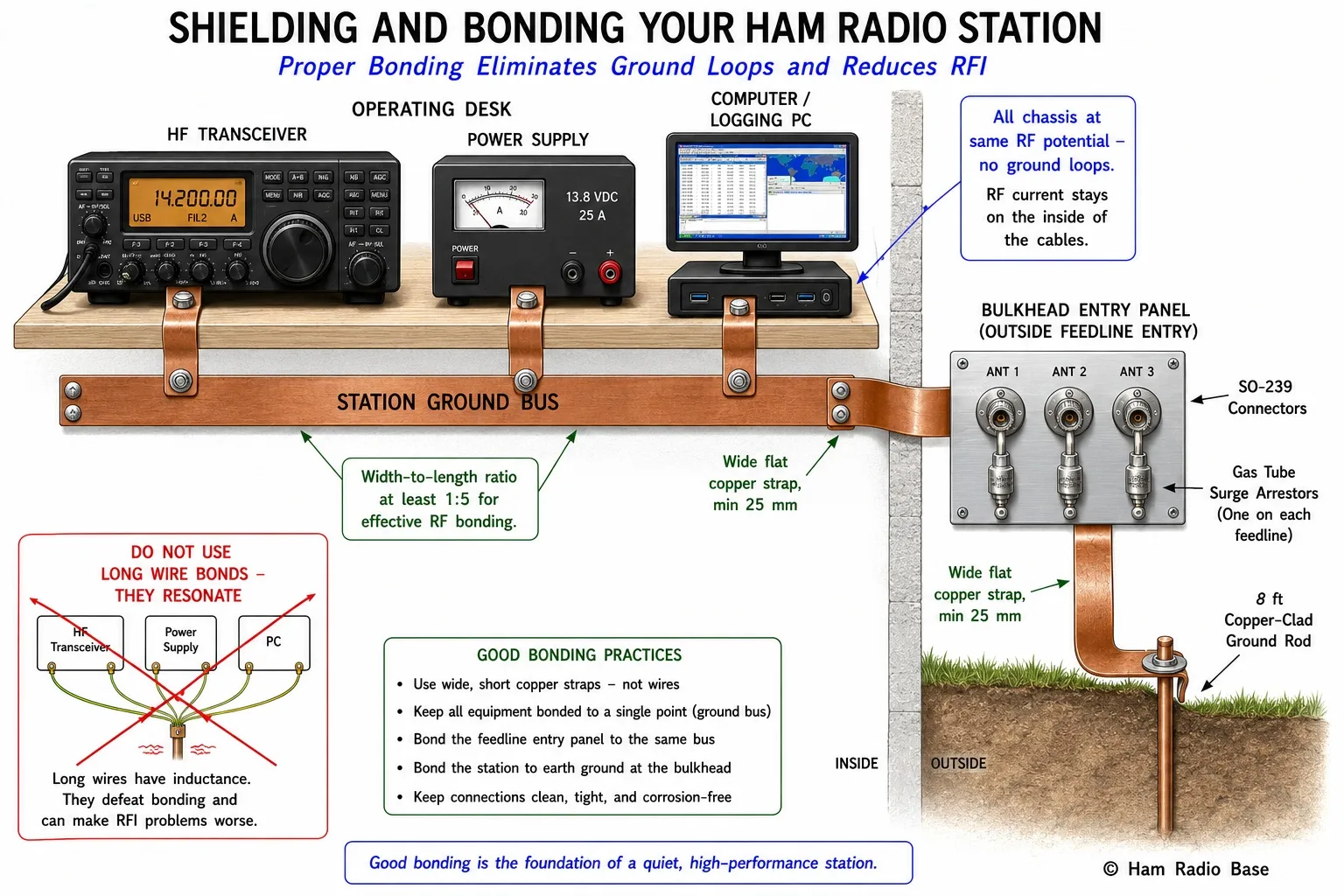

A properly bonded station: all equipment chassis are strapped to a common ground bus with short, flat copper straps. The feedline enters through a bulkhead panel bonded to the same ground point.

View Larger

How Shielding Works: Skin Depth

The skin effect is the tendency of high-frequency current to flow in a very thin surface layer of a conductor rather than through its entire cross-section. As frequency increases, the depth of this surface layer — the skin depth — decreases. The skin depth formula is:

The practical implication for ham radio operators is important: you do not need exotic materials or thick walls to achieve excellent RF shielding. A simple aluminum project box, a tin-plate enclosure, or even heavy aluminum foil provides more shielding attenuation in the HF/VHF range than any practical noise source requires — provided the enclosure has no gaps, slots, or poorly bonded seams. The shielding is limited by the imperfections in the construction, not by the material properties of the metal itself.

Apertures and Their Effect on Shielding

A perfect continuous metal enclosure provides near-infinite shielding at RF frequencies (limited only by material properties and wall thickness). A real enclosure has joints, seams, ventilation holes, panel meters, display windows, and connector openings. Each one of these is an aperture — a gap in the conducting surface — and each aperture can compromise the shielding effectiveness depending on its size relative to wavelength.

The key rule is this: a slot or gap becomes an effective radiator (or receiver) of electromagnetic energy when its length approaches half a wavelength at the frequency of interest. A slot antenna is a classic example — a half-wavelength slot in a conducting plane radiates efficiently. The same physics that makes slot antennas work makes slots in shielded enclosures dangerous to shielding performance.

The practical threshold is a slot length of λ/20 (one-twentieth of a wavelength). Below this length, the slot radiates or receives negligibly. Above this length, shielding effectiveness begins to degrade significantly. At HF frequencies (let us use 14 MHz, 20 meters as an example): λ = 300/14 ≈ 21 meters. λ/20 at 14 MHz is about 1.05 meters. Even a large slot in an HF enclosure would need to be over a meter long to cause significant problems at 14 MHz. This is why commercial radios rarely need extreme attention to HF shielding of the enclosure itself.

The situation changes radically at VHF and UHF. At 432 MHz (70 centimeters): λ = 0.694 meters, λ/20 = 35 mm (about 1.4 inches). Now a 50 mm slot in an enclosure — perhaps a gap around a panel-mount LCD screen — significantly compromises shielding. This is why shielded VHF/UHF equipment must be carefully constructed with tight joints and proper RF gaskets or conducting tape sealing seams, while the same precautions are unnecessary for HF work.

Ventilation holes are a common source of shielding compromise. A single large ventilation hole degrades shielding much more than the same total area distributed as many small holes, because the shielding-compromising factor is proportional to the longest dimension of the aperture rather than its area. A ventilation array of 3 mm holes (spaced 6 mm apart) provides good ventilation while keeping each aperture well below λ/20 at VHF. A single 50 mm ventilation hole in the same enclosure would degrade VHF shielding significantly.

Panel meters, LCD screens, and other display windows require special treatment in well-shielded enclosures. Glass and plastic are transparent to RF. A panel meter window that provides a 60 × 80 mm opening in a shielded enclosure should be covered with fine conducting mesh (wire mesh with spacing much less than λ/20) to maintain shielding while allowing visual access.

Cable Penetrations: The Weak Point

In practice, the most significant source of shielding compromise in any enclosure is not the seams or ventilation holes — it is the cables. Every cable that enters or exits a shielded enclosure is a potential antenna that bypasses the shielding entirely. An unfiltered cable can deliver interference from outside directly to the circuits inside, no matter how perfect the metal walls of the enclosure are. Similarly, an unfiltered cable can conduct noise from a circuit inside directly to the outside environment.

The principle is that shielding works by keeping electromagnetic energy outside the enclosure — but if that energy is converted to conducted energy on a wire and brought inside through a hole in the shield, the shield has been completely defeated. This is not a subtle effect. A single unfiltered cable through a shielded wall can completely negate the benefit of even a very well-constructed shield.

The correct approach for cable penetrations depends on the cable type:

Coaxial cables: The coax shield must be bonded directly to the enclosure at the entry point, not just passed through a hole. A bulkhead connector installed in the metal wall — such as an SO-239 chassis connector — bonds the coax braid to the enclosure wall at the exact point of penetration. Currents on the outside of the coax braid terminate at the wall and do not continue inside. The signal inside the coax passes through unaffected.

Multi-conductor signal cables: Use feed-through filter capacitors at the entry point. These are capacitors with one lead connected to the conductor passing through the wall and the other lead bonded to the wall itself. They shunt RF energy to the wall (ground) without affecting the DC or audio-frequency signals on the cable. For critical applications, pi-section feed-through filters (inductor between two shunt capacitors) provide even better rejection.

USB, Ethernet, and control cables: These are harder to filter because they carry high-frequency digital signals that cannot be heavily filtered without corrupting the data. For USB, a ferrite common-mode choke at the entry point provides some suppression without affecting the differential-mode data signal. For critical shielding applications, fiber optic or galvanically isolated interfaces eliminate the cable penetration problem entirely by breaking the conductive path.

Bonding: Connecting Everything Together

Bonding is the act of creating a low-impedance electrical connection between two metallic objects. In the context of a ham radio station, proper bonding connects all equipment chassis, cable shields, and structural metal to a common ground reference so that no potential difference exists between them at RF frequencies.

Why does it matter if equipment is at slightly different potentials? Because any potential difference between two connected chassis drives current through the cables connecting them. Those cables are not just data paths — they are also antennas. A current-carrying cable radiates electromagnetic energy, and that radiation couples interference into sensitive circuits along its length. Even millivolts of RF potential difference between an amplifier chassis and a radio chassis can produce significant interference on audio or control cables connecting them.

The mechanism is the same as a ground loop, which we will examine in the next section. The cure in both cases is to ensure that all equipment is at the same potential — which means providing a low-impedance connection between all chassis. If there is no potential difference to drive a current, no interfering current can flow.

A bond is only effective as a bond if its impedance is low enough at the frequencies of concern. This is where most station ground systems fail. A long piece of wire, even #12 AWG copper, has self-inductance that makes its impedance significant at HF. A wire 1 meter long has roughly 1 µH of inductance. At 14 MHz, the reactance of 1 µH is 88 ohms. A bond strap that is 88 ohms in impedance at 14 MHz is not a good RF bond — it is a poor one. Equipment "connected" to each other through this bond can still have significant RF potential differences.

The solution is wide, flat copper strap rather than wire. The inductance of a flat strap is much lower than an equivalent-resistance wire because the width distributes the current over a larger cross-section and the flat geometry has lower self-inductance than a round wire. The rule of thumb for RF bonding is a width-to-length ratio of at least 1:5 — the strap should be at least one-fifth as wide as it is long. A 2-inch wide strap that is 10 inches long satisfies this criterion (2:10 = 1:5). A 12-inch wire (no matter how thick) does not.

Ground Loops and How Bonding Prevents Them

A ground loop exists whenever there are two or more conductive paths between two pieces of equipment — typically the intended signal cable and a separate connection through building ground conductors, antenna coax shields, or other paths. The ground loop forms a closed conducting loop, and any varying magnetic field that threads through that loop will induce a voltage in it according to Faraday's law. That induced voltage drives a current through the loop, and that current flows through the signal cable as interference.

The classic example: your radio is connected to a computer by a USB cable. The radio is also connected to an antenna feedline whose shield eventually connects to a ground rod near the antenna mast. The computer is also plugged into the building's utility power circuit, which has its own ground. The antenna mast ground and the power circuit ground are separated by several meters of building structure and are at slightly different RF potentials. The loop formed by these conductors — computer, USB cable, radio, antenna feedline, feedline ground rod, building structure, power circuit ground, computer — is a ground loop that can pick up interference from magnetic fields in the building environment and deliver it as noise in your audio.

The 60 Hz hum that appears in receiver audio when you connect a computer is typically ground loop interference. The 60 Hz power frequency and its harmonics (120 Hz, 180 Hz, 240 Hz) appear because the power circuit is energized at 60 Hz and the ground loop couples some of that energy into the audio path. RF interference from broadcast stations or other strong transmitters can also appear via ground loops.

Star grounding eliminates ground loops by ensuring that there is only one path between any two pieces of equipment — through the station ground bus. If both the radio and the computer chassis are strapped to the same ground bus, there is no ground loop between them regardless of what utility power ground connections exist elsewhere in the building. Any induced loop voltage drives current only through the ground bus straps, not through the signal cables connecting equipment to each other.

RF Bonding vs Safety Ground

An important distinction that causes confusion even among experienced operators is the difference between the safety ground and the RF ground. They serve different purposes and are implemented differently, even though they are often connected to the same physical earth ground.

The safety ground is the green wire (or bare wire) in a utility power cord. Its purpose is entirely about personnel safety: it connects the equipment chassis to the power circuit's earth ground so that if a live conductor inside the equipment comes into contact with the chassis (due to a fault), the current will flow to ground through this path rather than through a person touching the chassis. The National Electrical Code (NEC) in the United States requires safety grounds on all non-double-insulated equipment. The safety ground runs wherever the power wiring runs and may travel many feet through walls and conduit before reaching the service panel ground bar.

The RF ground, or RF bond, is a low-impedance RF connection between equipment chassis, cable shields, and an earth ground reference. Its purpose is to prevent RF interference by keeping all metallic objects at the same RF potential. The RF ground must be a short, wide, direct path — it cannot travel long distances through conduit along with power wiring because the inductance of a long path makes it ineffective at RF frequencies.

These two grounds typically connect to the same earth ground system (ground rods and the utility power ground), but they are implemented separately for good reason: the utility power ground conductors, which may be 20 or 30 feet of #12 or #14 AWG wire running through the walls of a house, are excellent safety grounds but terrible RF grounds because of their high inductance at HF. For RF purposes, you need a direct, short, wide strap from each piece of equipment to a station ground bus, and from that bus to an earth ground nearby.

Common Bonding Mistakes

Understanding the correct approach makes it easier to recognize mistakes that are widespread in amateur stations:

Long wire bonds. A piece of ordinary hookup wire connecting equipment chassis looks like a bond but is not an effective one at RF. The self-inductance of the wire — which can be several microhenries for a meter-long piece — creates significant impedance at HF, leaving the two chassis at different RF potentials. Replace wire bonds with short, wide copper straps.

Daisy-chain grounding. Connecting equipment in a chain (radio grounded to power supply, power supply grounded to tuner, tuner grounded to wall) rather than in a star (all equipment independently strapped to a central bus) creates a long ground path with high inductance. Equipment at the end of the chain is effectively not grounded at RF. Use a star topology with a central bus bar.

Using the safety ground conductor as the RF bond. The green wire in the power cord connects to the chassis at a conveniently located screw, and it is tempting to assume this is the RF bond too. It is not — the safety ground runs through the power wiring, which may be 10 to 30 meters of thin wire, making it essentially useless as an RF bond. A separate, direct copper strap is required for RF bonding.

Not bonding the coax shield at the shack entry. The coaxial feedline enters the shack, and if its shield is not bonded to the station ground bus at the entry point, the entire length of feedline inside the shack is a potential noise antenna. The coax shield must connect to the station ground bus at the building entry, not just at the radio connector.

Not bonding the power supply chassis. If the radio and the power supply are connected by power leads but neither chassis is bonded to the ground bus, the power lead conductors form a small loop antenna that is highly effective at coupling noise into the station. Both chassis should be bonded to the ground bus independently.

Bonding of Antenna System Components

The bonding principles that apply inside the shack also apply to the antenna system outside. The coax feedline connects antenna to radio, and its shield runs from the antenna feedpoint to the radio chassis. That shield is a long conductive path that runs through the RF environment near your house, possibly near power lines, and certainly near noise sources in the building. Good bonding of the antenna system determines how much of that environmental noise reaches the receiver.

The most important bond in the antenna system is the connection between the feedline shield and the station ground system at the point where the feedline enters the building. This is typically implemented as a bulkhead entry panel — a metal plate mounted where the coax passes through the wall, with bulkhead coax connectors whose flanges bond the coax shield to the plate, and the plate bonded to the outdoor ground system via a short, wide copper strap.

All antenna feedlines should enter the building through this single panel. All surge protectors should also connect to this panel. The panel itself connects to the exterior ground system (ground rods at each antenna mast, all bonded together with flat copper strap). From the panel, a heavy copper strap runs inside to the station ground bus. This single path architecture — everything connecting to one panel, panel connecting to earth — is called the "single point of entry" concept, and it is the foundation of a low-noise, well-protected station.
