Single Point Ground and Surge Protection
Every conductor in your station is a potential antenna — for both noise and lightning. A well-designed ground system ties everything to a single reference point, eliminating the noise loops that plague multi-point grounded stations, while a properly installed surge protection system defends your equipment against induced transients and nearby strikes. This final lesson in the Interference and Noise module brings it all together into a coherent station design.
Single-point grounding is not just an RFI mitigation technique — it is also the safest approach for lightning protection. When every ground connection in the station shares one reference, there is no path for a lightning-induced surge to flow through your equipment between two different ground points.
- Why a single-point ground eliminates noise loops and RF potential differences
- How to design the exterior ground system: rods, straps, and bonding
- The bulkhead entry panel — the heart of the system
- Coaxial surge arrestor types: gas discharge tubes, MOVs, and quarter-wave stubs
- Line voltage surge protection: whole-house and equipment-level devices
- Static charge buildup and DC-grounding of antennas
- Operating practices during thunderstorms
- A complete station design checklist

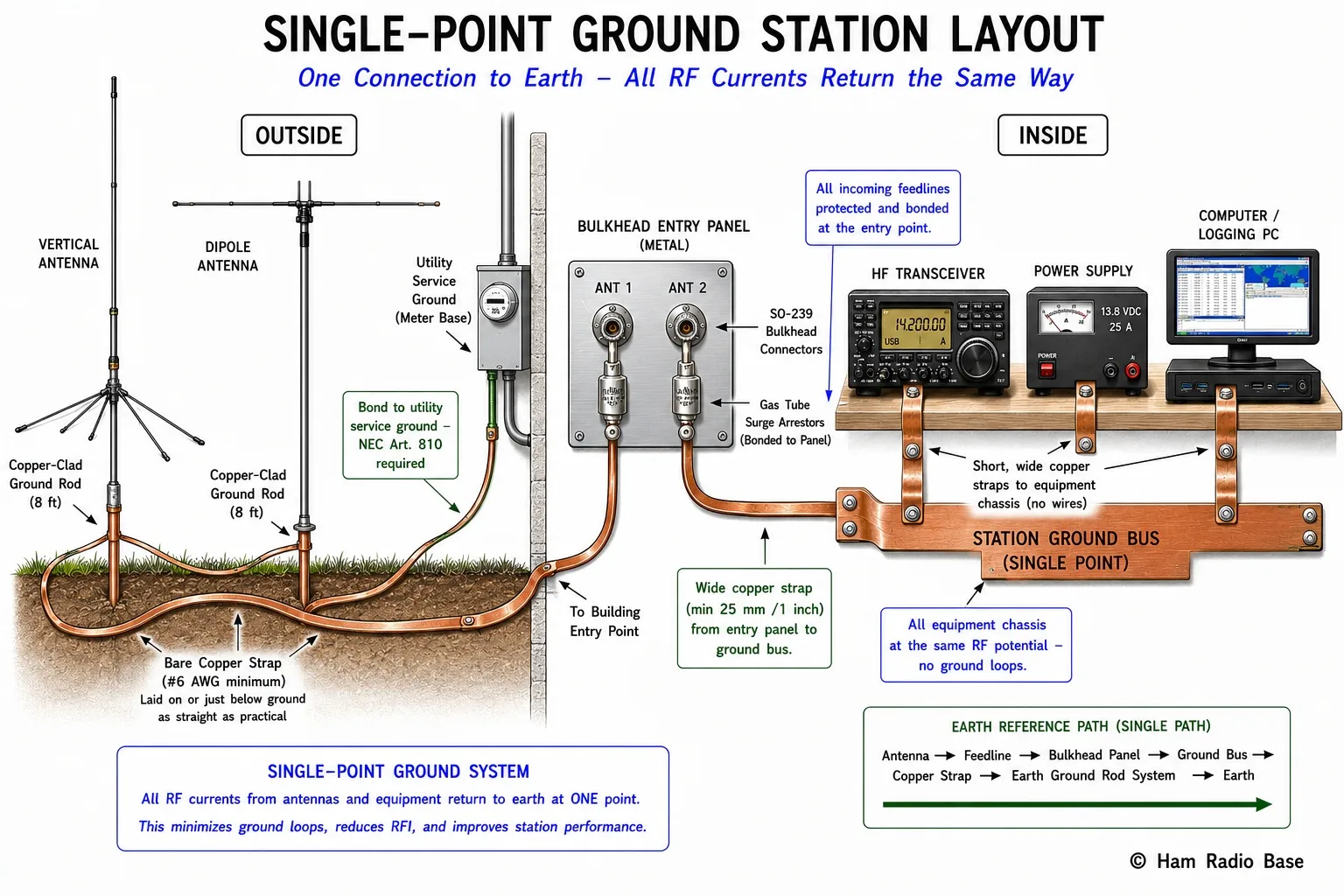

A complete single-point ground system: all antenna grounds, feedline shields, and equipment chassis share one earth reference point. No closed ground loops means no circulating noise currents.
View full sizeWhy Single-Point Ground?
In a multi-point grounded station, each piece of equipment connects to ground through the nearest available conductor — the safety ground in the power cord, a screw into the equipment rack, a coax shield bonded at one end to the radio and at the other to a separate ground rod at the antenna mast. The result is a network of closed conductive loops.
Any changing magnetic field threading through those loops — a nearby transmitter, a switching power supply, a passing car — induces a circulating current. That current flows through the loops and appears as noise at the receiver input. The noise is not entering through the antenna; it is being injected directly into the signal path via the ground wiring.
A single-point ground system breaks all those loops. Every equipment chassis, coax shield, and ground rod connects to one common bus. From that bus, a single conductor runs to the earth. There are no loops, no circulating currents, and no ground-injected noise.
Think of a star network vs a ring network. In a star, every node connects to the center only — no two nodes are connected to each other. In a ring, every node is connected to two others, creating loops. A single-point ground is a star: everything connects to the bus, and the bus connects to earth. No pair of equipment is connected to each other via a ground path, so no loop can form.
The practical benefit on receive is dramatic. Stations that switch from multi-point to single-point grounding routinely report the noise floor dropping by 10–20 dB on the lower HF bands — comparable to the improvement from adding a high-quality LNA.
The Exterior Ground System
The outer part of the system starts at the antennas and converges at the building wall entry point.
Ground rods at antenna masts
Install an 8-foot copper-clad steel ground rod at the base of each antenna mast or tower. Drive it vertically into the earth. The rod makes electrical contact with the soil, which has finite but usable conductivity.
One rod is the minimum required by the National Electrical Code (NEC Article 810) in the United States. Multiple rods bonded together are significantly better: they share the surge current and reduce total ground resistance.
Measuring ground resistance
Ground resistance can be measured with a fall-of-potential test using a dedicated ground resistance meter. A single 8-foot rod in average soil typically gives 15–50 ohms. The NEC requires the ground system to achieve no more than 25 ohms, or two rods are required.
In poor soil (dry sandy soil, rock): multiple rods, longer rods, or ground enhancement compounds (bentonite clay) may be needed. In very wet or clay soil a single rod may easily achieve under 10 ohms.
Interconnecting all ground rods
Run bare #6 AWG (or larger) copper wire, or wide flat copper strap, from each antenna ground rod to the next, and finally to the building entry point. Bury the strap just below grade or at grade — it does not need to be deep. The path should be as direct as possible.
Bond each mast ground rod to the building's utility electrical ground as well. This is required by NEC 810 and is critically important: if the two ground systems are at different potentials during a lightning event, enormous current will flow between them — through your equipment.
Two ground rods in parallel: R_parallel = (R1 × R2)/(R1 + R2) = (15 × 15)/(15 + 15) = 7.5 ohms. Adding a third identical rod: approximately 5 ohms. Each additional rod provides diminishing returns, but the combined system has far lower impedance to earth for surge dissipation.
The Bulkhead Entry Panel
The bulkhead entry panel is a metal plate (copper or aluminum, at least 3 mm thick) mounted at the point where all feedlines and cables enter the building. It serves as the single convergence point for the exterior ground system inside the shack.
What mounts on the bulkhead panel
- All coaxial feedline bulkhead connectors (SO-239 or N-type pass-through connectors)
- All coaxial surge arrestors — bonded directly to the panel
- Rotator cable connectors, if used
- Control cable entries with appropriate feedthrough filters
The coax outer conductor (shield) connects to the bulkhead panel at each connector. The panel connects to the exterior ground system via a short, wide copper strap — as short as possible. This is the "single point" — from this point, all feedline shields reference the same earth potential.
Inside the shack
From the bulkhead panel, a heavy copper strap (at least 25 mm wide, preferably 50 mm) runs to the station ground bus — a copper bar on the operating desk or equipment rack. All equipment chassis connect to this bus via short copper bond straps.
The run from the bulkhead panel to the station bus should be as short and straight as possible. Long, convoluted paths add inductance and reduce effectiveness against fast transients.
Coaxial Surge Arrestors
Even with a good ground system, a nearby lightning strike or a direct strike near the antenna system can induce enormous voltage transients on the feedlines. Surge arrestors clamp these transients before they reach the radio equipment.

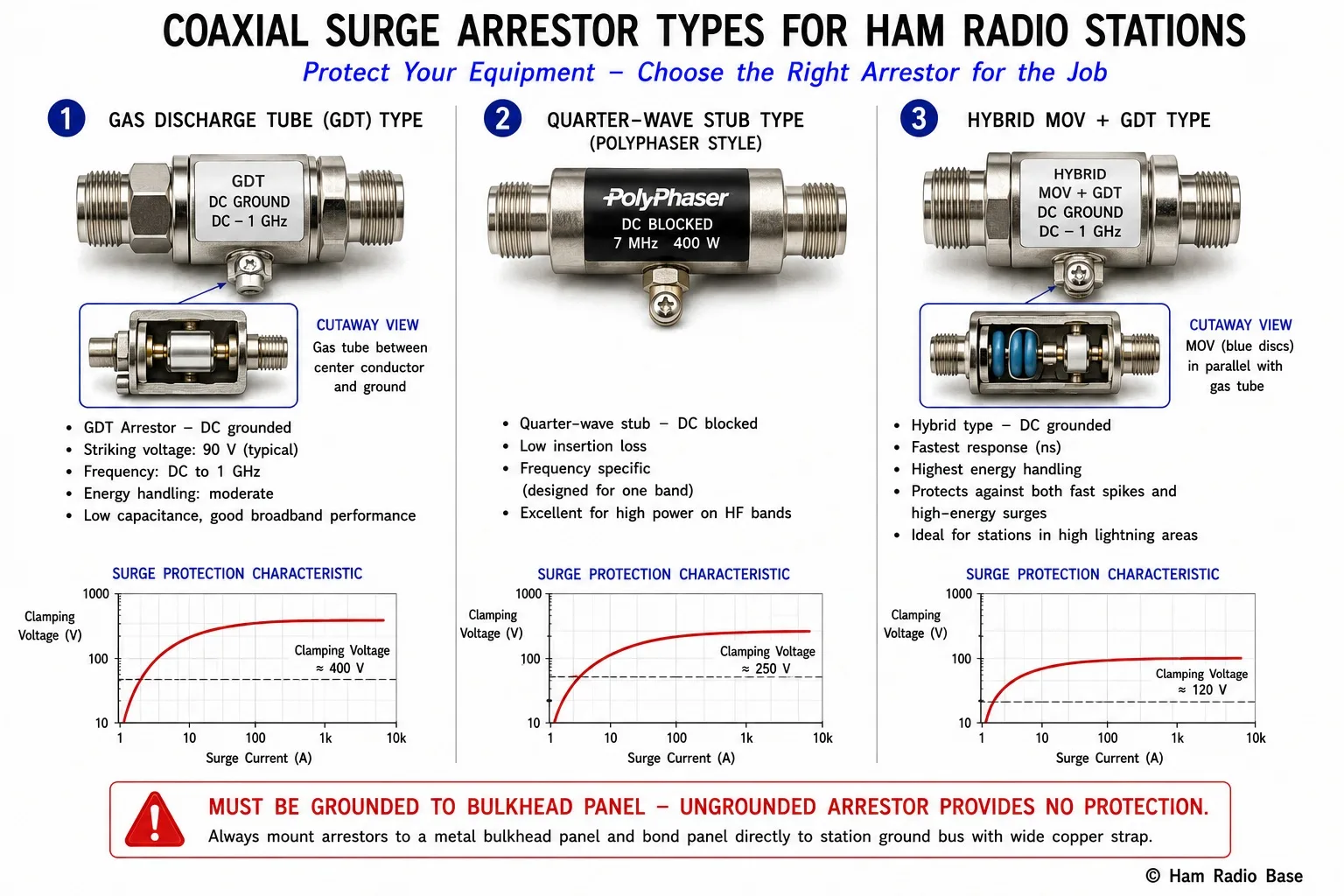

Common coaxial surge arrestor types. All must be grounded to the bulkhead panel — an ungrounded arrestor provides no protection.
View full sizeGas discharge tube (GDT) arrestors
The most common type for HF and VHF amateur use. A sealed tube containing inert gas between two electrodes. Below the striking voltage (typically 75–230 V depending on type), the tube is an open circuit and has no effect on the signal. When a surge exceeds the striking voltage, the gas ionizes and the tube conducts, shunting the surge current to ground.
GDT arrestors are DC-conductive — the center conductor is connected to ground through the tube (when not struck). This is actually useful: it provides a DC path to ground that continuously drains static charge from the antenna.
Popular models: ICE coaxial protectors, Polyphaser IS-50UX (grounding-type), Citel arrestors. All are available in SO-239 or N-connector versions.
MOV (metal oxide varistor) arrestors
Metal oxide varistors clamp surges faster than GDTs. The varistor resistance drops dramatically above the clamping voltage, diverting surge current. MOVs are typically used in parallel with GDTs in hybrid designs for better protection: the MOV handles the fast initial transient while the GDT handles the bulk energy.
Quarter-wave stub type (Polyphaser-style)
These use a quarter-wave transmission line section connected to ground. At the design frequency, the stub looks like a short circuit between the coax center conductor and ground — shunting any overvoltage. Between transient events, the stub is a high-impedance resonator that passes the RF signal with low loss.
These are DC-blocked (the center conductor is not DC-connected to ground), so they do not drain static. They are frequency-specific and more expensive, but provide excellent performance at their design frequency.
Critical installation requirement
An arrestor that is not grounded provides no protection. The surge has nowhere to go. Every arrestor must bond its ground terminal directly to the bulkhead panel. This is the most common installation error.
| Type | DC path | Speed | Frequency | Typical use |
|---|---|---|---|---|
| GDT | Yes (DC-grounded) | Moderate (µs) | DC to 1 GHz+ | HF/VHF feedlines |
| MOV | Yes | Fast (ns) | DC to 100 MHz | Hybrid protection, power lines |
| Quarter-wave stub | No (DC-blocked) | Fast | Single band optimized | VHF/UHF, critical installations |
| Hybrid GDT+MOV | Yes | Very fast | DC to 500 MHz | Best overall protection |
Line Voltage Surge Protection
Surges arrive not only through the antenna feedlines but also through the utility power wiring. A nearby lightning strike on a power distribution line can send a transient through the power system that destroys equipment connected to that circuit.
Whole-house surge protection
A whole-house surge protector (Type 1 or Type 2 SPD — Surge Protective Device) installs at the main electrical panel. It clamps surges arriving on the utility conductors before they reach any outlet in the house. This is the first and most important layer of power protection.
Cost is moderate (typically $150–$400 installed) and provides protection for all electrical equipment in the building, not just the radio room. Bond the SPD ground terminal to the main panel ground bus — which should already be bonded to the antenna system ground.
Equipment-level protection
A quality surge-suppressing power strip at the operating desk provides a second layer. Look for units with UL 1449 listing, low clamping voltage (under 400 V line-to-neutral), and significant energy capacity in joules.
Note: cheap power strips labeled "surge protection" often contain a single small MOV that saturates and fails without any indication. After absorbing a significant surge, the MOV may be destroyed and provide no further protection while the indicator light still glows. Replace surge strips after major surge events.
Uninterruptible power supplies (UPS)
A UPS provides surge suppression, power filtering, and backup power. The isolation provided by the UPS charger circuit and battery effectively decouples the radio from line voltage transients. For stations with sensitive SDR equipment, a UPS also provides clean, regulated DC via the battery — immune to line voltage hash from switching devices on the same circuit.
Static Charge and DC Grounding of Antennas
Antennas accumulate static charge from wind, precipitation, dry air, and snow. If the antenna has no path to discharge that charge, it builds until it arcs to the nearest ground — often through the receiver's sensitive front-end transistors.
DC-grounded antennas
Antennas that are DC-connected to ground continuously drain static charge and are inherently protected:
- Vertical antennas with a direct connection from element to ground through the feed network
- Antennas fed through a 1:1 transformer where one winding end connects to ground
- Folded dipoles where the folded element provides a DC path
Floating-center antennas
A standard center-fed dipole connected to coax has its center conductor (and both elements) electrically floating with respect to DC. Static charge has nowhere to drain and builds until a discharge occurs.
The fix is simple: add a DC ground path from the antenna center to ground, without disturbing the RF signal. An RF choke (high-inductance ferrite choke, typically 100 µH or more) from center conductor to ground provides a low-impedance DC path while presenting high impedance to RF signals — so it does not affect antenna tuning or loading.
Wind-driven static on a dipole in dry winter conditions can easily reach hundreds of volts before discharging. The GDT-type surge arrestor also provides static drain if it is a DC-grounded type — yet another reason to use DC-grounded GDT arrestors rather than DC-blocked stub types at the feedline entry.
Operating During Thunderstorms
No surge protection system protects against a direct lightning strike to the antenna. A direct strike delivers tens of kiloamperes and hundreds of megajoules — far beyond what any practical arrestor can absorb. The only reliable protection against a direct strike is disconnection.
Best practice
- Monitor weather forecasts and disconnect antennas before the storm arrives — not when you hear thunder
- Physically disconnect coax connectors from the radio and move them away from equipment
- Leave the disconnected coax ends near the grounded bulkhead panel, not floating near equipment
- Do not touch antennas or feedlines during active lightning
- A coaxial switch that grounds all antenna inputs in the "standby" position provides convenient protection for installations where physical disconnection is impractical
The most expensive transceiver is worth less than the life of the operator. Equipment can be replaced and is covered by insurance. Lightning safety is not optional.
Station Design Checklist
Use this checklist when building or auditing your ground and surge protection system:
| Area | Item | Standard |
|---|---|---|
| Exterior | Ground rod at each antenna mast | 8-foot copper-clad steel, driven vertically |
| All ground rods interconnected | Bare #6 AWG or wider copper strap, bonded together | |
| Antenna system bonded to utility electrical ground | NEC Article 810 required | |
| Bulkhead panel | Metal entry panel at wall | Copper or aluminum, ≥3 mm thick |
| All coax connectors mount to panel | Shields bonded to panel at each connector | |
| Surge arrestors on every feedline | GDT type, grounded to panel | |
| Short strap from panel to exterior ground | Wide flat copper, as short as possible | |
| Station ground bus | Copper bus bar at operating position | All equipment chassis bonded to bus |
| Wide copper strap from panel to bus | Straight run, ≥25 mm wide | |
| Bond straps, not wires, between chassis | Width-to-length ratio ≥ 1:5 | |
| Power protection | Whole-house SPD at main electrical panel | UL 1449 Type 1 or Type 2 |
| Equipment-level surge strip at desk | UL 1449 listed, low clamping voltage | |
| Antennas | DC-grounded antennas where possible | Continuous static drain path to earth |
| RF choke to ground on floating-center antennas | High-inductance ferrite choke, center-to-ground | |
| Operations | Disconnect all antennas during thunderstorms | Physical disconnection before storm arrives |
Planning Exercise: Design Your Single-Point Ground System
This experiment is a practical design exercise rather than a bench measurement. Use it to assess your current installation or plan a new one.
- Floor plan sketch of your operating location (approximate, hand-drawn is fine)
- Sketch or knowledge of antenna mast locations relative to the building
- List of current equipment and how it is grounded
- Draw the floor plan showing the exterior wall where feedlines enter, and the operating desk position.
- Mark where each antenna mast and ground rod is (or will be) located.
- Draw the exterior ground strap path from each rod to the building entry point.
- Mark the bulkhead panel location on the exterior wall.
- Draw the strap from the bulkhead panel to the station ground bus inside.
- Draw short bond straps from each equipment chassis to the station bus.
- Identify any remaining multi-point ground connections (separate power cable safety grounds, rack ground, etc.) — these are ground loop risks.
- Identify all cable entries that bypass the bulkhead panel (USB, audio, Ethernet) — these need ferrite chokes.
- List any surge arrestors not grounded to the bulkhead panel — these need to be relocated.
Frequently Asked Questions
Is a single ground rod adequate for lightning protection?
A single 8-foot rod meets the NEC minimum but is rarely optimal. Multiple rods bonded together significantly lower the ground resistance and improve surge energy dissipation into the earth. If a single rod gives more than 25 ohms (measured with a ground resistance meter), NEC 810 requires a second rod to be added. For best protection, aim for a measured system resistance under 10 ohms. Multiple rods spaced at least one rod-length apart provide roughly additive improvement.
My shack is on the second floor — how do I implement single-point ground?
Run a heavy copper strap from the station ground bus directly through the wall, down the exterior of the building, and to the exterior ground system. Keep the strap as short and straight as possible — every unnecessary bend adds inductance. Do not route the strap through internal walls, along electrical conduit, or through structural steel. The ground strap's job is to provide a low-impedance, low-inductance path at RF and surge frequencies, and that requires the direct path even if it is longer in total physical distance than an indirect route through the building.
My coax surge arrestors are installed and grounded — am I fully protected from lightning?
Surge arrestors protect against induced surges from nearby strikes and from conducted energy arriving along the feedline from a distant strike. They cannot protect against a direct strike to the antenna — the energy of a direct strike is many orders of magnitude greater than any practical arrestor can absorb. The arrestors are important and worthwhile, but they do not replace the practice of physically disconnecting antennas before an approaching thunderstorm. Think of the arrestors as the last line of defense for when you cannot disconnect in time, not as a substitute for disconnection.
Do I need to bond my antenna system ground to my house electrical ground?
Yes — this is required by NEC Article 810 in the United States and is critically important for safety. If the two ground systems are at different potentials during a nearby lightning event, the potential difference drives enormous current through any conductive path between them. That path is your equipment, the coax braid, the control cables — everything that spans from one ground system to the other. Bonding prevents this voltage difference from developing in the first place. Use a heavy conductor (#4 AWG or larger) to bond the antenna ground rod system directly to the house electrical ground, as close as possible to the point where the utility service enters the building.
