Sky Wave and the Ionosphere

Ham radio operators routinely talk to stations on the other side of the planet using 100 watts and a simple wire antenna. This is not magic — it is physics. The ionosphere, a region of the upper atmosphere stretching from about 60 to over 1,000 km altitude, acts as a natural radio mirror for frequencies in the HF range (3–30 MHz). Without the ionosphere, long-distance HF communication would be impossible. With it, a properly chosen frequency at the right time of day can provide astonishingly good worldwide coverage with modest station equipment.

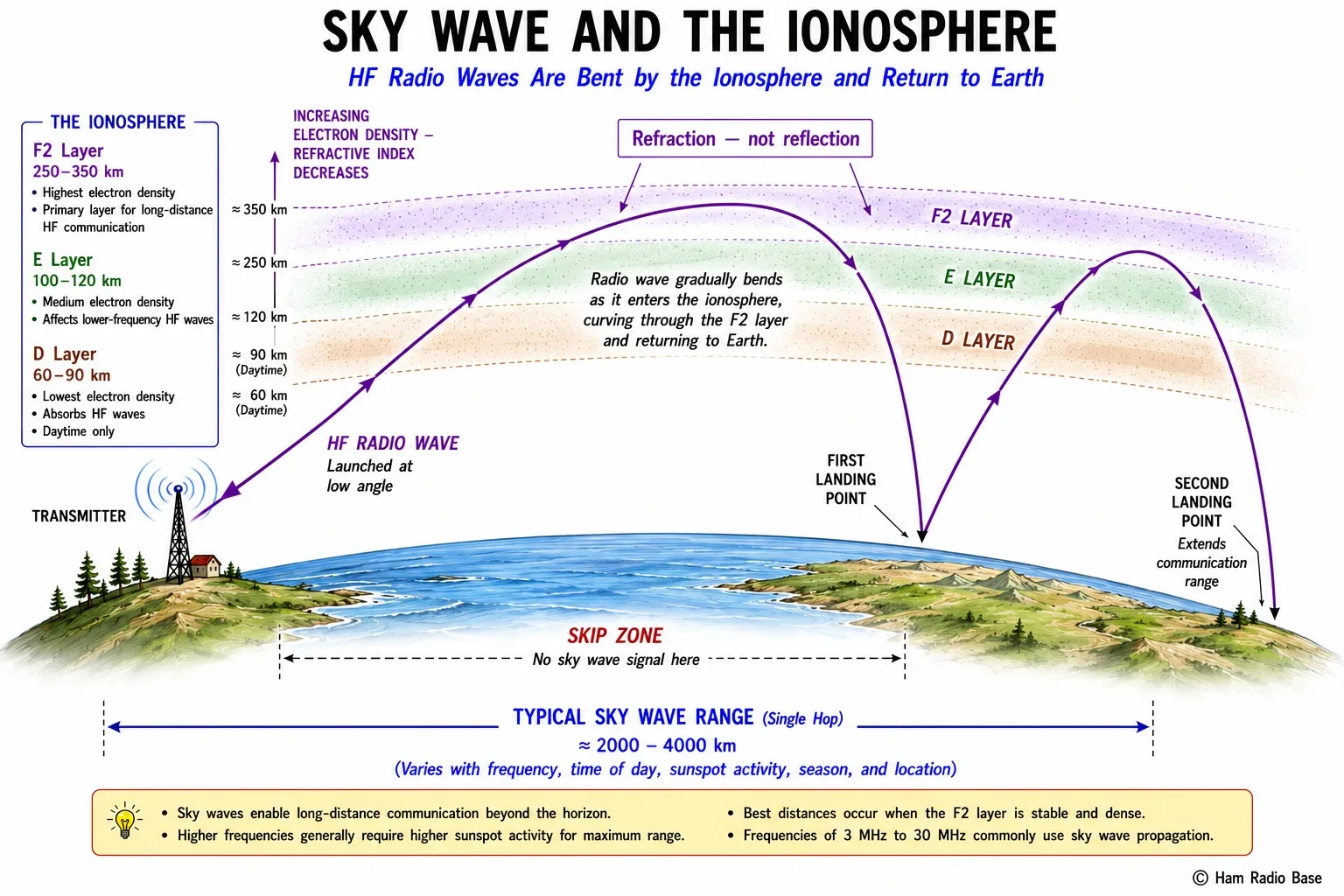

Sky wave propagation: an HF signal leaves the antenna at a low angle, enters the ionosphere, is gradually refracted (bent) back toward Earth by increasing electron density, and returns 2,000–4,000 km away. Multiple hops extend the range to any point on Earth.

View Larger

How the Ionosphere Forms

The ionosphere exists because the Sun radiates enormous amounts of ultraviolet light and X-rays. When these high-energy photons strike gas molecules in the upper atmosphere — primarily oxygen (O₂), atomic oxygen (O), and nitrogen (N₂) — they strip electrons from the molecules, creating free electrons and positive ions. This process is called photoionization.

The result is that the upper atmosphere above about 60 km altitude contains a significant population of free electrons — electrons that are not bound to any particular atom and are free to move in response to an electric field. It is these free electrons that interact with radio waves and cause the refraction that makes sky wave propagation possible.

The density of free electrons varies with altitude. Near the bottom of the ionosphere (60–90 km), there are relatively few free electrons. Higher up, electron density increases, reaches a maximum, then decreases again as the atmosphere becomes too thin for significant ionization. The electron density also varies enormously with time of day (maximum at solar noon, minimum at night), season (summer generally produces more ionization in the Northern Hemisphere), and the 11-year solar cycle (maximum solar activity brings higher electron densities and higher maximum usable frequencies).

At night, the Sun no longer provides ionizing radiation. Some ionization persists because the recombination process (electrons recombining with ions) takes time — hours, not seconds. Higher-altitude layers where the air is very thin have slower recombination and persist longer through the night. Lower-altitude layers where the air is denser recombine quickly and essentially disappear at night. This day/night difference in ionospheric structure is the key to understanding why HF propagation changes so dramatically between day and night.

How the Ionosphere Refracts Radio Waves

A radio wave entering the ionosphere experiences a medium with a refractive index less than 1 (compared to the vacuum of space or the lower atmosphere where n ≈ 1). The refractive index decreases as electron density increases — which in the ionosphere means it decreases as you go higher into the layer (up to the electron density maximum).

When a wave travels through a medium where the refractive index decreases continuously, Snell's Law of refraction causes the wave to bend. This bending is not a sudden reflection like light off a mirror — it is a gradual continuous curve, as if the wave is traveling through a series of infinitely thin layers each slightly less dense than the last. From a distance, the net effect looks like a reflection, but the physics is refraction.

The critical insight is that the higher the radio wave's frequency, the higher the electron density required to refract it back to Earth. If the frequency is too high, the wave passes through the ionosphere and continues into space without being returned. This maximum frequency that can be returned from a layer is the Maximum Usable Frequency (MUF) for that path — covered in depth in Lesson M15E.

Critical Frequency

The critical frequency (foF2 for the F2 layer, foE for the E layer, etc.) is the maximum frequency that will be returned by a particular ionospheric layer when the wave is transmitted vertically — straight up toward the zenith. Any frequency at or below the critical frequency will be refracted back vertically. Any frequency above the critical frequency will pass through the layer and continue upward into space or into the next higher layer.

The critical frequency is measured by ionosondes — radio instruments that transmit pulses straight up at increasing frequencies and record which frequencies are returned and at what delay. Ionosonde data is published in real time by many observatories worldwide and is available to amateur operators through propagation forecast websites. The critical frequency directly determines the MUF for any given path.

Critical frequency varies throughout the day: it is lowest in the hours before dawn (minimum electron density), rises through the morning as solar ionization builds, peaks around solar noon (approximately), and then falls through the afternoon and evening. It varies seasonally: summer tends to produce higher F2 critical frequencies at mid-latitudes, though the relationship is complex. And it varies with the solar cycle: at solar maximum, F2 critical frequencies routinely reach 15–20 MHz or higher, opening the upper HF bands (10–12 meters) for worldwide DX. At solar minimum, the critical frequency may fall to 5–8 MHz, and 10–15 meters may be essentially closed for weeks.

Angle of Incidence and Return Point

When a radio wave enters the ionosphere at an oblique angle (not straight up), the geometry of refraction is different from the vertical case. The wave can be returned to Earth at a much higher frequency than the vertical critical frequency, because the wave spends more time in the ionosphere at a shallower angle, accumulating more bending. The relationship is described by the secant law:

This means that for a wave leaving the antenna at a low elevation angle (high θ from vertical), the MUF for that path can be 3–4 times the vertical critical frequency. If the F2 critical frequency is 7 MHz, a path using a low-angle wave (75° from vertical) can support communications up to 7 × 3.86 = 27 MHz. This is why the higher HF bands (15, 12, 10 meters) open for long-distance DX paths at frequencies far above the measured critical frequency — the low-angle waves on those long paths use the secant law multiplier to support much higher frequencies.

The return point on Earth depends on the angle of incidence and the height of the reflecting layer. A low-angle wave (pointed close to the horizon) returns much farther from the transmitter than a high-angle wave. For a typical F2 layer at 300 km altitude:

• Wave leaving at 10° above horizon: returns about 3,000–4,000 km away
• Wave leaving at 20° above horizon: returns about 2,000 km away
• Wave leaving at 45° above horizon: returns about 500–800 km away
• Wave leaving at 90° (straight up — NVIS): returns directly overhead, range near zero

Single-Hop Propagation

In single-hop propagation, the signal leaves the transmitting antenna, travels upward into the ionosphere, is refracted back down to Earth, and arrives at the receiving antenna in one complete arc. Single-hop distances depend on the height of the reflecting layer and the angle of departure, but typical single-hop paths on the F2 layer cover 2,000–4,000 km.

Single-hop propagation is the simplest and most reliable form of sky wave contact. With good antenna pointing (which means low angle of radiation — beams and verticals are better than NVIS horizontal dipoles for this), a 100-watt station can often achieve solid single-hop contacts across an ocean or continent with excellent signal quality. The signal travels through a defined arc with predictable path characteristics.

Multi-Hop Propagation

For distances greater than a single hop can cover — roughly beyond 4,000 km — multiple reflections are needed. The signal bounces off the ionosphere, returns to Earth, reflects off the ground (or ocean surface), goes back up to the ionosphere, and makes another arc toward the destination. This is multi-hop propagation.

Each ground reflection introduces some additional loss — the Earth is not a perfect reflector. Oceans (seawater) are very good reflectors and add relatively little loss. Land surfaces are poorer reflectors. A trans-Pacific path from California to Japan might use two or three F2-layer hops over the Pacific with ocean reflections — this path can support excellent signals despite covering 8,500 km.

Multi-hop paths are also more susceptible to disturbance by ionospheric irregularities, because the signal must traverse more of the ionosphere. A geomagnetic storm that disturbs the F2 layer may degrade a three-hop transpacific path while leaving a single-hop transatlantic path relatively intact.

In principle, any point on Earth can be reached via HF sky wave using enough hops. Operators in Antarctica — very challenging to reach — are regularly contacted by stations around the world using multiple long hops through the high-latitude ionosphere. Even during geomagnetic disturbances that affect lower latitudes, polar stations may still be workable via paths that avoid the disturbed auroral zones.

NVIS — Near-Vertical Incidence Sky Wave

Near-vertical incidence sky wave (NVIS) is a deliberately chosen sky wave geometry where the signal is transmitted at a very high angle — nearly straight up — so that it returns very close to the transmitting station. NVIS provides reliable coverage from roughly 0 to 500 km, filling the gap between ground wave (under 100 km) and normal long-distance sky wave (over 500 km).

NVIS is widely used for regional emergency communications, military field operations, and short-range HF nets in rugged terrain where line-of-sight communication is impossible. The key advantage over line-of-sight VHF communication is that NVIS provides coverage over mountains, through valleys, and across rural areas without requiring relays or repeaters.

For NVIS, you want a horizontal dipole mounted as low as possible — typically λ/8 to λ/4 above ground. This produces a radiation pattern with maximum energy going nearly straight up. The frequency must be below the critical frequency for the ionospheric layer overhead (usually the F layer), which typically means 3–10 MHz depending on conditions. 40 meters (7 MHz) is an excellent NVIS band during the day when the F2 critical frequency is above 7 MHz. 80 meters (3.5 MHz) is often the preferred NVIS band when conditions are marginal.

Polarization and Faraday Rotation

As a radio wave passes through the ionosphere, the presence of the Earth's magnetic field causes the polarization to rotate — a phenomenon called Faraday rotation. The amount of rotation depends on the electron density, the frequency, and the geometry of the path relative to the Earth's magnetic field. At HF frequencies, the total Faraday rotation over a one-way ionospheric path can be many complete rotations (thousands of degrees).

The practical consequence is that the polarization of an HF sky wave signal arriving at a receiving antenna is essentially random and constantly changing — it bears no consistent relationship to the polarization of the transmitting antenna. Whether you transmit vertically or horizontally polarized, the received signal has a random polarization that rotates with time as the ionosphere changes.

This means polarization matching is irrelevant for HF sky wave contacts. You cannot gain any advantage by matching your polarization to the transmitting station on a sky wave path. You also lose no signal by mismatching. Polarization fading — rapid signal variations caused by the polarization rotating through your antenna's sensitive axis — is one contributor to the fading (QSB) commonly heard on HF bands, but this fading occurs regardless of antenna choice.
