Ionospheric Layers

The ionosphere is not a single uniform layer — it is a complex, vertically stratified structure with four distinct regions, each formed by different ionizing processes at different altitudes and each behaving differently across the day/night cycle, season, and solar activity level. These layers — the D, E, F1, and F2 layers — each play a specific role in HF propagation. The D layer absorbs signals and limits daytime low-band operation. The E layer supports some short-range propagation. The F1 layer exists only in daytime. The F2 layer is the workhorse of worldwide DX communication, persisting through the night and providing the highest critical frequencies.

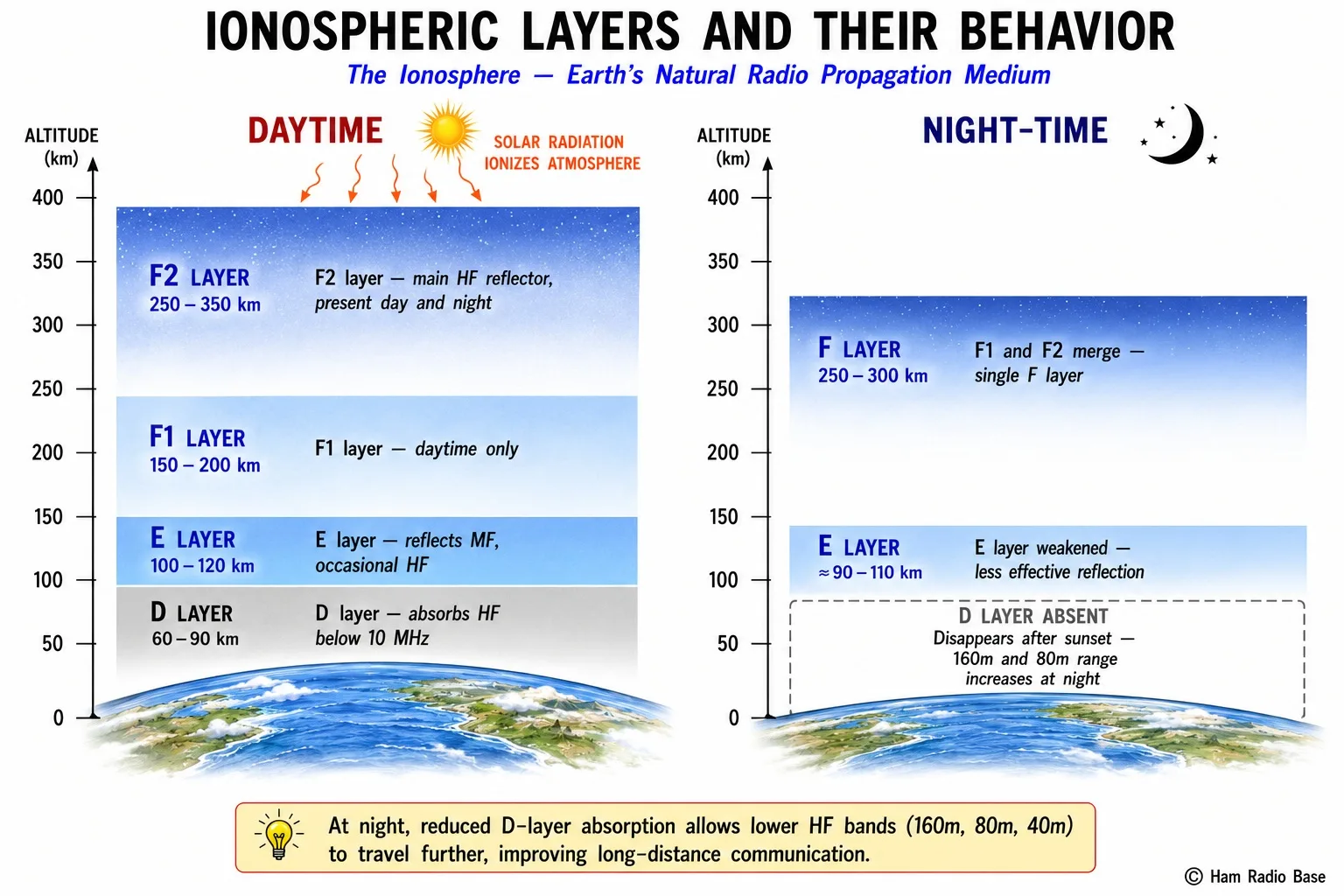

The ionospheric layer structure during daytime (left) and night-time (right). The D layer disappears at night; the F1 and F2 layers merge into a single F layer. Only the F2 layer persists strongly through the night.

View Larger

Layer Overview

The D Layer — The Absorber

The D layer forms at altitudes of 60–90 km during daylight hours, when solar radiation (particularly hard UV and X-rays) ionizes the relatively dense lower atmosphere. At these altitudes, the atmospheric density is high enough that free electrons recombine with ions very rapidly — within seconds to minutes. This means the D layer exists only while the Sun is above the horizon and disappears quickly after sunset.

The D layer is a double-edged sword for ham operators. On one hand, it absorbs signals — particularly at lower HF frequencies (below about 10 MHz). The absorption is inversely proportional to frequency squared: doubling the frequency reduces D-layer absorption by a factor of four. This means 160, 80, and 40 meters suffer severe D-layer absorption during the day, making long-distance sky wave contacts on these bands nearly impossible in daylight hours. By contrast, 10, 15, and 20 meters pass through the D layer with relatively little absorption, making them excellent daytime DX bands.

On the other hand, the D layer's daytime absorption prevents the problem of "skip interference" on the lower bands during the day. On 40 meters in the evening, you simultaneously hear local stations via ground wave AND distant stations from thousands of kilometers away via sky wave (now that the D layer has gone). This combination can be both useful (reaching both local and distant stations) and chaotic (distant stations interfering with local nets).

Solar flares produce intense bursts of X-ray radiation that can dramatically increase D-layer absorption within minutes, creating a Sudden Ionospheric Disturbance (SID) — also called a radio blackout. During an X-class flare, HF communication on the sunlit side of Earth can be completely blacked out for minutes to hours. Frequencies below 10 MHz are most severely affected. After the flare, the D layer gradually returns to its normal state as the excess ionization recombines.

The E Layer

The E layer exists at altitudes of 100–120 km. It is maintained primarily by solar soft X-rays and UV radiation in a wavelength range that does not reach the D layer. Like the D layer, the E layer is predominantly a daytime phenomenon, though it is much weaker than the D layer in its absorption role (it actually supports propagation rather than absorbing signals).

The E layer's peak electron density during daytime can support propagation paths of roughly 1,000–2,500 km at frequencies up to about 10–20 MHz under typical conditions. E-layer propagation tends to produce "short skip" — contacts at distances shorter than a typical F2-layer hop but longer than ground wave. A daytime E-layer hop on 20 meters might connect stations 1,000–1,500 km apart who cannot hear each other via ground wave but are too close for the typical F2 hop to land on each other.

The E layer also hosts the phenomenon of sporadic E (Es), discussed in detail in Lesson M15H. Sporadic E is not ordinary E-layer propagation — it is caused by intense, localized patches of ionization in the E layer that appear suddenly and unpredictably, enabling VHF propagation (6 meters, 10 meters) over distances of 1,000–3,000 km.

The F1 Layer

The F1 layer exists at approximately 150–200 km altitude and is present only during daytime, most prominently in summer months at mid-latitudes. It is produced by a specific wavelength range of solar UV radiation that reaches this altitude band. The F1 layer is not particularly important for amateur radio by itself — its critical frequency is typically lower than the F2 layer, and during the day F1 and F2 together are treated as a single combined propagation medium.

At night, the F1 layer recombines fairly quickly (within a couple of hours of sunset) and merges with the lower boundary of the F2 layer. The F1/F2 merger at night creates a single F layer (not designated F1 or F2 separately) with properties intermediate between the two daytime layers.

For practical operating purposes, you can think of F1 as a minor daytime enhancement to the overall F-layer propagation picture. It is mentioned in propagation reports and ionosonde data but does not require separate operating strategy.

The F2 Layer — The DX Layer

The F2 layer, at altitudes of 250–350 km, is the most important layer for HF amateur radio. It has the highest electron density of all ionospheric layers and therefore the highest critical frequency. Its altitude — higher than any other layer — means that a wave refracted back from the F2 layer returns to Earth farther away than from any other layer, providing the long single-hop distances (2,000–4,000 km) that make worldwide DX communication possible.

Most critically: the F2 layer persists through the night. Unlike the D, E, and F1 layers, which require continuous daytime solar radiation to maintain their ionization, the F2 layer electron density at high altitude is maintained by photoionization that proceeds slowly and recombination that is also slow (hours, not minutes). The result is that the F2 layer exists 24 hours a day, though it weakens significantly through the night and early morning.

The F2 layer is produced primarily by extreme ultraviolet (EUV) radiation from the Sun. Its critical frequency (foF2) varies enormously with solar activity:

• Solar minimum: foF2 typically 5–10 MHz. The MUF for long-haul paths may fall below 14 MHz, closing 20 meters and above for periods of days or weeks.
• Solar maximum: foF2 can reach 15–25 MHz. The MUF for long-haul paths may reach 30–50 MHz, opening 10 and 12 meters for consistent worldwide DX and occasionally opening 6 meters to F2 propagation.

The F2 layer also shows complex anomalies not seen in other layers. The "equatorial anomaly" (also called the Appleton anomaly) produces two bands of enhanced electron density on either side of the magnetic equator rather than a single peak at the equator itself. "Seasonal anomaly" causes the F2 layer to sometimes be stronger in winter than summer at mid-latitudes, contrary to simple solar-radiation expectations. These anomalies create propagation "enhancement" windows that experienced DX operators learn to exploit.

Day/Night Changes

The ionosphere undergoes a dramatic transformation at sunrise and sunset, and understanding this cycle is fundamental to choosing the right HF band at any time of day.

Sunrise to mid-morning: The D layer builds rapidly as solar radiation increases, absorbing signal on the lower bands (160, 80, 40 m) and shutting down any overnight sky wave propagation that was occurring. The F2 layer, already present from the previous day, is somewhat enhanced. The E layer begins to build. Good time for 20, 17, and 15 meters as the MUF rises.

Midday: D-layer absorption is at its peak — worst time for lower-band DX. F2 layer is building toward its daily maximum (which typically occurs a few hours before local noon to a few hours after, depending on latitude and season). 10, 12, 15, 17, and 20 meters can all be open to distant paths simultaneously at solar maximum.

Afternoon to sunset: The D layer begins to thin as solar elevation decreases. Lower bands progressively "wake up" as D-layer absorption falls. Sunset is often an excellent time for long DX paths on 40 and 80 meters — the D layer is gone, the F2 layer is still strong from afternoon ionization.

Night: D and E layers effectively gone. F1 disappears. Single F layer persists (weaker than daytime F2). Lower HF bands (160, 80, 40 m) open fully to sky wave. Higher bands (15, 10 m) often close as MUF drops. The gray line — the terminator between day and night — produces a brief propagation enhancement around sunrise and sunset times (more on this in the skip distance lesson).

Pre-dawn: F layer at its weakest. Often the quietest time on HF. Lowest MUF of the day. 80 and 160 meters still have sky wave, but higher bands may be closed even to moderate-distance paths.

Solar Cycle Effects

The Sun follows an approximately 11-year cycle of activity, oscillating between solar minimum (few sunspots, weak solar radiation) and solar maximum (many sunspots, intense solar radiation). This cycle profoundly affects ionospheric propagation.

At solar maximum:

• F2 critical frequency (foF2) is high — typically 15–25 MHz at mid-latitudes
• MUF for long paths regularly exceeds 30 MHz — 10 and 12 meters open consistently
• 6 meters occasionally opens to F2 propagation worldwide — a rare and exciting event
• More frequent solar flares also mean more frequent radio blackouts and geomagnetic storms
• Aurora is more frequent and more extensive — can disrupt propagation on polar paths

At solar minimum:

• foF2 drops to 5–10 MHz — the MUF for long paths may fall below 14 MHz for days or weeks
• 10 and 12 meters may be essentially closed to DX for months at a time
• 20 and 40 meters become the primary DX bands
• Fewer flares and geomagnetic storms — what propagation there is tends to be more stable
• 160 and 80 meters improve because noise from geomagnetic disturbances is lower

Solar Cycle 25 began in December 2019 and reached its predicted maximum around 2024–2025. Amateur operators who started during the solar minimum of 2019–2020 and then experienced the opening of 10 meters as the cycle peaked had a dramatic demonstration of the solar cycle effect on HF propagation.

Solar and Geomagnetic Indices

Three indices are commonly used by amateur operators to quickly assess current and expected HF propagation conditions:

Solar Flux Index (SFI)

The Solar Flux Index is measured by a radio telescope at 10.7 cm wavelength (2.8 GHz) and reported daily by the National Research Council of Canada. It is a proxy measure of the Sun's ionizing radiation output. Higher SFI = more ionization = higher MUF = better high-band conditions.

• SFI < 80: Solar minimum-like. 10, 12, 15 m often closed for DX. Best bands: 20, 40 m.
• SFI 80–120: Moderate conditions. 15 and 17 m open for DX. 10 m may open in peaks.
• SFI 120–200: Solar maximum-like. All bands can be open simultaneously. 10 m excellent.
• SFI > 200: Very high activity (rare). Exceptional 10 m DX; possible 6 m F2 openings.

A Index

The A index measures the daily average of the geomagnetic field disturbance. It ranges from 0 (quiet) to 400 (extreme disturbance). Lower is better for HF propagation.

• A 0–7: Quiet. Excellent HF conditions. Best time for DX.
• A 8–15: Unsettled. Minor degradation, especially on polar paths.
• A 16–29: Active. Noticeable degradation on higher bands and polar paths.
• A 30+: Storm conditions. Major HF disruption, especially above 20 MHz.

K Index

The K index is updated every 3 hours and measures short-term geomagnetic activity on a scale of 0–9. It is more sensitive to sudden events (solar flares, coronal mass ejections arriving at Earth) than the A index.

• K 0–1: Very quiet. Best HF propagation.
• K 2–3: Quiet to unsettled. Minor effects on polar paths.
• K 4: Active. Polar path degradation; some high-latitude absorption.
• K 5+: Storm. 10/15 m propagation disrupted; polar blackout. 40/80 m still usable.
