Soldering Technique

Soldering looks deceptively simple: heat metal, apply solder, done. In practice the difference between a reliable joint and a defective one comes down to a precise sequence of steps carried out in the right order at the right temperature. A joint can look perfectly acceptable from the outside and still be mechanically weak or electrically intermittent if the technique was wrong. In ham radio equipment — where joints are exposed to vibration, temperature cycling, and RF currents — that marginal joint is the one that fails at the worst possible moment, usually mid-contest or during an emergency net.

This lesson teaches you correct soldering technique from the ground up: why each step exists, what it accomplishes at the metallurgical level, and how to recognize when each step has been done correctly before moving on to the next. Read this lesson once in full, then keep it open beside you while you practice your first ten joints.

Why Technique Matters — Metallurgy vs Electrical Contact

Think of soldering as making a tiny metal casting in place on a circuit board. The goal is not merely to bridge two pieces of metal with a conducting material — it is to create a true metallurgical bond where the solder alloy dissolves slightly into the surface of both the pad and the component lead and then re-solidifies as a single fused structure. This bond is simultaneously mechanical (it physically holds the component to the board) and electrical (it provides a low-resistance current path with no interfaces to corrode).

This is fundamentally different from simply pressing two metal surfaces together. A perfectly clean contact between two metals still has microscopic air gaps, oxide layers, and contact resistance that changes with temperature, vibration, and time. A soldered joint, when done correctly, eliminates all of those failure modes by creating a continuous metallic structure from pad surface through the solder fillet and into the component lead.

The key requirement for this metallurgical bond to form is that both surfaces must be clean, hot, and in contact with molten solder at the same time. If the pad is at the right temperature but the lead is cold, the solder will wet the pad but not the lead, leaving a fractured boundary. If the solder is applied to the iron tip rather than to the joint itself, the flux in the solder burns off on the iron before reaching the joint, leaving unprotected oxide layers that prevent bonding. If the joint is moved while the solder is cooling from liquid to solid, the crystalline structure of the alloy is disturbed and the resulting fillet is mechanically weak.

Every step in the correct technique exists to satisfy one or more of these metallurgical requirements. Once you understand why each step is necessary, the sequence becomes logical rather than procedural, and you will naturally recognize when something has gone wrong before you even look at the finished joint.

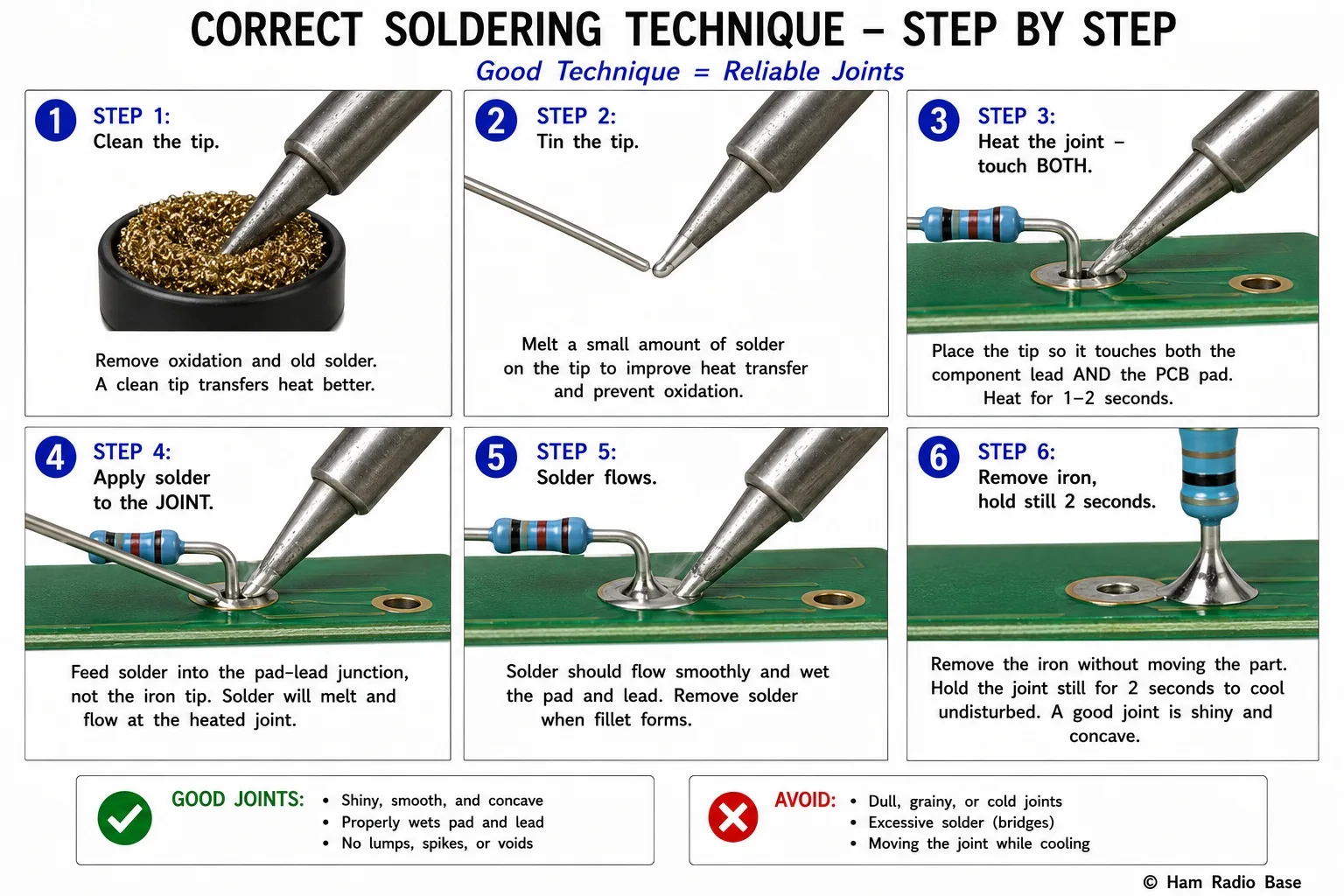

The six-stage soldering sequence. Each stage has a specific purpose — skipping any one risks a defective joint.

View Larger

Preparing the Iron: Clean Tip, Tin Tip, Right Temperature

The soldering iron tip is your primary heat transfer surface. A clean, properly tinned tip transfers heat into the joint efficiently and quickly. A dirty or oxidized tip is a poor heat conductor, requires longer contact time, and causes more thermal stress on the component and PCB pad. Getting the tip right before you pick up a component is not optional preparation — it is the foundation of every good joint that follows.

Cleaning the Tip

The tip must be cleaned before every joint, not just at the start of a session. As you solder, flux residue, burned organic material from the flux core, and copper oxide from the pad all accumulate on the tip surface. After just a few joints, an uncleaned tip will be visibly darker and the solder on it will have become dull and grainy. This contaminated solder no longer transfers heat effectively — it acts as a thermal insulator.

The recommended cleaning method is a brass wool cleaner, not a wet sponge. Brass wool removes contamination mechanically without the thermal shock that a wet sponge causes. Every time you plunge a hot tip into a wet sponge, the tip contracts rapidly as the outer surface cools. Over hundreds of cleaning cycles this thermal cycling fatigues the tip plating and shortens tip life considerably. Brass wool (often sold as a tip-tinner insert in a can) cleans the tip at full temperature without thermal shock. A quick swirl through the brass wool takes less than a second and leaves a clean tip ready to tin.

After cleaning, the tip should look copper-colored or lightly silvered, not dark brown or black. If it is black and you cannot clean it with brass wool, the oxide layer has become too thick. Use tip tinner (a mixture of low-melting solder and flux) to chemically strip the oxide and re-coat the tip surface. Apply a small amount of tip tinner paste, let it melt, then wipe with brass wool. If the tip is still unresponsive, it may need replacement.

Tinning the Tip

After cleaning, immediately apply a small amount of fresh solder to the tip. This is called tinning. The fresh solder protects the tip surface from re-oxidizing in the seconds between cleaning and placing the tip on the joint. A tinned tip looks shiny and silver, and the molten solder bead on it should flow easily around the tip surface. A properly tinned tip is ready to transfer heat immediately on contact.

Tinning also gives you the small amount of solder that will sit in contact with both the pad and the lead when you first place the iron. This tiny bridge of molten solder dramatically improves initial heat transfer from the iron into the joint — solid metal touching solid metal transfers far less heat than a thin film of liquid solder between them. Think of it like thermal paste between a processor and its heatsink: the interface material fills the microscopic gaps and multiplies the effective contact area.

Recognizing Correct Temperature

Most through-hole soldering on PCBs calls for an iron temperature of 320–370°C (610–700°F) with 60/40 or 63/37 tin-lead solder. With lead-free alloys, typical temperatures are 350–400°C (660–750°F) because lead-free solders have higher melting points.

You can recognize correct operating temperature by behavior rather than by reading the dial. When you touch solder to the clean tinned tip, it should melt immediately — within a fraction of a second — and flow smoothly. If it takes two or more seconds to melt, the iron is too cool. If it smokes heavily and the flux burns off almost instantaneously before the solder has a chance to flow, the iron is too hot. A correctly temperatured tip melts solder quickly but allows the flux a moment to work before it burns off entirely.

For ham radio PCB work, the required iron temperature is also influenced by what you are soldering. Thin pads on a small capacitor need less heat than a large copper ground-pour pad connected to a chassis connector. When soldering TO-220 transistors to a PCB with wide copper traces, you may need to increase temperature or use a larger tip to deliver enough heat. When soldering near a crystal oscillator or a sensitive op-amp, lower temperature and shorter contact time are preferable to protect the component.

The Seven-Step Soldering Sequence

The sequence below applies to through-hole components on a PCB — the most common situation for ham radio construction and repair. Each step is described in detail, followed by what you should see or feel to confirm the step was done correctly before proceeding.

Step 1: Position the Component

Insert the component leads through the PCB holes and ensure the component is seated correctly against the board. The component body should sit flat on the top of the board (or at the specified height if a standoff is needed). Leads should protrude 1–2 mm below the board on the solder side. For resistors and capacitors that will not stay in place by themselves, bend the leads slightly outward at 45 degrees on the solder side after insertion. This mechanical retention holds the component in place while you solder and does not affect the solder joint quality.

If you are soldering a polarized component such as an electrolytic capacitor, LED, or diode, double-check orientation before you pick up the iron. Desoldering and correcting an orientation error is much more work than checking the datasheet for two seconds before starting.

Step 2: Place the Iron Touching Both the Pad and the Lead Simultaneously

This is the single most important step in the sequence and the one most often done incorrectly by beginners. The iron tip must touch both the PCB copper pad and the component lead at the same time. Not just the pad. Not just the lead. Both.

The reason is simple: you need both surfaces to reach soldering temperature before you introduce the solder wire. If only the pad is at temperature, solder applied at that point will wet the pad but not the lead, leaving an electrically suspect boundary. If only the lead is at temperature, the solder will wick up the lead away from the pad without forming a proper fillet.

Place the flat side or the side face of the tip so it touches both surfaces simultaneously. You may need to approach the joint from a specific angle to make contact with both surfaces — practice with your iron style to find the best approach angle for the tip shape you are using. Once you have established two-point contact, hold the iron steady.

Step 3: Heat for 2–3 Seconds

Hold the iron in two-point contact without moving it or introducing solder. Count two to three seconds. This dwell time allows both the pad and the lead to come up to temperature. You are also giving the board substrate and any thermal mass in the component lead time to absorb heat so that the joint area is uniformly hot.

For a typical 1/4-watt resistor on a standard two-layer PCB, two seconds is usually sufficient. For a larger component like a coaxial connector or a relay with heavy copper pads, three to four seconds may be needed. Do not test whether the joint is hot enough by touching solder to the iron during this phase — wait for the count.

Step 4: Test — Touch Solder to the Joint to Confirm Temperature

After the dwell, bring the solder wire forward and touch its tip to the junction where the lead exits the pad — not to the iron tip. If the joint is at temperature, the solder will melt immediately on contact with the hot metal surfaces. This is your confirmation that both surfaces are hot enough to accept a good metallurgical bond.

If the solder does not melt on contact with the joint, withdraw it immediately, count another second with the iron in place, and try again. Never apply solder to the iron tip itself — this is the most common beginner mistake and it produces cold joints every time (see the Common Mistakes section for the detailed explanation).

Step 5: Feed Solder Into the Junction

Once you have confirmed the joint is hot, continue feeding solder into the junction of the pad and the lead — the point where the lead exits the board surface. As you feed solder, watch the pad surface carefully. You will see the solder begin to flow outward across the pad surface like water spreading across a flat surface. This is wetting, and it is the visible evidence that a metallurgical bond is forming.

Feed solder steadily and smoothly until the pad is covered with a concave fillet and the solder has climbed partway up the lead. Then stop. Do not continue to feed solder after the correct amount has flowed — excess solder creates a convex dome that can obscure solder bridges and does not improve the joint electrically or mechanically.

Step 6: Remove the Solder Wire First, Then the Iron

Once you have fed the correct amount of solder, remove the solder wire from the joint first, then — after a half-second — remove the iron. This order matters. If you remove the iron first while the solder wire is still in contact with the joint, the solder wire may stick to the cooling joint or pull solder away as it withdraws, leaving a void or a raised peak. Removing the wire first allows the solder to flow freely for the last fraction of a second as the iron withdraws cleanly.

Remove the iron by sliding it away along the lead, not by lifting it straight up. This pulling-away motion helps the solder settle into its final concave fillet shape rather than leaving a raised peak or spike at the withdrawal point.

Step 7: Hold Completely Still for 2–3 Seconds

This step is where many otherwise-correct joints become defective. Once the iron is removed, the solder is still liquid or semi-solid for one to two seconds. Any movement of the component, the board, or even a puff of air directed at the joint during this critical solidification period will disturb the crystalline structure forming in the cooling solder. The result is a disturbed joint — one that looks frosted or wrinkled and has reduced mechanical strength.

Train yourself to treat the board as completely untouchable for a count of three after removing the iron from each joint. This is especially important on a workbench with vibration from fans, other tools, or an unsteady surface. Many intermittent faults in amateur radio equipment turn out to be disturbed joints that eventually crack under repeated thermal cycling from transmit-to-receive temperature swings.

After three seconds, the solder will be solid and the joint can be touched or moved. Examine it before moving on to the next joint — catching a defect now means fixing one joint rather than diagnosing a mystery fault on a completed board.

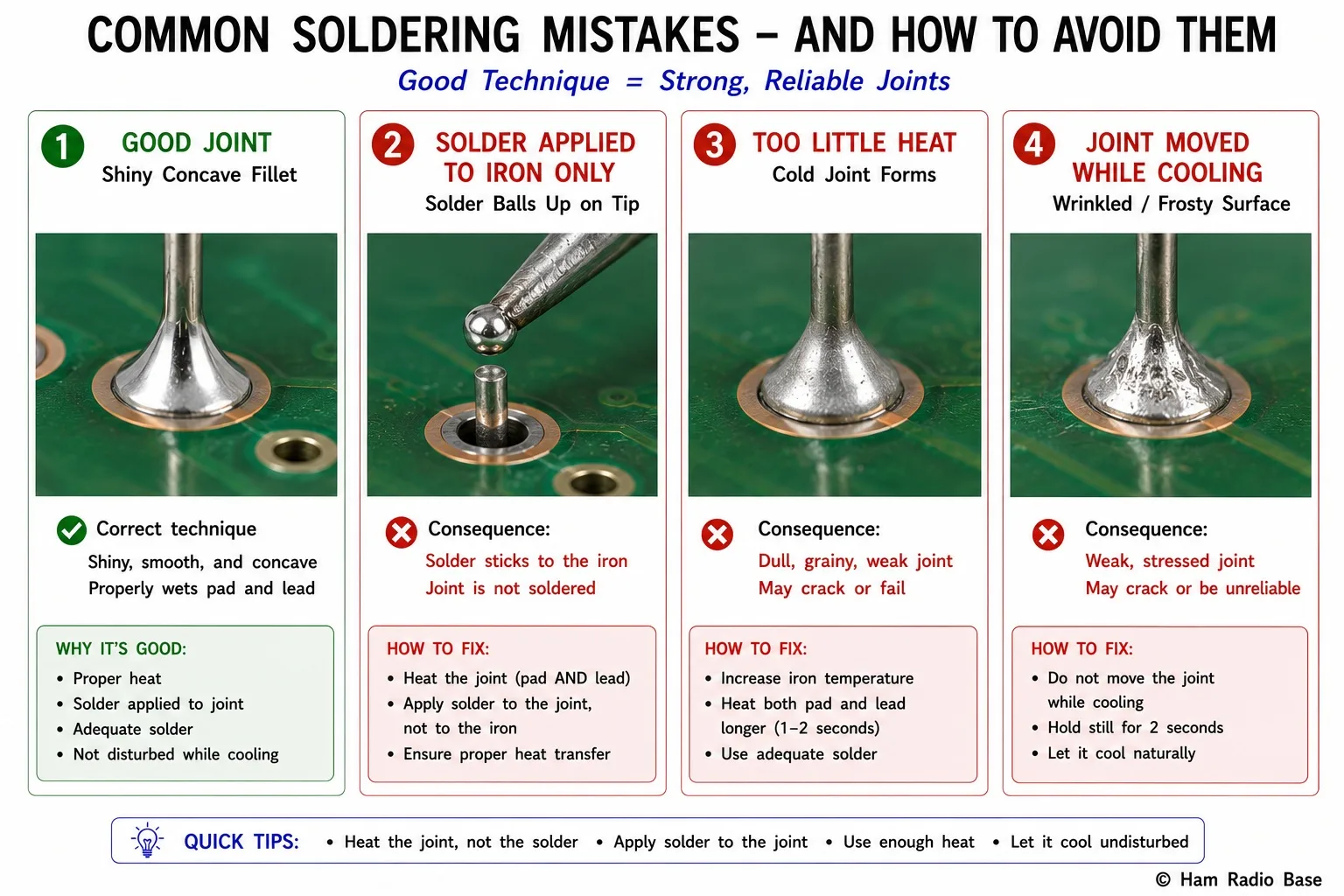

Four outcomes compared: a correctly made joint and three common mistakes — solder applied to the iron, cold joint, and disturbed joint. Each has a distinct appearance and a distinct cause.

View Larger

Wetting Explained: Capillary Action, Flux, and Surface Tension

Wetting is the spreading of liquid solder across a solid metal surface driven by surface tension forces and capillary action. When solder wets properly, it does not sit on top of the metal like a water droplet on a waxed car — it spreads out and flows into microscopic irregularities in the metal surface, maximizing contact area and enabling the intermetallic bond to form.

The physics of wetting depends on a quantity called the contact angle — the angle between the edge of a liquid droplet and the surface it rests on. A low contact angle (solder spreading flat and flowing outward) means excellent wetting. A high contact angle (solder sitting as a round ball barely touching the surface) means poor wetting. A perfectly non-wetting surface would have a contact angle of 180 degrees and the solder would form a perfect sphere touching the metal at a single point with no lateral spread at all.

Several factors determine whether wetting occurs. Most importantly, the metal surface must be clean and free of oxide. Copper oxide — which forms on PCB pads within minutes of exposure to air — has a much higher contact angle with solder than clean copper does. This is why flux is essential and why it must be active (not yet burned off) when the solder contacts the surface.

The Role of Flux in Wetting

Flux is a chemical cleaning agent activated by heat. As the joint comes up to temperature, the flux — which is incorporated into the core of the solder wire — melts first and spreads across the metal surfaces ahead of the solder. It chemically reduces the copper oxide layer, converting it back to metallic copper. It also lowers the surface tension of the molten solder, reducing the contact angle and allowing the solder to spread more readily across the clean surface.

This is why the timing of solder application matters so much. If the iron is at temperature but you wait too long before applying solder, the flux from the small amount on your tinned tip burns off. When you then apply the solder wire, the flux in the wire core has to do all the work itself, which it may not be able to do if the oxide layer has had extra time to reform on the hot metal. The two-to-three second dwell is a balance: enough time to heat the surfaces, but not so long that the tinned tip flux is completely burned off before the wire solder arrives.

If you apply solder to the iron tip rather than to the joint, the flux burns off on the hot tip before the solder even reaches the joint surfaces. The solder that flows from the tip onto the joint carries no active flux and therefore cannot properly wet the metal surfaces. This is the metallurgical explanation for why applying solder to the iron always produces defective joints, even when they look acceptable to the untrained eye.

Seeing Wetting Happen

With practice and good lighting, you can watch wetting occur in real time. As solder is introduced to the hot joint, it first melts into a small puddle at the application point. Within a fraction of a second — if both surfaces are clean and hot and the flux is active — you will see the edges of the solder puddle flow rapidly outward across the pad surface. The solder appears to be drawn into the joint rather than pushed. Simultaneously, a small amount of solder will wick up the lead, forming the characteristic concave fillet where the solder is thinner in the center and thicker at the edges where it meets the pad and the lead.

A properly wetted joint is easy to recognize from the concave fillet shape alone. The solder surface dips inward toward the center of the joint — saddle-shaped rather than dome-shaped. The pad outline is often still visible through the thin layer of solder at the pad perimeter, confirming that the solder has spread all the way to the pad edges.

If wetting does not occur, the solder will form a blob or ball that sits on the surfaces rather than spreading across them. This is the unmistakable sign of a defective joint. The correction is to reheat the joint with fresh flux-cored solder and try again.

Solder Quantity: Too Much, Too Little, and Just Right

Getting the amount of solder right is a skill that develops with practice, but there are clear visual rules that tell you whether you have applied the right amount.

The Correct Amount

The correct amount of solder forms a concave fillet — a curved surface that is hollow in the middle. Viewed from the side, the solder should flow from the pad surface up the lead, curving smoothly without any abrupt changes in surface angle. The pad outline should be visible beneath the solder at the pad perimeter because the solder layer is thin there and you can see the copper edge through it. The lead should be visible rising cleanly from the center of the fillet.

From above (the component side), a correctly soldered through-hole joint looks like a volcano — a small peak at the lead surrounded by a smooth slope of solder that levels out at the pad perimeter. The hole through which the lead passes should be completely filled with solder — no bare copper visible through the hole.

Too Much Solder

Excess solder creates a convex dome — the solder surface bulges outward from the joint rather than curving inward. A dome indicates that more solder was applied than could be drawn into a capillary fillet with the available surface area. The joint is not necessarily defective just because there is too much solder, but the excess hides the fillet shape that tells you the joint was properly wetted. Excess solder also increases the risk of creating a solder bridge to an adjacent pad or lead.

On densely packed PCBs such as those found in modern transceivers, excess solder is the primary cause of short circuits during construction and repair. A solder bridge between two adjacent pads can be invisible to the naked eye when a solder dome hides it, but it will cause an immediate and baffling circuit malfunction.

Too Little Solder

A starved joint has too little solder to fill the annular ring (the copper ring around the hole) and form a proper fillet. The lead may protrude from a small bead of solder that does not fully wet the pad. This joint has reduced mechanical strength and higher-than-normal contact resistance. In RF circuits carrying standing wave currents, this resistance can cause measurable loss and even heating at the joint under high power. In low-level signal circuits, the resistance variation with temperature can create noise and instability.

Starved joints are more common with lead-free solder than with tin-lead because lead-free alloys have less favorable wetting characteristics and require more careful heat management to flow correctly into the annular ring.

Common Mistakes Analyzed

Understanding why mistakes produce defective joints helps you avoid them instinctively rather than having to mentally review a rule list while your iron is on the bench.

Mistake 1: Heating Only the Pad

This happens when the iron is too small to bridge both pad and lead simultaneously, or when the approach angle is wrong and the tip only contacts the copper pad. The pad reaches temperature quickly but the lead remains cold. Solder applied at this point flows across the hot pad but does not bond to the cold lead. The junction between the lead and the pad-side solder is a cold interface — it may look acceptable at room temperature but will develop high resistance or crack under vibration. This is a common cause of cracked joints in transceivers that are moved frequently.

Mistake 2: Heating Only the Lead

Less common, but occurs when the iron touches the lead at a point well above the pad, or when the component lead conducts heat away from the pad faster than the pad can absorb it. The lead is at temperature but the pad is cold. Solder wicks up the lead but does not spread onto the pad. The result is a joint where the lead is coated in solder but the pad is largely bare. This joint has very poor mechanical strength and may be intermittent under vibration.

Mistake 3: Applying Solder to the Iron Instead of the Joint

This is the single most common beginner mistake. The iron is hot, so touching solder to the tip obviously melts it immediately. But as explained in the wetting section, the flux in the solder burns off on the hot tip before the solder reaches the joint. The flux-free solder flows onto the joint surfaces but cannot chemically reduce the oxide layers, so the contact angle remains high and wetting is poor or absent. The solder sits on the joint rather than bonding to it. The result is a cold joint — high resistance and low mechanical strength — even though the iron was at full temperature. The word "cold" refers to the joint's metallurgical state, not its temperature during soldering.

Mistake 4: Moving the Joint During Cooling

As solder solidifies, it passes through a pasty phase where the alloy is partly solid and partly liquid. If the joint or the component moves during this phase, the growing crystalline structure is sheared, leaving a disordered boundary in the final solid joint. The resulting fillet has a frosted, wrinkled, or matte appearance instead of a smooth shiny surface. This is a disturbed joint. It is weaker than a correctly cooled joint and may fail under thermal cycling even if it initially passes a continuity test.

Mistake 5: Using Too Much Solder

As described in the solder quantity section, excess solder creates a dome, hides the fillet shape, and increases bridge risk. The mistake is usually caused by continuing to feed solder after the correct amount has already flowed — often because the operator is watching the solder wire rather than the joint. Train your eyes to watch the pad shape, not the wire.

Mistake 6: Dwelling Too Long with the Iron

Leaving the iron in contact with the joint for too long causes several problems. The flux burns off completely, the solder may begin to dissolve copper from the pad into the solder alloy, and the PCB substrate and pad adhesive may overheat, causing the pad to lift from the substrate. Pad lift is irreversible and leaves you with a broken trace that must be repaired with fine wire before the board can be used. Two to four seconds of iron contact is almost always sufficient for through-hole joints. If it is not, the iron is too cool or the tip is too small — solve those problems rather than dwelling longer.

Practical Tips for Difficult Joints

Some soldering situations are more challenging than a simple resistor lead through a standard pad. Understanding how to adapt the technique to these situations is essential for real-world ham radio construction and repair.

Holding Components Without a Third Hand

For through-hole components like resistors and capacitors, insert the component, then bend both leads 30–45 degrees outward on the solder side before soldering. This locks the component in place mechanically. After soldering, trim the excess lead wire flush with the top of the solder joint using flush-cut diagonal cutters — trim after soldering, never before, because cutting first removes the mechanical anchor that holds the component during the soldering operation.

For larger components like transistors or ICs, solder one pin first while holding the component in place with your free hand. Release the component, check it is correctly positioned and seated, then solder the remaining pins. For flat components like crystals, switches, or connectors, a small piece of blue painter's tape on the component side holds them flat against the board surface while you solder. Tape does not conduct heat and will not interfere with the soldering process as long as it is kept clear of the actual solder joint area.

Adding Flux to Old or Oxidized Pads

When reworking an existing PCB — replacing a failed component on a transceiver board, for example — the existing pads and any remaining old solder will have developed significant oxide layers over time. Fresh flux-cored solder wire alone may not be able to provide enough flux to clean through thick oxide before it burns off.

The solution is to apply additional liquid or paste flux directly to the joint before heating. Rosin flux in a syringe applicator or a flux pen is ideal. Apply a small amount to the pad and lead, then solder normally. The extra flux dramatically improves wetting on aged surfaces and can make the difference between a good joint and a persistent cold joint on a pad that has been through many previous solder cycles.

Using a Larger Tip for Larger Pads

A small conical tip that is ideal for small pads will not deliver enough heat quickly to a large-footprint connector pad. The iron has to dwell too long trying to bring the large thermal mass up to temperature, during which time the flux burns off and the pad risks delamination. Match tip size to pad size. A chisel-shaped tip 2–3 mm wide is a good general-purpose choice for through-hole work. For SO-239 or BNC chassis connectors soldered directly to PCB pads, use a large chisel tip or increase iron temperature by 20–30°C above normal. The goal is always a short dwell time — two to four seconds — at sufficient temperature, not a long dwell at insufficient temperature.

Soldering Near Heat-Sensitive Components

Crystal oscillators, small-signal MOSFETs, and some ceramic resonators can be degraded by temperatures that are perfectly acceptable for a resistor. When soldering near these components:

• Reduce iron temperature to the minimum that still gives quick wetting — typically 300–320°C (570–610°F) for tin-lead solder.
• Use a heat sink clip on the component body or lead between the body and the pad being soldered. Small alligator clips work well for this purpose.
• Allow 10–15 seconds between soldering adjacent pins on a sensitive IC to allow the board and component to cool between joints.
• Solder the ground pin of an IC first. Ground pins connect to the largest copper area and dissipate heat most readily — soldering the ground pin last would require the longest dwell time in closest proximity to the already-soldered signal pins.
