Substitution Method
Every ham who has ever asked "is it the radio or the antenna?" and answered the question by connecting a different antenna — or a different radio — has already used the substitution method. Substitution means replacing a suspect part, cable, module, or entire piece of equipment with a known-good equivalent and observing whether the symptom follows the part you removed, stays with the circuit, or disappears entirely. It is one of the fastest, most intuitive diagnostic tools available, and Module 21A warned against misusing it as a substitute for diagnosis ("shotgunning"). This lesson covers how to use it correctly: as a deliberate, evidence-based test performed after you have narrowed the field of suspects, not as a replacement for narrowing the field in the first place.
Substitution can be applied at four levels, from a single component up to an entire piece of equipment.

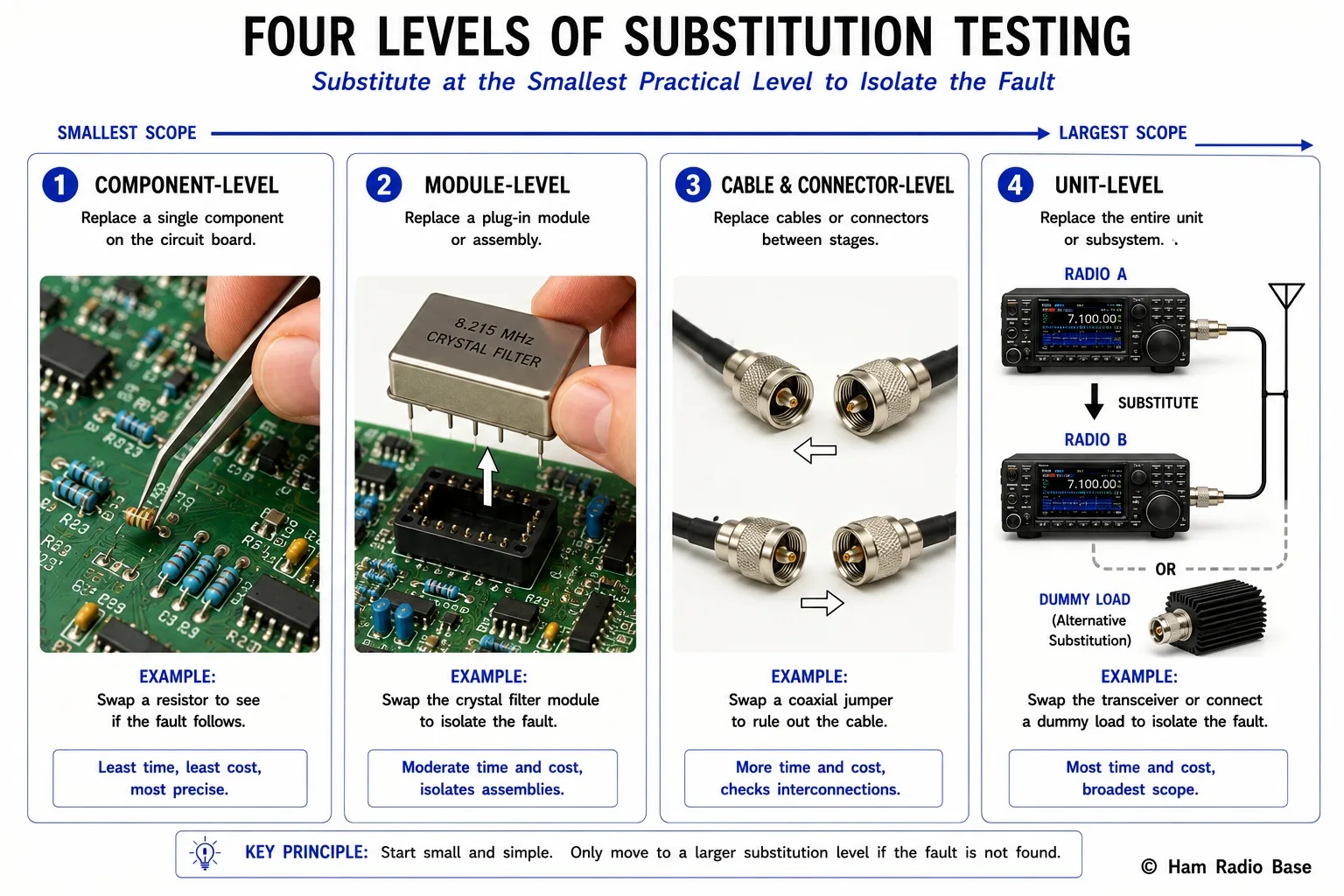

View LargerLevels of Substitution
Substitution is not a single technique but a family of techniques applied at different scales, and recognizing which scale fits your situation is half the skill.
| Level | What You Swap | Typical Ham Radio Examples |
|---|---|---|
| Component-level | A single resistor, capacitor, diode, transistor, IC, or relay | Swapping a suspect electrolytic capacitor in a power supply; replacing a fuse |
| Module-level | A plug-in board, daughtercard, or replaceable functional block | Swapping a plug-in crystal filter module; swapping a removable RF deck or front-end board |
| Cable/connector-level | A jumper, feedline, control cable, or connector | Swapping a coax jumper, a mic cable, or a Powerpole-terminated power lead |
| Unit-level | An entire piece of equipment | Trying a different radio on the same antenna; trying a known-good antenna or dummy load on the same radio |
Component-level substitution is the most familiar form and the one most people mean by "substitution method," but it is also the slowest and most invasive — it usually requires desoldering and resoldering, which carries its own small risk (discussed in Module 20). Unit-level substitution, by contrast, is often the fastest test available precisely because it requires no disassembly at all: connecting a different antenna or a different radio takes thirty seconds and instantly tells you which side of that interface the fault is on, even though it does not yet tell you exactly which component within that side has failed.
Rules for Valid Substitution
Four rules separate a useful substitution test from a confusing or even misleading one.
1. Substitute with a true known-good equivalent
The replacement part must match the original's specifications closely enough that a difference in behavior can only be explained by the original part being faulty, not by the replacement being a different (even if nominally similar) component. Swapping a 25 V-rated electrolytic capacitor for a 16 V-rated one of the same capacitance might appear to "fix" a fault temporarily while introducing a brand new latent failure under full operating voltage. Swapping a generic, unverified "spare" transistor of unknown condition tells you very little if that spare turns out to be bad too.
2. Change exactly one thing at a time
If you substitute a part and simultaneously reseat a connector, clean a contact, or adjust a control "while you're in there," and the fault clears, you no longer know which action fixed it. This matters because an incorrect conclusion here (crediting the wrong action) means you have not actually learned what was wrong, and the same fault — or a related one — can resurface later with no clear explanation.
3. Verify the suspect part really was the problem
Whenever it is safe and practical, confirm your conclusion by testing the removed part independently (out of circuit, using the appropriate test from Module 5) or, with appropriate caution, reinstalling it briefly to confirm the original fault returns. This extra step converts "the new part happened to fix it" into "the old part was confirmed bad" — a meaningfully stronger conclusion, and one that protects you from a coincidental fix (for example, the act of removing and reinserting a socketed part can sometimes clean a corroded contact and "fix" a connection problem that had nothing to do with the part itself being faulty).
4. Ask whether the substituted part is a victim, not the cause
Just as a blown fuse is rarely the root cause (Module 21A), a destroyed component found during substitution testing may itself be a casualty of an upstream fault — an overvoltage event, a short circuit elsewhere, or RF overdrive. If you substitute a new part and it also fails quickly, or fails immediately on power-up, stop and look for the underlying cause before substituting a third time.
The Classic Case: Is It the Radio or the Antenna?
No application of substitution is more common, or more useful, in amateur radio than determining whether a transmit or receive problem lies in the radio or in the antenna system (antenna, feedline, connectors, and any tuner or switch in between). This single test, performed correctly, eliminates roughly half of all the equipment in a typical station from suspicion in under a minute.
To test the radio: connect it to a different, known-good antenna (or, even more decisively, to a 50 Ω dummy load rated for the power level in use) and repeat the test that revealed the original symptom. If the radio now performs correctly into the substitute load, the radio itself is very likely healthy, and the fault is in the original antenna system. If the radio still misbehaves even into a dummy load, the fault is inside the radio.
To test the antenna system: connect a different, known-good radio to the same antenna and feedline. If the second radio also shows the same problem (poor SWR, weak signal reports, intermittent dropouts), the antenna system is implicated. If the second radio works normally on that antenna, the original radio is implicated.
Performed together, these two tests form a clean two-way substitution that almost always resolves the ambiguity in a single short session, and they require no disassembly of either the radio or the antenna system — only a dummy load, a spare coax jumper, and (ideally) access to a second radio, which is one of the most practical reasons many ham clubs encourage members to keep a simple, inexpensive second transceiver on hand purely as a troubleshooting reference.
Dangers of Careless Substitution
Beyond the fuse-rating hazard above, three other risks are worth specific attention. First, repeatedly substituting expensive parts (a finals transistor pair, an IC) without first narrowing the field with cheaper diagnostic steps wastes money on parts that were never the problem — the shotgunning trap from Module 21A applies just as much to substitution as to any other technique when used without evidence. Second, handling static-sensitive components (MOSFETs, CMOS logic, many RF front-end devices) without ESD precautions during substitution can destroy a perfectly good replacement part with no visible sign of the damage, leading you to wrongly conclude the new part was also defective. Third, substituting a part with the correct rating but the wrong type for the application — for instance, a generic rectifier diode in place of a fast-recovery or Schottky diode in a switching circuit — can appear to work on the bench under light load while failing or causing excess heat under full operating conditions, giving a false sense that the repair is complete.
Worked Example: Intermittent No-Transmit Fault
Step 1 (systematic method, most-likely-first): An intermittent PTT fault most commonly involves the microphone, its cable, or the PTT switch contacts themselves, rather than internal RF circuitry — these are simple mechanical/electrical parts subject to wear, corrosion, and flexing, exactly the profile of an intermittent fault.
Step 2 (unit-level substitution): A different, known-good microphone of the same model is substituted. The intermittent fault disappears completely over twenty minutes of testing that previously would have shown the fault several times. Conclusion: the fault travels with the original microphone, not with the radio.
Step 3 (verify, per Rule 3): The original microphone is reconnected. Within a few minutes of normal use, the intermittent failure reappears, confirming the microphone (not a coincidence, not a connector that happened to be reseated) is the actual fault.
Step 4 (component-level investigation): Disassembling the microphone reveals a PTT switch with a cracked solder joint on one of its two leads, consistent with years of repeated mechanical flexing during use — exactly the kind of fault that explains intermittent behavior depending on cable position and pressure.
Result: A single unit-level substitution test (swap the mic), followed by a confirming re-substitution of the original part, correctly and quickly identified the fault without ever opening the transceiver itself.
⚖ Experiment: Component vs. Circuit Fault by Swapping
This experiment uses substitution to distinguish a fault that lives in a component from a fault that lives in the circuit/wiring around it — an important distinction substitution is uniquely good at revealing.
- Two identical breadboard circuits, each a simple LED with a 470 Ω series resistor across a 9 V battery
- A spare, known-good LED of the same type
- A multimeter
- Confirm both circuits light their LEDs normally.
- Have a helper introduce one fault into Circuit 1 without telling you whether it is in the LED itself (for example, swap in a defective or reversed LED) or in the wiring (for example, a loose jumper).
- Observe that Circuit 1 no longer lights.
- Apply substitution: move the LED from Circuit 1 into Circuit 2 (which is known to work), and move the known-good spare LED into Circuit 1's now-empty socket.
- Observe the result in both circuits.
If the fault is in the LED itself, Circuit 2 will now fail to light (the bad LED traveled with it into a known-good circuit) while Circuit 1 will light normally with the known-good spare LED installed — the fault "follows the part." If the fault is in Circuit 1's wiring instead, Circuit 2 will continue to light normally with the original Circuit 1 LED installed, while Circuit 1 will still fail to light even with the known-good spare LED installed — the fault "stays with the location." This simple swap test is exactly the logic used in the radio-or-antenna test above, just applied to a circuit simple enough to see with your own eyes.
Frequently Asked Questions
Isn't substitution the same thing as the "shotgunning" this module warns against?
Not when used correctly. Shotgunning means replacing parts with no evidence to guide the choice. Substitution, as covered in this lesson, is a deliberate test applied after narrowing the suspects (or for very cheap, fast, high-probability items like fuses and cables), changing one thing at a time, and verifying the result. The difference is evidence and discipline, not the act of swapping a part itself.
What if I don't have a known-good spare part to substitute?
If no spare is available, other techniques from this module — in-circuit measurement (M21F), signal tracing (M21D), or out-of-circuit component testing with a multimeter (Module 5) — can often confirm or eliminate a suspect part without needing a replacement on hand. Substitution is a convenient shortcut when a spare exists, not a strictly required step.
Why does the lesson say not to oversize a fuse during substitution testing?
A fuse's rating is chosen to protect the wiring and connected equipment from a specific maximum safe current. Installing a higher-rated fuse "to see if it stops blowing" removes that protection — if the original fault is a genuine overcurrent condition (a short circuit, for example), the wiring or equipment can be damaged, or a fire hazard created, before the oversized fuse ever opens.
How do I know if a substitution actually fixed the problem, or if I just got lucky?
Apply Rule 3 from this lesson: verify by testing the removed part independently, or by briefly reinstalling it (when safe) to confirm the original symptom returns. If the fault reliably returns with the old part and disappears with the substitute, you have strong confirmation rather than a coincidence.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
