Voltage and Current Measurements In-Circuit

Every technique covered so far in this module — systematic reasoning, divide-and-conquer, injection, tracing, and substitution — eventually leads to the same place: a small number of suspect components inside one stage. At that point, the tool that actually confirms or denies the final hypothesis, almost every time, is a simple in-circuit voltage measurement. This lesson covers how to take that measurement so it actually means something, how to predict what you should see before you measure, and how to determine current flow without cutting a single wire.

"In-circuit" simply means the component or node is measured while still fully connected and powered up in its normal circuit, as opposed to "out-of-circuit" testing of a part removed entirely (covered as part of component testing in Module 5). In-circuit measurement is faster and less invasive, but it requires more care in interpretation, because every reading you take is influenced by every other component connected to that same node — a fact this lesson treats as a central theme, not a footnote.

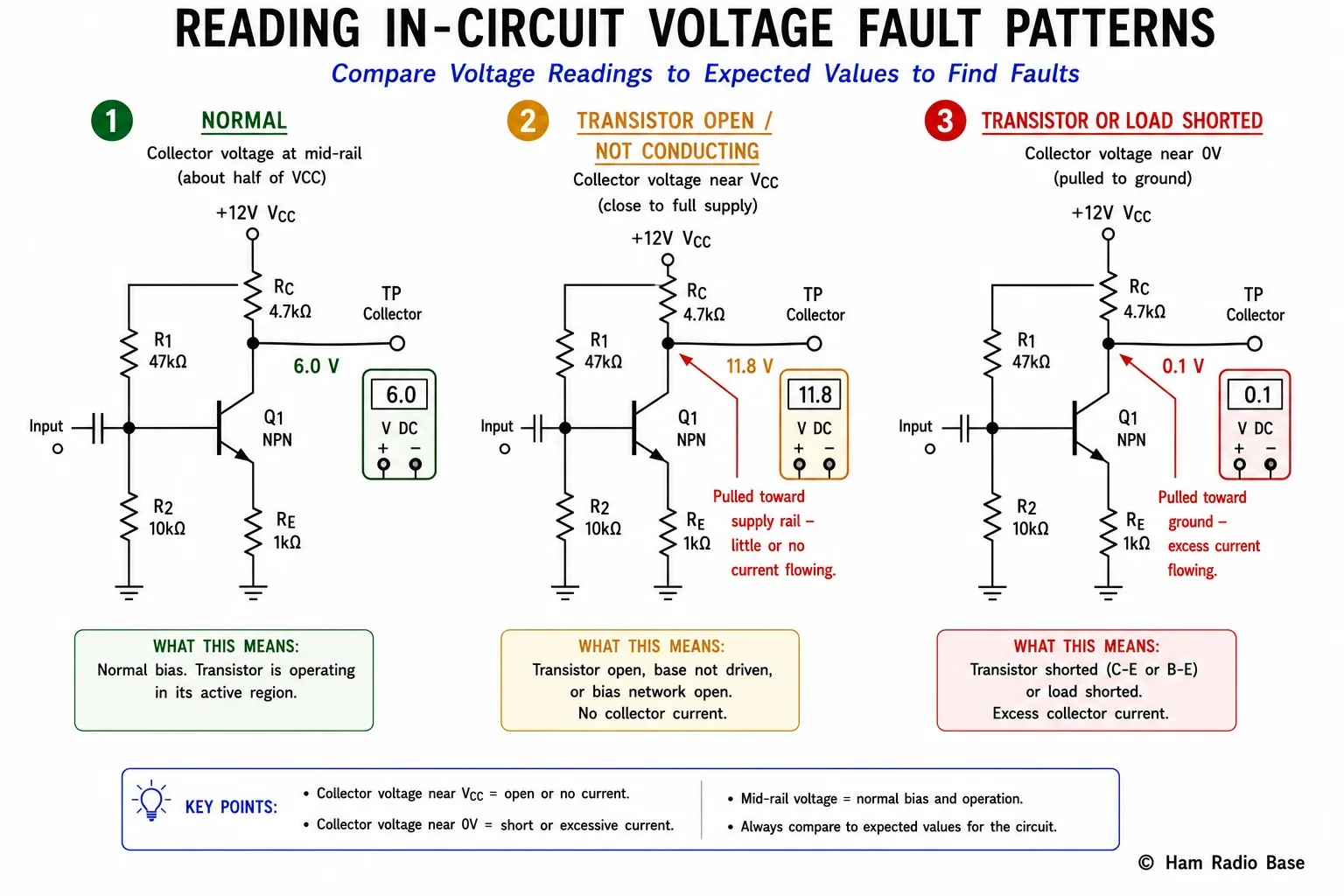

A collector voltage pulled toward the supply rail suggests an open transistor; pulled toward ground suggests a short or saturation.

View Larger

Predict, Then Measure

The single most valuable habit in this lesson is also the simplest: before touching a probe to a test point, write down (mentally or on paper) what you expect to see if the circuit is healthy. For a voltage divider biasing a transistor's base, calculate the expected base voltage from the resistor values and supply voltage using the formula from Module 6. For a linear regulator, the output should sit at its rated regulated voltage regardless of load, within a small tolerance. For an emitter resistor, the voltage across it should correspond to a sensible bias current for that stage, typically in the range the manufacturer's data sheet or service manual suggests.

This habit matters because a measurement with no prediction to compare against is nearly useless — "the collector reads 8.2 V" tells you nothing on its own. "The collector should read approximately 6 V at this bias point, and it reads 8.2 V" tells you immediately that something is pulling the collector higher than expected, which (as the next section explains) points toward reduced conduction in the transistor or increased resistance somewhere in its collector path.

Reading Voltage Fault Patterns

Most single-fault voltage anomalies in a simple amplifier or switching stage fall into one of a small number of recognizable patterns. Learning these patterns lets you go from "the voltage is wrong" to "here is the likely cause" almost instantly.

These patterns work because Ohm's Law and Kirchhoff's Voltage Law (both from Module 6) are unforgiving: current must flow through every series element in a path, and the voltage drop across each element is fixed by its resistance and the current through it. When a component fails open, current in that branch drops toward zero, and the voltage at nodes that were previously "pulled down" by current flowing through that branch rises back toward whichever rail is feeding it. When a component fails shorted, the opposite happens — current increases (often dramatically), and the affected node is pulled toward whichever rail the short connects it to.

Measuring Current Without Breaking the Circuit

Measuring current directly with a multimeter normally requires breaking the circuit and inserting the meter in series — inconvenient at best, and on some boards effectively impossible without desoldering a trace. Fortunately, there is a faster method available any time a known-value resistor already exists in the current path: the voltage-drop method.

This technique is so useful that many bench power supplies build it in directly: the supply's own front-panel ammeter is really just this same voltage-drop measurement, performed automatically across a precision internal sense resistor, and displayed as a current reading. When your bench supply's meter shows the load drawing 0.4 A at idle and then jumping to 22 A the instant you key the transmitter, you are reading exactly the kind of information this method gives you anywhere a known resistance exists in the path — without ever opening the equipment under test.

For currents too large or inconveniently routed for the voltage-drop method (a thick battery cable, for example), a clamp-on DC/AC current probe accessory for an oscilloscope or multimeter measures current via the magnetic field around the conductor, again without breaking the circuit — useful for current draws in the tens of amps typical of HF transmit current.

Separating the DC Bias From the AC Signal

Many test points in an amplifier or oscillator stage carry both a steady DC bias voltage and a smaller AC signal riding on top of it. A standard multimeter set to DC volts reads only the average (DC) component and effectively ignores the AC signal riding on it (or shows a slightly noisy, fluctuating reading if the AC component is large and slow). Setting the meter to AC volts instead reads only the RMS value of the AC component, which is useful for checking signal level but tells you nothing about whether the DC bias point itself is correct.

An oscilloscope is the only tool that shows both simultaneously and lets you see exactly how they relate — the DC bias point as the waveform's vertical offset from zero, and the AC signal as the waveform's shape and amplitude around that offset. This is one of the main reasons signal tracing (M21D) and scope-based RF tracing (M21G) become essential once a fault is narrowed to a specific stage: a simple DC voltage reading confirms bias is correct, but only a scope confirms that the stage is also correctly amplifying or processing the signal riding on that bias.

Safety When Probing a Live Circuit

Worked Example: Low Power Supply Output Voltage
