Using an Oscilloscope for RF Work

Using an oscilloscope on radio frequency circuits requires a different approach from audio or DC measurements. RF signals are at frequencies where the probe itself becomes part of the circuit, where impedance matters enormously, and where the voltages involved can be high enough to damage the oscilloscope or injure the operator if the connection is made carelessly. At the same time, the oscilloscope provides information about RF signals that no other instrument can give: the actual waveform envelope shape, the quality of CW keying, the symmetry of AM modulation, and the presence of distortion products.

This lesson covers the practical techniques for using an oscilloscope on RF circuits safely and accurately, including the accessories you need, the measurements that are most valuable, and the interpretations that connect waveform observations to real-world station performance.

Why RF Is Different

Three characteristics of RF circuits make direct probe measurements problematic:

Impedance Mismatch

RF transmission systems are designed to operate at a specific characteristic impedance — typically 50 Ω for amateur radio. When you connect a standard oscilloscope probe (1 MΩ || 15 pF input impedance) to a 50 Ω RF circuit, the impedance mismatch is extreme. The probe reflects RF power, changes the impedance the transmitter sees, and produces false standing waves. The measurement you make is not of the actual circuit operating under normal conditions but of the circuit substantially disturbed by the probe.

High Voltages

A 100 W transmitter feeding a matched 50 Ω load develops a peak voltage of approximately 100 V. While this is within the 300 V rating of most probes, the probe is not designed for this mode of use — connecting a high-impedance probe directly across a 50 Ω RF source. At 100 V peak, reflected power from the 50 Ω mismatch causes standing waves that can produce significantly higher voltages at certain points in the transmission line.

Frequency Limitations

Even a 100 MHz oscilloscope cannot directly display a 14 MHz HF carrier waveform with full accuracy — the scope can show the carrier, but with some bandwidth reduction. More importantly, anything above about 50 MHz exceeds the useful range of a standard passive probe on a 100 MHz scope. For many ham radio measurements, you are not trying to display the RF carrier itself but rather the envelope of the RF signal — the modulation imposed on it — which is at audio frequencies and easily within any scope’s capabilities.

Fixed Attenuators and Their Use

A fixed attenuator (also called a pad) is a resistive network that reduces signal amplitude by a precise, known factor while maintaining the correct impedance. The most important attenuator characteristic for RF work is that it is 50 Ω in and 50 Ω out — it properly terminates the RF source and presents the correct load to both the source and the oscilloscope.

Common RF attenuators are specified in dB: a 20 dB attenuator reduces voltage by a factor of 10 and power by a factor of 100. A 30 dB attenuator reduces voltage by a factor of √1000 ≈ 31.6 and power by 1000 times. If a 100 W transmitter produces 100 V peak into 50 Ω, a 30 dB attenuator reduces the level to 100 / 31.6 ≈ 3.2 V peak — safely within the oscilloscope’s measurement range.

The attenuator must be rated for the power level being applied. A 100 W transmitter requires an attenuator rated for at least 100 W. Most lab attenuators are rated for 1–2 W. Never connect a high-power transmitter directly to a low-power attenuator — it will burn out immediately. For transmitter measurements you need either a high-power attenuator (designed for 100+ W) or, more practically, a directional coupler that samples only a tiny fraction of the transmitter power.

Directional Couplers

A directional coupler is a passive four-port RF device that samples a small, controlled fraction of the power passing through the main RF line without significantly disturbing it. The main line carries the full transmitter power from input to output (typically called the “through” ports). The coupled port delivers a fraction of the forward power to a secondary output, typically 20 dB or more below the main line level. The isolated port is terminated in 50 Ω.

For oscilloscope measurements of transmitter output, the connection is:

1. Transmitter RF output → directional coupler input port
2. Directional coupler through port → dummy load or antenna
3. Directional coupler coupled port → additional 50 Ω attenuator → oscilloscope

A typical amateur radio directional coupler has a coupling factor of 20–30 dB. A 20 dB coupler from a 100 W (100 V peak) transmitter delivers about 10 V peak to the coupled port. Adding a 20 dB attenuator brings this to about 1 V peak — ideal for an oscilloscope measurement at a volts/div of 200 mV or 500 mV.

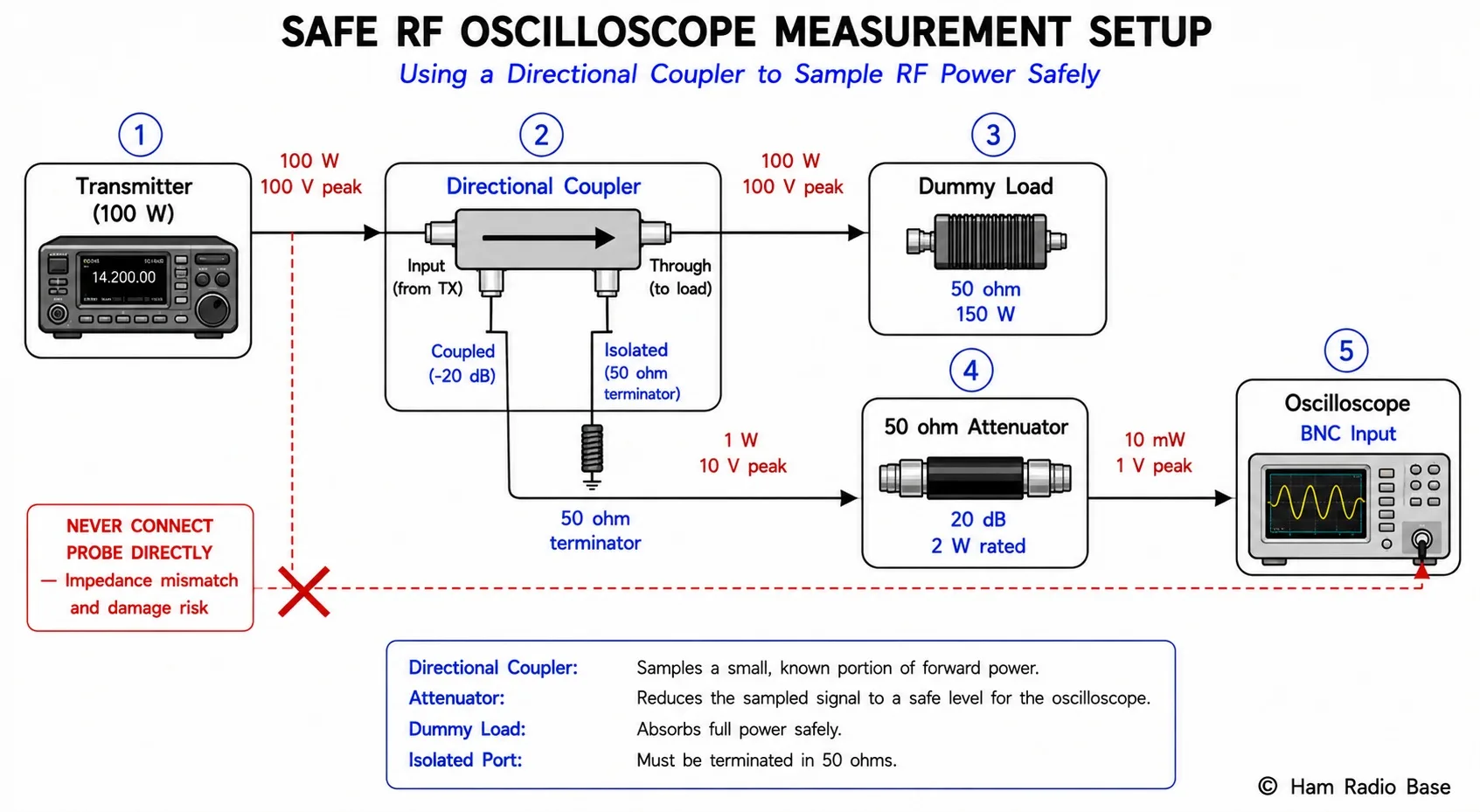

Safe RF measurement setup. The transmitter drives the main line through the directional coupler to the dummy load. The coupled port delivers a small fraction (typically −20 to −30 dB) of the forward power. An additional 50 Ω attenuator brings the level to a safe range for the oscilloscope. All impedances are matched to 50 Ω throughout — the scope measures the signal without disturbing the RF circuit.

View Larger

Connecting the Oscilloscope to RF Safely

Follow these rules when connecting an oscilloscope to any RF circuit:

• Never connect directly to a transmitter output without attenuation. Use a directional coupler plus attenuator, or a suitable RF sampling probe. Direct connection at transmitter output levels will damage the oscilloscope input.
• Use 50 Ω coaxial cable for all RF connections. Standard probe cables are not suitable for RF; use BNC-to-BNC coaxial cable from the attenuator to the scope.
• If the scope has a 50 Ω input mode, use it for RF measurements when the signal level is small enough (usually below 1 V RMS). This properly terminates the coaxial cable and prevents reflections. At the 50 Ω input, the maximum safe voltage is typically 5 V RMS — never exceed this.
• For receiver and low-level circuit measurements (intermediate frequency stages, detector outputs, audio chain), standard 10× probe connections are appropriate. Inside a receiver, signal levels are millivolts to a few volts and impedances are much higher than 50 Ω, so normal probe technique applies.
• Confirm attenuation level before transmitting. Calculate the expected signal level at the oscilloscope input before pressing the key. If in doubt, start with more attenuation and work back.

CW Keying Envelope Analysis

The shape of the CW keying envelope is one of the most important aspects of transmitted signal quality. A key that switches the RF on and off abruptly (with rise and fall times of less than about 1 ms) generates a wide splash of energy across adjacent channels — the classic “key click” that interference reports refer to. The oscilloscope lets you see the envelope directly.

To observe the keying envelope:

1. Set the oscilloscope to DC coupling, time/div of 1–5 ms (to see the rise and fall of one dot or dash clearly).
2. Connect via directional coupler plus attenuator as described above.
3. Key the transmitter. Trigger on the rising edge at a level above the noise floor.
4. Examine the rise of the keying envelope — how quickly the RF goes from zero to full output — and the fall — how quickly it returns to zero at key-up.

A well-shaped keying envelope has rise and fall times in the range of 3–8 ms. The envelope should rise smoothly without overshoot or ringing, and fall smoothly without abrupt steps. Many rigs and keyer circuits include a keying shaping network specifically for this purpose. The oscilloscope confirms whether it is working correctly.

Key click problems appear on the scope as:

• Very fast rise/fall (under 1 ms): Almost certainly causing clicks audible on adjacent channels.
• Overshoot on the rising edge: The RF briefly overshoots full power before settling. This causes a click at key-down.
• Step or notch near the end of the fall: Indicates the keying circuit is switching at two different speeds during key-up, generating a transient.

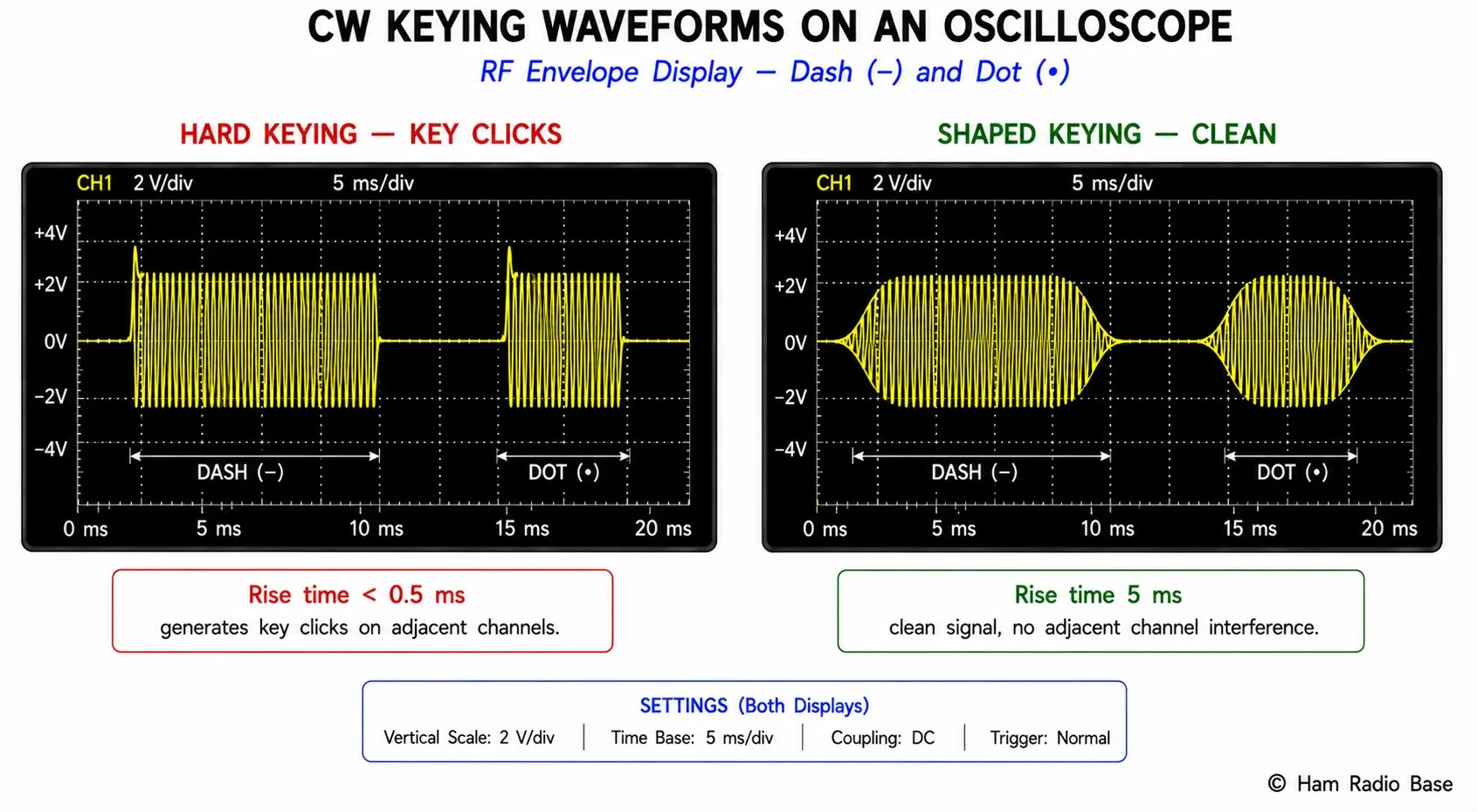

CW keying envelope comparison. Left: hard keying with rise and fall times under 1 ms — the abrupt transitions generate spectral splatter audible as key clicks on adjacent channels. Right: properly shaped keying with 5 ms rise and fall times — smooth transitions stay within the assigned channel bandwidth. The oscilloscope is the only instrument that can directly verify keying shape.

View Larger

AM Modulation Depth Measurement

Amplitude modulation depth is the degree to which an audio signal varies the RF carrier amplitude. At 100% modulation, the carrier amplitude doubles at modulation peaks and drops to zero at troughs. At less than 100%, the variation is proportionally smaller. Over-modulation (exceeding 100%) clips the negative troughs, causing distortion and spectral splatter.

To measure AM modulation depth with an oscilloscope:

1. Set time/div to display several cycles of the audio modulation frequency (for a 1 kHz test tone, use 500 µs/div for about 4 cycles on screen). The RF carrier itself will be too fast to resolve; the display shows the envelope.
2. Measure the maximum envelope amplitude (V_max) and the minimum envelope amplitude (V_min) using voltage cursors.
3. Calculate modulation depth: m = (V_max − V_min) / (V_max + V_min) × 100%

SSB Transmitter Linearity

SSB transmitters must operate as linear amplifiers: the output must faithfully reproduce the input audio amplitude variations as proportional RF power variations. Non-linearity causes intermodulation distortion (IMD), which generates spurious signals at frequencies other than the desired ones, causing interference to nearby stations.

The oscilloscope can give a quick indication of SSB transmitter linearity using the two-tone test. Two audio tones at slightly different frequencies (for example, 700 Hz and 1900 Hz) are fed to the microphone input simultaneously. A perfectly linear SSB transmitter produces only the two tones and their sidebands in the RF output. A non-linear transmitter adds intermodulation products at other frequencies.

The oscilloscope display of a two-tone SSB signal shows a distinctive envelope pattern: the two tones alternately add and cancel, producing a waveform envelope that goes to zero regularly (when the tones are 180° out of phase) and reaches a maximum (when they are in phase). The shape should be smooth and symmetric. If the zero crossings are clipped flat, the transmitter is over-driven and creating IMD products. If the peaks look asymmetric or distorted, there is a phase or gain problem in the audio chain. The scope view gives a quick visual check; precise IMD measurement requires a spectrum analyzer or intermodulation distortion analyzer.

Using the FFT Function for Spectral Analysis

Many DSOs include a Fast Fourier Transform (FFT) math function that converts the time-domain waveform into a frequency-domain spectrum. The FFT display shows the amplitude of each frequency component in the signal, making it possible to see harmonic content, intermodulation products, and spurious emissions directly on the oscilloscope without a dedicated spectrum analyzer.

The FFT is accessible in the Math or Measure menu on most DSOs. You select the source channel, the window function (Hanning or Flat Top are common), and the display scale (linear or logarithmic in dB). The result is a spectral plot from DC to half the sample rate.

Useful FFT applications in ham radio:

• Harmonic analysis: Connect the scope via a directional coupler to the transmitter output. With the transmitter on CW at reduced power, the FFT shows the fundamental and any harmonic signals. A clean transmitter shows the fundamental far above any harmonic. A transmitter with a faulty low-pass filter shows harmonics close to the fundamental level.
• Power supply noise: The FFT of a power supply output voltage shows the switching frequency (for switching supplies), 60 Hz or 120 Hz ripple (for linear supplies), and any spurious oscillations clearly as spectral peaks.
• Audio quality: The FFT of a microphone amplifier output with a single-tone input shows the fundamental plus any harmonic distortion products. A clean amplifier shows only the fundamental; a distorting stage shows a series of harmonics.

The oscilloscope FFT is not as sensitive or precise as a dedicated spectrum analyzer. Its frequency resolution is limited by the number of samples in the acquisition record, and its dynamic range is limited by the ADC resolution (typically 8 bits = about 48 dB). For detailed spectral work, a dedicated spectrum analyzer is the right tool. For quick checks and rough assessments, the scope FFT is useful and always available.

Estimating RF Power from Voltage

The oscilloscope measures voltage, not power. However, if you know the impedance, you can calculate the RF power from the measured voltage. For a signal measured at a 50 Ω reference point:

You can work this backward: measure the voltage at the scope input, apply the gains and losses of the coupler and attenuator chain, and calculate the original transmitter output voltage, then the power.

Low-Level RF Measurements Inside Receivers

Inside a receiver, signal levels are much lower and impedances are higher than in the transmitter RF path. Normal 10× probe techniques apply with some additional precautions:

• Keep probe ground leads short. Inside an IF chain operating at 455 kHz or 10.7 MHz, a long ground lead can cause ground loop interference and distort the measurement.
• Be aware of circuit loading. Even a 10× probe presents about 10 MΩ || 12 pF to the circuit. At 10.7 MHz, 12 pF has a reactance of about 1.2 kΩ, which is significant compared to many IF circuit impedances. Check whether the waveform changes shape when you move the probe — if it does, the probe is loading the circuit.
• Use the scope as a signal tracer. With the receiver connected to an antenna and tuned to a steady signal, probe the IF chain stage by stage from the first mixer output to the detector. You should see a steady, clean signal at each stage. A stage with no signal or a distorted signal has found your fault.
• Do not ground the probe to the chassis if it carries RF. Some receiver designs have chassis points that carry RF current. If your scope ground clips accidentally connect to such a point, you will inject a ground loop into the receiver and disturb the measurement. Identify safe ground points before connecting.
