Antenna Analyzers
An antenna analyzer is one of the most useful instruments a radio amateur can own. Where a basic SWR meter tells you only whether power is being reflected from your antenna system, an antenna analyzer tells you why — providing a complete picture of the impedance that your antenna presents at any frequency across a wide range. With this information you can identify whether an impedance mismatch is resistive or reactive, determine the resonant frequency of an antenna, characterize coils and capacitors, measure the electrical length of a cable, and design or verify matching networks.
Modern antenna analyzers range from inexpensive vector network analyzer modules (the NanoVNA costs under $50) to professional-grade instruments costing thousands of dollars. The basic measurement principle is the same across the range: the analyzer generates a low-power RF signal, applies it to the antenna under test, and measures how much is reflected. From this measurement it calculates impedance, SWR, return loss, and several derived quantities.
What an Antenna Analyzer Measures
An antenna analyzer generates a small RF signal at a user-selected frequency and applies it to the device under test (DUT) — usually the antenna feedpoint, a length of coaxial cable, or a component such as a coil or capacitor. It measures the ratio of the reflected signal to the incident signal, from which it calculates the impedance of the DUT.
The analyzer result is the complete complex impedance of the DUT at the measurement frequency: a resistance component R and a reactance component X. Written as R + jX, this tells you both how much resistive loss or radiation resistance is present and how much reactive (capacitive or inductive) mismatch exists.
From the measured impedance, the analyzer derives several other related quantities:
- SWR (Standing Wave Ratio): The ratio of maximum to minimum voltage on a transmission line feeding this impedance. An SWR of 1.0:1 is a perfect match; 2.0:1 means 11% reflected power; 3.0:1 means 25% reflected power.
- Return loss (dB): The ratio of incident to reflected power expressed in decibels. 0 dB return loss means all power is reflected (open or short circuit); 20 dB return loss means only 1% of power is reflected (excellent match).
- Reflection coefficient (Γ): The ratio of reflected to incident voltage, a number from 0 (perfect match) to 1 (complete reflection).
- Magnitude |Z| and phase angle: The magnitude of the complex impedance and the angle between the voltage and current phasors.
Impedance Notation: R + jX
Impedance is written as Z = R + jX, where:
- R is the resistive component (ohms). This includes radiation resistance (the useful part that radiates RF power) and loss resistance (the undesirable part that converts RF to heat). A perfect resistive match to 50 Ω would be R = 50 Ω, X = 0 Ω.
- jX is the reactive component (ohms). The letter j is the imaginary unit (√−1), used to distinguish reactive impedance from resistive impedance. Positive X means the impedance is inductive (the antenna behaves like a resistor in series with an inductor). Negative X means the impedance is capacitive (the antenna behaves like a resistor in series with a capacitor).
Resonance occurs when X = 0 — the inductive and capacitive reactances cancel each other, leaving only the resistive component. At resonance, the antenna is easiest to match to a 50 Ω feedline using a simple matching network or by adjusting the antenna physical length. An antenna with X = 0 and R close to 50 Ω can be fed with a 50 Ω feedline with minimal SWR.
Z = 48 + j3 Ω — near-perfect match; R ≈ 50, tiny inductive reactance; SWR ≈ 1.1:1
Z = 50 + j0 Ω — ideal 50 Ω resistive match; SWR = 1.0:1
Z = 72 + j0 Ω — resistive mismatch only; SWR ≈ 1.44:1 (half-wave dipole in free space)
Z = 35 − j40 Ω — resistive and capacitive; antenna is short of resonance
Z = 25 + j60 Ω — resistive and inductive; antenna is longer than resonance
SWR, Return Loss, and Reflection Coefficient
SWR, return loss, and reflection coefficient all describe the same physical situation — the degree of impedance mismatch — expressed in different ways. Understanding the relationships between them allows you to convert between the different representations that different instruments display.
| SWR | Return Loss (dB) | Reflection Coefficient (|Γ|) | % Power Reflected |
|---|---|---|---|
| 1.0 : 1 | ∞ (perfect match) | 0.00 | 0% |
| 1.5 : 1 | 13.98 dB | 0.20 | 4% |
| 2.0 : 1 | 9.54 dB | 0.33 | 11% |
| 3.0 : 1 | 6.02 dB | 0.50 | 25% |
| 5.0 : 1 | 3.52 dB | 0.67 | 44% |
| 10.0 : 1 | 1.74 dB | 0.82 | 67% |
The conversion formulas are:
If R > Z0: SWR = R / Z0
If R < Z0: SWR = Z0 / R
(where Z0 = 50 Ω for standard amateur radio)
Return loss from SWR:
RL = 20 × log10( (SWR+1) / (SWR−1) ) dB
Reflection coefficient from SWR:
|Γ| = (SWR − 1) / (SWR + 1)
Scalar vs Vector Analyzers
Antenna analyzers fall into two categories based on what they actually measure:
Scalar Analyzers
A scalar analyzer measures only the magnitude of the reflected signal — how much comes back — without measuring the phase. From this it can calculate SWR and return loss magnitude but cannot determine the complex impedance R + jX directly. Older MFJ analyzers, the MFJ-259 series, and similar instruments are scalar designs. They display SWR as a function of frequency and typically also display an estimated R and X, but the X reading is an approximation derived indirectly from the phase information estimated from the magnitude data, not measured directly.
Scalar analyzers are simple, reliable, and adequate for finding resonance and confirming that the SWR is acceptable across the operating band. They cannot provide the full impedance picture needed for designing matching networks.
Vector Analyzers (VNA)
A vector analyzer (VNA — Vector Network Analyzer) measures both the magnitude and phase of the reflected signal. This gives a complete, unambiguous measurement of the complex impedance Z = R + jX. From the measured impedance, the analyzer can calculate SWR, return loss, reflection coefficient, and display the result on a Smith chart. A VNA can also characterize two-port devices (like filters, amplifiers, and attenuators) by measuring both transmission and reflection.
The NanoVNA is the most significant development in amateur radio test equipment in recent years: it is a fully capable two-port VNA covering 50 kHz to 3 GHz (on the NanoVNA-F models) that costs under $50. Before the NanoVNA, entry-level VNA capability required instruments costing thousands of dollars. The NanoVNA brought professional-grade impedance analysis within the reach of every ham.
Popular Antenna Analyzers for Ham Radio
nanovna-screen.jpg"
alt="NanoVNA handheld vector network analyzer screen showing a Smith chart with an impedance trace and frequency sweep markers, alongside a frequency axis display showing SWR versus frequency for an HF antenna"
width="1536" height="1024"
fetchpriority="high"
class="hrb-figure-img">

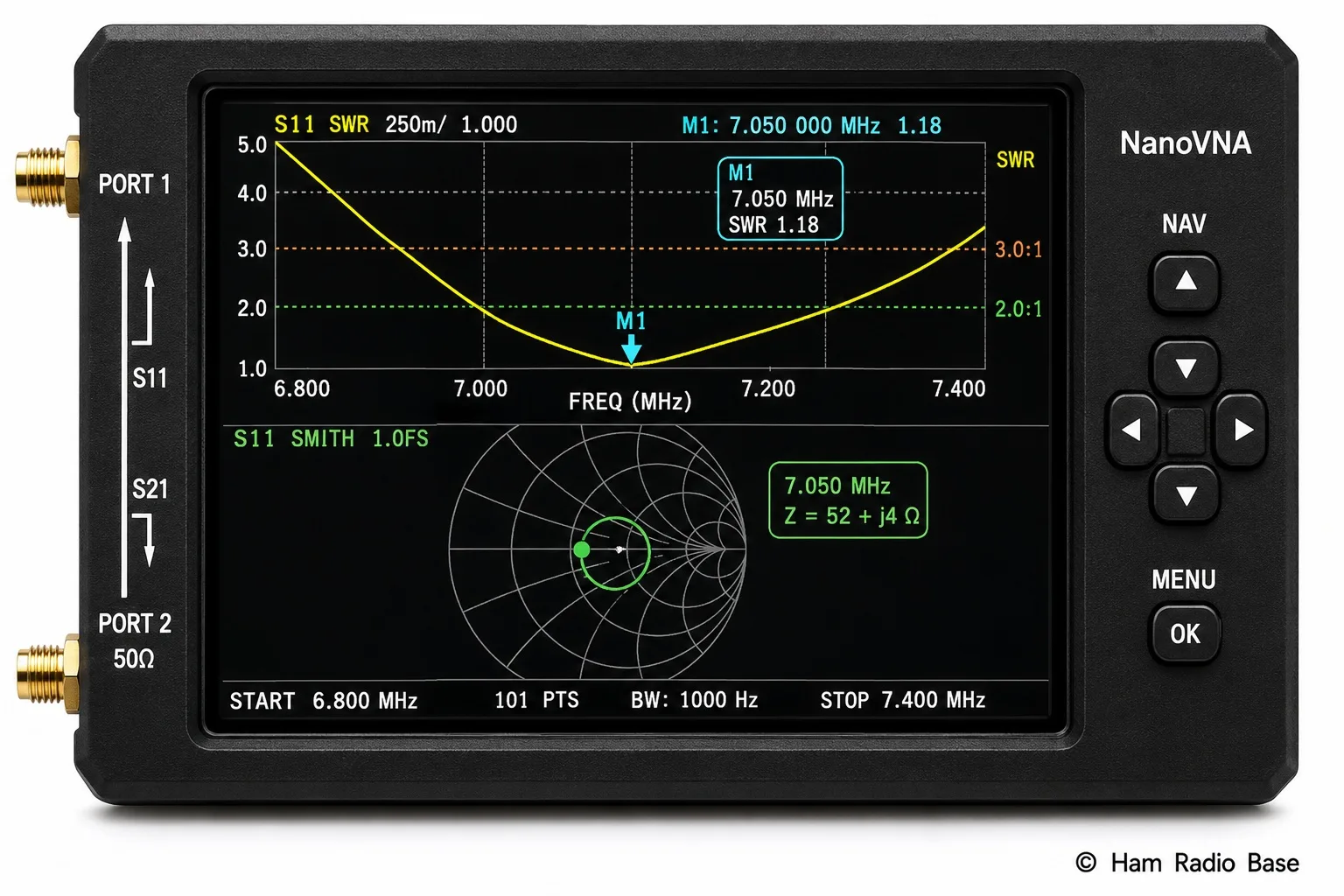

The NanoVNA displaying a Smith chart (left half of screen) and SWR sweep (right half). The Smith chart shows the impedance locus as frequency is swept — the trace moving toward the center indicates the antenna approaching resonance. The SWR plot shows the minimum SWR frequency clearly. With a price under $50, the NanoVNA brought professional VNA capability to every ham radio operator.
View Larger| Instrument | Type | Frequency range | Key features |
|---|---|---|---|
| NanoVNA (original) | Vector (VNA) | 50 kHz – 900 MHz | Two ports, Smith chart, full S-parameter display, PC software available, under $50 |
| NanoVNA-F / H4 | Vector (VNA) | 50 kHz – 3 GHz | Larger screen, higher frequency coverage, improved dynamic range, still under $100 |
| RigExpert AA-600 | Vector | 100 kHz – 600 MHz | Purpose-built for antenna work, large backlit display, rugged design, memory, USB output; ∼$400 |
| RigExpert AA-2000 | Vector | 100 kHz – 2 GHz | Extended frequency range, full colour display, Bluetooth; ∼$650 |
| MFJ-259D | Scalar | 1.5 – 230 MHz | Battery powered, large meters, simple to use, limited to SWR and approximate R/X; ∼$200 |
| MFJ-225 | Scalar | 1 – 150 MHz | Entry-level, two analogue meters, no digital display; ∼$120 |
For a new antenna analyzer purchase, the NanoVNA-H4 or equivalent is the recommended starting point for most hams. Its vector capability, frequency coverage, and PC software make it far more capable than any scalar analyzer at the same or lower price. Its main limitations are the small screen, sensitivity to cable and connector quality, and the need for calibration each session — all of which are addressed in Module 12H.
Calibration: The SOL Procedure
An antenna analyzer is only as accurate as its calibration. All vector analyzers require calibration before use to correct for the electrical characteristics of the test port connector, the measurement cables, and internal component variations. The standard calibration procedure is called SOL calibration: Short, Open, Load.
The SOL procedure involves connecting three known standards to the test port in sequence:
- Short (S): A short circuit at the test port. The analyzer measures the reflection from a perfect short (the short has a reflection coefficient of −1, return loss = 0 dB). This establishes the reference plane.
- Open (O): The test port left open-circuit. An open circuit also reflects all power but with a positive reflection coefficient of +1. The analyzer measures the difference between the open and short responses to characterize the residual inductance and capacitance at the test port.
- Load (L): A precision 50 Ω termination connected to the test port. This standard absorbs all power and should show a reflection coefficient of zero. The analyzer measures any deviation from this ideal to characterize port impedance errors.
After SOL calibration, the analyzer mathematically removes the measured errors from subsequent readings, leaving only the true characteristics of the DUT. Calibration must be performed at the physical reference plane where you want to make measurements — typically at the end of any measurement cable or adapter that you will leave connected during the measurements. If you move the calibration plane (for example, by adding a cable after calibrating), you need to re-calibrate at the new plane.
NanoVNA (small, USB-powered, colour LCD), a RigExpert AA-600 (mid-size, purpose-built, backlit display), and an MFJ-259D (traditional analog meters, battery-powered). Each labeled with its type and approximate price."
width="1536" height="1024"
loading="lazy"
class="hrb-figure-img">

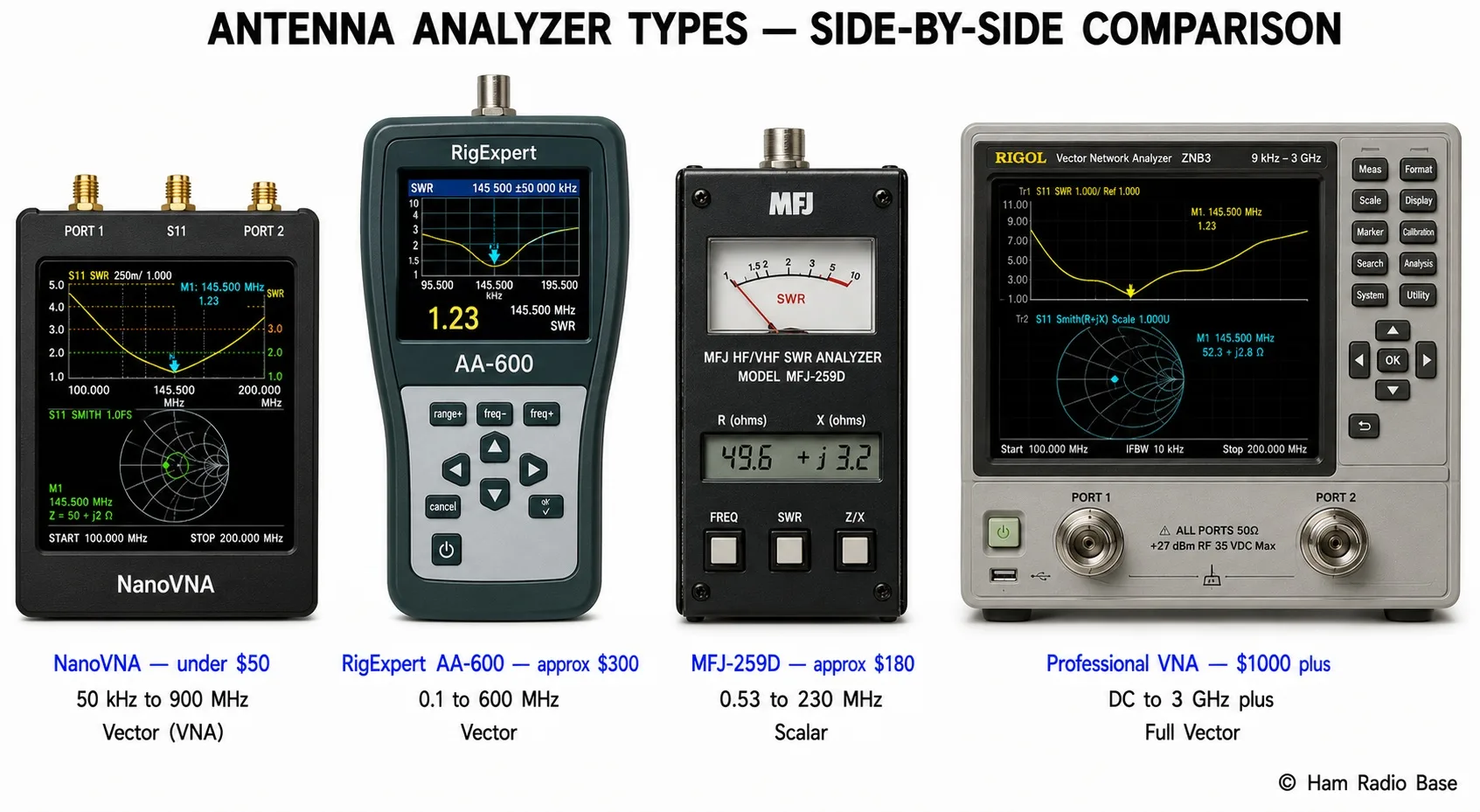

Three generations of antenna analyzers. Left: NanoVNA — a fully capable vector network analyzer for under $50, ideal for most ham radio work. Center: RigExpert AA-600 — a purpose-built vector analyzer with a rugged design and large display, suited to field use and serious antenna work. Right: MFJ-259D — a scalar analyzer with analogue meters, easy to read in sunlight, limited to SWR and approximate impedance.
View LargerThe Smith Chart
The Smith chart is a graphical tool for visualizing impedance in polar form, developed by Phillip Smith at Bell Labs in 1939. It maps the entire range of possible complex impedances onto a circular chart, with the center representing the perfect match impedance (50 Ω + j0) and the rim representing perfect reflection (|Γ| = 1).
On the Smith chart:
- The center point represents the reference impedance (50 Ω). A measurement point at the center means SWR = 1.0:1 — a perfect match.
- Points on the horizontal axis (the real axis) represent purely resistive impedances with no reactance. The left end is a short circuit (0 Ω); the right end is an open circuit (infinite Ω).
- Points above the horizontal axis represent inductive impedances (positive X). Points below it represent capacitive impedances (negative X).
- As frequency increases for most antennas, the impedance point traces a clockwise arc on the Smith chart. An antenna that crosses the horizontal axis during the sweep is resonant at that frequency.
The Smith chart takes time to learn to read, but its power is in visualizing trends. When you sweep an antenna and watch the impedance trace move on the chart, you can immediately see whether it is approaching resonance, whether there is an impedance transformation needed, and in which direction (longer or shorter, more capacitive compensation or less) the antenna needs to be adjusted.
What to Look for When Buying
When choosing an antenna analyzer, consider these factors:
| Factor | What to look for |
|---|---|
| Frequency range | Must cover your operating bands. For HF-only work, 1–60 MHz is adequate. For VHF/UHF, 50 kHz–1.5 GHz or more is needed. |
| Scalar vs vector | Vector (VNA) is almost always better for the same price. Scalar instruments are only worthwhile if ruggedness and battery life are the priority. |
| Dynamic range | Important for measuring low-loss components and cables. Entry-level VNAs have ∼50 dB dynamic range; better instruments have 80+ dB. |
| Display and software | Built-in display versus PC-only operation. PC software (NanoVNA-Saver, etc.) provides a large screen and more analysis capability but requires a laptop at the antenna. |
| Calibration kit quality | The supplied SOL standards determine accuracy. Entry-level VNAs include adequate but not laboratory-grade standards. |
| Power source | Battery-powered instruments (RigExpert, MFJ) are self-contained for field use. USB-powered instruments (NanoVNA) require a phone charger or laptop. |
Frequently Asked Questions
Can I use an antenna analyzer while transmitting?
No. Antenna analyzers generate their own low-power RF signal (typically −10 to +10 dBm) for measurement. If the transmitter is also feeding RF to the same antenna, the transmitter power will enter the analyzer and destroy it immediately. Always disconnect the transmitter and work with the analyzer only. Some hams use an antenna switch to connect either the transmitter or the analyzer, never both at the same time.
What does it mean if the analyzer shows X = 0 but R is not 50 ohms?
X = 0 means the antenna is resonant at that frequency — the reactive components cancel and the impedance is purely resistive. However, the resistive value R may not be 50 Ω. A half-wave dipole in free space is resonant at about 72 Ω; a quarter-wave vertical over a good ground system is resonant at about 35–36 Ω. In both cases X = 0 but R ≠ 50 Ω, so the SWR is not 1.0:1. An impedance transformer or matching network is needed to convert the resonant impedance to 50 Ω.
Why does the analyzer give wrong readings unless I calibrate it?
The test port connector, any measurement cables, and the analyzer’s own internal reflections all appear as part of the DUT impedance unless corrected. Without SOL calibration, these instrument errors are included in the measurement and can shift the apparent impedance significantly, particularly at higher frequencies where the electrical length of even a short connector is significant. Calibration characterizes and removes these errors, leaving only the true DUT impedance in the result.
Is a lower SWR always better?
For power transfer to the antenna, yes — lower SWR means less reflected power. However, SWR alone does not tell you whether the antenna is performing well. An antenna with a 1.0:1 SWR that is achieved by a lossy matching network may be converting most of the power to heat rather than radiating it. A quarter-wave vertical with a good ground radial system at 35 Ω has an SWR of about 1.4:1 with a 50 Ω feed and is an excellent radiator. SWR is one metric; radiation efficiency, gain, and pattern are equally important — and only field-strength measurements or antenna modeling can assess those directly.
