Build a 17m Half-Wave Dipole Antenna

17m is the second of the WARC bands covered in this batch — a quiet, contest-free 100 kHz slice at 18.068–18.168 MHz that sits between the reliable daytime performance of 20m and the more solar-dependent 15m. At just under 26 feet total length, a 17m dipole often delivers surprisingly strong long-path DX, especially in the late afternoon and early evening when the higher HF bands are starting to close but 17m stays open a little longer. This guide covers the complete build from wire cutting to verified resonance.

25.8 ftTotal wire length
~2 hrsBuild time
$20–$40Typical build cost
18.068–18.168MHz coverage

Choose Your Target Frequency

17m runs 18.068 to 18.168 MHz — only 100 kHz wide, the same narrow WARC-band allocation style as 12m. There's no meaningful internal segmentation to plan around:

  • Whole band, CW/data/phone: cut for 18.118 MHz, the band center
  • Digital modes (FT8 at 18.100): comfortably inside the SWR bandwidth of a center cut
  • Phone (starts around 18.110): also comfortably inside the SWR bandwidth of a center cut

As with 12m, cutting for the exact band center is the natural choice — there's no real compromise to weigh since the entire allocation sits well within a center-cut dipole's low-SWR range.

Wire length formula: Total = 468 / f(MHz) Each leg = 234 / f(MHz) For 18.118 MHz: Total = 468 / 18.118 = 25.83 ft Each leg = 234 / 18.118 = 12.91 ft Cut each leg to: 13.3 ft (3% long)

Choose Your Configuration

At just under 26 feet total, a 17m dipole needs a bit more room than the 10m/12m builds but still fits comfortably in most yards:

  • Flat (horizontal) — needs about 13.3 feet of clearance per side for full performance.
  • Inverted-V — a 20–25 foot center mast works well and is the most common setup.
  • Vertical dipole — a compact single-mast option giving a low-angle pattern, well suited to the long-path DX 17m is known for.
  • Portable/field use — a manageable length for a lightweight field dipole, especially paired with a squeeze-lightweight support like a fiberglass mast.

Aim for at least 0.3–0.5 wavelength of height (roughly 15–26 feet at 18.118 MHz) for a genuinely useful DX takeoff angle.

17m Dipole Calculator

Everything you need to build a complete 17m dipole

📏#14 AWG stranded copper-clad steel wire, 28 ftCopper-clad steel resists stretching and sagging over time
🔩Dipole center (feedpoint insulator)Commercial SO-239 dipole center or DIY from PVC + hardware
🔘FT-240-31 toroid core, 1 pieceFor the 1:1 current choke
🔌RG-8X coax, length to reach radioRG-213 recommended if the run exceeds 75 feet
🪝Egg insulators, 2 piecesCeramic or hard plastic, for the wire end supports
🪢UV-resistant Dacron rope, 30 ftFor center and end supports
🔧PL-259 coax connector, 1 pieceFor the coax-to-feedpoint connection
🛠️Self-amalgamating tape, 1 rollFor weatherproofing the feedpoint connection
🔩Stainless steel machine screws and nuts6-32 × ½" for feedpoint wire connections
🪛Solder (60/40 rosin core) and soldering iron25–40W iron is sufficient for this light wire
📡NanoVNAFor SWR sweep and resonance verification before operating
📐Steel measuring tape, 14 ft minimumFor accurately marking leg lengths

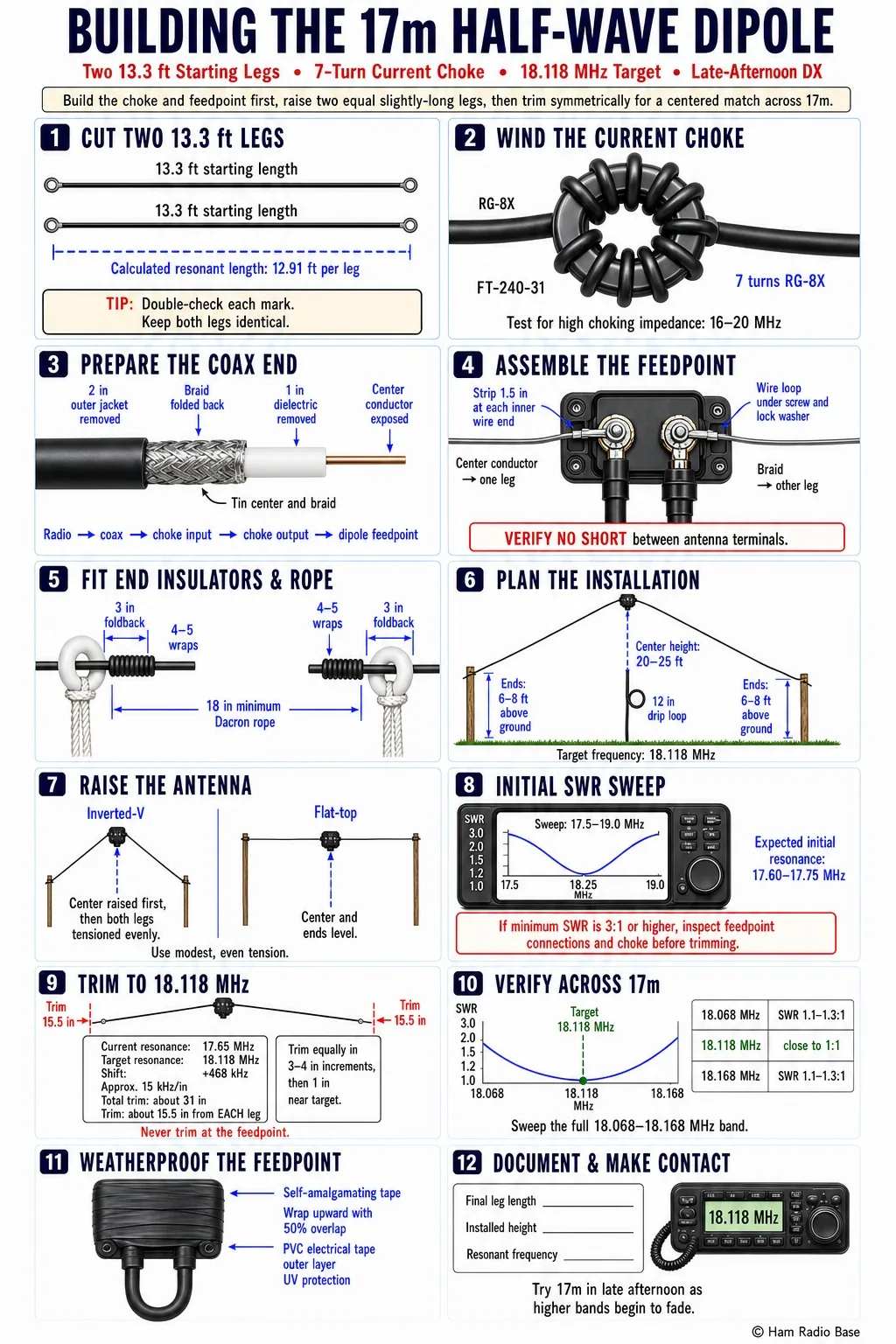

Finished 17m half-wave dipole antenna showing the center feedpoint with current choke, egg insulators at each wire end, and Dacron support rope

Building the 17m Half-Wave Dipole

Follow these steps in order for a properly tuned, weatherproofed 17m dipole.

1

Mark Out and Cut the Wire

Unroll the wire on a flat surface. Measure 13.3 feet from one end and mark with tape. Cut at this mark — this is your first leg, 3% longer than the calculated 12.91-foot resonant length. Cut a second identical 13.3-foot leg.

Tip: Use a steel tape and double-check the mark before cutting to avoid a leg that comes up short.
2

Wind the Current Choke

Wind 7 turns of RG-8X coax through the FT-240-31 toroid. Push the coax through the toroid hole, loop around the outside, and back through again for each turn.

Tip: Test the choke with the NanoVNA before installing, sweeping 16–20 MHz and checking for consistently high impedance.
3

Prepare the Coax End

Strip back 2 inches of outer jacket at the antenna end of the coax. Fold the braid back over the jacket without nicking strands. Strip 1 inch of dielectric to expose the center conductor. Tin both the center conductor and folded braid with solder.

Important: The coax connects to the choke output, not directly to the dipole center. Connection order: radio → coax → choke input → choke output → dipole feedpoint.
4

Assemble the Feedpoint

If using a commercial dipole center, follow its instructions. If fabricating your own, drill two pairs of holes for 6-32 screws — one per side connects to the coax, the second connects the antenna wire.

Strip 1.5 inches of insulation from each wire leg end, form a loop with round-nose pliers, and secure it under a screw and lock washer before soldering for electrical continuity.

5

Attach End Insulators and Support Rope

Thread each wire leg through an egg insulator at the far end. Double the wire back about 3 inches, wrap 4–5 times around the main wire, and solder the wrap. Attach at least 18 inches of Dacron rope to each insulator.

6

Plan the Installation Layout

Walk the site and confirm your support points. A center support of 20–25 feet gives a good DX takeoff angle at 18.118 MHz. Wire ends only need to clear 6–8 feet above ground. Route the coax to the shack and leave a 12-inch drip loop just below the feedpoint.

7

Raise the Antenna

For an inverted-V, raise the center mast first with the feedpoint attached, then pull each leg out to its end anchor and secure with modest tension. For a flat dipole, raise the center and one end, then the second end, adjusting tension until level.

8

Initial SWR Sweep

Connect the NanoVNA at the radio end of the coax and sweep 17.5 to 19.0 MHz. With legs cut to 13.3 feet, expect resonance around 17.60–17.75 MHz — below the band due to the long legs.

If minimum SWR is 3:1 or higher: Check all feedpoint connections and confirm the choke is installed correctly before trimming — a high minimum SWR points to a wiring problem, not a length problem.
9

Trim to Target Frequency

Each 1 inch trimmed from both legs raises resonance by roughly 15 kHz on 17m.

Current resonance: 17.65 MHz Target resonance: 18.118 MHz Shift needed: +468 kHz Trim required: 468 / 15 kHz/in ≈ 31 inches Trim from each leg: ~15.5 inches (half the total)

Trim both legs equally in 3–4 inch increments and re-measure after each cut, switching to 1-inch increments as you approach the band.

10

Verify Across the Band

Once resonance is confirmed near 18.118 MHz, sweep the full 18.068–18.168 MHz range. As with 12m, a center-cut dipole on this narrow a band should show low, nearly flat SWR from edge to edge:

  • SWR at 18.068 MHz: 1.1–1.3:1
  • SWR at 18.118 MHz: close to 1:1 (the resonance minimum)
  • SWR at 18.168 MHz: 1.1–1.3:1
11

Weatherproof the Feedpoint

Wrap self-amalgamating tape upward from below the feedpoint with 50% overlap, covering all connections and the coax entry. Apply a second layer of PVC electrical tape over it for UV protection.

12

Document and Make First Contact

Record the final leg lengths, installed height, and resonant frequency in your station log. Try 17m in the late afternoon local time — it's a favorite for exactly this window when other high bands are starting to fade.

A Quiet WARC Band

Like 12m and 30m, 17m was allocated in 1979 without contest activity, which most contest sponsors continue to honor. Combined with its narrow 100 kHz width, 17m tends to feel noticeably calmer than 20m or 15m — a good band for relaxed ragchews and casual DX chasing without pile-up chaos.

Late-Day DX Characteristics

17m often stays open later into the afternoon and early evening than 15m or 12m, while also opening a bit later in the morning than 20m. This makes it a useful "in-between" band for working DX during transitional daylight hours when the higher bands have already started to close but 20m hasn't fully opened up for long-path yet.

17m propagation by solar activity: High solar flux: strong daytime and late-afternoon DX openings Moderate solar flux: solid daytime openings, narrower late-day window Low solar flux: shorter, more limited openings, mostly midday

A Practically Flat SWR Curve

As with 12m, the entire 17m allocation is only 100 kHz wide, so a dipole cut for the center shows almost no meaningful SWR variation across the whole band — there's no real edge-of-band compromise to plan around here.

Symptom Most likely cause Diagnosis Fix
SWR high (3:1+) across entire bandConnection or wiring errorInspect all feedpoint connectionsVerify center conductor and braid are on opposite dipole sides; check for open connections
SWR changes when touching the coaxCommon-mode current; no chokeIs the current choke installed?Install or improve the current choke; add snap-on ferrite near the feedpoint
Resonance below 18.068 MHzWire legs too longMeasure actual leg lengthsTrim both legs equally — 1 inch per side raises resonance ~15 kHz
Resonance above 18.168 MHzWire legs too shortMeasure actual leg lengthsSplice a short wire extension onto each leg end and re-tune
SWR fine but band feels dead middayNormal propagation lull for 17mCheck propagation reports for the current time of dayNot a fault — try late afternoon/early evening, 17m's typical strong window
Wide-band SWR uneven despite narrow bandChoke or feedline issue, not the antenna cut itselfSweep the choke separatelyAn uneven curve across such a narrow band usually points to hardware, not antenna length

Why is 17m only 100 kHz wide?

17m is a WARC band, allocated to amateurs in 1979 in narrow, non-contest slices. Like 12m, it's intentionally narrower than the traditional bands such as 20m or 15m.

Is 17m good for DX?

Yes — 17m is often described as a hidden gem for DX, especially in the late afternoon and early evening when 15m and 12m have started to close but 20m is still crowded. It combines reasonably good propagation with a much quieter band.

Why doesn't 17m have contests?

Like the other WARC bands, 17m was set aside without contest activity when it was allocated, a long-standing band-plan convention most contest sponsors continue to respect.

Do I still need a current choke on this antenna?

Yes — common-mode current on the feedline is unrelated to the antenna's physical size or the band's width. A 7-turn FT-240-31 choke at the feedpoint is standard practice here as on every other band.

How does 17m compare to 12m for propagation?

17m is somewhat less solar-cycle dependent than 12m, since its lower frequency needs less ionization to support skywave propagation — it tends to stay usable more consistently across the solar cycle than 12m or 10m.

Can this dipole double for 15m or 20m?

Not usefully without a tuner — the leg lengths aren't a harmonic match for either neighboring band. Build a dedicated dipole per band, or use a fan dipole/trap design if multiband coverage from one feedpoint is the goal.
