Build a 12m Half-Wave Dipole Antenna

12m is one of the five WARC bands — allocated to amateurs in 1979 specifically without contests, giving it a calmer, less crowded feel than the traditional contest bands on either side of it. At only 100 kHz wide (24.890–24.990 MHz), it's a narrow slice of spectrum, but a dipole cut for its center covers the whole band with excellent SWR from end to end. Like 10m, propagation here tracks the solar cycle closely, making it a genuinely rewarding DX band whenever conditions cooperate.

18.8 ftTotal wire length
~2 hrsBuild time
$20–$40Typical build cost
24.89–24.99MHz coverage

Choose Your Target Frequency

12m runs 24.890 to 24.990 MHz — just 100 kHz wide, the narrowest band this dipole family covers. There is effectively one sensible choice of design frequency: dead center of the band.

  • Whole band, CW/data/phone: no internal segmentation on 12m — cut for 24.940 MHz, the band center
  • Digital modes (FT8 at 24.915): still well inside the SWR bandwidth of a center-cut dipole
  • Phone (starts around 24.930): also comfortably inside the SWR bandwidth of a center cut

Because the band is so narrow, there is no real "compromise" decision to make the way there is on 10m or 15m — cut for the center and the entire band will show low SWR.

Wire length formula: Total = 468 / f(MHz) Each leg = 234 / f(MHz) For 24.940 MHz: Total = 468 / 24.94 = 18.77 ft Each leg = 234 / 24.94 = 9.38 ft Cut each leg to: 9.7 ft (3% long)

Choose Your Configuration

At under 19 feet total, a 12m dipole is compact and easy to fit almost anywhere:

  • Flat (horizontal) — needs about 9.7 feet of clearance per side; full performance in the least amount of space.
  • Inverted-V — a single 15–20 foot mast is more than adequate and already puts the apex at a useful fraction of a wavelength up.
  • Vertical dipole — a compact option on a single fiberglass mast, giving a low-angle pattern useful for weak-signal DX.
  • Portable/field use — the short length and light weight make 12m a strong candidate for a lightweight linked or single-band field dipole.

As with 10m, the antenna's own physical height above ground is a larger fraction of a wavelength here than on the low bands, so even a modest support gives a genuinely useful takeoff angle for DX.

12m Dipole Calculator

Everything you need to build a complete 12m dipole

📏#14 AWG stranded copper-clad steel wire, 22 ftCopper-clad steel resists stretching and sagging over time
🔩Dipole center (feedpoint insulator)Commercial SO-239 dipole center or DIY from PVC + hardware
🔘FT-240-31 toroid core, 1 pieceFor the 1:1 current choke
🔌RG-8X coax, length to reach radioLoss per foot at 25 MHz is modest for typical run lengths
🪝Egg insulators, 2 piecesCeramic or hard plastic, for the wire end supports
🪢UV-resistant Dacron rope, 30 ftFor center and end supports
🔧PL-259 coax connector, 1 pieceFor the coax-to-feedpoint connection
🛠️Self-amalgamating tape, 1 rollFor weatherproofing the feedpoint connection
🔩Stainless steel machine screws and nuts6-32 × ½" for feedpoint wire connections
🪛Solder (60/40 rosin core) and soldering iron25–40W iron is sufficient for this light wire
📡NanoVNAFor SWR sweep and resonance verification before operating
📐Steel measuring tape, 10 ft minimumAccurate leg length matters more on a narrow-band cut like this

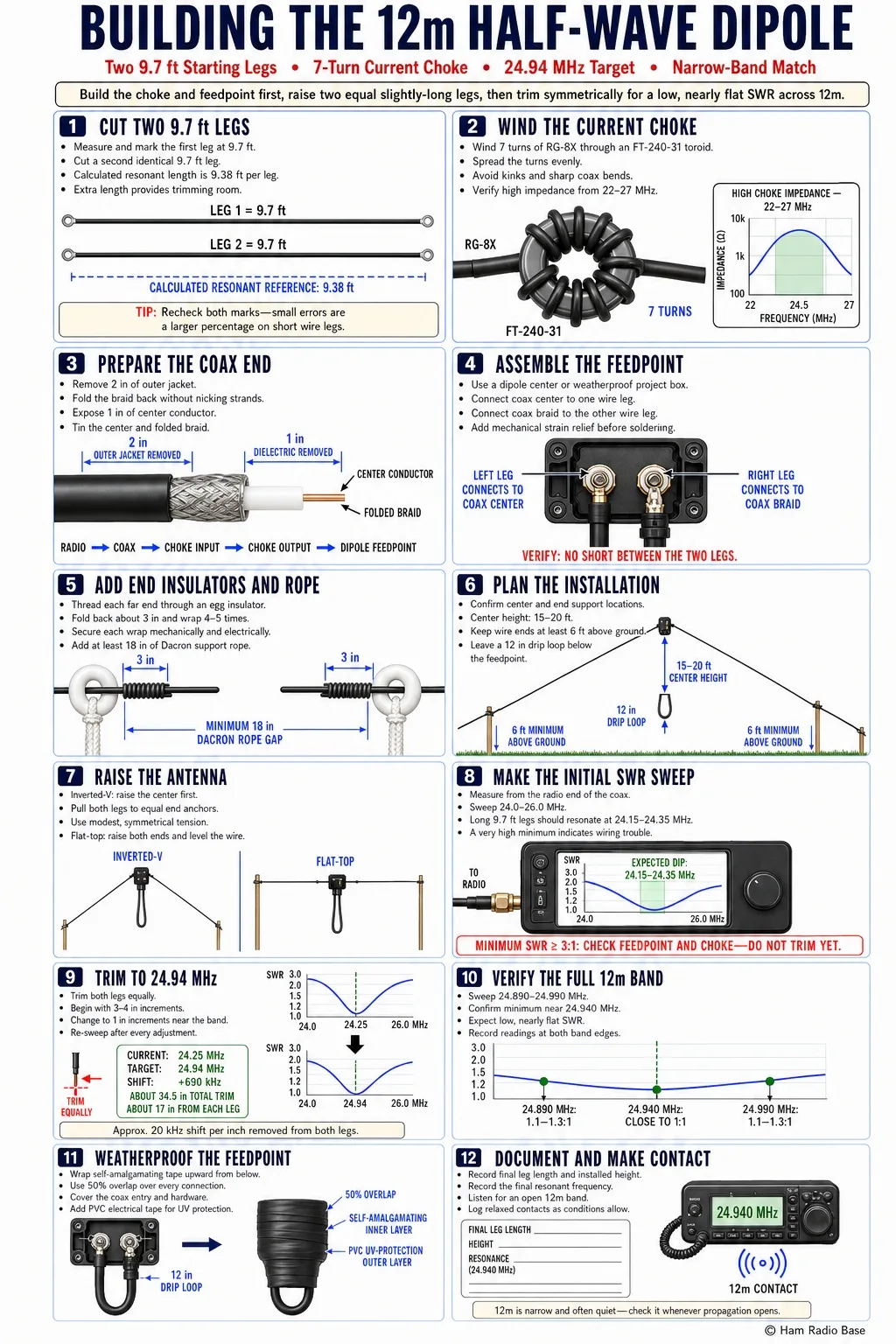

Finished 12m half-wave dipole antenna showing the center feedpoint with current choke, egg insulators at each wire end, and Dacron support rope

Building the 12m Half-Wave Dipole

Follow these steps in order. Because 12m is so narrow, the trimming step is more forgiving in absolute terms once you're within the band.

1

Mark Out and Cut the Wire

Unroll the wire on a flat surface. Measure 9.7 feet from one end and mark with tape. Cut at this mark — this is your first leg, 3% longer than the calculated 9.38-foot resonant length. Cut a second identical 9.7-foot leg.

Tip: Use a steel tape rather than cloth, and re-check the mark before cutting — small errors matter more as a percentage on a shorter leg.
2

Wind the Current Choke

Wind 7 turns of RG-8X coax through the FT-240-31 toroid. Push the coax through the toroid hole, loop around the outside, and back through again for each turn.

Tip: Test the choke with the NanoVNA before installing, sweeping 22–27 MHz and checking for consistently high impedance.
3

Prepare the Coax End

Strip back 2 inches of outer jacket at the antenna end of the coax. Fold the braid back over the jacket without nicking strands. Strip 1 inch of dielectric to expose the center conductor. Tin both the center conductor and folded braid with solder.

Important: The coax connects to the choke output, not directly to the dipole center. Connection order: radio → coax → choke input → choke output → dipole feedpoint.
4

Assemble the Feedpoint

If using a commercial dipole center, follow its instructions. If fabricating your own, drill two pairs of holes for 6-32 screws — one per side connects to the coax, the second connects the antenna wire.

Strip 1.5 inches of insulation from each wire leg end, form a loop with round-nose pliers, and secure it under a screw and lock washer before soldering for electrical continuity.

5

Attach End Insulators and Support Rope

Thread each wire leg through an egg insulator at the far end. Double the wire back about 3 inches, wrap 4–5 times around the main wire, and solder the wrap. Attach at least 18 inches of Dacron rope to each insulator.

6

Plan the Installation Layout

Walk the site and confirm your support points. A center support of 15–20 feet gives a genuinely useful takeoff angle at 24.94 MHz. Wire ends only need to clear 6 feet above ground. Route the coax to the shack and leave a 12-inch drip loop just below the feedpoint.

7

Raise the Antenna

For an inverted-V, raise the center mast first with the feedpoint attached, then pull each leg out to its end anchor and secure with modest tension. For a flat dipole, raise the center and one end, then the second end, adjusting tension until level.

8

Initial SWR Sweep

Connect the NanoVNA at the radio end of the coax and sweep 24.0 to 26.0 MHz. With legs cut to 9.7 feet, expect resonance around 24.15–24.35 MHz — below the band due to the long legs.

If minimum SWR is 3:1 or higher: Check all feedpoint connections and confirm the choke is installed correctly before trimming — a high minimum SWR points to a wiring problem, not a length problem.
9

Trim to Target Frequency

Each 1 inch trimmed from both legs raises resonance by roughly 20 kHz on 12m.

Current resonance: 24.25 MHz Target resonance: 24.94 MHz Shift needed: +690 kHz Trim required: 690 / 20 kHz/in ≈ 34.5 inches Trim from each leg: ~17 inches (half the total)

Trim both legs equally in 3–4 inch increments and re-measure after each cut, switching to 1-inch increments as you approach the band.

10

Verify Across the Band

Once resonance is confirmed near 24.94 MHz, sweep the full 24.890–24.990 MHz range. Because the band is only 100 kHz wide, a center-cut dipole should show low, nearly flat SWR across the entire allocation:

  • SWR at 24.890 MHz: 1.1–1.3:1
  • SWR at 24.940 MHz: close to 1:1 (the resonance minimum)
  • SWR at 24.990 MHz: 1.1–1.3:1
11

Weatherproof the Feedpoint

Wrap self-amalgamating tape upward from below the feedpoint with 50% overlap, covering all connections and the coax entry. Apply a second layer of PVC electrical tape over it for UV protection.

12

Document and Make First Contact

Record the final leg lengths, installed height, and resonant frequency in your station log. Because 12m has no contests, it's a quiet band to make relaxed, low-pressure contacts whenever conditions are open.

A WARC Band — No Contests

12m, along with 30m, 17m, and the non-HF WARC allocations, was set aside in 1979 specifically without contest activity permitted. That makes it a noticeably calmer band to operate on — no weekend pile-ups, no contest QRM, just regular ragchews and DX chasing whenever the band is open. Many operators specifically favor 12m and 17m for this reason.

Solar-Cycle Behavior Similar to 10m

Like 10m, 12m propagation depends heavily on solar activity. Near solar maximum, F2-layer propagation opens the band widely for DX. Near solar minimum, openings become shorter and less frequent, though 12m tends to stay open somewhat more reliably than 10m during moderate conditions since its slightly lower frequency requires less ionization to support skywave propagation.

12m propagation by solar activity: High solar flux: strong worldwide F2 openings, often daily Moderate solar flux: shorter single-hop openings, still useful Low solar flux: openings become rare but not absent — check daily

A Practically Flat SWR Curve

Because the entire band is only 100 kHz wide, a properly cut 12m dipole is one of the few antennas on this site where "edge of band" and "center of band" SWR are nearly indistinguishable. Unlike 10m or 15m, there's no real tradeoff to weigh in choosing where to center the cut.

Symptom Most likely cause Diagnosis Fix
SWR high (3:1+) across entire bandConnection or wiring errorInspect all feedpoint connectionsVerify center conductor and braid are on opposite dipole sides; check for open connections
SWR changes when touching the coaxCommon-mode current; no chokeIs the current choke installed?Install or improve the current choke; add snap-on ferrite near the feedpoint
Resonance below 24.890 MHzWire legs too longMeasure actual leg lengthsTrim both legs equally — 1 inch per side raises resonance ~20 kHz
Resonance above 24.990 MHzWire legs too shortMeasure actual leg lengthsSplice a short wire extension onto each leg end and re-tune
SWR fine but band seems deadNormal low-solar-activity behaviorCheck current solar flux and sunspot numberNot a fault — check propagation forecasts and try again during higher solar activity
Wide-band SWR still uneven despite narrow bandChoke or feedline issue, not the antenna cut itselfSweep the choke separatelyBecause 12m is so narrow, an uneven curve across it usually points to hardware, not the antenna length

Why is 12m so much narrower than 10m or 15m?

12m is a WARC band, allocated to amateurs in 1979 in a series of narrow, non-contest slices carved out of existing shortwave broadcast and other spectrum. At 100 kHz, it's intentionally narrow compared to the older, wider bands like 10m, 15m, and 20m.

Does band center really cover the whole 12m allocation?

Yes. A dipole's useful low-SWR bandwidth (typically several hundred kHz on the low HF bands) comfortably covers a 100 kHz-wide band when cut for its center — there's no meaningful compromise to make here the way there is on wider bands.

Why doesn't 12m have contests?

The WARC bands (12m, 17m, 30m) were set aside specifically without contest activity when they were allocated, to preserve them as quieter bands for regular operating. This is a long-standing amateur radio band-plan convention, not a legal restriction in most countries, though contest sponsors generally honor it.

Do I still need a current choke on such a short antenna?

Yes — common-mode current on the feedline is a function of the coax and installation, not the antenna's physical size. A 7-turn FT-240-31 choke at the feedpoint is just as important here as on any other band.

How does 12m propagation compare to 10m?

Similar solar-cycle dependence, but 12m tends to stay open somewhat more reliably during moderate solar conditions since its lower frequency needs less ionization to refract back to earth. It's often described as a good "in-between" band when 10m is closed but 15m is crowded.

Can this dipole be used on 10m or 15m as well?

Not usefully without a tuner — the leg lengths aren't a harmonic match for either adjacent band. Treat this as a dedicated 12m antenna, or build a second dipole for other bands and feed each with its own line.
