Build an 80m Half-Wave Dipole Antenna
An 80m dipole is the most challenging of the standard HF wire antennas to install — 130 feet of wire needs space and height — but it rewards that effort with one of the most versatile antennas in amateur radio. The same wire covers 80m, 40m, and with a ladder line feed, every HF band from 80m through 10m. The 80m band itself offers outstanding regional and DX performance and is the backbone of most emergency communication networks. This guide covers every consideration unique to building an 80m dipole, from the size challenge to the specific 80m propagation characteristics that determine where to cut the wire.
Choose Your Target Frequency
The 80m band spans 3.500 to 4.000 MHz — a full 500 kHz wide. This is wide enough that a resonant dipole at one end of the band will show SWR of 3:1 or higher at the other end. You must choose a segment to optimize for and use a tuner for the remainder:
- CW and digital: 3.500–3.600 MHz — cut for 3.550 MHz
- SSB — lower segment: 3.600–3.800 MHz — cut for 3.700 MHz
- SSB — US phone: 3.800–4.000 MHz — cut for 3.900 MHz
- Emergency comms (ARES/RACES): 3.900–3.985 MHz — cut for 3.940 MHz
- Best all-around for most operators: 3.750 MHz — usable across the most common operating frequencies with a modest tuner
The 80m Space and Height Reality
A full-size 80m dipole requires serious planning. The wire is 125–132 feet long — comparable to a 13-story building laid on its side. Before committing to this build, honestly assess available space:
- Flat dipole: needs 125+ feet of horizontal span. Most residential lots are 50–100 feet wide — a flat 80m dipole requires a very large property or creative routing across multiple properties
- Inverted-V: needs a single tall center support (50+ feet ideal, 40 feet minimum) and two anchor points 45–55 feet from the center in any direction. Much more manageable — most lots can accommodate this
- Bent or dog-leg: route each leg in different directions to fit available space. A significant bend at one or both legs reduces some performance but a 130-foot wire bent to fit a lot dramatically outperforms a shorter antenna that fits perfectly
- Inverted-L equivalent: run one leg horizontally and one leg vertically — the vertical leg acts as a top-loaded vertical contribution that can actually improve low-angle radiation
If 80m is important to you and space is limited, the inverted-V is almost always the right answer — a single 50-foot mast or tall tree opens up 80m dipole operation on most properties.
80m Dipole Calculator
Complete materials for an 80m dipole build

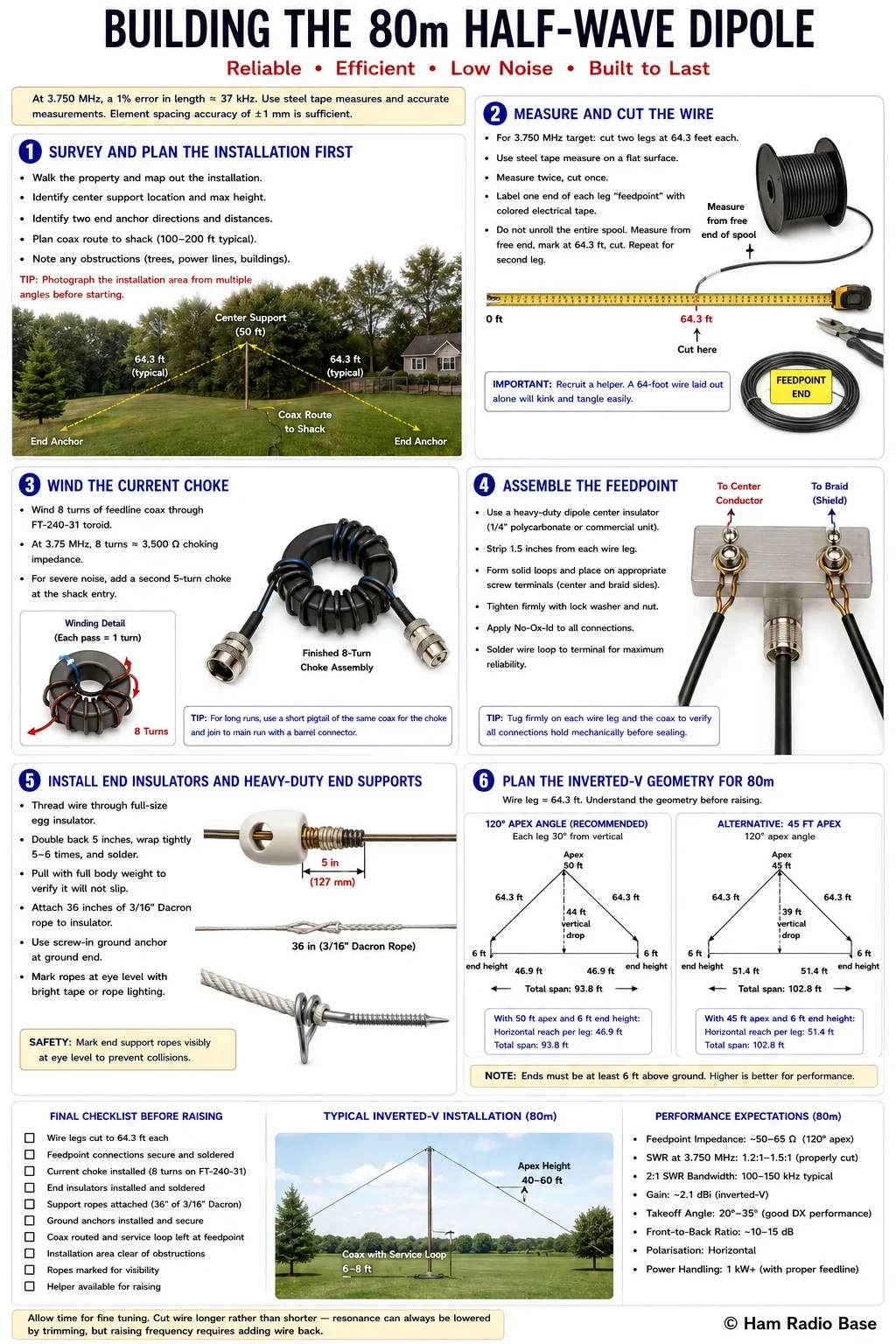

Building the 80m Half-Wave Dipole
Allow a full day for the 80m dipole — the wire is long, the supports are substantial, and the tuning process takes more time than shorter antennas. Plan the installation before starting the build.
Survey and Plan the Installation First
Before cutting a single piece of wire, walk the property and map out the installation. On 80m, the installation plan directly determines the build — if you discover mid-build that the planned configuration doesn't fit, you may be committed to wire lengths you can't use. Identify:
- The center support location and maximum achievable height
- Two end anchor directions and distances from center — do not need to be equal or even symmetric
- The coax route from the feedpoint to the shack — plan for 100–200 feet of coax on most installations
- Any obstructions — trees, power lines, buildings — that will affect wire routing
Measure and Cut the Wire
For a 3.750 MHz target: cut two legs at 64.3 feet each. Use a steel tape measure on a flat surface — a driveway or straight sidewalk works well. On 64+ feet of wire, even small measurement errors compound — measure twice, cut once. Label one end of each leg "feedpoint" with colored electrical tape before cutting.
The wire legs are heavy enough on 80m that you should recruit a helper for handling during measurement and cutting. A 64-foot wire laid across a lawn has a tendency to kink or tangle if not handled carefully by both ends simultaneously.
Wind the Current Choke
On 80m, common-mode current management is even more important than on higher bands because 80m signals are more susceptible to picking up noise from household wiring and power lines — and the coax shield, if carrying common-mode current, becomes an efficient 80m noise pickup antenna running straight into the radio's antenna terminal.
Wind 8 turns of the feedline coax through the FT-240-31 toroid for the primary choke at the feedpoint. At 3.75 MHz, the choking impedance of 8 turns on FT-240-31 is approximately 3,500Ω — excellent common-mode rejection. If your noise environment is particularly bad, wind a second 5-turn choke on a second FT-240-31 where the coax enters the shack.
Assemble the Feedpoint
The feedpoint of an 80m dipole carries the mechanical tension of a 130-foot wire span. Use a heavy-duty commercial dipole center or fabricate one from 1/4" polycarbonate plate with stainless hardware. The center insulator must support the wire tension without cracking or deforming — thin plastic or PVC material is not adequate for 80m spans in wind.
Strip 1.5 inches from each wire leg. Form a solid loop with round-nose pliers and place over the appropriate feedpoint screw terminal — center conductor side and braid side. Tighten firmly with lock washer and nut. Apply No-Ox-Id to each connection. Solder the wire loop to the screw terminal for belt-and-suspenders security — both mechanical and electrical redundancy at the feedpoint.
Install End Insulators and Heavy-Duty End Supports
Thread each wire end through a full-size egg insulator. Double back 5 inches of wire, wrap tightly 5–6 times, and solder. The wrap must be mechanically strong — an 80m wire in moderate wind generates substantial tension at the end insulators. Pull on the completed wrap with full body weight to verify it will not slip.
Attach 36 inches of 3/16" Dacron rope to each end insulator. The longer rope gap helps mechanically isolate the wire end from the support structure and distributes the wind-induced motion over a longer flexible section rather than concentrating stress at the insulator junction. At the ground anchor end, use a screw-in ground anchor rather than a simple stake for 80m end supports — stakes pull out in wet soil under sustained 80m wire tension.
Plan the Inverted-V Geometry for 80m
For an 80m inverted-V, the wire leg is 64+ feet — longer than the horizontal reach of most properties. Understanding the geometry before raising avoids surprises:
The key insight: on 80m, a standard inverted-V with 50+ foot apex and 6-foot minimum end heights requires roughly 50-foot horizontal reach per leg — about 100 feet total span. This fits most lots and is the standard 80m inverted-V footprint.
Raise the Center Support
An 80m inverted-V apex needs to be as high as possible — ideally 50 feet or more. Options for the center support:
- Tall tree: throw a line over a branch at 50+ feet using a throw weight and line — the standard approach for most residential installations. A 50g throw weight on 50m of 1.5mm braided line reaches most tall trees easily
- Telescoping mast (30–40 ft): a military-surplus or commercial mast can reach 30–40 feet — adequate for 80m operation though 50 feet is preferred
- Existing tower: if you have an antenna tower for another antenna, the 80m inverted-V feedpoint can be attached just below the rotator at the top
- Roof-mounted mast: adding 20–30 feet of mast to a 30-foot house roof achieves 50+ feet total height
Route the Coax and Raise the Antenna
Pre-route the coax from the planned feedpoint location to the shack before raising the antenna. An 80m coax run of 100–200 feet across the property is significant — bury it in conduit, route along fence lines, or use direct-burial coax rated for underground use. Exposed coax across a lawn is a trip hazard and gets damaged by lawn equipment.
Raise the center support first. Attach the feedpoint assembly to the support rope at the calculated apex height. Pull the center rope up through or over the tree. Once the center is at height, pull each wire leg to its end anchor point. Work both sides simultaneously if a helper is available — this makes it easier to maintain equal tension on both legs during final tensioning.
Initial SWR Sweep — 80m Specifics
Connect the NanoVNA at the shack end of the coax. Sweep 3.3 to 4.1 MHz. On 80m, expect larger resonance shifts from the calculated frequency than on higher bands — the wire ends are close to the ground relative to the wavelength and ground proximity loading is significant. With legs at 64.3 feet, expect resonance around 3.65–3.75 MHz.
The SWR curve on 80m is broader than on higher bands — the minimum SWR dip covers more frequency range but the SWR at band edges is also higher. A typical well-installed 80m dipole cut for 3.750 MHz shows SWR below 2:1 from approximately 3.65 to 3.85 MHz — only about 200 kHz of comfortable operating range without a tuner.
Trim to Target Frequency
On 80m, each 3 inches trimmed from both legs raises resonance by approximately 5–6 kHz. Calculate required trim from measured resonance to target:
Trim conservatively on 80m — 6-inch increments and re-sweep after each. Ground moisture on 80m has a larger effect than on higher bands, often shifting resonance 50–80 kHz between dry and wet conditions. Tune after recent rainfall when possible to capture the typical operating condition.
Verify SWR Across the Band
With resonance at 3.750 MHz, sweep the full 80m band 3.500–4.000 MHz. A typical 80m inverted-V at 45–50 foot apex shows:
- SWR at 3.500 MHz: 3.0–5.0:1 (tuner needed)
- SWR at 3.600 MHz: 2.0–3.0:1 (tuner for most radios)
- SWR at 3.750 MHz: 1.1–1.4:1 (resonance minimum)
- SWR at 3.900 MHz: 2.0–3.0:1 (tuner for comfortable operation)
- SWR at 4.000 MHz: 3.5–5.0:1 (tuner needed)
An antenna tuner is essentially required for full 80m band coverage with a resonant dipole. This is normal and expected — the band is simply too wide for a single resonance to cover it all with acceptable SWR. Most operators tune the antenna for their primary operating segment and use a tuner for everything else.
Thorough Weatherproofing and Documentation
The 80m feedpoint is the largest and heaviest of the standard HF dipole feedpoints — and it will be under load year-round from a substantial wire span. Weatherproof thoroughly:
Apply self-amalgamating tape starting 3 inches below the coax entry point, working upward with 50% overlap under tension. The tape must cover all exposed connections, the full coax entry area, and extend 3 inches above the top of the feedpoint assembly. Apply two layers. Then apply PVC electrical tape for UV protection. Check annually — reapply if the tape shows cracking, bubbling, or separation.
Document the final installation: wire leg lengths, apex height, end heights and distances, coax length and type, resonant frequency on wet day and dry day, minimum SWR, and date of installation. Photograph everything. Store with station records.
80m Propagation — What to Expect
80m propagation is dramatically different from 20m and 40m in ways that directly affect antenna choice and station setup. Understanding these characteristics helps you get more from the antenna you build:
- Daytime: 80m is primarily a regional band during daylight hours. D-layer absorption limits range to roughly 300 miles. Excellent for regional nets, NVIS emergency communications, and local contacts
- Evening: as the D layer dissipates after sunset, the skip distance increases. 80m becomes productive for 500–2000 mile contacts in the early evening
- Overnight and early morning: 80m DX opens — transatlantic and transpacific contacts become possible on a good night. The best 80m DX happens in the hours before your local sunrise when a long gray-line path connects to the DX station
- Seasonal variation: summer brings higher noise from thunderstorm activity; winter provides the quietest 80m conditions and best DX. An 80m antenna that seems marginal in August often surprises its owner in December
- Noise: 80m has the highest ambient noise of any HF band — urban and suburban locations often have significant power line interference, VDSL noise, and QRM that limits weak signal work
The 80m Dipole as an All-Band System
A 130-foot 80m dipole fed with ladder line to a balanced tuner is one of the most effective all-band HF antenna systems in amateur radio. The long wire provides good efficiency on every HF band from 80m through 10m when matched by a quality balanced tuner and fed with low-loss 450Ω ladder line.
The 130-foot doublet is the most popular all-band HF antenna among serious multi-band operators worldwide — one wire, one feedline, complete HF coverage. If you are building an 80m dipole, consider feeding it with ladder line and a balanced tuner from the start rather than cutting for resonance at one frequency.
Balanced tuner guide →NVIS Operation on 80m
Near Vertical Incidence Skywave (NVIS) is the propagation mode that makes 80m the standard emergency communications band. NVIS signals are transmitted nearly straight up, reflect off the ionosphere, and return to earth within a few hundred miles — filling in the "dead zone" that exists between the range of ground-wave propagation and the start of conventional skywave skip.
A low 80m dipole (8–12 feet high) is optimized for NVIS — it radiates most of its energy at near-vertical angles. A high 80m dipole (50+ feet) provides both NVIS and low-angle DX capability simultaneously. For emergency communications networks that need reliable regional coverage, a high 80m dipole or even a second, intentionally low dipole is the standard solution:
- NVIS target height: 0.1λ to 0.25λ at 3.75 MHz = 26 to 65 feet
- An inverted-V at 40 feet provides excellent NVIS with average DX capability
- A flat dipole at 25 feet is primarily NVIS — poor for DX but outstanding for regional coverage
- Emergency operators often use a low 80m dipole specifically for NVIS regional coverage alongside a higher antenna for DX
Managing 80m Noise
80m receive noise is the primary operating challenge for most stations. A dipole at 50 feet picks up all the noise that a dipole at 20 feet picks up plus additional atmospheric noise from greater sky coverage — but the desired signals are also stronger, so the signal-to-noise ratio is usually better at greater height.
Effective noise reduction strategies for 80m:
- Current choke quality: an excellent choke at the feedpoint is the single most effective noise reduction step — it prevents the coax from acting as a receive antenna for household wiring noise
- Ferrite at shack entry: 5 turns of coax through an FT-240-31 where the coax enters the shack eliminates re-entry of household RF noise
- Dedicated receive antenna: a K9AY loop, small receiving loop, or EWE antenna for receive only — used with a receive/transmit switching relay — provides dramatically lower noise on 80m receive without affecting transmit performance on the main dipole
- DSP noise reduction: modern transceivers with good DSP noise reduction (NR) are effective on 80m atmospheric noise — enable NR on receive but disable during signal reports to avoid affecting audio quality
- Antenna position: locate the antenna as far as practical from the house electrical service entry and any known interference sources (VDSL routers, LED drivers, solar inverters)
| Symptom | Likely Cause | First Check | Solution |
|---|---|---|---|
| High SWR across full band | Connection error or short/open | Ohmmeter check at feedpoint | Verify legs on opposite terminals; look for broken wire strands at heavy solder joints |
| Resonance 100+ kHz low | Legs too long; wet ground loading | Check soil moisture conditions | Trim 6 inches per side and re-sweep; tune wet for realistic results |
| SWR won't reach below 2.5:1 | Common-mode current; poor choke | Verify choke turns count and core type | Rebuild choke with 8 full turns on FT-240-31; add second choke if needed |
| Wire end sags badly in summer | Pure copper wire stretched | Check wire type — CCS or copper? | Replace with copper-clad steel; re-tension end supports more firmly |
| Loud noise on receive only on 80m | Household interference on feedline | Does noise change with appliances? | Add ferrite choke at shack entry; consider dedicated 80m receive antenna |
| Feedpoint connector corroding rapidly | Poor initial weatherproofing | Inspect tape condition | Remove old tape, clean with IPA, re-apply two layers of self-amalgamating tape |
| Center support rope chafing | Wire movement at the tree contact point | Inspect where rope contacts tree | Add a thimble or rope guard where rope passes over branches; retie annually |
| Resonance shifts dramatically with seasons | Tree growth changing apex height | Has the tree grown since installation? | Re-tension the center support annually; allow for tree growth in initial planning |
Do I need an antenna tuner for an 80m dipole?
For full-band coverage, yes — an antenna tuner is effectively required for 80m operation. The band is 500 kHz wide and a resonant dipole covers only about 200 kHz with SWR below 2:1. For the other 300 kHz of the band, a tuner is needed. Most modern transceivers have a built-in ATU that handles the 2–3:1 SWR at band edges without additional hardware. For operators who primarily work one segment (CW only, or SSB only), cutting the dipole for that segment and accepting higher SWR at the other end of the band is a reasonable approach.
Antenna tuner guide →What is the minimum apex height for an 80m inverted-V?
The practical minimum is 35 feet — this gets the wire ends to a safe height and provides a useful if not ideal radiation pattern. At 35 feet, the 80m inverted-V primarily provides NVIS coverage for regional distances, with limited low-angle DX capability. For balanced regional and DX performance, 45–50 feet is the target. At 65 feet (0.25λ on 80m), the antenna becomes genuinely competitive for DX paths with takeoff angles approaching 25 degrees. If you can only achieve 35 feet, the antenna still works — it just favors short-range regional propagation over long-distance DX.
Why is my 80m SWR so high at the band edges?
The 80m band's 500 kHz width spans 14% of the 3.5 MHz center frequency — a much larger percentage bandwidth than 20m or 40m. A half-wave dipole's SWR bandwidth (below 2:1) covers approximately 5–6% of center frequency, which at 80m translates to only about 200 kHz. This means SWR at the band edges is inherently high regardless of how perfectly the antenna is tuned. This is a fundamental characteristic of resonant antennas on wide bands — not an installation problem. A tuner resolves it completely. The only way to get lower SWR across the full 80m band without a tuner is to use a resistively terminated broadband antenna (significant efficiency loss) or multiple antennas for different segments.
Can I use my 80m dipole on 40m?
Yes — an 80m dipole resonates on 40m as the 2nd harmonic. With the wire cut for 3.750 MHz, the 2nd harmonic falls at 7.500 MHz — slightly above the 40m band. This means the 40m resonance isn't perfectly placed but is close enough that a tuner brings it into the band easily. If you plan to use the 80m dipole heavily on 40m, consider cutting the 80m wire for 3.650 MHz instead — the 2nd harmonic falls at 7.300 MHz, right at the top of the 40m band, and the dipole works well on both bands with minimal tuner adjustment. An 80m dipole fed with ladder line covers 40m with excellent efficiency without this compromise.
How does an 80m dipole compare to an 80m vertical for DX?
A vertical with a good radial system generally has lower takeoff angle than an 80m dipole at moderate height — making it better for DX. A vertical with 32+ radials produces a peak takeoff angle of approximately 20 degrees; an 80m dipole at 50 feet peaks at about 25–30 degrees. However, the practical difference in on-air DX performance is often less than the theoretical difference suggests — the dipole's higher gain in the forward direction and better signal-to-noise ratio on receive compensate for the slightly higher takeoff angle. For most operators, the dipole at 50 feet is competitive with a good vertical for 80m DX, and significantly easier to build and maintain. A 4-square vertical array is the clear winner for serious 80m DX, but it requires considerable space and investment.
Why does my 80m dipole keep getting detuned by nearby trees?
Trees contain water — and wet wood is a lossy dielectric that loads nearby conductors electrically. A wire running through or very near dense foliage will be detuned because the wet leaves and branches change the effective electrical environment around the wire. The solution is to maintain at least 3–4 feet of clearance between the wire legs and any significant foliage. On 80m where the wire is 65 feet long, some interaction with vegetation is often unavoidable — tune the antenna with the foliage in its typical summer condition (fully leafed) to represent the worst-case detuning, and accept the slight frequency shift in winter when leaves fall.
