Build a 40m Half-Wave Dipole Antenna
The 40m band is the workhorse of amateur radio — active around the clock, excellent for regional contacts during the day, outstanding for DX in the evenings and overnight, and reliable enough to be the backbone of most emergency communications networks. A half-wave dipole at 65 feet is a highly competitive 40m antenna that costs under $60 to build and performs comparably to commercial antennas costing ten times as much. This guide covers everything from wire cutting through verified SWR — including the specific considerations for 40m that differ from building antennas for higher bands.
Choose Your Target Frequency
The 40m band spans 7.000 to 7.300 MHz — a wider bandwidth (300 kHz) than 20m's 350 kHz but at a lower center frequency, meaning the antenna's SWR bandwidth is slightly narrower relative to the band. You may find the SWR rises to 2.5:1 or higher at band edges unless you cut for the center of your primary operating region:
- CW and digital (FT8): 7.000–7.100 MHz — cut for 7.050 MHz
- SSB — US and Americas: 7.125–7.300 MHz — cut for 7.200 MHz
- SSB — DX and contesting: 7.000–7.200 MHz — cut for 7.150 MHz
- Best all-around compromise: 7.150 MHz — covers CW and SSB ends below 2:1 with most installations
The 40m Space Challenge
The key difference building a 40m dipole versus a 20m dipole is physical size. At 65+ feet total wire length, a flat 40m dipole requires a horizontal span of 65 feet — roughly the width of a typical suburban lot. This space requirement is manageable for most properties but needs to be planned before cutting wire.
Configuration options based on available space:
- Flat (horizontal) — needs 65-foot span plus center support. Best performance but requires significant horizontal space and three support points.
- Inverted-V — needs only one tall center support (40+ feet ideal). Legs slope down to low anchors. The horizontal span needed per side = only about 28 feet at a 120° apex angle — total footprint approximately 56 feet wide. The recommended configuration for most installations.
- Sloper — one end high on a mast or tower, the other end low. Needs 65 feet of diagonal run. Directional pattern toward the low end. Useful when tower space is available.
- Bent or dog-leg — one or both legs bent at an angle to fit available space. Moderate performance impact — a bent dipole is significantly better than no antenna. Document final dimensions for future reference.
For most operators the inverted-V is the right choice — manageable horizontal footprint, single tall center support, and naturally good SWR due to the lower feed impedance at practical apex angles.
Everything needed to build a complete 40m dipole

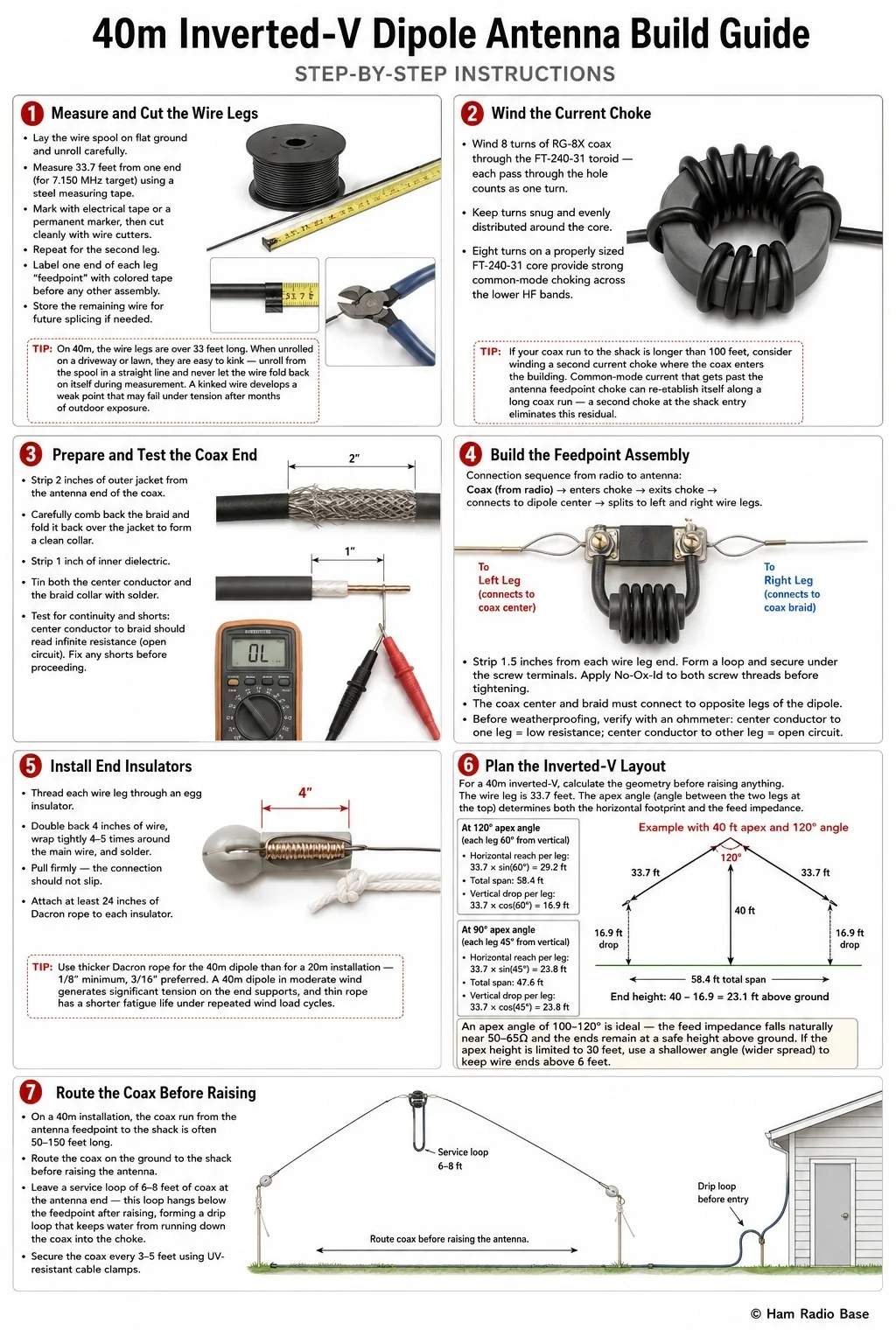

Representative of a Finished 40m Dipole Antenna
Building the 40m Half-Wave Dipole
These steps cover the complete build from wire measurement through first contact. Allow 3 hours for the build and tuning on a calm day.
Measure and Cut the Wire Legs
Lay the wire spool on flat ground and unroll carefully to prevent kinking. Measure 33.7 feet from one end (for 7.150 MHz target) using a steel measuring tape — cloth or fabric tapes stretch and give inaccurate measurements. Mark with electrical tape or a permanent marker, then cut cleanly with wire cutters. Repeat for the second leg. Label one end of each leg "feedpoint" with colored tape before any other assembly.
Store the remaining wire — the exact gauge and type may be needed for future splicing if resonance needs adjustment in the upward direction.
Wind the Current Choke
A properly wound current choke is especially important on 40m because the longer coax runs typically used on 40m installations create more opportunity for common-mode current buildup. Wind 8 turns of RG-8X coax through the FT-240-31 toroid — each pass of the coax through the hole counts as one turn. Keep turns snug and evenly distributed around the core.
Eight turns on a properly sized FT-240-31 core provide strong common-mode choking across the lower HF bands. Keep the turns snug and evenly spaced, and verify the finished choke with an analyzer when possible.
Prepare and Test the Coax End
Strip 2 inches of outer jacket from the antenna end of the coax. Carefully comb back the braid — on RG-8X this is a thick braid and needs careful handling to avoid breaking individual strands. Fold the braid back over the jacket and compress it into a clean collar. Strip 1 inch of inner dielectric. Tin both the center conductor and the braid collar with solder.
Before assembly, quickly test the coax for continuity and shorts: connect an ohmmeter between the center conductor and braid — it should read infinite resistance (open circuit). If it reads low resistance or zero, there is a short — inspect for braid strands touching the center conductor and correct before proceeding.
Build the Feedpoint Assembly
Assemble the feedpoint center with the coax choke integrated into the structure. The connection sequence from radio to antenna:
Coax (from radio) → enters choke at one end → exits choke → connects to dipole center → splits to left and right wire legs.
At the dipole center, strip 1.5 inches from each wire leg end. Form a loop in the stripped wire with round-nose pliers. One wire leg loop goes on the screw terminal that connects to the coax center conductor; the other wire leg goes on the terminal that connects to the coax braid. Apply No-Ox-Id to both screw threads before adding the loop and tightening. The connections should be mechanically secure under firm hand tension before any solder is applied.
Install End Insulators
Thread each wire leg through an egg insulator at the far end. Double back 4 inches of wire, wrap tightly 4–5 times around the main wire, and solder. Pull the completed connection firmly by hand — it should not slip under the tension of a 33-foot wire span. Attach at least 24 inches of Dacron rope to each insulator. The longer rope gap on a 40m dipole is important — the wire ends will be close to the ground on an inverted-V and a longer rope gap keeps the wire clear of people, animals, and conductive vegetation.
Plan the Inverted-V Layout
For a 40m inverted-V, calculate the geometry before raising anything. The wire leg is 33.7 feet. The apex angle (angle between the two legs at the top) determines both the horizontal footprint and the feed impedance:
An apex angle of 100–120° is ideal — the feed impedance falls naturally near 50–65Ω and the ends remain at a safe height above ground. If the apex height is limited to 30 feet, use a shallower angle (wider spread) to keep wire ends above 6 feet.
Route the Coax Before Raising
On a 40m installation, the coax run from the antenna feedpoint to the shack is often 50–150 feet long. Route the coax on the ground to the shack before raising the antenna — it is significantly easier to route the coax along fences, around corners, and through conduit entries at ground level than after the antenna is in the air.
Leave a service loop of 6–8 feet of coax at the antenna end — this loop hangs below the feedpoint after raising, forming the drip loop. The drip loop prevents water from running along the coax directly into the feedpoint connector. Secure the coax to the mast or support structure every 3 feet using UV-resistant cable ties — this prevents the coax from swinging freely in wind and stressing the feedpoint connection.
Raise the Antenna
For an inverted-V with a single mast: raise the mast to full height with the feedpoint assembly attached near the top. Once the mast is secured, pull each wire leg out to its end anchor point at the calculated horizontal distance. Secure the end rope to a stake, post, or low tree branch — maintain just enough tension to keep the wire taut without over-stressing the end insulators or the wire itself.
Check that the feedpoint hangs freely with no contact with the mast structure and that the coax drip loop hangs naturally. Verify visually that both legs are approximately equal in slope — a significant difference in leg angles can indicate an asymmetric installation that will cause pattern distortion.
Initial SWR Sweep — 40m Specifics
Connect the NanoVNA at the shack end of the coax. Sweep 6.8 to 7.5 MHz. Look for the characteristic V-shaped SWR dip — this is the resonant frequency. With legs cut to 33.7 feet, expect resonance around 7.00–7.10 MHz (slightly below the 7.150 target due to long legs).
On 40m, ground proximity has more effect on resonant frequency than on 20m because the wire ends may be much closer to the ground relative to the wavelength. If the ends are at 6–8 feet height, the ground loading can shift resonance 50–100 kHz lower than the free-space formula predicts. This is normal and corrected by trimming.
Trim to Target Frequency
On 40m, trimming 1 inch from each leg (2 inches total) typically raises resonance by roughly 15–20 kHz near 7.1 MHz. Calculate the required trim:
Trim in increments of 4–6 inches per side and re-measure after each trim. As you approach the target frequency, switch to 2-inch increments for precise final adjustment. The resonant frequency is also affected by soil moisture — tune after recent rainfall to represent typical operating conditions rather than tuning during an unusually dry period.
Verify Full Band SWR
With resonance confirmed at 7.150 MHz, sweep the complete 40m band from 7.000 to 7.300 MHz. A properly installed 40m inverted-V at 35–40 feet apex height should show:
- SWR at 7.000 MHz: 1.8–2.5:1
- SWR at 7.100 MHz: 1.2–1.5:1
- SWR at 7.150 MHz: 1.1–1.3:1 (resonance minimum)
- SWR at 7.200 MHz: 1.2–1.6:1
- SWR at 7.300 MHz: 1.8–2.5:1
If SWR at band edges exceeds 3:1, consider using an antenna tuner for operation at the edges or re-tuning for the center of your primary operating segment. Most modern transceivers will operate comfortably into 2.5:1 without any protection circuit activation.
Weatherproof and Document
Apply self-amalgamating tape to the feedpoint starting from below and working upward. Wrap with 50% overlap under slight tension so the tape fuses to itself. Cover all exposed connections, the coax entry, and 2 inches of coax jacket. Apply a PVC electrical tape outer layer for UV protection. Leave the drip loop hanging freely below the feedpoint — do not tape it to the mast where water could pool above the feedpoint entry.
Record final wire lengths, apex height, end heights, coax length, resonant frequency, and minimum SWR. Photograph the feedpoint, complete antenna view, and end anchor arrangements. Store this record in your station logbook — it will save significant time if the antenna ever needs to be rebuilt after storm damage.
40m Propagation and Antenna Height
40m propagation differs significantly from 20m in ways that affect the ideal antenna configuration. On 40m, the ionospheric skip distance is shorter — regional contacts (500–1000 miles) are possible throughout the day, while DX contacts require lower takeoff angles that are available mainly in the evening, overnight, and early morning hours when the ionosphere supports longer-distance propagation.
The practical conclusion: a 40m dipole at 40 feet is a versatile antenna for both regional and DX work. Getting to 65 feet significantly improves DX performance. Below 25 feet, the antenna is primarily useful for regional (NVIS-style) paths and close contacts.
The 40m Dipole as a Multi-Band Antenna
A 40m dipole fed with ladder line to a balanced tuner is one of the most effective multi-band antenna systems available. The 40m wire (65 feet total) also resonates on 15m (3rd harmonic) — providing a second band with no tuner required.
With a ladder line feed and balanced tuner:
- 40m: resonant, no tuner — SWR at feedpoint ~73Ω
- 15m: 3rd harmonic resonance, low SWR — often works without tuner
- 20m: non-resonant but works well with tuner — feedline loss very low with ladder line
- 10m: works with tuner — 5th harmonic, pattern becomes more complex
- 17m, 12m, 30m: work with tuner — non-harmonic but low ladder line loss makes them effective
- 80m: works with tuner at moderate efficiency — the wire is short but 80m contacts are achievable
This makes a single 40m dipole with ladder line one of the best value multi-band HF antennas — complete HF coverage from one installation.
Antenna tuner guide →Noise Reduction on 40m
40m often has higher ambient noise levels than the upper HF bands — particularly in urban and suburban environments where power line noise, VDSL, and other interference is common. Several steps reduce received noise on 40m:
- A good current choke at the feedpoint reduces noise picked up from the feedline and connected equipment — often the single biggest noise reduction step
- A second choke where the coax enters the shack prevents re-entry of common-mode noise from household wiring
- A short ferrite rod or snap-on ferrite on the coax at the radio entry point further reduces equipment-coupled noise
- High antenna position moves the antenna away from ground-level noise sources — even 10 feet more height can make a noticeable difference on 40m
- For particularly noisy locations, a separate receive antenna (K9AY loop, beverage, or small receiving loop) dramatically reduces local interference — many serious 40m operators use a separate receive antenna
Coax Selection for 40m
On 40m, coax loss is lower than on higher bands, but longer coax runs are typical — the antenna is often further from the shack than a 20m antenna would be, and the runs are often 75–150 feet. Coax selection affects overall system efficiency:
For a 100-foot coax run on 40m, RG-8X loses approximately 0.55 dB — acceptable. For 150 feet, LMR-240 or RG-213 is preferable. Avoid RG-58 for fixed station use on any HF band — the loss penalty adds up significantly over long runs.
Feed systems and coax guide →| Symptom | Likely Cause | First Check | Solution |
|---|---|---|---|
| High SWR across entire band | Connection error or open circuit | Check feedpoint connections with ohmmeter | Verify center and braid on opposite legs; look for broken wire at connectors |
| SWR changes with coax movement | Common-mode current; inadequate choke | Is the current choke installed and correct? | Verify 8 turns on FT-240-31; add snap-on ferrite beads to coax near feedpoint |
| Resonance shifts after rain | Ground loading — normal on 40m | Compare wet and dry SWR sweeps | Tune in typical (wet) conditions; accept shift in dry weather as normal |
| Resonance too low (below 7.000) | Wire legs too long | Measure actual leg lengths | Trim both legs equally — 2 inches per side raises resonance ~10 kHz |
| Resonance too high (above 7.300) | Wire legs too short; over-trimmed | Measure actual leg lengths | Splice identical wire onto each leg end; re-tune |
| SWR minimum won't go below 2:1 | Poor installation; nearby metal | Is the antenna near metal structure? | Move antenna away from gutters, pipes, metal fencing; raise apex height |
| RF in the shack on 40m | Common-mode current on coax | Check choke quality and second choke at shack entry | Improve feedpoint choke; add 5-turn snap-on ferrite at shack coax entry |
| Works 40m but poor on 15m harmonic | Common-mode problem; pattern issue | Check SWR on 15m with NanoVNA | If SWR is good but performance poor, verify horizontal polarization for SSB on 15m |
40m Dipole Calculator
How high does a 40m dipole need to be?
The minimum practical height for a 40m inverted-V is 30 feet at the apex — this keeps the wire ends above 6 feet and gives a moderately useful radiation pattern. For good DX performance, target 40–50 feet at the apex. At 65 feet (one full wavelength on 40m), the takeoff angle drops to about 18 degrees — genuinely competitive for DX. Below 25 feet, the antenna primarily serves regional and NVIS paths, with limited DX capability. Any height is better than no antenna, but prioritizing apex height above any other single station improvement gives the best return on effort.
Why does my 40m resonance shift after it rains?
This is normal behavior on 40m and to a lesser extent on 80m. The wire ends are close to the ground relative to the wavelength, and wet soil has significantly higher dielectric constant than dry soil. This ground-proximity loading effect shifts the resonant frequency downward by 50–100 kHz after rain. The effect is consistent and predictable for your installation — tune the antenna after moderate rainfall to represent typical operating conditions. Your radio's ATU can handle the modest SWR variation between wet and dry conditions on the remaining portions of the band.
Can I operate on 80m with my 40m dipole?
Yes, with a tuner — and performance is better than many operators expect. A 40m dipole on 80m is a short antenna that presents a complex impedance to the feedline, but with ladder line and a balanced tuner the system efficiency is adequate for making contacts. With coax and a shack tuner, the additional coax loss at the high SWR on 80m reduces efficiency significantly — expect perhaps 20–30% of your power actually radiating. With ladder line, efficiency on 80m is much better — perhaps 50–70% of power radiating. For regular 80m operation, a dedicated 80m dipole is significantly better, but the 40m dipole covers 80m in a pinch.
What is the SWR bandwidth of a 40m dipole?
A properly tuned 40m dipole (resonant at 7.150 MHz) typically shows SWR below 2:1 from approximately 7.050 to 7.250 MHz — covering most of the commonly used portion of the band. The full 7.000–7.300 MHz band is 300 kHz wide; the 2:1 SWR bandwidth of a typical 40m dipole is approximately 200–250 kHz. Band edges at 7.000 MHz and 7.300 MHz may show SWR of 2.5–3.0:1 with resonance at 7.150 MHz. A tuner handles this comfortably. For operators who need consistently low SWR at both band edges (contesting), cut the dipole for 7.150 MHz and use a tuner for operation outside the comfortable SWR range.
Is the inverted-V better or worse than a flat dipole for 40m DX?
A flat dipole at the same apex height as an inverted-V has slightly more DX gain — the flat dipole maintains full element length at full height, while the inverted-V has legs that slope downward to lower heights. The effective average height of the inverted-V is lower, which raises the takeoff angle slightly compared to the flat dipole. In practice, the difference is small — approximately 1–2 dB. The practical advantage of the inverted-V (single tall support, flexible end placement, naturally lower feed impedance) usually outweighs the modest DX gain advantage of the flat dipole for most installations. If you can achieve a flat dipole at equal height with the same effort, choose the flat dipole for DX. Otherwise, the inverted-V is the right choice.
How do I know if my 40m dipole is actually working?
Use the Reverse Beacon Network (RBN) — send a brief CW signal on 40m and check which automated receivers are spotting you and at what signal strength. Compare your signal reports to other stations from your geographic area. For SSB, the PSK Reporter network serves the same function — it maps which stations are decoding your FT8 or other digital transmissions. Both tools give you objective, quantitative evidence of your antenna's performance without requiring another station to cooperate. A well-installed 40m dipole at 40 feet should be spotted by RBN stations across the US during the day and across the Atlantic or Pacific during the band's open periods at night.
