Series Match
Not every mismatch needs a full matching network — if an antenna's feedpoint resistance already lands close to 50Ω and the only problem is leftover reactance from a length that couldn't be trimmed exactly to resonance, a single capacitor or inductor wired in series with the feedline is often all it takes to cancel that reactance and clean up SWR. This guide covers when a series match is the right tool instead of an L-network, how to size the single component from a measured feedpoint, a worked example, and troubleshooting.
When you only have half a problem
A feedpoint's impedance has two parts: a resistance (R) and a reactance (X). An L-network is built to handle both at once — transforming R to a different value while also canceling any X. But a lot of real antennas, especially wire dipoles and verticals trimmed close to resonance, end up with R already near 50Ω and only a modest leftover X, positive (inductive) or negative (capacitive), because the physical length couldn't be trimmed to the exact fraction of an inch that would zero X out completely. In that specific case, transforming R is unnecessary — the antenna only needs its reactance canceled, and a single series component does that with less complexity and less loss than a full two-component network.
How a single series element cancels reactance
Inductive and capacitive reactance are opposite in sign and cancel each other when connected in series at the same point in a circuit. If the measured feedpoint reactance is inductive (positive X), a series capacitor of the right value adds an equal and opposite capacitive reactance, and the two cancel, leaving only the resistance. If the measured reactance is capacitive (negative X), a series inductor does the same job in the other direction. The component's value is sized so its reactance magnitude exactly matches the antenna's measured |X| at the operating frequency.
The series-section alternative (line-only matching)
A related but distinct technique, sometimes also called a series match, uses two spliced sections of transmission line of different characteristic impedances instead of any lumped component at all. Chosen correctly, the two line sections transform a resistive mismatch to the system impedance using nothing but coax — no capacitor or inductor to fail, no voltage rating to worry about. It requires more careful length calculation than the single-component version covered here and is more commonly seen in phased array and antenna-range work than in typical single-antenna home stations, but it's worth knowing this technique exists if a lumped-component match isn't practical at your installation.
Where series match fits against the alternatives
Series match is the simplest of the three general matching methods in this guide series precisely because it only solves one variable (reactance) instead of two (resistance and reactance). That simplicity is also its limitation — if the feedpoint resistance itself is far from 50Ω, no series component alone will fix it, and you need the full transform an L-network or quarter-wave section provides.
- Best fit: trimmed dipoles and verticals with R already near 50Ω but a small leftover reactance after final length adjustment.
- Wrong tool for: feedpoints with R significantly above or below the line impedance — use an L-network or quarter-wave transformer instead.
| Method | Elements Needed | Bandwidth | Best For |
|---|---|---|---|
| L-Network | 1 series + 1 shunt (L and C) | Narrow, single frequency, field-tunable | General-purpose matching of any real feedpoint resistance, at the antenna or in the shack |
| Quarter-Wave Transformer (Q-Section) | 1 transmission-line section, ~λ/4 long | Narrow (roughly 10–15% of center frequency) | Matching two known real impedances with no lumped components; phased and stacked arrays |
| Stub Match (open/shorted λ/4 stub) | 1 shorted or open transmission-line stub | Narrow | Canceling reactance or providing a DC ground path at a specific point on the line, e.g. J-pole feeds |
| Series Match | 1 series L or C | Narrow | Canceling small residual reactance when the resistance is already close to Z0 |
Materials for a series-element match

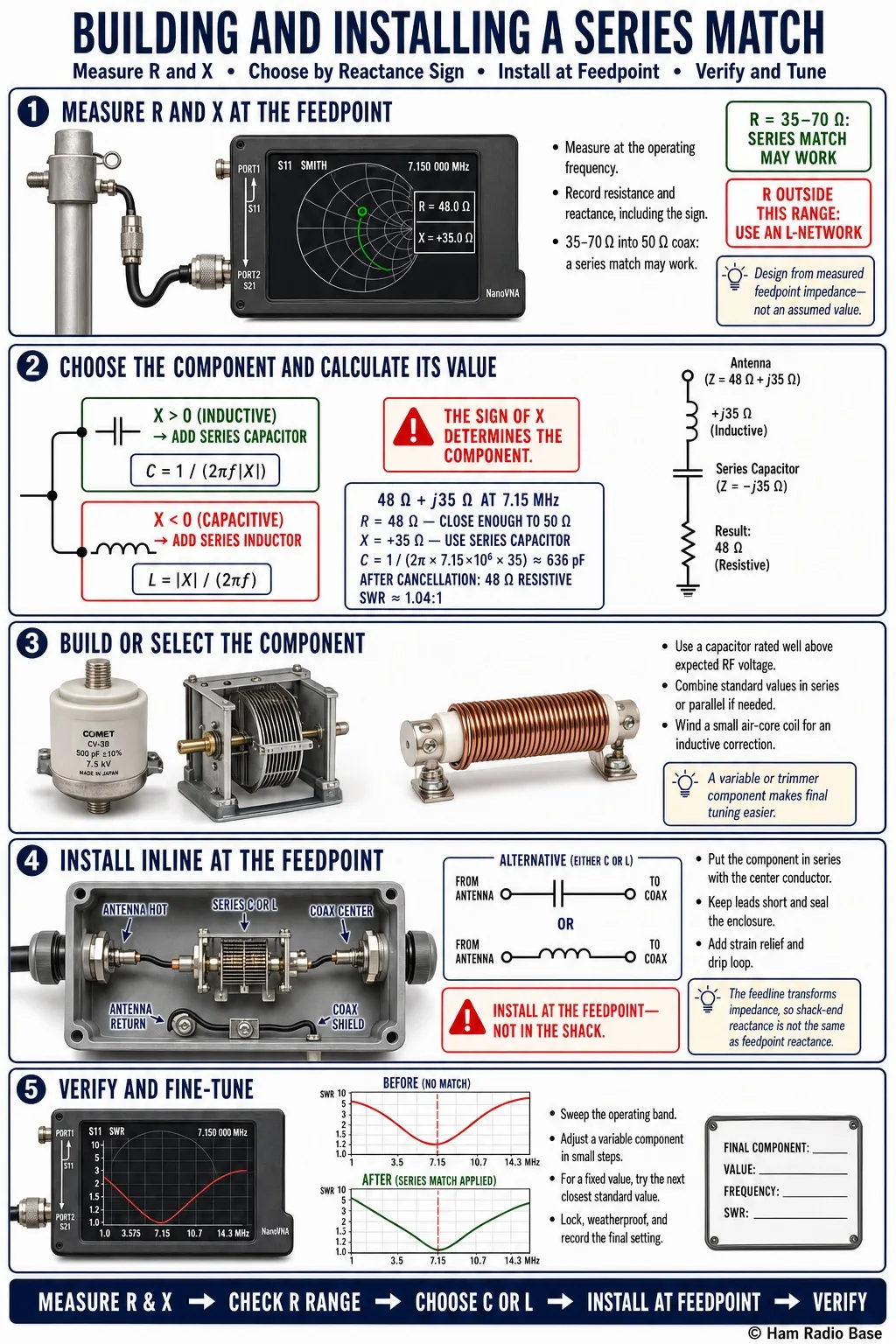

A series match capacitor installed inline in the feedline at a vertical antenna's feedpoint, sealed in a small weatherproof enclosure.
Building and Installing a Series Match
This is a measurement-first match — the sign and size of the leftover reactance completely determines which component you build and what value it needs.
Measure R and X at the feedpoint
Connect a NanoVNA at the feedpoint and record both the resistance and the reactance, including its sign, at your operating frequency. Confirm R is reasonably close to your line impedance (roughly 35-70Ω into 50Ω coax) — if it's well outside that range, stop here and use an L-network instead, since a series component alone cannot fix a resistance mismatch.
Determine which component you need and calculate its value
If X is positive (inductive), you need a series capacitor; if X is negative (capacitive), you need a series inductor. Calculate the value from the formulas above using the measured |X| and your operating frequency.
Build or select the component
For a capacitor, select a mica or doorknob type rated well above your expected RF voltage at full power, or combine standard values in series/parallel to reach the target capacitance. For an inductor, hand-wind a small air-core coil on a plastic form — at typical series-match values (often just a few microhenries or less) this is usually only a handful of turns.
Install inline in the feedline near the feedpoint
Wire the component in series with the feedline's center conductor as close to the feedpoint as practical — a series match cancels reactance at the specific point where it's installed, so placing it well back from the antenna leaves the original mismatch in the coax between the antenna and the component. Seal the enclosure and every connector joint against moisture.
Verify and fine-tune
Sweep SWR with the component installed. If a variable/trimmer part was used, adjust it in small steps while watching the SWR minimum, then lock it in place once satisfied. If a fixed-value part was used and the match isn't quite clean, swap in the next closest standard value rather than trying to force the same one to work.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR barely improves after installing the series component | The feedpoint resistance was too far from the line impedance for a series-only match to fix, or the wrong component type (cap vs inductor) was installed for the measured reactance sign | Re-measure R and X directly; confirm R is in the roughly 35-70Ω range and that the component type matches the sign of X | If R is out of range, switch to an L-network instead; if the component type was wrong, swap it for the correct type |
| SWR is good at the bench but worse once mounted at the antenna | Component was installed in the shack or partway down the feedline instead of at the feedpoint | Confirm the component's physical location — it must be at or very near the feedpoint, not further down the coax | Relocate the component to the feedpoint and re-sweep |
| Match drifts noticeably with temperature or after rain | Moisture-affected capacitor value, or a hand-wound inductor with turns that have shifted | Inspect the enclosure seal and physically check the inductor's turn spacing and mounting | Improve weatherproofing and secure the inductor's turns permanently once tuning is finalized |
| Capacitor runs warm or shows arcing | Voltage rating too low for the actual power level and any SWR excursions during initial tuning | Compare the capacitor's rated working voltage against your power and the SWR seen while tuning | Replace with a higher-voltage-rated part |
| Match works on one band but the antenna is used on several | Series match is inherently single-frequency — the reactance it cancels changes with frequency | Confirm the good match is limited to the band the component was designed for | This is expected behavior for a fixed series match; a multiband antenna needs either a per-band component (e.g. relay-switched) or a different matching approach |
How is series match different from an antenna tuner's series capacitor?
The underlying physics is identical — a series reactance cancels an opposite reactance. The difference is placement and permanence: a series match is a fixed or semi-fixed component installed at the antenna feedpoint itself, canceling reactance right where it occurs so the whole feedline sees a clean match, while a shack tuner does the same job at the operating position but leaves the feedline between the antenna and the tuner still carrying the original mismatch.
When should I use series match instead of an L-network?
Use series match only when the feedpoint resistance is already reasonably close to your line impedance and the sole remaining problem is reactance. If the resistance itself is significantly off from 50Ω, series match alone cannot fix that — use an L-network, which handles both resistance transformation and reactance cancellation together.
Can I just trim the antenna instead of adding a series component?
Often yes, and for a simple single-band wire antenna, physically trimming to resonance is usually the more elegant fix since it adds no extra component or failure point. A series match becomes the better choice when the antenna's length is fixed for mechanical reasons, when fine trimming isn't practical, or when you want to preserve a specific physical length while still cleaning up the match.
What is the series-section (line-only) version, and do I need it?
It's a related technique that uses two spliced lengths of different-impedance transmission line instead of any lumped capacitor or inductor, avoiding a component that could fail or need a voltage rating. Most home-station builders don't need it — the single-component version covered in this guide is simpler to design and build for a typical dipole or vertical with modest leftover reactance.
My reactance measurement changes depending on the exact frequency I check — which value do I use?
Use the value measured at your actual, intended operating frequency (or the center of your primary operating range if you use a band segment), not an average or a value from a different part of the band. Because a series match is inherently narrowband, designing it around the wrong frequency point is one of the most common reasons the finished match underperforms.
