Skeleton Slot Antenna
A true slot antenna is a narrow opening cut into a large conducting sheet, radiating a pattern that's the electrical complement of a solid dipole the same shape — a genuine, well-established antenna principle, but building the full sheet is heavy and impractical for most hams. The Skeleton Slot keeps only the wire outline that frames where the slot's edges would be, since that's where nearly all the useful current actually flows, giving VHF gain and front-to-back roughly comparable to a small Yagi from a single lightweight loop of wire instead of several parasitic elements.
What Babinet's principle actually says here
Babinet's principle, borrowed from optics and applied to antennas, says a narrow slot cut in an infinite conducting sheet radiates a pattern that's the complement of a solid dipole shaped like that slot — same general pattern shape, but with electric and magnetic fields swapped, and typically a different feedpoint impedance. That's a genuine, textbook antenna relationship, not folk theory; the practical challenge is that a true slot needs a large conducting sheet around it, which is heavy and impractical to mount on a rotator.
Skeleton slot: only the wire outline framing the slot's edges, sheet metal removed
Why the wire skeleton works almost as well as the full sheet
For the slot mode that matters here, current concentrates heavily along the edges of where the slot boundary would be — the flat sheet metal in between contributes comparatively little to the radiation. Replacing that sheet with just a wire frame tracing the boundary keeps most of the electrical behavior while cutting the weight and wind load dramatically, which is exactly the tradeoff that makes this buildable as a rotatable ham antenna.
Why it's compared to a small Yagi
Bill Orr, W6SAI, is generally credited with popularizing the Skeleton Slot for VHF amateur use in these terms: a single wire loop, fed near one edge at a low-impedance point, delivering forward gain and front-to-back ratio in the same general range as a 2-3 element Yagi, without the multiple parasitic elements, their individual tuning, or the wider boom a Yagi needs.
- Skeleton Slot: one wire loop, one feedpoint, no separate parasitic elements to tune.
- 2-3 element Yagi: comparable gain, but needs individually cut and spaced reflector/director elements.
Honest expectations on published dimensions
Published Skeleton Slot proportions vary somewhat between sources, more so than a well-documented NEC-optimized design like the Moxon. Treat the dimensions below as a solid, commonly cited starting point rather than an exact formula, and expect to trim and verify the feedpoint match with an analyzer the same way you would any home-built beam.
Installation options
- Fixed mast with rotator: the standard install for weak-signal or repeater-access work needing a specific favored direction.
- Portable/field mount: the lightweight wire-frame construction packs and transports more easily than an equivalent multi-element Yagi.
- Stacked pair: some builders stack two Skeleton Slots for additional gain in a still-lighter package than a stacked multi-element Yagi pair.
| Parameter | 2m (146 MHz) | Notes |
|---|---|---|
| Slot height (long sides) | ~63.9 in (1.62 m) | ~0.625 wavelength; commonly cited published starting proportion |
| Slot width (short sides) | ~5.1 in (13 cm) | ~0.05 wavelength; narrow dimension of the loop |
| Feed point | Offset from center along one long side | Low-impedance point; found by sliding the tap and checking SWR |
| Total wire, full loop | ~11.5 ft (3.5 m) | Cut a few inches long and trim to resonance |
Skeleton Slot Dimension Calculator
Materials for Skeleton Slot Antenna

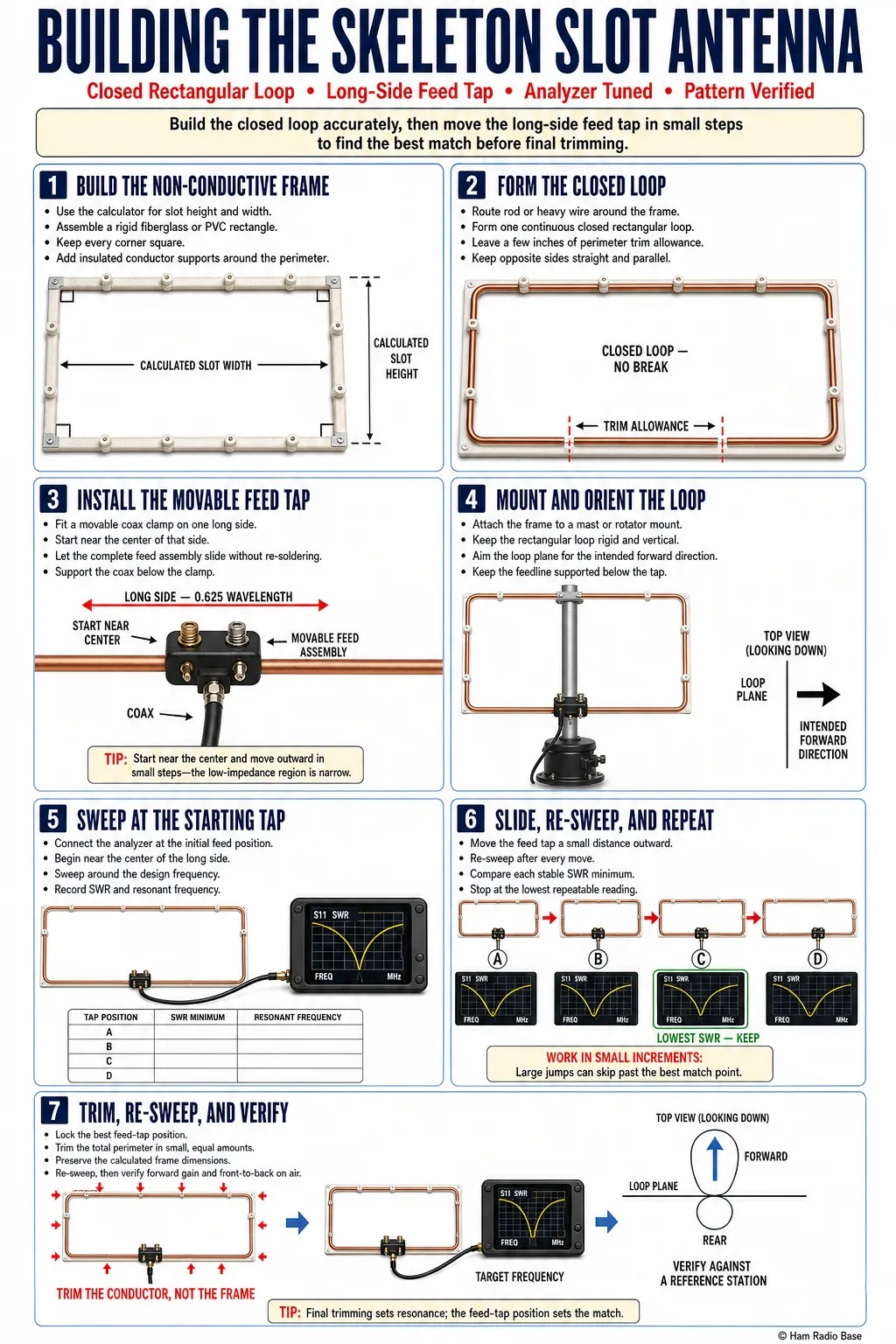

Building the Skeleton Slot Antenna
Building the loop is straightforward; finding the correct feed tap point along one long side takes the most patience, the same as the Hentenna's tap-tuning process.
Build the non-conductive frame
Assemble a fiberglass or PVC frame sized to the calculator's slot height and width.
Form the loop conductor around the frame
Mount rod or heavy wire around the frame's perimeter to form the closed loop, cutting a few inches long for trimming.
Install a movable feedpoint clamp on one long side
Mount the coax to a clamp or slider that can move along one of the loop's long (0.625-wavelength) sides.
Mount the loop to your mast
Attach the frame to a mast or rotator mount, keeping the loop's plane oriented for your intended forward direction.
Sweep SWR at the starting tap position
Connect your analyzer at the initial feed tap and note the SWR and resonant frequency.
Slide the tap and re-sweep until SWR is lowest
Move the feed tap in small increments and re-sweep until you find the lowest achievable SWR.
Trim the loop to final resonance and verify the pattern
Trim the loop's total perimeter evenly to center the resonant dip on your target frequency, then check forward gain and front-to-back on the air or against a reference station.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Can't find a low-SWR tap point anywhere on the long side | Loop dimensions are significantly off from resonance | Check overall loop height and width against the calculator | Correct loop dimensions first, then resume the tap search |
| Front-to-back ratio is weaker than expected | Loop isn't square/rectangular — a twisted or bowed frame distorts current distribution | Check the frame for square corners and a flat plane | Correct frame geometry so the loop sits flat and true |
| Match shifts when the antenna is handled or moves in wind | Feed tap connection isn't mechanically solid | Check for a temporary clip instead of a soldered joint | Solder the final feedpoint once the tap position is confirmed |
Do I need a solid metal sheet for this to work?
No — that's the entire point of the "skeleton" version. Most of the useful current runs along the edges of where the slot boundary would be, so a wire outline captures most of the behavior without the weight of an actual sheet.
How does this really compare to a Yagi?
Commonly cited figures put it in the same general gain and front-to-back range as a 2-3 element Yagi, from a single loop instead of several individually-tuned parasitic elements — a fair, though not exact, comparison.
Why do published dimensions vary between sources?
This design doesn't have the same single, widely cited NEC-optimized reference the Moxon or Quagi have — different sources publish somewhat different proportions. Start from the values here and verify with an analyzer rather than expecting a single universal number.
Do I need a matching network at the feedpoint?
Not if you find the right tap position — like the Hentenna, this design's feed impedance varies along the loop, and the correct tap point gives a direct match without an external network.
Can I build this for other VHF/UHF bands?
Yes, the calculator scales the loop dimensions to your chosen design frequency.
Who popularized this design for amateur use?
Bill Orr, W6SAI, is generally credited with bringing the Skeleton Slot into ham VHF literature, building on the older complementary-slot antenna theory from broadcast and radar engineering.
