Slinky Portable Vertical Antenna
A Slinky portable vertical uses a metal Slinky toy — a large helical compression spring — as the radiating element, hung from a tree and stretched to a working length instead of cut to one. Total cost is under $30, and the antenna packs down to fist size for transport. What makes it genuinely interesting rather than just a novelty is that stretching a helical spring is a continuously variable version of the same loading-coil trick used throughout this guide series: compressed, it's a tight loading coil; stretched, it's closer to (but never quite) a straight wire. This guide covers linking units for lower bands, feeding it like a random wire, and the real risk of overstretching the toy into scrap metal.
A continuously-variable helical radiator
Every helically-loaded antenna in this guide series — the Buddipole-style coil, the Hamstick's wound section — works because tightly-spaced turns pack a long piece of wire into a short physical space, at the cost of some efficiency. A Slinky is that same idea made adjustable by hand: compressed, it's a dense loading coil; pulled out, the turns spread and it behaves more like a longer, less-loaded element. Stretching it is your tuning control, in place of cutting wire or clipping a tap.
Fully stretched still isn't a straight wire
Even at full stretch, the conductor is still coiled — just with wide gaps between turns instead of tight ones — so it's never electrically identical to a straight wire of the same physical length. That's a genuinely different behavior from a wire antenna of the same length, and it's why stretch amount has to be found by sweeping SWR rather than by treating the stretched length as a simple 234/f or 468/f calculation.
treat this as your target stretched length to aim for, not a guaranteed resonant point
Linking multiple units for lower bands
A single Slinky's practical stretch range tops out well short of a 40m quarter-wave, so lower-band builds link two or more units end-to-end using their connector loops. More linked units means more weight and more support strain, which is the main practical limit on how low in frequency this design is worth pushing.
- 1 unit: 15m-6m territory, easy to support and carry.
- 2 units: reaches into 20m, noticeably heavier.
- 3+ units: 40m territory, needs a sturdy support and real thought about weight.
Why it's fed like a random wire
Since stretch amount varies by feel and by how much room you have, this design is never reliably resonant the way a cut-to-length antenna can be. Feeding it through a 9:1 unun with a counterpoise, backed by a tuner, treats it exactly like the site's random wire build — a non-resonant radiator matched electronically rather than by precision cutting.
| Band | Target stretched length | Length (m) | Notes |
|---|---|---|---|
| 40m | ~32 ft | 9.8 m | 3 linked units, heavy assembly, needs strong support |
| 20m | ~16.5 ft | 5.0 m | 2 linked units |
| 15m | ~11 ft | 3.4 m | 1 unit, stretched most of the way out |
| 10m | ~8 ft | 2.4 m | 1 unit, partially stretched |
| 6m | ~4.7 ft | 1.4 m | 1 unit, lightly stretched |
| Counterpoise | 25 ft | 7.6 m | Same role as the random wire build's counterpoise |
Slinky Portable Vertical Antenna Dimension Calculator
Materials for Slinky Portable Vertical Antenna

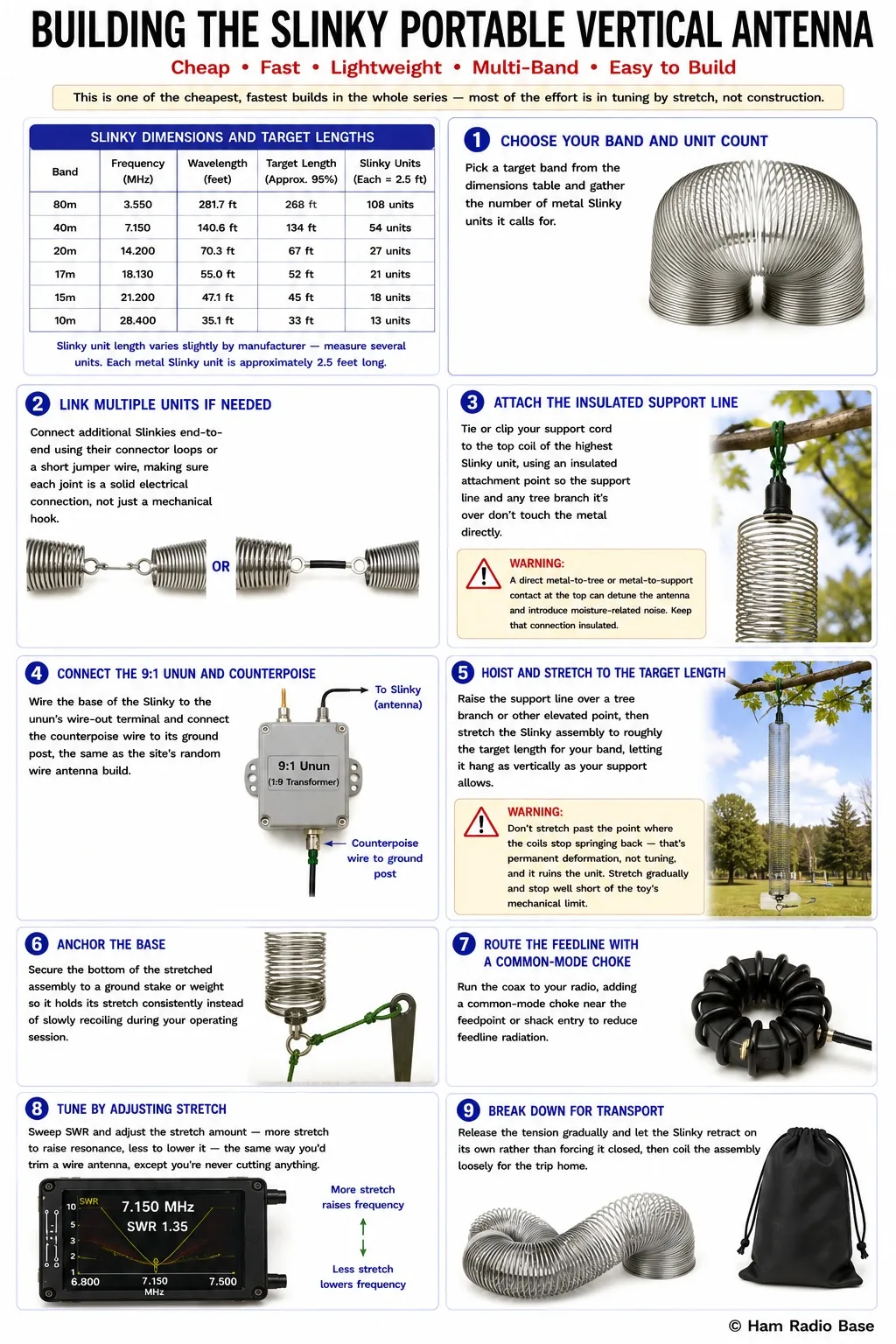

Building the Slinky Portable Vertical Antenna
This is one of the cheapest, fastest builds in the whole series — most of the effort is in tuning by stretch, not construction.
Choose your band and unit count
Pick a target band from the dimensions table and gather the number of metal Slinky units it calls for.
Link multiple units if needed
Connect additional Slinkies end-to-end using their connector loops or a short jumper wire, making sure each joint is a solid electrical connection, not just a mechanical hook.
Attach the insulated support line
Tie or clip your support cord to the top coil of the highest Slinky unit, using an insulated attachment point so the support line and any tree branch it's over don't touch the metal directly.
Connect the 9:1 unun and counterpoise
Wire the base of the Slinky to the unun's wire-out terminal and connect the counterpoise wire to its ground post, the same as the site's random wire antenna build.
Hoist and stretch to the target length
Raise the support line over a tree branch or other elevated point, then stretch the Slinky assembly to roughly the target length for your band, letting it hang as vertically as your support allows.
Anchor the base
Secure the bottom of the stretched assembly to a ground stake or weight so it holds its stretch consistently instead of slowly recoiling during your operating session.
Route the feedline with a common-mode choke
Run the coax to your radio, adding a common-mode choke near the feedpoint or shack entry to reduce feedline radiation.
Tune by adjusting stretch
Sweep SWR and adjust the stretch amount — more stretch to raise resonance, less to lower it — the same way you'd trim a wire antenna, except you're never cutting anything.
Break down for transport
Release the tension gradually and let the Slinky retract on its own rather than forcing it closed, then coil the assembly loosely for the trip home.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Can't reach resonance on the target band | Not stretched far enough, or stretched past the ideal point | Sweep SWR while adjusting stretch amount in both directions | Find the stretch length that actually dips SWR, not just the table's starting estimate |
| Slinky won't spring back to its original shape | Overstretched past its elastic limit | Compare coil spacing to an unused unit | Retire the deformed unit; stretch more conservatively next time |
| SWR shifts noticeably in the wind | Normal behavior — a suspended spring moves more than wire | Compare readings in calm vs. breezy conditions | Anchor the base more firmly to reduce movement, or accept some drift as normal |
| Poor connection between linked units | Corroded or loose connector loop | Check continuity across each joint between linked Slinkies | Clean the contact points or replace the connector |
| Hot mic or RF feedback while transmitting | Missing or insufficient common-mode choke | Check for a choke at the feedpoint or shack entry | Add or increase the choke |
| Noisy receive / high noise floor | Poor counterpoise or ground connection | Compare noise with the counterpoise connected vs. disconnected | Improve the counterpoise routing or add a second one |
Does it have to be a metal Slinky?
Yes — plastic versions don't conduct and won't work as a radiator at all. Look for the classic steel toy specifically.
How many Slinkies do I need for 40m?
Plan on linking three units to get near the 32-foot target stretched length in the dimensions table, and expect a noticeably heavier, bulkier setup than the higher-band single-unit builds.
Won't stretching it ruin the toy?
Stretched within its normal elastic range, no — it'll spring back fine. Overstretched past that range, yes, permanently, which is why the build steps stress going gradually and stopping well short of the mechanical limit.
Why not just use wire instead?
Wire is more efficient and predictable, but the Slinky's party trick is tuning by stretch instead of cutting — no scissors, no re-measuring, just pull it out further or let it retract.
Do I need a counterpoise?
Yes, for the same reason the random wire build needs one — the unun needs a return path, and skipping it commonly causes poor matching and RF feedback.
Can I use it as a dipole instead of a vertical?
Yes, with two Slinky assemblies fed at a center insulator instead of one fed against a counterpoise, though that's a different feed arrangement from the single-element vertical build covered here.
