Build a 15 Meter Vertical Antenna

The 15m quarter-wave vertical is a compact, reliable DX performer — at 11 feet tall it's an easy single-section build, and 15m's propagation offers a good middle ground between the everyday reliability of 20m and the solar-cycle excitement of 10m and 12m. This guide covers the complete build from element sizing through radial installation, feedpoint assembly, and final tuning for 21.2 MHz operation.

11.02 ftElement length (21.225 MHz)
~35–50 ΩFeedpoint impedance (with radials)
~14°Low-angle takeoff for DX
~$55Typical build cost

Quarter-Wave Vertical Fundamentals at 21.2 MHz

The 15m quarter-wave vertical follows the same design principle as every vertical in this family — one half of a dipole, with the ground plane providing the missing half electrically:

Quarter-wave element length: Length (ft) = 234 / f(MHz) At 21.225 MHz (15m band center — recommended): 234 / 21.225 = 11.02 ft (3.36 m) At 21.000 MHz (15m CW bottom): 234 / 21.000 = 11.14 ft (3.40 m) At 21.074 MHz (FT8 calling frequency): 234 / 21.074 = 11.10 ft (3.38 m) At 21.450 MHz (15m band top): 234 / 21.450 = 10.91 ft (3.33 m) Starting length recommendation: Cut to 11.5 ft (3.51 m) — trim to resonance. Extra length costs nothing; too-short needs splicing.

A single 12-foot length of aluminum tubing handles the entire element with no telescoping needed.

15m vs 20m Vertical — Key Differences

  • Element is about two-thirds the length: 11.02 ft vs 16.5 ft — a simple single-section build, slightly shorter than the 20m version.
  • Radials are correspondingly shorter: 15m radials are ~11 ft each.
  • Wider band than the WARC bands but narrower than 20m in absolute terms: 15m spans 450 kHz. A vertical cut for the exact band center (21.225 MHz) shows balanced SWR toward both edges.
  • Propagation between 20m and 10m: 15m opens for DX during daylight for much of the solar cycle, without needing the peak conditions 10m and 12m depend on.
  • Good rooftop and portable candidate: the compact size fits comfortably on most rooftops or as a lightweight field antenna.

Radiation Pattern and DX Performance

15m vertical radiation pattern (good ground): Maximum radiation: ~14–18° elevation angle (low-angle — optimal for DX) Null: straight up (90°) 15m dipole at 20-25 ft (~0.4-0.5λ height at 21.225 MHz): Maximum radiation: ~30-35° elevation angle (moderate angle) DX comparison — 21.225 MHz: Vertical vs dipole under 20 ft: vertical wins clearly Vertical vs dipole at 30+ ft: a closer contest

For stations without a support taller than about 25 feet, the 15m vertical is a meaningfully better DX performer than a low dipole. Against a dipole at 35+ feet, the two become more competitive.

Element Construction Options

  • Single aluminum tubing section: a single 12-foot length of 0.75-inch OD 6061-T6 aluminum tubing handles the 11.02-foot element with no telescoping required.
  • Stainless steel whip: a longer ham-specific stainless whip (11–12 ft) works directly, trimmed to length.
  • Fishing pole with wire: a 3.6-meter (12-foot) fiberglass fishing pole with #18 AWG copper wire taped along the outside makes a lightweight, portable option.
Target frequency Band segment Element length (ft) Element length (m) Notes
21.000 MHzCW bottom11.14 ft3.40 mCut here for CW-only operation
21.074 MHzFT8 / digital11.10 ft3.38 mFT8 and FT4 calling frequency
21.200 MHzPhone begins11.04 ft3.37 mStart of the phone segment
21.225 MHzBand center (recommended)11.02 ft3.36 mBest all-around compromise
21.300 MHzPhone10.99 ft3.35 mAlternate cut if phone is the priority
21.450 MHzBand top10.91 ft3.33 mUpper band edge — not recommended as center

Vertical 15m Calculator

Materials for a ground-mounted 15m quarter-wave vertical with 16-radial ground plane

📏0.75-inch OD 6061-T6 aluminum tubing, 12 ftSingle section — no telescoping needed for the 11.02 ft element
🏗️Antenna base mount / ground spikeDX Engineering, Hustler, or homebrew PVC sleeve in concrete
🔩SO-239 chassis connector (feedpoint)Mounts at element base for coax connection
🌀RG-8X coax, length to reach radioLMR-400 preferred for runs over 75 ft
📡#14 AWG bare copper wire, 190 ftFor 16 radials at ~11.5 ft each
🔘Copper radial plate or bus bar, 1 pieceCentral hub connecting all radials and coax shield
🔩Stainless steel ring terminals, 20 piecesFor radial wire connections at hub
🔮FT-240-31 toroid for current chokeAt feedpoint — prevents coax shield from radiating
📡NanoVNAFor resonance measurement and full-band SWR sweep
🪛Soldering iron, rosin core solder, self-amalgamating tapeFor feedpoint connections and weatherproofing
🔧Hacksaw or tubing cutter, fileFor cutting aluminum tubing to final trimmed length
🔩Noalox anti-oxidant compoundFor element base connection to feedpoint bracket

What the NanoVNA Will Show

Expected feedpoint impedance vs radial system: Perfect ground (theoretical): ~36 Ω 4 on-ground radials: ~55 Ω 8 on-ground radials: ~46 Ω 16 on-ground radials: ~41 Ω 4 elevated radials (λ/4 = 11.02 ft high): ~35 Ω SWR on 50Ω coax: 36 Ω → ~1.4:1 (acceptable, direct feed) 41 Ω → ~1.2:1 (very good) 15m-specific note: A vertical tuned to 21.225 MHz — the exact band center — shows symmetric, low SWR toward both the CW/digital and phone segments.

Rooftop and Portable Installation Considerations

  • Use elevated radials: 4 elevated radials at λ/4 length (11.02 ft) perform nearly as well as a full on-ground system.
  • Height benefit: rooftop mounting further lowers the effective takeoff angle.
  • Metal roof interaction: keep the element base at least 2–3 feet above metal roofing.
  • Wind load: a 12-foot 0.75-inch aluminum element is light enough for a simple mount with modest guying.

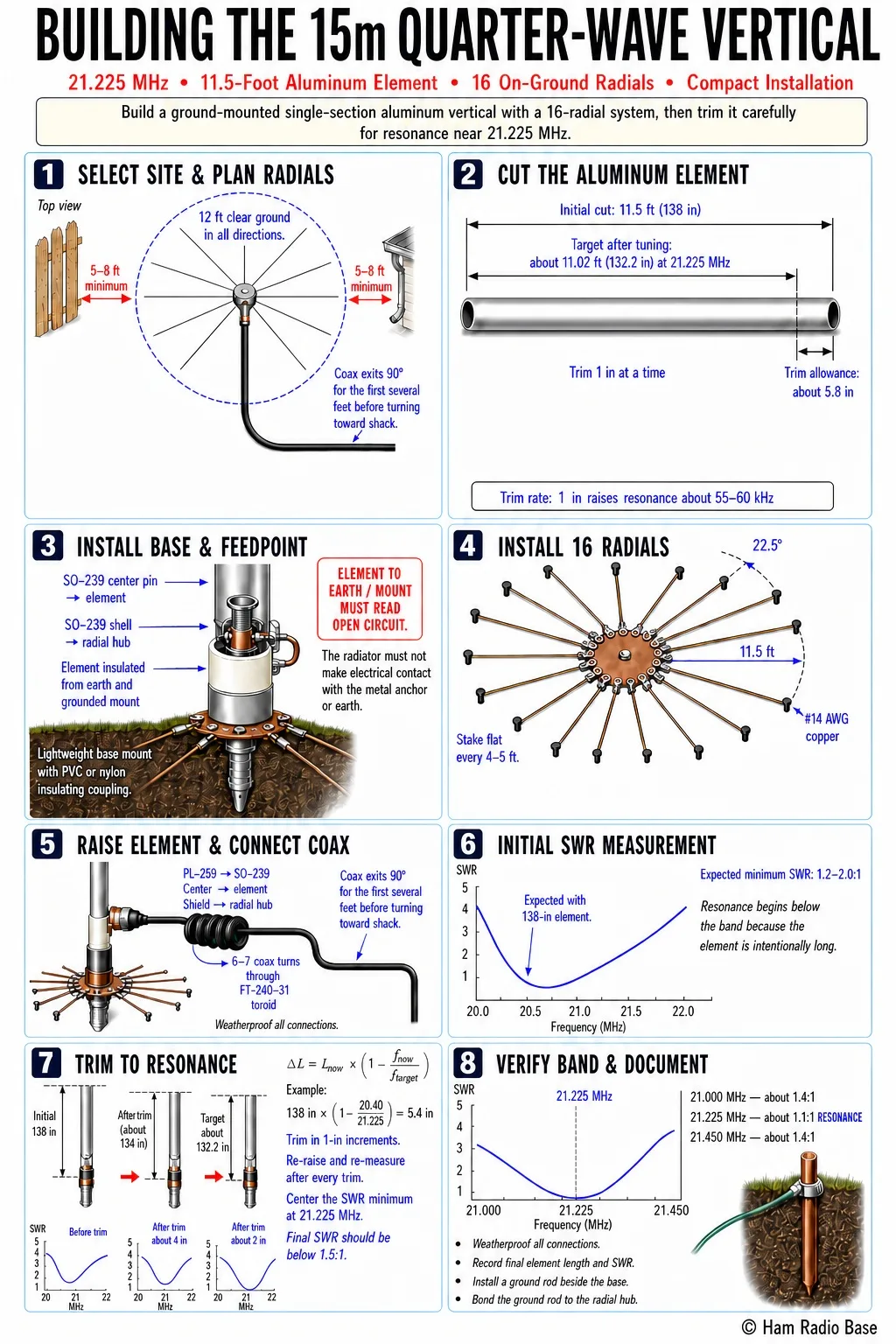

Finished 15m quarter-wave vertical antenna — aluminum tubing element on a base mount with 16 ground radials and SO-239 feedpoint connector

Building the 15m Quarter-Wave Vertical

This guide builds a ground-mounted single-section aluminum tubing vertical with a 16-radial on-ground system.

1

Select the Site and Plan Radial Layout

Choose a site with at least 12 feet of clear ground in all directions. Keep the element clear of metal structures within 5–8 feet, and route the coax to exit the feedpoint at 90°.

2

Cut the Aluminum Tubing Element

Cut the 0.75-inch OD aluminum tubing to 11.5 feet (138 inches) — longer than needed for trimming. Deburr both ends.

Initial cut: 11.5 ft (138 inches) Target after trimming: ~11.02 ft (132.2 inches) at 21.225 MHz Trim allowance: ~5.8 inches Trim rate: ~1 inch = ~55-60 kHz shift upward Trim conservatively in 1-inch increments.
3

Install the Base Mount and Feedpoint Assembly

Install a lightweight base mount. Mount the SO-239 with the center pin to the element and shell to the radial hub.

Insulate the element base from earth: Verify electrical isolation from ground with a multimeter.
4

Install the Radial Hub and Run 16 Radials

Cut 16 radials of #14 AWG copper at 11.5 feet each, bolt them to the hub at 22.5° intervals, and stake flat to the ground.

5

Raise the Element and Connect Coax

Slide the element into the base mount. Connect the coax, install a current choke (6–7 turns of coax through an FT-240-31 toroid), and weatherproof the connection.

6

Initial SWR Measurement

Sweep 20.0–22.0 MHz with the NanoVNA.

Expected initial readings (11.5 ft element): SWR minimum location: ~20.3 – 20.5 MHz (element cut long — resonance is below target) SWR at minimum: 1.2 – 2.0:1
7

Trim to Resonance

Trim calculation: ΔL = L_now × (1 − f_now / f_target) Example: f_now = 20.40 MHz f_target = 21.225 MHz L_now = 138 inches (11.5 ft) ΔL = 138 × (1 − 20.40/21.225) = 138 × 0.0389 = 5.4 inches Trim in 1-inch increments. Re-raise and re-measure after every trim.
8

Verify Full Band SWR and Document

Typical 15m vertical SWR sweep results (tuned to 21.225 MHz, 16 on-ground radials): 21.000 MHz: ~1.4:1 21.225 MHz: ~1.1:1 ← resonance 21.450 MHz: ~1.4:1

Weatherproof all connections and bond a ground rod at the base to the radial hub.

4 Elevated Radials for Rooftop Installation

The 15m vertical fits easily on most residential rooftops with a simple tripod mount, using 4 elevated radials at 11 ft each.

Portable 15m Vertical — Field Deployment

A 3.6-meter fiberglass fishing pole with #18 AWG wire taped along the outside, paired with 4 short ground radials, makes a compact and effective field vertical for POTA and SOTA activations.

Symptom Most likely cause Diagnosis Fix
No SWR dip visible across 20–22 MHzFeedpoint connection fault or coax polarity reversedCheck DC resistance from coax center to shieldVerify center pin to element, shield to radial hub
SWR minimum broad or highToo few radialsCount radial connections at the hubAdd radials toward 16
Resonance below 21.000 MHzElement too longMeasure element lengthTrim — 1 inch raises resonance ~55-60 kHz
Resonance above 21.450 MHzElement too shortMeasure element lengthSplice a short extension onto the tip
SWR correct but noisy receiveNo current chokeCheck for RF on the coax outer near the radioInstall an FT-240-31 current choke at the feedpoint
Weak signals despite good SWRInadequate radial systemCompare signal reports with similarly powered stationsAdd radials — 16 minimum for good efficiency

Why cut for 21.225 MHz instead of the CW or phone segment?

21.225 MHz is the exact center of the 15m band, giving symmetric SWR performance toward both the CW/digital and phone segments.

How does 15m propagation compare to 20m and 10m?

15m sits between the two — more reliable than 10m across the solar cycle, but with more DX potential than 20m during good conditions.

How many radials do I need?

More is better, with the biggest gains in the first 8 — a full 16-radial system is easy to fit given the modest radial length.

Is a vertical or dipole better on 15m?

For supports under about 25 feet, the vertical wins clearly. Above 35 feet, a dipole becomes competitive.

Can I mount this on my roof?

Yes, with 4 elevated radials — an easy installation given the compact size.

What coax works best?

RG-8X for typical runs; LMR-400 for runs beyond 75 feet to minimize loss.
