Build a 12 Meter Vertical Antenna
The 12m quarter-wave vertical brings the same easy, compact build as the 10m version to a quiet, contest-free WARC band. At just over 9 feet tall it fits almost anywhere, and because the entire 12m allocation is only 100 kHz wide, a single well-tuned vertical covers the whole band with excellent SWR — no compromise cutting required. This guide covers the complete build from element sizing through radial installation, feedpoint assembly, and final tuning for 24.9 MHz operation.
Quarter-Wave Vertical Fundamentals at 24.9 MHz
The 12m quarter-wave vertical works on the same principle as every other vertical in this family — one half of a dipole, with the ground plane providing the missing half electrically. Because 12m's allocation is so narrow, there's essentially one sensible design frequency:
A single 10-foot length of aluminum tubing handles the entire element with no telescoping required.
12m vs 10m Vertical — Key Differences
Building a 12m vertical differs from the 10m version in a few important ways:
- Element is slightly longer: 9.38 ft vs 8.24 ft — still a single-section build, just a bit taller.
- Radials are correspondingly longer: 12m radials are ~9.4 ft each.
- Much narrower band: 12m is only 100 kHz wide, versus 10m's 1.7 MHz. A vertical cut for the band center shows essentially flat SWR across the whole allocation — there's no meaningful edge-of-band compromise to weigh.
- No contests: like 17m and 30m, 12m was allocated without contest activity, making it a quieter, calmer band to operate.
- Solar-cycle dependence similar to 10m: 12m still favors high solar activity for the best DX, though it tends to stay open somewhat more reliably than 10m during moderate conditions.
Radiation Pattern and DX Performance
12m's low-angle vertical pattern is well matched to the F2-layer DX openings that make this band worthwhile:
As on 10m, 12m's short wavelength means even a modest dipole height already achieves a reasonably low angle — the vertical's edge over a dipole narrows as support height increases.
Element Construction Options
Three practical approaches:
- Single aluminum tubing section: a single 10-foot length of 0.75-inch OD 6061-T6 aluminum tubing handles the 9.38-foot element with no telescoping required.
- Stainless steel whip: a longer ham-specific stainless whip (9–10 ft) works directly, trimmed to length.
- Fishing pole with wire: a 3-meter (10-foot) fiberglass fishing pole with #18 AWG copper wire taped along the outside is lightweight and portable.
| Target frequency | Band segment | Element length (ft) | Element length (m) | Notes |
|---|---|---|---|---|
| 24.890 MHz | Band bottom | 9.40 ft | 2.87 m | Bottom of the 12m allocation |
| 24.915 MHz | FT8 / digital | 9.39 ft | 2.86 m | FT8 calling frequency |
| 24.930 MHz | Phone begins | 9.38 ft | 2.86 m | Start of the phone portion |
| 24.940 MHz | Band center (recommended) | 9.38 ft | 2.86 m | Best all-around cut — covers the whole band |
| 24.990 MHz | Band top | 9.36 ft | 2.86 m | Upper band edge |
Vertical 12m Calculator
Materials for a ground-mounted 12m quarter-wave vertical with 16-radial ground plane
What the NanoVNA Will Show
Rooftop and Portable Installation Considerations
- Use elevated radials: on a roof or deck, 4 elevated radials at λ/4 length (9.38 ft) perform nearly as well as a full on-ground system.
- Height benefit: an elevated mount noticeably lowers the effective takeoff angle at this wavelength.
- Metal roof interaction: keep the element base at least 2–3 feet above a metal roof surface.
- Wind load: a 10-foot, 0.75-inch aluminum element is light — a deck rail mount or rooftop tripod with light guying handles it easily.

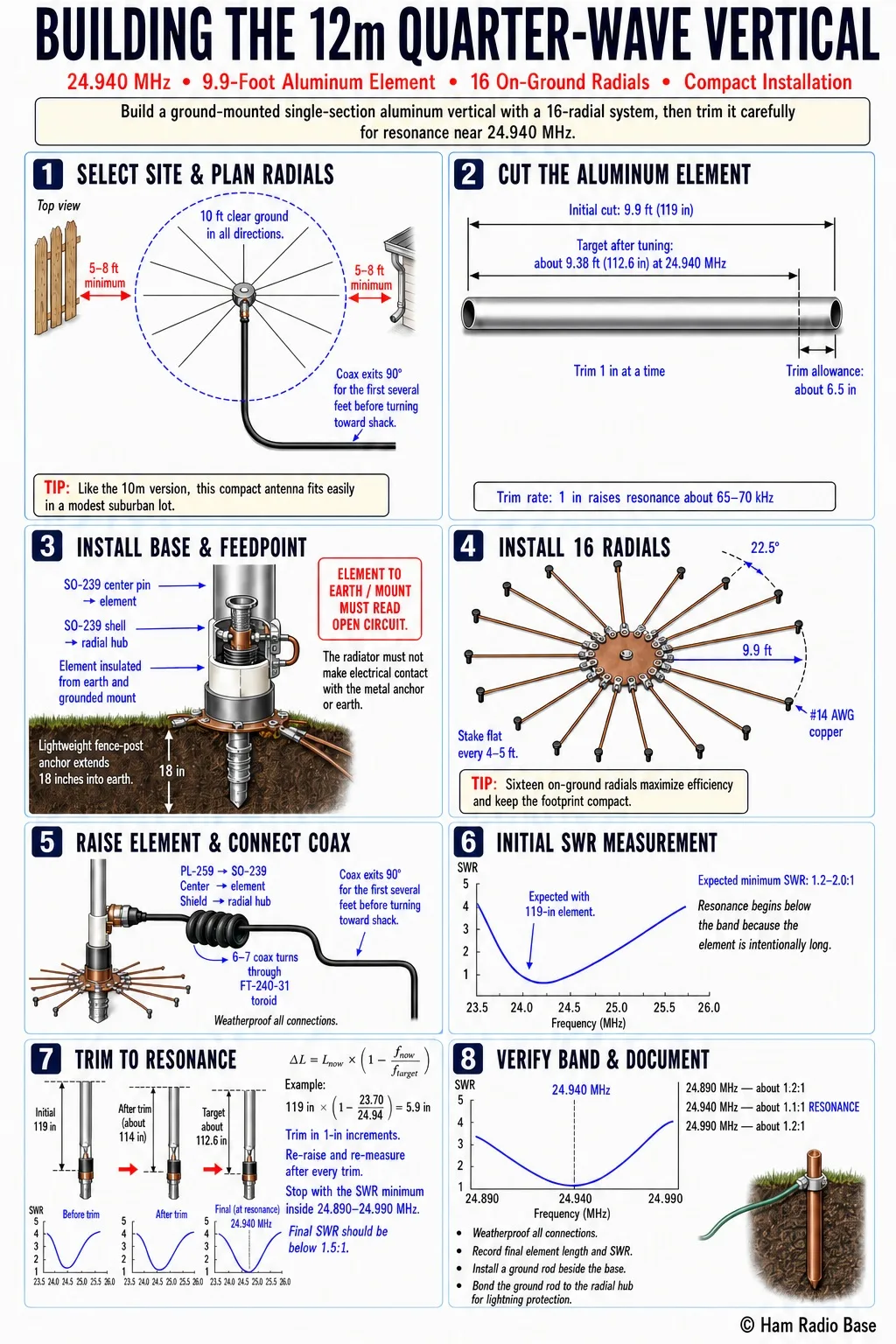

Building the 12m Quarter-Wave Vertical
This guide builds a ground-mounted single-section aluminum tubing vertical with a 16-radial on-ground system.
Select the Site and Plan Radial Layout
Choose a site with at least 10 feet of clear ground in all directions from the element base. Keep the element clear of metal structures within 5–8 feet, and route the coax to exit the feedpoint at 90° for the first several feet.
Cut the Aluminum Tubing Element
Cut the 0.75-inch OD aluminum tubing to 9.9 feet (119 inches) — longer than needed to allow trimming to exact resonance. Deburr both ends.
Install the Base Mount and Feedpoint Assembly
Install a lightweight base mount — a fence post anchor with a PVC or nylon coupling handles this element easily. Mount the SO-239 with the center pin to the element and the shell to the radial hub.
Install the Radial Hub and Run 16 Radials
Install a copper radial plate connected to the SO-239 shell. Cut 16 radials of #14 AWG copper at 9.9 feet each, bolt them to the hub at 22.5° intervals, and stake flat to the ground.
Raise the Element and Connect Coax
Slide the element into the base mount and secure it. Connect the coax center pin to the element and shield to the radial hub. Install a current choke — 6–7 turns of coax through an FT-240-31 toroid — and weatherproof the connection.
Initial SWR Measurement
Sweep 23.5–26.0 MHz with the NanoVNA at the shack end of the coax.
Trim to Resonance
Repeat until the SWR minimum falls within the 100 kHz-wide band with SWR below 1.5:1.
Verify Full Band SWR and Document
Weatherproof all connections and bond a ground rod at the base to the radial hub for lightning protection.
4 Elevated Radials for Rooftop Installation
The 12m vertical fits easily on a typical residential rooftop with a simple tripod mount, using 4 elevated radials at 9.4 ft each in place of the on-ground system.
Portable 12m Vertical — Field Deployment
A 3-meter fiberglass fishing pole with #18 AWG wire taped along the outside, paired with 4 short ground radials, makes a lightweight, quick-deploy 12m vertical well suited to POTA and SOTA activations on this quiet, contest-free band.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No SWR dip visible across 23.5–26.0 MHz | Feedpoint connection fault or coax polarity reversed | Check DC resistance from coax center to shield — should be open circuit | Verify center pin to element, shield to radial hub |
| SWR minimum broad or high | Too few radials | Count radial connections at the hub | Add radials toward 16 |
| Resonance below 24.890 MHz | Element too long | Measure element length | Trim — 1 inch raises resonance ~65-70 kHz |
| Resonance above 24.990 MHz | Element too short | Measure element length | Splice a short extension onto the tip |
| SWR correct but noisy receive | No current choke | Check for RF on the coax outer near the radio | Install an FT-240-31 current choke at the feedpoint |
| SWR uneven across the narrow band despite good element cut | Choke or feedline issue, not the element itself | Sweep the choke separately | An uneven curve on such a narrow band usually points to hardware, not element length |
Why is 12m so narrow compared to 10m?
12m is a WARC band, allocated in 1979 as a narrow, non-contest slice — 100 kHz wide versus 10m's 1.7 MHz.
Does band-center cutting really cover the whole 12m allocation?
Yes — a vertical's normal SWR bandwidth easily covers 100 kHz when cut for the center, with no meaningful compromise.
How many radials do I need?
The same rule as other bands — more is better, with the biggest gains in the first 8. A full 16-radial system is inexpensive at this element length.
Is 12m good for DX?
Yes, especially during high solar activity, and it tends to stay open somewhat more reliably than 10m during moderate conditions.
Can I mount this on my roof?
Yes, with 4 elevated radials — an easy installation given the antenna's small size.
Why doesn't 12m have contests?
Like the other WARC bands, it was set aside without contest activity when allocated in 1979, a convention respected by most contest sponsors.
