ZL Special Antenna
The ZL Special (named for the ZL amateur radio prefix used in New Zealand, where the design originated) packs real gain and front-to-back ratio into a boom barely an eighth of a wavelength long — far shorter than a conventional 2-element Yagi needs for similar performance. The trick is a crossed (transposed) phasing line connecting two nearly identical, closely spaced elements, rather than relying on pure parasitic reflector/director action. That makes it a favorite for portable VHF work, satellite operators, and rovers who want beam performance without a long boom to carry.
Close spacing plus phasing, not a standard Yagi
A conventional 2-element Yagi uses one driven element and one passive reflector or director, spaced around 0.15-0.25 wavelength apart, relying on induced parasitic currents for gain. The ZL Special instead uses two nearly equal-length elements spaced much closer together — typically 0.1 to 0.125 wavelength — both actively driven through a crossed phasing line that sets up the correct current phase relationship for gain and front-to-back ratio in that tight spacing.
ZL Special: two near-equal driven elements, ~0.1-0.125 lambda spacing, crossed phasing line
What the crossed phasing line actually does
Connecting the two elements with a straight (uncrossed) transmission line would feed them roughly in phase; crossing (transposing) the line's two conductors between the elements reverses that relationship, which — combined with the close spacing — is what produces the directional gain and good front-to-back ratio this design is known for. Get the crossover backwards and the pattern reverses or degrades rather than simply not working at all, so this detail matters.
Why close spacing needs careful tuning
At 0.1-0.125 wavelength spacing, the two elements interact strongly with each other, which makes the ZL Special noticeably more sensitive to small construction variations than a wider-spaced Yagi. Published dimensions here are a solid, commonly used starting point — budget real time on an analyzer to trim element lengths and confirm the pattern rather than expecting it to be right the first time off the numbers alone.
Why it's popular for portable and satellite work
A boom roughly 0.1-0.125 wavelength long is dramatically shorter and lighter than a comparable-performance conventional Yagi, which is exactly what rover and SOTA/POTA operators and satellite chasers want in a beam they're hand-holding or mounting on a short mast in the field.
Installation options
- Handheld/portable mount: the most common use case — light enough to hand-hold on a short mast for SOTA/POTA or satellite work.
- Fixed mast or rotator: works as a compact fixed-station beam where a full-size Yagi's boom length isn't practical, at the tradeoff of somewhat less gain than a longer multi-element design.
- Stacked pair: some builders stack two ZL Specials vertically for additional gain in a still-compact overall package.
| Parameter | 2m (146 MHz) | Notes |
|---|---|---|
| Rear element | ~39.6 in (1.01 m) | Slightly longer of the two, near half-wave |
| Front element | ~38.4 in (0.98 m) | ~3% shorter than the rear element |
| Element spacing | ~10.1 in (25.7 cm) | 0.125 wavelength - the close spacing that defines this design |
| Crossed phasing line | ~9.6 in (24.4 cm) electrical | Open-wire/twin-lead, crossed (transposed) between the two elements |
ZL Special Dimension Calculator
Materials for ZL Special

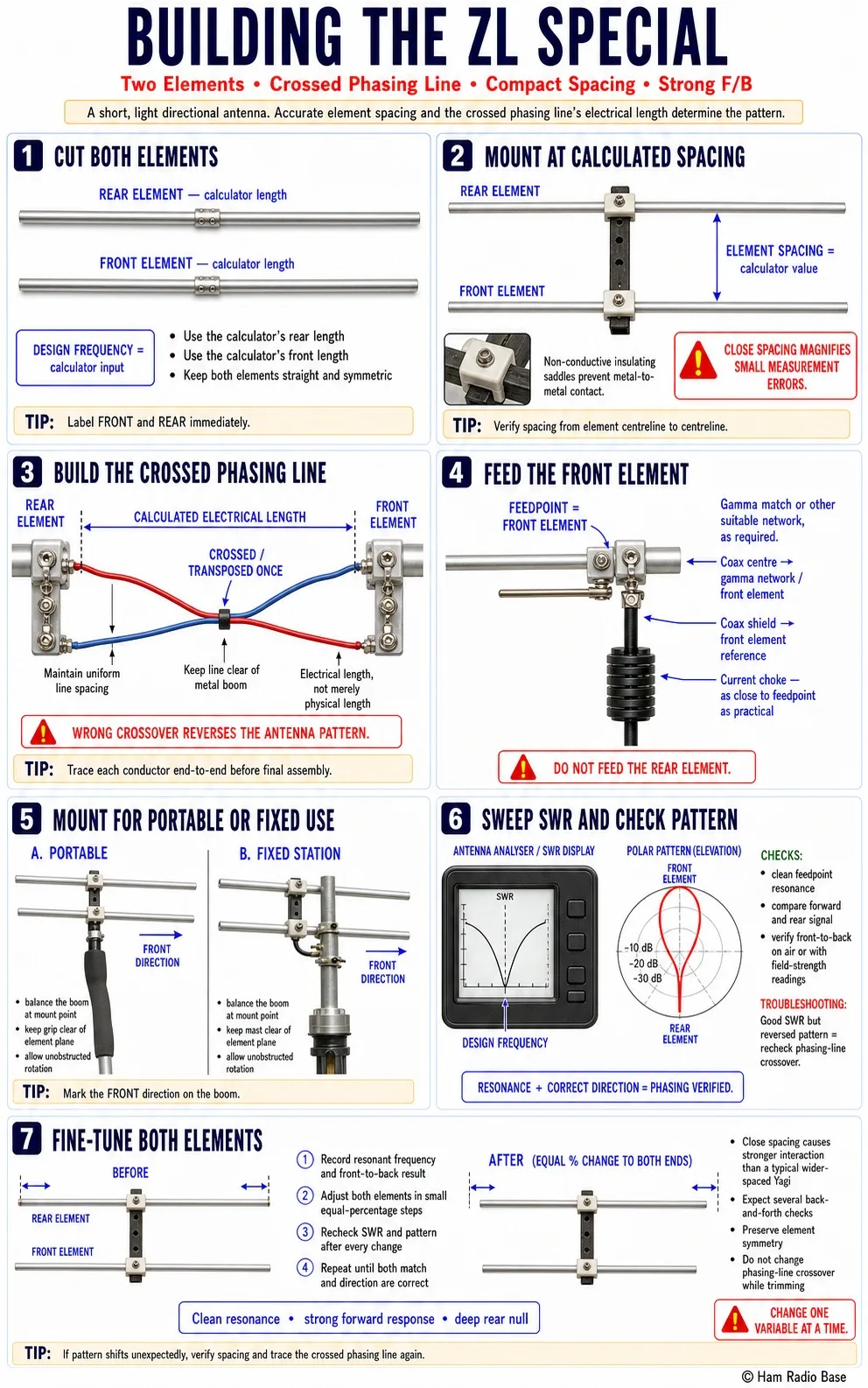

Building the ZL Special
This is a short, light build — the part that needs real care is getting the phasing line's crossover and electrical length right.
Cut both elements
Use the calculator above to get the rear and front element lengths for your design frequency, and cut both from aluminum tubing or rod.
Mount both elements to the boom at the correct spacing
Mount the rear and front elements to the boom using insulated through-boom or plate mounts, at the spacing given by the calculator.
Build the crossed phasing line
Cut open-wire line or twin-lead to the calculated electrical length, and connect it between the two elements' centers with the conductors crossed (transposed) partway along the run.
Connect the feedline at the front element
Connect your coax feedline (through a gamma match or other matching network as needed) at the front element's feedpoint.
Mount to your mast or handle
Attach the assembled boom to a handheld mast grip for portable use, or a fixed mast/rotator for a station install.
Sweep SWR and check the pattern
Sweep the feedpoint and check for a clean resonant dip, then verify front-to-back performance on the air or with a field-strength comparison.
Fine-tune element lengths
Trim both elements in small, equal-percentage steps if resonance or pattern isn't quite right — because of the close spacing, expect more back-and-forth tuning than a typical wider-spaced Yagi.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Front-to-back ratio is poor | Phasing line crossover missed or wired backwards | Check the crossover connection first | Correct the crossed connection; this is more likely than an element-length error |
| SWR is hard to bring down | Close element spacing makes the design sensitive to small construction variances | Recheck spacing precisely against the calculator's value | Correct the spacing before assuming the element lengths themselves are wrong |
| Performance seems inconsistent between builds | Tight element spacing amplifies small differences in spacing, phasing line length, or mounting hardware | Compare build details against the published dimensions closely | Expected for this design; hold spacing and phasing line length as close to spec as possible |
Is this a Yagi?
Not in the traditional parasitic-element sense — both elements are actively phased through the crossed line rather than relying on one passive parasitic element, even though the end result is a directional 2-element beam.
Why is the phasing line crossed?
The crossover reverses the phase relationship between the two elements relative to a straight connection, which combined with the close spacing produces this design's characteristic gain and front-to-back ratio.
How much gain does this really give?
Commonly cited figures are around 4-5 dBd with good front-to-back ratio, in a boom length far shorter than a conventional Yagi needs for similar numbers.
Why is this popular for satellite and portable work?
Its very short boom and light weight make it easy to hand-hold or mount on a short mast, which matters a lot for rover, SOTA/POTA, and satellite operators working in the field.
Is it harder to build than a standard 2-element Yagi?
Somewhat — the close element spacing makes it more sensitive to construction accuracy, and the crossed phasing line is a detail a standard Yagi doesn't require.
Can I scale this to other VHF/UHF bands?
Yes — the calculator on this page scales all dimensions to your chosen design frequency using the same standard ratios.
