Build a Cantenna — 2.4GHz WiFi Directional Antenna
This is a WiFi/ISM-band antenna for network connectivity, not an amateur radio antenna. It operates in the license-free 2.4GHz ISM band used by WiFi, has no connection to amateur radio bands, license privileges, or Part 97, and is included here because it's a common, ham-adjacent project for getting network connectivity out to a detached shack, garage, or shed. A Cantenna is a directional WiFi antenna built from an ordinary metal can acting as a circular waveguide, with a probe near the closed end coupling into a standard WiFi radio through an N-connector — a genuinely effective, well-documented design for pointing a wireless link at a specific building.
How a Metal Can Becomes a Directional Antenna
A metal can of the right diameter acts as a circular waveguide at 2.4GHz — a hollow metal tube that supports a specific electromagnetic mode (called TE11) when its diameter is large enough relative to the wavelength. A probe (a short piece of wire, essentially a small monopole) mounted a specific distance from the can's closed end couples RF energy into this waveguide mode, and the open end of the can radiates that energy in a focused, directional beam.
Probe Position — Not Guesswork
The probe's distance from the can's closed end is calculated from the "guide wavelength" — the effective wavelength of the signal inside the waveguide, which is longer than the free-space wavelength and depends on the can's diameter.
Can Length and Gain
- Minimum usable length: the can needs to be at least a bit longer than the probe position plus roughly 0.75 guide wavelengths for the waveguide mode to properly form.
- More length, more gain: within practical limits, a longer can (a large coffee can or similar, roughly 8-14 inches) gives more directional gain than a short one (like the historically popular Pringles can), at the cost of a narrower beamwidth that needs more careful aiming.
- Diameter matters more than exact length: getting the diameter right (comfortably above the minimum) and the probe position accurate matters more to getting a working antenna than fine-tuning the exact can length.
What This Antenna Is For
A Cantenna is a point-to-point or point-to-multipoint directional WiFi antenna — aim it at a WiFi access point or another directional antenna on the far end (for example, at a house from a detached shack, or vice versa) to extend network range well beyond what an omnidirectional WiFi antenna can reach in one direction. It is not omnidirectional and won't improve general WiFi coverage in all directions.
| Can diameter | Guide wavelength | Probe position from back | Notes |
|---|---|---|---|
| 3.0 in (76.2 mm) | ~294 mm | ~73.5 mm (2.89 in) | Close to the minimum usable diameter — check your can before committing |
| 3.5 in (88.9 mm) | ~209 mm | ~52.3 mm (2.06 in) | A common large-can size |
| 4.0 in (101.6 mm) | ~175 mm | ~43.6 mm (1.72 in) | A popular, reliable size for this build |
| 4.5 in (114.3 mm) | ~159 mm | ~39.8 mm (1.57 in) |
Cantenna Dimension Calculator
Materials for a complete Cantenna build

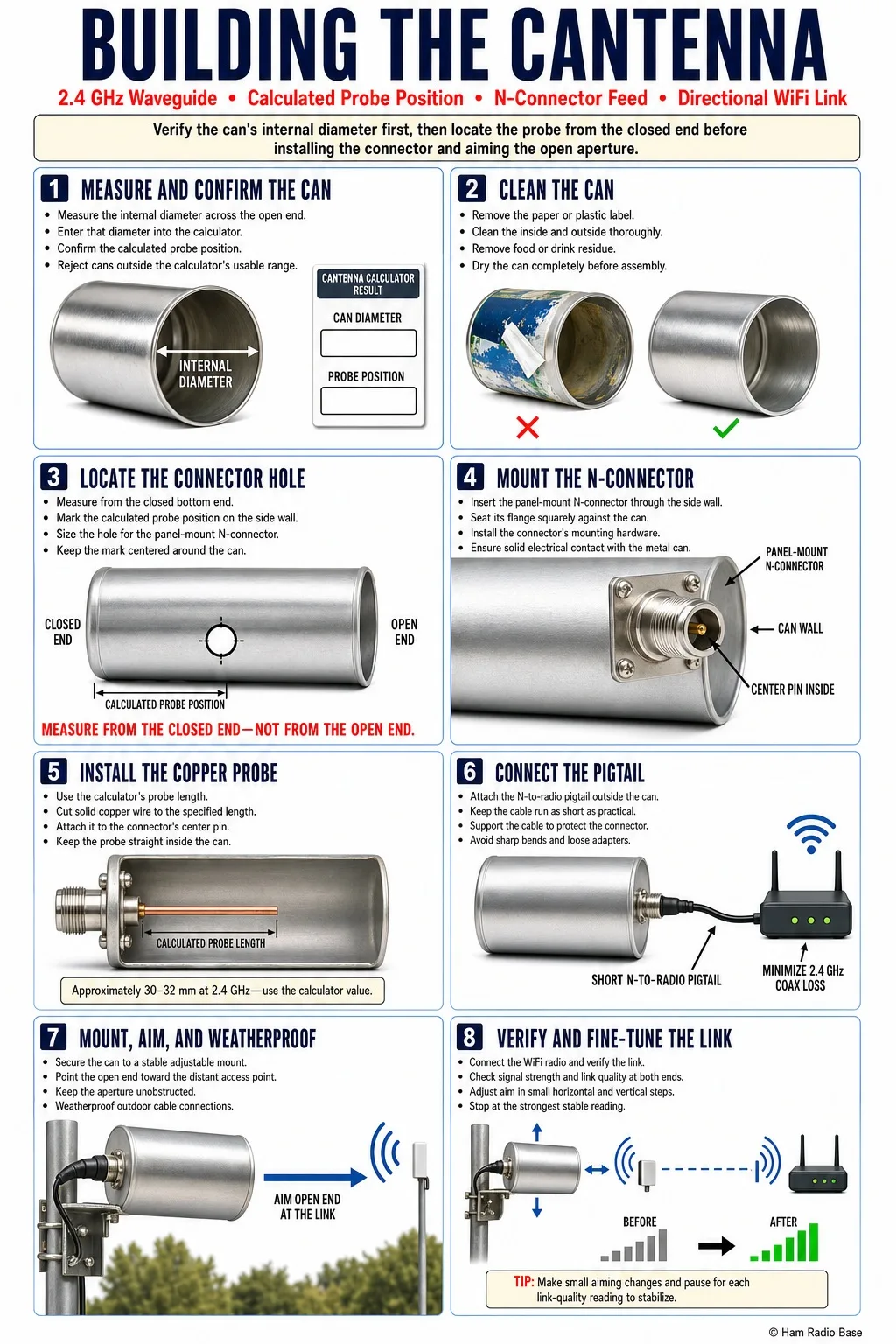

Building the Cantenna
Verify your can's diameter against the calculator before drilling anything.
Measure and Confirm Your Can
Measure your can's internal diameter and enter it into the calculator to confirm the probe position for your specific can.
Clean the Can
Remove any label and clean the can thoroughly, especially the inside, since food or drink residue can affect the finish and any coating.
Drill the Connector Hole
Drill a hole through the can wall at the calculated probe position from the closed end, sized to fit your panel-mount N-connector.
Mount the N-Connector
Install the N-connector through the drilled hole, securing it per the connector's own mounting hardware.
Solder the Probe
Cut a piece of solid copper wire to the probe length from the calculator (approximately a quarter of the free-space wavelength, roughly 30-32mm at 2.4GHz) and solder it to the connector's center pin, extending straight into the can's interior.
Connect the Pigtail Cable
Connect your N-to-radio pigtail cable to the outside of the connector, keeping the run as short as practical to minimize coax loss at 2.4GHz.
Mount and Aim the Cantenna
Mount the can with its open end pointed toward the distant WiFi access point or antenna, weatherproofing all connections if installed outdoors.
Verify the Link and Fine-Tune Aim
Connect to your WiFi radio and check signal strength/link quality on both ends, making small aiming adjustments to maximize the connection.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No signal improvement at all | Probe soldered incorrectly, or wrong position from the closed end | Re-measure probe position from the closed (not open) end of the can | Re-position and re-solder the probe at the correct measured distance |
| Weak link despite correct construction | Poor aim, or excessive coax loss on a long pigtail run | Check aim alignment and pigtail cable length | Fine-tune aiming; shorten the pigtail cable or use a lower-loss cable type |
| Can diameter too small for the calculator to give a sensible result | Can diameter below the minimum for the TE11 mode at 2.4 GHz | Compare your can's diameter to the minimum in the theory section | Use a larger-diameter can |
| Connector loose or leaking after outdoor exposure | Insufficient weatherproofing at the connector penetration | Inspect the connector mount and can opening for water ingress | Re-seal with weatherproof sealant; consider a weatherproof enclosure around the whole assembly |
| Link works but is inconsistent | Wind moving the aimed antenna, or interference from other 2.4 GHz devices | Check physical mounting stability and scan for nearby WiFi/Bluetooth congestion | Secure the mount more rigidly; try a different WiFi channel to avoid interference |
Is this an amateur radio antenna?
No — this operates in the license-free 2.4GHz ISM/WiFi band, unrelated to amateur radio bands or license privileges. It's included here because getting network connectivity to a detached shack is a common, ham-adjacent project, not because it has anything to do with Part 97 or amateur radio operation.
Does the exact can brand/type matter?
Not particularly — what matters is the diameter (checked against the calculator) and having enough length for the waveguide mode to form properly. Any clean, dent-free metal can of suitable size works.
How far can this link reach?
Range depends heavily on line-of-sight conditions, obstructions, and the WiFi hardware on both ends, but Cantennas are commonly used successfully for links from a house to a detached shed, garage, or shop at typical residential-property distances with clear line of sight.
Do I need one Cantenna or two for a shack link?
You can pair a Cantenna at one end with a normal omnidirectional antenna at a central access point, or use a matched pair of directional antennas at both ends for the strongest possible link — either works, with two directional antennas generally giving the best range and reliability.
Is a dented or slightly irregular can a problem?
Minor dents generally don't prevent the antenna from working, though significant deformation can affect performance somewhat. Use the straightest, roundest can available for best results.
Can I use this for a car WiFi hotspot or other non-shack use?
The design works the same regardless of application — any 2.4GHz WiFi point-to-point link can use this antenna, though this guide focuses on the shack/detached-building use case as the most common reason hams build one.
