Common Faults and Symptoms
Every technique in this module — systematic reasoning, half-split testing, injection, tracing, substitution, and in-circuit measurement — needs a starting hypothesis to work from. This lesson is that starting point: a practical, symptom-organized reference catalog of the failure patterns hams encounter most often in transceivers, antenna systems, and shack accessories, ranked by likelihood within each category. It will not replace the diagnostic techniques from the rest of this module, but it will dramatically shorten the time it takes to form a sensible first hypothesis when a new fault appears.
- No Power At All
- Powers On But No Receive
- Receives Normally But Will Not Transmit
- Weak or Distorted Receive Audio
- Weak or Distorted Transmit / Low RF Output
- Intermittent Faults
- Frequency Drift or Instability
- High SWR / Antenna System Symptoms
- Noise and Interference Symptoms
- Display, Control, and Digital Faults

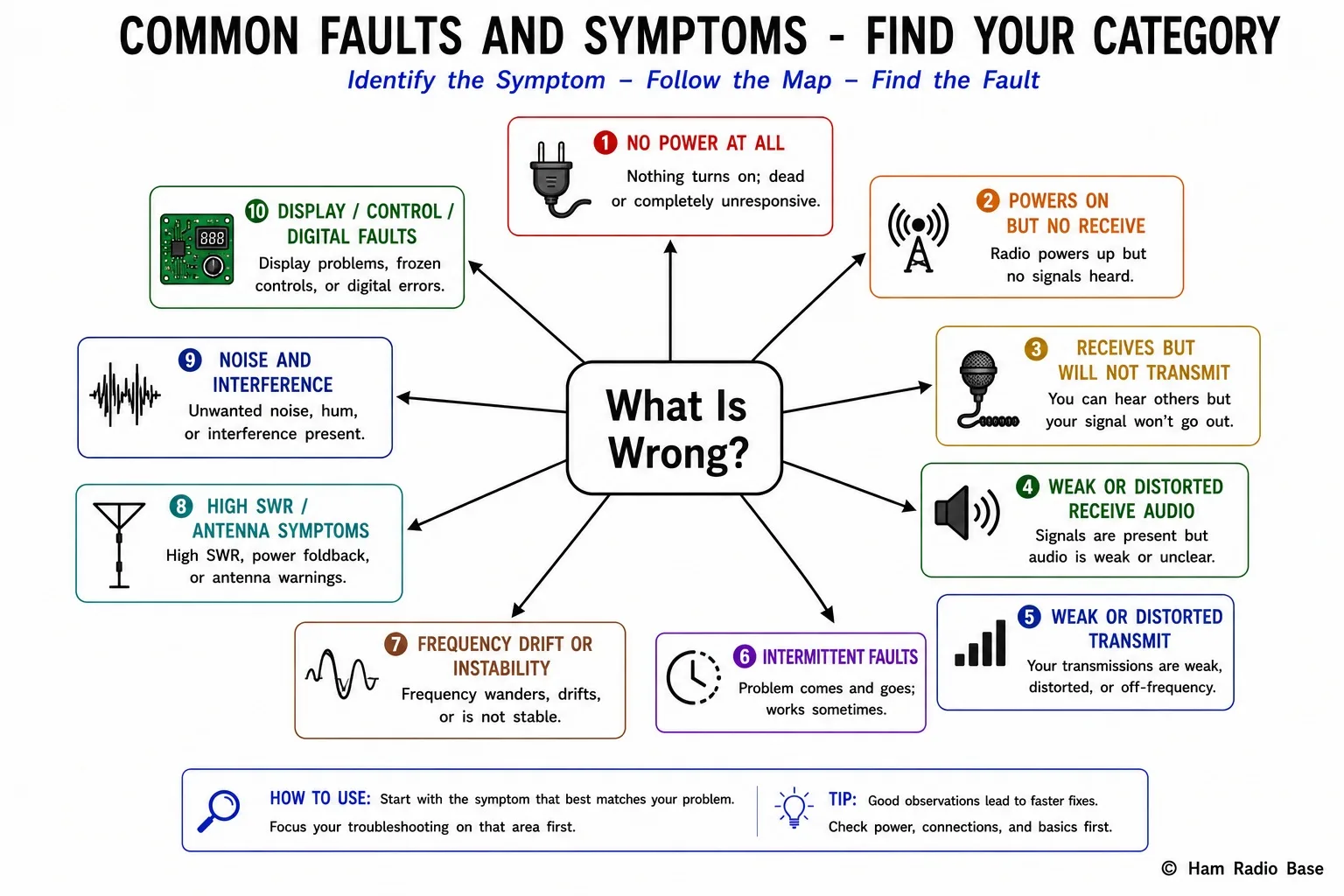

Use this map to jump directly to the symptom category that matches what you are observing.
View LargerNo Power At All
A completely dead radio — no display, no LEDs, no relay click — is, statistically, one of the easiest faults to find, precisely because the list of things that can interrupt power entirely is short and mostly involves simple mechanical or protective parts rather than internal circuitry. The worked example in M21A (an incomplete Powerpole crimp) is the single most common real-world cause of this exact symptom.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Power cable, connector, or crimp fault | Measure voltage directly at the radio-end connector while powered |
| Blown fuse (external inline fuse or internal fuse) | Visual inspection and continuity check; investigate why before replacing |
| Reversed polarity (some radios protect themselves by simply not powering on) | Check connector polarity against the radio's markings before reapplying power |
| Power switch or button failure | Continuity check across the switch contacts |
| Internal reverse-polarity protection diode failed (often fails open after a polarity event, protecting the radio at its own expense) | In-circuit voltage check just past the protection diode (M21F) |
| Failed internal regulator or control microprocessor | In-circuit voltage check on the main internal supply rails |
Powers On But No Receive
When the display lights and controls respond, but no audio or background noise is heard at all, the fault is somewhere in the receive audio path or in a muting/control function rather than in the power supply. The complete absence of any noise (not even faint background hiss with the volume turned up and no antenna issue) is itself a meaningful clue, since a healthy receiver almost always produces some audible noise floor even with no signal present.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Squelch fully closed or misadjusted | Open the squelch control fully and recheck |
| Volume control or audio mute engaged | Check volume level and any mute/VOX status indicator |
| Headphone jack inserted with no headphones connected (cuts speaker) | Remove anything plugged into the headphone/external speaker jack |
| Failed audio output stage or damaged speaker | Signal injection backward from the speaker (M21C) |
| Stuck PTT, VOX, or TX/RX relay leaving the radio in transmit mode | Visually and audibly confirm the radio is actually in receive mode |
| Front-end protection device failed (clamp diode shorted from a static or lightning event) | In-circuit measurement at the antenna input protection network |
Receives Normally But Will Not Transmit
This is one of the most common complaints in amateur radio, and it has a particularly well-ordered list of likely causes because so many ham transceivers share the same general transmit-enable architecture: a PTT signal path, a TX/RX switching relay or PIN diode network, and high-SWR protection circuitry that deliberately reduces or cuts power to protect the final amplifier.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Microphone, PTT switch, or mic cable fault | Substitution with a known-good microphone (M21E) |
| High SWR triggering automatic power reduction or shutdown | Connect a dummy load and retest (M21E "radio or antenna" test) |
| TX/RX relay or PIN diode switch stuck in receive | Listen/feel for relay click on PTT; in-circuit voltage check on relay coil |
| Low supply voltage sagging under transmit current draw | Voltage-drop method on power leads under load (M21F, Module 20) |
| Failed final amplifier transistor(s) | In-circuit bias voltage check; substitution as a last step |
| ALC circuit misadjusted, holding gain at zero | Compare ALC voltage/setting against service data |
Weak or Distorted Receive Audio
Audio that is present but clearly wrong — too quiet even at full volume, distorted, or noisy — points toward a degraded stage rather than a fully open or shorted one, since a complete failure usually produces silence rather than a weak or distorted result.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Audio stage bias drift (resistor value drift, aging transistor) | In-circuit voltage check against service data (M21F) |
| AGC misbehavior (pumping, distortion on strong signals) | Compare behavior on strong vs. weak signals; check AGC voltage |
| Front-end attenuator stuck engaged, or preamp failed | Compare signal strength readings with attenuator/preamp toggled |
| Damaged speaker (rubbing voice coil, torn cone) | Substitute a known-good speaker or headphones (M21E) |
| IF or RF alignment drift (rare in solid-state gear, more common in older equipment) | Signal tracing through IF stages (M21D) |
Weak or Distorted Transmit / Low RF Output
A drop in transmit power, or power output accompanied by distortion reports ("you sound muffled" or "you're splattering"), narrows quickly once you separate a true low-power fault from an adjustment or linearity problem — the two have overlapping symptoms but very different fixes.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Excess microphone gain or ALC misadjustment causing compression/clipping | Two-tone envelope test on a scope (M21G) |
| Driver or PA stage bias drift | Signal tracing and in-circuit voltage check (M21D, M21F) |
| High SWR reflecting power back into the PA | Measure SWR directly; substitute a dummy load |
| Degraded final amplifier transistor(s) | In-circuit bias and current check before substitution |
| Excessive voltage drop in power wiring under transmit current | Voltage-drop method at the radio's power terminals while transmitting (Module 20, M21F) |
Intermittent Faults
Faults that come and go are the most frustrating category precisely because a single static test often shows nothing wrong at all. The common thread across most intermittent faults is a marginal mechanical connection — something that is "almost" making good contact and is sensitive to vibration, temperature, or flexing.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Cold or cracked solder joint | Visual inspection under magnification; gentle mechanical "wiggle test" while monitoring the symptom |
| Marginal connector or cable (mic, power, coax) | Substitution with a known-good cable (M21E) |
| Cracked PCB trace | Continuity check while flexing the board gently |
| Thermally-dependent component failure | Apply gentle, controlled heat (a hair dryer, well clear of any flammable material) or cold spray to a suspect area while monitoring the symptom |
| RF feedback sensitive to hand/body proximity | Observe whether the fault changes when you move your hand near the chassis without touching it |
Frequency Drift or Instability
A transmitted or received frequency that wanders over time, especially during the first few minutes after power-up, points toward thermal effects in the frequency-determining components rather than a simple component failure — drift is a degree-of-performance problem more often than an outright fault.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Normal VFO/oscillator thermal drift during warm-up (within spec) | Compare drift amount against the manufacturer's specified warm-up drift |
| Reference oscillator or PLL loop instability | Monitor frequency stability with a frequency counter over time |
| Loose or marginal crystal, trimmer, or inductor in the oscillator circuit | Gentle mechanical wiggle test combined with frequency monitoring |
| Aging crystal (frequency shifts permanently over years) | Compare actual frequency against a calibrated reference |
| Inadequate decoupling allowing supply noise to modulate the oscillator | Check supply rail for noise/ripple with a scope |
High SWR / Antenna System Symptoms
High SWR readings, reduced range, or a radio that reduces power or shuts down on transmit almost always point to the antenna system rather than the radio itself, and the "radio or antenna" substitution test from M21E should usually be the very first step in this category.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Water ingress in a coax connector or along the feedline | Visual inspection; measure SWR with a known-good short jumper substituted |
| Loose or corroded connector | Inspect and re-tighten/clean; re-test SWR |
| Broken or shorted antenna element or feedpoint | Continuity and resistance check at the antenna feedpoint |
| Antenna tuner mistuned or bypassed accidentally | Re-tune and confirm tuner is in-line, not bypassed |
| Feedline damaged (crushed, chewed, or weathered coax) | Substitute a known-good feedline section |
Noise and Interference Symptoms
Noise complaints split into two very different categories that are easy to confuse: noise generated within your own station (often solvable with bonding, grounding, or filtering per Module 19) and noise arriving from outside sources. Distinguishing the two early saves significant troubleshooting time.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Switching power supply or nearby SMPS-powered device noise | Turn off suspect devices one at a time and listen for the noise to stop |
| Ground loop hum between station equipment | Check station bonding per Module 19's single-point ground guidance |
| Common-mode current on the feedline picking up local noise | Install/inspect a choke balun and observe any change (Module 19) |
| Loose or poorly bonded equipment chassis radiating/receiving noise | Inspect and improve bonding straps |
| External noise source (power line arcing, neighbor's equipment) | Use a battery-powered handheld receiver away from your house wiring to compare noise level |
Display, Control, and Digital Faults
Modern transceivers are part RF equipment and part embedded computer, and faults in the control/display side can mimic or mask RF faults if you are not careful to distinguish them. A frozen display, a stuck encoder, or menu settings that "don't stick" are control-side symptoms that often have nothing to do with the RF signal path at all.
| Likely Cause (most to least probable) | Quick Test |
|---|---|
| Microprocessor lockup (often cleared by a power cycle or documented reset procedure) | Power cycle; consult the manual for a master reset procedure |
| Stuck button, encoder, or sticky keypad contact | Visual inspection; operate each control individually and observe response |
| Corrupted memory/EEPROM (settings reset unexpectedly) | Reload defaults per manual; check for a known firmware issue |
| Backlight failure (separate from main display function) | Confirm display segments respond correctly even if dim/dark |
| Firmware bug (known issue with a specific version) | Check manufacturer support pages for a firmware update addressing the symptom |
Frequently Asked Questions
My symptom doesn't fit cleanly into one category. What should I do?
Many real faults span two categories — for example, "weak transmit power that also sounds distorted" touches both the Weak/Distorted Transmit and (if linked to a supply problem) the power-related entries elsewhere in the catalog. Read the categories that most closely match each part of your symptom, and use the systematic method (M21A) to decide which hypothesis to test first based on which explanation accounts for the most observed symptoms at once.
Is this catalog a substitute for learning the techniques earlier in this module?
No — this catalog tells you where to start looking; the earlier lessons (systematic method, divide-and-conquer, injection, tracing, substitution, in-circuit measurement, and scope use) tell you how to actually confirm the cause once you have a short list of suspects. Used together, the catalog speeds up Step 3 (forming a hypothesis) from M21A, while the other lessons handle Step 4 onward (testing it).
Why does the "radio or antenna" test appear in several categories?
Because it is genuinely one of the highest-value tests available to a ham — fast, requiring no disassembly, and capable of eliminating roughly half the station's equipment from suspicion for any transmit-related or SWR-related symptom. It is worth defaulting to this test early whenever a symptom could plausibly involve either the radio or the antenna system.
Should I always work through the causes in the exact order listed?
The order reflects general probability across many stations and situations, but your own context can override it — recent history, a known weak point in your specific equipment, or a recent event (a storm, a dropped antenna, a new accessory) should always be weighed alongside the catalog's default ordering, per the most-likely-cause-first principle from M21A.
