Systematic Fault Finding

Picture two hams faced with the same dead transceiver. The first one starts pulling boards, reflowing solder joints that look fine, and swapping parts that were never suspect, hoping something will magically start working again. An hour later the radio is in pieces, three "maybe-bad" parts have been replaced for no reason, and it still does not work — possibly because something was disturbed in the process that was not the original problem. The second ham picks up a multimeter, asks a series of deliberate questions, takes a handful of measurements, and in ten minutes points to a single failed component with confidence. Both hams own the same tools. The difference is entirely method.

This lesson teaches that method. Systematic fault finding is not a clever trick or a checklist to memorize and forget — it is a mental discipline that turns "I have no idea what's wrong" into "I know exactly what to test next" at every stage of a repair. Once you internalize it, you will use it on everything: a transceiver that will not transmit, a power supply that hums and shuts down, a homebrew accessory that almost works, even a car that will not start. The method does not change. Only the schematic does.

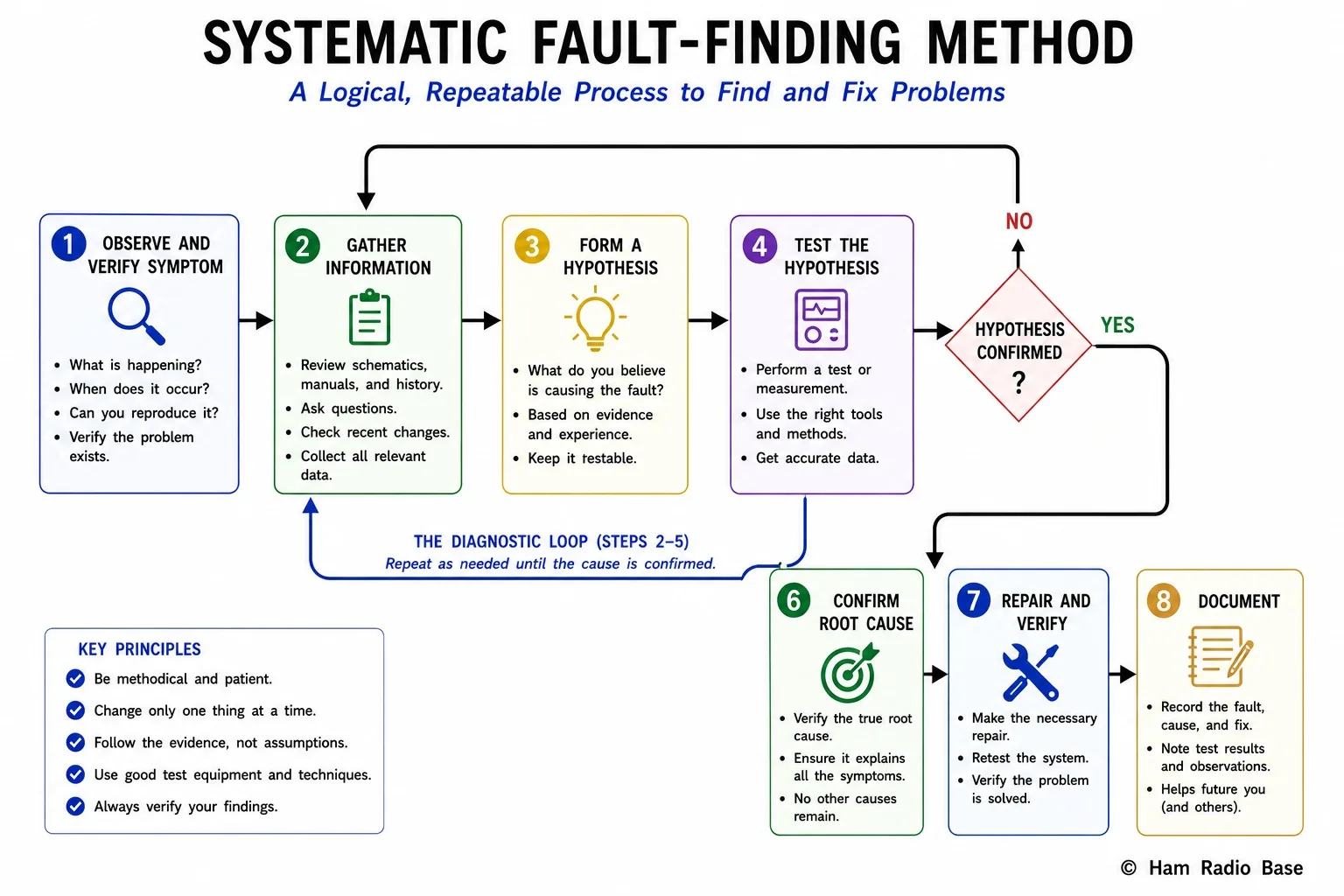

The systematic fault-finding loop: observe, gather information, hypothesize, test, and repeat until the cause is confirmed.

View Larger

Why "Just Start Swapping Parts" Fails

It is tempting to treat a broken radio the way you might treat a jammed stapler — give it a shake, poke at the obvious moving part, and hope. With electronics this approach fails for a specific, structural reason: most circuits have far more components that could plausibly be at fault than you could ever test by random replacement in a reasonable time, and many of those components look, smell, and measure identically whether they are good or bad until you test them in exactly the right way. A shorted ceramic capacitor looks exactly like a healthy one sitting on the bench. A transistor with one leg internally open will pass a basic continuity beep-test and still be completely dead in circuit.

Random part-swapping has three additional costs beyond wasted time. First, it costs money — you are buying and discarding parts that were never the problem. Second, it carries real risk: every time you desolder and resolder a joint, lift a trace, or disturb a connector, you introduce a small chance of creating a brand new fault, sometimes one that masks or compounds the original. Technicians call this "shotgunning," and it has a well-earned reputation for turning a one-component repair into a multi-fault nightmare. Third, and most importantly for your development as a builder and repairer, shotgunning teaches you nothing. You can fix the same radio twice by shotgunning and learn nothing useful the second time. A systematic diagnosis, by contrast, builds a mental model of how the equipment works that pays off on every future repair, on every other piece of gear that shares the same general architecture.

None of this means component swapping is forbidden — in fact, the substitution method (covered in M21E) is a legitimate and often efficient diagnostic tool. The difference is that substitution, done correctly, is a deliberate test performed after you have narrowed the list of suspects to one or two components using evidence. Shotgunning is substitution performed instead of narrowing the list — replacing the entire bag of suspects with no evidence at all.

The Systematic Fault-Finding Method

The method below works for any electronic fault, in any piece of equipment, regardless of complexity. It is usually presented as a sequence of steps, but in practice it is a loop: most non-trivial faults require you to go around the loop more than once, refining your hypothesis each time new evidence comes in.

Step 1: Observe and Verify the Symptom

Before touching a single component, establish exactly what is and is not happening. "The radio doesn't work" is not a symptom — it is a shrug. "The radio powers on, the display lights normally, receive audio is present and normal, but pressing the PTT produces no RF output and no sidetone" is a symptom. Operate every control you can. Note what works normally and what does not. If someone else reported the fault to you (a friend's radio, a club member's accessory), do not trust their description alone — reproduce the fault yourself if at all possible. People frequently misreport symptoms, skip a step that would have fixed it, or fail to mention a detail (like a recent dropped antenna or power surge) that turns out to be the whole story.

Step 2: Gather Information

Before forming any hypothesis, collect everything that is cheap to collect: the model number and a schematic or service manual if available, the history of the unit (was it recently modified, dropped, exposed to moisture, or did it fail suddenly during normal use versus gradually), and any error codes or diagnostic indications the equipment itself provides. Many modern transceivers display fault codes or have a self-test/diagnostic mode — check the manual before assuming you need to investigate blind. A sudden failure during a lightning storm points toward a very different set of suspects than a fan that has been getting progressively louder for six months.

Step 3: Form a Hypothesis

Using the symptom and the information gathered, propose the smallest number of plausible causes that would explain what you observed — ideally starting with one. A good hypothesis is specific and testable: "the 12 V regulator has failed" is testable (measure its output). "Something is wrong with the power supply section" is too vague to test directly and needs to be narrowed first. If you genuinely cannot form a single best guess, that is fine — the divide-and-conquer technique in M21B exists precisely for cases where the search space is still too large to guess.

Step 4: Test the Hypothesis

Design the smallest, safest, fastest test that will either confirm or eliminate your hypothesis. "Smallest" matters — do not desolder a part to test it if you can test it in-circuit; do not disassemble half the chassis to reach a test point if a different, equally valid test point is already accessible. Perform the test, and resist the temptation to interpret an ambiguous result optimistically. If the reading is "close enough" to what you expected but not exactly right, that is a clue, not a pass.

Step 5: Interpret the Result and Narrow

A confirmed hypothesis lets you proceed to repair. A rejected hypothesis is not a failure — it is information. Every test, whether it confirms or denies your guess, removes possibilities from the list of suspects and should sharpen the next hypothesis. This is the loop: gather a little more information, form a sharper hypothesis, test again. Each pass through the loop should narrow the search, never just repeat it. If you find yourself making the same kind of measurement over and over with no new conclusions, step back — you are likely missing a piece of information, not failing to test hard enough.

Step 6: Confirm the Root Cause

Before repairing anything, make sure you have found the actual root cause and not just a symptom of a deeper problem. A blown fuse is rarely the root cause — something downstream usually drew excess current and caused it to blow. Replacing the fuse without finding out why it blew is one of the most common troubleshooting mistakes in this hobby, and it often ends with a second blown fuse (or a destroyed component) minutes later.

Step 7: Repair and Verify

Make the repair, then verify the original symptom is gone and that no new symptom has appeared. Power the equipment up under controlled conditions if there is any risk that the repair might not be perfect — a current-limited bench supply, a fuse of appropriate rating, or simply standing by to disconnect power quickly are all reasonable precautions on a first power-up after a repair to a power supply or amplifier stage.

Step 8: Document

Write down what failed, how you found it, and what you did to fix it. Five minutes of notes saves hours the next time the same fault — or a similar one in a similar radio — appears. This is expanded on in the Keeping a Troubleshooting Log section below.

The Most-Likely-Cause-First Principle

When more than one hypothesis is plausible, test the most probable cause first — not the most interesting one, and not the one that happens to be most convenient to test. This sounds obvious, but it is the single most violated principle in amateur troubleshooting. Hams (and engineers generally) are drawn toward exotic explanations because they are more satisfying to diagnose and tell stories about later. In reality, the boring explanation is right far more often than not.

A practical ordering, valid for the overwhelming majority of "it just stopped working" faults in ham radio equipment, is: power and connections first (is it actually getting power, is every cable seated, is the fuse intact), then user-replaceable wear items (batteries, fuses, connectors), then external accessories and cabling (a bad coax connector causes far more "transmit problems" than a failed PA transistor), then internal power supply rails, then the specific functional block implicated by the symptom, and only then individual semiconductors within that block. This ordering exists because of simple statistics: connectors, cables, and fuses fail constantly through mechanical wear and vibration; well-designed semiconductor junctions inside an enclosure, protected from the weather, fail comparatively rarely outside of a clear overstress event (RF overdrive, ESD, voltage spike, overheating).

Tools and Equipment for Troubleshooting

General-purpose troubleshooting at the level covered in this module requires a modest, accessible set of tools — none of it exotic or expensive:

• Digital multimeter (DMM): for voltage, resistance, continuity, and current measurements — the single most-used troubleshooting tool, covered fully in Module 5.
• Schematic or service manual: even a partial block diagram dramatically narrows the search space. Many manufacturers publish service manuals or at least block diagrams; ham radio clubs and online archives (such as the manufacturer's own support site) are good sources.
• Basic hand tools: insulated screwdrivers, nut drivers, and pliers sized for the equipment's fasteners and connectors.
• A bright work light and magnifier or loupe: cold solder joints, hairline cracks, and corrosion are often visible only under good light and magnification.
• ESD precautions: an anti-static wrist strap and mat when working inside equipment with CMOS logic, microprocessors, or RF front-end devices, which can be destroyed by static discharge with no visible damage.
• A notebook or troubleshooting log: covered in detail below — do not skip this.
• An oscilloscope and signal injector, where available: not required for every fault but essential for the signal-tracing and signal-injection techniques covered later in this module (M21C, M21G).

Safety Before You Touch Anything

Beyond the immediate shock hazard, a few habits prevent troubleshooting from creating new damage. Always note the original position of any control, switch, or jumper before changing it, so it can be restored if your hypothesis turns out to be wrong. When probing inside a live circuit (which should be minimized and done only when necessary, such as measuring a voltage that only appears under power), keep one hand clear of grounded metal and use probes with finger guards. Never bridge two points with a meter probe or screwdriver to "see what happens" — a momentary short across the wrong two points can destroy a component instantly. Full coverage of electrical and RF safety hazards is provided in Module 22; this section is a reminder relevant specifically to opening up equipment for diagnosis.

Keeping a Troubleshooting Log

A troubleshooting log is nothing more than a running, dated record of what you tried, what you measured, and what it told you. It serves three purposes. First, it prevents you from repeating a test you already performed an hour ago and have simply forgotten about — astonishingly common during a long, frustrating session. Second, it lets you (or anyone else) pick the investigation back up after a break without losing the thread. Third, it becomes a personal reference library: the next time a similar radio exhibits a similar symptom, your own notes are often faster to consult than searching the internet from scratch.

A good log entry needs only four things: the date and the symptom as originally observed, each test performed and its result, the conclusion drawn from each result, and — once found — the confirmed root cause and the fix applied. This does not need to be formal. A spiral notebook kept on the workbench, or a simple text file, is entirely sufficient. What matters is the habit of writing it down as you go, not after the fact from memory.

Worked Example: Transceiver Will Not Power On

To see the method in action from end to end, here is a complete, realistic walk-through.

Notice what did not happen in this example: no cover was removed from the transceiver, no internal component was tested or suspected, and the entire diagnosis took a handful of minutes because the most-likely-cause-first principle pointed directly at the one thing that had actually changed. This is the payoff of the method — not cleverness, but discipline.
