Dummy Loads
Transmitting into an antenna you cannot see — or one that might be mismatched — is a gamble that can damage your final stage. A dummy load removes that gamble entirely: it presents your transmitter with a stable, resistive 50 Ω termination that absorbs all your RF power as heat, producing no radiated signal. Every serious ham station needs one, and understanding how a dummy load works helps you choose the right one and, if you enjoy building, construct your own.

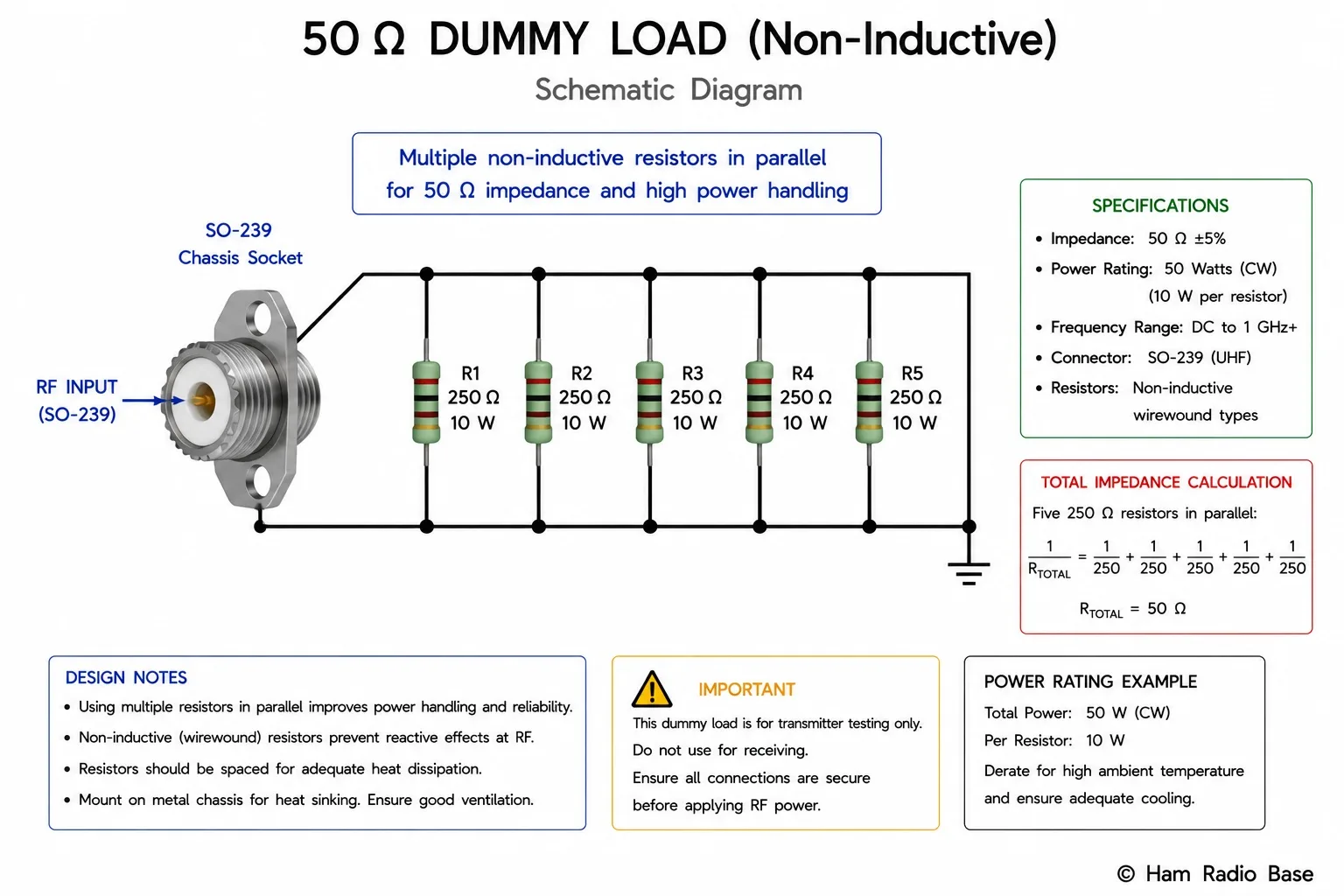

A practical dummy load: non-inductive resistors wired in parallel to achieve 50 Ω total, connected directly to a chassis-mount SO-239 socket with minimal lead length.
View LargerWhy 50 Ω?
The 50 Ω impedance standard for coaxial RF systems is a compromise made in the late 1930s by the American military and subsequently adopted by the amateur radio community and the entire professional RF industry. A coaxial cable's characteristic impedance is determined by the ratio of its outer to inner conductor diameters. At 30 Ω the cable carries maximum power for a given voltage. At 77 Ω it has minimum loss for a given outer diameter. Fifty ohms sits between these optima, balancing power handling and attenuation — a practical compromise that became universal.
Because coaxial cable, connectors, transceivers, amplifiers, and antenna feedpoints are all designed around 50 Ω, any device presented with a precisely 50 Ω resistive load sees a perfect match: all power is transferred from source to load, none is reflected. A dummy load is simply a precision 50 Ω resistive load that absorbs rather than radiates the power.
Non-Inductive Resistors
An ordinary wirewound resistor is a coil of resistance wire. At DC and low frequencies it behaves as a pure resistor, but at radio frequencies that coil of wire adds significant inductance — and inductance changes impedance with frequency. At 100 MHz a wirewound resistor might look more like 200 Ω or 300 Ω rather than its stamped value. This is completely unsuitable for a dummy load.
The right type for RF dummy loads is the non-inductive resistor. Several construction methods achieve this:
- Carbon composition resistors: The resistance material is uniformly distributed through a carbon rod — no inductance at all. Still widely available as vintage components, they are excellent for dummy loads up to 500 MHz. Their main drawback is loose tolerances and sensitivity to humidity.
- Metal oxide film resistors: A thin helical cut in a resistive film creates a slight inductance, but at moderate frequency this is small. Metal oxide types with a non-inductive (straight-cut, not helical) film are available and work well to several hundred MHz.
- Ceramic-bodied non-inductive resistors: High-power types designed specifically for RF use. Brands like Vishay/Dale RH series and Ohmite OX series are popular in amateur construction. These are explicitly wound in a bifilar pattern that cancels inductance.
- Surface mount resistors (chip resistors): Very small and inherently non-inductive — no winding at all. Excellent performance to several GHz, but limited to about 0.25 W each, so many must be paralleled for meaningful power.
For QRP (low power, typically below 5 W) dummy loads, a single 51 Ω 2 W carbon composition or metal film resistor works well to 30 MHz. For HF work at 100 W, the most common approach is to parallel multiple higher-value resistors to achieve 50 Ω while sharing the power dissipation — for example, eight 390 Ω 5 W resistors in parallel yield 48.75 Ω and 40 W total continuous rating.
Power Ratings and Thermal Limits
Resistor power ratings are continuous dissipation ratings at a specified ambient temperature (usually 25 °C). In practice, a dummy load is not used continuously at full power for extended periods — a two-minute key-down carrier test is far more demanding than a typical SSB QSO. However, the components still need adequate headroom.
| Application | Minimum load rating | Practical choice |
|---|---|---|
| QRP (≤5 W) | 5 W continuous | Single 51 Ω 5 W resistor, or multiple 2 W in parallel |
| HF 100 W (short duration) | 100 W peak, ~30 W sustained | Multiple paralleled resistors totalling 100 W+, with heatsinking |
| HF 100 W (extended key-down) | 100 W continuous | Oil-cooled construction, or large heatsink assembly |
| HF/VHF 500 W+ | 500 W+ | Commercial oil-cooled load or large bird-cage resistor assembly |
The rule of thumb for most amateur dry loads is to limit continuous key-down testing to the power level the load can sustain indefinitely — often 25–30% of the peak rating — and to allow a cool-down period between long tests.
Oil-Cooled Dummy Loads
Oil cooling solves the thermal management problem elegantly. The resistor assembly is immersed in a container of transformer oil (or light cooking oil, which has similar properties). Oil has a much higher specific heat capacity than air, so it absorbs and stores heat far more effectively, allowing sustained key-down at the full rated power.
A popular amateur construction uses a paint tin or a small oil-seal metal can filled with cooking oil. The resistor assembly — typically multiple 1 kΩ to 2.2 kΩ non-inductive resistors paralleled to achieve 50 Ω — is suspended in the oil on short leads from a chassis-mount BNC or SO-239 socket at the top of the tin. The oil absorbs the heat during transmission and slowly dissipates it to the tin walls and surrounding air during the rest period.
Oil-cooled loads built this way typically handle 100–200 W for several minutes and are a very popular construction project. The oil darkens with use over years but continues to function. Vegetable oil eventually goes rancid — mineral or transformer oil is preferable for permanent construction.
Commercial Dummy Loads
Commercial dummy loads vary from small BNC-terminated 1 W 50 Ω terminations used in signal-level work to large forced-air or liquid-cooled units for kilowatt amplifier testing. For general amateur use the most useful types are:
- Bird 8135 and equivalents: Coaxial construction, typically 25 W or 50 W continuous, flat to several hundred MHz. Used as reference loads with Bird wattmeter slugs.
- MFJ-260 series: Air-cooled loads from 50 W to 300 W. Adequate for short-duration testing on HF/VHF.
- Palstar DL series: Compact oil-cooled 1 kW loads popular with contest operators for extended testing of kilowatt amplifiers.
- SWR/power meter built-in loads: Many antenna analyzers include a dummy load mode internally.
⚖ Experiment: Build a QRP 50 Ω Dummy Load
This experiment demonstrates resistor paralleling to achieve 50 Ω and non-inductive construction. The resulting dummy load handles 5 W continuously — perfect for QRP transceivers and for testing receivers and accessories up to 30 MHz.
- Two 100 Ω 2 W carbon composition or metal film resistors (non-inductive preferred)
- One BNC or SO-239 chassis socket
- Small piece of copper-clad board or a small metal enclosure (not essential but improves RF performance)
- Multimeter
- Soldering iron and solder
- Two 100 Ω resistors in parallel give 50 Ω. Verify this with your meter before soldering: hold both resistors together and measure resistance. You should read 50 Ω ± a few ohms depending on tolerance.
- Solder both resistors directly to the center pin of the BNC socket, keeping leads as short as possible — long leads add inductance. Trim leads to under 5 mm if possible.
- Connect the free ends of both resistors to the ground ring (outer shell) of the socket.
- Measure resistance across the socket: you should read 50 Ω ± 5%.
- If you have an antenna analyzer or SWR meter, connect the dummy load and check SWR at 3.5 MHz, 7 MHz, 14 MHz, and 28 MHz. You should see SWR of 1.1:1 or better at all these frequencies.
- With a QRP transceiver set to its lowest power, transmit into the load for 10 seconds. The resistors will become warm to the touch — this is expected and normal. Do not transmit more than about 5 W continuous or the 2 W resistors will overheat.
A 50 Ω resistance measurement and SWR at or below 1.2:1 across the HF bands. The resistors warm up noticeably during transmission and cool down when you stop. This confirms the load is absorbing RF power as heat. The construction demonstrates why short, direct leads and non-inductive resistors matter — any significant inductance would raise the SWR at higher frequencies.
