MUF and LUF — Maximum and Lowest Usable Frequency
Every time you operate on the HF bands, two invisible boundaries shape which frequencies will actually carry your signal across the world and which ones will fail. The Maximum Usable Frequency (MUF) is the upper ceiling — signals above it punch straight through the ionosphere and are lost in space. The Lowest Usable Frequency (LUF) is the lower floor — signals below it are choked to death by D-layer absorption before they even reach the reflecting layers. Everything in between is your working window, and knowing how to find and use that window is one of the most practical skills in HF operating.
Think of it like a radio version of Goldilocks. Too high a frequency and the ionosphere is transparent — your signal goes through rather than bouncing back. Too low and the lower ionosphere acts like a sponge, absorbing your signal before it gets anywhere useful. Right in the middle, at the Optimum Working Frequency (OWF), you get the most reliable propagation with the strongest signal at the far end.
- What MUF and LUF are and why they exist
- The physics behind the critical angle and refraction vs. penetration
- Why the D layer causes LUF absorption
- The Optimum Working Frequency (OWF) and the 85% rule
- How MUF changes through the day, season, and solar cycle
- MUF tables, VOACAP, and propagation prediction tools
- Worked example: choosing the right band for a 5,000 km path

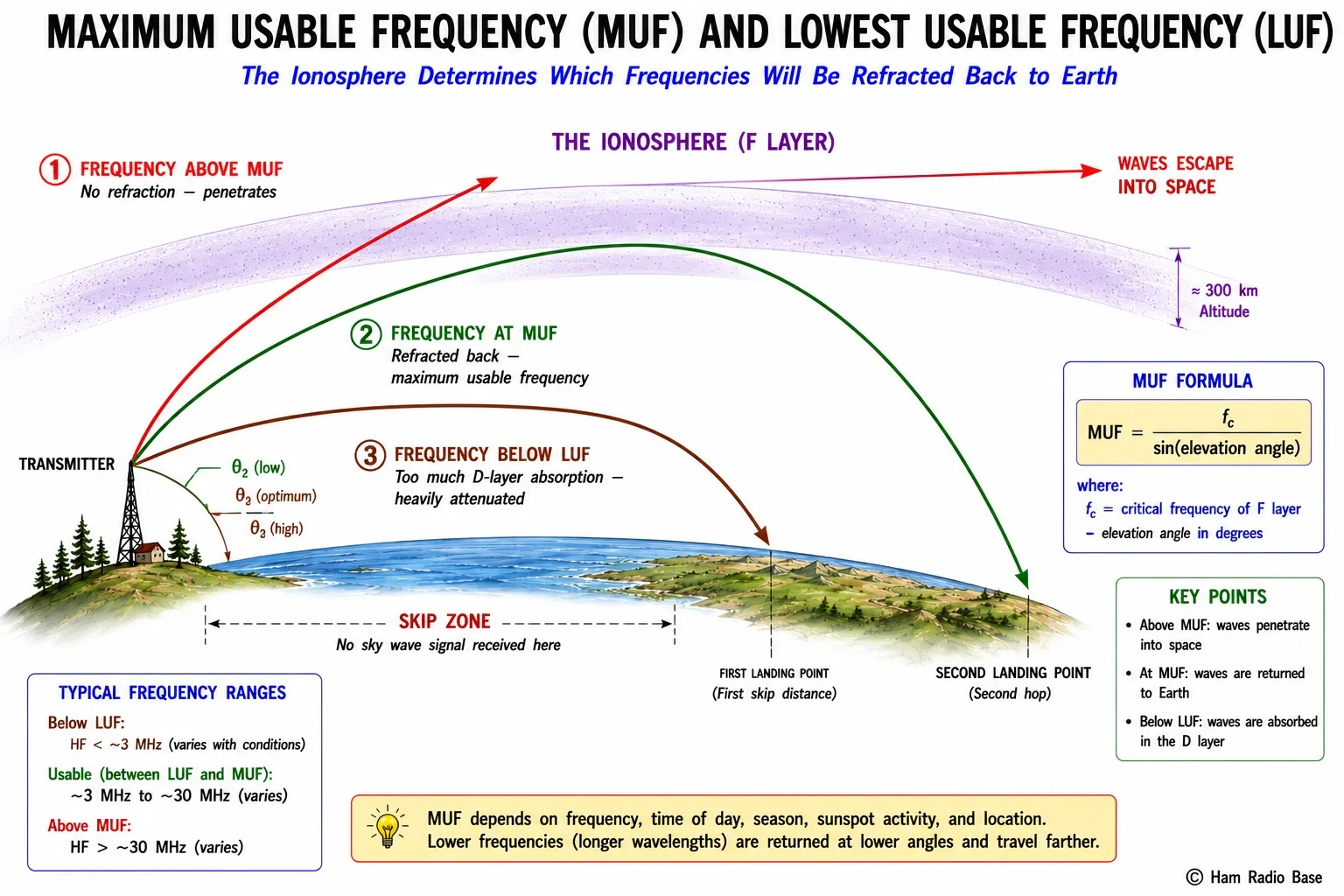

Three ray paths from the same transmitter: above MUF passes through the ionosphere; at MUF refracts back to Earth; below LUF is absorbed by the D layer. The skip zone is the dead zone between the transmitter and the first point where the refracted ray lands.
View LargerCritical Frequency and Refraction
To understand MUF and LUF you first need to understand what the ionosphere actually does to a radio wave. The ionosphere is not a hard mirror — it is a region of ionized gas that gradually bends radio waves. The bending happens because the wave travels at different speeds in regions of different electron density, and this speed difference causes the wavefront to curve, just as light bends when it passes between air and glass.
The critical factor is the angle at which the wave enters the ionosphere relative to the vertical. A wave traveling straight up (vertical incidence) experiences the maximum electron density gradient and the maximum bending. As you tilt the wave toward the horizontal, the path through the ionosphere becomes shallower and the wave has less opportunity to be bent back. At some shallow enough angle, the bending cannot turn the wave around and it continues outward into space.
The critical frequency (fc, also written f0F2 for the F2 layer) is the highest frequency that is reflected straight back from a given ionospheric layer when transmitted vertically. It is measured in real time by ionosondes — specialist radar transmitters that sweep from about 0.5 MHz up to 30 MHz and listen for the reflection. Typical F2-layer critical frequencies range from about 3 MHz at night to 8–12 MHz during the day at solar maximum.
The relationship between the critical frequency and the MUF for an oblique path depends on the angle of radiation. If you transmit at a low angle — nearly parallel to the ground — the wave hits the ionosphere at a very oblique angle and can use frequencies much higher than the vertical-incidence critical frequency. This relationship is given by the secant law:
MUF = fc × sec(θ) = fc / cos(θ)
Where θ is the angle of incidence at the ionosphere (measured from vertical).
For a practical elevation angle α from the transmitter: θ = 90° − α − small correction for Earth curvature.
Simplified for HF paths: MUF ≈ fc / sin(α) where α is the take-off angle from horizontal.
This tells you something very useful in practice: the lower your antenna radiation angle, the higher the usable frequency. A low-angle antenna on 20 meters can support a much higher MUF path than a high-angle antenna on the same band. For DX work, low-angle radiation is critical — it allows you to use bands that a high-angle antenna could not sustain.
MUF — Maximum Usable Frequency
The Maximum Usable Frequency (MUF) is the highest frequency that will be refracted back to Earth for a given path at a given time. Any signal transmitted at a frequency above the MUF will pass straight through the ionosphere without being bent back. From a practical standpoint, the MUF is defined for a specific transmit-receive path — it depends on which part of the ionosphere the signal uses, which changes as the geometry changes.
Why does penetration happen above the MUF? As frequency increases, the wave interacts less with the ionospheric electrons. The refractive index of the ionosphere depends on frequency — at very high frequencies the refractive index approaches 1.0, meaning the ionosphere looks like empty space to the wave. Below the plasma frequency of the layer, refraction is strong. Above it, the wave is not significantly slowed and passes through. The plasma frequency is directly related to the electron density, which is why MUF varies with time of day, season, and solar activity.
The MUF is not a hard cliff — it is more like a slope. Just below the MUF, signals are often strong but can exhibit multi-path fading because the signal arrives at the receiver via slightly different ionic paths. Right at the MUF, signals may be very strong for short periods when conditions favor it, then disappear entirely as the ionosphere shifts. This is why experienced operators often work near but not at the MUF — you gain signal strength from the oblique geometry but you also gain instability.
| Path Length | Typical MUF (Solar Minimum) | Typical MUF (Solar Maximum) | Primary Layer |
|---|---|---|---|
| 500 km (regional) | 8–12 MHz | 15–22 MHz | F1 or E |
| 2,000 km (medium) | 12–18 MHz | 22–30 MHz | F2 |
| 5,000 km (long) | 14–21 MHz | 24–35 MHz | F2 |
| 10,000 km (intercontinental) | 10–18 MHz | 18–28 MHz | F2 multi-hop |
Notice that the MUF for very long paths (10,000 km) is sometimes lower than for medium paths (5,000 km). This is because very long paths require multiple hops, and each hop introduces a reflection point. The weakest link in the chain determines the overall MUF. A path that crosses a nighttime ionosphere mid-path will be limited by the much lower nighttime electron density, even if both endpoints are in daytime.
LUF — Lowest Usable Frequency
The Lowest Usable Frequency (LUF) is the lower boundary — the minimum frequency that delivers a usable signal over a given path. Unlike the MUF which is set by refraction physics, the LUF is set by signal absorption in the D layer combined with the signal-to-noise requirements of the communication system.
The D layer is the lowest major ionospheric layer, existing at roughly 60–90 km altitude. It forms only during daylight hours when solar ultraviolet radiation ionizes nitric oxide and other low-altitude gases. The D layer does not reflect HF signals — its electron density is too low for that. What it does instead is absorb HF signal energy. Low-frequency HF signals (especially below 5 MHz) experience very heavy D-layer absorption during daylight. The absorption is proportional to the electron density divided by the square of the frequency, so lower frequencies suffer much more absorption than higher frequencies.
Absorption ∝ Ne / f²
Where Ne is electron density and f is frequency.
This is why 160m and 80m work poorly on long paths during daytime — the D layer absorbs most of the signal before it reaches the F2 layer.
The LUF is not fixed — it changes with the level of solar radiation (which drives D-layer ionization), with the path geometry, and with the required signal quality. A CW (Morse code) contact can use signals 10–15 dB weaker than a phone contact, so the effective LUF for CW is lower than for SSB voice. A very long path that spends more time under a high-sun D layer will have a higher LUF than a shorter path at the same time of day.
At night, the D layer largely disappears because there is no solar UV to maintain the ionization. This is why the lower HF bands (160m, 80m, 40m) open up dramatically at night for long-distance contacts. The D layer is gone, the absorption is vastly reduced, and the LUF drops to frequencies well below what is practical in daytime.
Solar flares cause a dramatic increase in D-layer absorption — sometimes called a shortwave fadeout or Dellinger fade. During a major X-class flare, the D-layer ionization can become so intense that all HF communication on the sunlit side of Earth is blacked out for minutes to hours. This is one of the few cases where the ionosphere actively prevents rather than enables long-distance communication.
Optimum Working Frequency (OWF)
In practice, you should not operate at the MUF because it is too unstable. The MUF represents the maximum possible frequency — right at the top of the propagation window — and signals there fade rapidly as the ionosphere fluctuates. The conventional wisdom, backed by decades of propagation studies, is to use the Optimum Working Frequency (OWF), which is defined as approximately 85% of the MUF.
OWF ≈ 0.85 × MUF
Example: If the predicted MUF for a trans-Atlantic path is 24 MHz, the OWF is approximately 0.85 × 24 = 20.4 MHz, suggesting that 20m (14 MHz) or 17m (18 MHz) would be more reliable than 15m (21 MHz).
The 85% figure is not a precise physical constant — it is a statistical rule of thumb that accounts for the natural variability of the ionosphere. The MUF can be predicted from models, but the actual MUF at any moment fluctuates around the predicted value. By working at 85% of MUF, you give yourself a buffer below the unpredictable upper edge. Most of the time, the path will still be open at 85% of MUF because the actual MUF is usually close to or above the predicted value.
The OWF can also be thought of this way: it is the frequency that balances signal strength (which increases as you approach the MUF because of the favorable geometry) against reliability (which decreases as you approach the MUF because of instability). The OWF maximizes the product of these two factors.
How MUF Varies
Time of Day
The ionosphere responds almost directly to solar radiation. As the sun rises, the F2 layer builds up. The MUF for most paths peaks in the early afternoon local time — typically 1300–1500 local solar time at the reflection point. This is when the F2 layer is most densely ionized and the critical frequency is highest. By late evening, the F2 layer begins to decay but often settles at a lower but stable level through the night — the nighttime F layer (F1 and F2 merge into a single F layer at night).
A very important practical consequence: the 10m and 12m bands (28 MHz and 24 MHz) are often only open for a few hours around midday during active solar conditions because only then is the MUF high enough to support them. The 40m band, by contrast, is usually an excellent nighttime DX band because the low D-layer absorption at night brings the LUF down, and the 40m frequency is below the nighttime MUF for most paths.
Season
The MUF follows the seasons in a complex way. In the Northern Hemisphere, winter F2 propagation on paths across the North Atlantic can actually be better than summer for some band-path combinations. This is partly because the F2 layer behaves differently in winter than the naive expectation of "more sun = more ionization" would suggest. The ionosphere has seasonal anomalies — the December solstice F2-layer density over mid-latitudes is sometimes higher than at the June solstice, even though the sun is lower in the sky. This counterintuitive behavior is caused by changes in the neutral atmosphere chemistry and dynamics that affect the F2 layer composition.
For the lower HF bands, summer is often worse for daytime propagation in North America because summer D-layer absorption is heavier due to the higher sun elevation. The LUF rises significantly on 60m, 80m, and 40m daytime paths during summer.
Solar Cycle
The 11-year solar cycle has the most dramatic effect on MUF. During solar maximum, when the sunspot count is high (300 or more), the F2 layer electron density is much higher, and the MUF for typical trans-Atlantic and trans-Pacific paths can regularly reach 28–35 MHz. This means 10m opens for months at a time for DX work — contacts with Europe on 10m from the United States become routine. At solar minimum, the 10m band may be essentially dead for DX for most of the year. The 15m band (21 MHz) follows a similar but slightly less extreme pattern.
| Solar Condition | Sunspot Number | F2 Critical Freq (midday) | MUF for 5,000 km path | Bands open for DX |
|---|---|---|---|---|
| Deep solar minimum | 0–10 | 4–5 MHz | 12–16 MHz | 40m, 30m, 20m |
| Moderate solar activity | 50–100 | 6–8 MHz | 16–24 MHz | 40m, 20m, 17m, 15m |
| Solar maximum | 150–300+ | 8–12 MHz | 24–35 MHz | 40m through 10m |
Geomagnetic Disturbances
Solar coronal mass ejections (CMEs) can cause geomagnetic storms that dramatically depress the MUF, especially at high latitudes. During a major geomagnetic storm (Kp index 7 or higher), the polar ionosphere can absorb or scatter HF signals so severely that paths through the polar cap are completely blocked. Paths at lower latitudes are less affected but can still see the MUF drop by 20–30% during a major storm. This is why checking the Kp index before a DX contest is standard practice.
Propagation Prediction Tools
Several free tools allow you to predict MUF and band conditions for specific paths:
VOACAP (Voice of America Coverage Analysis Program): The gold standard for HF path prediction. VOACAP calculates the predicted MUF, signal strength, and reliability for any path and time of year based on solar flux index and geographic coordinates. The online version at voacap.com allows you to enter your location, the target location, and your antenna type, and it will produce hour-by-hour band suitability predictions for a full 24-hour period.
DXView and PropView: Software tools that interface with VOACAP and display propagation predictions for current solar conditions. These are widely used with logging software during DX expeditions.
DX Maps and PSKReporter: Real-time propagation maps that show where actual contacts are being made on each band right now. These give you the current state of the ionosphere rather than a model prediction. If you see a cluster of 10m contacts from Europe to South America on DX Maps, the 10m MUF for that path is demonstrably above 28 MHz at that moment.
WWV/WWVH: The NIST time stations on 2.5, 5, 10, 15, and 20 MHz broadcast space weather reports including the solar flux index, the K index (geomagnetic activity), and a voice summary of propagation conditions at 18 minutes past each hour on WWV and 45 minutes past on WWVH.
Band Selection — Worked Example
Let us work through a realistic example. You are a station in the central United States (roughly 38°N, 90°W) trying to contact a station in central Europe (roughly 50°N, 10°E). The path distance is approximately 8,000 km. The time is 1800 UTC on a winter afternoon. Solar flux is 140 (moderate solar activity). The Kp index is 2 (quiet).
For moderate solar activity (SFI ~140), winter, mid-latitude reflection point over the North Atlantic, the daytime F2 critical frequency (f0F2) is approximately 7–9 MHz. Let us use 8 MHz.
Step 2: Apply the secant law for an 8,000 km one-hop path.
For a single-hop path of 8,000 km via the F2 layer at 300 km altitude, the take-off angle from the transmitter is approximately 5–7 degrees. Sec(83°) ≈ 8.2.
MUF ≈ 8 MHz × 8.2 ≈ 65 MHz — but this single-hop calculation is unrealistic for 8,000 km. For long paths, two hops are more likely.
Step 3: For a two-hop path, each hop covers ~4,000 km.
For a 4,000 km hop via F2 at 300 km, take-off angle ≈ 10 degrees. Sec(80°) ≈ 5.8.
MUF ≈ 8 MHz × 5.8 ≈ 46 MHz for each hop. The overall path MUF is limited by the weakest hop. At 1800 UTC in winter, both hops are over daylight territory, so both are similar. Practical two-hop MUF ≈ 28–35 MHz.
Step 4: Calculate the OWF.
OWF ≈ 0.85 × 30 MHz ≈ 25.5 MHz, suggesting 17m (18 MHz) or 15m (21 MHz).
Step 5: Check the LUF.
At 1800 UTC in winter, the reflection point over the North Atlantic is near local solar noon. D-layer absorption is present. For a path this long, the LUF for SSB voice is approximately 10–12 MHz, suggesting that 40m (7 MHz) would be too noisy and absorbed for a clean contact at this time of day, while 30m (10 MHz) and 20m (14 MHz) may work but could be marginal.
Conclusion: Try 17m (18 MHz) or 20m (14 MHz) first. If 17m gives clean copy, try 15m (21 MHz). Avoid 10m (28 MHz) as it is near the MUF and will be unstable. Avoid 40m (7 MHz) during this daytime path due to LUF absorption.
Frequently Asked Questions
Why does the MUF matter if I can just try every band?
Trying every band is time-consuming, and during a DX pile-up or contest it may not be practical. Understanding MUF lets you make an educated first guess about which band to use, saving you time. It also helps you understand why a contact failed — if 10m was dead last night but 20m was wide open, that makes immediate sense once you know about D-layer absorption and how it affects the bands differently.
Is the MUF the same everywhere in the world at the same time?
No. The MUF is path-specific. The MUF for a path from New York to London is different from the MUF for a path from New York to Tokyo, even at the same moment. This is because the MUF depends on the electron density at the specific reflection point (or points) used by each path, and these points are in different parts of the world with different solar angles and ionospheric conditions.
Can the MUF be above 30 MHz?
Yes, during solar maximum with high sunspot numbers, the MUF for trans-Atlantic and trans-Pacific paths regularly exceeds 30 MHz, sometimes reaching 40–50 MHz. This allows 10m and even 6m contacts via F2 propagation. The 6m "magic band" gets its name partly from the spectacular DX openings that occur when the MUF briefly rises above 50 MHz during solar maximum.
What happens when you transmit above the MUF?
Your signal passes straight through the ionosphere into space and is lost. If the far end of your path is not reachable by a direct line-of-sight or ground wave at that distance, there is simply no received signal. The ionosphere is effectively transparent to your frequency. You might hear nothing at all, or you might hear the noise floor of your receiver — the distant station cannot hear you, and you cannot hear them, no matter how much power you use.
Why does the LUF go up during a solar flare?
A solar flare produces an intense burst of X-ray radiation that dramatically increases the ionization of the D layer on the sunlit side of Earth. This increased D-layer ionization causes much heavier absorption of HF signals passing through it. The LUF rises to the point where even frequencies that were previously usable are now absorbed before they can reach the reflecting F2 layer. In severe flares, the LUF may rise above the MUF, meaning the propagation window closes entirely — this is the shortwave fadeout phenomenon.
Is the OWF always 85% of MUF?
The 85% figure is a widely used rule of thumb, not a fundamental law. Some propagation engineers use 90% or 80% depending on the required circuit reliability. The 85% figure corresponds roughly to a 50% reliability margin — meaning the circuit will be open at least 50% of the time at the OWF in the given month. For critical communications requiring 90% or 99% reliability, you would need to use a lower percentage of MUF, accepting a weaker but more dependable signal.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
