Skip Distance and the Skip Zone

If you have ever tuned across an HF band and heard a strong station from 2,000 km away but nothing at all from a station 500 km away, you have experienced the skip zone in action. The skip zone is the ring-shaped dead zone around a transmitter where no sky-wave signal arrives — the ground wave has already faded out, and the sky wave has overshot the nearby area, landing only much further away. Understanding skip distance is essential for choosing which band to use when you need to talk to someone at a specific distance.

The concept is simple but the implications are profound for HF operating. A signal that leaves your antenna at a 15-degree elevation angle will travel hundreds of kilometers through the ionosphere before being bent back to Earth. The distance from your transmitter to where it first lands is the skip distance. Everything between you and that landing point is in the skip zone — a region of radio silence for your sky-wave signal.

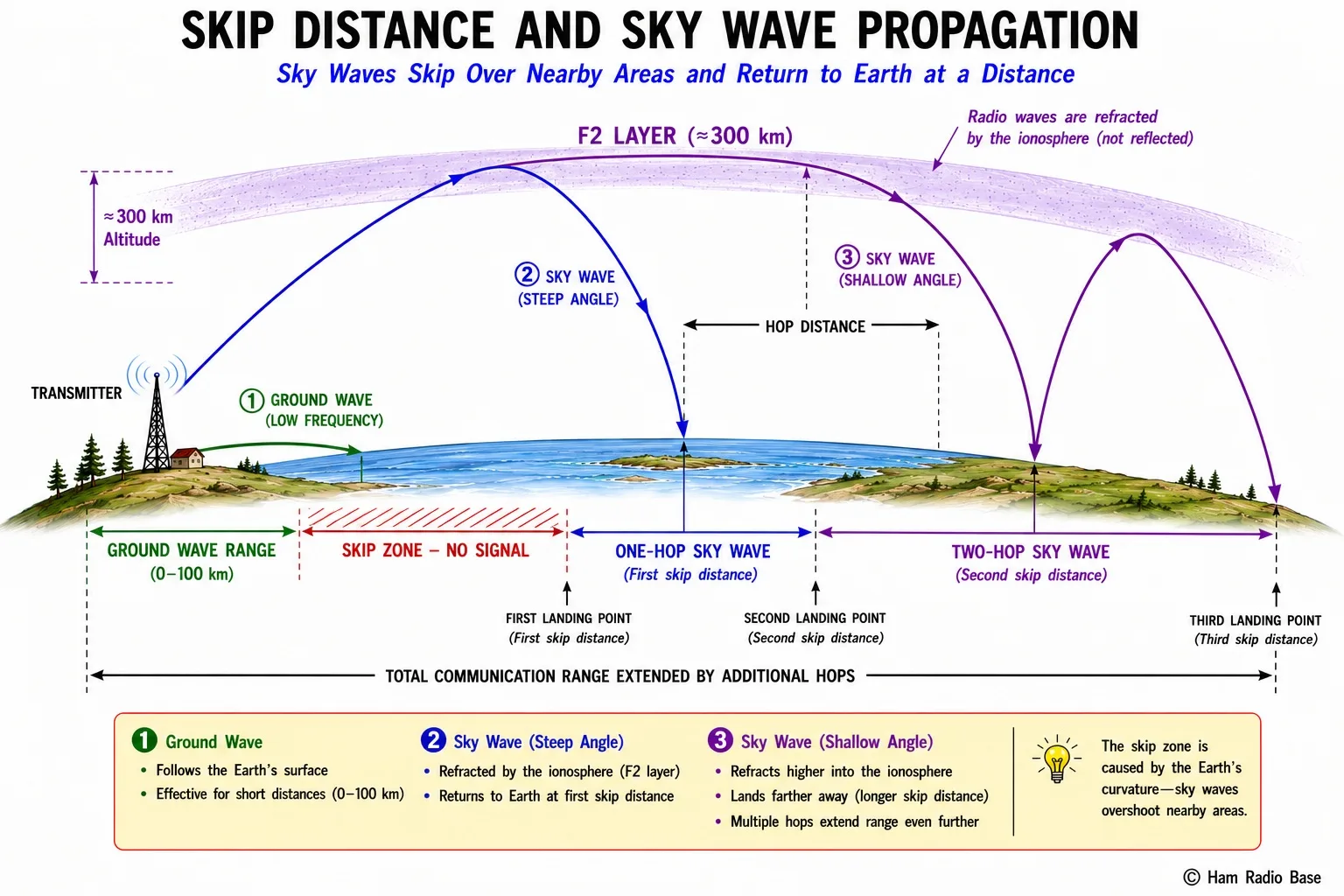

The skip zone is the dead area between where the ground wave fades and where the one-hop sky wave first lands. Multi-hop propagation extends the range further but also creates intermediate skip zones between hop landing points.

View Larger

The Skip Zone Explained

Every HF transmitter actually produces two types of signals radiating outward. The ground wave travels along the surface of the Earth and provides reliable communication out to distances of a few hundred kilometers, depending on frequency and terrain. Below 2 MHz, ground wave can reach 1,000 km or more — this is why the AM broadcast band (550–1700 kHz) provides wide regional coverage during daylight. At 14 MHz (20 meters), ground wave is essentially gone within 50–100 km.

The sky wave travels upward into the ionosphere, gets bent back by the F or E layer, and lands at a distance determined by the geometry of the path. The key point is that the sky wave cannot land nearby — the geometry of the reflection means it always lands beyond a minimum distance. The area between where the ground wave ends and where the sky wave first lands is the skip zone.

In the skip zone, you can hear neither the ground wave (which has faded) nor the sky wave (which has not landed yet). If you are operating in the skip zone of a distant station, you will hear nothing from them at all, no matter how strong their signal is at farther distances. This is not a malfunction — it is fundamental ionospheric geometry. You can increase power all you want; if the geometry does not work, more power does not help.

The skip zone is not always a complete dead zone. At certain frequencies and times, near-vertical incidence skywave (NVIS) propagation can fill the skip zone by sending signals nearly straight up at the F2 layer and getting them reflected straight back down, covering distances from about 30 km out to 1,000 km. NVIS is specifically used for regional communication in the 3–10 MHz range by military and emergency services who need to cover the skip zone.

Skip Distance Geometry

The skip distance can be estimated geometrically. The key variables are the effective height of the reflecting layer and the take-off angle of the antenna. For a simple flat-Earth approximation that is accurate enough for practical purposes:

This formula tells you something important immediately: the lower the antenna take-off angle, the longer the skip distance. A very low-angle signal (5 degrees) will produce a skip distance roughly 10 times larger than a 45-degree signal. This is why low-angle antennas are prized for DX work. They put your signals further away on the first hop, skipping over the nearby clutter and landing in the DX target area.

Conversely, if you are running an NVIS setup for regional communication (covering 200–800 km), you want a high-angle signal — 60 to 90 degrees — which produces a very short hop, landing close to the transmitter. NVIS antennas are specifically designed to produce high-angle radiation: a horizontal dipole at 0.1 to 0.2 wavelengths above ground works very well for this.

One-Hop and Multi-Hop Propagation

The Earth is spherical, and a one-hop sky-wave path can only cover a limited maximum distance. For F2-layer propagation at typical heights of 300–400 km, the maximum single-hop distance is approximately 4,000–4,500 km. Beyond that distance, the signal must bounce off the Earth's surface and be reflected up again by the ionosphere — this is called multi-hop propagation.

In practice, a trans-Atlantic path of about 7,000 km typically uses two hops. A trans-Pacific path of 14,000 km uses three to five hops depending on the take-off angle. Each hop introduces additional losses — at each ground reflection, some signal is absorbed by the Earth, and at each ionospheric reflection, some signal is lost to imperfect reflection. Long-haul multi-hop paths can lose 20–30 dB relative to a theoretical single-hop path.

The intermediate ground reflection points in a multi-hop path also create intermediate skip zones. If a three-hop signal is passing over the Pacific, there are dead zones at the two intermediate reflection points. Anyone located at those reflection points would hear the signal at that frequency as if they were close by — sometimes described as a "back scatter" effect. Occasionally operators in these intermediate zones can hear signals that their skip geometry would not normally allow.

Multi-hop paths are also more vulnerable to disruption. If any one of the ionospheric reflection points passes into a region of disturbed ionosphere — a polar cap absorption event, a magnetic storm, or a region of very low electron density — the entire path can fail even though other hops in the chain are functioning normally. This explains why some DX paths seem to open and close unpredictably even when local conditions seem fine.

How Frequency Affects Skip Distance

Skip distance is not a property of frequency alone — it depends on the ionospheric conditions at the time. However, there are important relationships between frequency and skip distance that are consistent enough to guide band selection.

At a given time of day, higher frequencies tend to produce longer skip distances for a given take-off angle. This is because higher frequencies penetrate deeper into the ionosphere before being bent back, effectively using a virtual reflection height that is higher than the actual layer peak. The wave penetrates to where the electron density is just high enough to bend it back, and this point is near the top of the layer for frequencies just below the MUF.

A practical way to think about it: on 10m at solar maximum, you might need a 5-degree take-off angle to work Europe from the central United States because the high frequency requires that low angle for efficient reflection. On 40m at the same time, a 20-degree angle might reach the same target — the lower frequency reflects more easily at steeper angles, which means shorter skip distances and more flexibility in antenna height requirements.

The relationship between frequency and maximum skip distance is also important. For any given ionospheric state, there is a maximum usable distance for a single hop — beyond that, the angle would have to be so shallow that the wave goes above the MUF and passes through. This maximum single-hop distance increases with frequency (up to the MUF limit) and with layer height.

Skip Distances by Band

The minimum skip distance figures above represent the closest distance at which sky-wave propagation can work on each band under favorable (but not maximum) conditions. No sky-wave contact is possible within this minimum distance on that band — the geometry will not allow the necessary reflection angle. This is why you cannot work stations in the next state on 20m during the day but can work across the country easily.

Skip Distance Calculator

Use this calculator to estimate the skip distance for a given antenna take-off angle and ionospheric layer. Enter the take-off angle from the horizon and select the ionospheric layer to get the estimated one-hop skip distance.

Practical Band Selection Based on Skip Distance

Understanding skip distance directly drives band choice in everyday operating. Here are the most common scenarios where skip distance knowledge pays off immediately:

Regional Communication (200–800 km)

For contacts within your region — an adjacent state, a neighboring country — you need either ground wave or NVIS sky wave. Ground wave on 40m or 80m works up to a few hundred kilometers. For NVIS on 40m or 80m, a horizontal dipole at 30–50 feet (9–15 m) height produces a high take-off angle that covers the NVIS range well. During the day, 40m NVIS typically works well for 300–600 km contacts. At night, 80m NVIS can be excellent for this range. The skip distance on 20m and above is too long for this type of communication — you would be literally aiming over the target.

Continental Communication (1,000–4,000 km)

For cross-country contacts in the USA or Europe-to-Europe contacts, 20m is usually ideal during daytime. The minimum skip distance on 20m during daytime is typically 1,500–2,000 km, which covers the cross-country range cleanly. At night, 40m drops its minimum skip distance and can cover this range well. The 17m and 15m bands may also support this range during the day at moderate solar activity.

Intercontinental DX (5,000–15,000 km)

For trans-oceanic DX, you want maximum skip distance per hop to minimize the number of hops needed. Use the highest band that the MUF will support — typically 15m, 17m, or 20m depending on solar conditions. On a 10m opening at solar maximum, one or two hops can span trans-Pacific distances with remarkable ease. For very long paths (12,000+ km), low take-off angles (under 10 degrees) from both ends and the lowest possible number of hops give the best chance of success.
