Tropospheric Ducting — VHF and UHF Long-Distance Propagation

Under normal conditions, VHF and UHF signals travel in essentially straight lines — they go where you point them and stop at the horizon. A 2m (144 MHz) or 70cm (432 MHz) signal from a typical hilltop location might reach 100–200 km under normal conditions. But on certain days, usually in late summer or early autumn, 2m operators suddenly find themselves working stations 1,000 or even 2,000 km away with normal power levels and modest antennas. These operators are experiencing tropospheric ducting, one of the most dramatic propagation modes available to VHF and UHF operators.

The troposphere is the lowest layer of the atmosphere, extending from the ground to roughly 10–12 km altitude. It is the layer where weather happens — where clouds form, where rain falls, where temperature and humidity vary with altitude and geography. Under certain weather conditions, the troposphere can act like a waveguide, trapping VHF and UHF signals and guiding them along the surface of the Earth for hundreds or thousands of kilometers.

What you will learn in this lesson:
  • What the troposphere is and how it normally affects VHF/UHF signals
  • Temperature inversions and why they create radio ducts
  • The three main duct types: surface, elevated, and evaporation ducts
  • Which frequencies benefit from ducting (50 MHz to 10 GHz)
  • Typical duct distances and the record-breaking contacts they enable
  • Seasonal and geographic patterns for ducting
  • How to identify when ducting is occurring
  • Troposcatter vs. tropospheric ducting

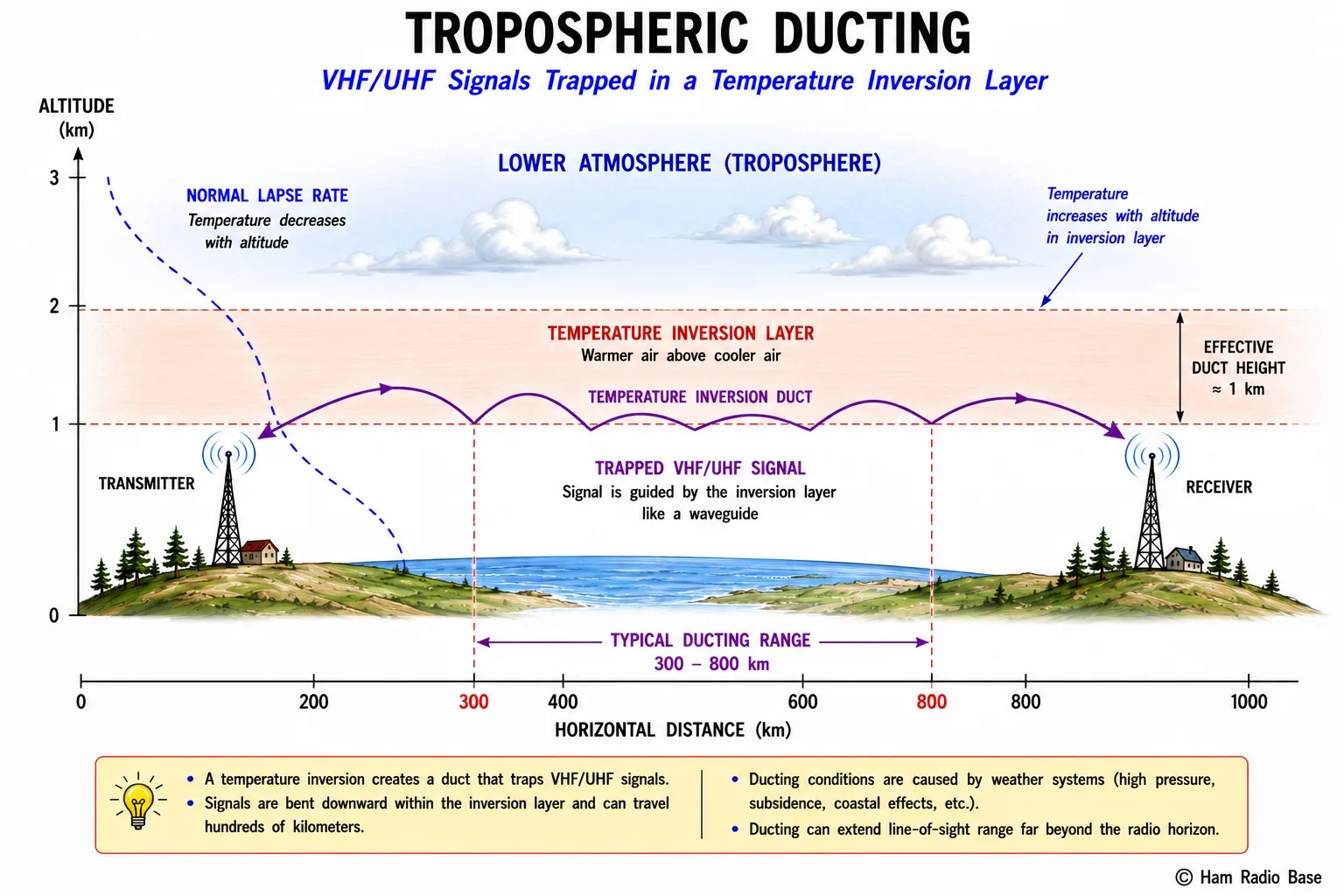

Cross-section of the lower atmosphere showing a temperature inversion layer trapping and guiding a VHF signal horizontally for hundreds of kilometers like a waveguide

A temperature inversion layer between warm air above and cooler air below creates a refractive index gradient that bends VHF signals downward, trapping them in a duct that can guide signals 300–1,000+ km.

View Larger

The Troposphere and Normal VHF Propagation

Under standard atmospheric conditions, the temperature of the air decreases as altitude increases — roughly 6.5°C per kilometer. This is called the standard lapse rate. The refractive index of air depends on temperature, pressure, and humidity — all of which change with altitude. Under standard lapse conditions, the refractive index decreases gradually with altitude, causing radio waves to bend slightly downward. This slight downward bending is why VHF and UHF radio horizons are about 15% further than the optical horizon — the signals curve with the Earth's surface slightly more than light does.

However, this normal refraction only extends the radio horizon by a modest amount. A 2m signal from a 30-meter (100-foot) antenna mast has a radio horizon of about 30–50 km to a similarly elevated station. Under standard conditions, contacts beyond 200–300 km on 2m or 70cm require mountain-top or hilltop locations, aircraft scatter, or satellite. The troposphere under normal conditions is effectively transparent to VHF and UHF, and signals spread outward in three dimensions, losing power according to the inverse square law.

Temperature Inversions

A temperature inversion is exactly what the name says: the normal temperature profile is inverted. Instead of getting cooler with altitude, the air becomes warmer. Warm air sits on top of cooler air, creating a stable, stratified atmosphere — the opposite of the convective mixing that produces clouds and weather. Temperature inversions happen regularly under certain conditions and can extend over very large geographic areas — thousands of square kilometers in some cases.

The physics of radio ducting in a temperature inversion comes down to refractive index. Warmer air is less dense than cooler air, and less dense air has a lower refractive index. In a temperature inversion, the refractive index drops sharply with altitude instead of gradually. This sharp gradient bends radio waves more strongly downward. If the gradient is sharp enough, it bends VHF and UHF waves downward faster than the Earth's surface curves away. The result is that the signal is continuously bent back toward the surface and is trapped in a layer near the ground. The signal cannot escape upward, and instead travels horizontally, guided by the inversion layer, just as light is guided in an optical fiber.

The analogy to a fiber optic cable is a good one. In a fiber, total internal reflection traps light because the core has a higher refractive index than the cladding. In a tropospheric duct, the gradient in refractive index traps the radio wave in the cooler, denser air layer below the inversion. The signal bounces back and forth between the ground (or sea surface) and the top of the inversion layer, propagating horizontally with much less spreading loss than in free space.

Modified Refractivity (M-units):
Ducting is predicted using the modified refractivity M. When dM/dh (the rate of change of M with height h) is negative — meaning M decreases with altitude — ducting is possible. The more negative the gradient, the stronger the duct. A gradient of −0.157 M-units/meter is the threshold for ducting. Maritime evaporation ducts over warm ocean water can produce gradients of −0.5 to −2 M-units/meter or more.

Types of Tropospheric Ducts

Surface Duct

A surface duct forms when the inversion layer is near the ground, with the bottom of the duct at the surface itself. This is the most useful type for amateur radio because signals can enter the duct from ground-level antennas and propagate for long distances. Surface ducts are common over flat terrain — plains, deserts, and especially over water — and can form when warm, dry air from the land moves out over a cooler sea or lake surface, or when radiation cooling on a clear night creates a temperature inversion near the ground.

Surface ducts can vary from a few hundred meters to several kilometers in height. The higher the duct, the lower the cutoff frequency — a 500-meter surface duct traps signals above approximately 500–600 MHz, while a 2-km surface duct can trap signals down to 144 MHz. This is why ducting on 2m requires relatively deep inversion layers, while 70cm and 23cm benefit from thinner ducts that are more commonly available.

Elevated Duct

An elevated duct forms when the inversion layer is at altitude — typically 1–3 km above the ground. In this case, signals that travel at a low angle from a ground-level antenna may enter the duct, propagate long distances within the elevated layer, and then exit the duct at a distant point, arriving at ground level. Elevated ducts can produce DX at ranges of 1,000–3,000 km and are common along coastlines where sea breezes create layers of warm moist air over cooler sea air.

The challenge with elevated ducts is coupling: a ground-based antenna at low elevation may not launch energy efficiently into an elevated duct. High-gain antennas aimed at the horizon work best. When a duct couples well, the signals can be surprisingly strong — signal reports of S9 on 2m SSB from 1,500 km away during a duct opening are not unheard of.

Evaporation Duct

An evaporation duct forms over warm ocean water as water evaporates rapidly from the sea surface, creating a layer of moist, warm air just above the water. As you rise above this moist layer, the humidity drops sharply, causing a rapid decrease in refractive index. Evaporation ducts are essentially permanent features over warm tropical and subtropical ocean regions — the Persian Gulf, the Red Sea, the Mediterranean in summer, and parts of the Pacific and Atlantic near the equator all exhibit essentially continuous evaporation ducts.

Evaporation ducts are typically only 10–40 meters high, which means they only trap frequencies above about 3–10 GHz. They are critically important for microwave links and radar over the ocean. For amateur radio, evaporation ducts over the Gulf of Mexico, the Caribbean, and the Mediterranean have enabled contacts on 10 GHz (3 cm) and higher bands over distances of hundreds of kilometers.

Which Frequencies Benefit from Ducting

Tropospheric ducting is primarily a VHF and UHF phenomenon. The general frequency range where ducting is most useful for amateur radio is 50 MHz to 10 GHz, with the sweet spots being:

Band Frequency Ducting Occurrence Typical Max Distance
6m 50 MHz Rare — requires very deep ducts or aided by other modes 500–800 km
2m 144 MHz Common during strong events; requires surface duct >500 m 1,500–2,500 km
70cm 432 MHz More frequent than 2m; works with shallower ducts 2,000–3,000 km
23cm 1,296 MHz Frequent; benefits from even moderate ducting conditions 2,000–4,000 km
13cm 2,320 MHz Very frequent; good ducting most nights in season 3,000+ km
3cm 10 GHz Excellent; evaporation ducts common; ocean paths outstanding 500–2,000 km (maritime)

Why does ducting work better at higher frequencies? The duct acts like a waveguide, and waveguides have a cutoff frequency — signals below the cutoff cannot propagate in the guide. For a given duct height, the cutoff frequency determines the lowest frequency that can be trapped. Higher frequency signals with shorter wavelengths fit more easily into shallow ducts. This is why 70cm ducting is more common than 2m ducting, even on the same day with the same inversion layer.

Typical Duct Distances and Record Contacts

Under ordinary surface duct conditions over land, 2m ducting contacts of 500–1,000 km are achievable several times per year in favorable geographic areas (flat coastal regions, Great Lakes, Gulf Coast). During the best duct events, 2m contacts of 1,500–2,000 km are possible. Over the ocean, where the duct is more uniform and there is no terrain to disrupt it, contacts of 3,000+ km have been made on 2m via ducting.

The European record for 2m (144 MHz) tropospheric ducting contacts exceeds 4,000 km — from Western Europe to the Middle East — achieved over the Mediterranean and across the flat terrain of the Middle East during summer anticyclonic conditions. In the United States, the Gulf of Mexico and the Caribbean provide excellent ducting paths, with contacts from Texas to Florida at 2,000+ km fairly common during summer.

Seasonal and Geographic Patterns

Tropospheric ducting is strongly seasonal in temperate regions, following the large-scale weather patterns that create anticyclonic (high pressure) conditions. High-pressure systems are associated with descending air, which warms as it descends (adiabatic warming), creating temperature inversions that can persist for days.

In Europe and North America, the best tropospheric ducting season is late summer to early autumn — roughly August through October. This is when the last of the summer heat creates strong anticyclones over the continent, and the contrast between warm continental air and cooler marine air over adjacent seas creates ideal ducting conditions. Spring (April–May) can also produce good ducting events, particularly over the Mediterranean in Europe and over the Gulf of Mexico in North America.

Geographic areas that are particularly prone to ducting include coastal zones, flat plains near large bodies of water (Great Lakes, Gulf Coast, North Sea coast of Europe), and the Mediterranean basin. Inland areas with significant elevation variation tend to disrupt ducts, which is why mountain regions often see fewer ducting events even when nearby coastal areas are experiencing strong openings.

Identifying Ducting Conditions

How do you know when a duct is forming? Several indicators are commonly used by experienced VHF operators:

Weather patterns: Strong, stationary anticyclones (high-pressure systems) are the primary precursor. Check the weather map — if a large, deep high is parked over a wide area with low wind speeds and clear skies, conditions are favorable for radiation cooling inversions at night and subsidence inversions during the day. The DX Atlas website and DXrobot tool overlay weather maps with VHF propagation probability estimates.

Beacon monitoring: Many amateur groups maintain permanent VHF/UHF beacons at fixed locations. When you start hearing beacons that are normally below the horizon, a duct is present. The IARU and national amateur radio societies maintain beacon frequency lists for 2m, 70cm, and other bands.

Cluster and spotting networks: DX clusters (DXSummit, DX Heat Map) show real-time reports of VHF contacts. When a sudden cluster of 2m or 70cm DX spots appears between certain geographic areas, it confirms an active duct between those areas.

FM broadcast band behavior: The FM broadcast band (87.5–108 MHz) is just below the 2m amateur band and exhibits similar tropospheric effects. If you hear multiple distant FM broadcast stations strongly on your car radio while traveling — stations from hundreds of miles away on frequencies normally used by local stations — a tropo duct is almost certainly present.

Hepburn ducting maps: The Hepburn index website provides daily forecasts and real-time maps of tropospheric ducting probability across Europe and parts of North America, based on radiosonde (weather balloon) data. This is the most widely used ducting prediction resource for European VHF/UHF operators.

Troposcatter vs. Tropospheric Ducting

These two propagation modes are often confused, but they are quite different. Troposcatter (tropospheric scatter) is a reliable, predictable mode that works continuously — it does not require any special atmospheric conditions. It exploits the fact that some fraction of any VHF or UHF signal is always scattered by turbulence and irregularities in the troposphere, and some of that scattered signal arrives at distances of 300–800 km. Troposcatter systems typically use very high-power transmitters (kilowatts), large directional antennas, and extremely sensitive receivers to make use of this very weak scattered signal. Military and commercial troposcatter systems provided reliable over-the-horizon communication before satellite links became widespread.

Tropospheric ducting, by contrast, is intermittent and unpredictable — it depends on specific weather conditions forming a duct. When a duct is present, signal levels can be much stronger than troposcatter — comparable to line-of-sight levels — over much greater distances. But the duct can disappear in minutes as the inversion breaks up.

Property Troposcatter Tropospheric Ducting
Reliability Continuous, predictable Intermittent, weather-dependent
Signal strength Weak — needs high power/gain Can be very strong — S9+ at DX distances
Distance 300–800 km typical 500–3,000+ km
Frequency range 100 MHz to 10 GHz 50 MHz to 10 GHz
Ham radio use Rarely — requires too much power Very common — significant DX mode

Frequently Asked Questions

Can tropospheric ducting affect HF bands?

Tropospheric ducting does not affect HF bands significantly. HF wavelengths are too long to be trapped in the thin inversion layers that form ducts. HF propagation depends on ionospheric refraction, which is a completely different mechanism. Tropospheric ducting is primarily a VHF/UHF mode, starting at about 50 MHz and being most effective above 144 MHz.

Will a Yagi antenna work better than an omni-directional antenna for ducting?

Yes, significantly. Ducting signals arrive from the horizon at very low elevation angles. A directional Yagi aimed at the horizon with the lowest possible take-off angle is ideal. Some operators specifically mount their Yagis to aim slightly below the horizontal when they expect ducting. An omni-directional vertical will work for receiving ducting signals from any direction but loses the gain advantage a Yagi provides.

How long does a tropospheric duct typically last?

This varies enormously. Brief duct events may last minutes to hours before the inversion breaks up due to solar heating or wind mixing. Extended events associated with persistent anticyclones can last several days. The best tropo openings in Europe often last 12–48 hours and allow operators to work many DX stations during the event. Over warm ocean areas, evaporation ducts can be essentially permanent for weeks during the season.

Is tropospheric ducting more common over the ocean or land?

Over the ocean, ducting tends to be more frequent and more consistent because the sea surface provides a stable, uniform lower boundary for the duct, and maritime air masses create ideal conditions for evaporation and temperature inversions. Over land, terrain disrupts ducts, and the daily heating cycle often breaks up inversions by mid-morning. This is why ocean-path VHF records far exceed over-land records at the same frequencies.

Do I need a special antenna or radio for ducting?

No special equipment is required — ducting works with standard 2m and 70cm equipment. A 2m all-mode radio (SSB/CW capable) and a horizontally polarized Yagi antenna aimed at the horizon gives you the best chance of working DX during a duct opening. SSB is the standard mode for 2m DX because it is more efficient than FM for weak signal work. If you only have an FM radio, you can still occasionally work ducting contacts if both stations happen to have FM capability, but SSB is strongly preferred for the weak signals at the fringes of a duct.
