Thermal Drift and Microphonics
The previous lesson introduced the causes of VFO frequency drift and gave an overview of component temperature effects. This lesson goes deeper into two specific instability mechanisms that every oscillator designer must understand and control: thermal drift, which causes the frequency to wander as components change temperature, and microphonics, which causes the frequency to modulate in response to acoustic vibration and mechanical shock. Both phenomena produce signals that sound and measure as frequency instability, but they have different physical causes and require different solutions.
- Thermal Drift — The Mathematics of Compensation
- Worked Example: Choosing a Compensating Capacitor
- Inductor Temperature Coefficient
- Calculating Total Oscillator Drift
- Microphonics — When Vibration Modulates the Frequency
- Sources of Microphonics in Radio Equipment
- Eliminating Microphonics
- Conformal Coating and Vibration Isolation
Thermal Drift — The Mathematics of Compensation
The frequency of an LC oscillator depends on both inductance L and capacitance C. Since f = 1/(2π√LC), the fractional frequency change due to fractional changes in L and C is:
Δf/f = −(1/2) × (ΔL/L + ΔC/C)
The minus sign means that increasing L or C decreases the frequency. The factor of 1/2 means that a 1% increase in C only decreases frequency by 0.5%.
Each component's fractional change with temperature is characterised by its temperature coefficient (TC), measured in ppm/°C. For a capacitor with TCC (temperature coefficient of capacitance) = αC ppm/°C, a temperature rise of ΔT degrees produces:
(where αC is in ppm/°C and ΔT is in °C)
For an inductor with TCL = αL ppm/°C:
The combined fractional frequency drift per degree Celsius is therefore:
TCF = −(1/2) × (αL + αCtotal)
where αCtotal is the effective temperature coefficient of the total tank capacitance (a weighted average of all capacitors in the tank).
If the tank contains capacitors with different temperature coefficients in parallel — say, C1 (NP0, α = 0 ppm/°C) and C2 (polystyrene, α = −150 ppm/°C) — the effective temperature coefficient of their parallel combination is:
This weighted average formula is the key to drift compensation: by choosing the right combination of capacitors with different temperature coefficients, you can make the effective αCtotal exactly cancel the inductor's αL, giving TCF = 0 — a perfectly drift-compensated oscillator.
Worked Example: Choosing a Compensating Capacitor
A 7 MHz Colpitts VFO uses an iron-powder toroidal inductor with TCL = +35 ppm/°C, and all NP0 (C0G) capacitors with αC = 0 ppm/°C. The total tank capacitance is 400 pF.
Step 1 — Calculate current TCF:
TCF = −(1/2) × (αL + αCtotal) = −(1/2) × (35 + 0) = −17.5 ppm/°C
The VFO drifts downward (negative TCF) by 17.5 ppm per °C. Over a 20°C warmup, that is:
Δf = 7,000,000 × 17.5 × 10-6 × 20 = 7,000,000 × 0.00035 = 2,450 Hz ≈ 2.45 kHz
Step 2 — Find required αCcomp to compensate:
We need TCF = 0:
0 = −(1/2) × (35 + αCtotal)
αCtotal = −35 ppm/°C
We need the effective total capacitance to have a TCC of −35 ppm/°C. Currently all 400 pF are NP0 at 0 ppm/°C. Add a compensating capacitor Ccomp with TCC = −750 ppm/°C (N750 ceramic):
Step 3 — Calculate required Ccomp:
Weighted average: (400 × 0 + Ccomp × (−750)) / (400 + Ccomp) = −35
−750 × Ccomp = −35 × (400 + Ccomp)
−750 Ccomp = −14,000 − 35 Ccomp
−715 Ccomp = −14,000
Ccomp = 14,000 / 715 = 19.6 pF
Result: Adding a 20 pF N750 capacitor in parallel with the tank reduces the total drift from −2.45 kHz to approximately zero over a 20°C temperature change. Use a standard value of 18 pF or 22 pF and adjust empirically.
New TCF check:
αCtotal = (400 × 0 + 20 × (−750)) / (400 + 20) = −15,000/420 = −35.7 ppm/°C
TCF = −(1/2) × (35 + (−35.7)) = −(1/2) × (−0.7) = +0.35 ppm/°C — essentially zero.

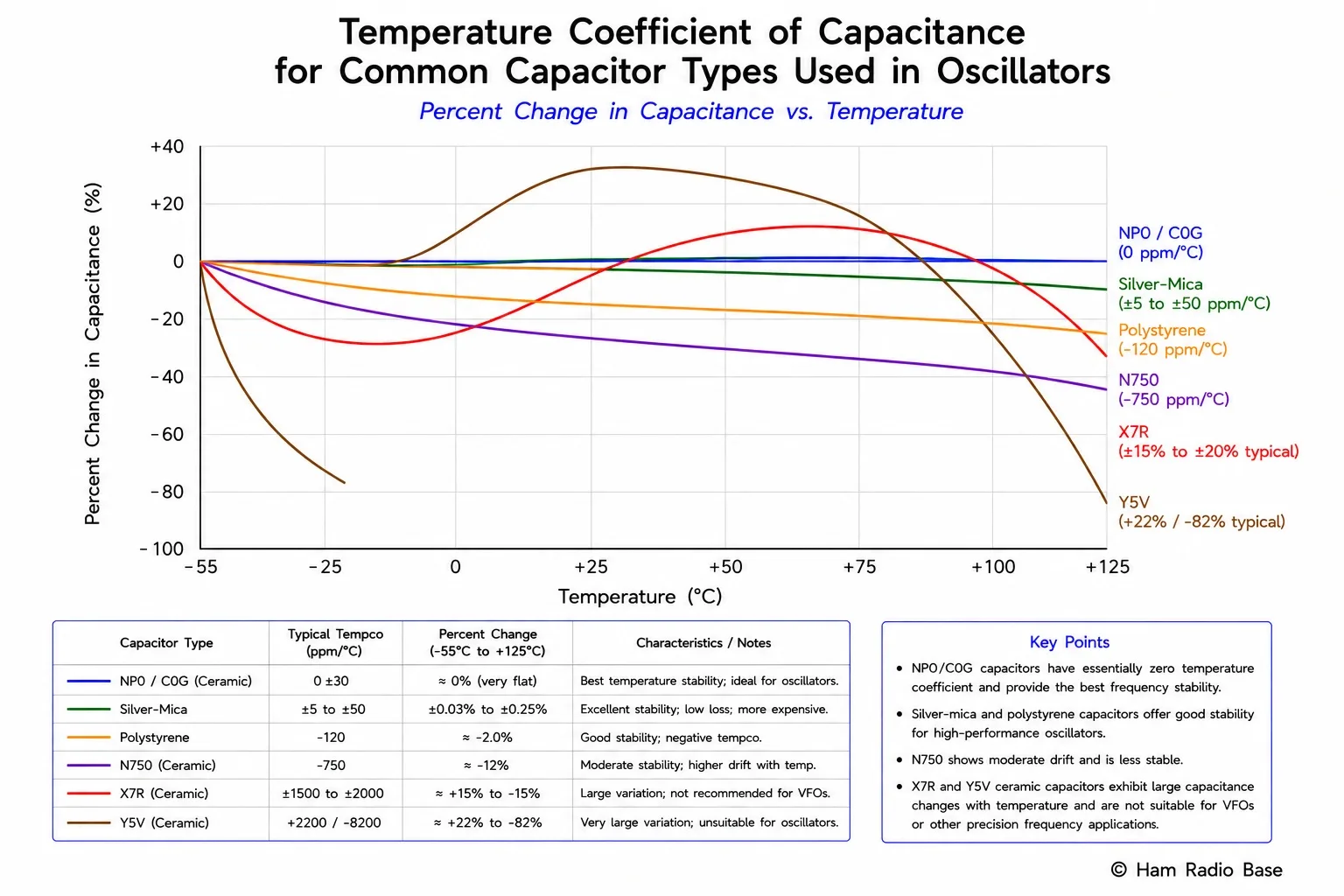

Temperature coefficient behaviour of capacitor types in an LC oscillator. NP0/C0G produces minimal drift. N750 provides controlled negative drift usable for compensation. X7R produces unpredictable, nonlinear drift — completely unsuitable for oscillator tanks. A compensated oscillator combining NP0 and N750 achieves near-zero total drift.
View LargerInductor Temperature Coefficient
The temperature coefficient of inductance depends primarily on the core material. The table below gives TCL values for common core types used in HF oscillators:
| Core Type | Mix / Material | TCL (ppm/°C) | Best Frequency Range |
|---|---|---|---|
| Iron powder T50-6 (red) | Mix 6 | +35 to +50 | 10–50 MHz |
| Iron powder T50-2 (red) | Mix 2 | +95 to +120 | 1–30 MHz |
| Iron powder T50-7 (white) | Mix 7 | +35 to +70 | 3–35 MHz |
| Ferrite 77 mix | NiZn | +400 to +700 (variable) | Low frequency applications |
| Air-wound coil on polystyrene | Air core | +20 to +40 (wire expansion) | 1–300 MHz (low-inductance values) |
| Air-wound coil on phenolic | Air core | +30 to +60 (former expands more than wire) | 1–100 MHz |
Iron-powder mix 6 (T50-6) has the lowest TCL of commonly available core materials, making it the preferred choice for HF VFO inductors requiring drift compensation with small amounts of N750 capacitor. The even lower natural TCL of air-wound coils wound on dimensionally-stable polystyrene formers is sometimes preferred, but polystyrene formers are difficult to obtain today.
Calculating Total Oscillator Drift
Plan: 14.2 MHz Hartley oscillator. L = 0.9 μH wound on T50-6 core (TCL = +40 ppm/°C). C = 140 pF total (100 pF NP0 variable + 40 pF NP0 padding). Expected temperature rise from cold to warm: 15°C.
TCF = −(1/2) × (TCL + TCCtotal)
= −(1/2) × (40 + 0) = −20 ppm/°C
Total drift over 15°C: Δf = 14,200,000 × 20 × 10-6 × 15 = 14,200,000 × 0.0003 = 4,260 Hz ≈ 4.3 kHz
To compensate: need αCtotal = −40 ppm/°C. Adding Ccomp with N750 (−750 ppm/°C):
Ccomp = (140 × 40) / (750 − 40) = 5,600 / 710 = 7.9 pF → use 8.2 pF N750
After adding 8.2 pF N750 in parallel:
αCeff = (140 × 0 + 8.2 × (−750)) / (148.2) = −6,150/148.2 = −41.5 ppm/°C
TCF = −(1/2) × (40 + (−41.5)) = +0.75 ppm/°C — nearly zero.
New drift over 15°C: 14,200,000 × 0.75 × 10-6 × 15 = 159.75 Hz — essentially negligible.
Microphonics — When Vibration Modulates the Frequency
Microphonics is the production of unwanted frequency or amplitude modulation of an oscillator in response to mechanical vibration or acoustic sound pressure. The name comes from "microphone effect" — the oscillator acts like a microphone, picking up mechanical signals and converting them to electrical frequency variations.
The mechanism is straightforward: any mechanical vibration that changes L or C in the tank circuit will change the resonant frequency. If the vibration is periodic — say, at 100 Hz from a nearby fan or AC transformer — the frequency modulation it produces appears as sidebands in the oscillator output at ±100 Hz from the carrier. If the vibration is random (such as from shock or handling), it produces random frequency bursts.
Microphonics is most audible when you transmit on SSB or CW: each time you speak, breathe, or move the table, the transmitted frequency wobbles slightly. Listeners hear this as a "wobbly" or "mushy" signal quality. In older valve (tube) radios, microphonics were particularly severe because the vacuum tube plates and grids were suspended on thin wires and could physically vibrate with acoustic sound — touching the cabinet produced an audible click or thump in the output.
The microphonics mechanism. Acoustic vibration physically moves the coil or capacitor plates, changing L or C by a small amount and producing a corresponding frequency modulation. Even tiny displacements of fractions of a millimetre cause measurable frequency shifts at RF.
View LargerSources of Microphonics in Radio Equipment
Understanding the most common sources of microphonics helps you target fixes effectively:
Tank inductor vibration: An air-wound coil has no mechanical rigidity other than its own wire stiffness. Sound pressure causes the coil form to flex, changing the turn spacing and therefore the inductance. A toroidal inductor wound on a ferrite or iron-powder core is more rigid but still susceptible if the winding is loose. Fix: pot the coil in epoxy or hot glue; use a rigid coil form; mount the coil on vibration-isolating foam.
Air-variable capacitor: The metal plates of a variable capacitor can resonate acoustically at audio frequencies. When the plates vibrate, the capacitance fluctuates, causing frequency modulation at the acoustic frequency. Fix: use a high-quality, rigid-construction capacitor; if the plates are thin, pot the capacitor housing; use gearing to reduce the effect of shaft vibration.
Electrolytic capacitors in the supply: Large electrolytics have a liquid electrolyte that can slosh under vibration. Changes in the electrolyte distribution change the capacitor's parasitic inductance and ESR. More importantly, if an electrolytic is in the tank (not recommended but sometimes seen in older designs), it is severely microphonic.
Transistor internal structure: Even the bond wires and die mounting in a transistor package vibrate when subjected to shock or strong acoustic stimulation. This changes the junction capacitances slightly. The effect is small but measurable in sensitive circuits.
PCB flex: A flexible PCB substrate can flex when squeezed or impacted, changing the parasitic capacitance between tracks. The oscillator sees this as a capacitance change. Fix: use a rigid PCB material (FR-4 or PTFE); mount the PCB securely to a metal chassis; avoid designs where the PCB must flex to fit the enclosure.
Long wire leads: Wire leads more than a centimetre long in a high-impedance point of the oscillator circuit act as antennas for both RF interference and acoustic vibration. Short, rigid leads — less than 5 mm where possible — minimise this.
Eliminating Microphonics
Several techniques are used in professional equipment and by experienced homebrew builders to reduce microphonics to inaudible levels:
Rigid mounting: Mount all oscillator components on a solid copper or brass chassis plate, not on a flexible board. Every component should be soldered directly with the shortest possible leads. There should be no mechanical play anywhere in the assembly.
Shock mounting the oscillator module: Float the entire oscillator assembly on soft rubber grommets inside the enclosure. This decouples the oscillator from chassis vibration caused by cooling fans, the power supply transformer, or external shocks.
Heavy enclosure: A thick aluminium or steel enclosure with no resonant panels provides acoustic isolation and damps vibration quickly. Thin sheet metal panels resonate at audio frequencies (this is why cheap enclosures produce a hollow ringing sound when tapped). Use 3 mm (1/8 inch) or thicker aluminium.
Potting and conformal coating: Completely surrounding the oscillator components in epoxy potting compound immobilises them against vibration. Every void where a component could move is filled. This is used in military and aerospace equipment. A lighter alternative is conformal coating — a thin lacquer or silicone applied over the PCB — which adds damping without the full mechanical constraint of potting.
Separate RF and audio sections: Physical separation of the oscillator from loudspeakers, audio amplifiers, cooling fans, and power transformers reduces the acoustic energy that reaches the oscillator. In a well-designed transceiver, the oscillator and final amplifier sections are in separate, shielded sub-enclosures within the main chassis.
Isolation amplifier: Even if the oscillator itself is microphonic, an isolation buffer amplifier with good supply bypassing can prevent supply-borne vibration (conducted through the chassis to the supply rails) from reaching the oscillator. Separate power supply regulation for the oscillator with good local bypass capacitors (10 μF electrolytic + 0.1 μF ceramic) reduces this path.
Conformal Coating and Vibration Isolation
Conformal coating is a clear protective coating applied over a completed PCB to prevent moisture ingress, corrosion, and vibration damage. Several materials are used:
| Coating Type | Vibration Damping | Moisture Protection | Application |
|---|---|---|---|
| Acrylic lacquer (IPA-based) | Moderate | Good | General purpose; easily removed with IPA solvent for repair |
| Silicone rubber coating | Excellent | Excellent | Best for vibration damping; stays flexible; harder to remove for repair |
| Polyurethane | Good | Very good | Hard, scratch-resistant surface; used in industrial environments |
| Epoxy potting | Maximum | Maximum | Military/aerospace; completely immobilises components; irreversible |
For amateur radio use, acrylic lacquer (available as aerosol spray cans) is the most practical choice. It protects against moisture in damp shack environments, provides some vibration damping, and can be removed with isopropyl alcohol (IPA) if you need to rework the circuit later. Apply two or three light coats, allowing each to dry completely. Avoid heavy build-up, which can trap components and make rework very difficult.
Do not coat variable components (capacitor trimmer screws, coil slugs, relay contacts) or heatsinks. Mask these with tape before applying coating and remove the tape before the coating sets.
Frequently Asked Questions
If I add a compensating capacitor, do I need to recalculate the frequency?
Yes. The compensating capacitor adds to the total tank capacitance and lowers the resonant frequency. After adding a compensating capacitor of value Ccomp pF, reduce the main tuning capacitor by the same amount Ccomp to restore the original frequency. In practice, measure the output frequency with a frequency counter after adding the compensating capacitor and retrim the main capacitor accordingly.
Can microphonics be a problem in receivers as well as transmitters?
Yes — and in receivers it can be more problematic because the local oscillator frequency directly determines what signal you are tuned to. Microphonics in a receiver LO cause the received signal to warble in pitch when you move the table, turn up the loudspeaker, or even breathe heavily. In regenerative receivers, which have very high Q and narrow bandwidth, microphonics are especially severe because the detector itself is operating near the point of oscillation and is extremely sensitive to any LC value change.
How do I tell the difference between microphonics and temperature drift when troubleshooting?
Drift is slow — it takes seconds to minutes to show up on a frequency counter. Microphonics are fast — you can produce them by tapping the cabinet, speaking near the equipment, or letting a fan start blowing. Tap the chassis while watching the frequency counter or listening to the audio. If the frequency jumps instantaneously with each tap, that is microphonics. If the frequency slowly changes over minutes as the equipment warms up, that is thermal drift. Many oscillators exhibit both — microphonics that can be reproduced immediately by tapping, plus a longer-term thermal drift.
Are modern synthesized transceivers immune to microphonics?
Mostly, but not entirely. A PLL-synthesized transceiver locks its VCO to a crystal reference, so slow thermal drift and long-term drift are eliminated. However, the VCO itself can still exhibit microphonics — a vibration that shifts its frequency by more than the PLL can correct within its loop bandwidth will appear as a brief frequency excursion before the loop corrects it. This is most noticeable with very wide-bandwidth PLLs or if the VCO is in a physically vulnerable location. DDS-based transceivers are virtually immune to microphonics because the frequency is determined entirely by a digital number — there is no LC tank to vibrate.
