Build a 160m Inverted-L Antenna
The 160m band — Top Band — is the most challenging and most rewarding band in amateur radio. A full quarter-wave vertical for 160m would be 130 feet tall, which is impractical for most stations. The inverted-L solves this by running part of the antenna wire vertically and the remainder horizontally — achieving electrical resonance at quarter-wave length while using only the available vertical height. Combined with a good radial system, an inverted-L on 160m produces genuine DX contacts and puts you on the most coveted band in the hobby.
The Geometry and Electrical Operation
The inverted-L is a top-loaded vertical antenna. The vertical wire section carries the current that produces low-angle radiation — the most valuable component for DX. The horizontal wire section at the top acts as capacitive top-loading, electrically extending the antenna to resonance at the quarter-wave frequency without additional vertical height.
The distribution of wire between vertical and horizontal sections affects the radiation pattern:
- More vertical wire: more current in the vertical section → lower radiation angle → better DX performance → lower feedpoint impedance
- More horizontal wire: some current in the horizontal section → slightly higher angle → feedpoint impedance rises toward 50Ω → easier to feed directly
- Optimal rule: maximize vertical wire — run as much wire vertically as your tallest support allows, then extend horizontally to reach the quarter-wave total length
Radial System — The Other Half of the Antenna
Like any vertical antenna, the inverted-L uses the ground (or a radial system) as the return current path. The quality of this ground system determines the antenna's efficiency more than any other single factor. On 160m, ground losses are particularly significant because:
- The radiation resistance at the base of a 160m quarter-wave vertical is only about 36Ω
- Ground loss resistance directly adds to this — even 10Ω of ground loss reduces efficiency to 78%
- Poor ground systems can have 50–100Ω of loss resistance, wasting most of the transmitter power as heat
- On 160m, radials should ideally be 123 feet long (quarter-wave) — much longer than practical for many lots
- Shorter radials still help — even 30-foot radials are better than none, especially if you have many of them
The minimum viable radial system for a 160m inverted-L: 16 radials of 60 feet each. The recommended system: 32 radials of 120 feet each. Every additional radial improves efficiency — adding radials over time is always worthwhile.
Complete materials for a 160m inverted-L with radial system
Choosing the Vertical Section Height
The vertical section height is determined by your tallest available support. The taller the vertical section, the better the DX performance. Common vertical section heights and their implications:
- 60 ft vertical: excellent — more than half the total wire is vertical. Feed impedance will be lower (~25Ω), requiring a matching network. Very good low-angle radiation.
- 50 ft vertical: good — standard for most installations. Feed impedance ~36Ω, close to natural vertical impedance. Manageable with angled radials or a simple L-network.
- 40 ft vertical: acceptable — slightly more horizontal wire needed. Feed impedance approaches 50Ω as more current flows in the horizontal section. May feed directly with coax.
- 30 ft vertical: marginal — the antenna still works but significant current flows in the horizontal section, raising the radiation angle. A tuner at the feedpoint is needed.
Practical supports for 50+ foot height: tall trees (the most common solution), telescoping commercial masts (40–60 ft available), military surplus masts, or an existing antenna tower.
Planning the Horizontal Section
The horizontal section runs from the top of the vertical support outward to a far anchor point. It should be as straight as possible and as high as practical for its entire run — wire close to the ground detuning effect is stronger at 160m.
- Horizontal section length = total wire − vertical section
- For 50 ft vertical at 1.900 MHz: horizontal = 123.2 − 50 = 73.2 ft
- The horizontal wire should be at least 15 feet above ground for its entire length
- Run the horizontal section away from the house and its electrical wiring if possible — routing toward the house brings the antenna into the zone of higher electrical noise
- A tree or pole at the far end supports the horizontal wire end — the wire should slope slightly downward from the vertical section top to the far support for mechanical stability
- The direction the horizontal section runs slightly affects the radiation pattern — it creates a modest directional bias toward the direction the horizontal wire points
Planning the Radial Field
The radial field is laid on or just below the surface of the ground, radiating outward from the antenna base. On a typical residential lot, the available area for radials is limited by property boundaries, structures, and landscaping. Plan the radial layout before installation:
- Mark the antenna base location on a property sketch
- Draw radial lines outward in all available directions — skip areas where radials cannot be laid (paved driveway, flower beds, neighboring property)
- Count available directions and estimate feasible radial lengths in each direction
- Radials that reach property boundaries can be bent at the boundary — a bent radial is better than a short radial
- The goal is to cover as much of the ground area within 120 feet of the base as possible with conducting wire
- Prioritize more radials over longer radials up to about 60 feet — beyond 60 feet each additional foot of radial length contributes diminishing returns
Feed Impedance and Matching
The feedpoint impedance of a 160m inverted-L depends on the ratio of vertical to horizontal wire and the quality of the ground system. Measuring the actual impedance with a NanoVNA after installation is essential — the formula gives estimates but real-world values vary significantly.
Matching options:
- Angled radials: slope radials downward at 30–45° to raise impedance toward 50Ω — works well if the antenna base is elevated
- L-network at base: a simple shunt inductor or shunt capacitor at the feedpoint transforms impedance to 50Ω — most reliable approach for ground-mounted antennas
- Remote ATU: a weatherproof remote antenna tuner at the base handles any impedance — the most flexible option
- Direct feed with transceiver ATU: if the impedance is within 25–75Ω, the radio's internal ATU handles the match — the simplest approach if SWR is acceptable

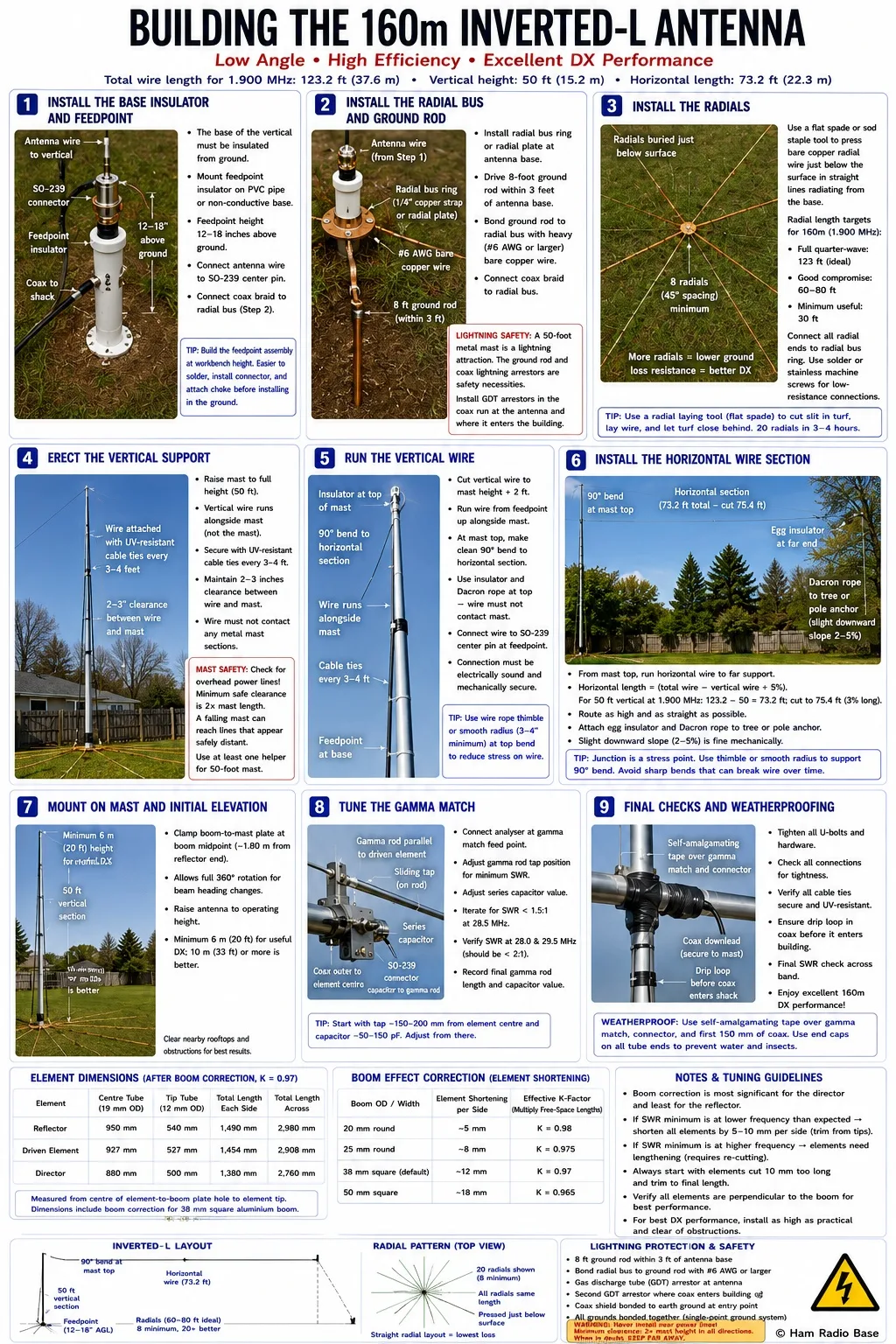

Representative of a Finished 160m Inverted L Antenna
Building the 160m Inverted-L
A full-day project — allow morning for the radial installation and afternoon for raising the vertical and horizontal sections. Have a helper available for raising the mast.
Install the Base Insulator and Feedpoint
The base of the vertical section must be insulated from the ground — this is fundamental to the vertical antenna's operation. The feedpoint is at the bottom of the vertical wire, above the ground. Mount a heavy-duty feedpoint insulator (polycarbonate or PTFE rod standoff) on a non-conductive base or on a short section of PVC pipe driven into the ground. The feedpoint should be 12–18 inches above ground level — this keeps the coax connector and connections accessible and clear of ground moisture while the radial connections are made at or just below the feedpoint.
Install the Radial Bus and Ground Rod
Install the radial bus ring or radial plate at the antenna base — this is the conductor that all radial wires connect to and that connects to the coax braid at the feedpoint. Use a 1/4" thick copper strap bent into a ring around the base, or a commercial radial plate. Drive an 8-foot ground rod within 3 feet of the antenna base and bond it to the radial bus with heavy (#6 AWG or larger) bare copper wire. This ground rod provides the lightning discharge path and bonds the radial system to earth.
Install the Radials
This is the most time-consuming step and the most important for final antenna performance. Use a flat spade or sod staple tool to press bare copper radial wire just below the surface of the lawn in straight lines radiating from the base. Start with 8 radials evenly spaced (45° apart), then fill in with additional radials as time allows.
Radial length targets for 160m at 1.900 MHz:
- Full quarter-wave: 123 ft — ideal but requires large lot
- Good compromise: 60–80 ft — achievable on most suburban lots
- Minimum useful: 30 ft — better than nothing, clearly inferior to longer
Connect all radial ends at the antenna base to the radial bus ring. Solder each connection or use a stainless machine screw through the bus ring for each radial. The connections must be low-resistance — corroded or loose radial connections add to the ground loss resistance.
Erect the Vertical Support
Raise the vertical mast to its full height. For a push-up telescoping mast: extend sections from the base upward, securing each section with its clamp before extending the next. For a tree: use a throw weight and line to get a support rope over a branch at the target height, then haul up a pulley for future height adjustment.
The vertical wire is separate from the mast — it runs alongside or up the mast but is not the mast itself. Secure the wire to the mast with UV-resistant cable ties every 3–4 feet, leaving 2–3 inches of clearance between the wire and the mast structure. The wire must not make contact with any metal mast sections — contact would short the antenna to the mast.
Run the Vertical Wire
Cut the vertical section wire to the mast height plus 2 feet extra for the connection at the top. Run the wire from the feedpoint insulator up alongside the mast, securing with cable ties every 3–4 feet. At the top of the mast, the wire must make a clean 90° bend to the horizontal. Use a short length of Dacron rope and a small insulator at the top of the mast to hold the wire at the bend point — the wire should not contact the mast top hardware directly.
The wire runs from the base feedpoint upward along the mast. At the feedpoint, the wire connects to the center conductor of the coax (via the SO-239) and is mechanically secured to the feedpoint insulator. The connection must be both electrically sound and mechanically secure — this connection carries the tension of the full wire length plus wind loading.
Install the Horizontal Wire Section
From the top of the mast, run the horizontal wire toward the far support anchor. Cut the horizontal section wire to (total wire − vertical wire + 5%). For a 50ft vertical at 1.900 MHz: horizontal = 123.2 − 50 = 73.2 ft; cut to 75.4 ft (3% long for trimming). The horizontal section should run as straight as possible and as high as terrain allows — route through trees or over fence posts to maintain height.
At the far end, attach an egg insulator with Dacron rope to a tree branch or pole anchor. The horizontal wire should slope gently downward from the mast top to the far anchor — a slight downward slope (2–5%) is fine mechanically and has minimal electrical effect.
Wind and Install the Current Choke
Install a double-core current choke at the antenna base. Stack two FT-240-31 cores and wind 8 turns of the feedline coax through both cores together — this doubles the choking impedance. At 1.9 MHz, a single FT-240-31 with 8 turns provides approximately 1,500Ω of choking impedance. Two stacked cores raises this to approximately 3,000Ω — providing excellent common-mode rejection at 160m where common-mode currents are particularly troublesome due to the long feedline runs typical of 160m installations.
Mount the choke immediately at the feedpoint — between the antenna wire connection and the coax run to the shack. Secure the choke in a weatherproof enclosure or wrap with self-amalgamating tape.
Initial Impedance Measurement
With all wire installed and radials connected, measure the feedpoint impedance with the NanoVNA. Sweep 1.7 to 2.1 MHz. Look for the resonant frequency — where the reactance (X) crosses zero on the Smith chart or where the SWR shows a minimum. Record R + jX at the resonant frequency and at 1.830 MHz and 1.900 MHz.
Typical readings after initial installation:
- Resonant frequency: probably 1.80–1.95 MHz (before trimming)
- R (resistance) at resonance: 30–60Ω depending on vertical section length and radial system
- X (reactance) at resonance: near 0Ω
- SWR at resonance: 1.0–2.0:1 depending on how close R is to 50Ω
Trim to Target Frequency
Trim the horizontal wire end to raise resonance to the target frequency. On 160m, each 4 inches trimmed from the horizontal section raises resonance by approximately 3–4 kHz. Calculate required trim:
Trim from the far end of the horizontal section. Lower the far end rope to access the wire end, cut, re-hang, and re-measure. The antenna does not need to come fully down for trimming — just lower the far support enough to reach the wire end.
Design and Install the Matching Network
Once resonance is confirmed at the target frequency, measure the feedpoint resistance (R). Design or select the matching network based on this measured value:
If R is 40–65Ω: SWR is already below 1.6:1 into 50Ω — direct coax feed with the radio's internal ATU handles the match. No external matching network needed.
If R is 25–40Ω: A simple shunt inductor (hairpin match) at the feedpoint transforms the impedance to 50Ω. Wind 8–12 turns of #14 wire on a 1-inch PVC pipe former; connect across the feedpoint terminals. Adjust turns and tap for best SWR.
If R is below 25Ω or above 65Ω: An L-network (series inductor + shunt capacitor, or shunt inductor + series capacitor) provides the required transformation. Calculate values using the measured R and X values, or use a remote automatic ATU at the base.
Install Lightning Protection
A 50-foot mast in an open area is a significant lightning risk. Complete lightning protection requires three elements:
- Ground rod at antenna base: 8-foot copper-clad ground rod driven within 3 feet of the antenna base, bonded to the radial bus ring with #6 AWG copper
- Polyphaser or gas tube arrestor in the coax: mount immediately below the feedpoint assembly on the coax run. This provides a discharge path for lightning that strikes the antenna wire
- Second arrestor at shack entry: another polyphaser where the coax enters the building, bonded to the building ground
Disconnect the antenna from the radio during storms — a polyphaser provides protection against most lightning-induced surges but is not rated for a direct strike. When not operating, the coax should be disconnected and the antenna terminal grounded with a shorting cap or wire to the station ground.
Weatherproof, Document, and Verify
Apply two layers of self-amalgamating tape to all outdoor connections, working from below upward. Apply PVC electrical tape over the self-amalgamating tape for UV protection. Check annually — 160m installations are exposed to more weather cycles than most antennas due to the large physical structure.
Document the complete installation: vertical section length, horizontal section length, total wire length, number and length of radials, apex height, resonant frequency, measured R at resonance, matching network used and settings, and SWR after matching. Take photographs of the base assembly, the mast, the top bend, and the far support.
Use the Reverse Beacon Network to verify on-air performance. Transmit CW on 160m at approximately 1.900 MHz and check for spots. A well-installed 160m inverted-L with a good radial system and 100W should be spotted by RBN receivers within 500 miles during daytime and across the country or to other continents during nighttime winter openings.
Improving Performance Over Time
A 160m inverted-L is never truly "finished" — there are always meaningful improvements available. In rough order of impact per effort:
- Add more radials: the single most effective improvement. Going from 8 to 16 to 32 radials is clearly audible on receive and measurable in signal reports on transmit. Plan to add radials every few months until the system is saturated
- Lengthen existing radials: if you currently have many short radials, extending them to 60+ feet is the next priority
- Raise the vertical section: every foot of additional vertical height improves DX performance. A taller tree or mast extension is worth pursuing
- Add a dedicated receive antenna: a beverage antenna, K9AY loop, or EWE pointed toward the target DX region makes a dramatic difference in low-angle DX reception on 160m — often more impactful than transmit improvements
- Optimize the matching network: a well-matched antenna delivers more power to the air — re-measure impedance seasonally and adjust the matching network if it has drifted
160m Operating — When and How
Top Band has its own culture and operating patterns that differ from other HF bands. Understanding these helps you get the most from your new inverted-L:
- Best DX time: the hour before your local sunrise and the hour after the DX station's sunrise — the gray line passes over both stations. This is when 160m DX openings are most reliable
- Frequency conventions: CW DX operates around 1.830–1.840 MHz; SSB DX on 1.840–1.850 MHz; US SSB phone 1.840–2.000 MHz; FT8 at 1.840 MHz
- Low power threshold: 100W is adequate for domestic contacts and moderate DX. For intercontinental DX, 500–1500W with a very good antenna and radial system is typical
- Patience: 160m DX requires patience — openings are seasonal (best October through March), time-specific (sunrise/sunset), and propagation-dependent in ways that make 20m DX seem predictable by comparison
- CW advantage: CW contacts are significantly more achievable at QRP and moderate power levels on 160m than SSB — the 3 dB CW advantage is meaningful when signals are at the noise floor
- DX clusters: monitor the DX cluster for 160m spots — when a rare entity appears, the window is often short and you need to be on frequency quickly
| Symptom | Likely Cause | First Check | Solution |
|---|---|---|---|
| High SWR across full 160m band | Open or short at feedpoint | Ohmmeter: center to braid should be open | Check feedpoint connections; verify insulator is not shorted to ground |
| Resonance above 2.0 MHz | Total wire too short | Measure actual total wire length | Splice additional wire at horizontal section far end; re-tune |
| SWR minimum won't reach below 3:1 | Impedance mismatch; poor radial system | Measure R at resonance with NanoVNA | Add L-network or remote ATU at feedpoint; add more radials |
| Very high receive noise on 160m | Common-mode current; feedline noise | Check choke quality; is noise from radio direction? | Improve double-core choke; add ferrite at shack entry; consider separate receive antenna |
| Resonance shifts significantly with weather | Normal — ground moisture on 160m | Compare wet and dry conditions | Normal behavior; use remote ATU to compensate; document seasonal range |
| Wire breaks at vertical/horizontal bend | Wind fatigue at sharp bend | Inspect wire at mast top insulator | Replace with strain relief — use thimble and loop; gentle curve instead of sharp corner |
| Mast tilting or sinking | Inadequate base anchor; wind loading | Inspect mast base and guy wires | Concrete base; add guy wires at 60% and 90% of mast height; use screw anchors for guys |
| Good SWR but no contacts | Radial system losses; propagation timing | How many radials? Are you operating at the right time? | Add radials; operate within 1 hour of gray line; use CW or FT8 instead of SSB |
160m Inverted L Calculator
How does the inverted-L compare to a full quarter-wave vertical?
A full quarter-wave 160m vertical at 123 feet tall with a good radial system is a genuinely superior antenna to the inverted-L — it concentrates all its wire in the vertical orientation for maximum low-angle radiation. In practice, a full quarter-wave vertical is impractical for most amateur stations. The inverted-L with 50 feet of vertical and 73 feet horizontal performs within 2–3 dB of the full vertical for most DX paths — close enough that it is a very effective Top Band antenna despite the compromise. The key trade-off is the horizontal section's directional effect — the inverted-L slightly favors the direction the horizontal wire points.
How many radials do I really need to get on the air?
You can get on the air with as few as 4 radials, but performance will be noticeably poor. The practical minimum for a useful antenna is 8 radials of 60 feet each. This gives enough ground return current path to reduce loss to an acceptable level for domestic contacts. For DX, 16 or more radials are strongly recommended. Plan to start with the minimum needed to get on the air and add radials steadily over the following months — every additional radial improves performance, and the improvement from going from 8 to 16 radials is clearly audible in signal reports.
Can I work DX with a 160m inverted-L at 100W?
Yes — European stations are regularly worked from North America on 160m at 100W with a decent inverted-L and good radial system, particularly during the winter months around the gray line. Transcontinental contacts (US to Europe or Japan) at 100W are achievable but require good conditions, good timing, and a well-built antenna. The operators who work the most 160m DX at 100W are those with the most radials, the most vertical wire, and the most patience to be on the band at exactly the right time. With 500W or more, DX becomes significantly more accessible.
Does the direction the horizontal section points matter?
Somewhat — the horizontal section introduces a small directional bias in the radiation pattern, adding a modest amount of additional gain toward the direction the horizontal wire points and reducing gain in the opposite direction by perhaps 2–3 dB. This effect is real but modest. For most operators the practical consideration is to run the horizontal wire in any convenient direction given the property layout, and accept the slight pattern asymmetry. If you have a choice and a specific DX target (say, Europe), running the horizontal section toward that direction provides a small additional advantage.
Can the inverted-L also work on 80m?
Yes — a 160m inverted-L is approximately a half-wave on 80m (the 2nd harmonic). With a tuner or ATU at the base, the antenna loads well on 80m and provides a useful radiating system on that band. Feed impedance on 80m will be different from 160m and will require the ATU to re-match. The radial system also provides useful ground return on 80m. With a remote ATU at the base, the 160m inverted-L becomes a functional 2-band antenna. Some operators specifically design their 160m inverted-L to also work 80m by selecting wire lengths that give manageable impedances on both bands.
What is the best receive antenna to pair with the inverted-L?
The K9AY loop is the most popular dedicated receive antenna for 160m among operators who have limited space. Two K9AY loops at 90° to each other provide steerable directional receive coverage in any direction and dramatically reduce local noise. For operators with more space, a beverage antenna — a long wire (300–600 feet) laid close to the ground in the direction of the target DX — provides outstanding directional receive performance. Many serious Top Band operators consider a good receive antenna even more important than a good transmit antenna for working rare DX, because the limiting factor is often being able to hear the DX station calling.
